2BA5H-SRL006Laser Level

Foryourpersonalsafety,pleasereadthisinstructioncarefullybeforeusing theproductandkeepitproperlyforfuturereference. HIGH PRECISION LASER LEVEL laser level product instructions 2/3/5 high precision level 3D/4D level instrument Read all instruction s prior to op erating this Laser level too l Do not remove any labels fromtool. Do not stare directly at the laser beam,Class 2 laser product (520-635 nm). Do not set up laser tool at eye level or operate the tool near a reflective surface as the laser beam could be projected into your eye. Do not place the laser tool in a manner that may cause someone to unintentionally look into the laser beam. Serious eye injury may be caused. Do not operate the tool in explosive environments, i.e. in the presence of gases or flammable liquids. Keep the laser tool out of the reach of children and other untrained persons. Do not attempt to viewthe laser beamthroughoptical tools such as telescopes as serious eye injury may result. Always turn the laser tool off when not in use or left unattended for a period of time. Remove the batteries when storing the tool for an extended time (more than 2 months) Do not short any battery terminals. Do not plug in when us ing Alkaline batteries. Use the adapter that comes with the laser level ONLY. Pl ease fully charge the Li-ion battery regularly (at least once every one month is recommended) to maintain its long service life. Do not dispose batteries into fire. Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt to repair this tool, warranty will be void. BEFORE YOU START Unpack ing 1. Unpack all parts and lay themon a flat, stable surface. 2. Remove all pack ing materials and shipping devices if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or showdamagedo not use the product but contact your dealer. Using an incomplete or damaged product represents a hazard to people and property. 4. Ensure that you have all the accessories and tools needed for assembly and operation. This also includes suitable personal protective equipment. 2 1. ExampleUsage MostProfessionaltradesie.Floorers,Tilers,Electricians,Plumbers,Joinersetc.AndDIY’ers For:Wall&floortiling/electricalconduit&lighting/pipinginstallations/kitchen&bedroom unitinstallations/bookshelfinstallation/refurbishmentwork/studwall&partitioning&many others 2.FEATURES Extrabright,greenlaserlines Accuracy±1/25in@16ft/ ±1mm@5m(Vertical&HorizontalBeams) 1x360degreeshorizonal&2x360degreesverticalself-levelinggreenlaserbeams. (Independentlyswitcheable) Magneticallydampedpendulum;auto(self)levels Selflevelingrange:±3°(Instrumentwillautolevelonsurfacesupto3degreesoutoftruelevel) Out-of-levelindication(laserlinesflashon/offandbeepingasawarning) Manualslopelockfacilit y Basemountingthreads1/4",ISOstandard,multifixingmethod HighcapacityrechargeableLi-Ionbatterypack,twobatteriesincluded Worldwidemainscharger Continuoususebatterylife,approx.3.5hrswith3beams Pendulummechanismtransitlatchforsafetransportation oneyearWarranty. 3.SPECIFICATION Accuracy:±1/25in@16ft/±1mm@5m(Vertical&HorizontalBeams) CrossLineAngleAccuracy 90°±0.025°,±1/25in/10ft Selflevellingrange:±3degrees (Instrumentwillautolevelonsurfacesupto3degreesoutoftruelevel) Workingrange:Radius33-66ft Laserclass:2,≤1mWeachbeam Wavelength:532nm ThreadedHoleSizeforTripod:1/4” Powersupply:Li-ionbattery Operatingtime:3.5hourscontinuous Dust&Waterproof:IP54 Operatingtemperaturerang e:-10to+50degC 3 4.PACKINGLIST DescriptionQty Self-Leveling3x360°CrossLineLaserLevel1 InstructionManual1 Poweradapter1 Battery2 RemoteControl1 WallBracket1 Liftingtable1 PivotingBase1 Plasticcarryingcase1 VerticalLaserLineHorizontalLaserLineTilt/Manualmode 5.COMPONENTS 1/4” Moun�ng Thread Horizontal Lines Control Ver�cal Lines Control Tilt/Manual Mode Bubble Level Ba�ery Pack Power Switch /Pendulum Lock 4 Attachedonafinetunebase,turnthelaserlevelaroundat360degree,project linesatanyangle. RemoteControlforEasyOperation 1/4“ Moun�ng Thread 360° Fine Tune Pivo�ng Base Attachedonarotatingmagnetmountwithawallbracketoralifttable,thislaserlevelcan projecta360degreeverticalandhorizontallinesforpreciseandflexiblealignment. 5 Ver�cal Lines Control Horizontal Lines Control Tilt/Manual Mode H/+ V/- * FCC Warning Statement Changes or modifica�ons not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec�on against harmful interference in a residen�al installa�on. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc�ons, may cause harmful interference to radio communica�ons. However, there is no guarantee that interference will not occur in a par�cular installa�on. If this equipment does cause harmful interference to radio or television recep�on, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separa�on between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Opera�on is subject to the following two condi�ons: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired opera�on. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condi�on without restric�on. Attachedonarotatingmagneticmountwithawallbracketoralif…

Text truncated - open the document above for the full version.

Nantong sierli trading co., ltd 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Nantong sierli trading co., ltd Address: No.7 Xinjian East Street, Caojia Town Village, Hezuo Town, Qidong City, Nantong City, China Product Name: Laser Level FCCID: 2BA5H-SRL006 Model(s): SRL-006, SRL-007, SRL-008, SRL-009, SRL-010, SRL-0011 2.911(d)(5)(i) Equipment Type We, [Nantong sierli trading co., ltd] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Yang lingpeng Date: Jun. 25, 2023 Signature: Title and Company name: Manager/ Nantong sierli trading co., ltd NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Nantong sierli trading co., ltd 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Nantong sierli trading co., ltd Address: No.7 Xinjian East Street, Caojia Town Village, Hezuo Town, Qidong City, Nantong City, China Product Name: Laser Level FCCID: 2BA5H-SRL006 Model(s): SRL-006, SRL-007, SRL-008, SRL-009, SRL-010, SRL-0011 2.911(d)(5)(ii) Applicant filing We, [Nantong sierli trading co., ltd] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to §1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Yang lingpeng Date: Jun. 25, 2023 Signature: Title and Company name: Manager/ Nantong sierli trading co., ltd NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Nantong sierli trading co., ltd Agent Authorization Company: Nantong sierli trading co., ltd Address: No.7 Xinjian East Street, Caojia Town Village, Hezuo Town, Qidong City, Nantong City, China Product Name: Laser Level Model Number(s): SRL-006, SRL-007, SRL-008, SRL-009, SRL-010, SRL-0011 Product Description: Laser Level We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jun. 25, 2023 Name: Yang lingpeng Title: Manager Company: Nantong sierli trading co., ltd

Nantong sierli trading co., ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jun. 25, 2023 Subject; Request for Confidentiality FCC ID: 2BA5H-SRL006 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yang lingpeng Title: Manager

Nantong sierli trading co., ltd Model Difference Declaration To Whom It May Concern, We, Nantong sierli trading co., ltd (Laser Level); Trade Mark: N/A, Model Number: SRL-006, SRL-007, SRL-008, SRL-009, SRL-010, SRL-0011; All model’s the function, software and electric circuit are the same, only with model named different. Test sample model: SRL-006. Please contact me if you have any question. Signature: Date: Jun. 25, 2023 Name: Yang lingpeng Title: Manager

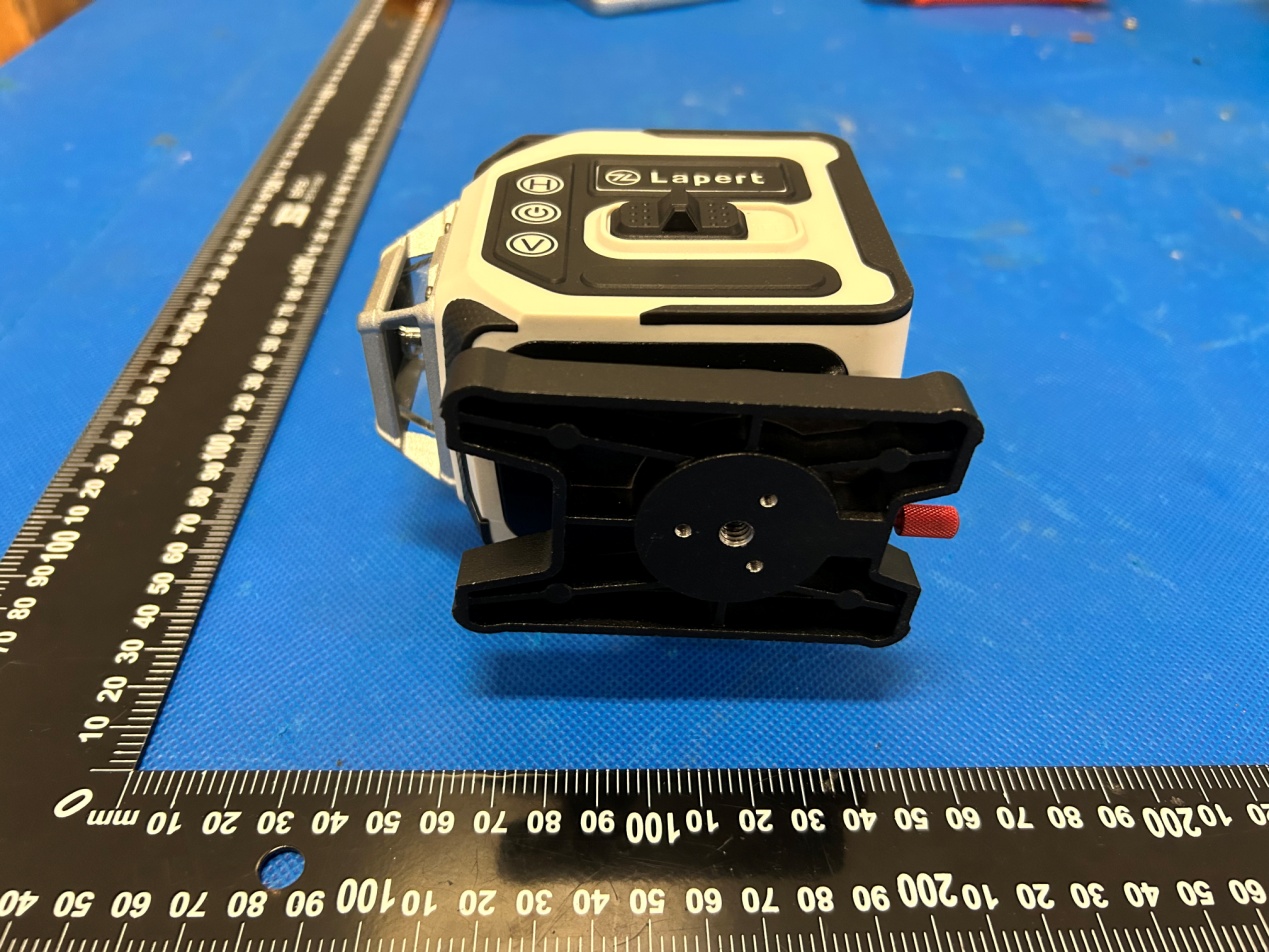

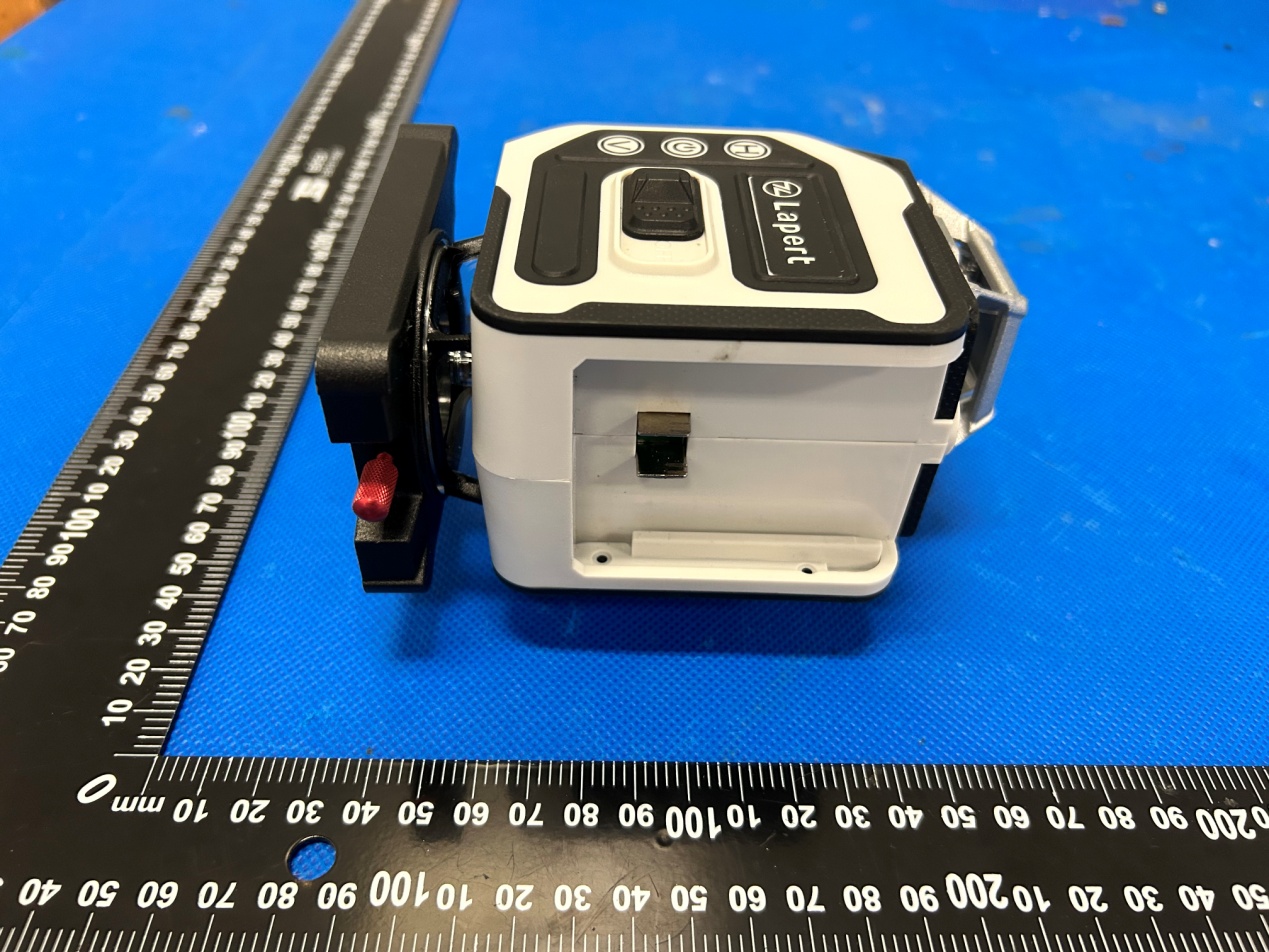

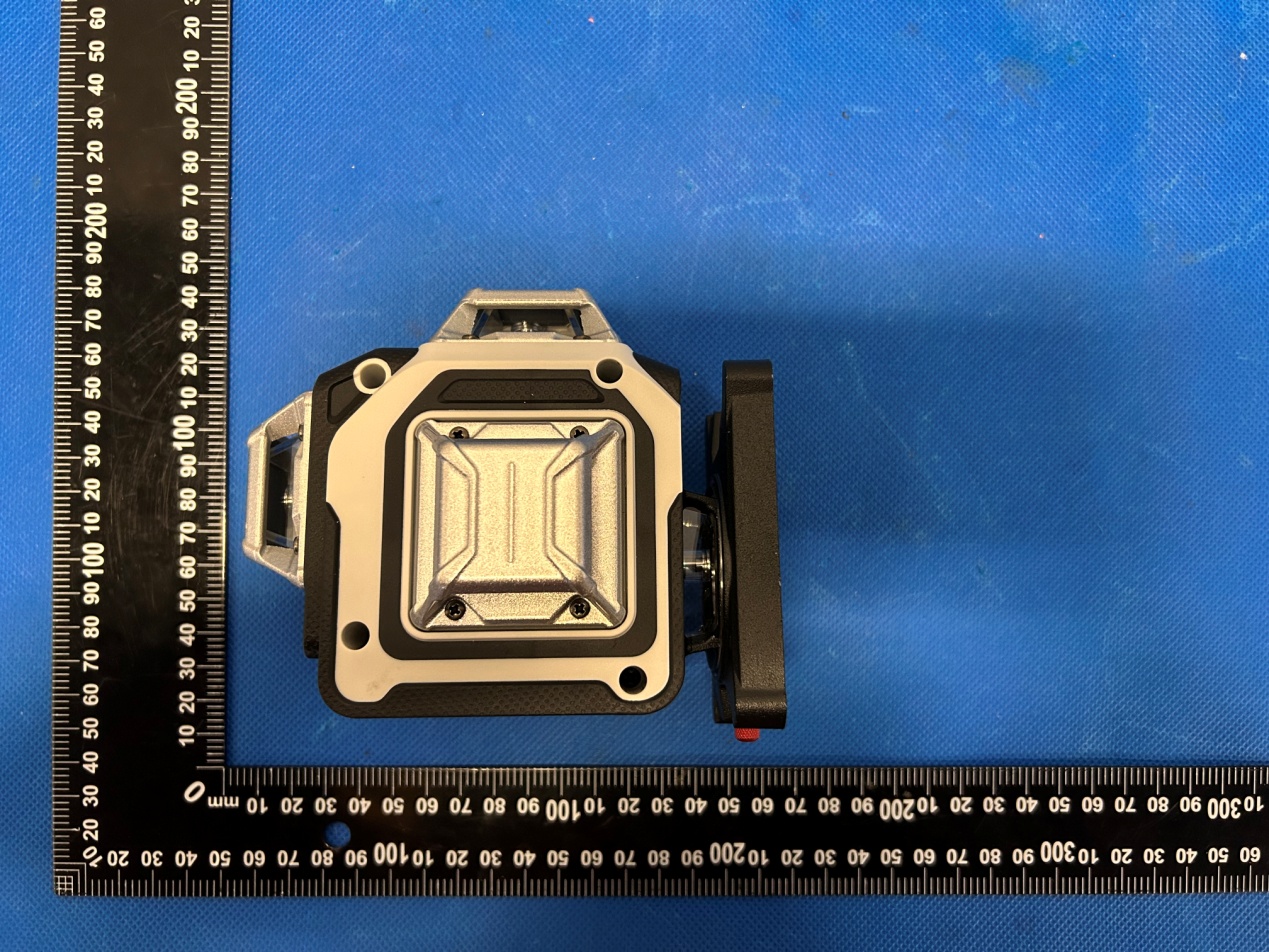

Annex A External Photos Report No.: HK2305051731‐E Page 1 of 4 Report No.: HK2305051731‐E Page 2 of 4 Report No.: HK2305051731‐E Page 3 of 4 Report No.: HK2305051731‐E Page 4 of 4

FCC ID LABEL: Ca: 10mm x 40mm Label Location FCC ID: 2BA5H-SRL006

Annex B Internal Photos Report No.: HK2305051731‐E Page 1 of 3 Antenna Report No.: HK2305051731‐E Page 2 of 3 Report No.: HK2305051731‐E Page 3 of 3

FCC RF Exposure Product Name: Laser Level FCCID: 2BA5H‐SRL006 Model(s): SRL‐006, SRL‐007, SRL‐008, SRL‐009, SRL‐010, SRL‐0011 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√ f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation Frequency (MHz) Output power （dBm） Tune Up Power （dBm） Max Tune Up power dBm/mW Min test separati on distance mm Result Limit (mW/cm 2 ) SAR Test Exclusion 2480 1.67 1±1 2/1.58 5 0.497 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2305051731‐E, antenna gain=0.64dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.497 which is<= 3, RF Exposure testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

HL-043 Bluetooth antenna specification 一、Antenna introduction The Bluetooth antenna is directly used on the PCB board. 二、Antenna configuration 三、Antenna parameter The Bluetooth antenna operates at 2402-2480 MHZ, and resonates in this band. The following table shows the main parameters of the antenna. Frequency(MHz) 2402 ~ 2480 MHz VSWR ≤ 1.92 Impedance50 Ohm Nominal Return Loss -10 dB Max RadiationOmni-directional Gain (Peak) Polarization 0.64dBi Linear, Vertical Admitted Power 2W ConnectorTin 四、Antenna gain detection report Spectrum Detector: PK Test Date : May 28, 2017 Test By: Andy Temperature : 28°C Test Result: PASS Humidity : 55 % Modulation:GFSK Frequency VNA (MHz) E Total. dB(dB) 2400MHz0.0403503 2410MHz0.0886264 2420MHz0.267381 2430MHz0.193012 2440MHz0.26366 2450MHz0.0723139 2460MHz0.36895 2470MHz0.551525 2480MHz0.640702 2490MHz1.05232 2500MHz1.08443 3 方向图： PHI 0 度 PHI 90 度 Product Description Huilan TECHNOLOGY(SHENZHEN)Co.,LTD. The EUT is a short range, lower power, Splash designed as a Device. It is designed by way of utilizing the GFSK modulation achieves the system operating. A major technical descriptions of EUT is described as following: A). Operation Frequency: 2402-2480MHz B). Modulation: GFSK C). Number of Channel: 40 D). Channel space: 2MHz E). RF Output power: 0.44dbm F). BIT Rate of Transmission: 1Mbps, 2Mbps, 3Mbps G). Antenna Type: PCB antenna H). Antenna GAIN: 0dBi

Page 1 of 43 Report No.: HK2305051731-E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of Nantong sierli trading co., ltd For Laser Level Model No.: SRL-006, SRL-007, SRL-008, SRL-009, SRL-010, SRL-0011 FCC ID: 2BA5H-SRL006 Prepared for : Nantong sierli trading co., ltd No.7 Xinjian East Street, Caojia Town Village, Hezuo Town, Qidong City, Nantong City, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Apr. 28, 2023 ~ May 12, 2023 Date of Report: May 12, 2023 Report Number: HK2305051731-E Page 2 of 43 Report No.: HK2305051731-E TEST RESULT CERTIFICATION Applicant’s name ................... : Nantong sierli trading co., ltd Address .................................... : No.7 Xinjian East Street, Caojia Town Village, Hezuo Town, Qidong City, Nantong City, China Manufacture's Name .............. : Nantong sierli trading co., ltd Address .................................... : No.7 Xinjian East Street, Caojia Town Village, Hezuo Town, Qidong City, Nantong City, China Product description Trade Mark: N/A Product name ............................. : Laser Level Model and/or type reference .. : SRL-006, SRL-007, SRL-008, SRL-009, SRL-010, SRL-0011 Standards ............................... : 47 CFR FCC Part 15 Subpart C 15.247, C63.10:2013, KDB 558074 D01 15.247 Meas Guidance v05r02 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................... : Date (s) of performance of tests ............... : Apr. 28, 2023 ~ May 12, 2023 Date of Issue .............................................. : May 12, 2023 Test Result .................................................. : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 43 Report No.: HK2305051731-E Contents Page CONTENTS .............................................................................................................................................................. 3 1 TEST SUMMARY ............................................................................................................................................ 6 1.1 TEST DESCRIPTION ...................................................................................................................................... 6 1.2 MEASUREMENT UNCERTAINTY ...................................................................................................................... 7 1.3 INFORMATION OF THE TEST LABORATORY .................................................................................................... 8 2 GENERAL INFORMATION ............................................................................................................................. 8 2.1 GENERAL DESCRIPTION OF EUT .................................................................................................................. 8 2.2 DESCRIPTION OF TEST CONDITIONS ............................................................................................................ 10 2.3 DESCRIPTION OF TEST SETUP ........................................................................................................... 11 3 EQUIPMENTS LIST FOR ALL TEST ITEMS ............................................................................................... 12 4 TEST RESULT .............................................................................................................................................. 14 4.1 ANTENNA REQUIREMENT ............................................................................................................................ 14 4.1.1 Standard requirement ...................................................................................................................... 14 4.1.2 EUT Antenna ................................................................................................................................... 14 4.2 CONDUCTION EMISSIONS MEASUREMENT ................................................................................................... 15 4.2.1 Applied procedures / Limit ............................................................................................................... 15 4.2.2 Test procedure ................................................................................................................................. 15 4.2.3 Test setup ........................................................................................................................................ 16 4.2.4 Test results ...................................................................................................................................... 17 4.3 RADIATED EMISSIONS MEASUREMENT ........................................................................................................ 18 4.3.1 Applied procedures / Limit ............................................................................................................... 18 4.3.2 Test setup ........................................................................................................................................ 18 4.3.3 Test Result ....................................................................................................................................... 20 4.4 MAXIMUM OUTPUT POWER MEASUREMENT ................................................................................................. 28 4.4.1 Limit ..................................................…

Text truncated - open the document above for the full version.

SRL-006 Radiated Emissions
