2BA5J-MINIPCMINI PC

Lithium-Ion Battery Warning CAUTION: Dange「of explosion if the battery is inco「「ectlyreplaced. Replace only with the same or equivalent type recommended by the manufactu「er. Dispose of used batteries according to the manufacturer's instructions. Specification Item Code Name CPU Memory Storage Wireless 1/0 Power System m.m. lpc Alder Lake-N Process DDR4 SSD DC-IN Jack FN 100/ FN305 Intel USB 3 0 GEN2 x2 USB 3.0 GEN1 N100,4Cores/4Threads,Max To 3.4Ghz N305,8Cores/8Threads,MaxTo 3.8Ghz Max support up to 32G DDR43200 M.2 2280PCIE/SATA 80211 a/b/g/n/ac/ax and Bluetooth x1 x2 HDMI x1 DP x1 T ype-C x1 LAN x2 Audio Jack x1 Reset x1 Power button x 1 DC 12V/3A Windows 11 / Linux This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a resid ential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement. To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20 cm between the radiator and your body, and fully supported by the operating and installation configurations of the transmitter and its antenna(s). FCC Statement FCC Statement 产品使用说明书 迷你主机 FN系列

C5266091_X24_Ed.2 1/1 “AttestationStatements” TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 TheCommissionadoptedrulesthatprohibitequipmentauthorizationfor“covered” telecommunicationsequipmentandvideosurveillanceequipmentproducedbyentitiesidentified ontheCommission’sCoveredList 1 ,whichisperiodicallyupdated.SeetheCoveredListformore details.ThisAttestationStatementistoconfirmthatwefollowtheSection2.911(d)(5)(i)-(ii) Applicant Companyname:ShenzhenHefengyiElectronicTechnologyCo.,Ltd Granteecode:2BA5J FCCID:2BA5J-MINIPC ContactName:FengZhou Address:512,HuananCityGlobalLogisticsCenter,PinghuStreet,LonggangDistrict,Shenzhen, GuangdongProvince,China TelephoneNo:+8615999623653 FaxNo:+8615999623653 Email:[email protected] i.ShenzhenHefengyiElectronicTechnologyCo.,Ltd(“theapplicant”)certifies thattheequipmentforwhichauthorizationissoughtisnot“covered” equipmentprohibitedfromreceivinganequipmentauthorizationpursuantto section2.903oftheFCCrules.Theapplicantmustsignthiscertification. ii.ShenzhenHefengyiElectronicTechnologyCo.,Ltd(“theapplicant”)certifies that,asofthedateofthefilingoftheapplication,theapplicantisnot(asa specificallynamedentityoranyofitssubsidiariesoraffiliates)identifiedon theCoveredListasanentityproducing“covered”equipment.Theapplicant mustsignthiscertification. i.ShenzhenHefengyiElectronicTechnologyCo.,Ltd(“theapplicant”)certifiesthat, asofthedateofthefilingofthe application,theapplicantisnotidentifiedontheCoveredList asanentityproducing“covered” equipment. Date:2023/05/30 Applicant’sName:FengZhou Title:Manager Signature 1 TheCommission’sCoveredListispublishedbythePublicSafetyandHomelandSecurityBureauandpostedonthe Commission’swebsite.ThisCoveredList,whichisperiodicallyupdated,identifiesparticularequipment,producedby particularentities,thatconstitutes“covered”equipment.https://www.fcc.gov/supplychain/coveredlist

C566091_X23_Ed2 1/1 USAgentforServiceofProcessLETTEROFATTESTATION TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USAgentforServiceofProcess: CompanyName:GSSSERVICEINC FRN:0033402082 ContactName:MichouxLogan Address:6547NAcademyBlvd#226ColoradoColoradoUnitedStates Telephone:001-949-2990192 Email:[email protected] ThisletteristoconfirmthattheUSAgentforServiceofProcessacceptsresponsibilitytoactas alocalrepresentativeonbehalfofShenzhenHefengyiElectronicTechnologyCo.,Ltd. TheUSAgentforServiceofProcessisawareofandagreestocomplywiththerequirements outlinedintheFCCEquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause §2.911. Applicant: Companyname:ShenzhenHefengyiElectronicTechnologyCo.,Ltd ProductDescription:MINIPC Granteecode:2BA5J FCCID:2BA5J-MINIPC ContactName:FengZhou Address:512,HuananCityGlobalLogisticsCenter,PinghuStreet,LonggangDistrict,Shenzhen, GuangdongProvince,China TelephoneNo:+8615999623653 Email:[email protected] TheApplicantisawareofandagreestocomplywiththerequirementsoutlinedintheFCC EquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause§2.911. Date:2023.05.30 Applicant’sName:FengZhou USAgent’sName:MichouxLogan Title:ManagerTitle:Manager SignatureSignature

ShenzhenHefengyiElectronicTechnologyCo., Ltd ProductSimilarityDeclaration Productname:MINIPC Modelname:FN100,FN305,FN60G,FA790,FA780,FA760, FNxxx,FAxxxNote:xxxindicatesthenumber0-9andthe26 lettersa-z FCCID/ISED:2BA5J-MINIPC We(ShenzhenHefengyiElectronicTechnologyCo.,Ltd)hereby statethatallthemodelsareelectricalidenticalincludingthesame softwareparameterandhardwaredesign(i.e.,circuitdesign,PCB Layout,RFmodule/circuit,antennatype(s)andantennalocation, componentsonPCB,etc.,),samemechanicalstructureand design(includingproductenclosure,materials,etc.,),theonly differenceisthemodelname. Demonstratethedetail(descriptionsandpictures)astothe differencelistabove. Signature: Name:FengZhou Title:Manager Place,date:512,HuananCityGlobalLogisticsCenter,PinghuStreet,LonggangDistrict, Shenzhen,GuangdongProvince,China 2023.05.30

C5266091_X8_Ed.1 1/1 LetterofAuthorization <ShenzhenHefengyiElectronicTechnologyCo.,Ltd> Company:ShenzhenHefengyiElectronicTechnologyCo.,Ltd ProductName:MINIPC ModelNumber:FN100,FN305,FN60G,FA790,FA780,FA760,FNxxx,FAxxx Note:xxxindicatesthenumber0-9andthe26lettersa-z FCCIdentifier:2BA5J-MINIPC WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:FengZhouDate:2023.05.30 Title:Manager Signatureofapplicant: Address:512,HuananCityGlobalLogisticsCenter,PinghuStreet,Longgang District,Shenzhen,GuangdongProvince,China

C5266091_X10_Ed.1 1/1 <ShenzhenHefengyiElectronicTechnologyCo.,Ltd> OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:2023.05.30 Subject:RequestforConfidentiality FCCID:2BA5J-MINIPC ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo BlockDiagram Schematics TestReportNoNo TestSetupPhotosNo User’sManual InternalPhotos PartsList/TuneUp RFExposureInfo OperationalDescription CoverLetter(s)NoNo SDRSoftware/SecurityInfoNo Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. Sincerely, Signature: Name:FengZhou Title:Manager

C5266091_X13_Ed.1 1/1 <Shenzhen Hefengyi Electronic Technology Co., Ltd> FCC Software Configuration Control Declaration Date: 2023.05.30 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product/ Model Number: FN100, FN305, FN60G, FA790, FA780, FA760, FNxxx, FAxxx Note: xxx indicates the number 0-9 and the 26 letters a-z Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Signature of applicant Name: Feng Zhou Title: Manager

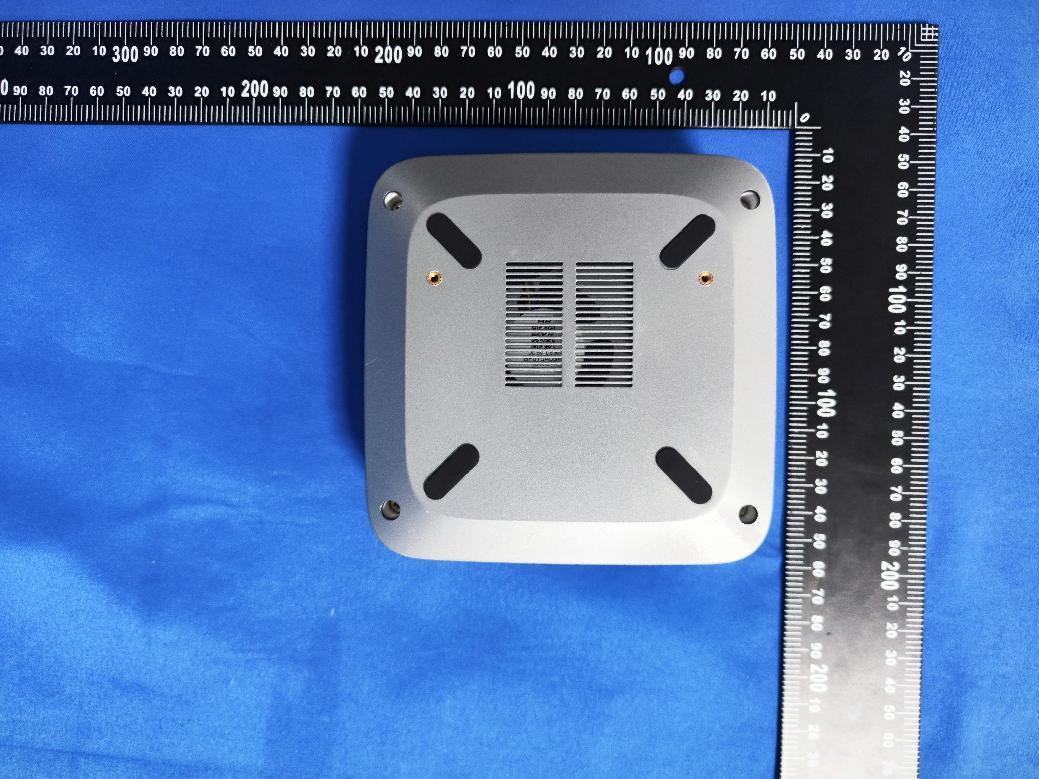

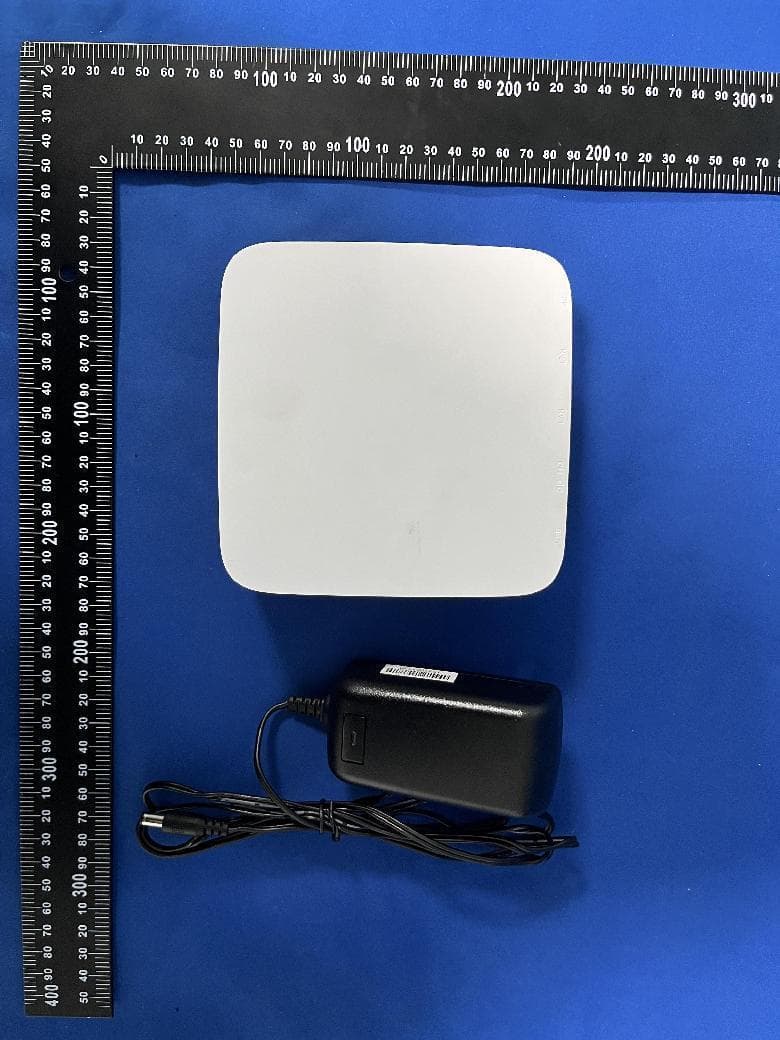

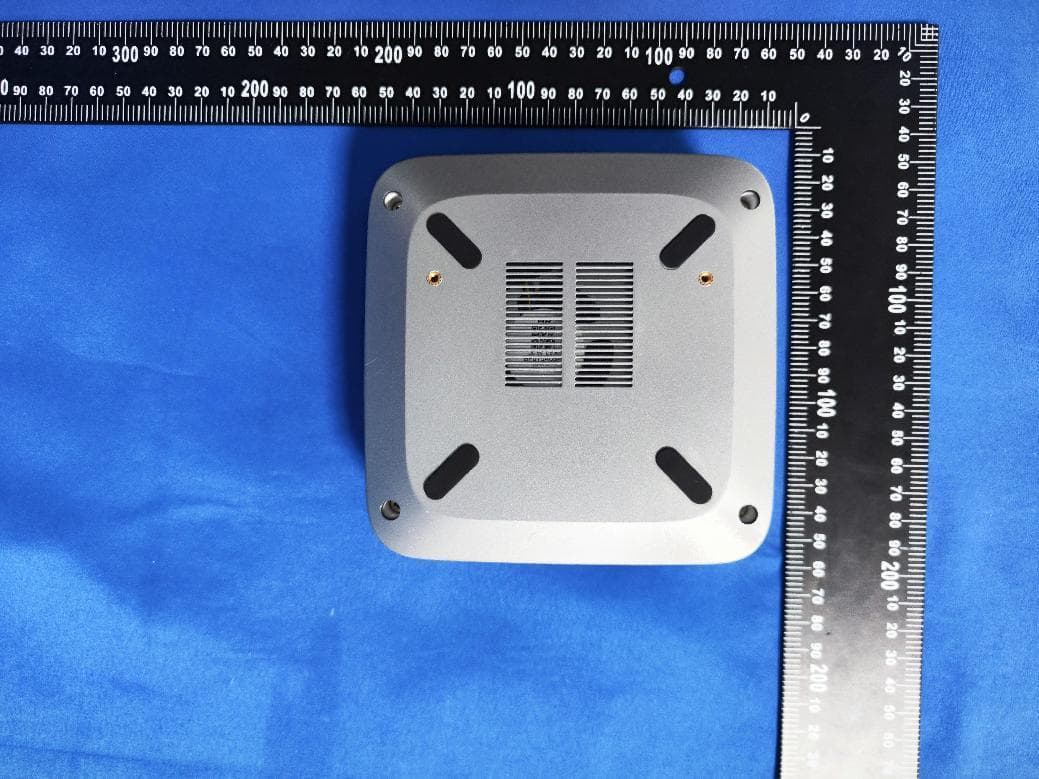

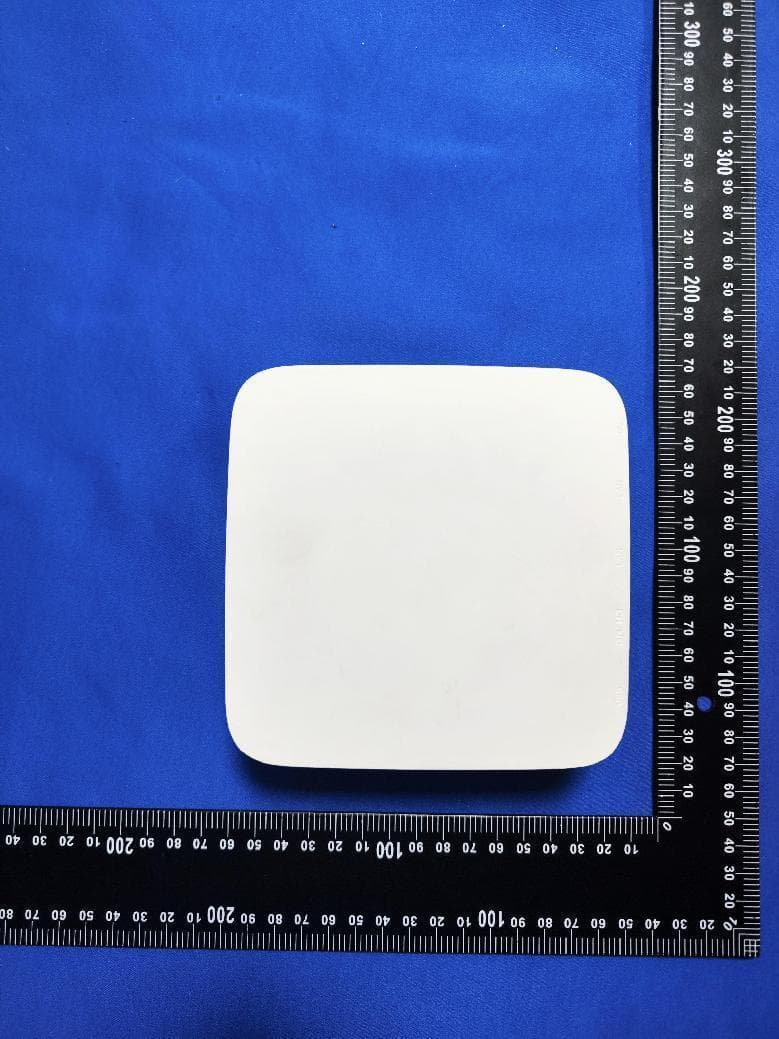

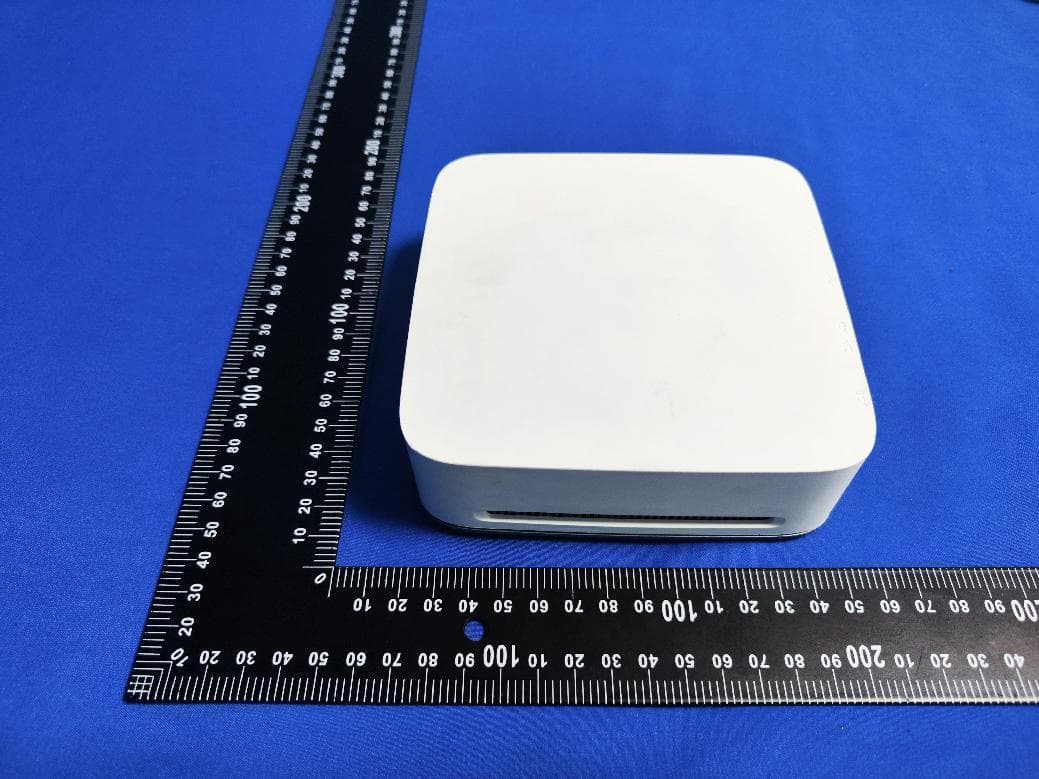

FCCID:2BA5J-MINIPC EUTPHOTOS(ExternalPhotos) FCCID:2BA5J-MINIPC FCCID:2BA5J-MINIPC FCCID:2BA5J-MINIPC FCCID:2BA5J-MINIPC

LabelandLabelLocation L*W:40*30mm Model:FN100 FCCID:2BA5J-MINIPC

FCCID:2BA5J-MINIPC RFExposureEvaluation Limits KDB447498D01V06Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironment impactofhumanexposuretoradiofrequency(RF)radiationasspecifiedin1.1307(b) LimitsforMaximumPermissibleExposure(MPE) Frequencyrange (MHz) Electricfield strength (V/m) Magneticfieldstrength (A/m) Powerdensity (mW/cm 2 ) Averagingtime (minutes) (A)LimitsforOccupational/ControlledExposures 0.3–3.06141.63*(100)6 3.0–301842/f4.89/f*(900/f 2 )6 30–30061.40.1631.06 300–1500f/3006 1500–100,00056 (B)LimitsforGeneralPopulation/UncontrolledExposure 0.3–1.346141.63*(100)30 1.34–30824/f2.19/f*(180/f 2 )30 30–30027.50.0730.230 300–1500f/150030 1500–100,0001.030 f=frequencyinMHz Friistransmissionformula:Pd=(Pout*G)/(4*pi*r 2 ) Where Pd=powerdensityinmW/cm 2 ,Pout=outputpowertoantennainmW; G=gainofantennainlinearscale,Pi=3.1416; R=distancebetweenobservationpointandcenteroftheradiatorincm PdidthelimitofMPE,1mW/cm 2 .Ifweknowthemaximumgainoftheantennaandthetotalpowerinputto theantenna,throughthecalculation,wewillknowthedistancerwheretheMPElimitisreached. TestProcedure SoftwareprovidedbyclientenabledtheEUTtotransmitandreceivedataatlowest,middleandhighest channelindividually. TestResultofRFExposureEvaluation BTmode Mode Frequency（MHz） Output powerto antenna (dBm) Output powerto antenna (mW) Power Densityat R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 8DPSK24804.552.851 0.0007 1.0PASS 2.4GWiFi Mode Frequency（MHz） Output powerto antenna (dBm) Output powerto antenna (mW) Power Densityat R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11b241214.6429.11 0.0068 1.0PASS 5GWi-Fimode ModeFrequency（MHz） Output powerto antenna (dBm) Output powerto antenna (mW) Power Densityat R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result ac40 (5180-5240MHz) 523013.5822.800.00851.0PASS a (5745-5825MHz) 58259.55 9.02 0.00341.0PASS ThedevicecouldsupporttransmissionwithWIFIandBTsimultaneously. PowerDensityatR=20cm(mW/cm2):0.0007+0.0085+0.0094+0.0034=0.0220〈1.0Limit(mW/cm2),Soa SARtestisnotrequired. Remark:BTantennagain=0.68dBi,Wi-Fiantennagain=2.75dBi
