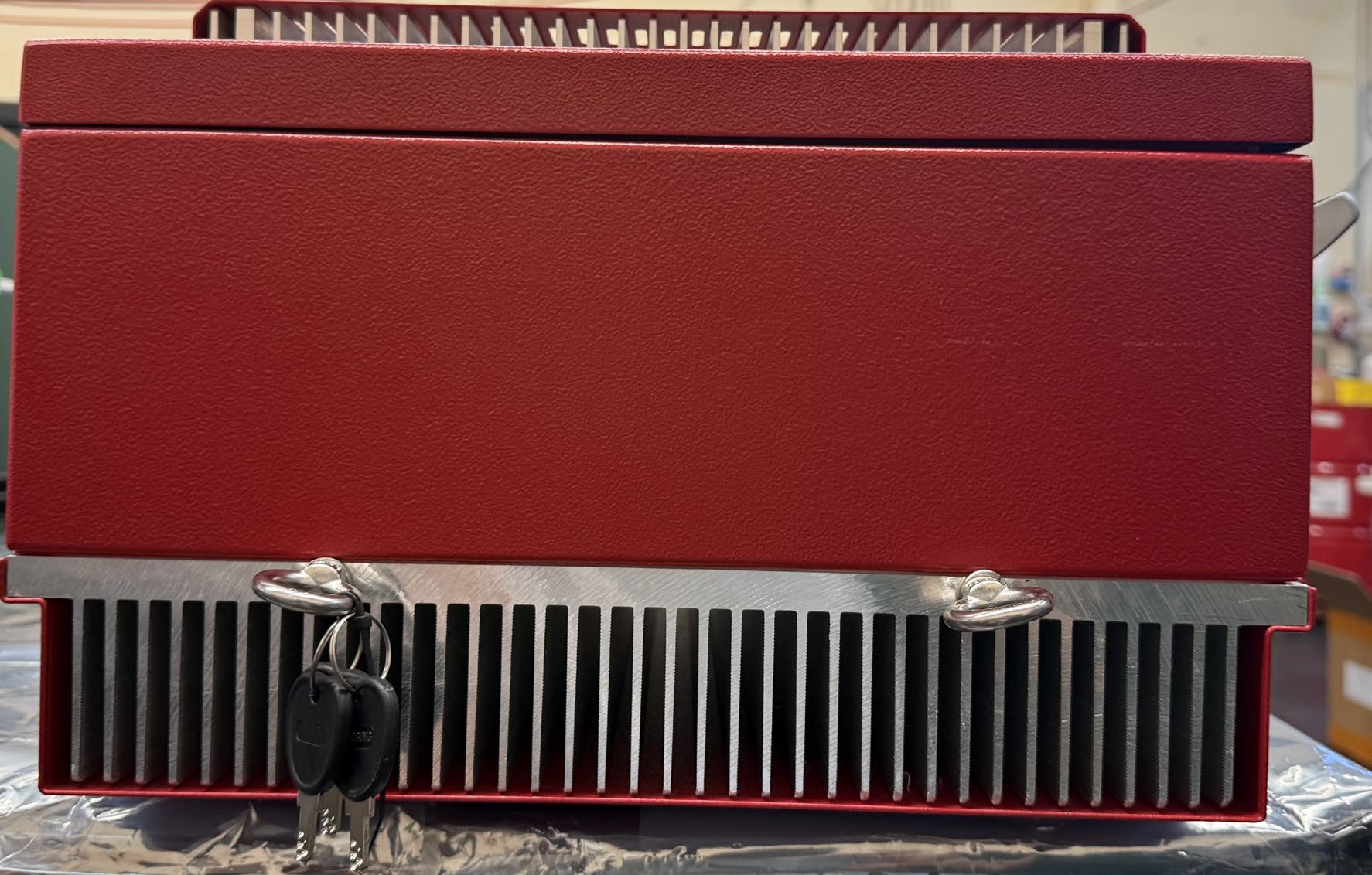

Unit External Photos RU40™ UHF Single-Band High Power Remote Unit FCCID: 2BA6ERU401PSH21A Date: August 8, 2025 Model No: RU40-1-PS-H-21-1N-D0-1 Avari Wireless, Inc. 1400 112th Ave SE, Ste 100 Bellevue, WA, USA 98004 http://www.Avariwireless.com © Copyright 2025 Avari Wireless. All Rights Reserved Avari Wireless RU40 UHF Unit External Photos Page 2 of 6 Remote Unit External Photos Figure 1: Front view Avari Wireless RU40 UHF Unit External Photos Page 3 of 6 Figure 2: Back view Avari Wireless RU40 UHF Unit External Photos Page 4 of 6 Figure 3: Side view Figure 4: Side view Figure 5: Connector panel view Avari Wireless RU40 UHF Unit External Photos Page 5 of 6 Figure 6: Top view Avari Wireless RU40 UHF Unit External Photos Page 6 of 6 Figure 7: Labels view

46.0 60.0 FONT: ARIAL, 5 POINT FONT: ARIAL BOLD, HEIGHT 5 POINT NOTES: FOR MORE INFORMATION REGARDING TEXT 1. PLACEMENT, A .dwg FILE IS AVAILABLE UPON REQUEST. MATERIAL: FASSON MIL POLYESTER TC/S730 2. FILM(0.05MM THICK) WITH S730 ADHESIVE. TOTAL LABEL P/N (TTMS 2" x 1.5") OR APPROVED MATERIAL BY AVARI. CUT TO DIMENSIONS SHOWN. BLACK TEXT FONT3. SEE REFERENCED DOCUMENTS FOR PRINTER/INK 4. USED DURING PROCESS REVISIONS REV.DESCRIPTIONAPPVDATE D C B A 8 7 6 5 4 3 2 1 7 4 2 6 3 1 5 8 D C B A 8 7 6 5 4 3 2 1 7 4 2 6 3 1 5 8 DO NOT SCALE DRAWING DIMENSIONS & TOLERANCING ARE TO BE INTERPRETED PER ASME Y14.5M-2009 AND APPLY TO FINISHED PART SURFACE FINISH = = X.XX = X. = PROJECTION - - Padmini Kutturu FINISH: DATE DATE DATE DATE SUPPLY CHAIN CHECKED MFG DRAWN BY DWG No. B Rev A4 REV SIZE SHEET: 1 OF 1SCALE: 4:1 X.X = Label,Warning,FCC,90.219 Class A Device - 0.50 0.25 0.10 0.5 MATL: 1.6 TITLE - D C B A DEBURR & BREAK SHARP UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN MILLIMETERS - TOLERANCES: THE INFORMATION CONTAINED HEREIN IS PROPRIETARY TO AVARI WIRELESS INC AND IS TO BE USED SOLELY FOR THE PURPOSE FOR WHICH IT IS SUPPLIED. IT SHALL NOT BE DISCLOSED IN WHOLE OR IN PART TO ANY OTHER PARTY WITHOUT AVARI PERMISSION. DATE CORNERS μm Q.A. 2023-07-13 440-00128 Avari Wireless, Inc. SEE NOTE 2

DETAIL A SCALE 2 : 5 Label location for AMU33,AMU37,RU33,RU37,RU40 REVISIONS REV.DESCRIPTIONDATEAPPROVED Eng 03Added RU402026-06-30Padmini Kutturu D C B A 8 7 6 5 4 3 2 1 7 4 2 6 3 1 5 8 D C B A 8 7 6 5 4 3 2 1 7 4 2 6 3 1 5 8 DO NOT SCALE DRAWING DIMENSIONS & TOLERANCING ARE TO BE INTERPRETED PER ASME Y14.5M-2009 AND APPLY TO FINISHED PART SURFACE FINISH = = X.XX = X. = PROJECTION - - Padmini Kutturu FINISH: DATE DATE DATE DATE SUPPLY CHAIN CHECKED MFG DRAWN BY DWG No. B Eng 03 REV SIZE SHEET: 1 OF 1SCALE: 1:5 X.X = Assy,Labels location,AH,Type 2 Enclosure,PS - 0.50 0.25 0.10 0.5 MATL: 1.6 TITLE - D C B A DEBURR & BREAK SHARP UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN MILLIMETERS - TOLERANCES: THE INFORMATION CONTAINED HEREIN IS PROPRIETARY TO AVARI WIRELESS INC AND IS TO BE USED SOLELY FOR THE PURPOSE FOR WHICH IT IS SUPPLIED. IT SHALL NOT BE DISCLOSED IN WHOLE OR IN PART TO ANY OTHER PARTY WITHOUT AVARI PERMISSION. DATE CORNERS μm Q.A. 2023-07-14 20-9111-38 Avari Wireless, Inc. -

Example: UNIT # YEAR/MONTH LOCATION MANUFACTUREDREVISION PART NUMBER 15 LEVEL # 46.0 60.0 FONT: LATO, BOLD BLACK 3mm HEIGHT FONT: LATO, BOLD ITALIC BLACK 3mm HEIGHT FONT: ARIAL MAX 1.5mm HEIGHT FONT: ARIAL MAX 1.5mm HEIGHT REFER TO EXTERNAL DOC FOR FCC ID FONT: ARIAL 1mm HEIGHT FONT: ARIAL MAX 1.5mm HEIGHT SEE MATRIX NOTES NOTES: FOR MORE INFORMATION REGARDING TEXT PLACEMENT, A .dwg FILE IS 1. AVAILABLE UPON REQUEST. MATERIAL: FASSON MIL POLYESTER TC/S730 FILM(0.05MM THICK) WITH S730 2. ADHESIVE. TOTAL LABEL (TTMS 2" x 1.5") OR APPROVED MATERIAL BY AVARI. BLACK TEXT FONT3. SEE REFERENCED DOCUMENTS FOR PRINTER/INK USED DURING PROCESS4. DATA MATRIX NOTES: THE 10 LEVEL DATA MATRIX CONTAINS 3 CHARACTER STRINGS SEPARATED BY 5. SEMI-COLONS EX. RU33-1-PS-H-10-1N-D0-002;10911103RA1B7A001;0000::0000:0000:0000:0000 FIRST CHARACTER STRING DENOTES MODEL NUMBER FOR THE RU37 REFER TO 6. ADDITIONAL DOCUMENTS FOR MODEL NUMBER CONFIGURATION. MODEL NUMBER IS ALSO PRINTED AT NOTED LOCATION SEDCOND CHARACTER STRING (10 LEVEL)7. CHARACTER 1-8: DENOTES THE PRODUCT PART NUMBER IN THE 10 LEVEL• CHARACTER 9-11: DENOTES REVISION NUMBER (EXX=ENG XX, RXX=REV XX)• CHARACTER 12: DENOTES THE LOCATION OF PRODUCTION• CHARACTER 13: YEAR = COUNTER STARTING FROM 2010 IN HEX. eg. 2016 = 6• CHARACTER 14: MONTH = CURRENT MONTH IN HEX Ex. OCTOBER = A• CHARACTER 15-17: 3 DIGIT HEX COUNTER eg. 1st UNIT =001, 10TH UNIT = 00A• THIRD CHARACTER STRING IS THE IPv6 ADDRESS. THIS IS ALSO PRINTED ON THE 8. LABEL 10911103RA1B7A001 REVISIONS REV.DESCRIPTIONDATEAPPROVED D C B A 8 7 6 5 4 3 2 1 7 4 2 6 3 1 5 8 D C B A 8 7 6 5 4 3 2 1 7 4 2 6 3 1 5 8 DO NOT SCALE DRAWING DIMENSIONS & TOLERANCING ARE TO BE INTERPRETED PER ASME Y14.5M-2009 AND APPLY TO FINISHED PART SURFACE FINISH = = X.XX = X. = PROJECTION - - Padmini Kutturu FINISH: DATE DATE DATE DATE SUPPLY CHAIN CHECKED MFG DRAWN BY DWG No. B Eng 01 REV SIZE SHEET: 1 OF 1SCALE: 2:1 X.X = Label,Model,RU40,10-9111-90 - 0.50 0.25 0.10 0.5 MATL: 1.6 TITLE - D C B A DEBURR & BREAK SHARP UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN MILLIMETERS - TOLERANCES: THE INFORMATION CONTAINED HEREIN IS PROPRIETARY TO AVARI WIRELESS INC AND IS TO BE USED SOLELY FOR THE PURPOSE FOR WHICH IT IS SUPPLIED. IT SHALL NOT BE DISCLOSED IN WHOLE OR IN PART TO ANY OTHER PARTY WITHOUT AVARI PERMISSION. DATE CORNERS μm Q.A. 2025-06-20 440-00235 Avari Wireless, Inc. -

Exposure Evaluation RU40™ UHF PS Single-Band High Power Remote Unit FCCID: 2BA6ERU401PSH21A Date: September 4, 2025 Avari Wireless, Inc. 1400 112th Ave SE, Ste 100 Bellevue, WA, USA 98004 http://www.avariwireless.com © Copyright 2025 Avari Wireless. All Rights Reserved Avari Wireless RU40 UHF Exposure Evaluation Page 2 of 2 RF Exposure Evaluation According to FCC Part 1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. More information on evaluating compli ance with these limits can be found in the FCC's OST/OET Bull etin Number 65, “Evaluating Compliance with FCC-Specified Guideli nes for Human Exposure to Radiofrequency Radiation”. The maximum power density limit allowed for uncontrolled exposures for an average time of 30 minutes is frequency and output power dependent. Although the equipment under test is capable of producing a composite output power of up to 45dBm, the overall ERP can’t exceed 37dBm. Cable distribution loss and antenna gain needs to be taken into account as part of the design and installation in order not to exceed the maximum 37dBm ERP limit. The table below illustrates the different operating scenarios with maximum allowed output power of 37dBm at the antenna representing worst case scenarios from a RF Exposure point of view. Freq Band (MHz) Conducted Output Power (dBm) Min. Cable Loss (dB) Max Antenna Gain (dBi) Max EIRP (mW) Power Density Limit Allowed (mW/cm²) Safe Distance (cm) 450 45 15 7 5012 0.300 37 RF Exposure Evaluation Distance Calculation 푑푑=√ (퐸퐸퐸퐸퐸퐸퐸퐸/4휋휋휋휋) Where: d = Distance to the center of radiation of the antenna (cm) for the allowable Power Density S = All owable Power Density Limit (mW/cm 2 ) EIRP = Equivalent isotopically radiated power (mW) = 10 [TX Power (dBm) + Ant Gain (dBi)/10] If the antenna will be positioned closer to end users than the required safe distance, then the installer must calculate the power back off required for a given installation using the formulas provided.

Prepared by: LabTest Certification Inc. Client: Avari Wireless Inc. Date Issued: 2025-10-09 Report No.: 20.01.25-1213-1 Project No.: 25-1213 Revision No.: 0 Page 31 of 59 DCN: 1036, Rev 5 This document shall not be reproduced or utilized in any form or by any means, except in full, without the written approval of LabTest Certification Inc. unless utilized/ presented in its entirety. 450PS C4FM Signal at 450 MHz ALC (Mask D) 450PS HDQPSK Signal at 480 MHz ALC (Mask D) Prepared by: LabTest Certification Inc. Client: Avari Wireless Inc. Date Issued: 2025-10-09 Report No.: 20.01.25-1213-1 Project No.: 25-1213 Revision No.: 0 Page 32 of 59 DCN: 1036, Rev 5 This document shall not be reproduced or utilized in any form or by any means, except in full, without the written approval of LabTest Certification Inc. unless utilized/ presented in its entirety. 450PS HDQPSK Signal at 465 MHz ALC (Mask D) 450PS HDQPSK Signal at 450 MHz ALC (Mask D) Prepared by: LabTest Certification Inc. Client: Avari Wireless Inc. Date Issued: 2025-10-09 Report No.: 20.01.25-1213-1 Project No.: 25-1213 Revision No.: 0 Page 33 of 59 DCN: 1036, Rev 5 This document shall not be reproduced or utilized in any form or by any means, except in full, without the written approval of LabTest Certification Inc. unless utilized/ presented in its entirety. Prepared by: LabTest Certification Inc. Client: Avari Wireless Inc. Date Issued: 2025-10-09 Report No.: 20.01.25-1213-1 Project No.: 25-1213 Revision No.: 0 Page 34 of 59 DCN: 1036, Rev 5 This document shall not be reproduced or utilized in any form or by any means, except in full, without the written approval of LabTest Certification Inc. unless utilized/ presented in its entirety. 5. Input/Output Power and Amplifier/Booster Gain Governing Doc RSS-119, Issue 12 2015, Amendment (April 1, 2022) RSS-Gen, Issue 5 2018 FCC Part 90 Room Temperature (°C) 20.5 Test Procedure ANSI C63.26-2015, Section 7.2.3.3 KDB 935210 D05, v01r04, Clause 3.4, 4.4 Relative Humidity (%) 38.6 Test Location Richmond Barometric Pressure (kPa) 101.8 Test Engineer Jack Qin Date 2025-08-07 EUT Voltage ☒ +48VDC ☐ 120VAC @ 60Hz Test Equipment Used Manufacturer Model Serial Number Calibration date Calibration due Signal Generator Keysight N5172B MY53050270 Dec 12, 2023 Dec 12, 2026 Spectrum Analyzer Keysight N9020B MY62153079 Oct 25, 2023 Oct 25, 2025 Span: ☒ Max Gain Frequency ± 1500kHz Detector: ☒ Peak RBW/VBW: ☒100k Hz/ 300 kHz Type of Facility: ☒ Tabletop Distance: ☒ Direct Maximum booster gain is 56.8 dB. Compliant ☒ Non-Compliant ☐ Not Applicable ☐ Test setup The procedure used was ANSI/TIA-603-E-2016 and FCC KDB 935210 D05 Indus Booster Basic Meas v01r02:. A CW tone was input at the frequency where the system gain is the maximum in the pass band, with the nominal input power level. The spectrum analyzer was connected to the output RF port via a 50 Ohm 30 dB attenuator. The maximum hold trace and peak detector was used to capture the output power. The output power minus the input power equals to the booster gain in dB. The EUT was set to Operation Mode #1 with configuration Mode #1. Prepared by: LabTest Certification Inc. Client: Avari Wireless Inc. Date Issued: 2025-10-09 Report No.: 20.01.25-1213-1 Project No.: 25-1213 Revision No.: 0 Page 35 of 59 DCN: 1036, Rev 5 This document shall not be reproduced or utilized in any form or by any means, except in full, without the written approval of LabTest Certification Inc. unless utilized/ presented in its entirety. Test results Test Band Frequency (MHz) Input Power (dBm) Output Power (dBm) Gain (dB) 450 465 -11.8 44.96 56.8 Prepared by: LabTest Certification Inc. Client: Avari Wireless Inc. Date Issued: 2025-10-09 Report No.: 20.01.25-1213-1 Project No.: 25-1213 Revision No.: 0 Page 36 of 59 DCN: 1036, Rev 5 This document shall not be reproduced or utilized in any form or by any means, except in full, without the written approval of LabTest Certification Inc. unless utilized/ presented in its entirety. 6. Out-Of-Band / Out-Of-Block Intermodulation and Spurious Emissions Governing Doc RSS-119, Issue 12 2015, Amendment (April 1, 2022) RSS-Gen, Issue 5 2018 FCC Part 90 Room Temperature (°C) 20.5 Test Procedure ANSI C63.26-2015, Section 7.2.3.6 Section 7.2.3.7 KDB 935210 D05, v01r04, Clause 3.6, 4.7Section 7.2.3.7 KDB 935210 D05, v01r04, Clause 3.6, 4.7Section 7.2.3.7 KDB 935210 D05, v01r04, Clause 3.6, 4.7 Relative Humidity (%) 38.6 Test Location Richmond Barometric Pressure (kPa) 101.8 Test Engineer Jack Qin Date 2025-08-07 EUT Voltage ☒ +48VDC ☐ 120VAC @ 60Hz Test Equipment Used Manufacturer Model Serial Number Calibration date Calibration due Signal Generator Keysight N5172B MY53050270 Dec 12, 2023 Dec 12, 2026 Spectrum Analyzer Keysight N9020B MY62153079 Oct 25, 2023 Oct 25, 2025 Frequency Range: ☒ Max Gain Frequency ± 50kHz Detector: ☒ Average RBW/VBW: ☒100/910Hz Type of Facility: ☒ Tabletop Distance: ☒ Direct On UHF band: The intermodulation product of 2 tone is below the -13dBm emission limit with input power - 0.5 dB below AGC threshold - 2 dB below AGC threshold - 3 dB above AGC threshold Compliant ☒ Non-Compliant ☐ Not Applicable ☐ Test setup The procedure used was ANSI C63.26-2015. Two tones (CW) method was used. The input power to the amplifier was set at maximum drive level by combining the two tones. The two tones were chosen in such a way (1) the third order intermodulation product frequencies are located within the pass band of the DUT and (2) they produce the worst-case emissions out of band. Based on FCC KDB 935210 D05 Indus Booster Basic Meas v01r03: 2019, the two tone was located on either side of the maximum gain frequence in the passing band, and separated with the available spacing, which is 12.5kHz. Measurements were performed with modulated tone at identical input amplitude which produced integrated maximum rated output power. The EUT was set to Operation Mode #1 with configuration Mode #1. Prepared by: LabTest Certification Inc. Client: Ava…
