2BA6Q-A0AG104K0BLUU Electric 9FT Market Umbrella

M.B.P Inc
BLUU Electric 9FT Market Umbrella - FCC ID 2BA6Q-A0AG104K0 - M.B.P Inc
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
May 17, 2023
Application Purpose
Original Equipment
Date of Application
May 17, 2023
Equipment Note
BLUU Electric 9FT Market Umbrella
Frequency Range
433.92000000 - 433.92000000
Company
M.B.P Inc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗
↗
↗

Attestation Statements

↗
↗
↗

Cover Letter(s)

↗
↗

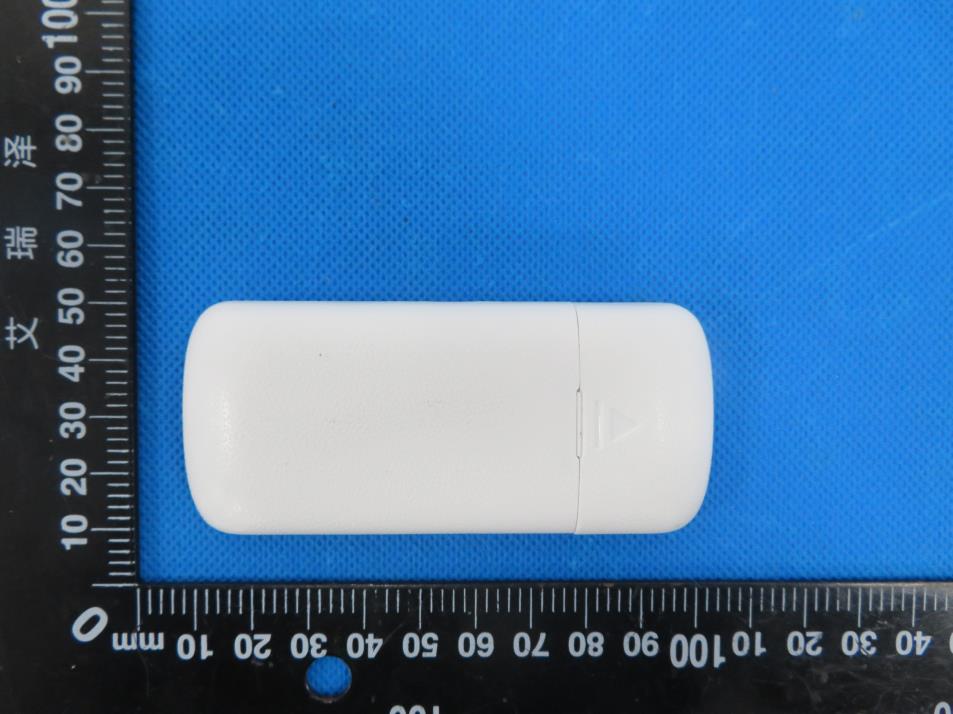

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

M.B.P Inc Agent Authorization Company: M.B.P Inc Address: 1255 Corona St Denver, Colorado 80218, United States Product Name: BLUU Electric 9FT Market Umbrella Model Number(s): A0AG104K0 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023/05/16 Name: Jeremy Luo Title: COO Company: M.B.P Inc

External Photos

External Photos

ID Label/Location Info

Size:20*10mm BLUU Electric 9FT Market Umbrella FCC ID: 2BA6Q-A0AG104K0 Label location

Internal Photos

Internal Photos Antenna

RF Exposure Info

RF EXPOSURE EVALUATION METHOD FCC ID: 2BA6Q-A0AG104K0 Applicable standard: In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Test Channel Output Power (dBuV/m) Output Power (dBm) ASK 433.92 82.37 -17.53 Below 1GHz: dBm=dBuV/m-95.2-4.7 max possible output power (PK,ERP):-17±1dBm 2dBi logarithmic terms convert to numeric result is nearly 1.58 -16dBm=0.025mW [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=0.025/5*√0.43392=0.003≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

Test Report

Antenna specification 1. Antenna Parameter Model: SP28 Frequency: 433.92MHz Standing wave ratio: 1.5 Input impedance: 50Ω Antenna gain: 2dBi Antenna length: 16MM Antenna polarization: Vertical polarization 2. Antenna Size Manufacturer: Shenzhen Siluilian Technology Co., LTD Address: Building 14, No.19 Guanlan Avenue, Xinhe Community, Fucheng Street, Longhua District, Shenzhen City

Test Report

No.:BCTC/RF-EMC-005 Page: 1 of 28 Edition:A.5 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2305751254E Applicant: M.B.P Inc Product Name: BLUU Electric 9FT Market Umbrella Model/Type Ref.: A0AG104K0 Tested Date: 2023-05-11 to 2023-05-16 Issued Date: 2023-05-16 Report No.: BCTC2305751254E No.:BCTC/RF-EMC-005 Page: 2 of 28 Edition:A.5 FCC ID: 2BA6Q-A0AG104K0 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: BLUU Electric 9FT Market Umbrella Trademark: N/A Model/Type Ref.: A0AG104K0 Prepared For: M.B.P Inc Address: 1255 Corona St Denver, Colorado 80218, United States Manufacturer: M.B.P Inc Address: 1255 Corona St Denver, Colorado 80218, United States Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-05-11 Sample tested Date: 2023-05-11 to 2023-05-16 Issue Date: 2023-05-16 Report No.: BCTC2305751254E Test Standards: FCC Part15.231 ANSI C63.10-2013 Test Results: PASS Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.: BCTC2305751254E No.:BCTC/RF-EMC-005 Page: 3 of 28 Edition:A.5 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 4 2. Test Summary ....................................................................................................... 5 3. Measurement Uncertainty ..................................................................................... 6 4. Product Information And Test Setup ..................................................................... 7 4.1 Product Information ............................................................................................... 7 4.2 Test Setup Configuration ...................................................................................... 7 4.3 Support Equipment ............................................................................................... 8 4.4 Channel List .......................................................................................................... 8 4.5 Test Mode ............................................................................................................. 8 5. Test Facility And Test Instrument Used ................................................................. 9 5.1 Test Facility ........................................................................................................... 9 5.2 Test Instrument Used ............................................................................................ 9 6. Conducted Emissions .......................................................................................... 11 6.1 Block Diagram Of Test Setup .............................................................................. 11 6.2 Limit .................................................................................................................... 11 6.3 Test Procedure ................................................................................................... 11 6.4 EUT Operating Conditions .................................................................................. 11 6.5 Test Result .......................................................................................................... 11 7. Radiated Emissions ............................................................................................. 12 7.1 Block Diagram Of Test Setup .............................................................................. 12 7.2 Limit .................................................................................................................... 13 7.3 Test Procedure ................................................................................................... 14 7.4 EUT Operating Conditions .................................................................................. 15 7.5 Test Result .......................................................................................................... 15 8. Bandwidth Test .................................................................................................... 19 8.1 Block Diagram Of Test Setup .............................................................................. 19 8.2 Limit .................................................................................................................... 19 8.3 Test Procedure ................................................................................................... 19 8.4 EUT Operating Conditions .................................................................................. 19 8.5 Test Result .......................................................................................................... 20 9. Calculation Of Average Factor ............................................................................ 21 10. Dwell Time........................................................................................................... 23 10.1 Block Diagram Of Test Setup ............................................................................ 23 10.2 Limit .................................................................................................................. 23 10.3 Test Procedure ................................................................................................. 23 10.4 Test Result ........................................................................................................ 24 11. Antenna Requirement ..........................................................................…
