2BA76WG12MNT019Wireless Charger

User Operation Specifications and Maintenance Guide for WG12 Wireless Charger 1. Document Overview This operation specification is formulated for the WG12 wireless charging device, aiming to standardize the entire process of the device’s power-on, charging, status management, and shutdown operations. It ensures the safe and efficient operation of the device, while guaranteeing a stable charging experience for QI-compliant charged devices (such as mobile phones, smart watches, etc.). This specification applies to end users, operation and maintenance personnel, and technical support staff of this device. Product Overview Product Name：Wireless Charger Product Model：WG12 Input rating: DC 15V Max wireless output rating: 25W Used Location：used on the furniture（sofa or chair etc.） Environment requirement Operation temperature: -10°C~ +45°C. Storage temperature: －10°C~55°C. Operating Humidity：10%~80%RH，non-condensing. Storage Humidity：10%~ 85%RH，non-condensing. Terminology Explanation: ⚫ The model of the wireless charging device referred to in this document. It supports a maximum wireless charging power of 25W and is equipped with functions such as intelligent temperature control and Foreign Object Detection (FOD). ⚫ QI Protocol: An international wireless charging standard launched by the Wireless Power Consortium (WPC), which ensures cross-brand charging interoperability between compatible devices. ⚫ FOD (Foreign Object Detection): A foreign object detection technology that can identify metal foreign objects in the charging area, avoiding overheating and short-circuit risks caused by foreign objects. 2. Device Power-On Operation (1) Preparation Before Power-On 1. Power Adapter Check: Confirm the use of the original factory-supplied 15V3A power adapter. Check that the adapter cable and plug are free of damage or oxidation, and that the interface connection is secure. 2. Device Appearance Check: Confirm that the surface of the wireless charger is free of cracks or deformation, and that there is no dust blockage in the heat dissipation vents (if there is dust, clean it with a soft brush before powering on). 3. Environment Confirmation: Place the device on a flat, dry, and well-ventilated tabletop, away from water sources, high-temperature heat sources, and strong electromagnetic interference sources. (2) Power-On Process Turn on the device’s power switch. After the 15V 3A power supply is connected, power is transmitted to the wireless charging module. After the device completes self-check (approximately 3-5 seconds), if there is no abnormal indicator prompt (this device is designed with no constant indicator light during standby to ensure a silent operation experience), it means the device has normally entered the standby state and is ready for charging operations. 3. Charging Operation for External Devices (1) Placement of Charged Devices Place QI-compliant charged devices (such as smartphones, smart watches, etc.) stably in the effective antenna area of the wireless charger. It is recommended to use the "center alignment method" for placement (align the center of the device’s wireless charging coil with the center of the wireless charger’s antenna), with an offset not exceeding 8mm to ensure charging efficiency. (2) Charging Startup and Status Indication After the device is placed, the WG12 executes the following processes in sequence: ⚫ FOD Foreign Object Detection: Scans the charging area. If metal foreign objects (such as coins, keys) are detected, charging is prohibited; if there are no foreign objects, it proceeds to the next stage. ⚫ Protocol Authentication and Negotiation: The charged device and the wireless charger confirm parameters such as charging power and safety mechanisms to ensure protocol compatibility. ⚫ Power Transmission Initialization: After the negotiation is completed, charging starts. At this time, the blue indicator lights on both sides of the wireless charger remain on, and the cooling device and heat dissipation fan operate at full speed. This design is for heat dissipation during 25W high-power charging; through active cooling + fan heat dissipation, the device temperature is controlled within a safe range to ensure charging stability. (3) Charging Interruption Handling If the charged device is removed before being fully charged, the device executes the following actions: ⚫ The blue indicator light turns from on to off, indicating charging interruption. ⚫ The cooling device is turned off first, and the fan is turned off after a 10-second delay. This sequence is designed to dissipate residual heat inside the device and prevent residual heat from damaging components. Do not perform the next operation until the fan stops running. 4. Operation After Charging Completion When the charged device reaches 100% battery level, the device automatically stops charging, and the blue indicator light goes out. At the same time, it executes the heat dissipation protection sequence: the cooling device is turned off first, and the fan is turned off after a 10-second delay. Users can safely remove the device after the fan stops running, and the wireless charger returns to the standby state. 5. Replacement Operation for Charged Devices If it is necessary to replace the charged device, follow the processes in "3. Charging Operation for External Devices" and "4. Operation After Charging Completion": 1. Confirm that the current charging has ended (blue light is off, fan has stopped running). 2. Remove the fully charged device, place a new QI-compliant device, and the wireless charger will automatically start the process of "FOD Detection → Protocol Negotiation → Power Transmission". 6. Device Shutdown Operation When charging is no longer needed, perform the following steps: 1. Confirm that all charged devices have been removed, the blue light is off, and the fan has stopped running. 2. Turn off the device’s power switch. It is recommended to unplug the power adapter to cut off all power input…

Text truncated - open the document above for the full version.

UNITED STATES DESIGNATED AGENT LETTER 勹 ， ？； 1 · 4 4 ？为乒 丫“ Date: 05-16-2023 召卧众方．两 TO: Federal Communication Commission Equipment Authorization Branch 7 435 Oakland Mills Road Columbia, MID 21046 Applicant Company Name: Grantee Code: Contact Name: Address: City/Province/Zip: Telephone: Fax: Email: M otoMotion China Corporation 0033781410 2 BA76 Sunny Zhou No. 61 Xinggang Road, Zhonglou Ec onomic Development Zone, Changzhou, Jiangsu, P.R. China C hangzhou/J iangsu/213023 8 6-519-83903901 86-519-8390390 I sunny .zhou@hhc­ group.com.en U.S. designated agent Company Name: HHC USA CORP. FRN: Contact Name: Address: 0033781154 Jessie Chen 1008 S Baldwin Ave, Suite G, Arcadia, CA 91007, United States City/Provin ce/Zip: Arcadia/CA/91 007 Telephone: 626-538-4866 Fax: 626-226-4006 Email: [email protected] ＿ 兰 K E _ ATTN: Director of Certification: We, MotoMotion China Corporation and HHC USA CORP. understand and acknowledge the applicants consent and the designated agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. add「ess and e-mail of the designated agent listed above. We, MotoMotion China Corporation and HHC USA CORP. acknowledge the applicant's acceptance of its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative o「judicialproceeding involving the equipment, whichever is later. Applicant U.S. designated agent r e u g 。 a h i ee 裨 .. n_a ． edJ t ． m e n . n rP o ur t a c e n g e m t ． a s ． NT Name (Printed): Jessie Chen 一＇ 』 ， 』卜 一尸冒 FRN:

FCC COVERED LIST DECLARATION LETTER Page 1 of 1 Revision 1.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name MotoMotion China Corporation Address No. 61 Xinggang Road, Zhonglou Economic Development Zone, Changzhou, Jiangsu, P.R. China 213023 FRN 0033781410 Grantee Code 2BA76 FCC ID: 2BA76WG12MNT019 Authorized Contact Name Sunny Zhou Contact Phone 0519-83903901 Contact Email [email protected] MotoMotion China Corporation. (“the applicant”) certifies: - the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. - as of the date of the filing of the application, the applicant is not identified on the Covered list, established pursuant to §1.50002, as an entity producing “covered” equipment. - the software to be loaded prior to marketing of the equipment identified above is not “covered” software manufactured by any entity including predecessors, successors, parents, subsidiaries, affiliates or any entity which has rebranded or relabeled the software produced by the entity(ies) identified on the “Covered List”. - the device is not capable of storing or running software listed on the covered list and therefore is inherently compliant. NOTE: Justification/evidence explaining how compliance is met must accompany this letter Link to the Covered List: Covered List Applicant Signature: Date: 2025-11-14 Print Name: Sunny Zhou Title: Compliance Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Applicant Declaration QSF27-14-04 Rev 1.4 April 25, 2025 Page 1 of 1 Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name MotoMotion China Corporation Address No. 61 Xinggang Road, Zhonglou Economic Development Zone, Changzhou, Jiangsu, P.R. China 213023 FRN 0033781410 Grantee Code 2BA76 FCC ID: 2BA76WG12MNT019 Authorized Contact Name Sunny Zhou Contact Phone 0519-83903901 Contact Email [email protected] I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO 17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc. terms and conditions as specified in the TCB Application Form 731 (QSF27-14-01). Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Link to the Covered List: Covered List Applicant Signature: Date: 2025-11-14 Print Name: Sunny Zhou Title: Compliance Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: MotoMotion China Corporation No. 61 Xinggang Road, Zhonglou Economic Development Zone, Changzhou, Jiangsu, P.R. China 213023 Regarding: Confidentiality Request regarding application for FCC ID: 2BA76WG12MNT019 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Sunny Zhou Compliance Manager MotoMotion China Corporation

Date: 2025-6-13 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: 2BA76WG12MNT019 To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with MotoMotion China Corporation This authorization is valid until further written notice from the applicant. Name (Printed):Sunny Zhou Title: Compliance Manager Signature: On behalf of Company: MotoMotion China Corporation Telephone:0519-83903901

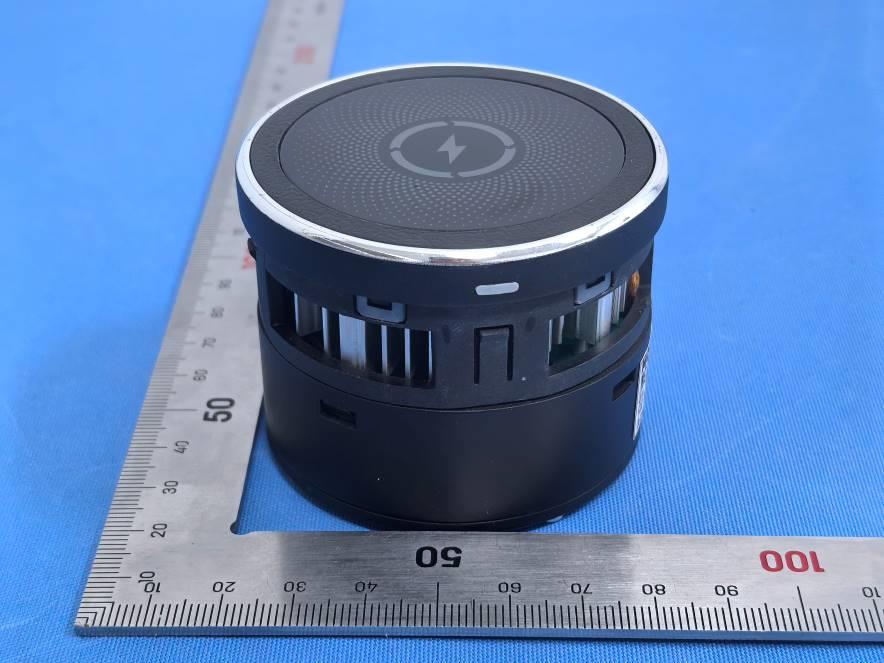

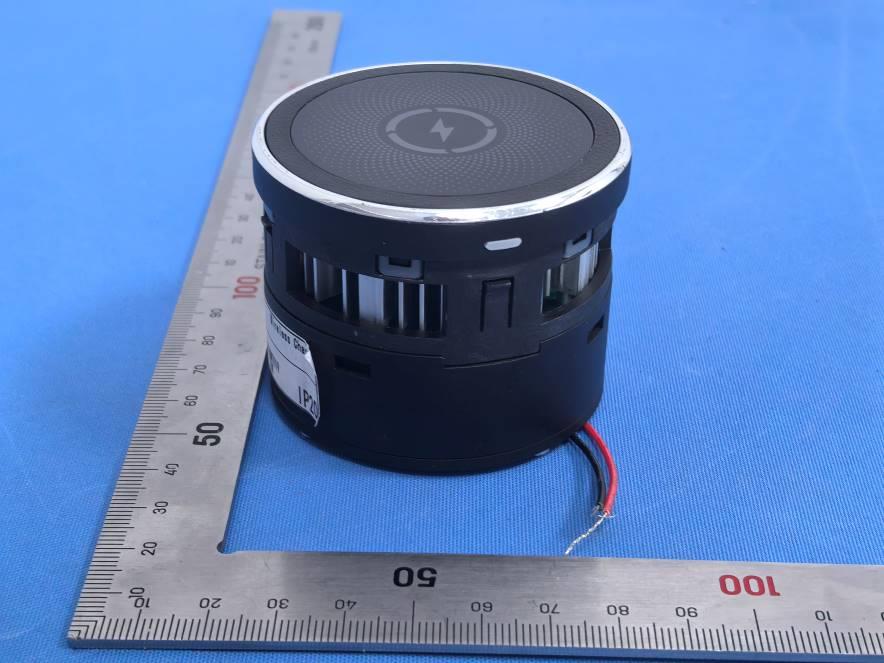

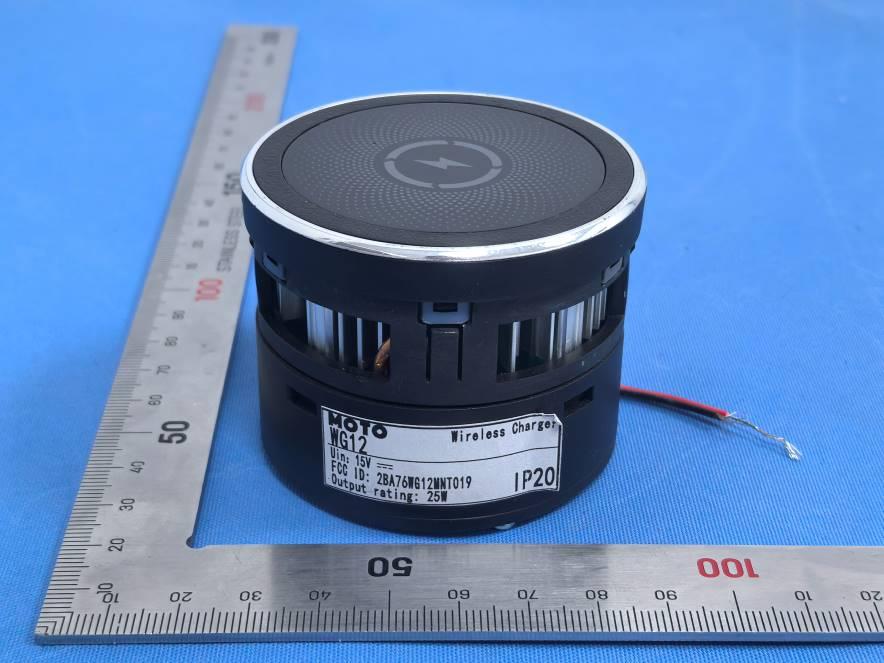

Compliance Certification Services (Kunshan) Inc. Page: 1 of 4 External Photos for KSCR2511002507AT Test Model No.: WG12 Compliance Certification Services (Kunshan) Inc. Page: 2 of 4 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 4 Compliance Certification Services (Kunshan) Inc. Page: 4 of 4 - End of the Appendix -

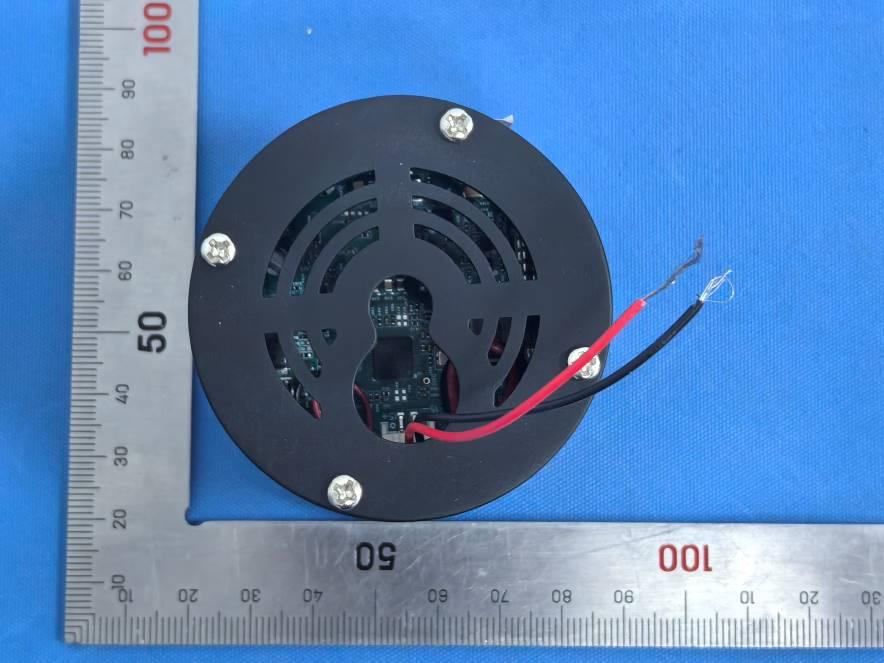

Compliance Certification Services (Kunshan) Inc. Page: 1 of 4 In ternal Photos for KSCR2511002507AT Test Model No.: WG12 Compliance Certification Services (Kunshan) Inc. Page: 2 of 4 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 4 Compliance Certification Services (Kunshan) Inc. Page: 4 of 4 - End of the Appendix -

Report No.: KSCR251100250702 Page: 1 of 11 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 Human Exposure Report Application No.: KSCR2511002507AT FCC ID: 2BA76WG12MNT019 Applicant: MotoMotion China Corporation Address of Applicant: No. 61 Xinggang Road, Zhonglou Economic Development Zone, Changzhou, Jiangsu, P.R. China Manufacturer: MotoMotion China Corporation Address of Manufacturer: No. 61 Xinggang Road, Zhonglou Economic Development Zone, Changzhou, Jiangsu, P.R. China Equipment Under Test (EUT): EUT Name: wireless charger Model No.: WG12 Standards: 47 CFR PART 1, Subpart I, Section 1.1310 FCC Rules 47 CFR §2.1093 KDB 680106 D01 Wireless Power Transfer v04 Date of Receipt: 2025-11-14 Date of Test: 2026-01-08 to 2026-01-29 Date of Issue: 2026-01-29 Test Result : Pass* * In the configuration tested, the EUT complied with the standards specified above. Report No.: KSCR251100250702 Page: 2 of 11 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 Revision Record Version Description Date Remark 00 Original 2026-01-29 / Authorized for issue by: Tested By Damon_Zhou/Project Engineer Approved By Terry Hou /Reviewer Report No.: KSCR251100250702 Page: 3 of 11 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 2 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 Contents .................................................................................................................................................... 3 3 General Information .................................................................................................................................. 4 3.1 Details of E.U.T. ...................................................................................................................................... 4 3.2 Description of Support Units ................................................................................................................... 4 3.3 Test Location ........................................................................................................................................... 5 3.4 Test Facility ............................................................................................................................................. 5 3.5 Deviation from Standards ........................................................................................................................ 5 3.6 Abnormalities from Standard Conditions ................................................................................................ 5 4 Equipments Used during Test ................................................................................................................. 6 5 Test Results ............................................................................................................................................... 7 5.1 RF Exposure test..................................................................................................................................... 7 5.2 E.U.T. Operation ..................................................................................................................................... 8 6 Test Photo ............................................................................................................................................... 11 Report No.: KSCR251100250702 Page: 4 of 11 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 3 General Information 3.1 Details of E.U.T. Power supply: DC 15V Wired Output: Wireless charging (Single): 5W, 7.5W, 15W, 25W 25W only for 360kHz Antenna Type: Loop Antenna Modulation Type: Load Modulation Operation Frequency: 110kHz to 220kHz,360kHz 3.2 Description of Support Units Description Manufacturer Model No. Serial No. Load / / / Mobilephone Apple / / Report No.: KSCR251100250702 Page: 5 of 11 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 3.3 Test Location All tests were performed at: Compliance Certification Services (Kunshan) Inc. No.10 Weiye Rd, Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China. Tel: +86 512 5735 5888 Fax: +86 512 5737 0818 No tests were sub-contracted. Note: 1. SGS is not responsible for wrong test results due to incorrect information (e.g. max. clock frequency, highest internal frequency, antenna gain, cable loss, etc ) is provided by the applicant. (if applicable). 2. SGS is not responsible for the authenticity, integrity and the validity of the conclusion based on results of the data provided by applicant. (if applicable). 3. Sample source: sent by customer. 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 2541.01) Compliance Certification Services (Kunshan) Inc. is accredited by the American Association for Laboratory Accreditation (A2LA). • FCC (Designation Number: CN1172) Compliance Certification Services (Kunshan) Inc. has been recognized as an accredited testing laboratory. • ISED (CAB Identifier: CN0072) Compliance Certification Services (Kunshan) Inc. has been recognized by Innovation, Science and Economic Development Canada (ISED) as an accredited testing laboratory. Company Number: 2324E • VCCI (Member No:1938) The 3m and 10m Semi-anechoic chamber and Shielded Room of Compliance Certification Services (Kunshan) Inc. has been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: R-20134, R-11600, C-11707, T-11499, G-10216 respectively. 3.5 Deviation from Standards None 3.6 Abnormalities from Standard Conditions None Report No.: KSCR251100250702 Page: 6 of 11 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 4 Equipments Used during Test Item Test Equipment Manufacturer Model No. Inventory No. Cal date Cal. Due date 1 Semi/Fully Anechoic ST 11*6*6M SHEM078-2 2024-05-25 2027-05-24 2 Electromagnetic Field Probe Narda EHP-200AC SHEM0907 2025-04-10 2026-04-09 Report No.: KSCR251100250702 Page: 7 of 11 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 5 Test Re…

Text truncated - open the document above for the full version.

Justification statement for Antenna To: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2BA76WG12MNT019 Dear Sir/Madam, Only radiated measurements are used for EUT with FCC ID: 2BA76WG12MNT019 to show compliance with FCC limits for fundamental and spurious emissions. All measurements were performed radiated and therefore additional antenna gain documentation is not required. The antenna is integrated on the main PCB and no consideration of replacement. The detailed information for antenna as below shows: Design Specifications Typical Antenna Type Loop Antenna Working Frequency 110 -220kHz Overall Dimensions As below

Report No.: KSCR251100250701 Page: 1 of 28 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 TEST REPORT Application No.: KSCR2511002507AT FCC ID: 2BA76WG12MNT019 Applicant: MotoMotion China Corporation Address of Applicant: No.61 Xinggang Road, Zhonglou Economic Development Zone, Changzhou, Jiangsu, P.R.Chiina Manufacturer: MotoMotion China Corporation Address of Manufacturer: No.61 Xinggang Road, Zhonglou Economic Development Zone, Changzhou, Jiangsu, P.R.Chiina Equipment Under Test (EUT): EUT Name: wireless charger Model No.: WG12 Standard(s) : 47 CFR Part 15, Subpart C Date of Receipt: 2025-11-14 Date of Test: 2026-01-08 to 2026-01-29 Date of Issue: 2026-01-29 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Report No.: KSCR251100250701 Page: 2 of 28 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 Revision Record Version Description Date Remark 00 Original 2026-01-29 / Authorized for issue by: Tested By Damon_Zhou/Project Engineer Approved By Terry Hou /Reviewer Report No.: KSCR251100250701 Page: 3 of 28 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C N/A 47 CFR Part 15, Subpart C 15.203 Pass Radio Spectrum Matter Part Item Standard Method Requirement Result 20dB Bandwidth 47 CFR Part 15, Subpart C ANSI C63.10 (2020) Section 6.9.2 47 CFR Part 15, Subpart C 15.215 Pass Conducted Emissions at AC Mains Power Port (150kHz-30MHz) ANSI C63.10 (2020) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Radiated Emissions (9kHz-30MHz) ANSI C63.10 (2020) Section 6.4 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Emissions (30MHz-1GHz) ANSI C63.10 (2020) Section 6.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Report No.: KSCR251100250701 Page: 4 of 28 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 Test Summary ......................................................................................................................................... 3 3 Contents ................................................................................................................................................... 4 4 General Information ................................................................................................................................ 5 4.1 Details of E.U.T. ............................................................................................................................... 5 4.2 Description of Support Units ............................................................................................................ 5 4.3 Measurement Uncertainty ................................................................................................................ 5 4.4 Test Location .................................................................................................................................... 6 4.5 Test Facility ...................................................................................................................................... 6 4.6 Deviation from Standards ................................................................................................................. 6 4.7 Abnormalities from Standard Conditions .......................................................................................... 6 5 Equipment List ........................................................................................................................................ 7 6 Radio Spectrum Technical Requirement .............................................................................................. 8 6.1 Antenna Requirement ...................................................................................................................... 8 7 Radio Spectrum Matter Test Results .................................................................................................... 9 7.1 20dB Bandwidth ............................................................................................................................... 9 7.2 Conducted Emissions at AC Mains Power Port (150kHz-30MHz) ................................................ 12 7.3 Radiated Emissions (9kHz-30MHz) ............................................................................................... 16 7.4 Radiated Emissions (30MHz-1GHz) .............................................................................................. 22 8 Test Setup Photo .................................................................................................................................. 28 9 EUT Constructional Details (EUT Photos) .......................................................................................... 28 Report No.: KSCR251100250701 Page: 5 of 28 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 4 General Information 4.1 Details of E.U.T. Power supply: DC 15V Operation frequency: 110kHz to 220kHz,360kHz Wired Output: Wireless charging (Single): 5W, 7.5W, 15W, 25W 25W only for 360kHz Modulation type: Load modulation Antenna type: Loop Antenna 4.2 Description of Support Units Description Manufacturer Model No. Serial No. Load / / / Mobilephone Apple / / 4.3 Measurement Uncertainty No. Item Measurement Uncertainty 1 Radio Frequency 8.4 x 10 -8 2 Timeout 2s 3 Duty Cycle 0.37% 4 Occupied Bandwidth 3% 5 RF Conducted Power 0.6dB 6 RF Power Density 2.9dB 7 Conducted Spurious Emissions 0.75dB 8 RF Radiated Power 5.2dB (Below 1GHz) 5.9dB (Above 1GHz) 9 Radiated Spurious Emission Test 4.2dB (Below 30MHz) 4.5dB (30MHz-1GHz) 5.1dB (1GHz-18GHz) 5.4dB (Above 18GHz) 10 Temperature Test 1°C 11 Humidity Test 3% 12 Supply Voltages 1.5% 13 Time 3% Note: The measurement uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage …

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. Page: 1 of 3 Appendix Photographs of Test Setup for KSCR2511002507AT Test Model No.: WG12 Compliance Certification Services (Kunshan) Inc. Page: 2 of 3 Test Setup Photo Conducted Emissions at AC Mains Power Port (150kHz-30MHz) Radiated Emissions (9kHz-30MHz) Compliance Certification Services (Kunshan) Inc. Page: 3 of 3 Radiated Emissions (30MHz-1GHz) - End of the Appendix -
