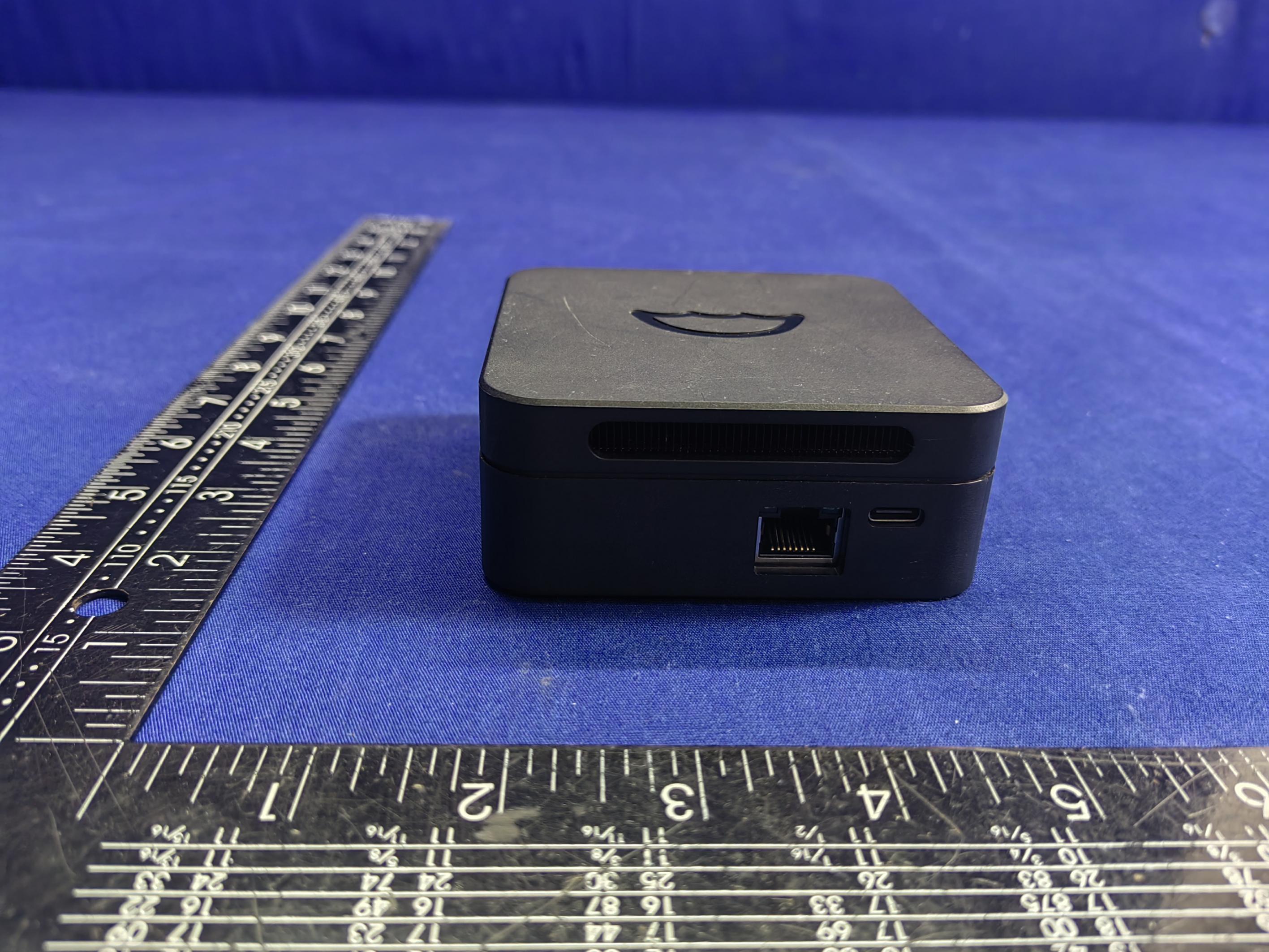

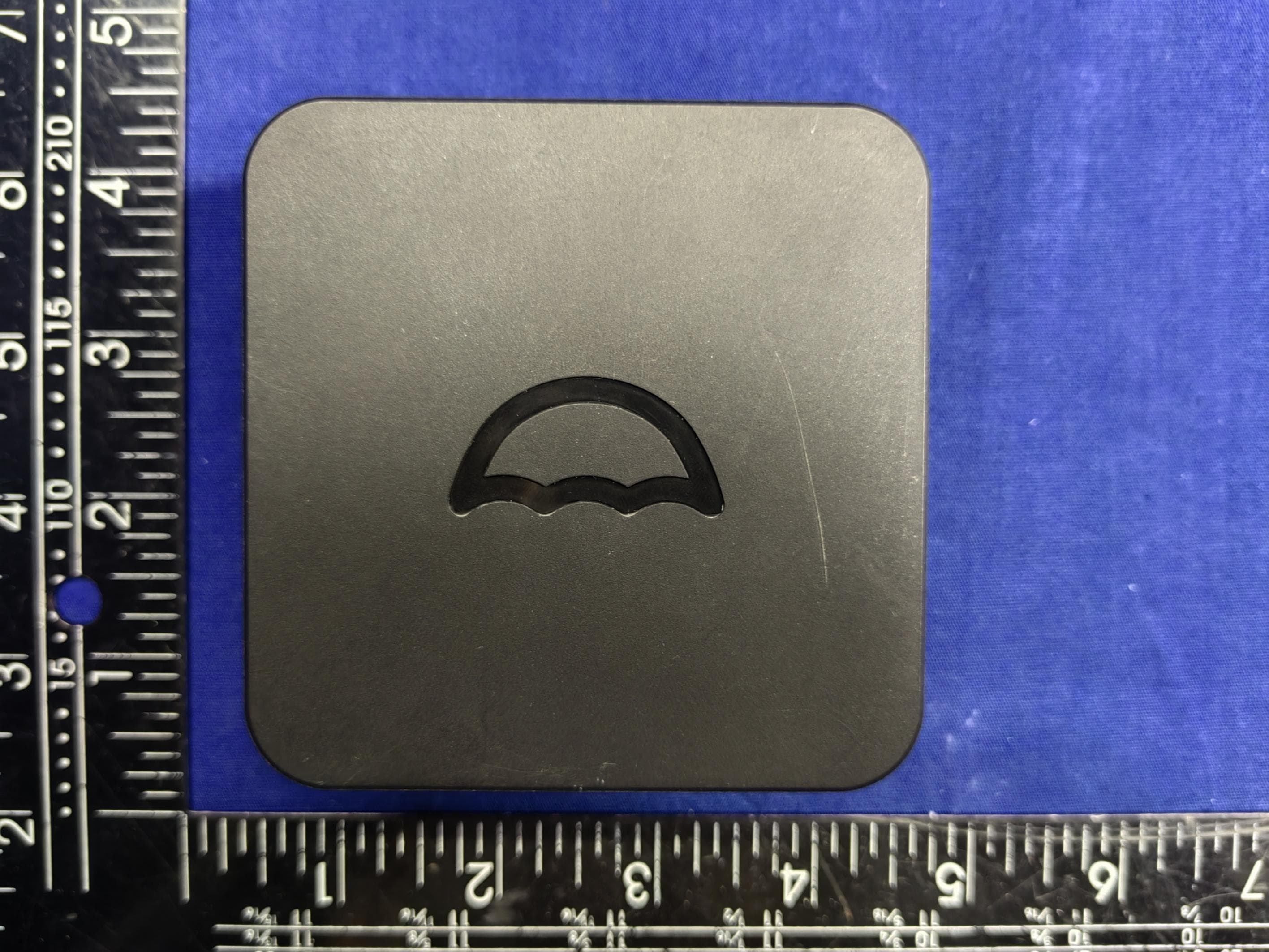

EUTEXTERNALPHOTOGRAPHS ----------------Theend----------------

Page1of7 EUTINTERNALPHOTOGRAPHS Page2of7 Page3of7 Page4of7 Page5of7 Page6of7 Page7of7 ----------------Theend----------------

FCCID:2BA7R-U130120 RFEXPOSUREEVALUATION AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeusedtoevaluate theenvironmentimpactofhumanexposuretoradiofrequency(RF)Radiationasspecifiedin §1.1307(b) LimitsforMaximumPermissibleExposure(MPE) Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) Power Density(mW/cm 2 ) AverageTime (A)LimitsforOccupational/ControlExposures 300-1500----F/3006 1500-100000----56 (B)LimitsforGeneralPopulation/UncontrolExposures 300-1500----F/15006 1500-100000----130 1.1Friistransmissionformula:Pd=(Pout*G)\(4*pi*R 2 ) Where Pd=PowerdensityinmW/cm 2 Pout=outputpowertoantennainmW G=Numericgainoftheantennarelativetoisotropicantenna Pi=3.1416 R=distancebetweenobservationpointandcenteroftheradiatorin20cm PdthelimitofMPE,1mW/cm 2 .Ifweknowthemaximumgainofthendtotalpowerinputto theantenna,throughthecalculation,wewillknowthedistancewheretheMPElimitis reached. 1.2MeasurementResult Mode Max Measured power (dBm) Max tune-up power (dBm) Antenna gain Antenna Gain Numeric Evaluation result (mW/cm2) Powerdensity Limits (mW/cm2) BT/BLE4.6662.991.9910.00161 2.4GWIFI15.41172.991.9910.01981 5GWIFI15.64170.981.2530.01251 SimultaneousTransmission: Mode∑maxratiosLimitResults BT+WiFi0.002141.0PASS ----------------THEENDOFREPORT---------------

ReportNo.ENS2303140179W00503RPage1of60Ver.1.0 TESTREPORT ProductName：HomeServer ModelNumber：U130120 FCCID：2BA7R-U130120 Preparedfor:Umbrel,Inc. Address:2093PhiladelphiaPike,#4269,Claymont,Delaware,US 19703 Preparedby:EMTEK(SHENZHEN)CO.,LTD. Address:Building69,MajialongIndustryZone,NanshanDistrict, Shenzhen,Guangdong,China Tel:(0755)26954280 Fax:(0755)26954282 ReportNumber:ENS2303140179W00503R Date(s)ofTests:March17,2023toApril23,2023 Dateofissue:April25,2023 $ 二维码 $ ReportNo.ENS2303140179W00503RPage2of60Ver.1.0 TableofContents 1TESTRESULTCERTIFICATION............................................................................................................3 2EUTTECHNICALDESCRIPTION..........................................................................................................4 3SUMMARYOFTESTRESULT...............................................................................................................5 4TESTMETHODOLOGY..........................................................................................................................6 4.1GeneralDescriptionOfAppliedStandards.......................................................................................6 4.2MeasurementEquipmentUsed........................................................................................................6 4.3DescriptionOfTestModes................................................................................................................7 4.4TestSoftware....................................................................................................................................7 5FACILITIESANDACCREDITATIONS....................................................................................................8 5.1Facilities............................................................................................................................................8 5.2LaboratoryAccreditationsAndListings.............................................................................................8 6TESTSYSTEMUNCERTAINTY.............................................................................................................9 7SETUPOFEQUIPMENTUNDERTEST..............................................................................................10 7.1RadioFrequencyTestSetup1.......................................................................................................10 7.2RadioFrequencyTestSetup2.......................................................................................................10 7.3ConductedEmissionTestSetup.....................................................................................................12 7.4BlockDiagramConfigurationOfTestSystem................................................................................13 7.5SupportEquipment.........................................................................................................................13 8FREQUENCYHOPPINGSYSTEMREQUIREMENTS........................................................................14 8.1StandardApplicable........................................................................................................................14 8.2EutPseudorandomFrequencyHoppingSequence.......................................................................14 8.3EqualHoppingFrequencyUse.......................................................................................................15 8.4FrequencyHoppingSystem...........................................................................................................15 9TESTREQUIREMENTS........................................................................................................................16 9.120dbBandwidth..............................................................................................................................16 9.2CarrierFrequencySeparation........................................................................................................20 9.3NumberOfHoppingFrequencies...................................................................................................24 9.4AverageTimeOfOccupancy(DwellTime).....................................................................................26 9.5MaximumPeakConductedOutputPower.....................................................................................28 9.6ConductedSupriousEmission........................................................................................................32 9.7RadiatedSpuriousEmission...........................................................................................................43 9.8ConductedEmissionTest...............................................................................................................56 9.9AntennaApplication........................................................................................................................59 ReportNo.ENS2303140179W00503RPage3of60Ver.1.0 1TESTRESULTCERTIFICATION Applicant: Umbrel,Inc. Address: 2093PhiladelphiaPike,#4269,Claymont,Delaware,US19703 Manufacturer: ShenZhenZhiWeiTechnologyCo.,Ltd Address: 4th~5thfloor,Bld6andEastsideof3rdfloor,Bld3,LiJinChengIndustrial Park,TheEastofGongYeRoad,LongHuaStreetOffice, EUT:HomeServer ModelName: U130120 Trademark: Umbrel MeasurementProcedureUsed: APPLICABLESTANDARDS STANDARDTESTRESULT FCC47CFRPart2,SubpartJ FCC47CFRPart15,SubpartC PASS TheaboveequipmentwastestedbyEMTEK(SHENZHEN)CO.,LTD.Thetestdata,dataevaluation, testprocedures,andequipmentconfigurationsshowninthisreportweremadeinaccordancewiththe proceduresgiveninANSIC63.10(2013)andtheenergyemittedbythesampleEUTtestedasdescribed inthisreportisincompliancewiththerequirementsofFCCRulesPart2andPart15.247 Thetestresultsofthisreportrelateonlytothetestedsampleidentifiedinthisreport DateofTest:March17,2023toApril23,2023 Preparedby: UnaYu/Editor Reviewer: JoeXia/ Supervisor Approve&AuthorizedSigner: LisaWang/Manager ReportNo.ENS2303140179W00…

Text truncated - open the document above for the full version.

ReportNo.ENS2303140179W00503RPage34of60Ver.1.0 Bandedgemeasurements DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 ReportNo.ENS2303140179W00503RPage35of60Ver.1.0 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 ReportNo.ENS2303140179W00503RPage36of60Ver.1.0 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 ReportNo.ENS2303140179W00503RPage37of60Ver.1.0 ConductedSpuriousEmission DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 DH5_Ant1_2441_30~1000 ReportNo.ENS2303140179W00503RPage38of60Ver.1.0 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_30~1000 DH5_Ant1_2480_1000~26500 ReportNo.ENS2303140179W00503RPage39of60Ver.1.0 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_30~1000 ReportNo.ENS2303140179W00503RPage40of60Ver.1.0 2DH5_Ant1_2441_1000~26500 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 ReportNo.ENS2303140179W00503RPage41of60Ver.1.0 3DH5_Ant1_2402_30~1000 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_30~1000 ReportNo.ENS2303140179W00503RPage42of60Ver.1.0 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 ReportNo.ENS2303140179W00503RPage43of60Ver.1.0 9.7RADIATEDSPURIOUSEMISSION 9.7.1ApplicableStandard AccordingtoFCCPart15.247(d)and15.209andKDB558074D0115.247measguidancev05r02 9.7.2ConformanceLimit AccordingtoFCCPart15.247(d):radiatedemissionswhichfallintherestrictedbands,asdefinedin §15.205(a),mustalsocomplywiththeradiatedemissionlimitsspecifiedin§15.209(a)(see§15.205(c)). AccordingtoFCCPart15.205,Restrictedbands MHzMHzMHzGHz 0.090-0.11016.42-16.423399.9-4104.5-5.15 10.495-0.50516.69475-16.69525608-6145.35-5.46 2.1735-2.190516.80425-16.80475960-12407.25-7.75 4.125-4.12825.5-25.671300-14278.025-8.5 4.17725-4.1777537.5-38.251435-1626.59.0-9.2 4.20725-4.2077573-74.61645.5-1646.59.3-9.5 6.215-6.21874.8-75.21660-171010.6-12.7 6.26775-6.26825123-1382200-230014.47-14.5 8.291-8.294149.9-150.052310-239015.35-16.2 8.362-8.366156.52475-156.525252483.5-250017.7-21.4 8.37625-8.38675156.7-156.92690-290022.01-23.12 8.41425-8.41475162.0125-167.173260-326723.6-24.0 12.29-12.293167.72-173.23332-333931.2-31.8 12.51975-12.52025240-2853345.8-335836.43-36.5 12.57675-12.57725322-335.43600-4400(2) 13.36-13.41 AccordingtoFCCPart15.205,thelevelofanytransmitterspuriousemissioninRestrictedbandsshall notexceedtheleveloftheemissionspecifiedinthefollowingtable Restricted Frequency(MHz) FieldStrength(μV/m)FieldStrength (dBμV/m) Measurement Distance 0.009-0.4902400/F(KHz)20log(uV/m)300 0.490-1.70524000/F(KHz)20log(uV/m)30 1.705-303029.530 30-88100403 88-21615043.53 216-960200463 Above960500543 9.7.3TestConfiguration Testaccordingtoclause7.2radiofrequencytestsetup2 9.7.4TestProcedure ThistestisrequiredforanyspuriousemissionthatfallsinaRestrictedBand,asdefinedinSection 15.205.Itmustbeperformedwiththehighestgainofeachtypeofantennaproposedforusewiththe EUT.Usethefollowingspectrumanalyzersettings: ForAbove1GHz: TheEUTwasplacedonaturntablewhichis1.5mabovegroundplane. MaximumprocedurewasperformedonthehighestemissionstoensureEUTcompliance. Span=wideenoughtofullycapturetheemissionbeingmeasured RBW=1MHz VBW  RBW ReportNo.ENS2303140179W00503RPage44of60Ver.1.0 Sweep=auto Detectorfunction=peak Trace=maxhold ForBelow1GHz: TheEUTwasplacedonaturntablewhichis0.8mabovegroundplane. MaximumprocedurewasperformedonthehighestemissionstoensureEUTcompliance. Span=wideenoughtofullycapturetheemissionbeingmeasured RBW=100kHzfor VBW  RBW Sweep=auto Detectorfunction=peak Trace=maxhold ForBelow30MHz: TheEUTwasplacedonaturntablewhichis0.8mabovegroundplane. MaximumprocedurewasperformedonthehighestemissionstoensureEUTcompliance. Span=wideenoughtofullycapturetheemissionbeingmeasured RBW=9kHz VBW  RBW Sweep=auto Detectorfunction=peak Trace=maxhold ForBelow150KHz: TheEUTwasplacedonaturntablewhichis0.8mabovegroundplane. MaximumprocedurewasperformedonthehighestemissionstoensureEUTcompliance. Span=wideenoughtofullycapturetheemissionbeingmeasured RBW=200Hz VBWRBW Sweep=auto Detectorfunction=peak Trace=maxhold FollowtheguidelinesinANSIC63.10-2013withrespecttomaximizingtheemissionbyrotatingtheEUT, measuringtheemissionwhiletheEUTissituatedinthreeorthogonalplanes(ifappropriate),adjusting themeasurementantennaheightandpolarization,etc.Apre-ampandahighpassfilterarerequired forthistest,inordertoprovidethemeasuringsystemwithsufficientsensitivity.Allowthetraceto stabilize.Thepeakreadingoftheemission,afterbeingcorrectedbytheantennafactor,cableloss, pre-ampgain,etc.,isthepeakfieldstrength,whichmustcomplywiththelimitspecifiedinSection 15.35(b).Submitthisdata. NowsettheVBWto10Hz,whilemaintainingalloftheotherinstrumentsettings.Thispeaklevel,once corrected,mustcomplywiththelimitspecifiedinSection15.209.Ifthedwelltimeperchannelofthe hoppingsignalislessthan100ms,thenthereadingobtainedwiththe10HzVBWmaybefurther adjustedbya“dutycyclecorrectionfactor”,derivedfrom20log(dwelltime/100ms),inaneffortto demonstratecompliancewiththe15.209limit.Submitthisdata. Repeataboveproceduresuntilallfrequencymeasuredwascomplete. 9.7.5TestResults Temperature: 26  C RelativeHumidity: 54  ATMPressure:1011mbar SpuriousEmissionbelow30MHz(9KHzto30MHz) Freq. (MHz) Ant.Pol. Emission Level(dBuV/m) Limit3m(dBuV/m)Over(dB) H/VPKAVPKAVPKAV ---------------- ReportNo.ENS2303140179W00503RPage45of60Ver.1.0 Note:theamplitudeofspuriousemissionthatisattenuatedbymorethan20dBbelowthepermissible limithasnoneedtobereported. Distanceextrapolationfactor=40log(Specificdistance/testdistance)(dB); Limitline=Specificlimits(dBuV)+distanceextrapolationfactor SpuriousEmissionAbove1GHz(1GHzto25GHz) Bluetooth(GFSK,pi/4-DQPSK,8DPSK)modehavebeentested,andtheworstresult(GFSK)wasreportasbelow: Testmode:GFSKFrequency:Channel0:2402MHz Freq. (MHz) Ant.Pol. Emission Level(dBuV/m) Limit3m(dBuV/m)Over(dB) H/VPKAVPKAVPKAV 11379.3V60.0941.677454-13.91-12.33 14715V63.1544.087454-10.85-9.92 17591.2V68.9947.427454-5.01-6.58 11469.3H60.4742.837454-13.53-11.17 14566.8H63.6245.447454-10.38-8.56 17625H69.5747.207454-4.43-6.8 Testmode:GFSKFrequency:Channel39:2441MHz Freq. (MHz) Ant.Pol.EmissionLevel…

Text truncated - open the document above for the full version.

DATE DATE LEJIN Edition/Part number Shenzhen Lejin radio frequency technology Co., LTD SPECIFICATIONS FOR APPROVAL 智纬 WIFI (2G+5G)_M_ANT MP14J(7265NGW) LJF02-220424001M-R0A 李明进 2022/4/24 CUSTOMER Edition/Part number Customer Name: Product Name: Product Model: Part Number: Write By : Issued Date: ENGINEER R&D DEPT BUSSINESS DEPT APPROVED BY R&D DEPT ENGINEER R&D DEPT APPROVAL ECN/ECR Lejin radio frequency Proprietary Confidential © 2017 Lejin radio frequency Corporation. All rights reserved. Shenzhen Lejin radio frequency technology Co., LTD 目 录 Index 1、封面 （Cover） 2、目录 （Index） 3、规格（Product Specification） 8、工程图纸（Product Drawing） 4、测试设备（Test Equipment & Conditions） 5、性能测试报告（Test Report） 6、天线图片（Antenna Picture ） 7、射频线规格（Transmission line Specification） Lejin radio frequency Proprietary Confidential © 2017 Lejin radio frequency Corporation. All rights reserved. 081b Test Equipment & Conditions 1． Network Analyzers :Agilent 8753SE 5071C 2． Communications Test Set:Agilent E5515C/CMW500 3. 3D Chamber Test System(ETS743) Storage Temperature - 30 ̊C ~ + 80 ̊C Material of Radiator Connector Type KCC421 Operation Temperature FPC black/YELLOW- 20 ̊C ~ + 50 ̊C Cable Type Dimension ≥1 DB ≥1 DB Material & Mechanical CharacteristicsEnvironmental Linear Linear 2400 MHz ~2500 MHz 5100MHZ--5900 MHZ >30% <2.5>35%50 Ohm <250 Ohm Electrical Characteristics Frequency VSWR Efficiency Impedance Polarizatio n Gain Shenzhen Lejin radio frequency technology Co., LTD Lejin radio frequency Proprietary Confidential © 2017 Lejin radio frequency Corporation. All rights reserved. Freq (MHz) 2400 2410 2420 2430 2450 2460 2470 2480 2490 2500 Effi (%) 38.11 39.32 40.05 44.21 42.45 35.21 37.36 32.04 34.34 28.61 Gain (dBi) 2.36 2.25 1.99 2.75 2.21 2.25 2.99 2.89 3.25 3.12 Freq (MHz) 5150 5250 5350 5450 5550 5650 5750 5850 5950 6000 Effi (%) 45.25 46.37 50.21 53.45 49.85 45.22 43.45 47.54 48.13 49.34 Gain (dBi) -1.03 -0.8 -0.2 -0.15 -0.12 -0.05 -0.02 0.98 0.2 0.07 Shenzhen Lejin radio frequency technology Co., LTD Antenna Impedance: WIFI ANT M: 2.4G (Wifi ) 5G WIFI and BT Lejin radio frequency Proprietary Confidential © 2017 Lejin radio frequency Corporation. All rights reserved. 天线安装与工艺处理要求与说明： 天线工程图： 2.4G 802.11.B @11Mbit 5G 802.11 A @54M BIT Shenzhen Lejin radio frequency technology Co., LTD OTD_DATA:(以下OTD_DATA是在本规格书中的天线所测试得来,更换天线或更改天线的安装方式,以 下OTD_DATA将会失效) 161（5805MHz） 14.12 -76.48 1（2412MHz） 13（2472MHz） 6（2437MHz） FrequencyTIS（dBm） -79.98 -81.26 12.21 -80.58 TRP（dBm） 11.75 13.22 TRP（dBm） 13.3 FrequencyTIS（dBm） 60（5300MHz）-74.32 天线 在主 板上 的出 线方 式 （具 唯一 性） Lejin radio frequency Proprietary Confidential © 2017 Lejin radio frequency Corporation. All rights reserved. 由 Autodesk 教育版产品制作 由 Autodesk 教育版产品制作 由 Autodesk 教育版产品制作 由 Autodesk 教育版产品制作

DATE DATE ECN/ECR ENGINEER R&D DEPT BUSSINESS DEPT APPROVED BY R&D DEPT ENGINEER R&D DEPT APPROVAL LEJIN Edition/Part number Shenzhen Lejin radio frequency technology Co., LTD SPECIFICATIONS FOR APPROVAL 智纬 WIFI (2G+5G)_M_ANT MP14J(7265NGW) LJF02-220424001A-R0A 李明进 2022/4/24 CUSTOMER Edition/Part number Customer Name: Product Name: Product Model: Part Number: Write By : Issued Date: Lejin radio frequency Proprietary Confidential © 2017 Lejin radio frequency Corporation. All rights reserved. 1、封面 （Cover） 2、目录 （Index） 3、规格（Product Specification） 8、工程图纸（Product Drawing） 4、测试设备（Test Equipment & Conditions） 5、性能测试报告（Test Report） 6、天线图片（Antenna Picture ） 7、射频线规格（Transmission line Specification） 目 录 Index Shenzhen Lejin radio frequency technology Co., LTD Lejin radio frequency Proprietary Confidential © 2017 Lejin radio frequency Corporation. All rights reserved. 081b Electrical Characteristics Frequency VSWR Efficiency Impedance Polarizatio n Gain Shenzhen Lejin radio frequency technology Co., LTD ≥1 DB ≥0 DB Material & Mechanical CharacteristicsEnvironmental Linear Linear 2400 MHz ~2500 MHz 5100MHZ--5900 MHZ >30% <2.5>35%50 Ohm <250 Ohm Storage Temperature - 30 ̊C ~ + 80 ̊C Material of Radiator Connector Type KCC421 Operation Temperature FPC black/YELLOW- 20 ̊C ~ + 50 ̊C Cable Type Dimension Test Equipment & Conditions 1． Network Analyzers :Agilent 8753SE 5071C 2． Communications Test Set:Agilent E5515C/CMW500 3. 3D Chamber Test System(ETS743) Lejin radio frequency Proprietary Confidential © 2017 Lejin radio frequency Corporation. All rights reserved. Freq (MHz) 2400 2410 2420 2430 2450 2460 2470 2480 2490 2500 Effi (%) 38.11 39.32 40.05 44.21 42.45 35.21 37.36 32.04 34.34 28.61 Gain (dBi) 2.36 2.25 1.99 2.75 2.21 2.25 2.99 2.89 3.25 3.12 Freq (MHz) 5150 5250 5350 5450 5550 5650 5750 5850 5950 6000 Effi (%) 45.25 46.37 50.21 53.45 49.85 45.22 43.45 47.54 48.13 49.34 Gain (dBi) -1.03 -0.8 -0.2 -0.15 -0.12 -0.05 -0.02 0.98 0.2 0.07 Shenzhen Lejin radio frequency technology Co., LTD Antenna Impedance: WIFI ANT M: 2.4G (Wifi ) 5G WIFI and BT Lejin radio frequency Proprietary Confidential © 2017 Lejin radio frequency Corporation. All rights reserved. 天线安装与工艺处理要求与说明： 天线工程图： 天线 在主 板上 的出 线方 式 （具 唯一 性） 161（5805MHz） 14.12 -76.48 1（2412MHz） 13（2472MHz） 6（2437MHz） FrequencyTIS（dBm） -79.98 -81.26 12.21 -80.58 TRP（dBm） 11.75 13.22 TRP（dBm） 13.3 FrequencyTIS（dBm） 60（5300MHz）-74.32 2.4G 802.11.B @11Mbit 5G 802.11 A @54M BIT Shenzhen Lejin radio frequency technology Co., LTD OTD_DATA:(以下OTD_DATA是在本规格书中的天线所测试得来,更换天线或更改天线的安装方式,以 下OTD_DATA将会失效,测试WIFI OTA时产品BT处于关闭状态，测为成品裸机测试) Lejin radio frequency Proprietary Confidential © 2017 Lejin radio frequency Corporation. All rights reserved. 由 Autodesk 教育版产品制作 由 Autodesk 教育版产品制作 由 Autodesk 教育版产品制作 由 Autodesk 教育版产品制作

1.1.PhotosofRadiationEmissionMeasurement PhotosofConductedEmissionMeasurement SpuriousEmissionTestSetup(30MHz-1GHz) SpuriousEmissionTestSetup(above1GHz)
