1 二 1 = 1 = 1 = 1 二 I 二 I 二 I Wireless Speaker user manual 1 = 1 = 1 = 1 = 1 = 1 = 1 = 1 1 二 I 二 1 = 1 = 1 = 1 = 1 二 I Wireless Speaker Model: A500 心 Before putting the equipment into use, please read this manual carefully. Save this manual for future reference. The operation of this device is subject to the following two conditions 1. This equipment or device may not cause harmful interference. 2. This equipment or device must accept any interference. Including the one that may cause your unwanted operation Electrical Characteristics 1. Voltage: 5V=== 2.Signal to noise ratio: ≥75dB 3.Audio Frequency: 20Hz - 20KHz 4.Battery capacity: 2200 mAh 5.Battery charging time: 3 h 6.Working time: 6h 1 = 1 = 1 = 1 二 1 = 1 = 1 = 1 Charge the Speaker 1. Plug the included USB cable into the charging port located on the bottom rear of the speaker. 2. Connect the other end of the USB cable to any other power source. USB power and charge for hours. During the charging phase, the power LED will light red. Unplug the speakers when ready to use. NOTE: The speaker can also be used while plugged in to the USB power cable for extended use without draining the battery. Turn on and connect to your device 1. Slide the switch on the back of the speaker to the ON position to turn it on. 2. Press the mode change button to select Bluetooth, FM Radio, AUX, USB or Micro SD. Pair your A500 with a phone or other device Make sure the speakerphone is in on mode. 1 二 1 = 1 = 1 = 1 = 1 二 I 二 I Volume-Key Next Song 生 4 ：一一一一一一一一一一一· 血 : _____ _ • ---- ， · - －－ - － － － － － －－ t 4 ＾ ， 1 二 I 二 I 二 1 = 1 = 1 = 1 二 I I / I / I - 1 - 1 - 1 - I / I I - 1 - 1 - I / I - 1 - 1 - 1 I / I - 1 - 1 - 1 - I / I / I 1 = 1 = 1 = 1 = 1 = 1 = 1 = 1 Before using this product, please read these instructions carefully for proper use. 1. Start the Bluetooth function 2. Search for nearby Bluetooth devices, A500 will appear. 3. Pair your device with A500. Once the speaker is paired and connected to your device, the next time you turn on the speaker, it will automatically connect as long as your mobile phone's Bluetooth is turned on. Radio mode 1. Press the button to turn on the speaker and automatically the Bluetooth mode will be activated. After power on, press M button to switch to radio mode. 2. Press - or + once to change the radio station *Recommendation: If you are in a place with few exceptions, just plug in the charging cable (no need to connect it to the light current). The cable will work for you to amplify the signal and improve the audio quality of the radio station. Speakerphone Calls Integrated microphone to make calls on speakerphone. Press the play/pause button to answer incoming calls. Volume+key previous track 生 Menu Switch AUX interface 3.5 TF interface Charging interface USB interface Using Device Input 1. To use the speaker's USB or aux input, plug the cable into the back of the speaker and connect it to your device to "play" music. 2. To use memory card input, insert a compatible SD memory card into the slot. Use the speaker controls to control music playback. Warn • Keep the device away from heat sources and direct sunlight. • Do not insert any metal objects into the device. • Risk of short circuit. • To avoid static electricity, do not use the device in extremely dry climates. Precautions • Do not handle the speaker, USB cable, or power supply with wet hands. • Do not allow dust or other matter to accumulate on the product and power cord. • Do not use the speaker if it has been dropped or damaged in any way. • Never disassemble this equipment, always have it serviced by a qualified technician. Button function Play/Handsfree FCC Statement： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Shenzhen Yitao Technology Co., Ltd. Room 201, Building 14, 228 Industrial Zone, Silian Community, Henggang Street, Longgang District, Shenzhen, China The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/5/24 U.S. Agent Designation Shenzhen Yitao Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BA87-A500): Name and company of U.S. agent: Formates LLC Physical U.S. address of agent: 1400 Hudson St, Hoboken, New Jersey, 07030, USA FRN of U.S. agent: 0033456468 Email address of U.S. agent: [email protected] Formates LLC acknowledges their obligation to accept service of process on behalf of Shenzhen Yitao Technology Co., Ltd.. Shenzhen Yitao Technology Co., Ltd. with the FRN 0033786435 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). Sincerely, Signature Frand Cai Certification Contactor Shenzhen Yitao Technology Co., Ltd. Signature Abi Aribisala Project Manager Formates LLC 48_[mo del] US_Agent_2.911(d)(7) - U, V04

Shenzhen Yitao Technology Co., Ltd. Room 201, Building 14, 228 Industrial Zone, Silian Community, Henggang Street, Longgang District, Shenzhen, China The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/5/24 To whom it may concern: We, Shenzhen Yitao Technology Co., Ltd., hereby certify that the equipment for which authorization is sought (FCC ID: 2BA87-A500) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). Sincerely, Signature Frand Cai Certification Contactor Shenzhen Yitao Technology Co., Ltd. 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V02

Shenzhen Yitao Technology Co., Ltd. Room 201, Building 14, 228 Industrial Zone, Silian Community, Henggang Street, Longgang District, Shenzhen, China Agent Authorization Letter 2023/5/24 Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, Shenzhen Yitao Technology Co., Ltd., the undersigned, hereby authorize (Shenzhen Tongzhou Testing Co.,Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Contact Person: Frand Cai Title : Certification Contactor E-mail: [email protected] Company Name: Shenzhen Yitao Technology Co., Ltd.

Shenzhen Yitao Technology Co., Ltd. Room 201, Building 14, 228 Industrial Zone, Silian Community, Henggang Street, Longgang District, Shenzhen, China Long Term Confidentiality Request Letter 2023/5/24 Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR ProductName : Bluetooth Speaker Model : A500,A117,G500,G600,A1100,A800,A900,A1000,A1200,A1300,A1400,A1500,A1600,A1800,BTS0019,BT S0053A,BT18,Y2,BT19 FCC ID: 2BA87-A500 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We, Shenzhen Yitao Technology Co., Ltd., have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above-mentioned documents belong to internal documents, is our proprietary information, that could never get into the possession of our competition. Please contact me if there is any information you may need. Sincerely, Contact Person: Frand Cai Title : Certification Contactor E-mail: [email protected] Company Name: Shenzhen Yitao Technology Co., Ltd.

Difference description Shenzhen Yitao Technology Co., Ltd. Room 201, Building 14, 228 Industrial Zone, Silian Community, Henggang Street, Longgang District, Shenzhen, China Model : A500,A117,G500,G600,A1100,A800,A900,A1000,A1200,A130 0,A1400,A1500,A1600,A1800,BTS0019,BTS0053A,BT18,Y2, BT19 FCC ID: 2BA87-A500 They are the same except for the model name, even the principle of the circuit, the electrical structure and all key components related to safety and electromagnetic compatibility are the same. The difference does not affect electromagnetic compatibility and safety. Sincerely, Contact Person: Frand Cai Title : Certification Contactor E-mail: [email protected] Company Name: Shenzhen Yitao Technology Co., Ltd.

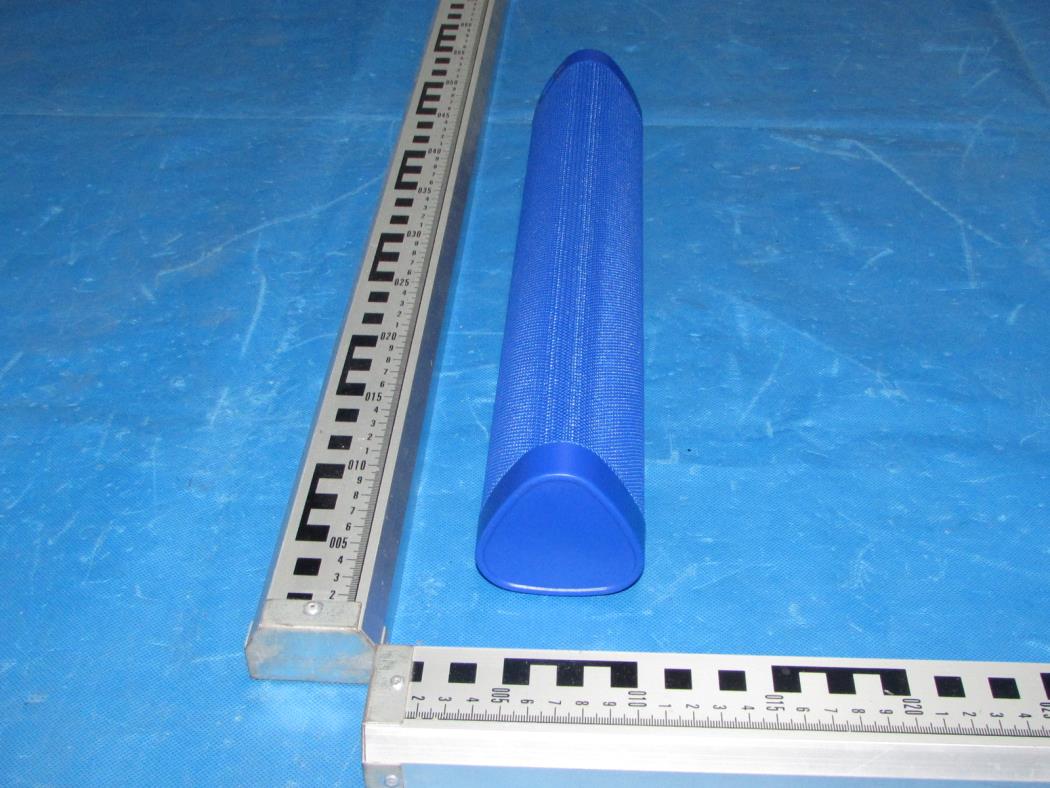

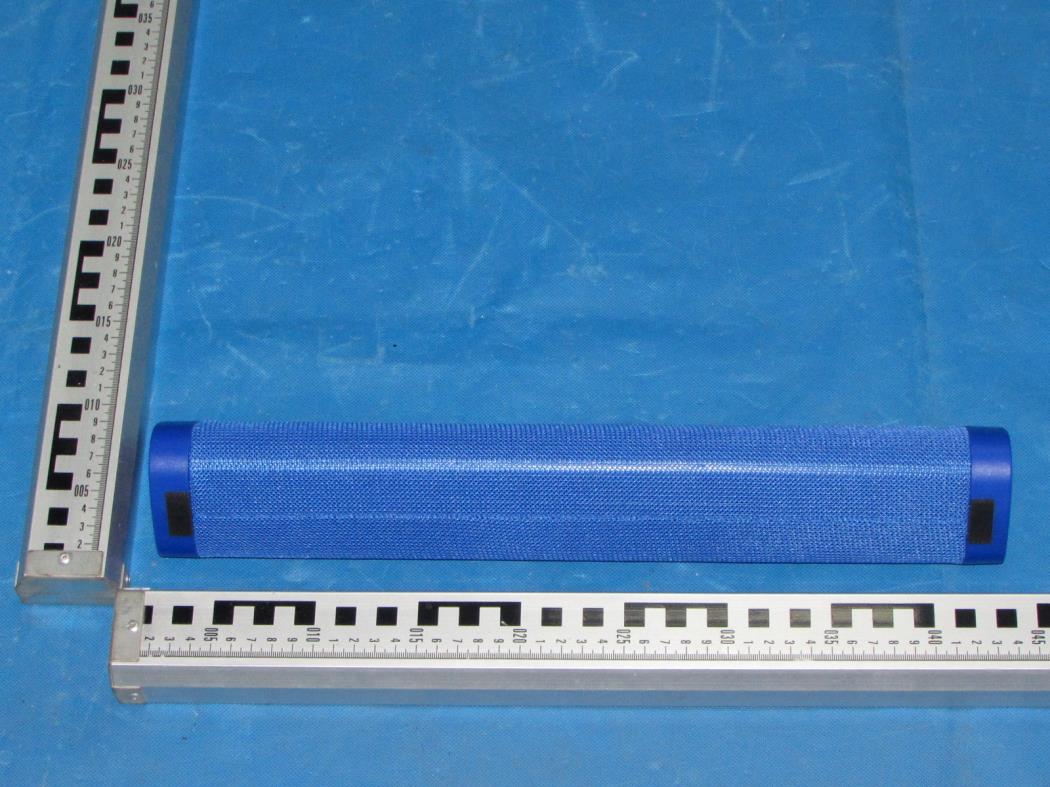

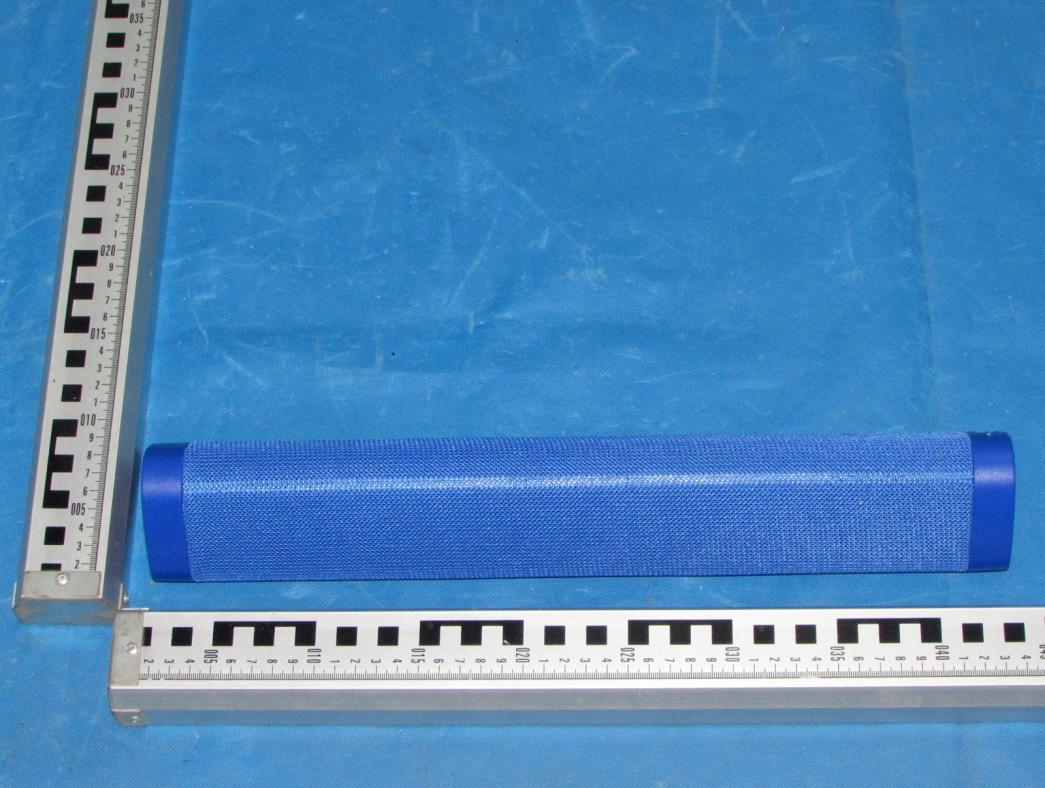

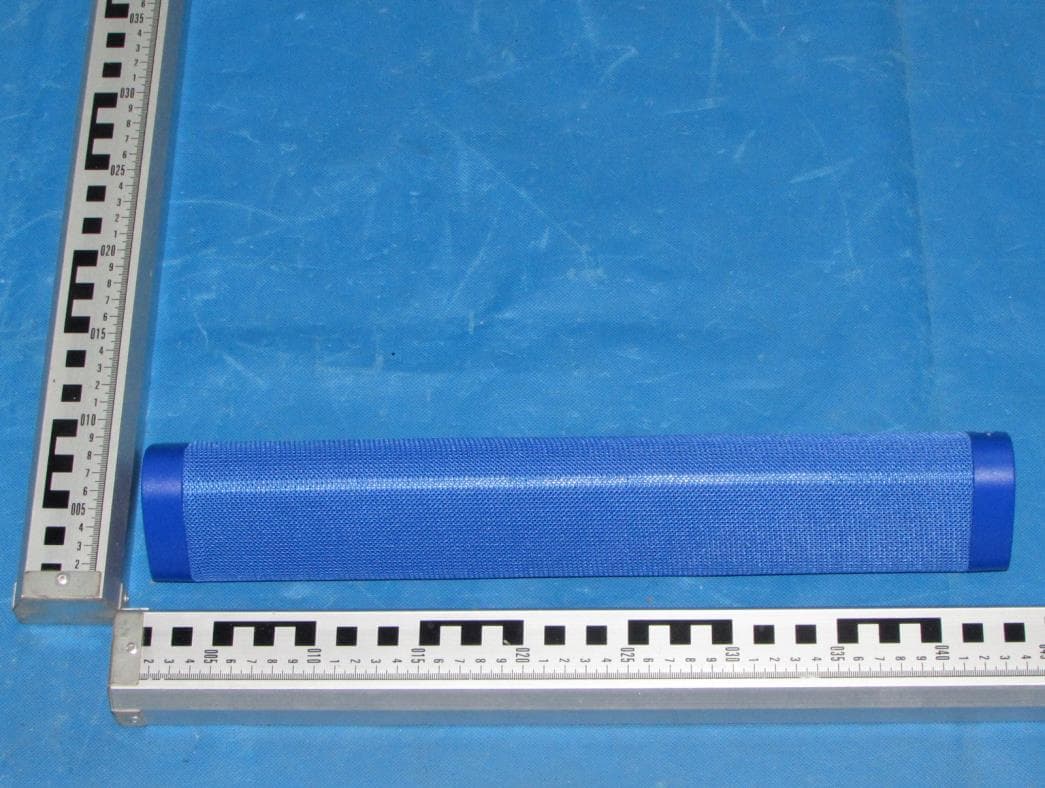

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5

Label Location: FCC ID: 2BA87-A500

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Bluetooth antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Fig.3 Fig.4

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 RADIO FREQUENCY EXPOSURE Limit According to section 4.3.1 of KDB 447498 D01 General RF Exposure Guidance v06, SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Appendix A. Appendix A SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK 0 2402 0.27 39 2441 1.12 78 2480 1.43 π/4-DQPSK 0 2402 -1.38 39 2441 -0.64 78 2480 -0.18 Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.0 0.5 1.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -1.0 -0.5 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. power including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK 2402 1.0 2.7 1.85 10 2441 1.5 3.2 2.08 10 2480 2.0 3.7 2.33 10 π/4-DQPSK 2402 -1.0 0.7 1.17 10 2441 0.0 1.7 1.47 10 2480 0.5 2.2 1.65 10 Manufacturer declared that the maximum antenna gain is 1.68dBi (Max.), the Maximum Eirp is used for Routine Evaluation Exemption according to section 4.3.1 of KDB 447498 D01. So, the SAR evaluation is not required.

Design company: Shenzhen Yitao Technology Co., Ltd. Room 201, Building 14, 228 Industrial Zone, Silian Community, Henggang Street, Longgang District, Shenzhen, China spce:ANT_XZR01 Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500GHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(dBm) 1.2 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 6 0.2 % Peak Gain (dBi) 1.68 Maximum Power (dBm) 1.68(XZ-plane) Minimum Power (dBm ) -3.83(XZ-plane) Avg. Power (dBm) -0.48(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.35 -0.48 1.68 -3.83 1.11 -2.99 6 0.2 % Return Loss The Environment of Antenna Radiation Pattern 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 1 of 34 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: Bluetooth Speaker Trade Mark: N/A Test Model: A500 FCC ID: 2BA87-A500 Environmental Conditions Temperature: 23.5°C Relative Humidity: 53% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.945 2401.538 2402.483 --- --- 2441 0.939 2440.538 2441.477 --- --- 2480 0.945 2479.538 2480.483 --- --- 2DH5 Ant1 2402 1.326 2401.337 2402.663 --- --- 2441 1.329 2440.334 2441.663 --- --- 2480 1.329 2479.334 2480.663 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 2 of 34 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 3 of 34 2DH5_Ant1_2441 2DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 4 of 34 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.86150 2401.5665 2402.4280 --- --- 2441 0.86312 2440.5651 2441.4282 --- --- 2480 0.85982 2479.5652 2480.4250 --- --- 2DH5 Ant1 2402 1.1906 2401.4044 2402.5950 --- --- 2441 1.1905 2440.4049 2441.5954 --- --- 2480 1.1907 2479.4060 2480.5967 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 5 of 34 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 6 of 34 2DH5_Ant1_2441 2DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 7 of 34 Appendix C: Maximum Peak conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH5 Ant1 2402 0.27 ≤20.97 PASS 2441 1.12 ≤20.97 PASS 2480 1.43 ≤20.97 PASS 2DH5 Ant1 2402 -1.38 ≤20.97 PASS 2441 -0.64 ≤20.97 PASS 2480 -0.18 ≤20.97 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 8 of 34 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 9 of 34 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 10 of 34 Appendix D: Carrier frequency separation Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.014 ≥0.945 PASS 2DH5 Ant1 Hop 0.996 ≥0.886 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 11 of 34 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 12 of 34 Appendix E: Time of occupancy Test Result TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.888 120 0.347 ≤0.4 PASS 2DH5 Ant1 Hop 2.887 120 0.346 ≤0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 13 of 34 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 14 of 34 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 15 of 34 Appendix F: Number of hopping channels Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 16 of 34 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 17 of 34 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -0.04 -50.39 ≤-20.04 PASS High 2480 1.10 -49.17 ≤-18.9 PASS Low Hop_2402 -1.05 -50.94 ≤-21.05 PASS High Hop_2480 0.63 -49.22 ≤-19.37 PASS 2DH5 Ant1 Low 2402 -4.16 -50.4 ≤-24.16 PASS High 2480 -3.33 -49.53 ≤-23.33 PASS Low Hop_2402 -7.84 -50.76 ≤-27.84 PASS High Hop_2480 -4.92 -49.71 ≤-24.92 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 18 of 34 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 DH5_Ant1_High_Hop_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 19 of 34 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 20 of 34 2DH5_Ant1_High_Hop_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 21 of 34 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -0.35 -0.35 --- PASS 30~1000 -0.35 -63.08 ≤-20.35 PASS 1000~26500 -0.35 -31.17 ≤-20.35 PASS 2441 Reference 0.07 0.07 --- PASS 30~1000 0.07 -62.59 ≤-19.93 PASS 1000~26500 0.07 -33.58 ≤-19.93 PASS 2480 Reference 0.39 0.39 --- PASS 30~1000 0.39 -63.14 ≤-19.61 PASS 1000~26500 0.39 -35.98 ≤-19.61 PASS 2DH5 Ant1 2402 Reference -6.29 -6.29 --- PASS 30~1000 -6.29 -62.26 ≤-26.29 PASS 1000~26500 -6.29 -37.31 ≤-26.29 PASS 2441 Reference -5.45 -5.45 --- PASS 30~1000 -5.45 -62.22 ≤-25.45 PASS 1000~26500 -5.45 -36.22 ≤-25.45 PASS 2480 Reference -5.64 -5.64 --- PASS 30~1000 -5.64 -62.9 ≤-25.64 PASS 1000~26500 -5.64 -39.32 ≤-25.64 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 22 of 34 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 DH5_Ant1_2441_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA87-A500 Report No.: TZ230504337-E1 Page 23 of 34 DH5_Ant1_2441_30~1000 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~R…
