2BA8B-HYO008Egg light

Manual Product name: Egg alarm clock night light Because there are many operations involved, please read the manual carefully before use and keep it well. Do not discard it. Function: This product has the following modules： ⚫ Time display ⚫ Music box（built in sounds / blue tooth） ⚫ LED device ⚫ Charging module It could be used as: ⚫ Alarm clock ⚫ While noise machine for aid sleep ⚫ Night light ⚫ Blue tooth speaker box ⚫ Decoration lamp Product material: ⚫ The shell is made of ABS and PC materials. ⚫ The exterior is painted. ⚫ There are circuit boards, LEDs, and speakers inside. ⚫ CR2032 Battery for memory. Electrical parameters: Rate input current: 250mA Input voltage: 5V DC External power port: Type-C Built-in battery compartment: 3AA batteries Internal charging parameters: Out put 4.2V voltage, 500mA current. Rate of LED light: 1.5W Rate of Speaker: 5W Normal batteries generally support 8-16 hours of lighting operation, or 2-4 hours of lighting and speaker operation. It is recommended to using external power sources to avoid short working time. Product built-in charging module, recommend using rechargeable nickel hydrogen batteries. Do not plug in external power sources when using alkaline non rechargeable batteries. Otherwise, it may damage the battery or pose other risks Operating Guidelines Key usage and function operation Light switch: short press or , RGB-LED lighting up. Adjusting brightness: Short press to cycle select 5 brightness levels. Right side keys Left side keys Color and color change mode switching: Short press to cycle select 16 colors and 4 color change modes. Sound switch: Short press to play built-in sound files. Bluetooth switch: Long press to turn Bluetooth on or off, connect to multimedia devices, and play audio files from the user's device. Switch music: In the mode of playing the built-in sound and Bluetooth audio on the device, short press or switch to the previous or next audio file. Volume adjustment: In the mode of playing the built-in sound and Bluetooth audio of the device, long press or to increase or decrease the volume. Alarm 1 switch: Short press to turn alarm 1 on or off. Alarm 2 switch: Short press to turn alarm 2 on or off. Wake up mode switch: Short press to select the working duration of the wake-up mode. There are four gears: 10min/20min/30min/off. After selection, the device will stay for 3 seconds then enter the wake-up mode. The system will increase the light and sound to the user's set value within 30 seconds. In the system wake-up mode working state, press any key to exit the wake-up mode and restore to the previous working state. Sleep mode switch: Short press to select the duration of sleep mode operation, with four gears of 10min/20min/30min/off. After selection, stay for 3 seconds, and the device will enter wake-up mode. The system will increase the light and sound to the user's set values within 30 seconds, and then gradually reduce the light brightness and sound volume. In the sleep mode of the system, press any key to exit the wake-up mode, enter clock mode, and turn off lights and sound. Setting time: Long press to enter time setting mode, setting sequence The current setting option flashes. Short press or set to increase or decrease the setting value. After setting, short press to confirm and then jump to the next setting item. Exit the setup mode after all settings are completed. The corresponding light for each setting step flashes for 10 seconds, and if there is no operation within this time, the setting mode will automatically exit. Alarm 1 setting: Long press to enter Alarm 1 setting mode, and the alarm 1 indicator light week hour minute Exit Setup Mode will light up. Set the sequence of content as The current setting item's digital display will flash. Short press or set to increase or decrease the setting value. After setting, short press to confirm and then jump to the next setting item. Exit the setup mode after all settings are completed. The corresponding light for each setting step flashes for 10 seconds, and if there is no operation within this time, the setting mode will automatically exit. Set the alarm clock to select the day of the week: The indicator light for the current set day of the week flashes. By using the + / - keys to move forward or backward, and short keys to select or cancel the current day of the week, the selected day of the week light remains on, while the unselected day light does not turn on. After setting, short press to enter the next setting item. 5 minutes before reaching the set alarm time, the light gradually lights up, from the darkest to the brightest, with a process time of 30 seconds; When the preset alarm time is reached, the sound gradually sounds, increasing from the minimum to the preset maximum volume, and the process time is 30 seconds. When the alarm clock rings, press any key to end it. The default setting for the alarm clock is to continuously sound for 10 minutes. Without any operation, it will continue to work for 10 minutes before entering clock mode. After 5 minutes, it will turn on again. Without any operation, it will continue to work for 3 cycles and end the alarm clock for the day. Alarm 2 settings: Long press to enter Alarm 2 settings. The steps and methods are the same as Alarm 1. Short press the confirm button. Wake up mode setting: Long press to enter the wake up mode setting, (if there is no operation within 10 seconds, the setting mode will automatically exit). Short press to set different contents, and the corresponding settings will flash. The setting order is as follows: Hour Minute Music Max volume Colors Week Exit Select music Max volume Select color Exit setting Use the+/- keys to set the value of the option. After setting it, Short press to confirm and jump to the next setting item. Sleep mode setting: Long press to enter the wake-up mode setting, (if there is no operation within 10 seconds, the setting mode will automatically exit). Short press to switch set…

Text truncated - open the document above for the full version.

Sincerely, Name/Title： Huanshen Pan /General manager Company: Shenzhen Haiyoumeng Technology Co., Ltd. Address: 403,Jinshanlong 2th District Comprehensive Building,No. 2 Xintang Village,Jutang Community, Fucheng Street, Longhua District, Shenzhen China Phone: 13728724980 Fax: N/A E-Mail: [email protected]

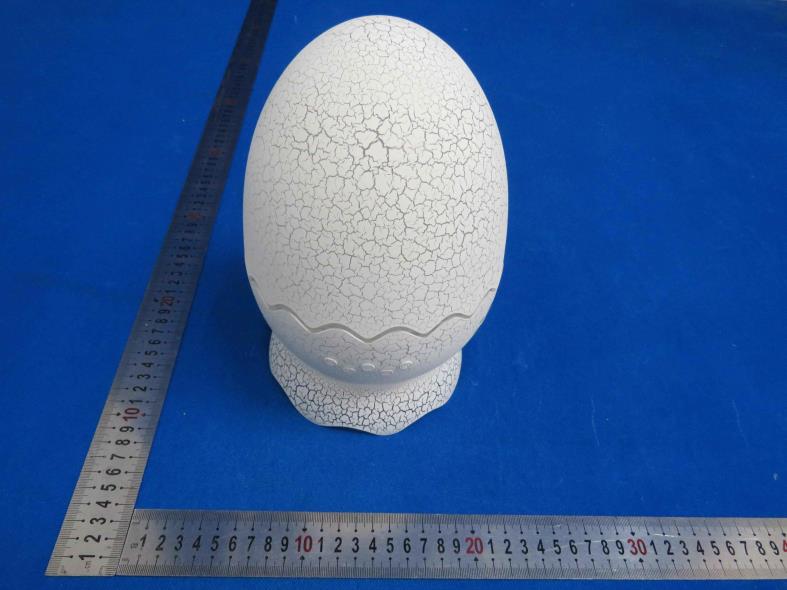

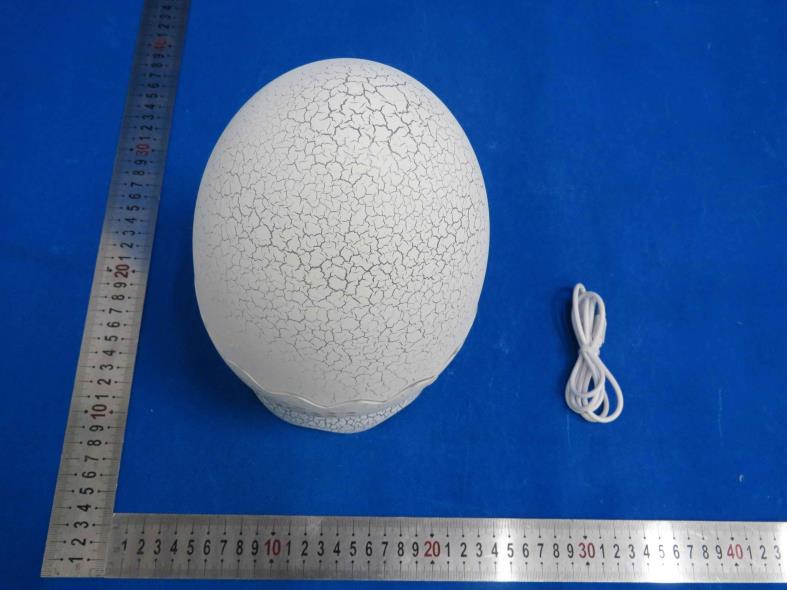

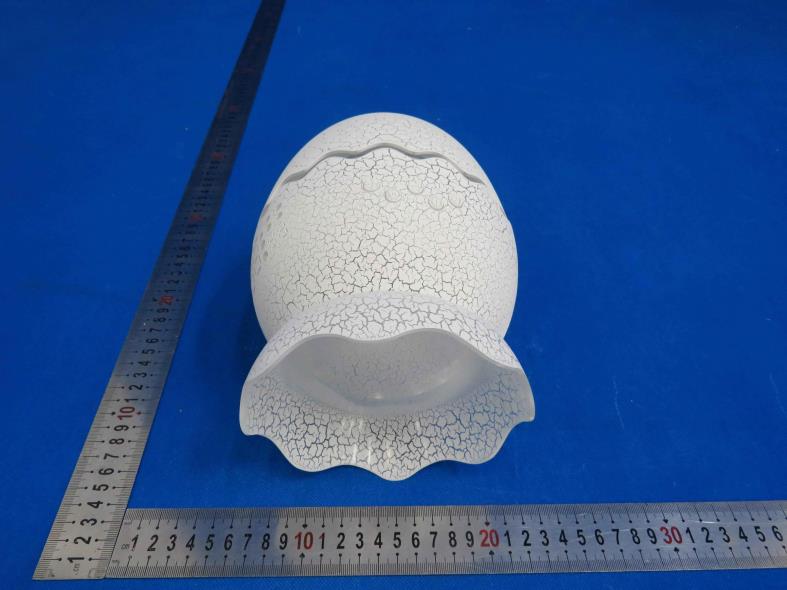

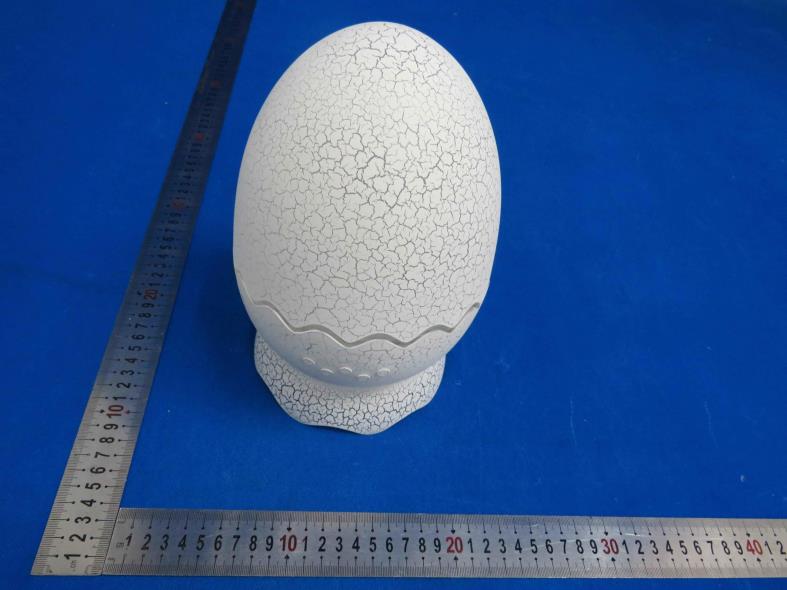

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202305154 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 4 Product Name: Egg light Model No.: HYO008 EUT Constructional Details External Photo Report No.: HTT202305154 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 4 Report No.: HTT202305154 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 4 Report No.: HTT202305154 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 4 ------End------

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202305154 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: Egg light Model No.: HYO008 EUT Constructional Details Internal Photo Report No.: HTT202305154 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 Report No.: HTT202305154 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

RF Exposure evaluation FCC ID: 2BA8B-HYO008 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 1.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.450 5 2.0 1.5849 0.4962<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

Antennaspecification APPlications ※BluetoothHomeRF ※ISMband2.4GHzapplications 1.Dimensions 2.Specifications numberItemSpecifications 1WorkingCentralFrequency2441MHz 2BandWidth(2402-2480)MHz 3Gain0dBi 4VSWR≤2.0 5AntennatypePCBantenna 6AzimuthBeamwidthOmni‐directional 7Impedance50ohm 8ModulationmodeGFSK ‣CompanyName : ‣ Companyaddres Shenzhen Haiyoumeng Technology Co., Ltd. s : 403, Jinshanlong 2th District Comprehensive Building, No. 2 Xintang Village, Jutang Community, Fucheng Street, Longhua District, Shenzhen 3.simulationparameter ①VSWR Mkr1:2397MHz1.47Mkr2:2450MHz1.51Mkr3:2482MHz1.59 ②SmithChar Mkr1:2397MHz73.4Mkr2:2450MHz62.7Mkr3:2482MHz66.8 ③ReturnLoss Mkr1:2397MHz-15Mkr2:2450MHz-18Mkr3:2482MHz-16 ④SmithChar Mkr1:2400MHz1.234Mkr2:2500MHz1.051Mkr3:2600MHz1.322 ⑤ReturnLoss Mkr1:2400MHz-19.59Mkr2:2450MHz-27.70Mkr3:2500MHz-31.97Mkr4: 2550MHz-21.83 ` ⑥Phase Mkr1:2400MHz-54.89Mkr2:2500MHz-82.03Mkr3:2600MHz-102.6 4.RadiationPattems XY-plane XZ-plane YZ-plane  3DRadiationpattern

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202305154F01 This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 31 TEST Report Applicant: Shenzhen Haiyoumeng Technology Co., Ltd. Address of Applicant: 403, Jinshanlong 2th District Comprehensive Building, No. 2 Xintang Village, Jutang Community, Fucheng Street, Longhua District, Shenzhen Manufacturer : Shenzhen Haiyoumeng Technology Co., Ltd. Address of Manufacturer : 403, Jinshanlong 2th District Comprehensive Building, No. 2 Xintang Village, Jutang Community, Fucheng Street, Longhua District, Shenzhen Equipment Under Test (EUT) Product Name: Egg light Model No.: HYO008 Series model: HYO008-1, HYO008-2, HYO008-3, HYO008-4, HYO008-5, HYO008-6, HYO008-7, HYO008-8, HYO008-9, HYO008-10 Trade Mark: N/A FCC ID: 2BA8B-HYO008 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: May.09,2023 Date of Test: May.09,2023~May.16,2023 Date of report issued: May.16,2023 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: HTT202305154F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 31 1. Version Version No. Date Description 00 May.16,2023 Original Tested/ Prepared By Date: May.16,2023 Project Engineer Check By: Date: May.16,2023 Reviewer Approved By : Date: May.16,2023 Authorized Signature Report No.: HTT202305154F01 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 31 2. Contents Page 1. VERSION ........................................................................................................................................................ 2 2. CONTENTS .................................................................................................................................................... 3 3. TEST SUMMARY ........................................................................................................................................... 4 4. GENERAL INFORMATION ............................................................................................................................ 5 4.1. GENERAL DESCRIPTION OF EUT ................................................................................................................ 5 4.2. TEST MODE ............................................................................................................................................... 7 4.3. DESCRIPTION OF SUPPORT UNITS .............................................................................................................. 7 4.4. DEVIATION FROM STANDARDS .................................................................................................................... 7 4.5. ABNORMALITIES FROM STANDARD CONDITIONS........................................................................................... 7 4.6. TEST FACILITY ........................................................................................................................................... 7 4.7. TEST LOCATION ......................................................................................................................................... 7 4.8. ADDITIONAL INSTRUCTIONS ........................................................................................................................ 7 5. TEST INSTRUMENTS LIST ........................................................................................................................... 8 6. TEST RESULTS AND MEASUREMENT DATA ............................................................................................ 9 6.1. CONDUCTED EMISSIONS ............................................................................................................................ 9 6.2. CONDUCTED OUTPUT POWER .................................................................................................................. 12 6.3. CHANNEL BANDWIDTH ............................................................................................................................. 13 6.4. POWER SPECTRAL DENSITY ..................................................................................................................... 15 6.5. BAND EDGES ........................................................................................................................................... 17 6.5.1 Conducted Emission Method .......................................................................................................... 17 6.5.2 Radiated Emission Method ............................................................................................................. 18 6.6. SPURIOUS EMISSION ................................................................................................................................ 20 6.6.1 Conducted Emission Method .......................................................................................................... 20 6.6.2 Radiated Emission Method ............................................................................................................. 22 6.7. ANTENNA REQUIREMENT .......................................................................................................................... 30 7. TEST SETUP PHOTO .............................................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202305154 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: Egg light Model No.: HYO008 Test Setup Photo Radiated Emission Report No.: HTT202305154 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 Conducted Emission ------End------
