2BA8C-RE-YX200Speakers

单面印刷

Guangzhou Lucky Communication Technology Co., Ltd. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company n ame: Guangzhou Lucky Communication Technology Co., Ltd. Address: No. 21, 10th Floor, No. 55, Xiti Erma Road, Liwan District, Guangzhou, China Product Name: Speakers FCCID: 2BA8C‐RE‐YX200 Model(s): RE‐YX200, RE‐YX210, RE‐YX220, RE‐YX230, RE‐YX240, RE‐YX250, RE‐YX260, RE‐YX270, RE‐YX280, RE‐YX290, RE‐YX300, RE‐YX310, RE‐YX320, RE‐YX330, RE‐YX340, RE‐YX350, RE‐YX360, RE‐YX370, RE‐YX380, RE‐YX390 2.911(d)(5)(i) EquipmentType We, [Guangzhou Lucky Communication Technology Co., Ltd.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not: Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Shuhao Chen Date: Jul. 13, 2023 Title: Manager Company name: Guangzhou Lucky Communication Technology Co., Ltd. Signature: NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Guangzhou Lucky Communication Technology Co., Ltd. 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Guangzhou Lucky Communication Technology Co., Ltd. Address: No. 21, 10th Floor, No. 55, Xiti Erma Road, Liwan District, Guangzhou, China Product Name: Speakers FCCID: 2BA8C-RE-YX200 Model(s): RE-YX200, RE-YX210, RE-YX220, RE-YX230, RE-YX240, RE-YX250, RE-YX260, RE-YX270, RE-YX280, RE-YX290, RE-YX300, RE-YX310, RE-YX320, RE-YX330, RE-YX340, RE-YX350, RE-YX360, RE-YX370, RE-YX380, RE-YX390 2.911(d)(5)(ii) Applicant filing We, [Guangzhou Lucky Communication Technology Co., Ltd.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: Shuhao Chen Date: Jul. 13, 2023 Title: Manager Company name: Guangzhou Lucky Communication Technology Co., Ltd. Signature: NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

GuangzhouLuckyCommunicationTechnologyCo.,Ltd. 2.911(d)(7)USAAgentv1.4 Section2.911(d)(7)USAAgentforServiceofProcess Companyname:GuangzhouLuckyCommunicationTechnologyCo.,Ltd. Address:No.21,10thFloor,No.55,XitiErmaRoad,LiwanDistrict,Guangzhou, China ProductName:Speakers FCCID:2BA8C-RE-YX200 Model(s):RE-YX200,RE-YX210,RE-YX220,RE-YX230,RE-YX240,RE-YX250, RE-YX260,RE-YX270,RE-YX280,RE-YX290,RE-YX300,RE-YX310,RE-YX320, RE-YX330,RE-YX340,RE-YX350,RE-YX360,RE-YX370,RE-YX380,RE-YX390 2.911(d)(7)USADesignatedAgentforServiceofProcess We,[GuangzhouLuckyCommunicationTechnologyCo.,Ltd.](“theapplicant”) designate[GSSSERVICEINC] NOTE1 forthepurposeofacceptingserviceofprocess onbehalfoftheapplicant. Applicantconsent:Weacknowledgeourconsenttoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipment,andatthephysicalU.S. addressandemailaddressofthedesignatedagentandacknowledgeour acceptanceofourobligationtomaintainanagentforserviceofprocessintheUnited Statesfornolessthanoneyearaftereitherwethegranteehavepermanently terminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S., orattheconclusionofanyCommission-relatedadministrativeorjudicialproceeding involvingtheequipment,whicheverislater. Agentobligation:Weacknowledgeourobligationtoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipmentatourphysicalU.S. addressandemailaddressfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipment withintheU.S.,orattheconclusionofanyCommission-relatedadministrativeor judicialproceedinginvolvingtheequipment,whicheverislater. GuangzhouLuckyCommunicationTechnologyCo.,Ltd. 2.911(d)(7)USAAgentv1.4 USAAgent Companyname: GSS SERVICEINC USA Address:6547 N AcademyBlvd #2266 ColoradoSpringsCo 80918USA FRN Number: 0033402082 ContactName:MichouxLogan TelephoneNo: 001-949-2990192 Email:[email protected] Applicant Companyname:GuangzhouLucky CommunicationTechnologyCo., Ltd. Address:No. 21, 10th Floor, No. 55, Xiti Erma Road,Liwan District,Guangzhou, China FCC GranteeCode:2BA8C ContactName:ShuhaoChen TelephoneNo: 13189709310 Email:[email protected] Signature: Ti tle: Signature: Title: Manager Date: Jul. 14, 2023Date: Jul. 14, 2023 NOTE1: An applicantlocatedin the UnitedStatesmay designateitself as the agent for service of process. Reference;FederalRegisterdocument2022-28263publishedon 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

Guangzhou Lucky Communication Technology Co., Ltd. Agent Authorization Company: Guangzhou Lucky Communication Technology Co., Ltd. Address: No. 21, 10th Floor, No. 55, Xiti Erma Road, Liwan District, Guangzhou, China Product Name: Speakers Model Number(s): RE-YX200, RE-YX210, RE-YX220, RE-YX230, RE-YX240, RE-YX250, RE-YX260, RE-YX270, RE-YX280, RE-YX290, RE-YX300, RE-YX310, RE-YX320, RE- YX330, RE-YX340, RE-YX350, RE-YX360, RE-YX370, RE-YX380, RE-YX390 Product Description: Speakers We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jul. 13, 2023 Name: Shuhao Chen Title: Manager Company: Guangzhou Lucky Communication Technology Co., Ltd.

Guangzhou Lucky Communication Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jul. 13, 2023 Subject; Request for Confidentiality FCC ID: 2BA8C-RE-YX200 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Shuhao Chen Title: Manager

Guangzhou Lucky Communication Technology Co., Ltd. Model Difference Declaration To Whom It May Concern, We, Guangzhou Lucky Communication Technology Co., Ltd. (Speakers) ; Model Number: RE-YX200, RE-YX210, RE-YX220, RE-YX230, RE-YX240, RE-YX250, RE-YX260, RE-YX270, RE-YX280, RE-YX290, RE-YX300, RE-YX310, RE-YX320, RE-YX330, RE-YX340, RE-YX350, RE-YX360, RE-YX370, RE-YX380, RE-YX390 ; Model Difference: All model’s the function, software and electric circuit are the same, only with a product model named different. Test sample model: RE-YX200. Please contact me if you have any question. Signature: Date: Jul. 13, 2023 Name: Shuhao Chen Title: Manager

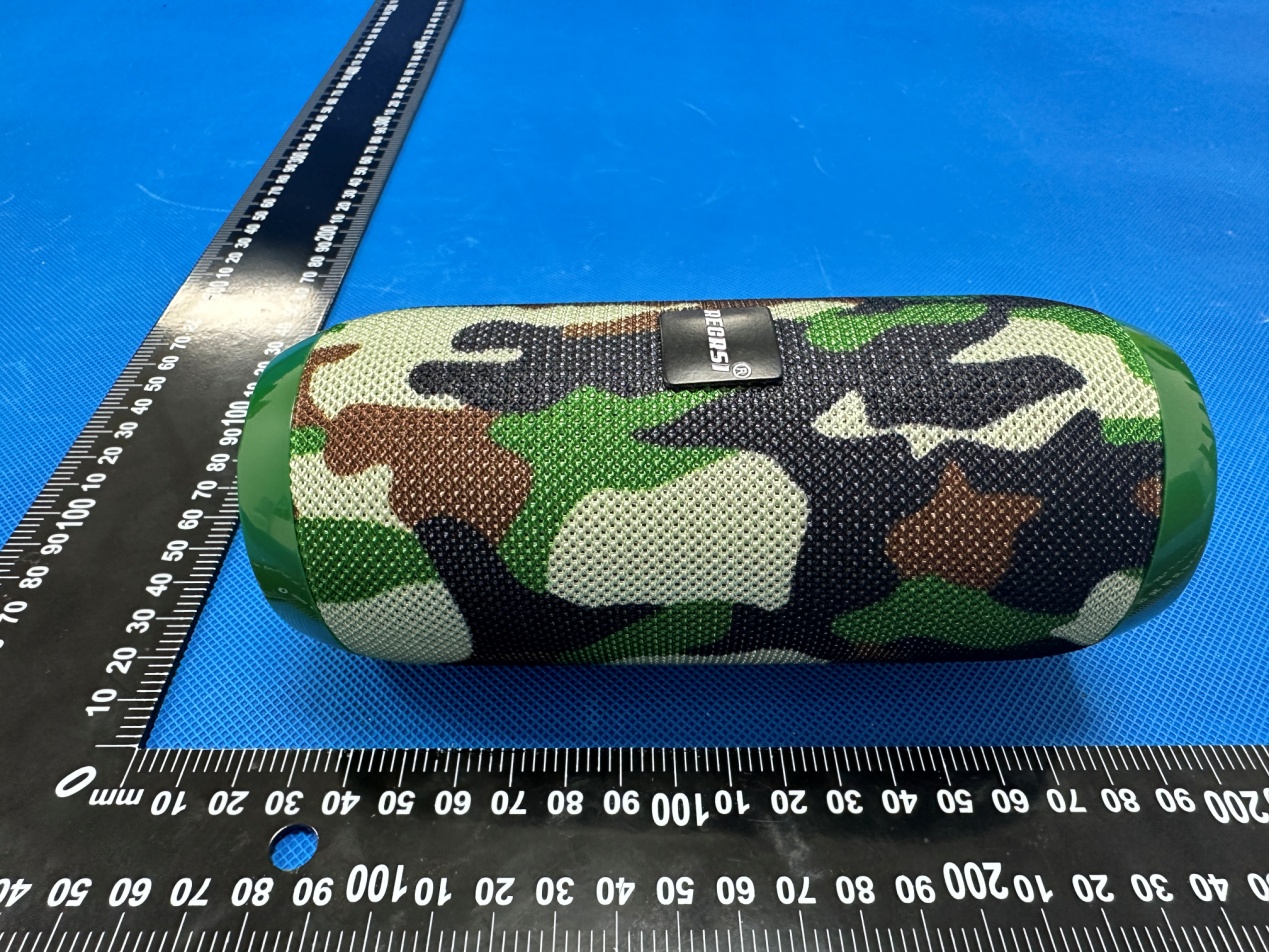

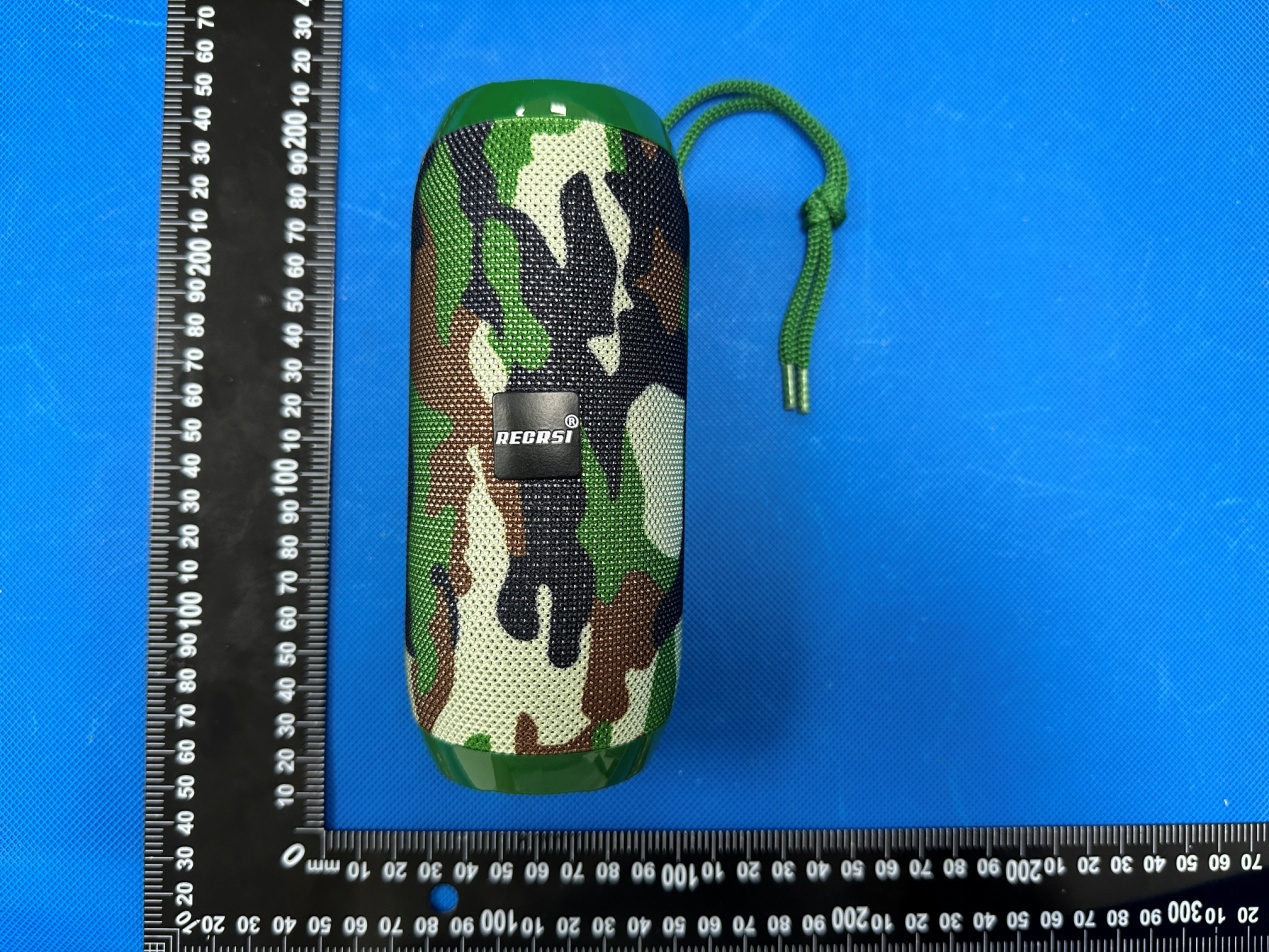

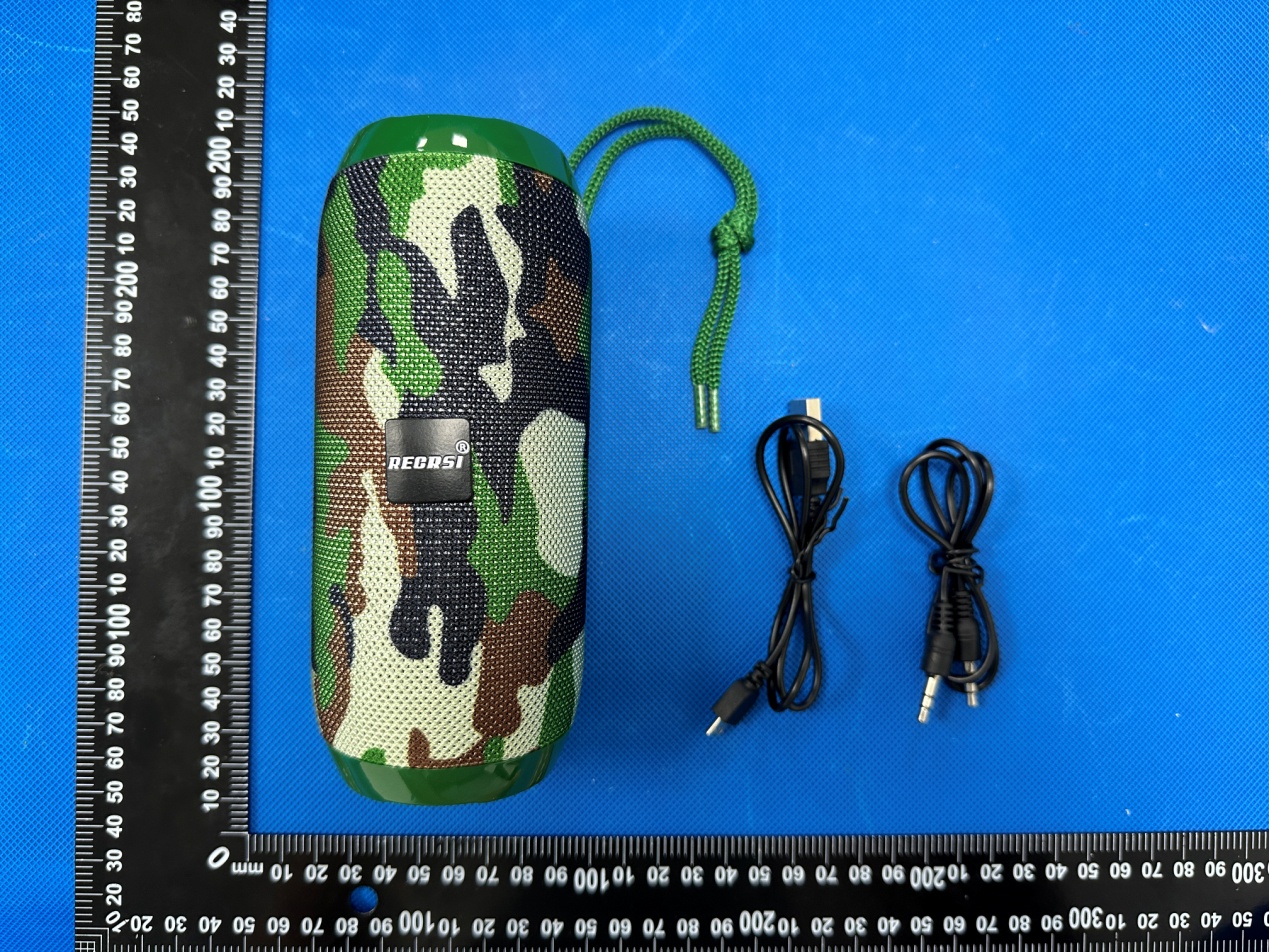

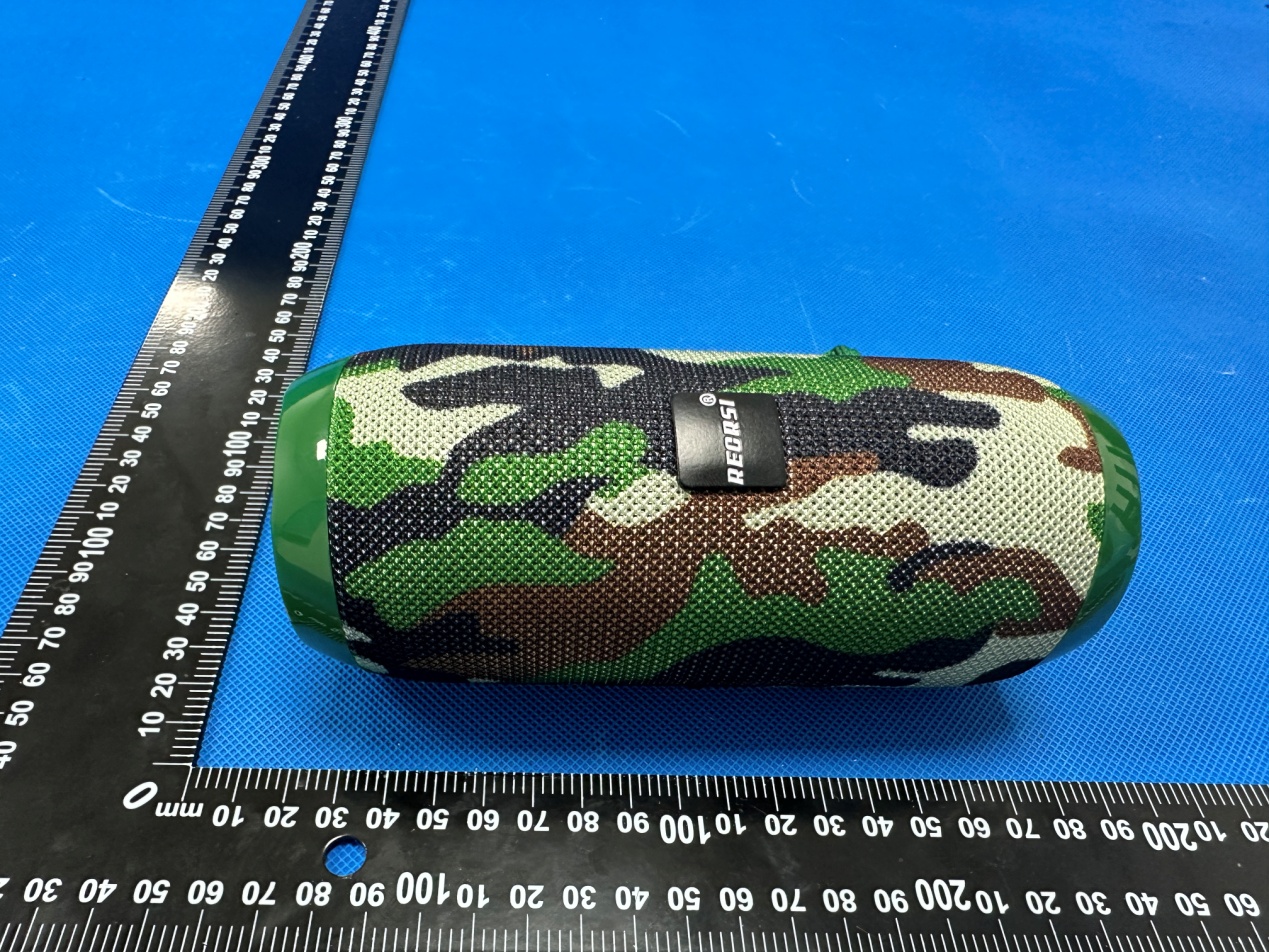

Annex A External Photos Report No.: HK2307062892-E Page 1 of 4 Report No.: HK2307062892-E Page 2 of 4 Report No.: HK2307062892-E Page 3 of 4 Report No.: HK2307062892-E Page 4 of 4

FCC ID LABEL: Ca. 10mm x 20mm label location FCC ID: 2BA8C‐RE‐YX200

Annex B Internal Photo Report No.: HK2307062892-E Page 1 of 3 Antenna Report No.: HK2307062892-E Page 2 of 3 Report No.: HK2307062892-E Page 3 of 3

FCC RF Exposure EUT Description: Speakers Model No.: RE‐YX200 FCC ID: 2BA8C-RE-YX200 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v01 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation Output power (dBm) Tune Up Power (dBm) Max Tune Up power dBm/mW Min test separation distance mm Result Limit SAR Test Exclusion BT(2480MHz) 0.1 0±1(1) 1.26 5 0.397 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2307062892-E, antenna gain=1.9dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.397 which is<= 3, SAR testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Product specification Quick Reference Date Antenna module on the system board Frequency2.45GHz *1 Ant. Port Input Pwr. (dBm)0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm)-2.3 (Input pwr – loss pwr) Peak EIRP(dBm) Directivity (dBi) Efficiency (dB) Gain (dBi) Maximum Power (dBm) Minimum Power (dBm) Avg. Power (dBm) Max/Min Ratio (dB) Max/Avg Ratio (dB) Min/Avg Ratio (dB) Average Gain (dB) 1.3 1 (all direction antenna) - 2.3 (58.5%) 1.9 1.3 (XY-plane) -4(XY-plane) -0.5(XY-plane) 5 .3(XY-plane) 1 .8(XY-plane) -3.5(XY-plane) -0.5 (Avg Gain XY-plane) All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHzXY-planeXZ-planeYZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.3-0.5 1.9 -3.81.1-3.058.5% Return Loss The Environment of Antenna Radiation Pattern 3D radiation pattern diagram XY-planeXZ-planeYZ-plane

Page 1 of 47 Report No.: HK2307062892-E FCC Test Report FCC PART 15 SUBPART C 15.247 Test report On Behalf of Guangzhou Lucky Communication Technology Co., Ltd. For Speakers Model No.: RE-YX200, RE-YX210, RE-YX220, RE-YX230, RE-YX240, RE-YX250, RE-YX260, RE-YX270, RE-YX280, RE-YX290, RE-YX300, RE-YX310, RE-YX320, RE-YX330, RE-YX340, RE-YX350, RE-YX360, RE-YX370, RE-YX380, RE-YX390 FCC ID: 2BA8C-RE-YX200 Prepared For : Guangzhou Lucky Communication Technology Co., Ltd. No. 21, 10th Floor, No. 55, Xiti Erma Road, Liwan District, Guangzhou, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Jul. 06, 2023 ~ Jul. 13, 2023 Date of Report: Jul. 13, 2023 Report Number: HK2307062892-E Page 2 of 47 Report No.: HK2307062892-E Test Result Certification Applicant’s Name .................. : Guangzhou Lucky Communication Technology Co., Ltd. Address .................................. : No. 21, 10th Floor, No. 55, Xiti Erma Road, Liwan District, Guangzhou, China Manufacture's Name ............. : Guangzhou Lucky Communication Technology Co., Ltd. Address .................................. : No. 21, 10th Floor, No. 55, Xiti Erma Road, Liwan District, Guangzhou, China Product Description Trade Mark ............................. : N/A Product Name ........................... : Speakers Model and/or type reference...: RE-YX200, RE-YX210, RE-YX220, RE-YX230, RE-YX240, RE-YX250, RE-YX260, RE-YX270, RE-YX280, RE-YX290, RE-YX300, RE-YX310, RE-YX320, RE-YX330, RE-YX340, RE-YX350, RE-YX360, RE-YX370, RE-YX380, RE-YX390 Standards .............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .................................... . Date (s) of Performance of Tests .... . Jul. 06, 2023 ~ Jul. 13, 2023 Date of Issue .................................... Jul. 13, 2023 Test Result ........................................ Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 47 Report No.: HK2307062892-E Table of Contents Page 1. Summary ................................................................................................................................... 5 1.1. Test Standards ............................................................................................................................ 5 1.2. Test Description .......................................................................................................................... 5 1.3. Information of the Test Laboratory ............................................................................................ 6 1.4. Statement of the Measurement Uncertainty ............................................................................. 6 2. General Information .................................................................................................................. 7 2.1. Environmental Conditions .......................................................................................................... 7 2.2. General Description of EUT ........................................................................................................ 7 2.3. Description of Test Modes and Test Frequency .......................................................................... 8 2.4. Equipments Used during the Test ............................................................................................... 9 2.5. Related Submittal(s) / Grant (s) ................................................................................................ 10 2.6. Modifications ............................................................................................................................ 10 2.7. Description of Test Setup .......................................................................................................... 10 3. Test Conditions and Results ..................................................................................................... 11 3.1. Conducted Emissions Test ........................................................................................................ 11 3.2. Radiated Emissions and Band Edge .......................................................................................... 14 3.3. Maximum Peak Conducted Output Power ............................................................................... 25 3.4. 20dB Bandwidth ....................................................................................................................... 26 3.5. Frequency Separation ............................................................................................................... 29 3.6. Number of Hopping Frequency ................................................................................................ 31 3.7. Time of Occupancy (Dwell Time) ............................................................................................. 33 3.8. Out‐of‐Band Emissions ............................................................................................................. 36 3.9. Pseudorandom Frequency Hopping Sequence ........................................................................ 43 3.10. Antenna Requirement .............................................................................................................. 44 4. Test Setup Photos of the EUT ................................................................................................... 45 …

Text truncated - open the document above for the full version.

Model: RE-YX200 Radiated Emissions Conducted Emission
