2BA9N-2TDJJWalkie talkie

Ushining Walkie talkie DJ02 User's manual Please read the instruction manual carefully before using this product The instruction manual is for reference only, the actual operation shall prevail. 1 Overview 2 1 Antenna The antenna 2 Torch Torch light 3 PTT key/Save key Push To Talk key 4 Up key Press it to adjust channel / volume 5 Channel monitoring Press and hold the key to enhance the receiving signal strength when you nearly lost connection with others 6 Lamp key Press to turn on / off the torch Press for 4s to scan the channels 7 Down key Press it to adjust channel / volume 8 Scan / VOX indicator It show the status of Scanning or voice controlling 9 Volume level It show the current volume level 10 Battery level It show the battery 3 level 11 Rubber(USB-C port) There is USB-C port under the rubber for charging 12 Microphone The Microphone 13 Call key/ Lock key Press to call the other companion Press 3s to lock the keypad 14 Power key /Menu key Press 3s to power on/off the device Press to enter menu to change settings 15 Speaker The speaker 16 Channel No. It show the channel number or setting number 17 Sub channel No. It show sub-channel number or sub-setting number 18 RX / TX indicator It show the status of receiving or transmitting 4 Walkie-talkie operation instruction 1. Press the power key for 3S to turn on / off the walkie-talkie. 2. Uncover the rubber in the right side then connect with a USB-C cable to charge. 3. Menu key settings 3.1 Press the menu key for the 1 st time to set the channel number (1-16 for Europe or 1-22 for USA), press Up / Down key to adjust it, press PTT to save. 3.2 Press the menu key for the 2 nd time to set the Sub-channel number (off, 1-99), press Up / Down key to adjust it, press PTT to save. 5 Note: it need to set for the same channel and sub-channel for two or more walkie-talkie, then it can be connected in the same talking group. 3.3 Press the menu key for the 3 rd time to set VOX (Voice Operation Transmission), ‘OF’ mean turn off the function, ‘1, 2, 3’ for the sensitivity option for the function. Press Up / Down key to adjust it, press PTT to save. 3.4 Press the menu key for the 4 th time to set the calling ringtone (1-10), press Up/Down key to select one ringtone, press PTT to save. 3.5 Press the menu key for the 5 th time to set the keypad sound on or off. 6 3.6 Press the menu key for the 6 th time to set the PTT ending sound on or off. 4. PTT (Push To Talk) key: Press and hold the PTT key and speak, release the PTT key to listen. Note: talk to the device in the distance of about 5 cm away from mouth; do not block off the MIC hole. 5. Call / Lock key: Press this key to call the same group companion；Press and hold the key for 3s to lock the keypad, press it for 3s again to unlock. 6. MON key: Press and hold the key to enhance the receiving signal strength when you nearly lost connection with others 7 7. LAMP/Z key: Press the key to turn on / off the torch; Press and hold the key for 3s to scan the working channels, when finding a channel you need, press PTT key to save it. Safety and precautions 1. If you bring any kind of personal body medical equipment, please consult your doctor before use. 2. In order to avoid the risk of burns, if the antenna was damaged in any form, do not use the device. 3. Do not use the device near a radio station to avoid interference. 4. Make the device or antenna at least 5 cm away from your mouth. 5. The device cannot be used for emergency services. 8 Technical specifications Channel: 8/16/20/22 Sub-code: CTCSS 38 + DCS 61 Battery: Lithium battery 600mAH Range: up to 3 kilometers (in open field) Transmission power: 500mW Modulation type: FMF 3E Channel spacing: 12.5 / 25 KHZ FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including 9 interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may 10 cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 11 -- Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information: This Walkie talkie meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement. The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. This device was tested for typical body-worn operations with the back of the Walkie talkie kept 0cm from away the body as well as the front of the Walkie talkie kept 2.5cm from away the face of human. To maintain compliance with F…

Text truncated - open the document above for the full version.

Shenzhen Uleway Electronics Co., Ltd 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: Shenzhen Uleway Electronics Co., Ltd Address: RM1207, East wing of Dingxin Building, Xili Town, Nanshan District, Shenzhen, China Product Name: Walkie talkie FCC ID: 2BA9N-2TDJJ Model(s): DJ02 , DJ03，DJ05，DJ06，DJ07，DJ08，DJ09 2.911(d)(5)(i) EquipmentType We, [Shenzhen Uleway Electronics Co., Ltd] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Vinson Qin Date: 7/5/2023 Title and Company name: manager / Shenzhen Uleway Electronics Co., Ltd NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Uleway Electronics Co., Ltd 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Uleway Electronics Co., Ltd Address: RM1207, East wing of Dingxin Building, Xili Town, Nanshan District, Shenzhen, China Product Name: Walkie talkie FCC ID: 2BA9N-2TDJJ Model(s): DJ02 , DJ03，DJ05，DJ06，DJ07，DJ08，DJ09 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Uleway Electronics Co., Ltd] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: Vinson Qin Date: 7/5/2023 Title and Company name: manager / Shenzhen Uleway Electronics Co., Ltd NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

THREE STONES MEDIA LLC U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: 7/5/2023 Ref: Attestation Statement – Part2.911(d)(7) filing FCC ID：2BA9N-2TDJJ Shenzhen Uleway Electronics Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, THREE STONES MEDIA LLC(“the agent”) is our designated U.S. agent for service of process for the abovereference FCC ID. The applicant accepts to maintain an agent for service of process in the United States forno less than one year after either the grantee has permanently terminated all marketing and importation of theapplicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicialproceeding involving the equipment, whichever is later. The applicant further acknowledges it is ourresponsibility to inform the FCC whenever the agent information changes. THREE STONES MEDIA LLC ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: THREE STONES MEDIA LLC FRN: 0033401761 GC: 2A99E Address: 1200 Broadway St. APT 329, Los Angeles, CA90015 Signature: Contact Person: Sijie Zhang Tel: +1 267 909 3692 Email: [email protected] Applicant Company Name: Shenzhen Uleway Electronics Co., Ltd Address: RM1207, East wing of Dingxin Building, Xili Town, Nanshan District, Shenzhen, China Signature: Contact Person: Vinson Qin Tel: 0755-86966843 Email: [email protected]

Shenzhen Uleway Electronics Co., Ltd Agent Authorization Company: Shenzhen Uleway Electronics Co., Ltd Address: RM1207, East wing of Dingxin Building, Xili Town, Nanshan District, Shenzhen, China Product Name: Walkie talkie Model Number(s): DJ02 , DJ03，DJ05，DJ06，DJ07，DJ08，DJ09 Product Description: Walkie talkie We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 7/5/2023 Name: Vinson Qin Title: manager Company: Shenzhen Uleway Electronics Co., Ltd

Shenzhen Uleway Electronics Co., Ltd Family models difference declaration Product Name: Walkie talkie Model Name: DJ02,DJ03, DJ05, DJ06，DJ07, DJ08, DJ09 Difference declaration: All models are the same circuit and RF module, excep the model name and sales areas and stores. Regards, Signature Name: Vinson Qin Date: 7/5/2023

< Shenzhen Uleway Electronics Co., Ltd> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 7/12/2023 Subject; Request for Confidentiality FCC ID: 2BA9N-2TDJJ To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram BOM List Operational Description Tune-up procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Vinson Qin Title: manager Email: [email protected]

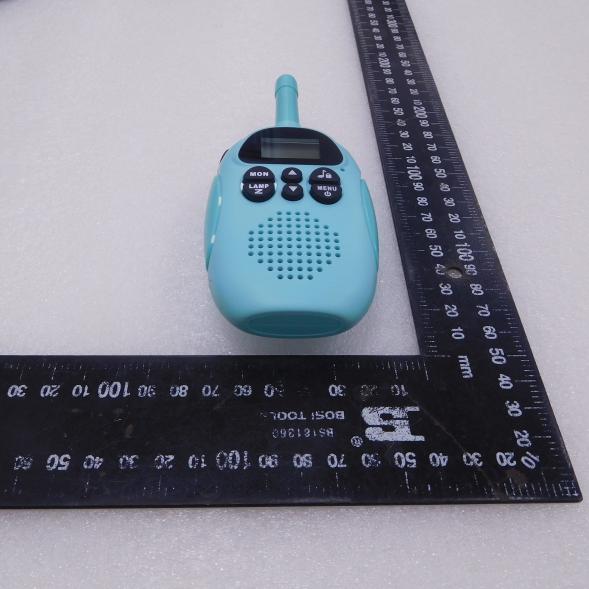

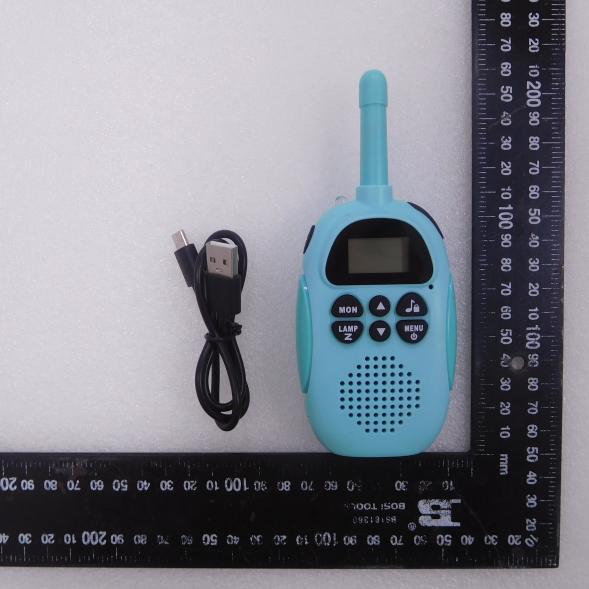

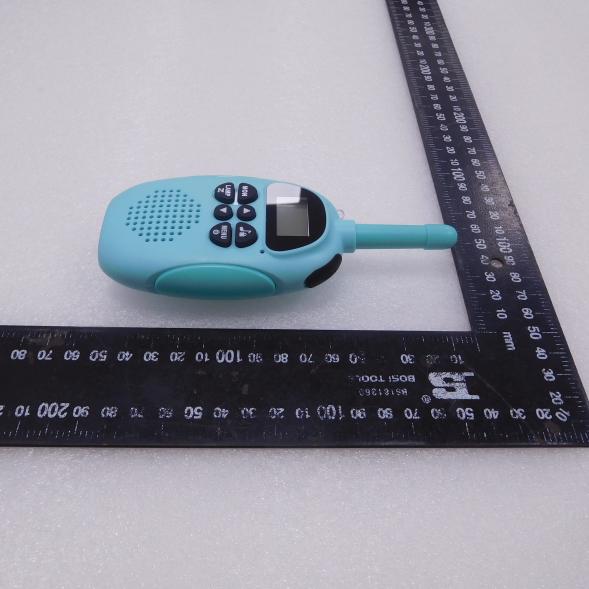

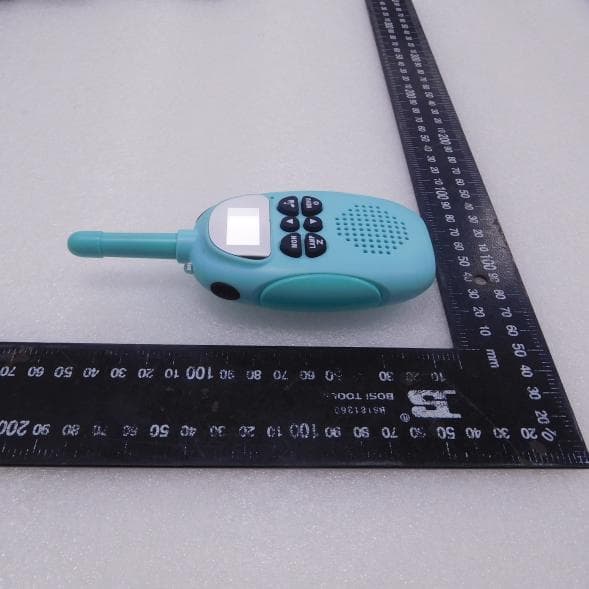

Report No.: CHTEW23060045 Page: 24 of 28 Issued: 2023-06-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05(2023-03) 7. EXTERANAL AND INTERNAL PHOTOS 7.1. External Photos Report No.: CHTEW23060045 Page: 25 of 28 Issued: 2023-06-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05(2023-03)

Report No.: CHTEW23060045 Page: 26 of 28 Issued: 2023-06-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05(2023-03) 7.2. Internal Photos Report No.: CHTEW23060045 Page: 27 of 28 Issued: 2023-06-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05(2023-03)

Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 5/19 /2023 Analog-CH4-12.5k-Head Communication System: UID 0, Analog (0); Frequency: 462.637 MHz;Duty Cycle: 1:1 Medium parameters used: f = 463 MHz; σ = 0.839 S/m; ε r = 42.389; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.7°C;Liquid Temperature:22.5°C; DASY Configuration: lProbe: EX3DV4 - SN3748; ConvF(9.72, 9.72, 9.72); Calibrated: 8/3/2022; lSensor-Surface: 1.4mm (Mechanical Surface Detecti on) lE lectronics: DAE4 Sn1549; Calibrated: 3/27/ 2023 lPhantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 lDASY52 52.10.0(1446); SEMCAD X 14.6.10(7417) Front of face/CH 4/Area Scan (61x161x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.165 W/kg Front of face/CH 4/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.63 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.208 W/kg SAR(1 g) = 0.062 W/kg; SAR(10 g) = 0.032 W/kg Maximum value of SAR (measured) = 0.133 W/kg 0 dB = 0.133 W/kg = -5.90 dBW/kg Appendix D Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 5/19 /2023 Analog-CH4-12.5k-Body Communication System: UID 0, Analog (0); Frequency: 462.637 MHz;Duty Cycle: 1:1 Medium parameters used: f = 463 MHz; σ = 0.839 S/m; ε r = 42.389; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.6°C;Liquid Temperature:22.4°C; DASY Configuration: lProbe: EX3DV4 -SN3748; ConvF(9.72, 9.72, 9.72); Calibrated: 8/3/2022; lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 3/27/2023 lPhantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 lDASY52 52.10.0(1446); SEMCAD X 14.6.10(7417) Rear/CH 4/Area Scan (61x161x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.265 W/kg Rear/CH 4/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.15 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.411 W/kg SAR(1 g) = 0.122 W/kg; SAR(10 g) = 0.067 W/kg Maximum value of SAR (measured) = 0.257 W/kg 0 dB = 0.257 W/kg = -5.90 dBW/kg Appendix E: DAE and Probe Calibration Certificate 1 of 3 1. DAE4 Calibration Certificate Appendix E: DAE and Probe Calibration Certificate 2 of 3 Appendix E: DAE and Probe Calibration Certificate 3 of 3 t sne AU ，－ a怡’－ hu a k ，． e hH C S ，－ OL’’ι e w hH C GM QM户M Service suisse d ’ etalonnage Servizio svizzero di taratura S Swiss Calibration Service Accredited by the Swiss Accreditation Service (SAS) The Swiss Accreditation Service is one of the signatories to the EA Multilateral Agreement for the recognition of callb『ationcertificates Accreditation No.: SCS 0108 Client r Mo愉川den) Certificate No EX-3748_Aug22 r CALIBRATION CERTIFIC町E Object EX3DV4 - SN:3748 Calibration procedure(s) QA CAL-01.v9, QA CAL-12.v9, QA CAL-14.v6, QA CAL-23.v5, QA CAL-25.v7 Calibration procedure for dosimetric E‘field pr。bes Calibration date August03,2022 This calibration certificate documents the traceability to national standards, which realize the physical units of measurements (SI). The measurements and the uncertainties with confidence probability are given on the following pages and are part of the certificate. All calibrations have been conducted in the closed laboratory facility: environπ1ent temperature (22 ± 3）°Cand humidity < 70%. Calibration Equipment used (M&TE critical for calibration) Primary Standards ID Cal Date (Certificate No.) Scheduled Calibration Power meter NRP SN: 104778 04-Apr-22 (No. 217-03525/03524) Apr-23 Power sensor NRP - Z91 SN: 103244 04-Apr-22 (No. 217-03524) Ap卜23 OCP DAK-3.5 (weighted) SN: 1249 20-0ct ” 21 (OCP-DAK3.5-1249_0ct21) Oct-22 OCP DAK-12 SN: 1016 20-0ct-21 (OCP-DAK12-1016_0ct21} Oct-22 Reference 20 dB Attenuator SN: CC2552 (20x) 04-Apr-22 (No. 217 - 03527) Apr-23 DAE4 SN: 660 13-0ct-21 (No. DAE4-660_0ct21) Oct-22 Reference Probe ES3DV2 SN: 3013 27-Dec-21 (No. ES3-3013_Dec21) Dec-22 Secondary Standards ID Check Date (in house) Scheduled Check Power meter E44198 SN: GB41293874 06-Apr-16 (in house check Jun-22} In house check: Jun-24 Power sensor E4412A SN: MY41498087 06-Apr-16 (in house check Jun-22) In house check: Jun-24 Power sensor E4412A SN: 000110210 06-Apr-16 (in house check Jun-22) In house check: Jun-24 RF generator HP 8648C SN: US3642U01700 04-Aug-99 (in house check Jun-22) In house check: Jun-24 Network Analyzer E8358A SN: US41080477 31-Mar-14 (in house check Oct-20) In house check: Oct-22 Name Function 传 立 了 Calibrated by Jeffrey Katzman Laboratory Technician Approved by Sven Kuhn Technical Manager Issued: August 3, 2022 This calibration certificate shall not be reproduced except in full without written approval of the laboratory. Certificate No: EX-3748_Aug22 Page 1 of 9 2. Probe Calibration Certificate Calibration Laborat。ry 。f Schmid & Partner Engineering AG Zeughausstrasse 43, 8004 Zurich, Switzerland Appendix F: Dipole Calibration Certificate 1 of 7 1.1. D450V3 Dipole Calibration Certificate Appendix F: Dipole Calibration Certificate 2 of 7 Appendix F: Dipole Calibration Certificate 3 of 7 Appendix F: Dipole Calibration Certificate 4 of 7 Appendix F: Dipole Calibration Certificate 5 of 7 Appendix F: Dipole Calibration Certificate 6 of 7 Appendix F: Dipole Calibration Certificate 7 of 7 Extended Dipole Calibrations Referring to KDB865664 D01, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Head-450 Date of measurement Return-loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary impedance (ohm) Delta (ohm) 2021-01-20 -22.2 57.4 -3.80 2022-01-17 -22.7 2.70 56.9 0.5 -3.66 0.24 2023-01-15 -22.9 3.15 57.1 0.3 -3.77 0.03 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5ohm of prior calibration. Therefore the verification…

Text truncated - open the document above for the full version.

Page: 1 of 25 TEST REPORT Report No. ...................................... : CHTEW23050061 Report vertification: Project No. ...................................... : SHT2304090902EW FCC ID ............................................. : 2BA9N-2TDJJ Applicant’s name ........................... : Shenzhen Uleway Electronics Co., Ltd Address ............................................. : RM1207, East wing of Dingxin Building, Xili Town, Nanshan District, Shenzhen, China Test item description .................... : Walkie talkie Trade Mark ....................................... : Ushining / Uleway Model/Type reference ....................... : DJ02 Listed Model(s) ................................. : DJ03, DJ05, DJ06, DJ07, DJ08, DJ09 Standard ......................................... : FCC 47 CFR Part2.1093 IEEE Std C95.1, 1999 Edition IEEE 1528: 2013 Date of receipt of test sample.........: May 15, 2023 Date of testing.............................: May 15, 2023- May 23, 2023 Date of issue...............................: May 24, 2023 Result .................. ........................: PASS Compiled by ( position+printed name+signature) .. : File administrators: Fanghui Zhu Supervised by ( position+printed name+signature) .. : Test Engineer: Weiyang Xiang Approved by ( position+printed name+signature) .. : Manager: Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW23050061 Page: 2 of 25 Issued: 2023-05-24 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05 (2023-03) Contents 1. Statement of Compliance 3 2. Test Standards and Report version 4 2.1. Test Standards 4 2.2. Report version 4 3. Summary 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Test frequency list 6 3.5. Testing Laboratory Information 7 3.6. Environmental conditions 7 4. Equipments Used during the Test 8 5. Measurement Uncertainty 9 6. SAR Measurements System Configuration 10 6.1. SAR Measurement Set-up 10 6.2. DASY5 E-field Probe System 11 6.3. Phantoms 12 6.4. Device Holder 12 7. SAR Test Procedure 13 7.1. Scanning Procedure 13 7.2. Data Storage and Evaluation 15 8. Position of the wireless device in relation to the phantom 17 8.1. Front-of-face 17 8.2. Body Position 17 9. Dielectric Property Measurements & System Check 18 9.1. Tissue Dielectric Parameters 18 9.2. SAR System Validation 19 9.3. System Check 19 10. SAR Exposure Limits 22 11. Radiated Power Measurement Results and Tune-up 23 12. SAR Measurement Results 24 13. Test Setup Photos 25 14. External and Internal Photos of the EUT 25 Report No.: CHTEW23050061 Page: 3 of 25 Issued: 2023-05-24 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05 (2023-03) 1. Statement of Compliance Maximum Reported SAR (W/kg @1g) RF Exposure Conditions FRS Head(Dist.= 25mm) 0.034 Body-worn(Dist.= 0mm) 0.067 Note: 1. This device is in compliance with Specific Absorption Rate (SAR) for general population/uncontrolled exposure limits (1.6 W/kg@1g) specified in FCC 47 CFR part 2 (2.1093) and IEEE Std C95.1, 2. This device had been tested in accordance with the measurement methods and procedures specified in IEEE 1528 and FCC KDB publications. Report No.: CHTEW23050061 Page: 4 of 25 Issued: 2023-05-24 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05 (2023-03) 2. Test Standards and Report version 2.1. Test Standards The tests were performed according to following standards: FCC 47 Part 2.1093: Radiofrequency Radiation Exposure Evaluation:Portable Devices IEEE Std C95.1, 1999 Edition: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz IEEE Std 1528™-2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. FCC published RF exposure KDB procedures: KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04: SAR Measurement Requirements for 100 MHz to 6 GHz KDB 865664 D02 RF Exposure Reporting v01r02: RF Exposure Compliance Reporting and Documentation Considerations KDB 447498 D04 Interim General RF Exposure Guidance v01: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies TCB workshop: April, 2019; Page 19, Tissue Simulating Liquids (TSL) 2.2. Report version Revision No. Date of issue Description N/A 2023-05-24 Original Report No.: CHTEW23050061 Page: 5 of 25 Issued: 2023-05-24 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05 (2023-03) 3. Summary 3.1. Client Information Applicant: Shenzhen Uleway Electronics Co., Ltd Address: RM1207, East wing of Dingxin Building, Xili Town, Nanshan District, Shenzhen, China Manufacturer: Shenzhen Uleway Electronics Co., Ltd Address: RM1207, East wing of Dingxin Building, Xili Town, Nanshan District, Shenzhen, China 3.2. Product Description Main unit Name of EUT: Walkie talkie Trade Mark: Ushining / Uleway Model No.: DJ02 Listed Model(s): DJ03, DJ05, DJ06, DJ07, DJ08, DJ09 Power supply: 3.7V from battery Hardware version: DJ02-V1.2 Software version: DJ02_9V1B.hex Device Dimension…

Text truncated - open the document above for the full version.

Report No.: CHTEW23060045 Page: 28 of 28 Issued: 2023-06-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05(2023-03) 8. APPENDIX REPORT Appendix Report FCC PART 95B Test Form QRE316 V 3.2 (2019-4) Appendix clause Test Result (PASS/FAIL) APASS BPASS CPASS DPASS EPASS FPASS GPASS HPASS Project No. SHT2304090901EW Test sample No. YPHT23040909001 01 Model No. DJ02 Start test date 2023/5/18 Finish date 2023/6/13 Temperature 25.8°C Humidity 54% Test EngineerAuditor Test Item Audio Low Pass Filter Response Frequency Stability Test & Temperature Frequency Stability Test & Voltage Transmit Power (ERP) Occupied Bandwidth Emission Mask Modulation Limit Audio Frequency Response Appendix Page:1 of 14 Project No.:SHT2304090901EW Appendix A: Transmit Power (ERP) TX-FRSFM CH M1 26.590.46 ≤2 PASS TX-FRSFM CH M2 26.510.45 ≤0.5 PASS Limit(W)ResultTest Mode Modulation Type Test Channel Measured power (dBm) Measured power (W) Appendix Page:2 of 14 Project No.:SHT2304090901EW Appendix B: 99% Occupied Bandwidth & 26dB Bandwidth 99%(kHz)26dB(kHz) TX-FRSFM CH M1 9.95710.19≤12.5PASS TX-FRSFM CH M2 9.96210.19≤12.5PASS Occupied Bandwidth Test Mode Modulation Type Test Channel99% Limit(kHz)Result Appendix Page:3 of 14 Project No.:SHT2304090901EW Appendix B: 99% Occupied Bandwidth & 26dB Bandwidth Operation Mode Modulation Type Test Channel TX-FRSFM CH M1 TX-FRSFM CH M2 TEST PLOT RESULT Appendix Page:4 of 14 Project No.:SHT2304090901EW Appendix C:Emission Mask Test Mode Modulation Type Test Channel TEST PLOT RESULT TX-FRSFM CH M1 TX-FRSFM CH M2 Appendix Page:5 of 14 Project No.:SHT2304090901EW Appendix D:Modulation Limit 300100415002500 TX-FRSFM CH M1 -200.0800.1910.2380.2902.5PASS TX-FRSFM CH M1 -150.1120.3040.3820.4712.5PASS TX-FRSFM CH M1 -100.1600.5030.6520.8192.5PASS TX-FRSFM CH M1 -50.2680.8661.1341.4212.5PASS TX-FRSFM CH M1 00.4431.5372.0042.1452.5PASS TX-FRSFM CH M1 50.7482.1652.1632.1762.5PASS TX-FRSFM CH M1 100.8452.1702.1672.1762.5PASS TX-FRSFM CH M1 150.8482.1682.1682.1832.5PASS TX-FRSFM CH M1 200.9542.1682.1592.1862.5PASS TX-FRSFM CH M2 -200.0750.1960.2330.2832.5PASS TX-FRSFM CH M2 -150.1150.3010.3870.4752.5PASS TX-FRSFM CH M2 -100.1570.5060.6520.8152.5PASS TX-FRSFM CH M2 -50.2660.8701.1421.4272.5PASS TX-FRSFM CH M2 00.4401.5061.9682.1432.5PASS TX-FRSFM CH M2 50.7552.1752.1602.1872.5PASS TX-FRSFM CH M2 100.8372.1662.1702.1882.5PASS TX-FRSFM CH M2 150.8462.1672.1712.1992.5PASS TX-FRSFM CH M2 200.9252.1842.1522.1912.5PASS Limit (kHz) Result Peak Frequency Deviation (Hz) Test Mode Modulation Type Test Channel Modulation Level (dB) Appendix Page:6 of 14 Project No.:SHT2304090901EW Appendix D:Modulation Limit Test Mode Modulation Type Test Channel TEST PLOT RESULT TX-FRSFM CH M1 TX-FRSFM CH M2 0 0.5 1 1.5 2 2.5 3 -20-15-10-505101520 Limit (kHz) 300 1004 1500 2500 Modulation Level (dB) Peak Deviation 0 0.5 1 1.5 2 2.5 3 -20-15-10-505101520 Limit (kHz) 300 1004 1500 2500 Modulation Level (dB) Peak Deviation Appendix Page:7 of 14 Project No.:SHT2304090901EW Appendix E:Audio Frequency Response Test Mode Modulation Type Test Channel Frequency (Hz) Audio Frequency Response (dB) Lower LimitUpper LimitResult TX-FRSFM CH M1 100-30.84PASS TX-FRSFM CH M1 200-31.49PASS TX-FRSFM CH M1 300-17.64-17.84-9.42PASS TX-FRSFM CH M1 400-12.67-12.86-6.93PASS TX-FRSFM CH M1 500-8.23-9.00-5.00PASS TX-FRSFM CH M1 600-7.19-7.42-3.42PASS TX-FRSFM CH M1 700-5.64-6.09-2.09PASS TX-FRSFM CH M1 800-3.69-4.93-0.93PASS TX-FRSFM CH M1 900-1.91-3.910.09PASS TX-FRSFM CH M1 1000-0.35-3.001.00PASS TX-FRSFM CH M1 12001.45-1.422.58PASS TX-FRSFM CH M1 14003.29-0.093.91PASS TX-FRSFM CH M1 16004.711.075.07PASS TX-FRSFM CH M1 18005.482.096.09PASS TX-FRSFM CH M1 20006.523.007.00PASS TX-FRSFM CH M1 21006.803.427.42PASS TX-FRSFM CH M1 22007.133.837.83PASS TX-FRSFM CH M1 23007.324.218.21PASS TX-FRSFM CH M1 24007.634.588.58PASS TX-FRSFM CH M1 25007.884.938.93PASS TX-FRSFM CH M1 26007.874.599…

Text truncated - open the document above for the full version.
