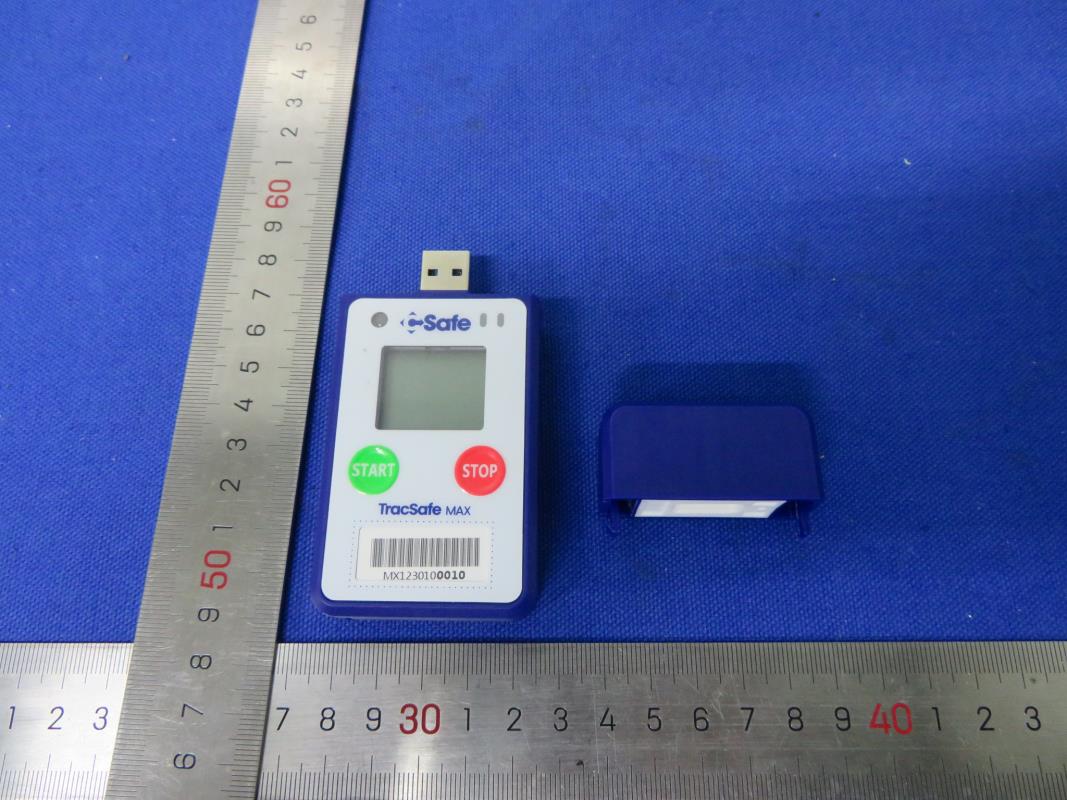

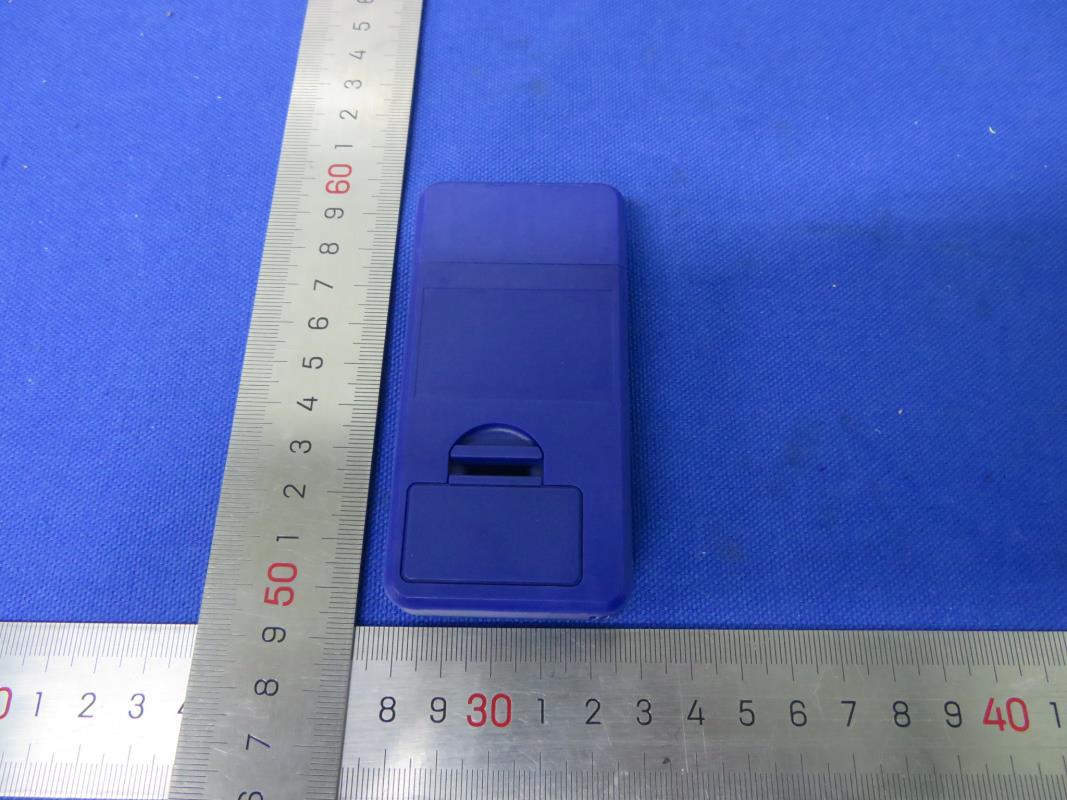

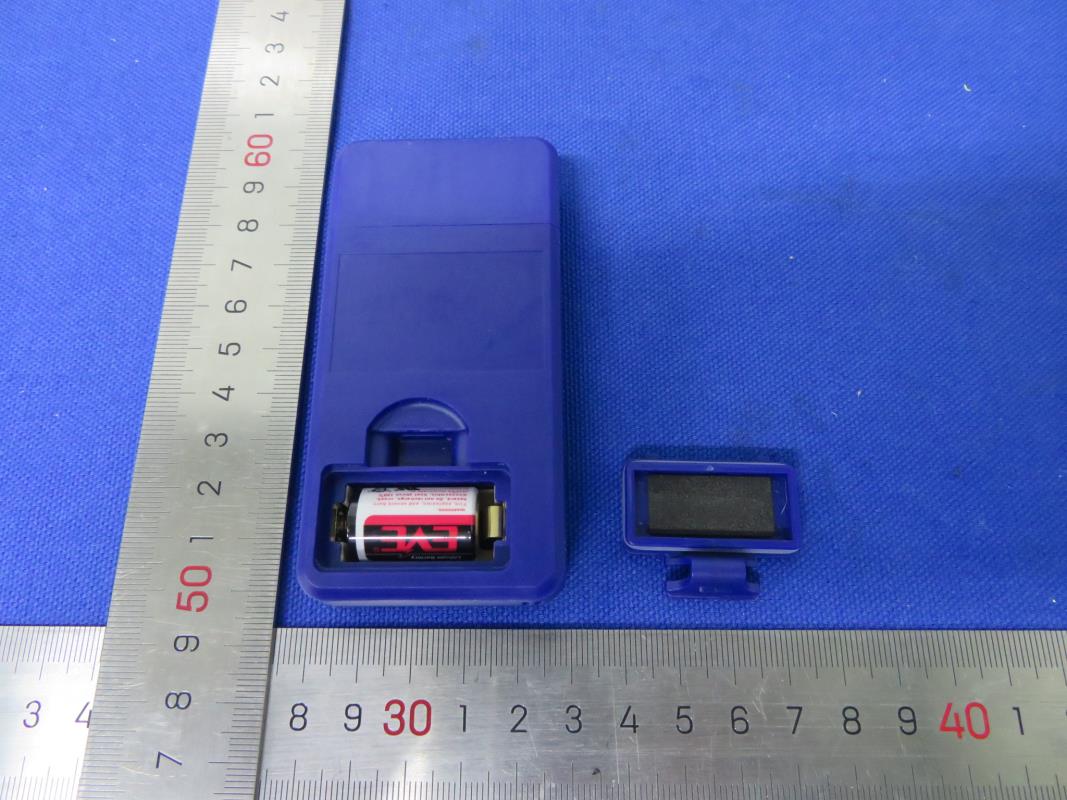

TracSafe MAX User Manual Multi-use Data Logger The TrcaSafe MAX also has integral LCD display to view the temperature status and notifications via the recessed function buttons.The device also includes a USB port that can be used to directly download the shipment data or configure the shipment alarm limits prior to the shipment using a PC, for users without access to a smart phone or tablet. Summary ① ② ③ ④ ⑤ ⑥ ①USB cap ② Light Sensor ③ LCD Screen ④ Start / Stop Button ⑤ Internal Sensor ⑥ External Probe 1 ⑤ ② The CSafe TracSafe MAX Shipment monitor is used to monitor and record temperature and location data associated with temperature sensitive product shipments. The data can be viewed without disturbing the protective thermal packaging by employing Bluetooth Low Energy technology, that allows touchless temperature checks of in-transit shipments using a smart phone or tablet via the CSafe TracSafe app (iOS or Android). It enables direct monitoring of the temperature-sensitive products during the shipment or storage phases and can easily identify if the tempera- tures hava been maintained at the end destination. Specification 1.Measurement range: Internal temperature: -30~70 Internal humidity: 0%RH~100%RH External temperature: -200~150 Shock: 0g~16g Light: >80Lux 2.Accuracy arrange: Temperature: ±0.3(-20~40)±0.5(50~85)±1(-100~150)±2(others) Humidity: ±3%RH(25,20%RH~80%RH)±5%RH(others) Shock: ±0.5g Light: ±5% 3.Resolution: Temperature: 0.1, humidity: 1%RH, shock: 0.1g 4.Memory Storage Capacity: 32,000 data points (MAX) 5.Logging interval: 3min~60min 6.Start mode: Button push, immediate start, or start delay, useTracSafe APP or CSafe pc software 7.Stop mode: Button push, stop when inserted into pc, stop when memory is full,use TracSafe APP or CSafe pc software 8.Alarm Limits: 1 high and 1 low limit for temperature/ 1 high and 1 low limit for humidity Alarm type: Single, cumulative 9.Alarm type: Single, cumulative 10.Alarm delay time: 10s~24H 11.Connection: USB, Bluetooth 12.Battery Life / Type: 12 month operating life, Lithium replaceable battery, VCC:3.6VDC 13.Environmental Protection: IP65 (non probe version),IP54 (probed version) 14.Dimensions: 96.3 mm(L) x 47.5 mm(W)x 19 mm(H) (non probe version) 103.3mm(L)x 47.5 mm(W)x 19 mm(H) (probe version) 15.Weight: 68g 2 16.Bluetooth: Operating Frequency: 2402MHz~2480MHz Rated Output Power: 0dBm Operation Instructions for PC 1.Download CSafe software (In this part, we need to add the website which can download CSafe software) 2.Configure Parameter •Plug the device into the computer, until “USB” symbol is shown on the LCD screen. •Using CSafe software to configure parameter: •If users don’t need to change the default parameter, you can click “Summary” and then click “Quick Reset” to synchronize time. •If use need to change the parameter, you can click “Parameter”, click “Save Parameter” after configuration. Notice: To avoid time/time zone errors, please click Quick Reset or Save Parameters before the first use or after replacing the battery to ensure that the local time is configured into the recorder. 3.Start Modes •Press button: •Press START button for 3 seconds, ▶shows on the LCD screen. •Use CSafe APP/software to start. Notice: Notice: ▶symbol blinks continuously, it indicates start delay has been set. 4.Stop Modes •Press button: Press STOP button for 3 seconds, shows on the LCD screen; •Auto stop: Stop when memory is full; •USB stopStop after plugging the device into computer; •Using CSafe APP or software to stop. Press button to stop is default option, this function can be changed if necessary. 5.Download Data •Plug device into computer and wait until USB symbol shows on the LCD screen: 1. User can review the PDF and CSV report in the drive which is generated by the device. 2. Using CSafe software to download the data: the data will be uploaded to CSafe’s platform automatically after downloaded via softwareIf it fails to upload data automatically, please click "Loading" to upload manually. 6. Reuse •User can re-configure and start logging after stop device or export the complete data. Notice: The history data will be cleared about saving parameter. User can click “History” in CSafe to review the history data if user forget to save/download data. 3 Operation Instruction for CSafe APP 1.Turn on Bluetooth •Press START and STOP buttons simultaneously for 3 seconds until the two LED lights blink at the same time and shows on the LCD screen. 2.Download CSafe APP •The user can download the CSafe TracSafe APP in iOS APP store or Google Play for Android •User needs to register according to the prompts. 3.Configuration and logging •Click “Loggers” tab to review the device list that are within range. •Press the stop button then the device will be moved to the top of the device list and the background would become orange. •Click “Config” to configure the parameters then click “Save”. •Click “OK” to finish configuration. •After configuration, click the device and then click “Start” tab to start logging. 4 4.Read & download data •Click in Loggers page to refresh the device list and click “Read data”. •After the data has been read completely user can click “stop” to stopping logging; Click “Data” tab to review the history data; user can download PDF and CSV reports via clicking “Download data” tab. 5.Quick operations via scanning the bar code on the device • In “Loggers” page, click the to scan the bar code on the device and then user can start quick operations (Start, Config, Read data) 5 Status indication 1.Button functions Function Start logging Stop logging Switching the LCD pages Back to LCD main page Operation Press START button for 3s Press STOP button simultaneously for 3s Press START and STOP button for 3s Press START button Press STOP button LED blink 5 times blink 5 times (or )blink once(or twice) (or )blink once(or twice) red and green LED blink 5 times at the same time 2.LCD screen ①②③④ ⑤ ⑥ ⑦⑧ ⑨ ⑩ ① Status of logging ② MAX, AMB, MIN ③ Bluetoot…

Text truncated - open the document above for the full version.

Applicant as U.S. Agent Letter of Attestation Date: 2023-03-30 To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BAAP-TRACSAFE CSafe, LLC (“the applicant”) as required by section 2.911(d)(7), will also serve as the agent for service of process for the above referenced FCC ID. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges their responsibility to inform the FCC whenever the agent information changes. Designated U.S. Agent from Applicant Company Company Name: CSafe, LLC Contact Person:Tom Weir Address: 675 Gateway Blvd. Monroe, OH 45050 United States Tel.: (513) 739-3971 Email: [email protected] FCC FRN: 0033409145 Sincerely yours, Signature Printed Name: Tom Weir Title: COO Email: [email protected]

Attestation Statements Not Covered Entity Applicant To: Federal Communications Commission Date: 08-03-2023 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(ii) filing FCC ID: 2BAAP-TRACSAFE CSafe, LLC (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment.

Attestation Statements Not Covered Equipment To: Federal Communications Commission Date: 08-03-2023 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) filing FCC ID: 2BAAP-TRACSAFE CSafe, LLC (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules.

-1- BluetoothantennaofPCBon-board specification V1.0 1、Index ItemContentPageRemark 1Index1 2Specification2 3ReturnLoss3 4RadiationPattern4-5 DocumentType:PCBAntenna DocumentVersion:V1.0 ReleaseDate:Aug12，2022 CSafe, LLC 675 Gateway Blvd,Monroe, OH 45050, United States -2- 2、Specification ProductNumber:PCBAntenna SamplePhoto: A.ElectricalCharacteristics Frequency2400~2500MHz S.W.R.≤2.0 GainMax ≤ 1.99dBi Efficiency~45% PolarizationLinear Impedance50Ohm B.Material&MechanicalCharacteristics MaterialofRadiatorplatedcopper C.Environmental OperationTemperature -40 °C ~+85 °C StorageTemperature -40°C~+105°C CSafe, LLC 675 Gateway Blvd,Monroe, OH 45050, United States -3- 3、ReturnLoss CSafe, LLC 675 Gateway Blvd,Monroe, OH 45050, United States -4- 4、RadiationPatter RadiationPatternandGainweredependentonmeasurementboarddesign.Thespecificationofcoilantennawas measuredbasedonthePCBsizeandinstallationpositionasshowninthebelowfigureTestBoard. CSafe, LLC 675 Gateway Blvd,Monroe, OH 45050, United States -5- CSafe, LLC 675 Gateway Blvd,Monroe, OH 45050, United States

Page 1 of 1 Authority to Act as Agent Date: _2023-03-08____________ TUV Rheinland of North America, Inc. 1279 Quarry Lane., Suite. A Pleasanton, CA 94566 To Whom It May Concern: I appoint TUV Rheinland of North American Inc., 1279 Quarry Lane, Suite A, Pleasanton, CA 94566, USA to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with CSafe, LLC and 675 Gateway Blvd, Monroe, OH 45050 United States Of Americ. For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Date: __2023-03-08__________ Agreement is valid for 12 months from the above date. By: __________________________ ____Tom Weir____________________ (Signature) (Print name) ________COO___________________ __1-937-245-6387___________________ (Title) (Telephone) On behalf of: ________ CSafe, LL__________________ (Company Name)

{Thislettermustbepreparedonapplicant/manufacturerletterhead} ConfidentialityLetter Date:2023-03-08 Subject:ConfidentialityRequestforFCCID:2BAAP-TRACSAFEandICID:30062-TRACSAFE PursuanttoFCC47CRF0.457(d)and0.459andICRSP-100,Section10,theapplicantrequeststhata partofthesubjectFCC/ICapplicationbeheldconfidential. TypeofConfidentialityRequestedExhibit ShortTermPermanentBlockDiagrams ShortTermExternalPhotos ShortTermPermanentInternalPhotos ShortTermPermanentOperationDescription/TheoryofOperation ShortTermPermanentPartList/Tune-UpProcedure ShortTermPermanentSchematics ShortTermTestSetupPhotos ShortTermPermanentUser’sManual ShortTermPermanentAntennaSheet hasspentsubstantialeffortindevelopingthisproductanditisoneofthefirstofitskindinindustry. Havingthesubjectinformationeasilyavailableto"competition"wouldnegatetheadvantagetheyhave achievedbydevelopingthisproduct.Notprotectingthedetailsofthedesignwillresultinfinancial hardship. PermanentConfidentiality: Theapplicantrequeststheexhibitslistedaboveaspermanentlyconfidentialbepermanentlywithheld frompublicreviewduetomaterialsthatcontaintradesecretsandproprietaryinformationnotcustomarily releasedtothepublic. Short-TermConfidentiality: Theapplicantrequeststheexhibitsselectedaboveasshorttermconfidentialbewithheldfrompublic viewforaperiodof180daysfromthedateoftheGrantofEquipmentAuthorizationandpriorto marketing.Thisistoavoidprematurereleaseofsensitiveinformationpriortomarketingorreleaseofthe producttothepublic.ApplicantisalsoawarethattheyareresponsibletonotifyTUVRheinlandinthe eventinformationregardingtheproductortheproductismadeavailabletothepublic.TUVRheinland willthenreleasethedocumentslistedaboveforpublicdisclosurepursuanttoFCCPublicNoticeDA04- 1705. Sincerely, By:TomWeir (Signature/Title)(Printname)

Page 1 of 3 Type Designation: Multi-use data logger FCC ID: 2BAAP-TRACSAFE IC: 30062-TRACSAFE Page 2 of 3 Type Designation: Multi-use data logger FCC ID: 2BAAP-TRACSAFE IC:30062-TRACSAFE Page 3 of 3 Type Designation: Multi-use data logger FCC ID: 2BAAP-TRACSAFE IC:30062-TRACSAFE

Label location

Page 1 of 3 Type Designation: Multi-use data logger FCC ID: 2BAAP-TRACSAFE IC: 300062-TRACSAFE Page 2 of 3 Type Designation: Multi-use data logger FCC ID: 2BAAP-TRACSAFE IC: 300062-TRACSAFE Page 3 of 3 Type Designation: Multi-use data logger FCC ID: 2BAAP-TRACSAFE IC: 300062-TRACSAFE

Safety Human Exposure Radio Frequency Exposure Compliance Electromagnetic Fields FCC ID: 2BAAP-TRACSAFE IC: 30062-TRACSAFE HVIN: TracSafe MAX RESULT: Pass Test Specification Test standard : FCC KDB Publication 447498 v06 CFR47 FCC Part 2: Section 2.1093 CFR47 FCC Part 1: Section 1.1310 RSS-102 Issue 5 March 2015 The measured maximum conducted output power of the EUT is 0.15dBm ≈ 1mW, which is far below the SAR exclusion threshold level 19mW (SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm), hence the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile and Portable RF Exposure. Guidance v06. The measured maximum specified e.i.r.p of the EUT is 0.15dBm ≈ 1mW, which is below the SAR exclusion threshold level 7mW (Voice) and 10mW (Limbs), hence the EUT is excluded from SAR evaluation according to RSS-102 Issue 5 section 2.5.1.

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN23MKHI 001 Auftrags-Nr.: Order no.: 168413864 Seite 1 von 20 Page 1 of 20 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2023-02-10 Auftraggeber: Client: CSafe, LLC 675 Gateway Blvd,Monroe, OH 45050, United States Prüfgegenstand: Test item: Multi-use data logger Bezeichnung / Typ-Nr.: Identification / Type no.: TracSafe MAX Auftrags-Inhalt: Order content: Test Report Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 CFR47 FCC Part 15: Subpart C Section 15.209 CFR47 FCC Part 15: Subpart C Section 15.207 RSS-247 Issue 2 February 2017 RSS-Gen Issue 5 March 2019 Wareneingangsdatum: Date of sample receipt: 2023-02-20 Prüfmuster-Nr.: Test sample no: A003416462-001~004 Prüfzeitraum: Testing period: 2023-02-22 – 2023-03-02 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass Please refer to Photo Document geprüft von: tested by: genehmigt von: authorized by: Datum: Date:2023-03-06 Ausstellungsdatum: Issue date:2023-03-06 Stellung / Position: Sachverständige(r) / ExpertStellung / Position:Sachverständige(r) / Expert Sonstiges / Other: FCC ID: 2BAAP-TRACSAFE IC: 30062-TRACSAFE HVIN: TracSafe MAX Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende:1 = sehr gut2 = gut3 = befriedigend4 = ausreichend5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n)F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbarN/T = nicht getestet * Legend:1 = very good2 = good3 = satisfactory4 = sufficient5 = poor P(ass) = passed a.m. test specification(s)F(ail) = failed a.m. test specification(s)N/A = not applicableN/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (Shenzhen) Co., Ltd. 1601 R&D Room, 1602-1604, 17-18F, Building 7 Site C, Vanke Cloud City Phase I, Xingke First Street, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P.R. China Mail: [email protected] · Web: www.tuv.com Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No.: CN23MKHI 001 Seite 2 von 20 Page 2 of 20 Test Summary 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER RESULT: Pass 5.1.3 CONDUCTED POWER SPECTRAL DENSITY RESULT: Pass 5.1.4 6DB BANDWIDTH RESULT: Pass 5.1.5 99% BANDWIDTH RESULT: Pass 5.1.6 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100 KHZ BANDWIDTH RESULT: Pass 5.1.7 RADIATED SPURIOUS EMISSION RESULT: Pass 5.1.8 CONDUCTED EMISSION ON AC MAINS RESULT: Pass Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No.: CN23MKHI 001 Seite 3 von 20 Page 3 of 20 Contents 1 GENERAL REMARKS ........................................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ............................................................................................................ 4 2 TEST SITES ........................................................................................................................................ 5 2.1 TEST FACILITIES ................................................................................................................................. 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS................................................................................. 5 2.3 TRACEABILITY .................................................................................................................................... 6 2.4 CALIBRATION ..................................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY............................................................................................................. 6 2.6 LOCATION OF ORIGINAL DATA ............................................................................................................. 6 2.7 STATUS OF FACILITY USED FOR TESTING ............................................................................................. 6 3 GENERAL PRODUCT INFORMATION ...................................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................................................. 7 3.2 RATINGS AND SYSTEM DETAILS .......................................................................................................... 7 3.3 INDEPENDENT OPERATION MODES ...................................................................................................... 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ......................................................................... 8 3.5 SUBMITTED DOCUMENTS..................................................................................................................... 8 4 TEST SET-UP AND OPERATION MODES ................................................................................................ 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION ......................................................................................... 9 4.2 TEST OPERATION AND TEST SOFTWARE .............................................................................................. 9 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ................................................…
