2BABG-TA28one phase electrical meter

1 1. Specification No. Item Description 1 Meter Format Single phase three wire 2 Reference voltage 220V 3 Operating voltage 0.8Un ～1.2Un 4 Current 5A (basic current), 60A (maximum current) 5 Starting current 0.004Ib 6 Reference frequency 60Hz±2% 7 Accuracy Class Class 1.0 8 Clock Accuracy ±0.5s/day @ 23°C 9 Impulse generator energy constant 1600imp/kWh 10 Operating temperature range -40°C～+70°C(3K7) 11 Relative humidity ≤95%(non-condensing) 12 Ingress Protection Rating IP54 13 Main character dimensions 4.1*12(mm) 14 Energy display digits 6+1 15 Display mode Scrolling display 16 Data item OBIS 17 Communication interface Optical (IR),Bluetooth 18 Disconnect Relay 1P3W Two Relay 19 Terminal Hole Diameter 9.5mm 20 Weight Appr. 0.68kg 21 Insulation system Protective Class II 22 Insulation level 4KV for 1 minute 23 Impulse voltage tests According to IEC 60060-1, impulse voltage is 6kV 24 Power consumption Voltage circuit < 2W, 10 VA, Current circuit < 4 VA 2 2. Appearance No. Item No. Item 1 Optical Port 7 Battery Case Cover 2 LCD 8 Terminal Cover Screw 4 Display Button 9 Meter Cover 5 Alarm LED 10 Meter Base 6 Active Energy LED 11 Terminal Cover 3. Display Function 3.1 LCD Panel The following figure shows the full screen display. 3 No. Item Description 1 OBIS display area Tariff No. Displays the OBIS for the current item Displays the current tariff No. 2 Communication sign Appears when the meter communicating with other device 4 Low battery voltage sign This will show up when the battery is under the low voltage state(<3V) 5 Sign for relay disconnection Appears when the relay disconnection 6 Sign for energy direction Indicates the reverse current 7 Units area If necessary, displays the units for the current item. 9 Data display area Displays the data for the current item 3.2 Display Mode 1) Auto-scroll display: Automatically the meter enters the auto-scroll display after power-on, OBIS code will be 15.8.0. 2) Auto-scroll display time: configurable 0~99s, default is 5s. 3) Button display time: display fixes for 30s, and then backs to automatic display. 4) Power-off display: After power-off, the maximum display time is 30s. After that, the screen will be closed if there is no operation. 5) Backlight: The backlight is lit for 5s when power is on; it can be awakened by pressing button, and it will be turned off after 10s of no operation. 3.3 Display items The following items are configurable automatically scrolling display and button display: Default setting: 4 Display Items and Format OBIS Items Format Example 15.8.0 Cumulative Active Energy xxxxxx.x kWh 000000.1 kWh 1.7.0 Total Active Power(+) x.xxxx kW 1.2523 kW 1.6.0 Total Active MD(+) [current month] x.xxxx kW 7.3000 kW 1.6.0 Total Active MD(+) occurring time [current month] YY.MM.DD HH:MM:SS 32.7.0 Voltage,A XXX.XX V 220.01V 31.7.0 Current,A XX.XXX A 20.210A 3.4 LED indicators  Indicator for active energy pulse  Indicator for event alarm The pulse LEDs flash at a particular time interval, which determined by the meter constant and the actual power. The alarm LED should be on, when the tamper events occur. 4. Troubleshooting No. Conditions Solution 1 LCD has no display Check whether the wire connection correct or not (refer to connection diagram printed on the terminal cover) 2 Impulse indicator doesn’t flash 1. Check the wire connection and 2. Make sure the operation voltage and current are within specific range 5. Transport and Storage 1) Transportation and unpacking avoid dramatic impact. 2) Inventory and custody should be in the original packaging condition. In case of stored in the bracket, stacking height should not exceed five layers. 3) Store concentrator with the original container, better in the place with ambient temperature within - 40 C ~ + 70 C, relative humidity less than 85%, and should not contain corrosive gas in the air. 4) The product is a solid static instrument without any user-adjustable parts. Please do not open the enclosure during usage. FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

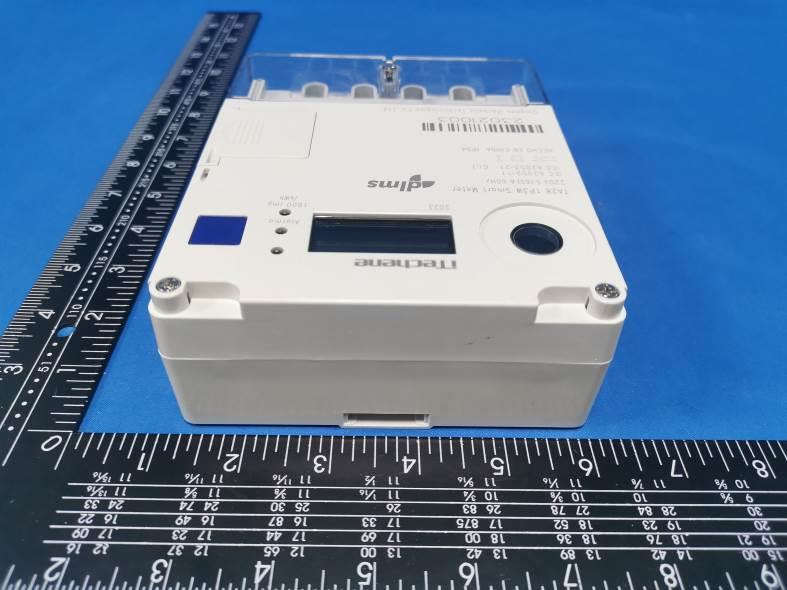

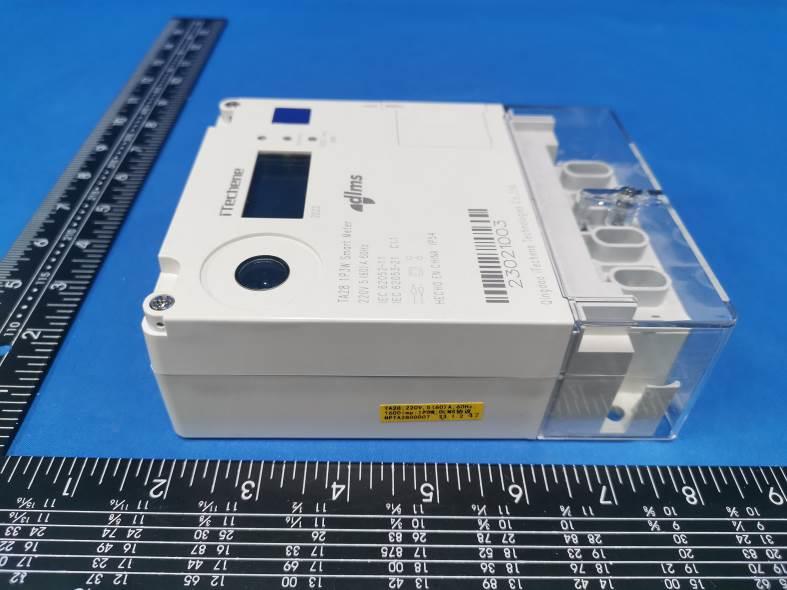

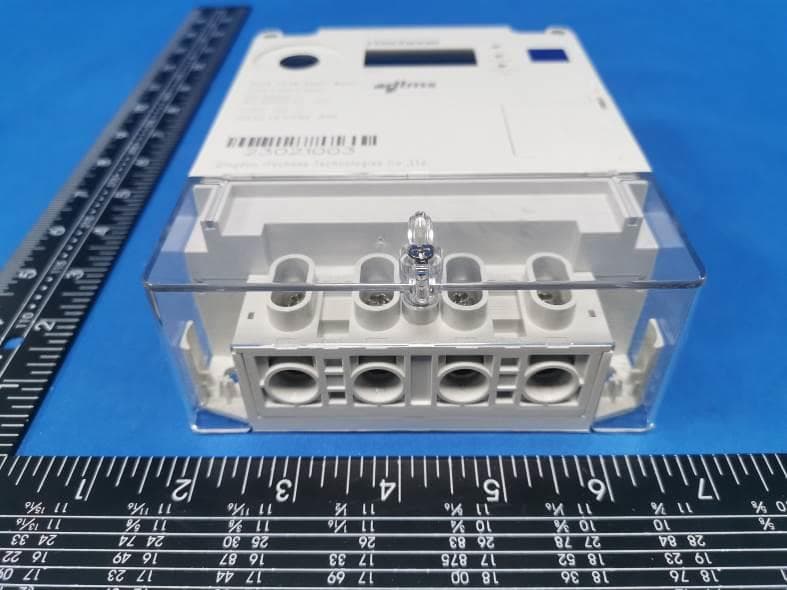

FCC ID: 2BABG-TA28 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BABG-TA28 Photo 4 Photo 5 Photo 6

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location Model No.: TA28 FCC ID : 2BABG-TA28 Caution : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

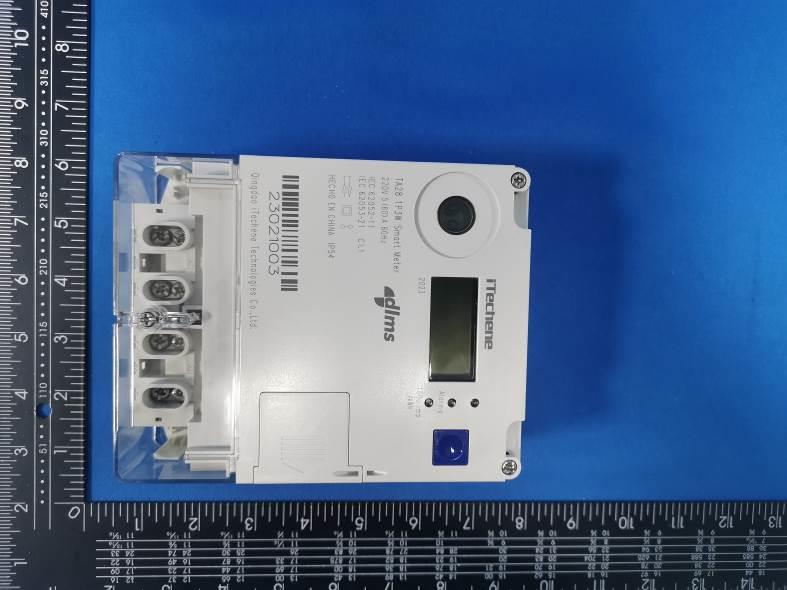

FCC ID: 2BABG-TA28 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BABG-TA28 Photo 4 Photo 5 Photo 6 BLE PCB antenna FCC ID: 2BABG-TA28 Photo 7 Photo 8

RF Exposure evaluation FCC ID: 2BABG-TA28 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information TA28 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BLE / PCB antenna 1.48dBi for 2400-2500MHz; 5. Manufacturing Tolerance BLE GFSK(Peak) Channel Channel 00 Channel 19 Channel 39 Target (dBm) -2.0 -2.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 1.48dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BLE -1.0 0.7943 1.48 1.4060 0.0002 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type PCB antenna Model TA28 Frequency range 2400-2500MHz Manufacturer Qingdao iTechene Technologies Co., Ltd. ANT Peak Gain 1.48 dBi 2. Antenna Photo: 3. Test Equipment & Conditions Length :9.59mm Width:2.70 mm 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : CTA23021300701 2BABG-TA28 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Amy Wen Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Feb. 20, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Qingdao iTechene Technologies Co., Ltd. Address ............................................ : 8 Floor, Block A, International Innovation Park, No.1 Keyuanweiyi Rd, Laoshan District, Qingdao, 266061, P.R.China. Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description...................: one phase electrical meter Trade Mark ....................................... : N/A Manufacturer .................................... : Qingdao iTechene Technologies Co., Ltd. Model/Type reference....................... : TA28 Listed Models .................................. : N/A Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : AC100-240V 50/60Hz Result................................................ : PASS Report No.: CTA23021300701 Page 2 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : one phase electrical meter Model /Type : TA28 Listed Models : N/A Applicant : Qingdao iTechene Technologies Co., Ltd. Address : 8 Floor, Block A, International Innovation Park, No.1 Keyuanweiyi Rd, Laoshan District, Qingdao, 266061, P.R.China. Manufacturer : Qingdao iTechene Technologies Co., Ltd. Address : 8 Floor, Block A, International Innovation Park, No.1 Keyuanweiyi Rd, Laoshan District, Qingdao, 266061, P.R.China. Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23021300701 Page 3 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E ST EN V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emissions and Band Edge 13 4.3 Maximum Peak Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 23 4.6 Out-of-band Emissions 25 4.7 Antenna Requirement 29 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 30 6 PHO T OS O F T H E E UT ........................................................... 31 Report No.: CTA23021300701 Page 4 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 Report No.: CTA23021300701 Page 5 of 35 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web…
