2BABL-M1MP3

1 1.1 Brief introduction Statement: For optimal use of your device, read this manual carefully. In line with the principle of continuous development, the company reserves the right to improve the product without prior notice, and reserves the right of final interpretation of the performance description of the company's product. Due to the different equipment software and service providers, the contents of this manual may differ from the actual display in the device, please refer to your device. Security warnings and precautions Security warnings ➢ Professional services Only professionals can install or repair equipment. Installing or repairing the equipment on your own can be dangerous and a breach of warranty. ➢ Accessories and batteries Use only factory-approved accessories and batteries. ➢ Fair Use Use the device in a normal way. 。 Notes Your equipment is well designed, craftsmanship, and should be cared for with care. The suggestions below can help your device safely survive its warranty and continue to use it for years. ➢ Keep the device and all its parts and accessories out of the reach of children. ➢ Keep the device dry. Avoid rainfall, moisture, liquids and other substances that may contain corrosive electronic circuits. ➢ Do not use or store the device in a dusty area to avoid damaging its moving parts. ➢ Do not store the device in a high temperature. High temperatures can shorten the life of electronic circuits and damage batteries and certain plastic parts. ➢ Do not store the device in a cold place. Otherwise, when the equipment rises to normal temperature, moisture will form in the equipment, which may damage the electronic circuit board. ➢ Do not throw, knock, or vibrate the device. Rough handling of the device can destroy the internal circuit board and delicate structure. ➢ Please use a regular national standard charger to charge the device. The parameters of this device charger are: 5V2A 2. Your device 2.1 Schematic diagram of device buttons 2 Label 1 is: Power on and off button Callout 2 is: Volume Plus Callout 3 is: Volume down Callout 4 is: Recording hole Label 5 is: TF card interface Callout 6 is: Headphone jack Label 7 is: Type-c USB port/charging port Callout 8 is: Speaker sound hole 2.2 Key instructions ◆ Power key This button is on the right side of the device, long press this button to turn on the device; While using the device, press the key to lock and wake the screen; On the standby interface, long pressing this button will pop up a prompt box, which can choose to shut down and restart. After booting, long press the power on button and volume down key to bring up the automatic screenshot function. 3 In the power on state, long press the power on button for about 20 seconds to automatically reset the settings (suitable for forced shutdown and restart). ◆ Volume control keys This button is located under the power button and is used to adjust the volume. Reset hole, in the case that the machine cannot be touched or stuck and cannot be operated, the hole key can be reset and restarted by poking the hole key with a reset needle. 2.3 Icon description The three function icons at the bottom of the device screen are the menu icon, the home icon, and the back icon. ◆ Menu icon Tap under any interface and a dialog box will pop up on the screen for further action by the user. ◆ Home icon Tap under any interface to exit the function and return to the standby interface. ◆ Return to the icon Tap the icon to return to the previous menu. 2.4 Technical parameters host Size (110.5mm long×48.7mm wide ×11.4mm thick): Weight: 105.6g Lithium polymer battery Battery rated capacity: 1500mA For other relevant parameters of the battery and charger, please refer to the actual product. 3. Preparation before use 3.1 Install the SD card An SD card is a removable memory card located inside the device. Install the SD card: Carefully insert the SD card into the SD card jack, the installation is successful. Remove the SD card: Carefully remove the SD card, the removal is successful. Note: 1. The device inserted into the SD card in the boot state will not be automatically recognized, and the device needs to be turned on and off again to recognize the SD card. 2. SD card is a small object, please do not let children touch the SD card to avoid children swallowing it in the mouth! 3.2 Battery charging The lithium-ion battery supplied with this machine can be used after unpacking. Please fully charge the first three charges after the power is completely used up to allow the battery to reach optimal use. Battery level indication: ◆ Your device can monitor and display information about the battery. ◆ Normally, you can see the remaining battery level from the battery level icon in the upper right corner of the display. ◆ When the battery is low, the device will have a "low charge" prompt. If you select Tone-Warning Tone in any mode 4 in the profile, a warning tone is also emitted. ◆ When the battery is charging, a charging animation is displayed, and the charging animation stops indicating that charging is complete. ◆ It is normal for the battery to heat up slightly during charging. Note: It must be ensured that the standard voltage and frequency of the location match the rated voltage and power of your travel charger. Use of batteries Battery performance is affected by a variety of factors, including your wireless bearer network configuration, signal strength, temperature when using the device, features or settings you select and use, and accessories selected for the device and the voice, data, or other application modes you use. For optimal battery performance, observe the following rules: ◆ Only the original battery is allowed to be charged in the device to avoid injury caused by incorrect charging. ◆ New batteries or batteries that have not been used for a long time take longer to charge. If the battery voltage is low enough to turn the device on, it will take a long time for the battery icon to cha…

Text truncated - open the document above for the full version.

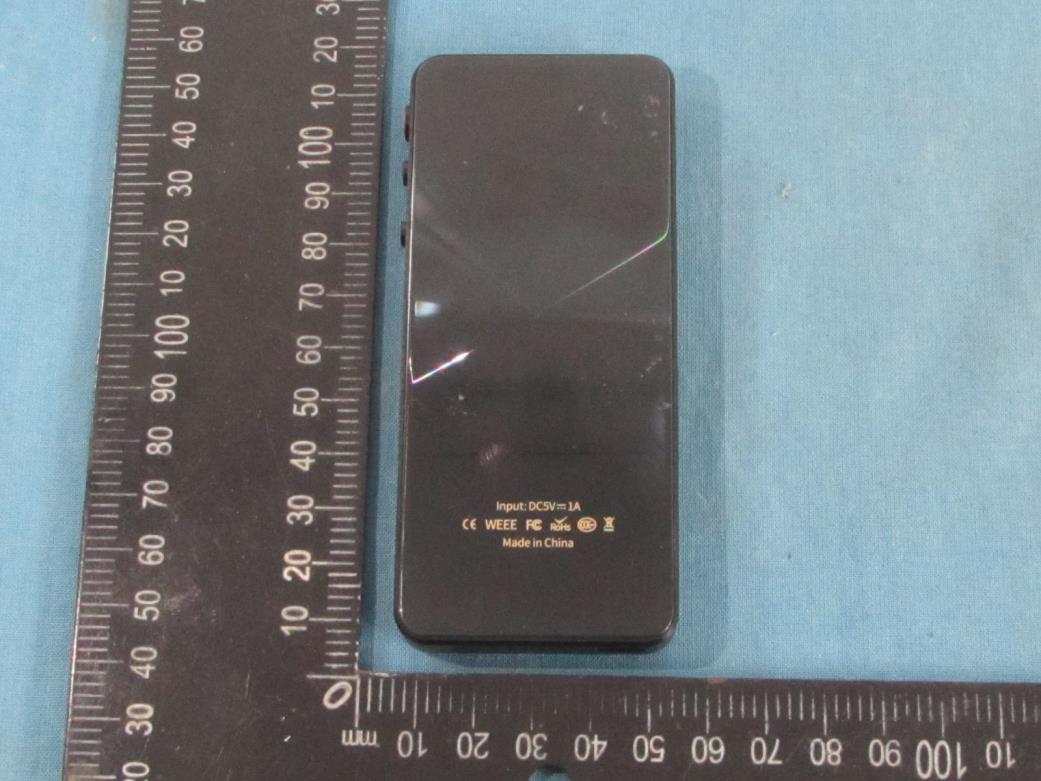

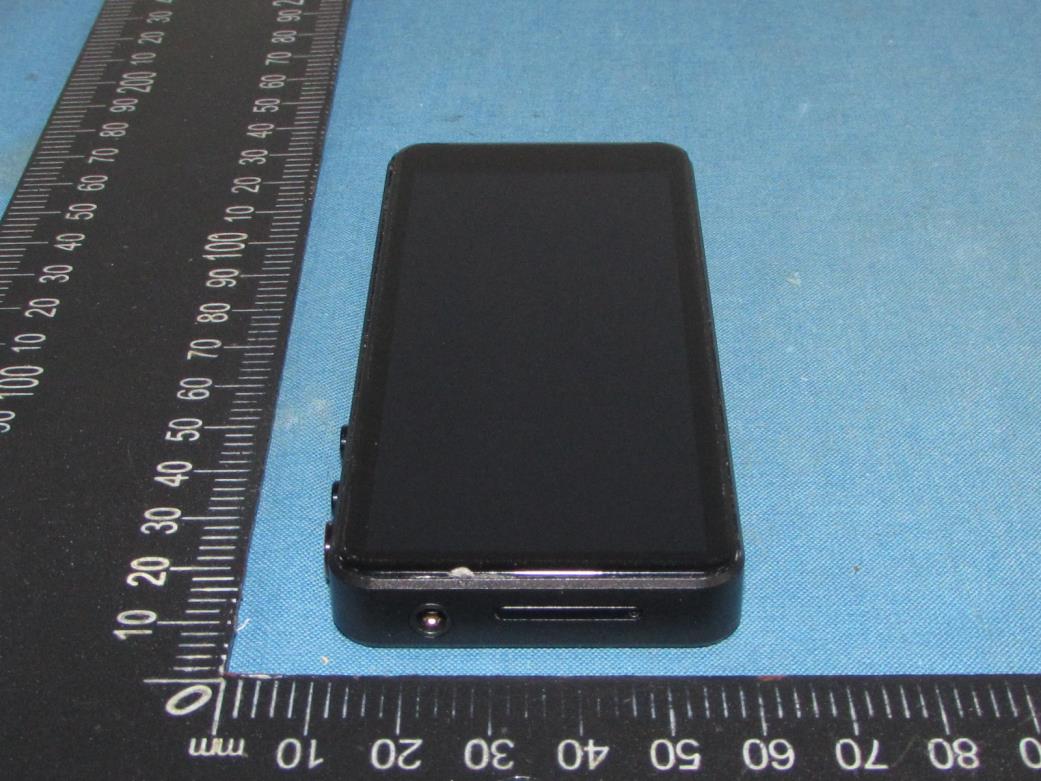

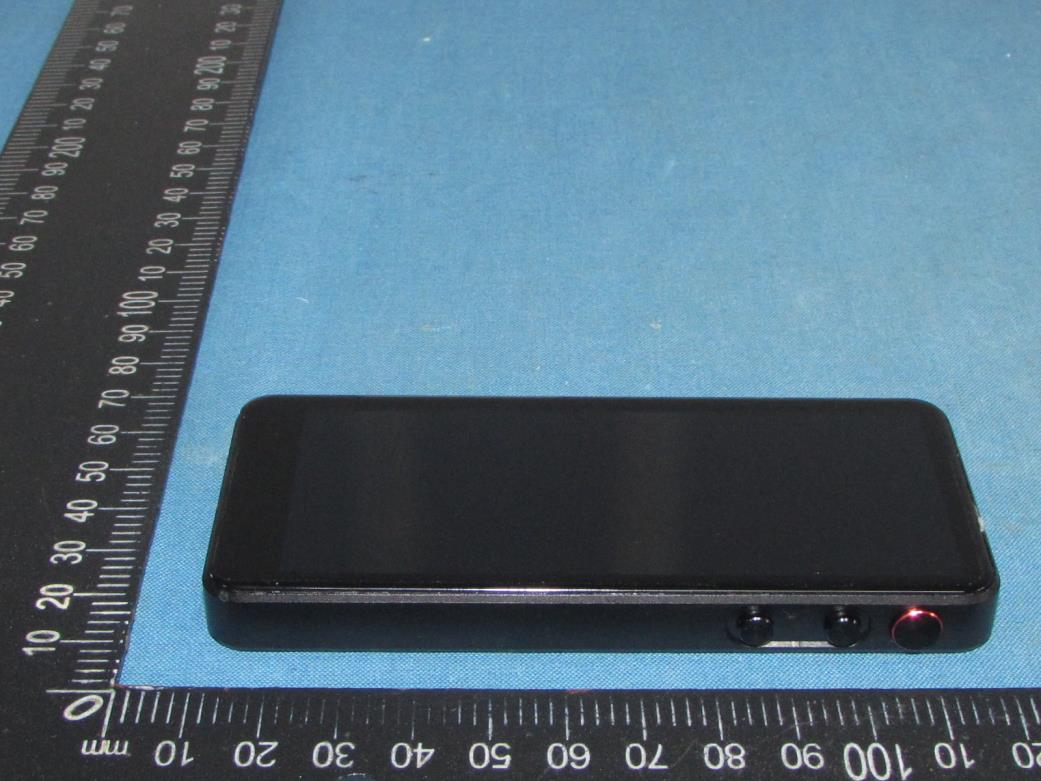

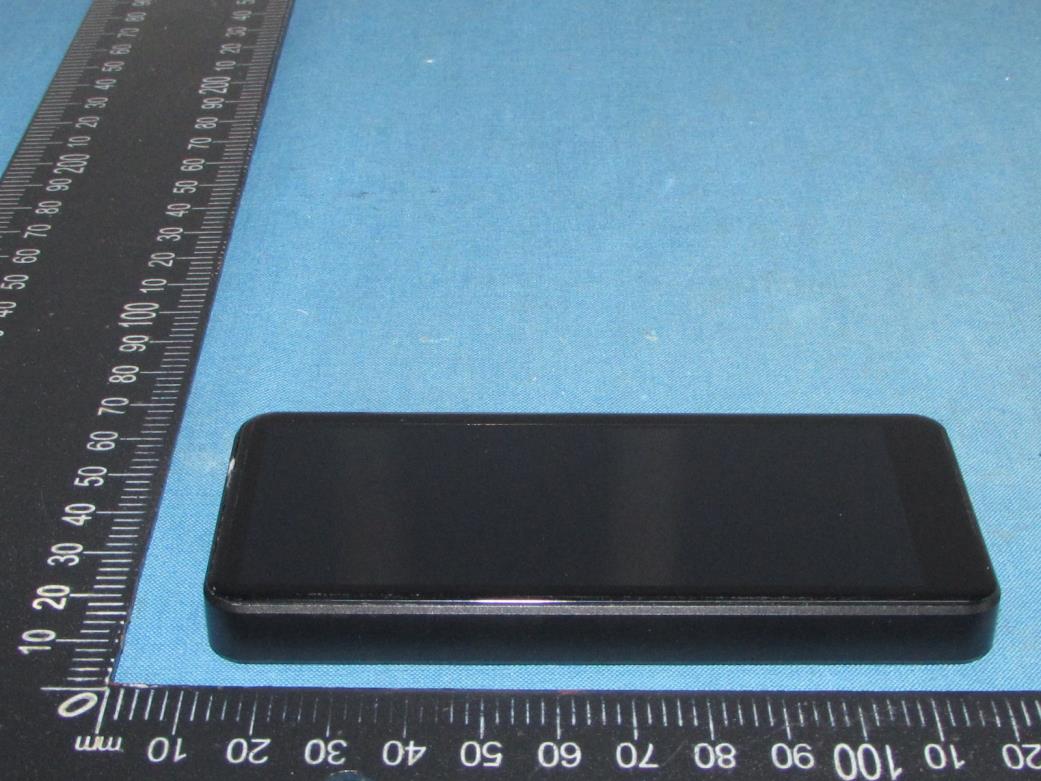

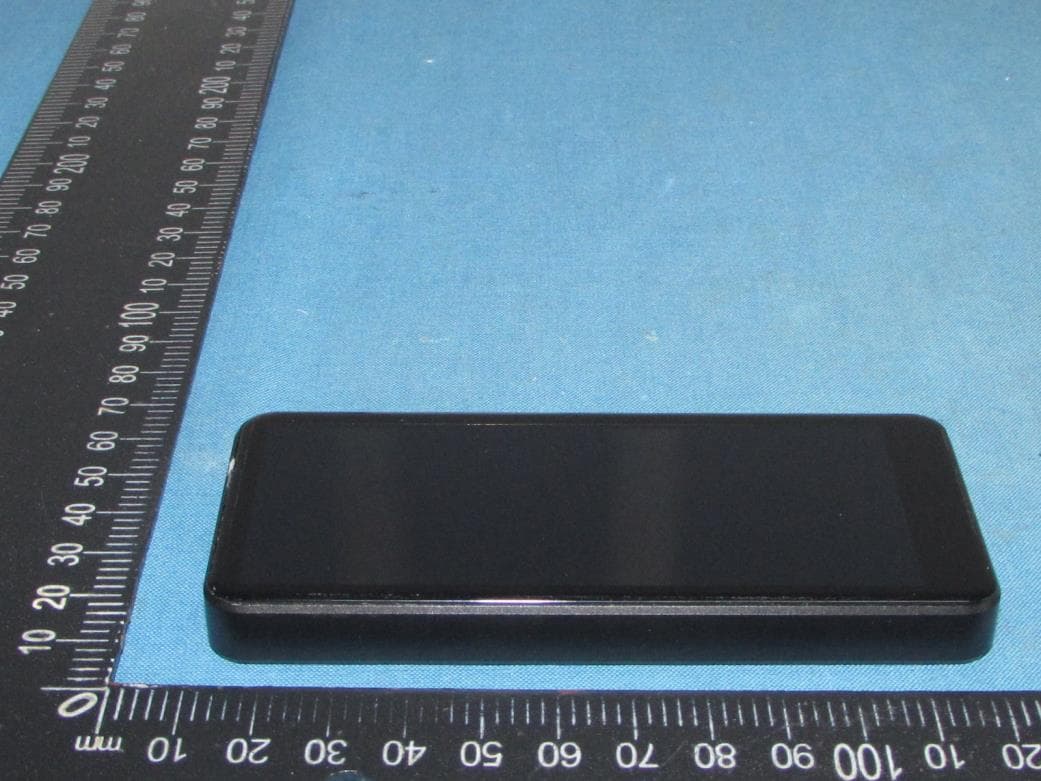

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5 Fig.6

Label Location: FCC ID: 2BABL-M1

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 WiFi/Bluetooth antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7 Fig.8

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section 4.3.1 of KDB 447498 D01 General RF Exposure Guidance v06, SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Appendix A. Appendix A SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Conducted Power Results Bluetooth(BDR+EDR) TestMode Antenna Channel Result[dBm] DH5 Ant1 2402 -1.26 2441 0.08 2480 -1.09 2DH5 Ant1 2402 -0.94 2441 0.39 2480 -0.4 3DH5 Ant1 2402 -0.6 2441 0.83 2480 -0.21 WiFi 2.4GHz Band TestMode Antenna Channel Result[dBm] 11B Ant1 2412 4.04 2437 3.52 2462 3.89 11G Ant1 2412 4.28 2437 3.98 2462 3.77 11N20SISO Ant1 2412 4.44 2437 3.55 2462 3.19 11N40SISO Ant1 2422 3.58 2437 3.66 2452 3.81 Manufacturing tolerance Bluetooth(BDR+EDR) GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -0.5 -1.5 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.5 0.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.0 0.5 -0.5 Tolerance ±(dB) 1.0 1.0 1.0 WiFi 2.4GHz Band IEEE 802.11b (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 3.5 3.0 3.5 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11g (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 3.5 3.5 3.5 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT20 (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 3.5 3.0 2.5 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT40 (Peak) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 3.0 3.0 3.5 Tolerance ±(dB) 1.0 1.0 1.0 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Results Test Mode Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK 0.5 1.62 1.45 10 π/4-DQPSK 1.0 2.12 1.63 10 8-DPSK 1.5 2.62 1.83 10 WiFi 2.4GHz Band Test Mode Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) 802.11b 4.5 5.62 3.65 10 802.11g 4.5 5.62 3.65 10 802.11n HT20 4.5 5.62 3.65 10 802.11 n HT40 4.5 5.62 3.65 10 Manufacturer declared that the maximum antenna gain is 1.12dBi (Max.), the Maximum Eirp is used for Routine Evaluation Exemption according to section 4.3.1 of KDB 447498 D01. So, the SAR evaluation is not required.

SPECIFICATION FOR APPROVAL 客 户 名 称 CUSTOMER NAME:/ 产 品 名 称 PRODUCT NAME: M200 客 户 料 号 CUSTOMER P/N:/ 电 子 料 号 P/N: REV: A Manufacture: ShenZhen Eastong Electronic technology Co.,LTD 1．规格表 Parameter: 主要技术指标 Main technical specifications 频率范围 （MHZ） 2400~2500 Frequency Range (MHZ) 2400~2500 特性阻抗(Ω) 50 Impedance(Ω) 50 增益(dBi) 1.12 Gain(dBi) 1.12 输出电压 驻波比 ≤1.92 VSWR ≤1.92 最大功率 1W Admitted Power 10W 极化方式 线极化 Polarization Line,Vertical 连接方式 SMA Connector Type SAM 物理性能 Physical Properties 工作温度 -20°C~+70°C Operating Temp -20°C~+70°C 保存温度 -20°C~+70°C Storage Temp -20°C~+70°C 1.Antenna Size： 3.测试报告 Test Report 3.1：回波损耗和阻抗图 S11 and impedance 3.2：3D Raditation Pattern 3.2.1 效率及增益 Efficiency and gain Frequency / MHz Efficiency / dB Efficiency / % Gain/ dB 2400 -0.82 82.79 0.56 2450 -0.75 84.14 1.12 2500 -0.75 84.14 -0.27 3.2.2 3D Raditation Pattern 2400 MHz 2450 MHz 2500 MHz

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 Report No.: TZ230204064-E2 Page 1 of 38 Appendix Test Data for WLAN(2.4G) (Conducted Measurement) Product Name: MP3 Trade Mark: MAIKELU Test Model: M1 FCC ID: 2BABL-M1 Environmental Conditions Temperature: 25.3°C Relative Humidity: 56% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.040 2407.000 2417.040 0.5 PASS 2437 10.080 2431.960 2442.040 0.5 PASS 2462 10.000 2457.000 2467.000 0.5 PASS 11G Ant1 2412 15.480 2404.280 2419.760 0.5 PASS 2437 16.040 2428.880 2444.920 0.5 PASS 2462 16.280 2453.880 2470.160 0.5 PASS 11N20SISO Ant1 2412 16.920 2403.520 2420.440 0.5 PASS 2437 16.240 2429.160 2445.400 0.5 PASS 2462 15.440 2454.440 2469.880 0.5 PASS 11N40SISO Ant1 2422 35.040 2404.560 2439.600 0.5 PASS 2437 35.120 2419.480 2454.600 0.5 PASS 2452 35.120 2434.400 2469.520 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 Report No.: TZ230204064-E2 Page 2 of 38 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 Report No.: TZ230204064-E2 Page 3 of 38 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 Report No.: TZ230204064-E2 Page 4 of 38 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 Report No.: TZ230204064-E2 Page 5 of 38 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 Report No.: TZ230204064-E2 Page 6 of 38 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 14.628 2404.6916 2419.3196 --- --- 2437 14.580 2429.7062 2444.2862 --- --- 2462 14.617 2454.7311 2469.3481 --- --- 11G Ant1 2412 16.803 2403.6601 2420.4631 --- --- 2437 16.685 2428.6580 2445.3430 --- --- 2462 16.725 2453.6888 2470.4138 --- --- 11N20SISO Ant1 2412 17.746 2403.1480 2420.8940 --- --- 2437 17.837 2428.1308 2445.9678 --- --- 2462 17.642 2453.2272 2470.8692 --- --- 11N40SISO Ant1 2422 36.227 2403.9406 2440.1676 --- --- 2437 36.115 2418.9929 2455.1079 --- --- 2452 36.244 2433.9262 2470.1702 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 Report No.: TZ230204064-E2 Page 7 of 38 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 Report No.: TZ230204064-E2 Page 8 of 38 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 Report No.: TZ230204064-E2 Page 9 of 38 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 Report No.: TZ230204064-E2 Page 10 of 38 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 Report No.: TZ230204064-E2 Page 11 of 38 Appendix C: Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict 11B Ant1 2412 4.04 ≤30.00 PASS 2437 3.52 ≤30.00 PASS 2462 3.89 ≤30.00 PASS 11G Ant1 2412 4.28 ≤30.00 PASS 2437 3.98 ≤30.00 PASS 2462 3.77 ≤30.00 PASS 11N20SISO Ant1 2412 4.44 ≤30.00 PASS 2437 3.55 ≤30.00 PASS 2462 3.19 ≤30.00 PASS 11N40SISO Ant1 2422 3.58 ≤30.00 PASS 2437 3.66 ≤30.00 PASS 2452 3.81 ≤30.00 PASS Note：The Duty Cycle Factor is compensated in the test result. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 Report No.: TZ230204064-E2 Page 12 of 38 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -26.17 ≤8.00 PASS 2437 -27.24 ≤8.00 PASS 2462 -26.66 ≤8.00 PASS 11G Ant1 2412 -25.85 ≤8.00 PASS 2437 -25.64 ≤8.00 PASS 2462 -26.37 ≤8.00 PASS 11N20SISO Ant1 2412 -22.73 ≤8.00 PASS 2437 -23.3 ≤8.00 PASS 2462 -22.98 ≤8.00 PASS 11N40SISO Ant1 2422 -25.55 ≤8.00 PASS 2437 -24.97 ≤8.00 PASS 2452 -26.08 ≤8.00 PASS Note：The Duty Cycle Factor is compensated in the test result. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 Report No.: TZ230204064-E2 Page 13 of 38 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 Report No.: TZ230204064-E2 Page 14 of 38 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 Report No.: TZ230204064-E2 Page 15 of 38 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 Report No.: TZ230204064-E2 Page 16 of 38 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 Report No.: TZ230204064-E2 Page 17 of 38 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 -5.90 -51.39 ≤-35.9 PASS High 2462 -5.68 -55.07 ≤-35.68 PASS 11G Ant1 Low 2412 -6.45 -45.5 ≤-36.45 PASS High 2462 -7.23 -57.96 ≤-37.23 PASS 11N20SISO Ant1 Low 2412 -7.26 -45.36 ≤-37.26 PASS High 2462 -7.95 -56.47 ≤-37.95 PASS 11N40SISO Ant1 Low 2422 -11.14 -50.07 ≤-41.14 PASS High 2452 -11.05 -56.11 ≤-41.05 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 Report No.: TZ230204064-E2 Page 18 of 38 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 11G_Ant1_High_2462 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 Report No.: TZ230204064-E2 Page 19 of 38 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 Report No.: TZ230204064-E2 Page 20 of 38 11N40SISO_Ant1_High_2452 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 Report No.: TZ230204064-E2 Page 21 of 38 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -5.71 -5.71 --- PASS 30~1000 -5.71 -61.82 ≤-35.71 PASS 1000~26500 -5.71 -51.…

Text truncated - open the document above for the full version.

Report No.: TZ230204064-E2 Page 1 of 39 FCC TEST REPORT Test report On Behalf of SHENZHENSHIQIHUKEJIYOUXIANGONGSI For MP3 Model No.: M1 FCC ID: 2BABL-M1 Prepared for : SHENZHENSHIQIHUKEJIYOUXIANGONGSI pinghujiedaohehuashequpingxinbeilu163hao,guanghongmeijuDdongD202-B015,shenz henshi,longgangqu,guangdongsheng,518111,CN Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2022/11/25 ~ 2022/12/1 Date of Report: 2023/2/20 Report Number: TZ230204064-E2 The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ230204064-E2 Page 2 of 39 TEST RESULT CERTIFICATION Applicant’s name .................. : SHENZHENSHIQIHUKEJIYOUXIANGONGSI Address .................................. : pinghujiedaohehuashequpingxinbeilu163hao,guanghongmeijuDd ongD202-B015,shenzhenshi,longgangqu,guangdongsheng,5181 11,CN Manufacture's Name ............ : SHENZHENSHIQIHUKEJIYOUXIANGONGSI Address .................................. : pinghujiedaohehuashequpingxinbeilu163hao,guanghongmeijuDd ongD202-B015,shenzhenshi,longgangqu,guangdongsheng,5181 11,CN Product description Trade Mark ................................ : MAIKELU Product name............................ : MP3 Model and/or type reference . : M1 Standards .............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : 2022/11/25 ~ 2022/12/1 Date of Issue ........................................... : 2023/2/20 Test Result .............................................. : Pass Testing Engineer : (Nancy Li) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ230204064-E2 Page 3 of 39 Revision History Revision Issue Date Revisions Revised By 000 2023/2/20 Initial Issue Andy Zhang Report No.: TZ230204064-E2 Page 4 of 39 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 5 1.2 EUT CONFIGURATION .......................................................................................................................................... 6 1.3. EXTERNAL I/O CABLE ......................................................................................................................................... 6 1.4. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 6 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 6 1.6. MEASUREMENT UNCERTAINTY ........................................................................................................................... 6 1.7. DESCRIPTION OF TEST MODES .......................................................................................................................... 7 2. TEST METHODOLOGY ......................................................................................................................................... 8 2.1. EUT CONFIGURATION......................................................................................................................................... 8 2.2. EUT EXERCISE ................................................................................................................................................... 8 2.3. GENERAL TEST PROCEDURES ........................................................................................................................... 8 3. SYSTEM TEST CONFIGURATION ...................................................................................................................... 9 3.1. JUSTIFICATION..................................................................................................................................................... 9 3.2. EUT EXERCISE SOFTWARE ................................................................................................................................ 9 3.3. SPECIAL ACCESSORIES ...................................................................................................................................... 9 3.4. BLOCK DIAGRAM/SCHEMATICS........................................................................................................................... 9 3.5. EQUIPMENT MODIFICATIONS .............................................................................................................................. 9 3.6. TEST SETUP ........................................................................................................................................................ 9 4. SUMMARY OF TEST RESULTS ........................................................................................................................ 10 5. TEST RESULT ....................................................................................................................................................... 11 5.1. ON TIME AND DUTY CYCLE ..............................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 TEST SETUP PHOTOS OF THE EUT Conducted Emission Radiated Emission Below 1GHz Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BABL-M1 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Radiated Emission Above 1GHz
