2BACG-MPC-3000Mini PC

USB 3.2 Gen1 USB 3.2 Gen2 FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Siragon Corporate CR MANZANA A LOCAL SHED NRO 1-4 VALLE ALTO GUAYABAL NAGUANAGUA CARABOBO ZIP 2005. IVORY STORE Venezuela Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-7-19 To whom it may concern: We, Siragon Corporate, hereby certify that the equipment for which authorization is sought (FCC ID: 2BACG-MPC-3000) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature hazem Yusef Manager Siragon Corporate 62_[model] CoveredEqu_2.911(d)(5 )(i) and (ii) - U, V03

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-7-19> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BACG-MPC-3000 MPC - 3000 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： hazem Yusef/Manager Company: Siragon Corporate Address: CR MANZANA A LOCAL SHED NRO 1-4 VALLE ALTO GUAYABAL NAGUANAGUA CARABOBO ZIP 2005. IVORY STORE Venezuela Phone: +58 424 4171836 Fax: N/A E-Mail: [email protected]

Siragon Corporate CR MANZANA A LOCAL SHED NRO 1-4 VALLE ALTO GUAYABAL NAGUANAGUA CARABOBO ZIP 2005. IVORY STORE Venezuela Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-7-19 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BACG-MPC-3000 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： hazem Yusef/Manager Company: Siragon Corporate Address: CR MANZANA A LOCAL SHED NRO 1-4 VALLE ALTO GUAYABAL NAGUANAGUA CARABOBO ZIP 2005. IVORY STORE Venezuela Phone: +58 424 4171836 Fax: N/A E-Mail: [email protected]

Siragon Corporate CR MANZANA A LOCAL SHED NRO 1-4 VALLE ALTO GUAYABAL NAGUANAGUA CARABOBO ZIP 2005. IVORY STORE Venezuela UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: 2BACG-MPC-3000 (1) DFS Device: Master Client with Radar detection capability N/A Client without radar detection capability, (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 5180-5240 Yes No Yes No Yes No Yes No 5190-5230 Yes No Yes No Yes No Yes No 5210-5210 Yes No Yes No Yes No Yes No 5745-5825 Yes No Yes No Yes No Yes No 5755-5795 Yes No Yes No Yes No Yes No 5775-5775 Yes No Yes No Yes No Yes No (3) Country code selection ability Yes No If yes, pls explain how it was implemented: (4) Meet 15.202 requirement Yes No pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by end user or an installer. Apply Does not apply (If apply, pls help to provide explanation on it was implement, and how software was controlled) Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name/Title： hazem Yusef/Manager Company: Siragon Corporate Address: CR MANZANA A LOCAL SHED NRO 1-4 VALLE ALTO GUAYABAL NAGUANAGUA CARABOBO ZIP 2005. IVORY STORE Venezuela Phone: +58 424 4171836 Fax: N/A E-Mail: [email protected]

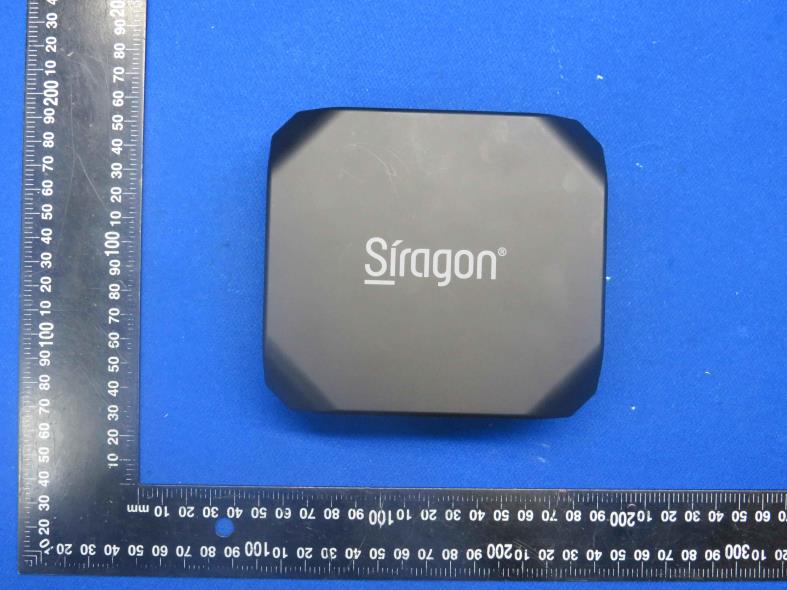

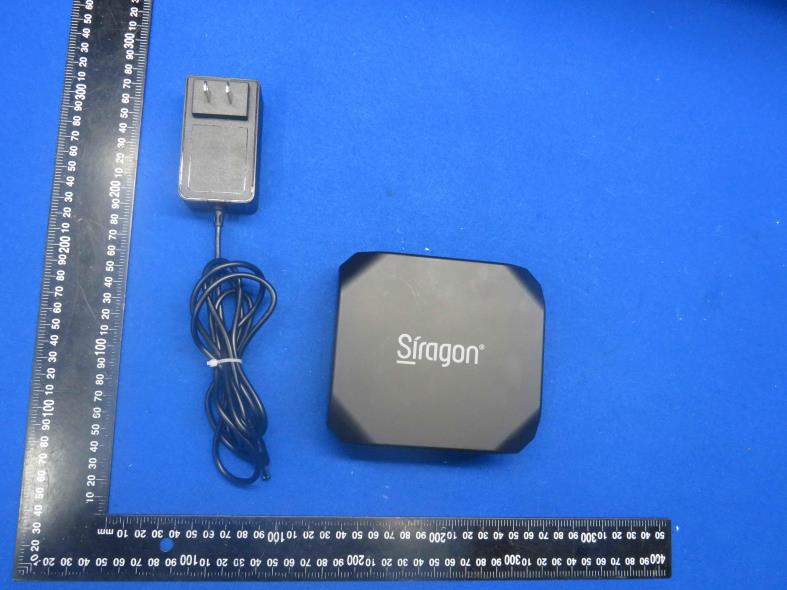

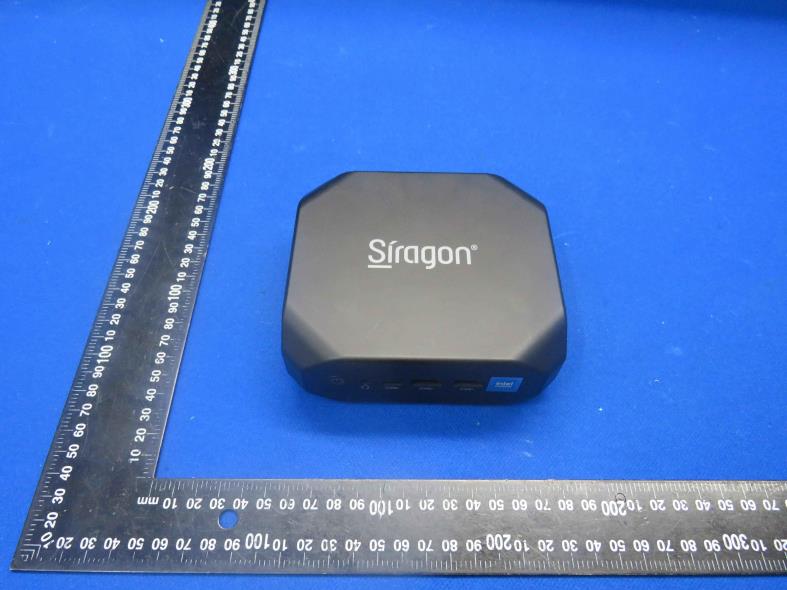

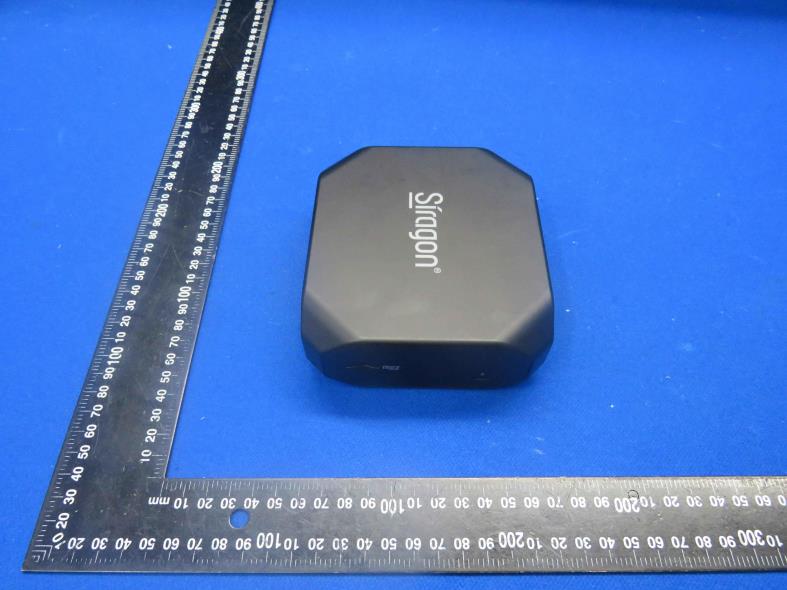

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202406543 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 4 Product Name: Mini PC Model No.: MPC - 3000 EUT Constructional Details External Photo Report No.: HTT202406543 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 4 Report No.: HTT202406543 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 4 Report No.: HTT202406543 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 4 ------End------

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2BACG-MPC-3000

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202406543 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 5 Product Name: Mini PC Model No.: MPC - 3000 EUT Constructional Details Internal Photo ANTENNA 1 ANTENNA 2 Report No.: HTT202406543 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 5 Report No.: HTT202406543 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 5 Report No.: HTT202406543 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 5 Report No.: HTT202406543 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 5 of 5 ------End------

RF Exposure evaluation FCC ID: 2BACG-MPC-3000 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information MPC - 3000 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BT / FPC Antenna 3.86dBi for 2400-2500MHz; 2.4GWIFI / FPC Antenna 3.86dBi for 2400-2500MHz for ANT 1 2.41dBi for 2400-2500MHz for ANT 1 5GWIFI / FPC Antenna 4.71 dBi for 5000-6000MHz for ANT 1 6.41 dBi for 5000-6000MHz for ANT 2 5. Manufacturing Tolerance Mode Max. Peak Conducted Output Power (dBm) Max. tune-up BT 1.47 1.0±1 BLE 3.49 3.0±1 Mode Max. Peak Conducted Output Power (dBm) Max. tune-up Antenna1 Antenna2 Antenna1 Antenna2 2.4GWIFI 20.92 21.16 21.0±1 21.0±1 Mode Max. Average Conducted Output Power (dBm) Max. tune-up Antenna1 Antenna2 Antenna1 Antenna2 5.2GWIFI 7.06 7.35 8.0±1 8.0±1 5.8GAWIFI 8.2 7.66 8.0±1 8.0±1 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is refer to section, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BT 2.0 1.5849 3.86 2.4322 0.0008 1.0000 BLE 4.0 2.5119 3.86 2.4322 0.0012 1.0000 2.4GWIFI ANT1 22.0 158.4893 3.86 2.4322 0.0767 1.0000 5.2GWIFI ANT1 9.0 7.9433 4.71 2.9580 0.0047 1.0000 5.8GWIFI ANT1 9.0 7.9433 4.71 2.9580 0.0047 1.0000 Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW 2.4GWIFI ANT2 22.0 50.1187 2.41 1.7418 0.0549 1.0000 5.2GWIFI ANT2 9.0 19.9526 6.41 4.3752 0.0069 1.0000 5.8GWIFI ANT2 9.0 25.1189 6.41 4.3752 0.0069 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. simultaneous MPE Result 2.4GWIFI ANT1 MPE (Ratio) 2.4GWIFI ANT2 MPE (Ratio) simultaneous MPE (Ratio) MPE Limits (Ratio) 0.0767 0.0549 0.1316 1.0000 8. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

Auden Techno(KUNSHAN)CO.LTD ANTENNA SPECIFICATION No perfect status,Always seek for better！ CONFIDENTIAL This message contains information that may be confidential and privileged. Unless you are the addressee (or authorized to receive messages for the addressee), you can not use, copy or disclose to any third party or any information contained in the message. If you have received the message in error, please advise the sender by reply e-mail and delete the message. Nothing in this message should be interpreted as a digital or electronic signature that can be used to authenticate a contract or other legal document. Thank you very much. SPECIFICATION APPLICATION FOR APPROVAL 客户名称 CUSTOMER : 上海英众信息科技有限公司 客户案号 CS P/N : XB22-Main 零件名称 PART NAME : AUK02130B-MAIN 耀登案号 DEVE NO. : B52461-00 承认日期 DATE : Jul. 8, 2021 客户确认： 射频工程师 结构工程师 研发经理 产品经理 耀登电通科技（昆山）有限公司 电气工程师 结构工程师 研发经理 项目经理 陈金马 张海洋 钱磊 王显文 总部 Head Quarter 耀登電通科技(昆山)有限公司 江苏省昆山市周市镇迎宾路15号 TEL: 0512‐57646998 FAX: 0512‐57646168 分公司： Auden Techno(KUNSHAN)CO.LTD NO.15 YING‐BIN ROAD, LUYANGTOWN，KUNSHAN ，JIANGSU CHINA Branch 耀登電通科技(昆山)有限公司西安分公司 西安市 高新区 唐延南路10号 中兴产业园 E1‐04 TEL: 13382157879 Auden Techno(KUNSHAN)CO.LTD. Xi 'an branch E1‐04, zhongxing industrial park, no.10 tangyan south road, high‐tech zone, xi 'an 耀登電通科技(昆山)有限公司深圳分公司 地址：深圳市南山区桃源街道红花岭工业区第五区A栋二楼 201‐202（南区） TEL: 185 8845 5257 Auden Techno(KUNSHAN)CO.LTD. Shenzhen branch Address: 201‐202, 2nd floor, building A, zone 5, honghualing industrial zone, taoyuan street, nanshan district, shenzhen (southern district) Auden Techno(KUNSHAN)CO.LTD ANTENNA SPECIFICATION No perfect status,Always seek for better！ CONFIDENTIAL This message contains information that may be confidential and privileged. Unless you are the addressee (or authorized to receive messages for the addressee), you can not use, copy or disclose to any third party or any information contained in the message. If you have received the message in error, please advise the sender by reply e-mail and delete the message. Nothing in this message should be interpreted as a digital or electronic signature that can be used to authenticate a contract or other legal document. Thank you very much. INDEX 一、规格书封面（Cover） 二、规格书目录（Index） 三、天线基本参数（The Basic Parameters） 四、电气测试报告（RF Performance Test Report） 五、工程图纸（Product Drawing） 六、尺寸报告 (Dimensional check reports) 七、可靠性测试报告(Reliability test report) Auden Techno(KUNSHAN)CO.LTD ANTENNA SPECIFICATION No perfect status,Always seek for better！ CONFIDENTIAL This message contains information that may be confidential and privileged. Unless you are the addressee (or authorized to receive messages for the addressee), you can not use, copy or disclose to any third party or any information contained in the message. If you have received the message in error, please advise the sender by reply e-mail and delete the message. Nothing in this message should be interpreted as a digital or electronic signature that can be used to authenticate a contract or other legal document. Thank you very much. 天线基本参数（The Basic Parameters） 项目（Item） 特性（Specifications） 天线结构组成 FPC+CABLE 频率（ Frequency） 2.4g~5.8g 驻波比（V.S.W.R） ≤3 增益（Gain） ≤5 极化方式（Polarization） 线极化 特性阻抗（Impedance） 50Ω 塑胶材质（Plastic material） 无 接头形式（joint type） 4代端子+Cable 工作温度（Operation temperature） ‐40°C to 85°C 储存温度（Storage temperature） ‐40°C to 85°C 湿度（humidity） Non‐condensing 65°C 95% RH 天线图片 Auden Techno(KUNSHAN)CO.LTD ANTENNA SPECIFICATION No perfect status,Always seek for better！ CONFIDENTIAL This message contains information that may be confidential and privileged. Unless you are the addressee (or authorized to receive messages for the addressee), you can not use, copy or disclose to any third party or any information contained in the message. If you have received the message in error, please advise the sender by reply e-mail and delete the message. Nothing in this message should be interpreted as a digital or electronic signature that can be used to authenticate a contract or other legal document. Thank you very much. 电气测试报告（RF Performance Test Report） 组装位置 V.S.W.R Auden Techno(KUNSHAN)CO.LTD ANTENNA SPECIFICATION No perfect status,Always seek for better！ CONFIDENTIAL This message contains information that may be confidential and privileged. Unless you are the addressee (or authorized to receive messages for the addressee), you can not use, copy or disclose to any third party or any information contained in the message. If you have received the message in error, please advise the sender by reply e-mail and delete the message. Nothing in this message should be interpreted as a digital or electronic signature that can be used to authenticate a contract or other legal document. Thank you very much. Main‐无源测试数据 Auden Techno(KUNSHAN)CO.LTD ANTENNA SPECIFICATION No perfect status,Always seek for better！ CONFIDENTIAL This message contains information that may be confidential and privileged. Unless you are the addressee (or authorized to receive messages for the addressee), you can not use, copy or disclose to any third party or any information contained in the message. If you have received the message in error, please advise the sender by reply e-mail and delete the message. Nothing in this message should be interpreted as a digital or electronic signature that can be used to authenticate a contract or other legal document. Thank you very much. 工程图纸（Product Drawing） Auden Techno(KUNSHAN)CO.LTD ANTENNA SPECIFICATION No perfect status,Always seek for better！ CONFIDENTIAL This message contains information that may be confidential and privileged. Unless you are the addressee (or authorized to receive messages for the addressee), you can not use, copy or disclose to any third party or any information contained in the message. If you have received the message in error, please advise the sender by reply e-mail and delete the message. Nothing in this message should be interpreted as a digital or electronic signature that can be used to authenticate a contract or other legal document. …

Text truncated - open the document above for the full version.

Auden Techno(KUNSHAN)CO.LTD ANTENNA SPECIFICATION No perfect status,Always seek for better！ CONFIDENTIAL This message contains information that may be confidential and privileged. Unless you are the addressee (or authorized to receive messages for the addressee), you can not use, copy or disclose to any third party or any information contained in the message. If you have received the message in error, please advise the sender by reply e-mail and delete the message. Nothing in this message should be interpreted as a digital or electronic signature that can be used to authenticate a contract or other legal document. Thank you very much. SPECIFICATION APPLICATION FOR APPROVAL 客户名称 CUSTOMER : 上海英众信息科技有限公司 客户案号 CS P/N : XB22-Aux 零件名称 PART NAME : AUK02130B-Aux 耀登案号 DEVE NO. : B52462-00 承认日期 DATE : Jul. 8, 2021 客户确认： 射频工程师 结构工程师 研发经理 产品经理 耀登电通科技（昆山）有限公司 电气工程师 结构工程师 研发经理 项目经理 陈金马 张海洋 钱磊 王显文 总部 Head Quarter 耀登電通科技(昆山)有限公司 江苏省昆山市周市镇迎宾路15号 TEL: 0512‐57646998 FAX: 0512‐57646168 分公司： Auden Techno(KUNSHAN)CO.LTD NO.15 YING‐BIN ROAD, LUYANGTOWN，KUNSHAN ，JIANGSU CHINA Branch 耀登電通科技(昆山)有限公司西安分公司 西安市 高新区 唐延南路10号 中兴产业园 E1‐04 TEL: 13382157879 Auden Techno(KUNSHAN)CO.LTD. Xi 'an branch E1‐04, zhongxing industrial park, no.10 tangyan south road, high‐tech zone, xi 'an 耀登電通科技(昆山)有限公司深圳分公司 地址：深圳市南山区桃源街道红花岭工业区第五区A栋二楼 201‐202（南区） TEL: 185 8845 5257 Auden Techno(KUNSHAN)CO.LTD. Shenzhen branch Address: 201‐202, 2nd floor, building A, zone 5, honghualing industrial zone, taoyuan street, nanshan district, shenzhen (southern district) Auden Techno(KUNSHAN)CO.LTD ANTENNA SPECIFICATION No perfect status,Always seek for better！ CONFIDENTIAL This message contains information that may be confidential and privileged. Unless you are the addressee (or authorized to receive messages for the addressee), you can not use, copy or disclose to any third party or any information contained in the message. If you have received the message in error, please advise the sender by reply e-mail and delete the message. Nothing in this message should be interpreted as a digital or electronic signature that can be used to authenticate a contract or other legal document. Thank you very much. INDEX 一、规格书封面（Cover） 二、规格书目录（Index） 三、天线基本参数（The Basic Parameters） 四、电气测试报告（RF Performance Test Report） 五、工程图纸（Product Drawing） 六、尺寸报告 (Dimensional check reports) 七、可靠性测试报告(Reliability test report) Auden Techno(KUNSHAN)CO.LTD ANTENNA SPECIFICATION No perfect status,Always seek for better！ CONFIDENTIAL This message contains information that may be confidential and privileged. Unless you are the addressee (or authorized to receive messages for the addressee), you can not use, copy or disclose to any third party or any information contained in the message. If you have received the message in error, please advise the sender by reply e-mail and delete the message. Nothing in this message should be interpreted as a digital or electronic signature that can be used to authenticate a contract or other legal document. Thank you very much. 天线基本参数（The Basic Parameters） 项目（Item） 特性（Specifications） 天线结构组成 FPC+CABLE 频率（ Frequency） 2.4g~5.8g 驻波比（V.S.W.R） ≤3 增益（Gain） ≤7 极化方式（Polarization） 线极化 特性阻抗（Impedance） 50Ω 塑胶材质（Plastic material） 无 接头形式（joint type） 4代端子+Cable 工作温度（Operation temperature） ‐40°C to 85°C 储存温度（Storage temperature） ‐40°C to 85°C 湿度（humidity） Non‐condensing 65°C 95% RH 天线图片 Auden Techno(KUNSHAN)CO.LTD ANTENNA SPECIFICATION No perfect status,Always seek for better！ CONFIDENTIAL This message contains information that may be confidential and privileged. Unless you are the addressee (or authorized to receive messages for the addressee), you can not use, copy or disclose to any third party or any information contained in the message. If you have received the message in error, please advise the sender by reply e-mail and delete the message. Nothing in this message should be interpreted as a digital or electronic signature that can be used to authenticate a contract or other legal document. Thank you very much. 电气测试报告（RF Performance Test Report） 组装位置 V.S.W.R Auden Techno(KUNSHAN)CO.LTD ANTENNA SPECIFICATION No perfect status,Always seek for better！ CONFIDENTIAL This message contains information that may be confidential and privileged. Unless you are the addressee (or authorized to receive messages for the addressee), you can not use, copy or disclose to any third party or any information contained in the message. If you have received the message in error, please advise the sender by reply e-mail and delete the message. Nothing in this message should be interpreted as a digital or electronic signature that can be used to authenticate a contract or other legal document. Thank you very much. Aux‐无源测试数据 Auden Techno(KUNSHAN)CO.LTD ANTENNA SPECIFICATION No perfect status,Always seek for better！ CONFIDENTIAL This message contains information that may be confidential and privileged. Unless you are the addressee (or authorized to receive messages for the addressee), you can not use, copy or disclose to any third party or any information contained in the message. If you have received the message in error, please advise the sender by reply e-mail and delete the message. Nothing in this message should be interpreted as a digital or electronic signature that can be used to authenticate a contract or other legal document. Thank you very much. 工程图纸（Product Drawing） 尺寸报告 (Dimensional check reports) Auden Techno(KUNSHAN)CO.LTD ANTENNA SPECIFICATION No perfect status,Always seek for better！ CONFIDENTIAL This message contains information that may be confidential and privileged. Unless you are the addressee (or authorized to receive messages for the addressee), you can not use, copy or disclose to any third party or any information contained in the message. If you have received the message in error, please advise the sender by reply e-mail and delete the message. Nothing in this message should be interpreted as a digital or electronic signature that can be used to authenticate a cont…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15 SUBPART E 15.407 Report Reference No. ..................... : FCC ID. ............................................ : HTT202406543F02 2BACG-MPC-3000 Compiled by ( position+printed name+signature) .. : File administrators Supervised by ( position+printed name+signature) .. : Project Engineer Approved by ( position+printed name+signature) .. : RF Manager Date of issue ..................................... : Jul. 04, 2024 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Siragon Corporate Address ............................................ : CR MANZANA A LOCAL SHED NRO 1-4 VALLE ALTO GUAYABAL. NAGUANAGUA CARABOBO ZIP 2005 TIENDA IVOO Test specification ...........................: Standard ........................................... : FCC Part 15 Subpart E 15.407 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Mini PC Trade Mark ....................................... : N/A Manufacturer .................................... : Siragon Corporate Model/Type reference....................... : MPC - 3000 Listed Models .................................. : N/A Modulation ....................................... : OFDM Frequency .......................................... From 5180MHz-5240MHz, 5745MHz-5825MHz Ratings ............................................. : DC 12.0V From External Circuit Result................................................ : PASS Report No.: HTT202406543F02 Page 2 of 65 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China T E S T R E P O R T Equipment under Test : Mini PC Model /Type : MPC - 3000 Serial Models : N/A Applicant : Siragon Corporate Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Address : CR MANZANA A LOCAL SHED NRO 1-4 VALLE ALTO GUAYABAL. NAGUANAGUA CARABOBO ZIP 2005 TIENDA IVOO Manufacturer : Siragon Corporate Address : C…

Text truncated - open the document above for the full version.
