2BACP-TD25G58 roller shutter system

Applicable length：60-180mm 2.Product button function Up button 1. Up button: ①. Infinite position state: press the motor without action; Long press the motor continuously up, let go and stop. ②. Finite position state: press the motor [button up] to open the curtain, then press the motor [Up button] to stop the curtain, and press the button to move and stop in turn until the limit. 2. Press the button: ①. Infinite position state: press the motor without action; Long press the motor continuously downward, release the stop. ②. Finite position state: press the motor [down button] to close the curtain, and then press the motor [Down button] to stop the curtain, and press the button to move and stop in turn until the limit. 3. Battery strip: 7.4V/2200mAh, to power the motor. 4. Type-c charging port: 5V/1A battery charging port; The blue light is on when the motor is charging. Power display lamp Down button TYPE-C battery Setting remote Control Channel Remove remote control channel Long press the motor [Up button] or [Down button] for more than 3 seconds until the LED indicator lights up and enters the code learning state. Press the motor [] or [] for 7 seconds, the motor shakes back and forth, the motor LED indicator lights go out, clear all learned remote control channels. Up buttonDown button ① ② ① ② ③ At the same time, long press the motor [Up button] or [Down button] for 3 seconds to enter the code learning state. The motor shakes back and forth, and the motor LED indicator lights up. Press the [Channel settings] button on the back of the remote control. The motor vibrates back and forth, and the LED light flashes 4 times. 3V CR2032 Non-contact learning code ① ② ③ On the remote control that has learned the code successfully, long press the [Channel setting] key for 4 seconds. The motor shakes back and forth, the motor LED indicator keeps flashing, and enters the state of non-contact remote control learning code. Select the remote control channel, press the [Channel setting] key of the remote control, and the motor shakes back and forth. 3V CR20323V CR2032 ④ ⑤ ⑥ Press the remote control [Up] button within 4 seconds, and the motor shakes back and forth. Press the remote control [Stop] button within 4 seconds, and the motor shakes back and forth. Press the remote control [Down] button within 4 seconds, and the motor shakes back and forth. ⑦ ⑧ Press the remote control [Channel Settings] button within 4 seconds, and the motor shakes back and forth. Motor LED off, on behalf of remote learning code success. 3V CR2032 Note: after entering the remote control code state, other remote controls cannot interfere with the remote control code. If no corresponding operation is performed within the specified time, the switch jitter once to exit the remote control learning code state. The motor shakes back and forth, and the motor LED indicator lights up. At the same time, press the [channel left selection] +[Stop] key of the remote control, and the reversing is finished. ③ ① ② Set upper limit At the same time, long press the [Up]+[Channel setting] key of the remote control for 4 seconds to enter the state of setting the upper limit bit stroke. ① ② The motor shakes back and forth once. Complete the following operations within three minutes. 3V CR2032 3min ③ Press the [Channel setting] key of the remote control, the motor shakes back and forth, and the limit point is set. The motor runs to the required upper limit. ④ 3V CR2032 ★Note: 1. Stroke setting must be carried out after the complete curtain system (including traction objects, blades, drapes, etc.) is installed. 2. Remote control is used for travel setting. Due to the inherent characteristics of radio remote control, all motors that can receive the remote control signal may receive the setting instruction during the setting process. Therefore, in order to avoid the misoperation of other curtains, please ensure that irrelevant curtains remain in the power off or invalid state. Adjust close limit position At the same time, long press the remote control [Down]+[Channel Setting] key for 4 seconds to enter the state of setting lower limit bit stroke. ① ② 3min ③ Press the [Channel setting] key of the remote control, the motor shakes back and forth, and the limit point is set. The motor runs to the required lower limit. ④ 3V CR2032 When the motor runs for the first time, it needs to carry out blocking. After blocking, the motor will swing once. At this time, the number of turns will be set as the maximum number of turns. After pressing the [Up button] of the motor,the curtain is completely opened and the blocking is completed. Motor stroke initialization is complete. ① ② Blocked rotation (motor stroke initialization) Note: all remote controls cannot control the motor at this time. 4S Motor shake, motor LED indicator light off. ④ 2.[Tuya APP] 开启停止关闭 Tuya App 涂鸦智能 3V CR2032 ① ③ ④ ⑤ ⑦ ⑧ ⑨ ②⑥ ⑩ Change direction Limits setting 4S 3V CR2032 4S Product information 1.Product Size Note: Motor length L subject to product specifications (unit: mm) 3.Recommended control device ①.Led Light ②.Right Channel Select ③.Up/Open ④.Stop ⑤.Down/Close 1.[YR2118B Remote] ⑥.Left Channel Selec ⑦.Up tilt/75% position ⑧.Horizontal 50% position ⑨.Down tilt/25% position ⑩.Channel setting Basic remote setting Long press the motor [up button] or [down button] for more than 3 seconds until the LED indicator lights up and enters the code learning state. The motor shakes back and forth once. Complete the following operations within three minutes. Motor fine stepping Press the remote control [75%] button, and the motor will run in the open direction. ① ② Short press the remote control [25%] key, the motor to close the direction of operation. Press the remote control [50%] button to move the motor to the horizontal position. ③ Delete limit 3V CR2032 ① ② The motor shakes back and forth once. At the same time, long press the [Channel Setting]+[Stop] key of the remote control for 4 seconds to clear…

Text truncated - open the document above for the full version.

Guangdong RAEX Intelligent Technology Co., Ltd 2023.05.23 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BACP-TD25 Guangdong RAEX Intelligent Technology Co., Ltd certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Applicant signature: Applicant printed name: Shun Wen Feng / Manager Guangdong RAEX Intelligent Technology Co., Ltd 2023.05.23 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BACP-TD25 Guangdong RAEX Intelligent Technology Co., Ltd certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Applicant signature: Applicant printed name: Shun Wen Feng / Manager

Guangdong RAEX Intelligent Technology Co., Ltd U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions FRN: 0033401605 Contact Name: Kenneth Young Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 Telephone No: 313-395-3113 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: Signed by (Printed Name/Title): The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Guangdong RAEX Intelligent Technology Co., Ltd Grantee Code: 2BACP FCC ID: 2BACP-TD25 Contact Name: Shun Wen Feng Street Address: No.6 Xili Industrial Avenue 1, Nansha, Guangzhou, Guangdong, China Telephone No: +86 13435614382 Email: [email protected] Applicant Signature: Date: 2023.05.23 Signed by (Printed Name/Title): Shun Wen Feng / Manager

Guangdong RAEX Intelligent Technology Co., Ltd 2023.05.23 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: G58 roller shutter system MODEL : TD25 FCC ID: 2BACP-TD25 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Shun Wen Feng / Manager Contact information / address: No.6 Xili Industrial Avenue 1, Nansha, Guangzhou, Guangdong, China

Guangdong RAEX Intelligent Technology Co., Ltd 2023.05.23 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Shun Wen Feng / Manager Contact information / address: No.6 Xili Industrial Avenue 1, Nansha, Guangzhou, Guangdong, China

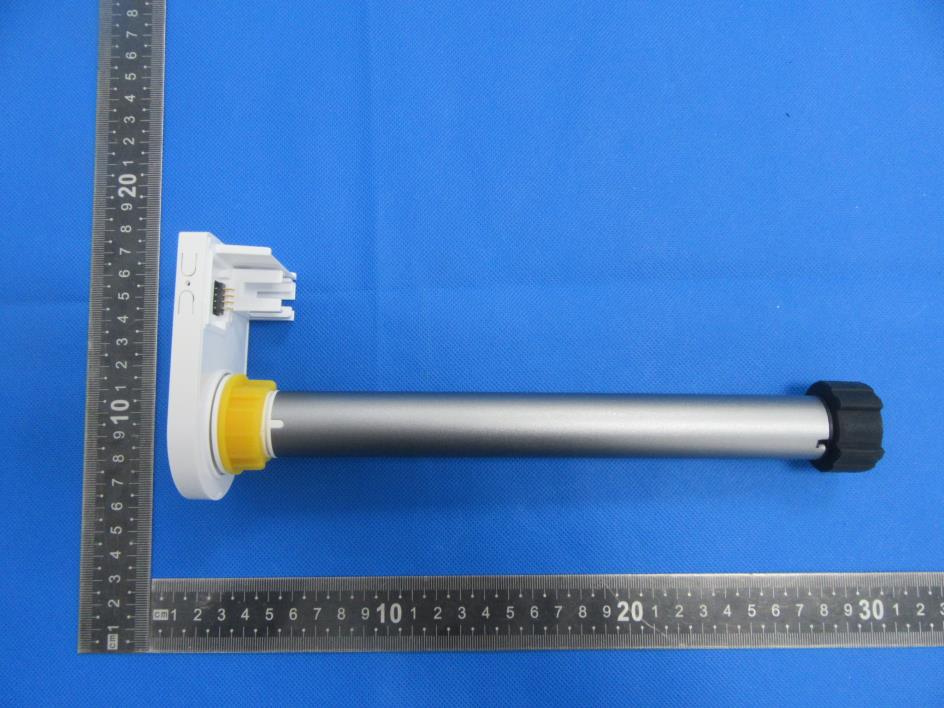

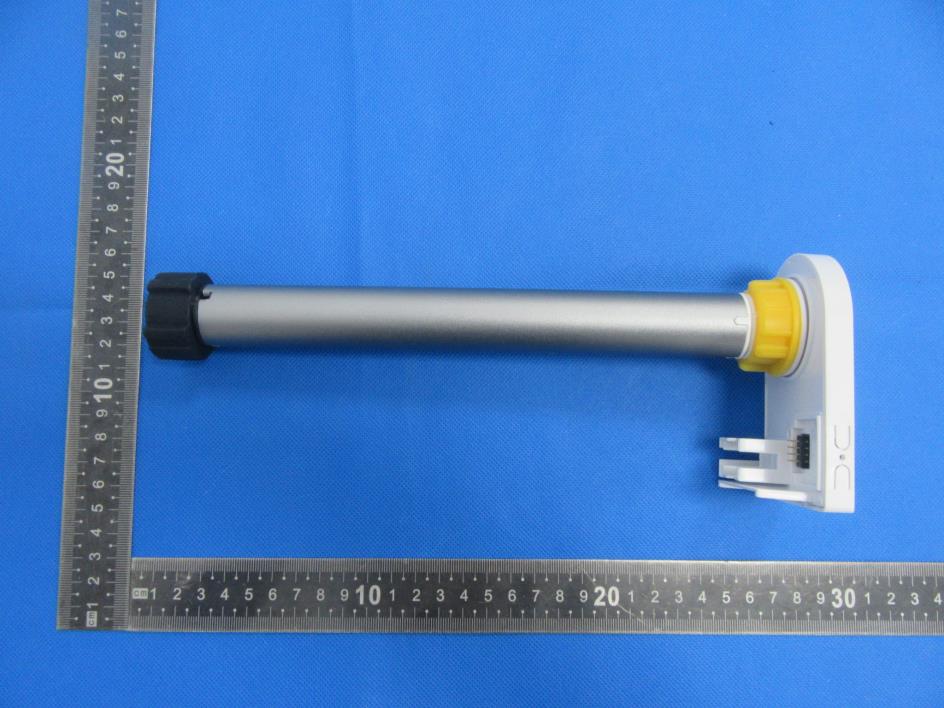

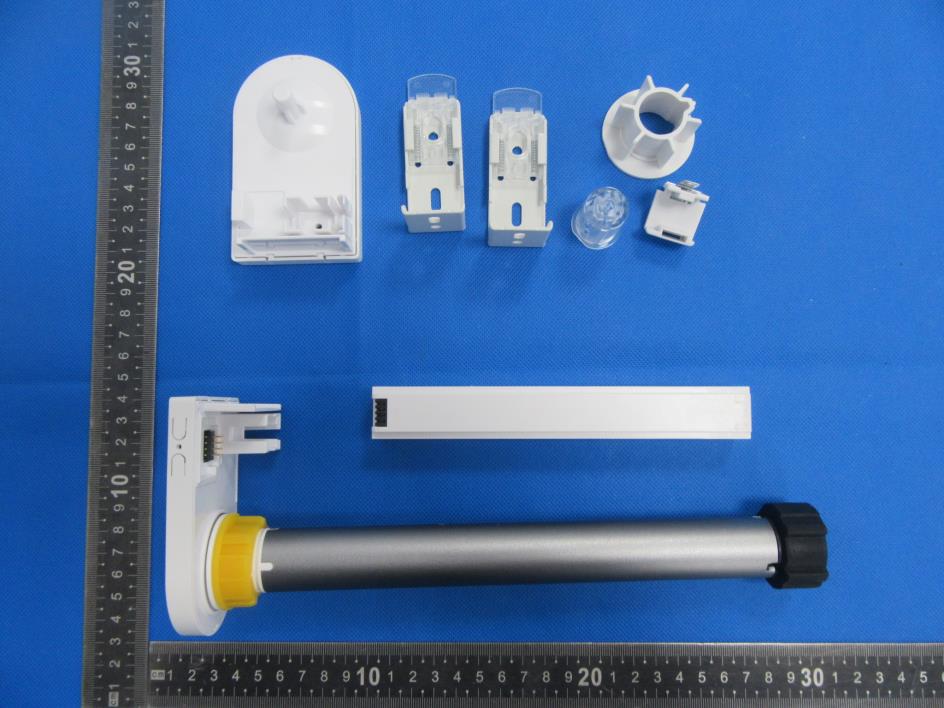

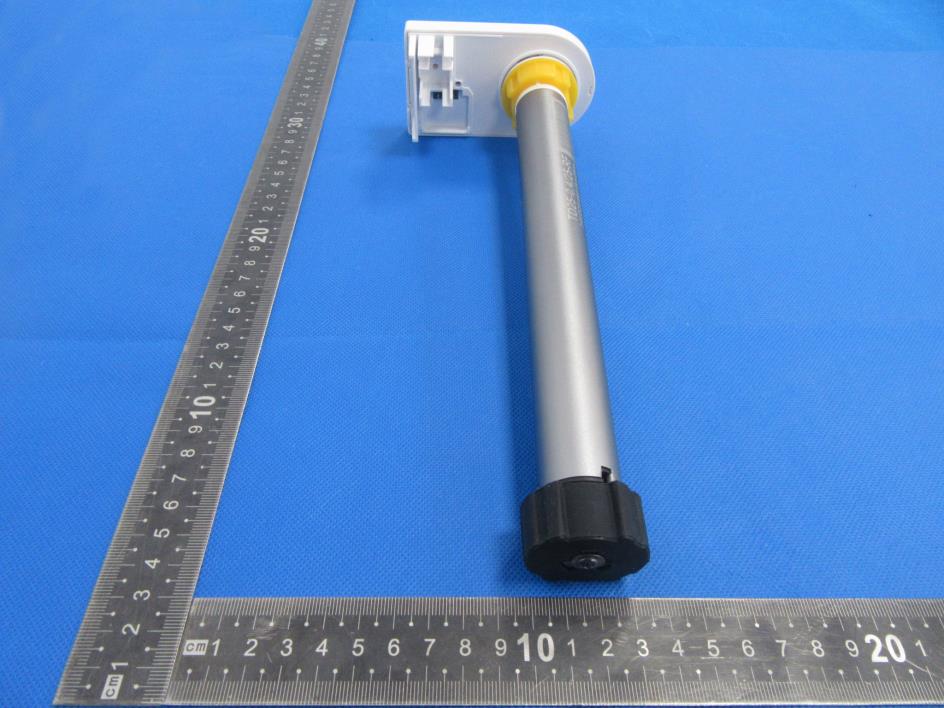

External Photos

40*20mm Label Location FCC ID: 2BACP-TD25 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesire d operation.

Internal Photos BT / Zigbee Antenna

FCC ID: 2BACP-TD25 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion GFSK(1M bps) 2.480 1.14 1.30 1±1 2.00 1.58 <5 0.49918 3.00 YES GFSK(2M bps) 2.480 1.17 1.31 1±1 2.00 1.58 <5 0.49918 3.00 YES Zigbee Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion O-QPSK 2.480 1.17 1.31 1±1 2.00 1.58 <5 0.49918 3.00 YES Conclusion: For the max result : 0.0.49918＜3, the SAR testing is not required.

BT3L Antenna test report Product Name: BT3L Antenna Type: PCB antenna Writer: Yinhua Zhang Maximum Gain：2.5dBi Efficiency:62.86% BT3L Antenna test report Version 1.0.0 Date：2020-05-12 NO：0000000001 Antenna Test Report Global Intelligent Platform BT3L Antenna test report Content 1. General Description.......................................................................................................................3 2. Technical Information ...................................................................................................................3 3. Test Standards ................................................................................................................................3 4. Test Item ........................................................................................................................................4 5. Test Photo ......................................................................................................................................4 Appendix A Antenna Dimension .......................................................................................................5 Appendix B S11/VSWR ....................................................................................................................5 Appendix C Gain and Efficiency ......................................................................................................6 Appendix D Radiation Pattern(1D and 3D) ......................................................................................7 Appendix E Test Setup Photo ............................................................................................................9 BT3L Antenna test report 1.General Description EUT Name BT3L Antenna Wireless type Bluetooth Antenna Type PCB antenna Dimensions Appendix A Manufacturer: Hangzhou Tuya Information Technology Co.,Ltd Address: Room701, Building3, More Center, No.87 GuDun Road, Hangzhou, Zhejiang, China 2.Technical Information Frequency Range 2402MHz~2480MHz Test Frequency 2400,2410......2500MHz 3.Test Standards Identity Document Title IEEE 149-1979 IEEE Standard Test Procedures for Antennas BT3L Antenna test report 4. Test Item Report Section Description Appendix B S11/VSWR Appendix C Gain and Efficiency Appendix D Radiation Pattern（1D and 3D） 5. Test Photo Report Section Description Appendix E Test Setup Photo BT3L Antenna test report Appendix A Antenna Dimension Appendix B S11/VSWR BT3L Antenna test report Frequency (MHz) 2400 2450 2500 Return Loss -8.73 -11.76 -11.21 VSWR 2.16 1.71 1.77 Appendix C Gain and Efficiency Frequency (MHz) Efficiency(%) Gain（dBi） 2400 52.29% 1.62 2410 52.17% 1.71 2420 53.14% 1.93 2430 54.16% 1.98 2440 57.62% 2.00 2450 59.64% 2.17 2460 61.55% 2.45 2470 60.64% 2.38 BT3L Antenna test report 2480 62.86% 2.50 2490 59.85% 2.30 2500 60.41% 2.49 Appendix D Radiation Pattern(1D and 3D) BT3L Antenna test report BT3L Antenna test report Appendix E Test Setup Photo

No.：BCTC/RF-EMC-007 Page: 1 of 46 Edition：B.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2212875207-1E Applicant: Guangdong RAEX Intelligent Technology Co., Ltd Product Name: G58 roller shutter system Model/Type reference: TD25 Tested Date: 2023-05-12 to 2023-05-19 Issued Date: 2023-05-22 Report No.: BCTC2212875207-1E No.：BCTC/RF-EMC-007 Page: 2 of 46 Edition：B.0 FCC ID: 2BACP-TD25 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: G58 roller shutter system Trademark: N/A Model/Type reference: TD25 Prepared For: Guangdong RAEX Intelligent Technology Co., Ltd Address: No.6 Xili Industrial Avenue 1, Nansha, Guangzhou, Guangdong, China Manufacturer: Guangdong RAEX Intelligent Technology Co., Ltd Address: No.6 Xili Industrial Avenue 1, Nansha, Guangzhou, Guangdong, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-05-11 Sample tested Date: 2023-05-12 to 2023-05-19 Issue Date: 2023-05-22 Report No.: BCTC2212875207-1E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is ZigBee radio test report. Tested by: Approved by: Eric Yang/Project Handler Zero Zhou/Reviewer Report No.: BCTC2212875207-1E No.：BCTC/RF-EMC-007 Page: 3 of 46 Edition：B.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table of parameters of text software setting ....................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 24 8.1 Block Diagram Of Test Setup .............................................................................. 24 8.2 Limit .................................................................................................................... 24 8.3 Test Procedure ................................................................................................... 25 8.4 EUT Operating Conditions .................................................................................. 26 8.5 Test Result .......................................................................................................... 26 9. Power Spectral Density Test ............................................................................... 27 9.1 Block Diagram Of Test Setup .............................................................................. 27 9.2 Limit .................................................................................................................... 27 9.3 Test procedure .................................................................................................... 27 9.4 EUT Operating Conditions ..................................................................................…

Text truncated - open the document above for the full version.

No.：BCTC/RF-EMC-007 Page: 1 of 54 Edition：B.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2212875207-2E Applicant: Guangdong RAEX Intelligent Technology Co., Ltd Product Name: G58 roller shutter system Model/Type reference: TD25 Tested Date: 2023-05-12 to 2023-05-19 Issued Date: 2023-05-22 Report No.: BCTC2212875207-2E No.：BCTC/RF-EMC-007 Page: 2 of 54 Edition：B.0 FCC ID: 2BACP-TD25 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: G58 roller shutter system Trademark: N/A Model/Type reference: TD25 Prepared For: Guangdong RAEX Intelligent Technology Co., Ltd Address: No.6 Xili Industrial Avenue 1, Nansha, Guangzhou, Guangdong, China Manufacturer: Guangdong RAEX Intelligent Technology Co., Ltd Address: No.6 Xili Industrial Avenue 1, Nansha, Guangzhou, Guangdong, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-05-11 Sample tested Date: 2023-05-12 to 2023-05-19 Issue Date: 2023-05-22 Report No.: BCTC2212875207-2E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Eric Yang/Project Handler Zero Zhou/Reviewer Report No.: BCTC2212875207-2E No.：BCTC/RF-EMC-007 Page: 3 of 54 Edition：B.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table of parameters of text software setting ....................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 25 8.1 Block Diagram Of Test Setup .............................................................................. 25 8.2 Limit .................................................................................................................... 25 8.3 Test Procedure ................................................................................................... 26 8.4 EUT Operating Conditions .................................................................................. 27 8.5 Test Result .......................................................................................................... 27 9. Power Spectral Density Test ............................................................................... 28 9.1 Block Diagram Of Test Setup .............................................................................. 28 9.2 Limit .................................................................................................................... 28 9.3 Test procedure .................................................................................................... 28 9.4 EUT Operating Conditions ...........................................................................…

Text truncated - open the document above for the full version.

Conducted emissions Radiated Measurement Photos
