2BAD6-PTB1304BType C Transmitter

Operation Manual Step 2: Insert the simultaneous screen successfully paired into PC computer. If the computer is connected with the simultaneous screen for the first time, it is required to double-click the "Client.exe or Client.app" application in the USB flash drive, the system will pop up the following interface automatically (if the simultaneous screen is not used for the first time, after waiting for 15 seconds, the system will automatically pop up the following interface): Step 3: after the simultaneous screen is paired with PC, the following interface shall appear. Please click the middle button in the simultaneous screen to achieve display on the same screen. Note: While the simultaneous screen is used for display on the same screen, it is required to guarantee that the hot spot of the conference tablet PC is on. Method 1: Use the Type-c interface for screen casting Step 1: Insert the peer into the Type-C interface of the meeting tablet and wait until the pairing succeeds. Step 2: Insert the matching device into the type-C interface of the computer. After the indicator light is steady on, it indicates that the connection is successful. Then press the button to start screen casting. Method 2: Use the USB interface for screen casting Step 1: Insert the simultaneous screen into USB interface of tablet PC for conference and wait for successful pairing. This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interf erence. FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum 20cm distance between the radiator and your body: Use only the supplied antenna.

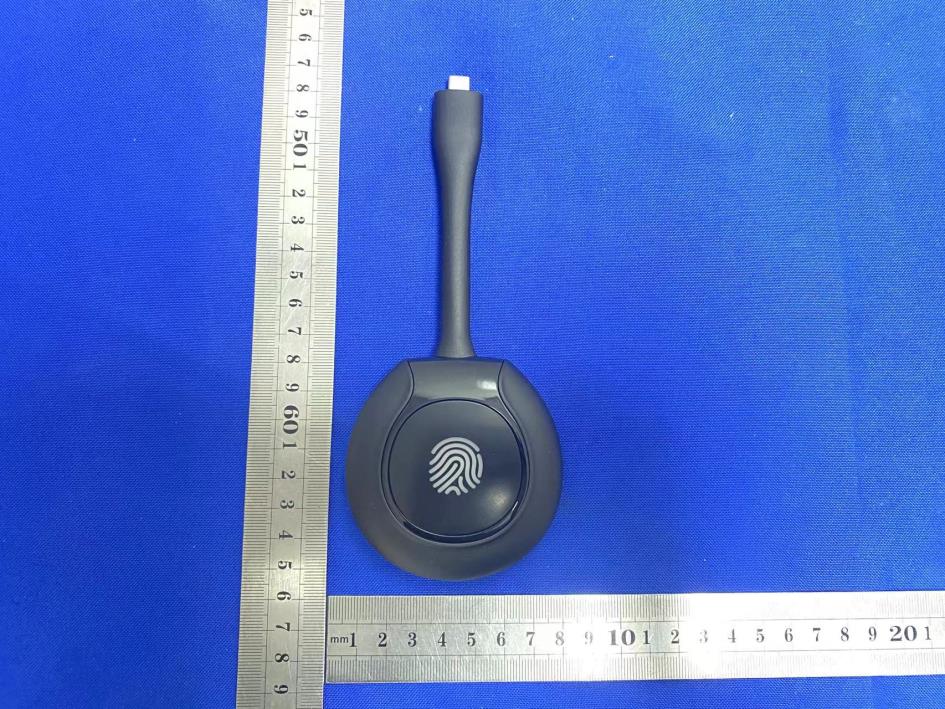

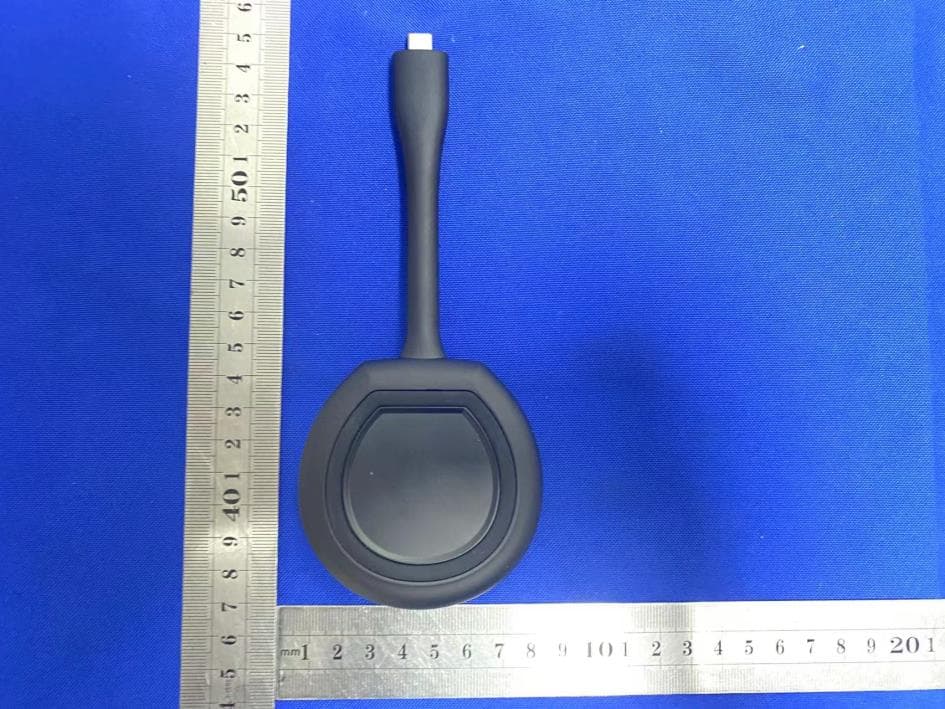

External Photos

FCC ID LABEL: Label Location:

Internal Photos 2.4GWIFI +5GWIFI 2.4GWIFI +5GWIFI

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2BAD6-PTB1304B Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna,R=20cm Test Result of RF Exposure Evaluation Modes& Channel Freq. (MHz) Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result 2.4GWIFI ANT1 802.11g & 2437 14±1 15 31.6228 1.9634 (2.93dBi) 0.01236 1 Pass 2.4GWIFI ANT2 802.11g & 2437 14±1 15 31.6228 1.9634 (2.93dBi) 0.01236 1 Pass 5.2GWIFI ANT1 802.11a c20&520 0 11±1 12 15.8489 2.4946 (3.97dBi) 0.0079 1 Pass 5.2GWIFI ANT2 802.11a c20&520 0 11±1 12 15.8489 2.4946 (3.97dBi) 0.0079 1 Pass 5.8GWIFI ANT1 802.11a c20& 5745 11±1 12 15.8489 2.7479 (4.39dBi) 0.0087 1 Pass 5.8GWIFI ANT2 802.11a &5825 11±1 12 15.8489 2.7479 (4.39dBi) 0.0087 1 Pass Tech nolo gy Tune up Produce power(dBm) Maximum Tune-up (dBm) Antenna Gain(ANT 1/ANT 2) (numeric) Power Density (S) (mW/ cm2) MPE Limit (mW/ cm2) ∑ MPE Ratio ∑ MPE Ratio Limit Result ANT 1 ANT 2 ANT 1 ANT 2 ANT 1 ANT 2 2.4G WIFI MIM O 15 ±1 15 ±1 16 16 1.9634 (2.93dBi) 0.0123 6 0.0123 6 1 0.0247 1 Pass Tech nolo gy Tune up Produce power(dBm) Maximum Tune-up (dBm) Antenna Gain(ANT 1/ANT 2) (numeric) Power Density (S) (mW/ cm2) MPE Limit (mW/ cm2) ∑ MPE Ratio ∑ MPE Ratio Limit Result ANT 1 ANT 2 ANT 1 ANT 2 ANT 1 ANT 2 5G WIFI MIM O 11± 1 11± 1 12 12 2.7479 (4.39dBi) 0.0087 0.0087 1 0.0174 1 Pass

东莞市森岭智能科技有限公司 东莞市松山湖工业东路现代企业加速器6栋402 TEL：86-0769-89208968 FAX：86-0769-89208969 www.sleing.com 承 认 书 项 目 表 序号项目 附件资料 备注 有无 1承认书封面（Spec Cover）□ □ 1.封面需注明产品料号、品名规格 2.经主管核准后加盖公司印章 客户满意度（Customer satisfaction） □ □ 请客户对我司给予真诚的评价 2承认书项目表（Spec Item ）□ □ 3工程成品图（Drawing）□ □ 4电性测试报告（Test Reports ）□ □ 5S参数测试（S Parameter）□ □ 与产品一致 6 方向图(Patten)/测试效率（Test Efficiency） □□ 与产品一致 7 样品检验记录 （Sample inspection） □□ 8SGS报告(SGS Report)□ □ 1.需依产品材质类别及颜色分别提供 2.报告有效期为一年 9其它□□ 依贵司具体要求另行说明 10□ □ 11□ □ 说明： 1.承认书内容需依查核表项目依顺序排列。 2.承认书依客户要求打印份数，SGS报告需加盖工程章. 3.所有材料一律经过客户确认后，任何材料/制程/可能影响产品品质及环境品质 的变更，都必需重新送样给客户确认后方可导入。 4.SGS报告有效期为一年。 5.依实际承认书所附件内容在查核表中勾选：“有”为已提供， “无”根据客户要求提供。 DONGGUAN CITY SLEing INTEL-TECH CO.,LTD ⭥ᙗ⍻䈅ᣕ੺ Test Reports Electrical Properties Frequency 2.4~2.55.15~5.85GHz() Impedance50 0hm Nominal V.S.W.Rİ 1.92 Return Loss-10 dB Max RadiationOmni-directional Gain (Peak) 2±0.5 dBi PolarizationLinear, Vertical Admitted Power2 W Connector MHF Physical Properties Antenna Material PCB Cable Type Ï1.13mm Dark Grey Operating Temp. aƒ& Storage Temp. aƒ& T ⍪㔘㳳孽 6 3DUDPHWHU7HVW $JLOHQW (& 1HWZRUN $QDO\]HU :L)L $QWHQQD 12 ⍻䈅䇮༷ Test Setup NFC-500S 3D Chamber Coordinate System Definition Configuration of 3D Chamber ᯩੁമ˄ 2.4G ˅ Patten 1.3 2D Radiation patterns test results(Passive Antenna) XZ PlaneYZ Plane 1.5 3D Radiation patterns test results(Passive Antenna) 3D ᯩੁമ˄ 5.8G ˅ Patten 1.3 2D Radiation patterns test results(Passive Antenna) XZ PlaneYZ Plane 1.5 3D Radiation patterns test results(Passive Antenna) 3D ⍻䈅᭸⦷ 7HVW (IILFHQF\

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230320018RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 93 TEST REPORT Compiled by: Reviewed by: Approved by: Zhou Kui Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Type C Transmitter FCC ID: 2BAD6-PTB1304B Trademark: N/A Model Number: PTB1304B Prepared For: SKYWORTH OPTICAL-ELECTRONIC CO., LTD. Address: F3-4,Mould Factory Skyworth Tech. Park Tangtou Community, Shiyan Str.Baoan Dist. shenzhen, China Manufacturer: SKYWORTH OPTICAL-ELECTRONIC CO., LTD. Address: F3-4,Mould Factory Skyworth Tech. Park Tangtou Community, Shiyan Str.Baoan Dist. shenzhen, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Feb. 28, 2023 Sample tested Date: Feb. 28, 2023 to Mar. 20, 2023 Issue Date: Mar. 20, 2023 Report No.: CTB230320018RF Test Standards 47 CFR Part 15 Subpart E Test Results PASS Remark: This is WIFI-5GHz band radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230320018RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 93 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ........................................................................................................................................ 4 2. TEST SUMMARY ........................................................................................................................... 5 3. MEASUREMENT UNCERTAINTY ................................................................................................. 6 4. PRODUCT INFORMATION AND TEST SETUP ............................................................................ 7 4.1 Product Information .......................................................................................................................... 7 4.2 Test Setup Configuration .................................................................................................................. 8 4.3 Support Equipment........................................................................................................................... 8 4.5 Test Mode ........................................................................................................................................ 9 4.6 Test Environment ........................................................................................................................... 10 5. TEST FACILITY AND TEST INSTRUMENT USED ..................................................................... 11 5.1 Test Facility .................................................................................................................................... 11 5.2 Test Instrument Used ..................................................................................................................... 11 6. AC POWER LINE CONDUCTED EMISSION ............................................................................... 13 6.1 Block Diagram Of Test Setup ......................................................................................................... 13 6.2 Limit ................................................................................................................................................ 13 6.3 Test procedure ............................................................................................................................... 13 6.4 Test Result ..................................................................................................................................... 15 7. RADIATED SPURIOUS EMISSIONS ........................................................................................... 16 7.1 Block Diagram Of Test Setup ......................................................................................................... 16 7.2 Limit ................................................................................................................................................ 16 7.3 Test procedure ............................................................................................................................... 17 7.4 Test Result ..................................................................................................................................... 18 8. BAND EDGE ................................................................................................................................ 23 8.1 Block Diagram Of Test Setup ......................................................................................................... 23 8.2 Limit ................................................................................................................................................ 23 8.3 Test procedure ............................................................................................................................... 23 8.4 Test Result ..................................................................................................................................... 24 9. CONDUCTED PEAK OUTPUT POWER ...................................................................................... 32 9.1 Block Diagram Of Test Setup ...........................................................................…

Text truncated - open the document above for the full version.

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230320018RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 48 of 93 e) Sweep = auto couple. f) Allow the trace to stabilize. g) Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. Note: The automatic bandwidth measurement capability of a spectrum analyzer or EMI receiver may be employed if it implements the functionality described in this section. For devices that use channel aggregation refer to III.A and III.C for determining emission bandwidth. D. 99% Occupied Bandwidth The 99% occupied bandwidth is the frequency bandwidth such that, below its lower and above its upper frequency limits, the mean powers are each equal to 0.5% of the total mean power of the given emission. Measurement of the 99% occupied bandwidth is required only as a condition for using the optional band-edge measurement techniques described in II.G.3.d). Measurements of 99% occupied bandwidth may also optionally be used in lieu of the EBW to define the minimum frequency range over which the 789033 D02 General UNII Test Procedures New Rules v02r01 Page 4 spectrum is integrated when measuring maximum conducted output power as described in II.E. However, the EBW must be measured to determine bandwidth dependent limits on maximum conducted output power in accordance with Section 15.407(a). The following procedure shall be used for measuring (99%) power bandwidth: 1. Set center frequency to the nominal EUT channel center frequency. 2. Set span = 1.5 times to 5.0 times the OBW. 3. Set RBW = 1% to 5% of the OBW 4. Set VBW ≥ 3 * RBW 5. Video averaging is not permitted. Where practical, a sample detection and single sweep mode shall be used. Otherwise, peak detection and max hold mode (until the trace stabilizes) shall be used. 6. Use the 99% power bandwidth function of the instrument (if available). 7. If the instrument does not have a 99% power bandwidth function, the trace data points are recovered and directly summed in power units. The recovered amplitude data points, beginning at the lowest frequency, are placed in a running sum until 0.5% of the total is reached; that frequency is recorded as the lower frequency. The process is repeated until 99.5% of the total is reached; that frequency is recorded as the upper frequency. The 99% occupied bandwidth is the difference between these two frequencies. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230320018RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 49 of 93 10.4 Test Results 5150-5250MHz Test mode Test Channel (MHz) 26dB Bandwidth (MHz)&ANT1 26dB Bandwidth (MHz)&ANT2 802.11a 5180 18.425 18.364 5200 18.229 18.595 5240 18.534 18.369 802.11ac20 5180 19.505 19.701 5200 19.54 19.386 5240 19.546 19.497 802.11ac40 5190 39.995 40.82 5230 40.642 40.113 802.11ac80 5210 79.076 79.47 802.11n(HT20) 5180 19.654 19.574 5200 19.407 19.284 5240 19.464 19.43 802.11n(HT40) 5190 39.157 39.482 5230 39.479 39.197 5725-5850MHz Test mode Test Channel (MHz) 6dB Bandwidth (MHz)&ANT1 6dB Bandwidth (MHz)&ANT2 802.11a 5745 16.419 16.381 5785 16.414 16.435 5825 16.164 16.359 802.11ac20 5745 17.048 17.59 5785 17.594 17.559 5825 17.586 17.543 802.11ac40 5755 35.084 35.105 5795 35.16 35.14 802.11ac80 5775 68.964 73.882 802.11n(HT20) 5745 17.612 17.623 5785 17.687 17.65 5825 17.61 17.624 802.11n(HT40) 5755 35.171 35.159 5795 35.778 35.746 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230320018RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 50 of 93 Test Graph 5150-5250MHz ANT1 802.11a-5180 802.11a-5200 802.11a-5240 802.11n(HT20)-5180 802.11n(HT20)-5200 802.11n(HT20)-5240 802.11n(HT40)-5190 802.11n(HT40)-5230 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230320018RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 51 of 93 802.11ac(VH20)-5180 802.11ac(VH20)-5200 802.11ac(VH20)-5240 802.11ac(VH40)-5190 802.11ac(VH40)-5230 802.11ac(VH80)-5210 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230320018RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 52 of 93 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230320018RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 53 of 93 ANT2 802.11a-5180 802.11a-5200 802.11a-5240 802.11n(HT20)-5180 802.11n(HT20)-5200 802.11n(HT20)-5240 802.11n(HT40)-5190 802.11n(HT40)-5230 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230320018RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 54 of 93 802.11ac(VH20)-5180 802.11ac(VH20)-5200 802.11ac(VH20)-5240 802.11ac(VH40)-5190 802.11ac(VH40)-5230 802.11ac(VH80)-5210 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230320018RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 55 of 93 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230320018RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 56 of 93 5725-5850MHz ANT1 802.11a-5745 802.11a-5785 802.11a-5825 802.11n(HT20)-5745 802.11n(HT20)-5785 802.11n(HT20)-5825 802.11n(HT40)-5755 802.11n(HT40)-5795 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230320018RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 57 of 93 802.11ac(VH20)-5745 802.11ac(VH20)-5785 802.11ac(VH20)-5825 802.11ac(VH40)-5755 802.11ac(VH40)-5795 802.11ac(VH80)-5775 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230320018RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 58 of 93 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230320018RF Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 59 of 93 ANT2 802.11a-5745 802.11a-5785 802.11a-5825 802.11n(HT20)-5745 802.11n(HT20)-5785 802.11n(HT20)-5825 802.11n(HT40)-5755 802.11n(HT40)-5795 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230320018RF Report Tel: 4008-707-283 Web: http:/…

Text truncated - open the document above for the full version.

Radiated Emission Below 1G Above 1G
