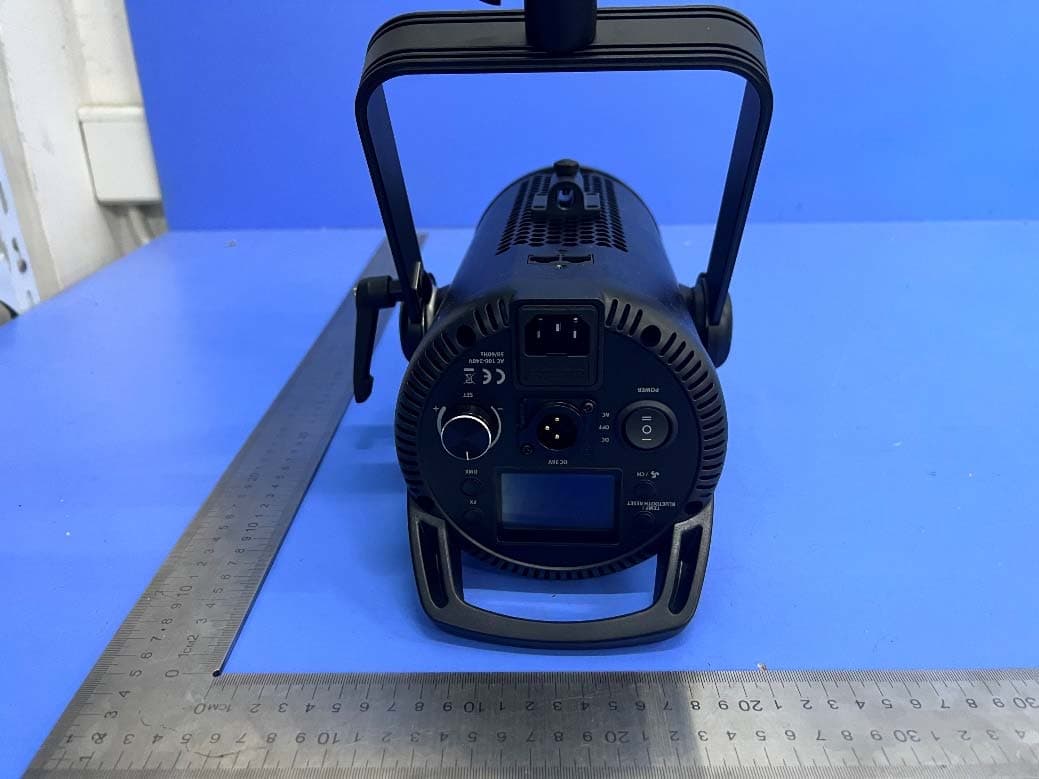

FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of Adapter FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 Photo 5 Appearance of EUT

FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 AppendixI Label FCC ID: 2BAFB-X-400BPLUS Model: X-400B Plus This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 Appendix II Label Location

FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 6 Internal of EUT Photo 7 Internal of EUT FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 Photo 8 Appearance PCB Photo 9 Appearance PCB FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 Photo 10 Appearance of PCB Photo 11 Appearance of PCB FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 Photo 12 Appearance of PCB Photo 13 Appearance of PCB BLE PCB Antenna FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 Photo 14 Appearance of PCB Photo 15 Appearance of PCB 2.4G RX PCB Antenna

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202311-0301-10 Page: 1 of 3 TB-RF-075-1.0 1 A/F., Building.6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao’an, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 Maximum Permissible Exposure Evaluation FCC ID: 2BAFB-X-400BPLUS 1. Client Information Applicant : Dongguan City Tulifang Photographic Equipment Co., Ltd Address : GD Modern International Exhibition Center Side, Houjie, Dongguan,Guangdong Province, China Manufacturer : Dongguan City Tulifang Photographic Equipment Co., Ltd Address : GD Modern International Exhibition Center Side, Houjie, Dongguan,Guangdong Province, China 2. General Description of EUT EUT Name : LED photo/video light Models No. : X-400B Plus Model Different : ---- Product Description : Operation Frequency: Bluetooth 5.0: 2402MHz~2480MHz Number of Channel: Bluetooth 5.0: 40 channels Antenna Gain: 2.5dBi PCB Antenna Power Rating : Input:AC 100-240V~50/60Hz Software Version : 1.0 Hardware Version : 1.0 Connecting I/O Port(S) : : Please refer to the User's Manual Remark : The antenna gain provided by the applicant, the adapter and verified for the RF conduction test and adapter provided by TOBY test lab. Report No.: TBR-C-202311-0301-10 Page: 2 of 3 TB-RF-075-1.0 MPE Calculations for WIFI 1. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 2. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna 3. Simultaneous transmission MPE Considerations According to KDB447498: All transmitters and antennas in the host must be either evaluated for MPE compliance, by measurement or computational modeling, or qualify for the standalone MPE test exclusion in section 7.1. Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modeled or measured field strengths or power density, is ≤ 1.0. This means that: ∑ of MPE ratios ≤ 1.0 Report No.: TBR-C-202311-0301-10 Page: 3 of 3 TB-RF-075-1.0 4. Test Result: Bluetooth LE & 2.4G WiFi worst reported. Mode Frequency (MHz) Conducted Power(max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] Limit of Power Density (mW/ cm 2 ) (S) BLE 1Mbps 2402 6.023 6±1 7 2.5 20 0.0018 1 2440 6.072 6±1 7 2.5 20 0.0018 1 2480 1.822 1±1 2 2.5 20 0.0006 1 BLE 2Mbps 2402 5.932 5±1 6 2.5 20 0.0014 1 2440 5.967 5±1 6 2.5 20 0.0014 1 2480 1.894 1±1 2 2.5 20 0.0006 1 5. Conclusion: As specified in Table 1B of 47 CFR 1.1310- Limits for Maximum Permissible Exposure (MPE), Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Power density (mW/ cm 2 ) 300-1,500 F/1500 1,500-100,000 1.0 For 2.4WIFI:2412~2462 MHz and Bluetooth LE MPE limit S: 1mW/ cm 2 The MPE is calculated as 0.0018 < limit 1mW / cm 2 . So, RF exposure limit warning or SAR test are not required. The EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47 CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference. Note For a more detailed features description, please refer to the RF Test Report. 6. Conclusion: The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. -----END OF REPORT-----

BT3L Antenna test report Product Name: BT3L Antenna Type: PCB antenna Writer: Yinhua Zhang Maximum Gain：2.5dBi Efficiency:62.86% BT3L Antenna test report Version 1.0.0 Date：2020-05-12 NO：0000000001 Antenna Test Report Global Intelligent Platform BT3L Antenna test report Content 1. General Description ................................................................................3 2. Technical Information .............................................................................3 3. Test Standards .........................................................................................3 4. Test Item..................................................................................................4 5. Test Photo................................................................................................4 Appendix A S11/VSWR .............................................................................5 Appendix B Gain and Efficiency................................................................6 Appendix C Radiation Pattern(1D and 3D)................................................7 Appendix D Test Setup Photo.....................................................................9 Appendix E EUT Photo ..........................................................................9。 BT3L Antenna test report 1. General Description EUT Name BT3L Antenna Wireless type Bluetooth Antenna Type PCB antenna Dimensions Appendix A 2. Technical Information Frequency Range 2402MHz~2480MHz Test Frequency 2400,2410......2500MHz 3. Test Standards Identity Document Title IEEE 149-1979 IEEE Standard Test Procedures for Antennas BT3L Antenna test report 4. Test Item Report Section Description Appendix B S11/VSWR Appendix C Gain and Efficiency Appendix D Radiation Pattern（1D and 3D） 5. Test Photo Report Section Description Appendix E Test Setup Photo BT3L Antenna test report Appendix A Antenna Dimension Appendix B S11/VSWR Frequency (MHz) 2400 2450 2500 Return Loss -8.73 -11.76 -11.21 BT3L Antenna test report VSWR 2.16 1.71 1.77 Appendix C Gain and Efficiency Frequency (MHz) Efficiency(%) Gain（dBi） 2400 52.29% 1.62 2410 52.17% 1.71 2420 53.14% 1.93 2430 54.16% 1.98 2440 57.62% 2.00 2450 59.64% 2.17 2460 61.55% 2.45 2470 60.64% 2.38 BT3L Antenna test report 2480 62.86% 2.50 2490 59.85% 2.30 2500 60.41% 2.49 Appendix D Radiation Pattern(1D and 3D) BT3L Antenna test report BT3L Antenna test report Appendix E Test Setup Photo

Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0301-11 Page: 1 of 38 FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 RF Test Data for Bluetooth LE (Conducted Measurements) General Description of EUT Product Name: LED photo/video light Test Model: X-400B Plus Sample ID: HC-C-202311-0301-01-01-2# Environmental Conditions Temperature: 24°C Relative Humidity: 50% Test Voltage: AC 120V Test Engineer: Yanzhenming Note: For a more detailed features description, please refer to the report TBR-C-202311-0301-11 The report only show the worst case data. Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0301-11 Page: 2 of 38 FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1Mbps 2402 Ant1 46.45 3.33 2.39 NVNT BLE 1Mbps 2440 Ant1 46.51 3.32 2.38 NVNT BLE 1Mbps 2480 Ant1 46.45 3.33 2.39 NVNT BLE 2Mbps 2402 Ant1 23.39 6.31 4.74 NVNT BLE 2Mbps 2440 Ant1 23.28 6.33 4.76 NVNT BLE 2Mbps 2480 Ant1 23.28 6.33 4.76 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0301-11 Page: 3 of 38 FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 Test Graphs Duty Cycle NVNT BLE 1Mbps 2402MHz Ant1 Duty Cycle NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0301-11 Page: 4 of 38 FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 Duty Cycle NVNT BLE 1Mbps 2480MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0301-11 Page: 5 of 38 FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 Duty Cycle NVNT BLE 2Mbps 2440MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0301-11 Page: 6 of 38 FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 1Mbps 2402 Ant1 6.023 30 Pass NVNT BLE 1Mbps 2440 Ant1 6.072 30 Pass NVNT BLE 1Mbps 2480 Ant1 1.822 30 Pass NVNT BLE 2Mbps 2402 Ant1 5.932 30 Pass NVNT BLE 2Mbps 2440 Ant1 5.967 30 Pass NVNT BLE 2Mbps 2480 Ant1 1.894 30 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0301-11 Page: 7 of 38 FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 Test Graphs Power NVNT BLE 1Mbps 2402MHz Ant1 Power NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0301-11 Page: 8 of 38 FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 Power NVNT BLE 1Mbps 2480MHz Ant1 Power NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0301-11 Page: 9 of 38 FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 Power NVNT BLE 2Mbps 2440MHz Ant1 Power NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0301-11 Page: 10 of 38 FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1Mbps 2402 Ant1 0.65 0.5 Pass NVNT BLE 1Mbps 2440 Ant1 0.66 0.5 Pass NVNT BLE 1Mbps 2480 Ant1 0.65 0.5 Pass NVNT BLE 2Mbps 2402 Ant1 1.13 0.5 Pass NVNT BLE 2Mbps 2440 Ant1 1.11 0.5 Pass NVNT BLE 2Mbps 2480 Ant1 1.11 0.5 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0301-11 Page: 11 of 38 FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 Test Graphs -6dB Bandwidth NVNT BLE 1Mbps 2402MHz Ant1 -6dB Bandwidth NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0301-11 Page: 12 of 38 FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 -6dB Bandwidth NVNT BLE 1Mbps 2480MHz Ant1 -6dB Bandwidth NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0301-11 Page: 13 of 38 FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 -6dB Bandwidth NVNT BLE 2Mbps 2440MHz Ant1 -6dB Bandwidth NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0301-11 Page: 14 of 38 FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 1Mbps 2402 Ant1 1.035 NVNT BLE 1Mbps 2440 Ant1 1.026 NVNT BLE 1Mbps 2480 Ant1 1.035 NVNT BLE 2Mbps 2402 Ant1…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202311-0301-11 Page: 1 of 37 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 Radio Test Report FCC ID: 2BAFB-X-400BPLUS Report No. : TBR-C-202311-0301-11 Applicant : Dongguan City Tulifang Photographic Equipment Co., Ltd Equipment Under Test (EUT) EUT Name : LED photo/video light Model No. : X-400B Plus Series Model No. : ---- Brand Name : ---- Sample ID : HC-C-202311-0301-01-01-1#& HC-C-202311-0301-01-01-2# Receipt Date : 2023-12-06 Test Date : 2023-12-06 to 2023-12-20 Issue Date : 2023-12-28 Standards : FCC Part 15 Subpart C 15.247 Test Method : ANSI C63.10: 2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above. Witness Engineer : Seven Wu Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TBR-C-202311-0301-11 Page: 2 of 37 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 7 1.5 Description of Test Mode .................................................................................................... 7 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 9 2. TEST SUMMARY ..................................................................................................................... 10 3. TEST SOFTWARE ................................................................................................................... 10 4. TEST EQUIPMENT .................................................................................................................. 11 5. CONDUCTED EMISSION ....................................................................................................... 12 5.1 Test Standard and Limit .................................................................................................... 12 5.2 Test Setup ........................................................................................................................... 12 5.3 Test Procedure ................................................................................................................... 12 5.4 Deviation From Test Standard ......................................................................................... 13 5.5 EUT Operating Mode ........................................................................................................ 13 5.6 Test Data ............................................................................................................................. 13 6. RADIATED AND CONDUCTED UNWANTED EMISSIONS ............................................ 14 6.1 Test Standard and Limit .................................................................................................... 14 6.2 Test Setup ........................................................................................................................... 16 6.3 Test Procedure ................................................................................................................... 17 6.4 Deviation From Test Standard ......................................................................................... 18 6.5 EUT Operating Mode ........................................................................................................ 18 6.6 Test Data ............................................................................................................................. 18 7. RESTRICTED BANDS REQUIREMENT ............................................................................. 19 7.1 Test Standard and Limit .................................................................................................... 19 7.2 Test Setup ........................................................................................................................... 19 7.3 Test Procedure ................................................................................................................... 20 7.4 Deviation From Test Standard ......................................................................................... 22 Report No.: TBR-C-202311-0301-11 Page: 3 of 37 TB-RF-074-1.0 7.5 EUT Operating Mode ........................................................................................................ 22 7.6 Test Data ............................................................................................................................. 22 8. BANDWIDTH TEST ................................................................................................................. 23 8.1 T…

Text truncated - open the document above for the full version.

FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 Appendix V EUT Test Photographs Photo of Setup for Radiated Emission (30MHz~1GHz) Photo of Setup for Radiated Emission (Above 1 GHz) FCC ID: 2BAFB-X-400BPLUS TB-RF-074-1.0 Photo of Setup for Conducted Emission -----END OF REPORT-----
