2BAGQ-3RZD02032ZZigbee USBC-Dongle

Third Reality Zigbee USBC-Dongle Quick Start Guide Introduction Factory Reset Third Reality Zigbee USBC-Dongle is a USBC full speed low power Zigbee adapter. When plugged into a host device like a computer/Raspberry Pi, it appears as serial ports. When it is powered up through the USB port, a blue LED will be illuminated. To factory reset the dongle while it is powered up, use a pin to press through the pinhole for 5 seconds until the LED indicator turns red. Zigbee Operation For ZHA(Zigbee Home Automation) Select the serial port for your Zigbee radio： Serial Device Path /dev/ttyUSB0 - USB Serial For Z2M(Zigbee2MQTT) Add content as shown serial: port: /dev/ttyUSB1 adapter: zigate Specification What's In The Box Operating Temp Minimum Operating Voltage Maximum Operating Voltage Typical current consumption Dimensions Zigbee Operating Frequency -32 to 122 F(0 to 50 °C） 4.5V 5.5V 60mA 2.36" x 0.79" x 0.35" (6cm × 2cm × 0.9cm) 2.4GHz Zigbee USBC-Dongle USBA Adaptor Quick Starting Guide Pin Upgrade Ability Third Reality Zigbee USBC-Dongle can support firmware upgrades via the USB port. Scan the QR-code to view detailed instructions. https://github.com/thirdreality/ThiredReality-Zigbee-3.0-USB-dongle FCC Regulatory Conformance： This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐Reorient or relocate the receiving antenna. ‐Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help important announcement NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. RF Exposure Limited Warranty This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. For limited warranty, please visit www.3reality.com/devicesupport For customer support, please contact us at [email protected] or visit www.3reality.com For help and troubleshooting related to Amazon Alexa, visit the Alexa app.

Jiangsu Shushi Technology Co., Ltd. MiCOM Labs FCC sample DofC 2.0 Date: June 26, 2023 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Subject: FCC ID: 2BAGQ-3RZD02032Z To Whom It May Concern: We hereby attest to the fact that we have applied the Declaration of Conformity procedure for a Class B Computer Peripheral to the digital portion of this composite filing. The requirements identified in KDB 896810 and 47CFR 2.948(b) have been followed. A test report has been issued by [Fangguang Inspection & Testing Co., Ltd. And address: 200 Linghu Avenue, Xinwu District, Wuxi City] and can be identified by report number [S20230321669805]. Sincerely, Signature Name: Wei Chen Title: Manager Company: Jiangsu Shushi Technology Co., Ltd. Address and contact information: NO.9 Nanxu Road,RunZhou District,Zhenjiang,Jiangsu,China

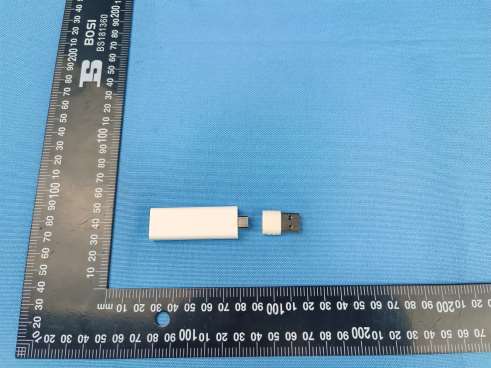

External Photos Photo 1: General view Photo 2: General view

InternalPhotos Photo1:PCBview Photo2:PCBview Antenna Photo3:PCBview

Fangguang Inspection & Testing Co., Ltd. Page Number: 1 of 5 RF Exposure Evaluation Declaration Report No.: S202303216698E06 I s s u e D a t e : 06-16-2 0 2 3 Applicant: Jiangsu Shushi Technology Co., Ltd. Address: NO.9 Nanxu Road,RunZhou District,Zhenjiang, Jiangsu,China FCC ID: 2BAGQ-3RZD02032Z Application Type: Certification Product: Zigbee USBC-Dongle Model No.: 3RZD02032Z Trade Mark: / FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15 Subpart C (15.247) Test Procedure(s): ANSI C63.10-2013, KDB 558074 D01v05r02 Test Date: Jun 9, 2023 Compiled By K_主检”、“K_审核”、“K_批准 (Amos Xia) Senior Test Engineer Approved By (Line Chen) Engineer Manager The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 D01. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of Fangguang Inspection & Testing Co., Ltd. Wuxi Branch The test report must not be used by the client to claim product certifications, approval, or endorsement by NVLAP, NIST or any agency of U.S. Government. Report No.: S202303216698E06 Page Number: 2 of 5 Revision History Report No. Version Description Issue Date S202303216698E06 Rev. 01 / 06-16-2023 Report No.: S202303216698E06 Page Number: 3 of 5 1. PRODUCT INFORMATION 1.1. Equipment Description 1.2. Product Specification Subjective to this Report Product Name: Zigbee USBC-Dongle Model Name: 3RZD02032Z Trade Mark: / Input Voltage Range: Input: DC 5V Zigbee Version: 3.0 Frequency Range 2405-2480 MHz Number of Channels Zigbee: 16 Channel Spacing Zigbee: 5MHz Antenna Gain 2 dBi Type of Modulation Zigbee: O-QPSK Report No.: S202303216698E06 Page Number: 4 of 5 2. RF Exposure Evaluation 2.1. Limits According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc. “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [VF (GHz)] ≤ 3.0 for 1-g SAR and≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. Report No.: S202303216698E06 Page Number: 5 of 5 2.2. Calculation Method [(max. power of` channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 Conducted Power + tune up tolerance =-4.94dBm=0.32mW Distance = 5 mm f =2.48 [0.32/5] * SQRT(2.48) =0.10 0.10 ≤ 3.0 Therefore, excluded from SAR testing. CONCULISON: The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06. The End

2.4G PCB Antenna Specification Manufacturer: Jiangsu Shushi Technology Co., Ltd. Address：NO.9 Nanxu Road,RunZhou District,Zhenjiang,Jiangsu,China Model: 3RZD02032WZ-PCBANT Frequency: 2.4-2.5GHz Max Gain : 2dBi Free Space Radiation Pattern: Antenna Dimensions: Length≈1/4*λ≈30mm, width: 0.5mm Operating Temperature: -10°C ~ +50°C Storage Temperature: -10°C ~ +50°C

Fangguang Inspection & Testing Co., Ltd. Headquarters Add.: Area B of the 3rd floor, XEDA Sci-Tech Park, Xiqing Economic Development Area, Tianjin, China Tel:+86-020-66289500-8260 Email: [email protected] http://www.fgtest.cn TRF No.:FG.WI-07-Part 15 Subpart C (15.247) Reports Inquiry :https://grgtest.com Page Number: 1 of 62 Report No.: S202303216698E05 I s s u e D a t e : 06-16-2 0 2 3 Applicant: Jiangsu Shushi Technology Co., Ltd. Address: NO.9 Nanxu Road,RunZhou District,Zhenjiang, Jiangsu,China FCC ID: 2BAGQ-3RZD02032Z Product: Zigbee USBC-Dongle Model No.: 3RZD02032Z FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15 Subpart C (15.247) Test Procedure(s): ANSI C63.10-2013, KDB 558074 D01v05r02 Result: Pass Item Receipt Date: May 18, 2023 Test Date: Jun 7, 2023~ Jun 9, 2023 MEASUREMENT REPORT FCC PART 15.247 Zigbee Compiled By (Amos Xia) Senior Test Engineer Approved By (Line Chen) Engineer Manager The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2014. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of Fangguang Inspection & Testing Co., Ltd. Wuxi Branch The test report must not be used by the client to claim product certifications, approval, or endorsement by NVLAP, NIST or any agency of U.S. Government. Report No.: S202303216698E05 Page Number: 2 of 62 Revision History Report No. Version Description Issue Date S202303216698E05 Rev. 01 / 06-16-2023 Report No.: S202303216698E05 Page Number: 3 of 62 CONTENTS Description Page §2.1033 General Information ..........................................................................................................5 1. INTRODUCTION ..........................................................................................................................6 1.1. Scope .................................................................................................................................6 1.2. Fangguang Test Location ...................................................................................................6 2. PRODUCT INFORMATION ..........................................................................................................7 2.1. Equipment Description ........................................................................................................7 2.2. Product Specification Subjective to this Report ...................................................................7 2.3. Operation Frequency / Channel List ...................................................................................8 2.4. Device Capabilities .............................................................................................................8 2.5. Description of Test Software ...............................................................................................8 2.6. Test Mode ..........................................................................................................................8 2.7. Test Configuration ..............................................................................................................9 2.8. EMI Suppression Device(s)/Modifications ...........................................................................9 2.9. Labeling Requirements .......................................................................................................9 2.10. Calculation with all conversion and correction factors used ..............................................9 3. DESCRIPTION OF TEST ........................................................................................................... 10 3.1. Evaluation Procedure ....................................................................................................... 10 3.2. AC Line Conducted Emissions ......................................................................................... 10 3.3. Radiated Emissions .......................................................................................................... 11 4. ANTENNA REQUIREMENTS ..................................................................................................... 12 5. TEST EQUIPMENT CALIBRATION DATE ................................................................................. 13 6. MEASUREMENT UNCERTAINTY .............................................................................................. 14 7. TEST RESULT ............................................................................................................................ 15 7.1. Summary .......................................................................................................................... 15 7.2. 6dB Bandwidth Measurement ........................................................................................... 16 7.2.1. Test Limit ....................................................................................................................... 16 7.2.2. Test Procedure used ...................................................................................................... 16 7.2.3. Test Setting .................................................................................................................... 16 7.2.4. Test Setup ...................................................................................................................... 16 7.2.5. Test Result ..................................................................................................................... 17 7.3. Output Power Measurement ............................................................................................. 20 7.3.1. Test Limit ..............................................................................…

Text truncated - open the document above for the full version.

TestSetupPhotos Below 1GHz Above1GHz ConductedEmissionphotos
