ALP_603_F 20/40/70/100 TOPS Leetop_ALP_603_F Leetop_ALP_603_F Leetop_ALP_603_F JetsonOrinNano4GBJetsonOrinNano8GB AI Performance 20TOPS40TOPS GPU 512-coreNVIDIAAmperearchitecture GPUwith 16TensorCores 1024-coreNVIDIAAmperearchitecture GPUwith 32TensorCores CPU 6-coreArm®Cortex®-A78AEv8.264-bitCPU 1.5MBL2+4MBL3 Video Encode 1080p30supportedby1-2CPUcores Video Decode 1x4K60(H.265) 2x4K30(H.265) 5x1080p60(H.265) 11x1080p30(H.265) Memory 4GB64-bitLPDDR5 34GB/s 8GB128-bitLPDDR5 68GB/s Storage — (SupportsexternalNVMe) JetsonOrinNX8GBJetsonOrinNX16GB AI Performance 70TOPS100TOPS GPU 1024-coreNVIDIAAmpereGPUwith 32TensorCores CPU 6-coreNVIDIAArm®CortexA78AEv8.2 64-bitCPU 1.5MBL2+4MBL3 8-coreNVIDIAArm®CortexA78AEv8.2 64-bitCPU 2MBL2+4MBL3 Video Encode 1x4K60|3x4K30|6x1080p60|12x1080p30(H.265) 1x4K60|2x4K30|5x1080p60|11x1080p30(H.264) Video Decode 1x8K30|2x4K60|4x4K30|9x1080p60|18x1080p30(H.265) 1x4K60|2x4K30|5x1080p60|11x1080p30(H.264) Memory 8GB128-bitLPDDR5 102.4GB/s 16GB128-bitLPDDR5 102.4GB/s Storage — (SupportsexternalNVMe) Interface Specification Network 1×GigabitEthernetConnector(10/100/1000) USB 2x USB 3.0 Type A (IntegratedUSB 2.0) 1x USB 3.0 0.5mmpitch 20P ZIF 1x USB 2.0 Micro-AB Videooutput 1×HDMI CAN 1×CAN RS232 1x RS232 power +9V to +20VDC Input @ 7A PowerSupply Spec InputVoltage +9 --+20VDC Input @7 A powerconsumption Above60W MechanicalSpec Dimensions(W×D ×H)100x59x51(mm) Weight0.4KG EnvironmentalSpec Operating Temperature -25°C-65°C 0.2~0.3m/sairflow StorageTemperature -20°C-6 0°C StorageHumidity 10%-90%Non-condensing environment Front view Left view Up view Rear view Product nameCore moduleSSDcommunicationpower ALP_603_F J1:Orin Nano(4G) J2:Orin Nano(8G) J3:Orin NX(8G) J4:Orin NX(16G) N 128G 256G 512G 1T N 4G 5G N 01:MEAN WELL 02:Custom made Note: It is not recommended that the equipment work for a long time in the environment of extreme high and low temperature. FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Leetop Technology (Shenzhen) Co., Ltd. Unit 1706, Building A, Country Garden Phoenix Zhigu Building, No.50, Tiezai Road, Xixiang Street, Bao 'an District, Shenzhen, China The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 05/26/2023 U.S. Agent Designation Leetop Technology (Shenzhen) Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BAGU-ALP-603): Name and company of U.S. agent: Cleveland International Trade Agency Physical U.S. address of agent: 4033 St Clair Ave, Cleveland, OH 44103, USA Cleveland, OH 44103 United States FRN of U.S. agent: 0033401837 Email address of U.S. agent: [email protected] Cleveland International Trade Agency acknowledges their obligation to accept service of process on behalf of Leetop Technology (Shenzhen) Co., Ltd. Leetop Technology (Shenzhen) Co., Ltd. with the FRN 0033490475 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). Sincerely, Signature Signature [Name]: Judy Zhu [Name of U.S. agent]：Mr Becky Deng [Title]: Manager [Title of U.S. agent]：PM [Company]: Leetop Technology (Shenzhen) Co., Ltd. [Company of U.S. agent]: Cleveland International Trade Agency 48_[mo del] US_Agent_2.911(d)(7) - U, V04

Sincerely, Name/Title： Judy Zhu /PM Company: Leetop Technology (Shenzhen) Co., Ltd. Address: Unit 1706, Building A, Country Garden Phoenix Zhigu Building, No.50, Tiezai Road, Xixiang Street, Bao 'an District, Shenzhen China Phone: +86-755-23590963 Fax: N/A E-Mail: [email protected]

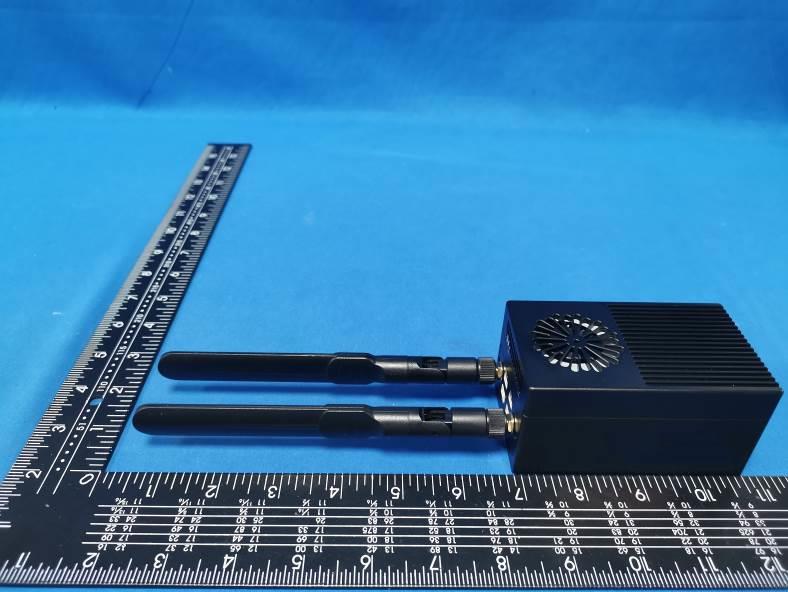

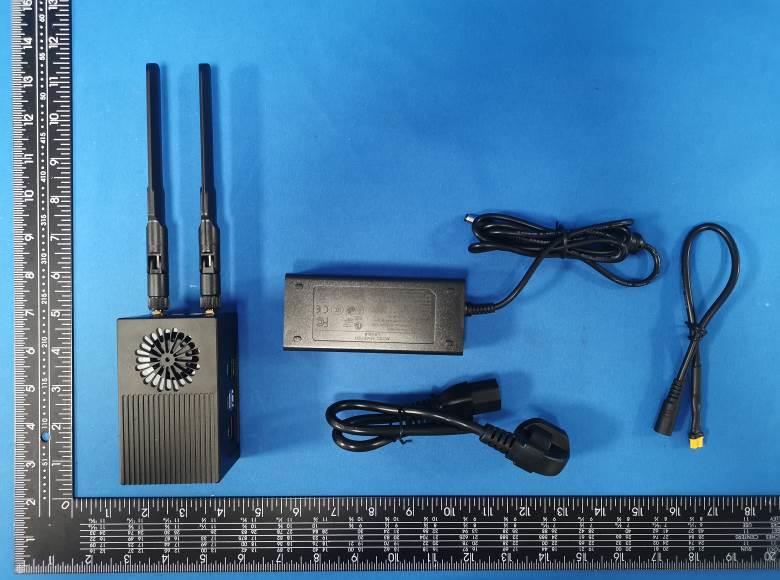

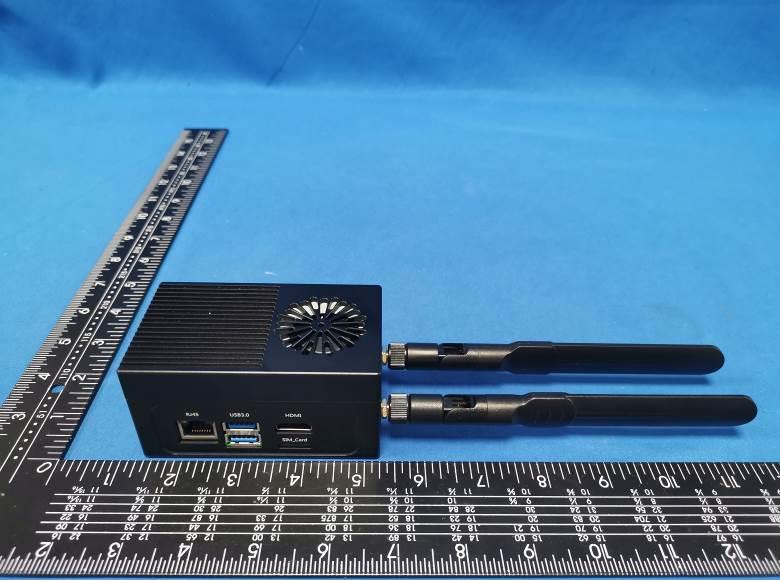

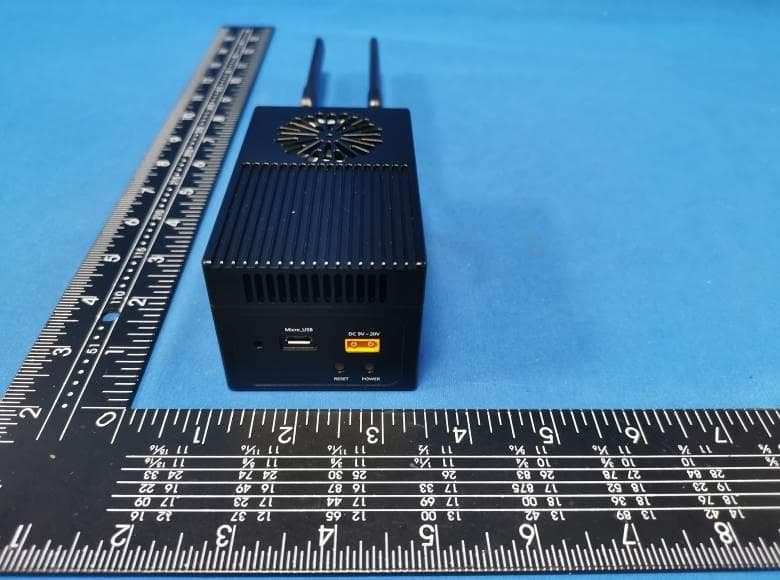

FCC ID: 2BAGU-ALP-603 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BAGU-ALP-603 Photo 4 Photo 5 Photo 6 FCC ID: 2BAGU-ALP-603 Photo 7

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location Model No.: ALP-603 FCC ID : 2BAGU-ALP-603

FCC ID: 2BAGU-ALP-603 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 Antenna 2 2.4G WIFI External antenna Antenna 1 2.4G WIFI External antenna FCC ID: 2BAGU-ALP-603 Photo 4 Photo 5 Photo 6 FCC ID: 2BAGU-ALP-603 Photo 7 Photo 8 Photo 9 FCC ID: 2BAGU-ALP-603 Photo 10 Photo 11 Photo 12 FCC ID: 2BAGU-ALP-603 Photo 13 Photo 14 Photo 15 FCC ID: 2BAGU-ALP-603 Photo 16 Photo 17 Photo 18 FCC ID: 2BAGU-ALP-603 Photo 19 Photo 20 Photo 21 FCC ID: 2BAGU-ALP-603 Photo 22 Photo 23 Photo 24 FCC ID: 2BAGU-ALP-603 Photo 25 Photo 26 Photo 27 FCC ID: 2BAGU-ALP-603 Photo 28

RF Exposure evaluation FCC ID: 2BAGU-ALP-603 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information ALP-603 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: 2.4GWIFI / External antenna 2.46dBi for 2400-2500MHz for ANT 1&2 5. Manufacturing Tolerance WIFI(Peak) ANT1 Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 14.0 13.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 13.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 13.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 WIFI(Peak) ANT2 Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 14.0 13.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 13.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 13.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 2.46dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW 2.4GWIFI ANT1 15.0 31.6228 2.46 1.7620 0.0111 1.0000 2.4GWIFI ANT2 15.0 31.6228 2.46 1.7620 0.0111 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. simultaneous MPE Result 2.4GWIFI ANT1 MPE (Ratio) 2.4GWIFI ANT2 MPE (Ratio) simultaneous MPE (Ratio) MPE Limits (Ratio) 0.0111 0.0111 0.0222 1.0000 8. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type External antenna Model ALP-603 Frequency range 2400-2500MHz Manufacturer Leetop Technology (Shenzhen) Co., Ltd. ANT Peak Gain 2.46 dBi 2. Antenna Photo: Length :158.0mm Width:18.0mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz
