2BAH2-N200Dash Cam

Maction Technologies (Shanghai) ,Ltd

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: May 23, 2023
Application Purpose: Original Equipment
Date of Application: May 23, 2023
Equipment Note: Dash Cam
Frequency Range: 2412.00000000 - 2462.00000000
Company: Maction Technologies (Shanghai) ,Ltd
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

About the Guide Q: Unable to play video / file corrupted? Please check whether the file name or folder name has been changed on the computer. This camera cannot guarantee the normal playback of active images that have been post processed by the computer or not taken by this camera. The memory card is damaged, please replace it. Q: Camera crashes? Restart or reset system. Remove the memory card. Contact the manufacturer for repair. camera Q: Camera can not be powered on Check whether the power cable is connected normally. Start the camera without memory card . Connect the camera to the computer and start it. Reset system. Description 1/2.9 inch CMOS 2560 (H)×1440 (V) 400 W 480 × 854 3 inch 2K@30fps F2.2 123° H.265 Built-in MIC Built-in 1 speaker 1 TF card port, supports max 128G. G-Sensor ≤ 5W -20°C to +70°C (-4°F to +158°C ) < 95% (non-condensing) IP52 Parameter Sensor Effective Pixels Frame Rate Screen Resolution Screen Size Frame Rate Iris Field of View Code Audio Input Audio Output Storage Vehicle Detection Power Consumption Operating Temperature Operating Humidity Protection Grade Technical Specification If some functions do not work properly or the relevant setting values are changed, try restarting the camera or restoring the factory settings. Q: Memory card error? Low power/settings not saved/automatic shutdown when start the vehicle?Q: Remove the memory card, start the camera for charging for 4 hours. Contact manufacturer and return the camera to the factory to replace the battery. Q: Memory card full Format or change the memory card. Adjust the “gravity sensing” to low, and format the memory card once a month. Format or change the memory card. Q: Please insert a SD card/SD card is not detected? Memory card is damaged; low read/write speed; memory card is not compatible with the camera; no card; replace it with a genuine high-speed TF card. FAQ Function Video Resolution Time-lapse Photography Parking Mode Collision Detection File Browsing Recording Time Screen Setup Audio Recording Date&Time Volume Button Sound Time Zone Light Source System Reset Delete Files Format Description 2160P, 1440P, 1080P (Optional) Record by time-lapse photography at 1 fps when vehicle stops. Lock video of collision during parking and the sensitivity is optional. Lock video of collision during driving and the sensitivity is optional. View videos, locked videos and images. Time of recording files. You can select from 1, 2 and 3 minutes. Close. Screen off time can be 1 or 2 minutes. Enable or disable audio recording. Adjust date and time. Adjust volume. Enable or disable button sound. Adjust time zone. 50HZ, 60HZ (Optional) Restore factory settings Select files and select it. Format the TF card. Functions - This manual is for reference only. The opera�on of the actual product shall prevail if there is any inconsistency. - All the designs and so�ware are subject to change without prior wri�en no�ce. - All trademarks and registered trademarks men�oned are the proper�es of their respec�ve owners. - Please visit our website or contact your local customer service if there is any problem when using the device. - If there is any uncertainty or controversy, we reserve the right of final explana�on. Dash Cam N200 Version 1.0.0 Quick Start Guide Car Charger×1Quick Start Guide×1 Electrostatic Stickers×1Power Cable×1 Dash Camera×1Bracket×1 Packing List Insert the car charger into the cigarette lighter and connect the power cable of the camera. Adjust the lens to the appropriate angle, and the installation is completed. Install the bracket on the camera along the installation slot, and insert one end of the power cable into the power port. Tear off the 3M glue on the bracket, paste the camera on the electrostatic paste, and lay cable as shown in the figure. Wipe the front windshield clean. Stick the electrostatic paste on the glass and ensure that it is free of bubbles. Installing Camera ÿÿÿ

Cover Letter(s)

Sincerely, Name/Title： guangwei wang /Manager Company: Maction Technologies (Shanghai) ,Ltd Address: 18 / F, West building, no.2218, Hunan Road Pudong New Area Shanghai China Phone: 0086-15618140281 Fax: N/A E-Mail: [email protected]

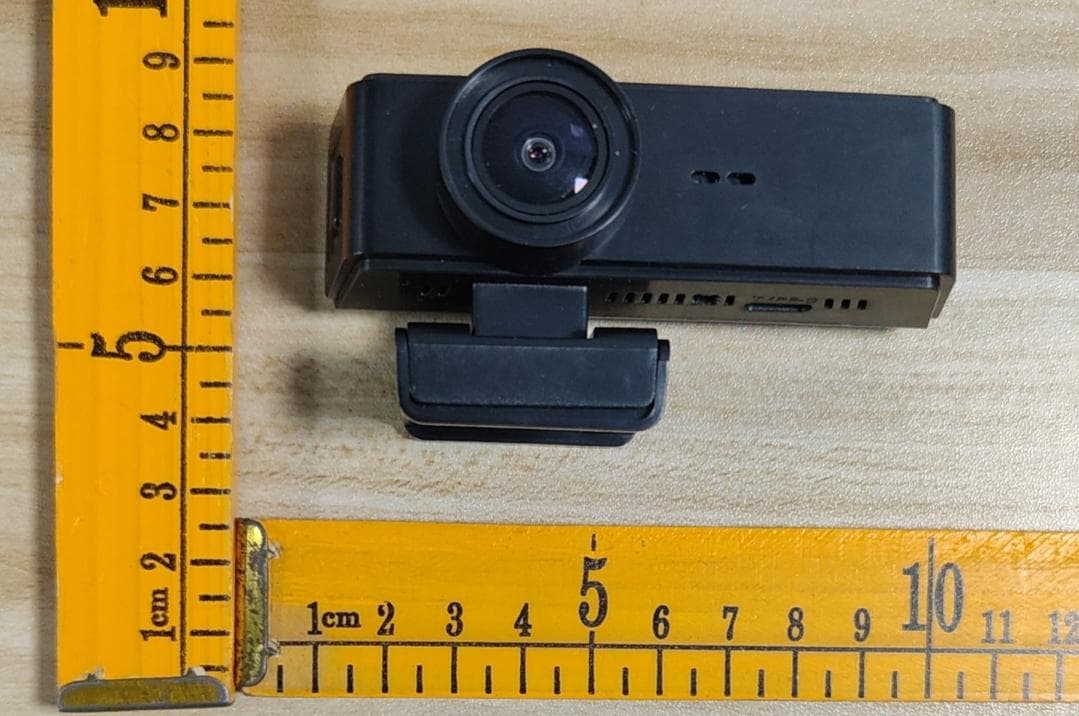

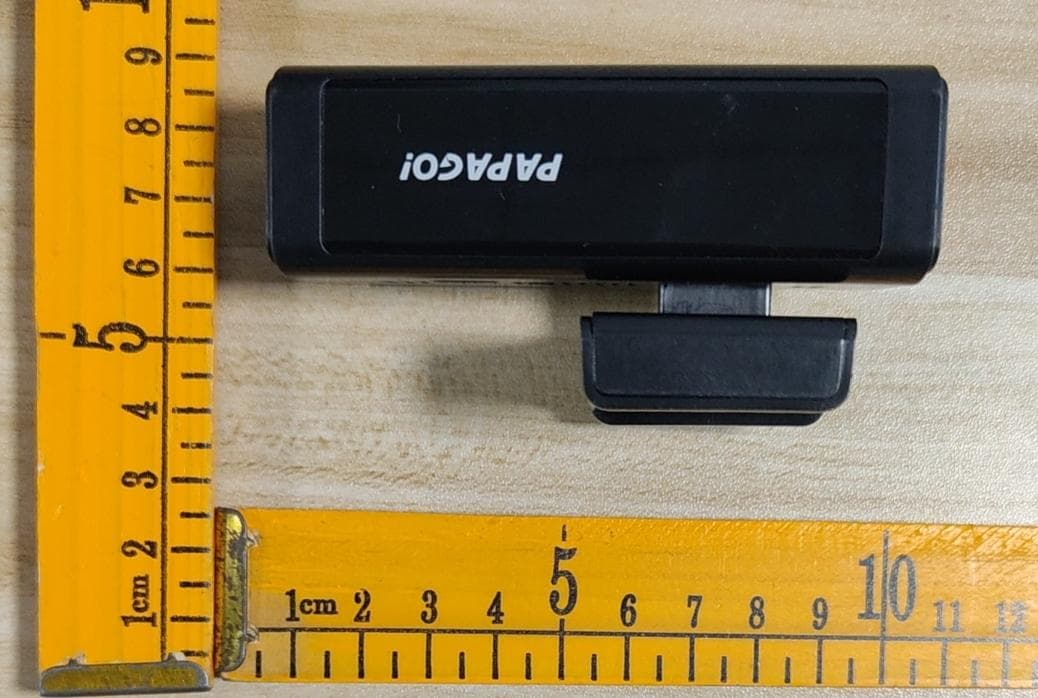

External Photos

FCCID:2BAH2-N200

ID Label/Location Info

FCCID:2BAH2-N200 DashCam ModelName：N200 FCCID:2BAH2-N200 MactionTechnologies(Shanghai),Ltd

Internal Photos

FCCID:2BAH2-N200 Antenna

RF Exposure Info

FCCTESTREPORT FCCID:2BAH2-N200 Product: DashCam ModelName: N200 ， N200Pro ， N200Plus ， P200 ， P200Plus ， P200Pro ， N100 ， N100Pro ， N100Plus Brand: PAPAGO! ReportNo.: PTC23020606602E-FC02 SampleID: PTC23020606602E-FC01# Preparedfor MactionTechnologies(Shanghai),Ltd 18/F,Westbuilding,no.2218,HunanRoad,PudongNewArea,Shanghai Preparedby PreciseTesting&CertificationCo.,Ltd Building1,No.6,TongxinRoad,DongchengStreet,Dongguan,Guangdong,China ReportNo.:PTC23020606602E-FC02 Page2of7 TESTRESULTCERTIFICATION Applicant’sname: MactionTechnologies(Shanghai),Ltd Address: 18/F,Westbuilding,no.2218,HunanRoad,PudongNewArea, Shanghai Manufacture'sname: MactionTechnologies(Shanghai),Ltd Address: 18/F,Westbuilding,no.2218,HunanRoad,PudongNewArea, Shanghai Productname:DashCam Modelname: N200，N200Pro，N200Plus，P200，P200Plus，P200Pro， N100，N100Pro，N100Plus Testprocedure:KDB447498D01GeneralRFExposureGuidancev06 TestDate:Mar.14,2023toMar.21,2023 DateofIssue:Mar.22,2023 TestResult:Pass ThisdevicedescribedabovehasbeentestedbyPTC,andthetestresultsshowthatthe equipmentundertest(EUT)isincompliancewiththeFCCrequirements.Anditisapplicable onlytothetestedsampleidentifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofPTC,this documentmaybealteredorrevisedbyPTC,personalonly,andshallbenotedinthe revisionofthedocument. TestEngineer: SimonPu/Engineer TechnicalManager: RonnieLiu/Manager ReportNo.:PTC23020606602E-FC02 Page3of7 Contents Page 2TESTSUMMARY................................................................................................................................................. 3GENERALINFORMATION................................................................................................................................ 3.1GENERALDESCRIPTIONOFE.U.T..........................................................................................................5 4RFEXPOSURE.................................................................................................................................................... 4.1REQUIREMENTS........................................................................................................................................6 4.2THEPROCEDURES/LIMIT........................................................................................................................6 4.3MPECALCULATIONMETHOD..................................................................................................................7 4.4TESTRESULT...........................................................................................................................................7 ReportNo.:PTC23020606602E-FC02 Page4of7 2TestSummary TestItemsTestRequirementResult MaximumPermissibleExposure (ExposureofHumanstoRFFields) 2.1091PASS Remark: N/A:NotApplicable ReportNo.:PTC23020606602E-FC02 Page5of7 3GeneralInformation 3.1GeneralDescriptionofE.U.T. ProductName : DashCam ModelName : N200 ， N200Pro ， N200Plus ， P200 ， P200Plus ， P200Pro ， N100 ， N100Pro ， N100Plus Specification : 802.11b/g/nHT20 OperationFrequency : 2412-2462MHzfor802.11b/g/n(HT20) NumberofChannel : 11channelsfor802.11b/g/n(HT20) TypeofModulation : DSSSwithDBPSK/DQPSK/CCKfor802.11b; OFDMwithBPSK/QPSK/16QAM/64QAMfor802.11g/n; Antennainstallation : FpcbAntenna AntennaGain : 2.88dBi Powersupply : DC5VviaadapterinputDC12Vbattery HardwareVersion : P200-220_V10 SoftwareVersion : V1.1 ReportNo.:PTC23020606602E-FC02 Page6of7 4RFExposure TestRequirement :FCCPart1.1307(b)(1) EvaluationMethod :FCCPart2.1091 4.1Requirements Systemsoperatingundertheprovisionsofthissectionshallbeoperatedinamannerthatensuresthat thepublicisnotexposedtoradiofrequencyenergylevelsinexcesslimitformaximumpermissible exposure.Inaccordancewith47CFRFCCPart2SubpartJ,section2.1091thisdevicehasbeen definedasamobiledevicewherebyadistanceof0.2mnormallycanbemaintainedbetweentheuser andthedevice. 4.2Theprocedures/limit (A)LimitsforOccupational/ControlledExposure FrequencyRangeElectricFieldMagneticFieldPowerDensity(S)AveragingTime 0.3-3.06141.63(100)*6 3.0-301842/f4.89/f(900/f)*6 30-30061.40.1631.06 300-1500F/3006 1500-100,00056 (B)LimitsforGeneralPopulation/UncontrolledExposure FrequencyRangeElectricFieldMagneticFieldPowerDensity(S)AveragingTime 0.3-1.346141.63(100)*30 1.34-30824/f2.19/f(180/f)*30 30-30027.50.0730.230 300-1500F/150030 1500-100,0001.030 Note:f=frequencyinMHz;*Plane-waveequivalentpowerdensity ReportNo.:PTC23020606602E-FC02 Page7of7 4.3MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 4.4TestResult ModulationType Outputpower Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBmTurnupmW 2.4GWIFI17.85+/-176.73612.881.940.029631.0000 5Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1091fortheuncontrolledRF Exposureofmobiledevice. ******THEENDREPORT******

Test Report

Page 1 of 75 FCCTESTREPORT FCCID:2BAH2-N200 Product:DashCam ModelName: N200，N200Pro，N200Plus，P200，P200Plus，P200Pro， N100，N100Pro，N100Plus Brand: PAPAGO! ReportNo.: PTC23020606602E-FC01 SampleID: PTC23020606602E-01# Preparedfor MactionTechnologies(Shanghai),Ltd 18/F,Westbuilding,no.2218,HunanRoad,PudongNewArea,Shanghai， Preparedby PreciseTesting&CertificationCo.,Ltd. Building1,No.6,TongxinRoad,DongchengStreet,Dongguan,Guangdong,China ReportNo.:PTC23020606602E-FC01 Page 2 of 75 1TESTRESULTCERTIFICATION Applicant’sname: MactionTechnologies(Shanghai),Ltd Address: 18/F,Westbuilding,no.2218,HunanRoad,PudongNewArea, Shanghai， Manufacture'sname: MactionTechnologies(Shanghai),Ltd Address: 18/F,Westbuilding,no.2218,HunanRoad,PudongNewArea, Shanghai， Productname:DashCam Modelname: N200，N200Pro，N200Plus，P200，P200Plus，P200Pro，N100， N100Pro，N100Plus Standards:FCCCFR47Part15Section15.247 Testprocedure:ANSIC63.10:2013 TestDate:Mar.14,2023toMar.21,2023 DateofIssue:Mar.22,2023 TestResult:Pass ThisdevicedescribedabovehasbeentestedbyPTC,andthetestresultsshowthatthe equipmentundertest(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonly tothetestedsampleidentifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofPTC,this documentmaybealteredorrevisedbyPTC,personalonly,andshallbenotedintherevisionof thedocument. TestEngineer: SimonPu/Engineer TechnicalManager: RonnieLiu/Manager ReportNo.:PTC23020606602E-FC01 Page 3 of 75 Contents Page 1TESTRESULTCERTIFICATION...............................................................................................................................2 2TESTSUMMARY..........................................................................................................................................................5 2.1TESTSITE............................................................................................................................................................5 3GENERALINFORMATION..........................................................................................................................................6 3.1GENERALDESCRIPTIONOFE.U.T.....................................................................................................................6 3.2CHANNELLIST.....................................................................................................................................................7 4EQUIPMENTDURINGTEST....................................................................................................................................13 4.1EQUIPMENTSLIST.............................................................................................................................................13 4.2MEASUREMENTUNCERTAINTY.........................................................................................................................15 4.3DESCRIPTIONOFSUPPORTUNITS...................................................................................................................16 5CONDUCTEDEMISSION..........................................................................................................................................17 5.1E.U.T.OPERATION............................................................................................................................................17 5.2EUTSETUP.......................................................................................................................................................17 5.3TESTSET-UP(BLOCKDIAGRAMOFCONFIGURATION).................................................................................18 5.4MEASUREMENTPROCEDURE............................................................................................................................18 5.5CONDUCTEDEMISSIONLIMIT...........................................................................................................................18 5.6MEASUREMENTDESCRIPTION..........................................................................................................................18 5.7CONDUCTEDEMISSIONTESTRESULT.............................................................................................................18 6RADIATEDSPURIOUSEMISSIONS......................................................................................................................19 6.1EUTOPERATION...............................................................................................................................................19 6.2TESTSETUP......................................................................................................................................................20 6.3SPECTRUMANALYZERSETUP..........................................................................................................................21 6.4TESTPROCEDURE.............................................................................................................................................22 6.5SUMMARYOFTESTRESULTS...........................................................................................................................23 7CONDUCTEDSPURIOUSEMISSION....................................................................................................................29 7.1TESTPROCEDURE.............................................................................................................................................29 7.2TESTRESULT....................................................................................................................................................29 8BANDEDGEMEASUREMENT................................................................................................................................51 ReportNo.:PTC23020606602E-FC01 Page 4 of 75 8.1TESTPROCEDURE.....................................................................................................................................…

Text truncated - open the document above for the full version.

Test Report

ReportNo.:PTC23020606602E-FC01 Page 42 of 75 11N20SISO-Ant1-2462-30~1000--6.97 11N20SISO-Ant1-2462-1000~26500--6.97 ReportNo.:PTC23020606602E-FC01 Page 43 of 75 EmissionsinRestrictedBands TestModeAntennaChNameFrequency[MHz]Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict 11BAnt1Low2412Peak2390.000-39.69≤-21.2055.51≤74PASS 11BAnt1Low2412Peak2310.000-38.84≤-21.2056.36≤74PASS 11BAnt1Low2412Peak2387.620-34.4≤-21.2060.80≤74PASS 11BAnt1Low2412AV2390.000-44.49≤-41.2050.71≤54PASS 11BAnt1Low2412AV2310.000-44.98≤-41.2050.22≤54PASS 11BAnt1Low2412AV2388.010-44.48≤-41.2050.72≤54PASS 11BAnt1High2462Peak2483.500-39.99≤-21.2055.21≤74PASS 11BAnt1High2462Peak2500.000-36.73≤-21.2058.47≤74PASS 11BAnt1High2462Peak2490.710-35.86≤-21.2059.34≤74PASS 11BAnt1High2462AV2483.500-44.39≤-41.2050.81≤54PASS 11BAnt1High2462AV2500.000-44.44≤-41.2050.76≤54PASS 11BAnt1High2462AV2486.860-44.33≤-41.2050.87≤54PASS 11GAnt1Low2412Peak2390.000-39≤-21.2056.20≤74PASS 11GAnt1Low2412Peak2310.000-41.34≤-21.2053.86≤74PASS 11GAnt1Low2412Peak2331.330-34.84≤-21.2060.36≤74PASS 11GAnt1Low2412AV2390.000-44.61≤-41.2050.59≤54PASS 11GAnt1Low2412AV2310.000-45.05≤-41.2050.15≤54PASS 11GAnt1Low2412AV2389.700-44.6≤-41.2050.60≤54PASS ReportNo.:PTC23020606602E-FC01 Page 44 of 75 Note： 1.TheAntennaGainiscompensatedinthegraph. 2.ThelimitindBmforaveragedetectorisconversionfrom54dBuV/m,accordingto15.209(a).ThelimitindBmforpeak detectoris20dBabovethelimitofaveragedetectorindBm. TestGraphs 11B-Ant1-Low-2412-Peak-2390.000 11B-Ant1-Low-2412-AV-2390.000 11GAnt1High2462Peak2483.500-38.9≤-21.2056.30≤74PASS 11GAnt1High2462Peak2500.000-40.73≤-21.2054.47≤74PASS 11GAnt1High2462Peak2485.540-36.02≤-21.2059.18≤74PASS 11GAnt1High2462AV2483.500-44.42≤-41.2050.78≤54PASS 11GAnt1High2462AV2500.000-44.51≤-41.2050.69≤54PASS 11GAnt1High2462AV2483.890-44.43≤-41.2050.77≤54PASS 11N20SISOAnt1Low2412Peak2390.000-40.97≤-21.2054.23≤74PASS 11N20SISOAnt1Low2412Peak2310.000-38.35≤-21.2056.85≤74PASS 11N20SISOAnt1Low2412Peak2323.920-35.07≤-21.2060.13≤74PASS 11N20SISOAnt1Low2412AV2390.000-44.55≤-41.2050.65≤54PASS 11N20SISOAnt1Low2412AV2310.000-45.01≤-41.2050.19≤54PASS 11N20SISOAnt1Low2412AV2389.960-44.55≤-41.2050.65≤54PASS 11N20SISOAnt1High2462Peak2483.500-42.3≤-21.2052.90≤74PASS 11N20SISOAnt1High2462Peak2500.000-39.81≤-21.2055.39≤74PASS 11N20SISOAnt1High2462Peak2495.660-35.88≤-21.2059.32≤74PASS 11N20SISOAnt1High2462AV2483.500-44.37≤-41.2050.83≤54PASS 11N20SISOAnt1High2462AV2500.000-44.5≤-41.2050.70≤54PASS 11N20SISOAnt1High2462AV2483.560-44.37≤-41.2050.83≤54PASS ReportNo.:PTC23020606602E-FC01 Page 45 of 75 11B-Ant1-High-2462-Peak-2483.500 11B-Ant1-High-2462-AV-2483.500 ReportNo.:PTC23020606602E-FC01 Page 46 of 75 11G-Ant1-Low-2412-Peak-2390.000 11G-Ant1-Low-2412-AV-2390.000 ReportNo.:PTC23020606602E-FC01 Page 47 of 75 11G-Ant1-High-2462-Peak-2483.500 11G-Ant1-High-2462-AV-2483.500 ReportNo.:PTC23020606602E-FC01 Page 48 of 75 11N20SISO-Ant1-Low-2412-Peak-2390.000 11N20SISO-Ant1-Low-2412-AV-2390.000 ReportNo.:PTC23020606602E-FC01 Page 49 of 75 11N20SISO-Ant1-High-2462-Peak-2483.500 11N20SISO-Ant1-High-2462-AV-2483.500 ReportNo.:PTC23020606602E-FC01 Page 50 of 75 ReportNo.:PTC23020606602E-FC01 Page 51 of 75 8BandEdgeMeasurement TestRequirement:Section15.247(d)Inaddition,radiatedemissionswhichfallinthe restrictedbands.asdefinedinSection15.205(a),mustalsocomplywith theradiatedemissionlimitsspecifiedinSection15.209(a)(seeSection 15.205(c)). TestMethod:ANSIC63.10:2013 TestLimit:Regulation15.247(d),Inany100kHzbandwidthoutsidethe frequencybandinwhichthespreadspectrumordigitallymodulated intentionalradiatorisoperating,theradiofrequencypowerthatis producedbytheintentionalradiatorshallbeatleast20dBbelowthatin the100kHzbandwidthwithinthebandthatcontainsthehighestlevelof thedesiredpower,basedoneitheranRFconductedoraradiated measurement,providedthetransmitterdemonstratescompliancewiththe peakconductedpowerlimits.Ifthetransmittercomplieswiththe conductedpowerlimitsbasedontheuseofRMSaveragingoveratime interval,aspermittedunderparagraph(b)(3)ofthissection,the attenuationrequiredunderthisparagraphshallbe30dBinsteadof20 dB.Attenuationbelowthegenerallimitsspecifiedin§15.209(a)isnot required.Inaddition,radiatedemissionswhichfallintherestrictedbands, asdefinedin§15.205(a),mustalsocomplywiththeradiatedemission limitsspecifiedin§15.209(a)(see§15.205(c)). 8.1TestProcedure 1.RemovetheantennafromtheEUTandthenconnectalowRFcablefromtheantennaporttothe spectrum; 2.Setthespectrumanalyzer:RBW=100kHz,VBW=300kHz,Sweep=auto Detectorfunction=peak,Trace=maxhold 3.Setup: EUT Spectrum Analyzer ReportNo.:PTC23020606602E-FC01 Page 52 of 75 8.2TestResult TestModeAntennaChNameFrequency[MHz]RefLevel[dBm]Result[dBm]Limit[dBm]Verdict 11BAnt1Low24124.79-44.95≤-15.21PASS 11BAnt1High24624.10-46.11≤-15.9PASS 11GAnt1Low2412-5.99-41.61≤-25.99PASS 11GAnt1High2462-6.58-45.97≤-26.58PASS 11N20SISOAnt1Low2412-6.16-41.89≤-26.16PASS 11N20SISOAnt1High2462-6.22-46.19≤-26.22PASS TestGraphs 11B-Ant1-Low-2412-4.79 11B-Ant1-High-2462-4.10 ReportNo.:PTC23020606602E-FC01 Page 53 of 75 11G-Ant1-Low-2412--5.99 11G-Ant1-High-2462--6.58 11N20SISO-Ant1-Low-2412--6.16 ReportNo.:PTC23020606602E-FC01 Page 54 of 75 11N20SISO-Ant1-High-2462--6.22 ReportNo.:PTC23020606602E-FC01 Page 55 of 75 96dBBandwidthMeasurement TestRequirement:FCCCFR47Part15Section15.247 TestMethod:ANSIC63.10:2013 TestLimit Systemsusingdigitalmodulationtechniquesmayoperateinthe902-928 MHz,2400-2483.5MHz,and5725-5850MHzbands.Theminimum6dB bandwidthshallbeatleast500kHz. 9.1TestProcedure 1.RemovetheantennafromtheEUTandthenconnectalowRFcablefromtheantennaporttothe spectrum; 2.Setthespectrumanalyzer:RBW=100kHz,VBW=300kHz 3.Setup: 9.2TestResult TestModeAntennaFrequency[MHz]DTSBW[MHz]FL[MHz]FH[MHz]Limit[MHz]Verdict 11BAnt124129.0402407.5602416.6000.5PASS 11BAnt124379.0402432.5202441.5600.5PASS 11BAnt124629.0402457.5202466.5600.5PASS 11GAnt1241216.5602403.7602420.3200.5PASS 11GAnt1243716.5602428.7602445.3200.5PASS 11GAnt1246216.5602453.7602470.3200.5PASS 11N20SISOAnt1…

Text truncated - open the document above for the full version.

Test Report

ReportNo.:PTC23020606602E-FC01 Page 63 of 75 11G-Ant1-2462 11N20SISO-Ant1-2412 ReportNo.:PTC23020606602E-FC01 Page 64 of 75 11N20SISO-Ant1-2437 11N20SISO-Ant1-2462 ReportNo.:PTC23020606602E-FC01 Page 65 of 75 ReportNo.:PTC23020606602E-FC01 Page 66 of 75 10MaximumPeakOutputPower TestRequirement:FCCCFR47Part15Section15.247 TestMethod:ANSIC63.10:2013 TestLimit: Regulation15.247(b)(3),Forsystemsusingdigitalmodulationinthe902- 928MHz,2400-2483.5MHz,and5725-5850MHzbands:1Watt.Asan alternativetoapeakpowermeasurement,compliancewiththeoneWatt limitcanbebasedonameasurementofthemaximumconductedoutput power. 10.1TestProcedure 1.ThetestingfollowstheMeasurementProcedureofFCCKDBNo.558074D0115.247Meas Guidancev05section8.3.1. 2.TheRFoutputofEUTwasconnectedtothespectrumbyRFcable.Thepathlosswas compensatedtotheresultsforeachmeasurement. 3.SettothemaximumpowersettingandenabletheEUTtransmitcontinuously. 4.Measuretheconductedoutputpowerandrecordtheresultsinthetestreport. 5.Setup: 10.2TestResult TestModeAntenna Frequency[ MHz] Set Power PeakPowert[dBm] Conducted Limit[dBm] EIRP [dBm] EIRP Limit[dBm] Verdict 11BAnt12412---16.86≤30.0019.66≤36.00PASS 11BAnt12437---16.00≤30.0018.80≤36.00PASS 11BAnt12462---16.06≤30.0018.86≤36.00PASS 11GAnt12412---15.64≤30.0018.44≤36.00PASS 11GAnt12437---17.85≤30.0020.65≤36.00PASS 11GAnt12462---14.67≤30.0017.47≤36.00PASS 11N20SISOAnt12412---15.87≤30.0018.67≤36.00PASS 11N20SISOAnt12437---17.21≤30.0020.01≤36.00PASS 11N20SISOAnt12462---14.86≤30.0017.66≤36.00PASS EUT P ower Meter ReportNo.:PTC23020606602E-FC01 Page 67 of 75 11PowerSpectraldensity TestRequirement:FCCCFR47Part15Section15.247 TestMethod:ANSIC63.10:2013 TestLimit:Regulation15.247(f)Thepowerspectraldensityconductedfromthe intentionalradiatortotheantennaduetothedigitalmodulation operationofthehybridsystem,withthefrequencyhoppingoperation turnedoff,shallnotbegreaterthan8dBminany3kHzbandduring anytimeintervalofcontinuoustransmission. 11.1TestProcedure 1.Connecttheantennaport(s)tothespectrumanalyzerinput. 2.Configurethespectrumanalyzerasshownbelow: Centerfrequency=DTSchannelcenterfrequency Span=1.5timestheDTSbandwidth RBW=3KHz,VBW=10KHz Sweeptime=autocouple Detector=peak Tracemode=maxhold 3.Placetheradioincontinuoustransmitmode,allowthetracetostabilize,viewthetransmitterwaveformon thespectrumanalyzer. 4.UsethepeakmarkerfunctiontodeterminethemaximumamplitudelevelwithintheRBW. 5.Ifmeasuredvalueexceedslimit,reduceRBW(nolessthan3KHz)andrepeat. 6.Setup: 11.2TestResult TestModeAntennaFrequency[MHz]Result[dBm/3-100kHz]Limit[dBm/3kHz]Verdict 11BAnt12412-15.14≤8.00PASS 11BAnt12437-15.97≤8.00PASS 11BAnt12462-15.89≤8.00PASS 11GAnt12412-19.88≤8.00PASS 11GAnt12437-17.47≤8.00PASS 11GAnt12462-20.63≤8.00PASS 11N20SISOAnt12412-19.12≤8.00PASS 11N20SISOAnt12437-17.59≤8.00PASS 11N20SISOAnt12462-19.59≤8.00PASS EUT Spectrum Analyzer ReportNo.:PTC23020606602E-FC01 Page 68 of 75 TestGraphs 11B-Ant1-2412--15.14-0.00-0.00-0.00 11B-Ant1-2437--15.97-0.00-0.00-0.00 11B-Ant1-2462--15.89-0.00-0.00-0.00 ReportNo.:PTC23020606602E-FC01 Page 69 of 75 11G-Ant1-2412--19.88-0.00-0.00-0.00 11G-Ant1-2437--17.47-0.00-0.00-0.00 ReportNo.:PTC23020606602E-FC01 Page 70 of 75 11G-Ant1-2462--20.63-0.00-0.00-0.00 11N20SISO-Ant1-2412--19.12-0.00-0.00-0.00 ReportNo.:PTC23020606602E-FC01 Page 71 of 75 11N20SISO-Ant1-2437--17.59-0.00-0.00-0.00 11N20SISO-Ant1-2462--19.59-0.00-0.00-0.00 ReportNo.:PTC23020606602E-FC01 Page 72 of 75 ReportNo.:PTC23020606602E-FC01 Page 73 of 75 12AntennaApplication 12.1AntennaRequirement Forintentionaldevice,accordingtoFCC47CFRSection15.203,anintentional radiatorshallbedesignedtoensurethatnoantennaotherthanthatfurnishedbythe responsiblepartyshallbeusedwiththedevice.AndaccordingtoFCC47CFR Section15.247(b),iftransmittingantennasofdirectionalgaingreaterthan6dBiare used,thepowershallbereducedbytheamountindBthatthedirectionalgainofthe antennaexceeds6dBi. 12.2Result TheEUT’Santenna,permanentattachedantenna,isFpcbAntenna.Theantenna’s gainis2.88dBiandmeetstherequirement. ReportNo.:PTC23020606602E-FC01 Page 74 of 75 13TestSetup RadiatedSpuriousEmissions TestFrequencyFrom30MHz-1000MHz TestFrequencyabove1G ReportNo.:PTC23020606602E-FC01 Page 75 of 75 14EUTPHOTOS ReferencefileExternalPhotoandInternalPhoto. *****THEENDREPORT*****

Test Setup Photos

FCCID:2BAH2-N200 Radiationbelow1GHz Radiationabove1GHz

Contact Information

Applicant

guangwei wang

[email protected]0086-15618140281Fax: 86-75523712323

Test Firm

Precise Testing & Certification Co., LTD.Chris Du

[email protected]+86-769-38808222

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	61.00 mW

Confidentiality

Long Term

Grant Notes

Output Power listed is peak conducted. This device supports 802.11b, 802.11g and 802.11n with a 20 MHz bandwidth mode. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
