2BAHAPVS01PVBuddyTM Sensor

PVSure Pte Ltd
PVBuddyTM Sensor - FCC ID 2BAHAPVS01 - PVSure Pte Ltd
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
May 15, 2023
Application Purpose
Original Equipment
Date of Application
May 15, 2023
Equipment Note
PVBuddyTM Sensor
Frequency Range
2402.00000000 - 2480.00000000
Company
PVSure Pte Ltd
Country
Singapore

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗
↗
↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Page 1 Model PVS01 Sensor kit User Manual 2023 © PVSure Pte Ltd. All rights reservedUser manual ver 1.1 Page 2 Interference Information FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. If necessary, you may reach us to clarify on this matter. PVSure Pte Ltd 31 Toh Guan Rd East #06-02 LW Technocentre Singapore 608608 Email: [email protected] 2023 © PVSure Pte Ltd. All rights reservedUser manual ver 1.1 Page 3 Table of Contents Introduction................................................................................................................................4 Important safety warning...........................................................................................................5 Unpacking and overview...........................................................................................................6 Product overview...................................................................................................................7 Powering up and Operation.......................................................................................................8 Maintenance and cleaning.........................................................................................................9 Troubleshooting.......................................................................................................................10 Specifications...........................................................................................................................11 2023 © PVSure Pte Ltd. All rights reservedUser manual ver 1.1 Page 4 Introduction This multi function device is powered by any CE or UL certified 5Vdc powerbank for low load supply. A powerbank with at least 4400 mAh rating on full charge can operate the device for at least 12 hours or more on a continuous basis. Its UV resistant casing is designed to withstand the UV whitening effects on its enclosure. It is water resistant from light rain but not waterproof. It is NOT designed for use as a permanent outdoor installation. All data is transmitted wirelessly via Espressif ESP32 microprocessor module to any compatible receiver e.g. mobile app etc via radio transmission in the 2.4GHz covering the Bluetooth and wifi frequency range. Its features include header board add-on e.g. SD card (optional add on), other sensors or peripheral detectors via inter-integrated circuit interface (I2C) or serial (I2S) interfaces, and optional universal asynchronous receiver-transmitter (UART) communication to allow on board programming of the microprocessor unit. For purpose of CE and FCC certification, we have a photo diode sensor connected as an integrated device to transmit the measured irradiance value to receiver at regular intervals. 2023 © PVSure Pte Ltd. All rights reservedUser manual ver 1.1 Page 5 Important safety warning Appropriate safety cautionary notes depends on the sensor connected. Since our initial version has a photo diode sensor for use outdoors, the precautions highlight will correspond to this application. Placement of device at an unshaded location and level to the desired orientation to begin operation. Precaution #1 Work from height or rooftops. Follow your national Workplace Safety and Health (Work at Heights) Regulations. For example three-point contact when using ladder, drink lots of water when working in hot outdoor environments, wear proper sunshade or sun tan lotion etc Precaution #2 In event of weather with imminent rain and lightning, dusty or smoky environments, please refrain from operating this device until the environmental conditions improved. Continued use under such conditions will render inaccurate readings and unnecessary soiling of device sensor and its enclosure. Precaution #3 Our device circuitry is designed with low power use. Please do not modify or conduct unauthorized connections within our device. Doing so will render the warranty void and may compromise the proper functioning of the device. 2023 © PVSure Pte Ltd. All rights reservedUser manual ver 1.1 Page 6 Unpacking and overview Product is enclosed in its customized box. We strive to use environmentally friendly packaging materials. Please disposed of the packaging materials according to your national disposal requirements. Before…

Text truncated - open the document above for the full version.

Attestation Statements

PVSure Pte Ltd Address: 31 Toh Guan Road East 06-02 Singapore 608608 Singapore Tel: 65-6593836718 Email: [email protected] Attestation Letter Date: 2023-04-18 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Our product: PVBuddy TM Sensor; Model: PVS01, FCC ID: 2BAHAPVS01; For marketing purpose, this product only support Bluetooth, BLE 1M, 2.4G Wi-Fi(2412-2462MHz, 2422-2452MHz, 802.11b/g/n-HT20/n-HT40 mode), The other 2.4G Wi-Fi bands were disabled by manufacturer though software, the end user has no capability to activate it. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely Yours, Sincerely Yours, Signature: Mr Kenneth Goh Manager

Attestation Statements

PVSure Pte Ltd Address: 31 Toh Guan Road East 06-02 Singapore 608608 Singapore Tel: 65-6593836718 Email: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 2023-04-18 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID:2BAHAPVS01 PVSure Pte Ltd certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: Mr Kenneth Goh Manager

Attestation Statements

PVSure Pte Ltd Address: 31 Toh Guan Road East 06-02 Singapore 608608 Singapore Tel: 65-6593836718 Email: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter Attestation Letter Date: 2023-04-18 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID:2BAHAPVS01 PVSure Pte Ltd certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Mr Kenneth Goh Manager

Attestation Statements

PVSure Pte Ltd 31 Toh Guan Road East #06-02 Singapore 608608 Date: 7 April 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BAHAPVS01 US Agent – Attestation Statement / Part 2.911(d)(7) PVSure Pte Ltd certifies, that as of 7 April 2023, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: 2BAHAPVS01 PVSure Pte Ltd, accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of PVSure Pte Ltd for FCC ID: 2BAHAPVS01 Designated Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: PVSure Pte LtdDesignated Agent: FCC US Agent, LLC Company Representative: Kenneth GOHDesignated Agent Representative: Tim Payne Signature: Signature:

Cover Letter(s)

PVSure Pte Ltd Address: 31 Toh Guan Road East 06-02 Singapore 608608 Singapore Tel: 65-6593836718 Email:[email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2023-04-18 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We PVSure Pte Ltd, the undersigned, hereby authorizes Shenzhen Accurate Technology Co., Ltd. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Shenzhen Accurate Technology Co., Ltd. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Mr Kenneth Goh Manager

Cover Letter(s)

PVSure Pte Ltd Address: 31 Toh Guan Road East 06-02 Singapore 608608 Singapore Tel: 65-6593836718 Email: [email protected] FCC Confidential Authorization Date: 2023-04-18 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID:2BAHAPVS01 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, PVSure Pte Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours Signature: Mr Kenneth Goh Manager

External Photos

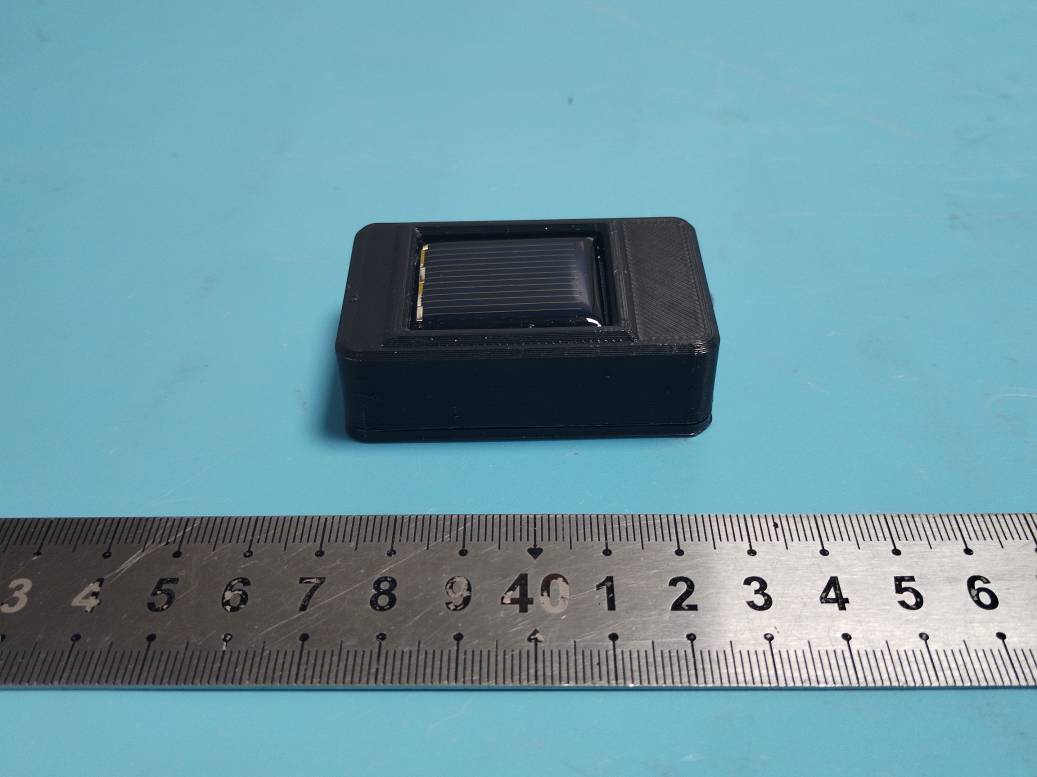

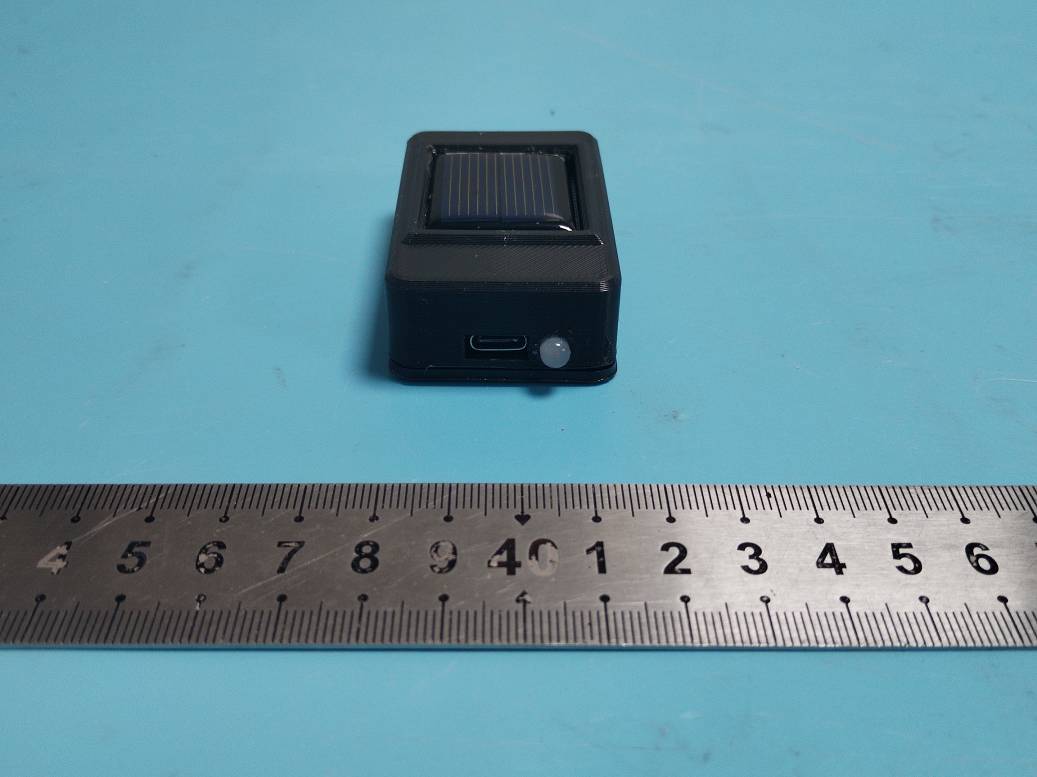

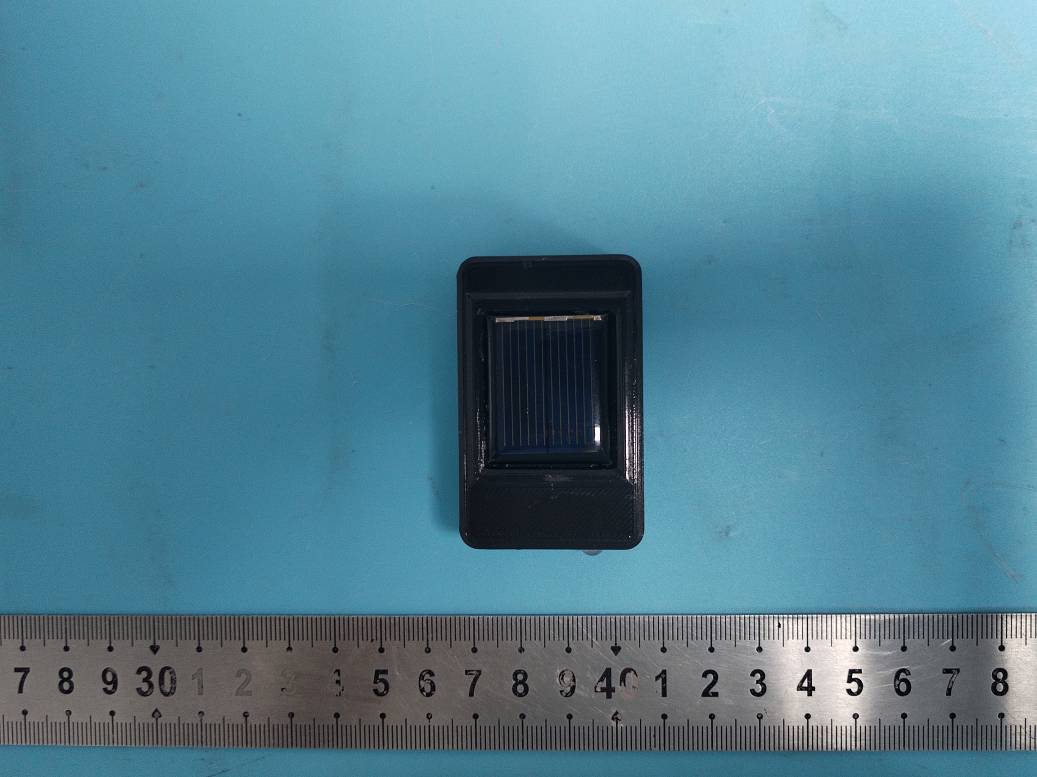

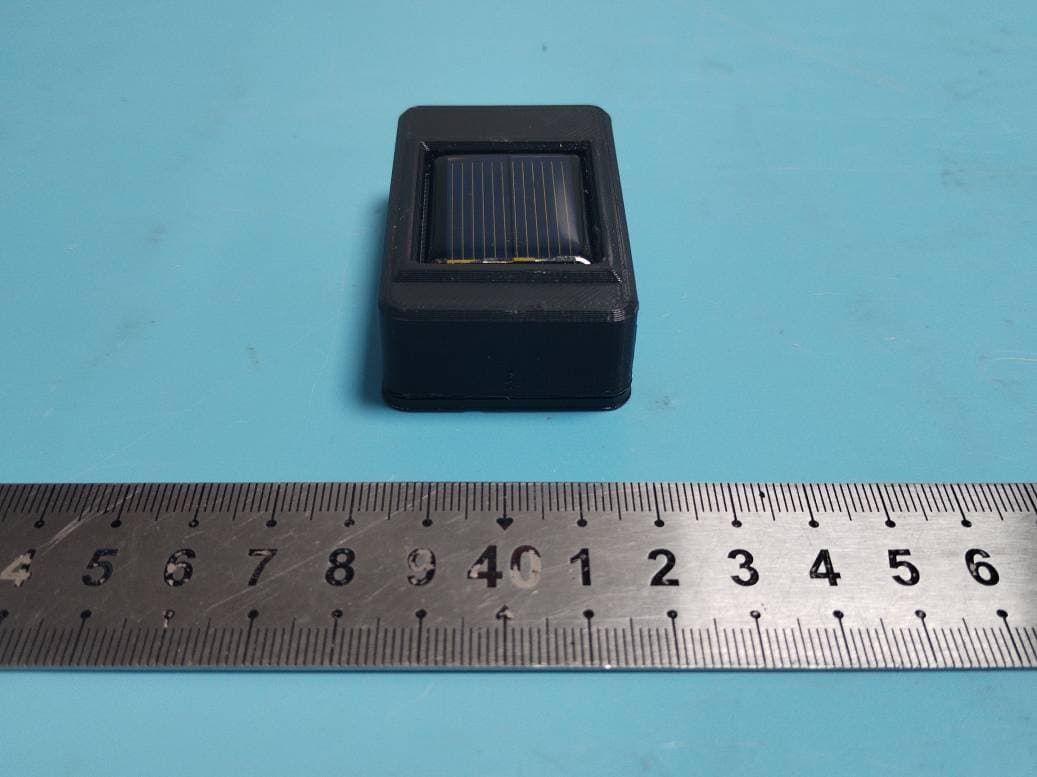

Shenzhen Accurate Technology Co., Ltd. FCC ID: 2BAHAPVS01 External Photos Page 1 of 4 External Photos Shenzhen Accurate Technology Co., Ltd. FCC ID: 2BAHAPVS01 External Photos Page 2 of 4 Shenzhen Accurate Technology Co., Ltd. FCC ID: 2BAHAPVS01 External Photos Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. FCC ID: 2BAHAPVS01 External Photos Page 4 of 4

ID Label/Location Info

Shenzhen Accurate Technology Co., Ltd. Project No.: RA230130-04403E-RF LABEL AND LOCATION Page 1 of 1 FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Internal Photos

Shenzhen Accurate Technology Co., Ltd. FCC ID: 2BAHAPVS01 Internal Photos Page 1 of 4 Internal photos Shenzhen Accurate Technology Co., Ltd. FCC ID: 2BAHAPVS01 Internal Photos Page 2 of 4 Shenzhen Accurate Technology Co., Ltd. FCC ID: 2BAHAPVS01 Internal Photos Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. FCC ID: 2BAHAPVS01 Internal Photos Page 4 of 4 ANT

RF Exposure Info

Shenzhen Accurate Technology Co., Ltd. Report No.: RA230130-04403E-RF-00B Version 12: 2021-11-09 Page 17 of 75 FCC- BLE&2.4G Wi-Fi FCC§15.247 (i), §1.1307 (b) (3) &§2.1091 – RF EXPOSURE Applicable Standard According to subpart 15.247 (i) and subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. According to KDB 447498 D04 Interim General RF Exposure Guidance MPE-Based Exemption: General frequency and separation-distance dependent MPE-based effective radiated power(ERP) thresholds are in Table B.1 [Table 1 of § 1.1307(b)(1)(i)(C)] to support an exemptionfrom further evaluation from 300 kHz through 100 GHz. Ris the minimum separation distance in meters f = frequency in MHz Result Mode Frequency (MHz) Antenna Gain Tuneup conducted power ERP Evaluation Distance (m) ERP Limit (W) (dBi) (dBd) (dBm) (dBm) (W) BLE 2402-2480 3.42 1.27 12.0 13.27 0.021 0.2 0.768 Wi-Fi 2412-2462 3.42 1.27 19.0 20.27 0.106 0.2 0.768 Note: Wi-Fi and Bluetooth cannot transmit simultaneous, To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliance

Test Report

OTA TEST REPORT Applicant Espressif Systems Product ESP ANT B Model ESP ANT B Report No. Y1806A0621-T1V3 Issue Date November 1, 2021 TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in ANSI/IEEE Std 149-2008. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Prepared by: Peng Tao Approved by: Kai Xu TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86-021-50791141/2/3 FAX: +86-021-50791141/2/3-8000 OTA Test Report Report No: Y1806A0621-T1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 2 of 14 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENTS 1. General Information................................................................................................ ....................... 3 1.1. Notes of the Test Report................................................................................................ ... 3 1.2. Testing laboratory................................................................................................ .............. 3 1.3. Laboratory Environment................................................................................................ .... 3 2. General Description of Equipment under Test................................................................ ............... 4 2.1. Applicant Information................................................................................................ ......... 4 2.2. Manufacturer Information................................................................................................ .. 4 2.3. Information of EUT................................................................................................ ............ 4 2.4. Test Date................................................................................................ ........................... 4 2.5. Applied Standards................................................................................................ ............. 5 3. Test Conditions................................................................................................ .............................. 6 3.1. Test Configuration................................................................................................ ............. 6 3.2. Test Measurement................................................................................................ ............. 6 4. Test Results................................................................................................................................ ... 7 4.1. Gain and Efficiency................................................................................................ ............ 7 4.2. Voltage Standing Wave Ratio (VSWR)................................................................ .............. 8 4.3. Antenna S11................................................................................................ ...................... 9 5. Test Equipment List ..................................................................................................................... 10 APPENDIX A: 2-D Pattern Plots ............................................................................................................. 11 APPENDIX B: The EUT Appearance and Test Configuration ............................................................. 13 B.1 EUT Appearance ................................................................................................................. 13 B.2 Test Configuration .............................................................................................................. 14 OTA Test Report Report No: Y1806A0621-T1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 3 of 14 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1. General Information 1.1. Notes of the Test Report This report shall not be reproduced in full or partial, without the written approval of TA technology (shanghai) co., Ltd.The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein .Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. This report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. 1.2. Testing laboratory Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pudong City: Shanghai Post code: 201201 Country: P. R. China Contact: Xu Kai Telephone: +86-021-50791141/2/3 Fax: +86-021-50791141/2/3-8000 Website: http://www.ta-shanghai.com E-mail: [email protected] 1.3. Laboratory Environment Temperature Min. =19°C,Max. = 25°C Relative humidity Min. =40%,Max. =72% Shield effect 0.7-6GHz > 100dB Ground resistance <0.5Ω OTA Test Report Report No: Y1806A0621-T1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 4 of 14 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 2. General Description of Equipment under Test 2.1. Applicant Information Company: Espressif Systems Address: #101, Block 2, 690 Bibo Road, Zhang Jiang High-Tech Park, Shanghai, China 2.2. Manufacturer Information Company: Espressif Systems Address: #101, Block 2, 690 Bibo Road, Zhang Jiang High-Tech Park, Shanghai, China 2.3. Information of EUT General information EUT Description Product Name: ESP ANT B Model ESP ANT B HW Version: / SW Version: / Antenna Type: Fixed Antenna Antenna Manufacturer: Espressif Systems Test Frequency: 2400MHz ~ 2500MHz Test lab. of the antenna gain and rad…

Text truncated - open the document above for the full version.

Test Report

Note: This report may conta ★ in data that are not covered by the A2LA accreditation and are marked with an asterisk “ ”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 12: 2021-11-09 Page 1 of 75 FCC- BLE&2.4G Wi-Fi TEST REPORT Applicant Name : PVSure Pte Ltd Address : 31 Toh Guan Road East 06-02 Singapore 608608 Singapore Report Number : RA230130-04403E-RF-00B FCC ID: 2BAHAPVS01 Test Standard (s) FCC PART 15.247 Sample Description Product Type: PVBuddy TM Sensor Model No.: PVS01 Multiple Model(s) No.: N/A Trade Mark: N/A Date Received: 2023/01/30 Report Date: 2023/03/29 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Andy Yu Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: RA230130-04403E-RF-00B Version 12: 2021-11-09 Page 2 of 75 FCC- BLE&2.4G Wi-Fi TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 8 EUT EXERCISE SOFTWARE .......................................................................................................................................... 8 DUTY CYCLE ................................................................................................................................................................ 8 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................. 12 EXTERNAL I/O CABLE ................................................................................................................................................ 12 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 13 SUMMARY OF TEST RESULTS ............................................................................................................................. 14 TEST EQUIPMENT LIST ......................................................................................................................................... 15 FCC§15.247 (I), §1.1307 (B) (3) &§2.1091 – RF EXPOSURE ..................................................................................... 17 APPLICABLE STANDARD ............................................................................................................................................ 17 RESULT ...................................................................................................................................................................... 17 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 18 APPLICABLE STANDARD ............................................................................................................................................ 18 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 18 FCC §15.207 (A) – AC LINE CONDUCTED EMISSIONS .................................................................................... 19 APPLICABLE STANDARD ............................................................................................................................................ 19 EUT SETUP ................................................................................................................................................................ 19 EMI TEST RECEIVER SETUP ....................................................................................................................................... 19 TEST PROCEDURE ......................................................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Shenzhen Accurate Technology Co., Ltd. Project No.: RA230130-04403E-RF Test Photos Page 1 of 2 Photo of Conducted Emission Measurement Shenzhen Accurate Technology Co., Ltd. Project No.: RA230130-04403E-RF Test Photos Page 2 of 2 Photo of Radiated Emission Measurement (Below 1G) Photo of Radiated Emission Measurement (Above 1G)

Contact Information

Applicant

Kenneth Goh
[email protected]656593836718Fax: 656593836718

Test Firm

Shenzhen Accurate Technology Co., Ltd.Lisa Zhang
[email protected]+86-755-26503290

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.40 GHz - 2.48 GHz15.00 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device supports 20 MHz and 40 MHz bandwidth modes.
