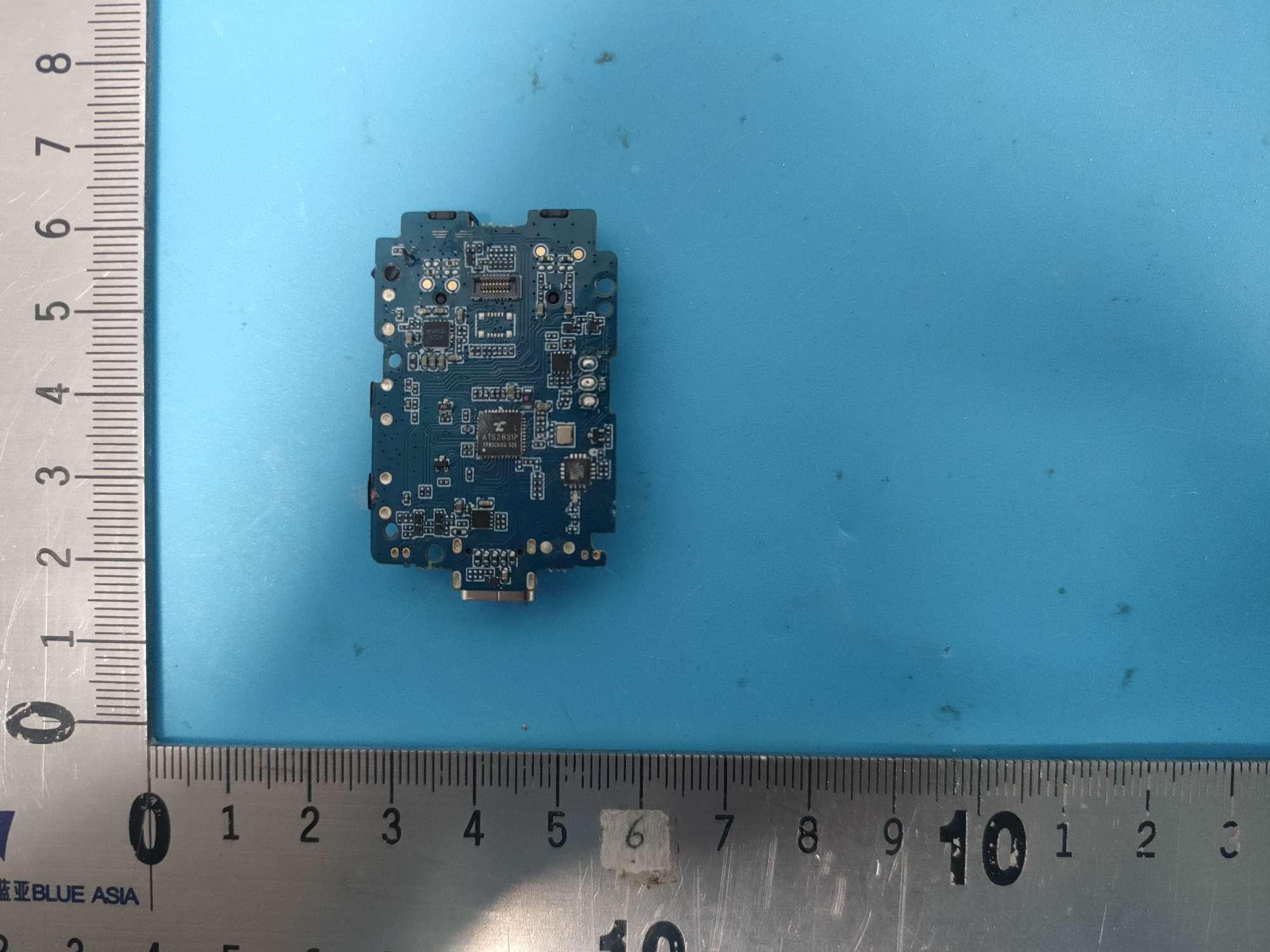

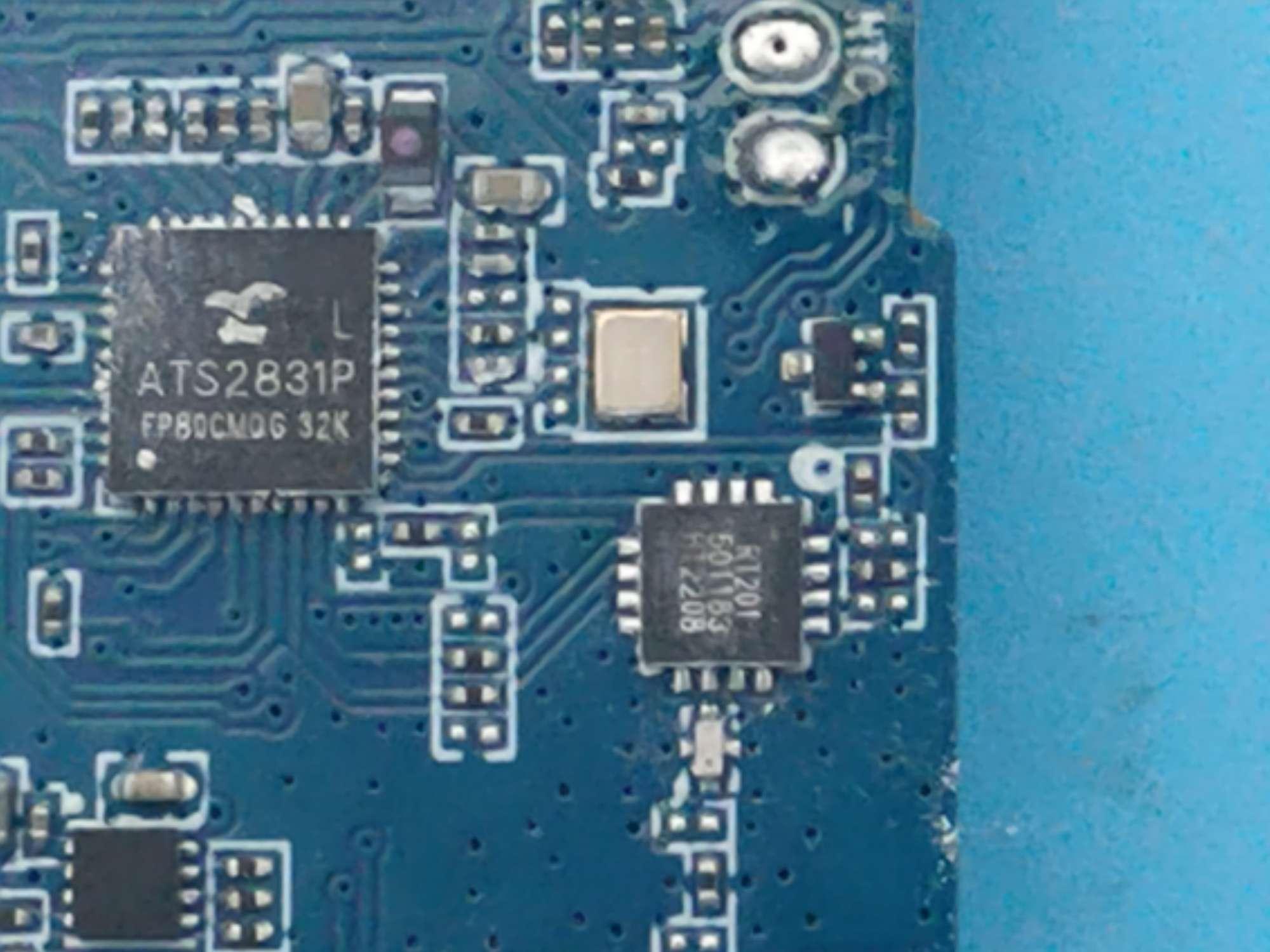

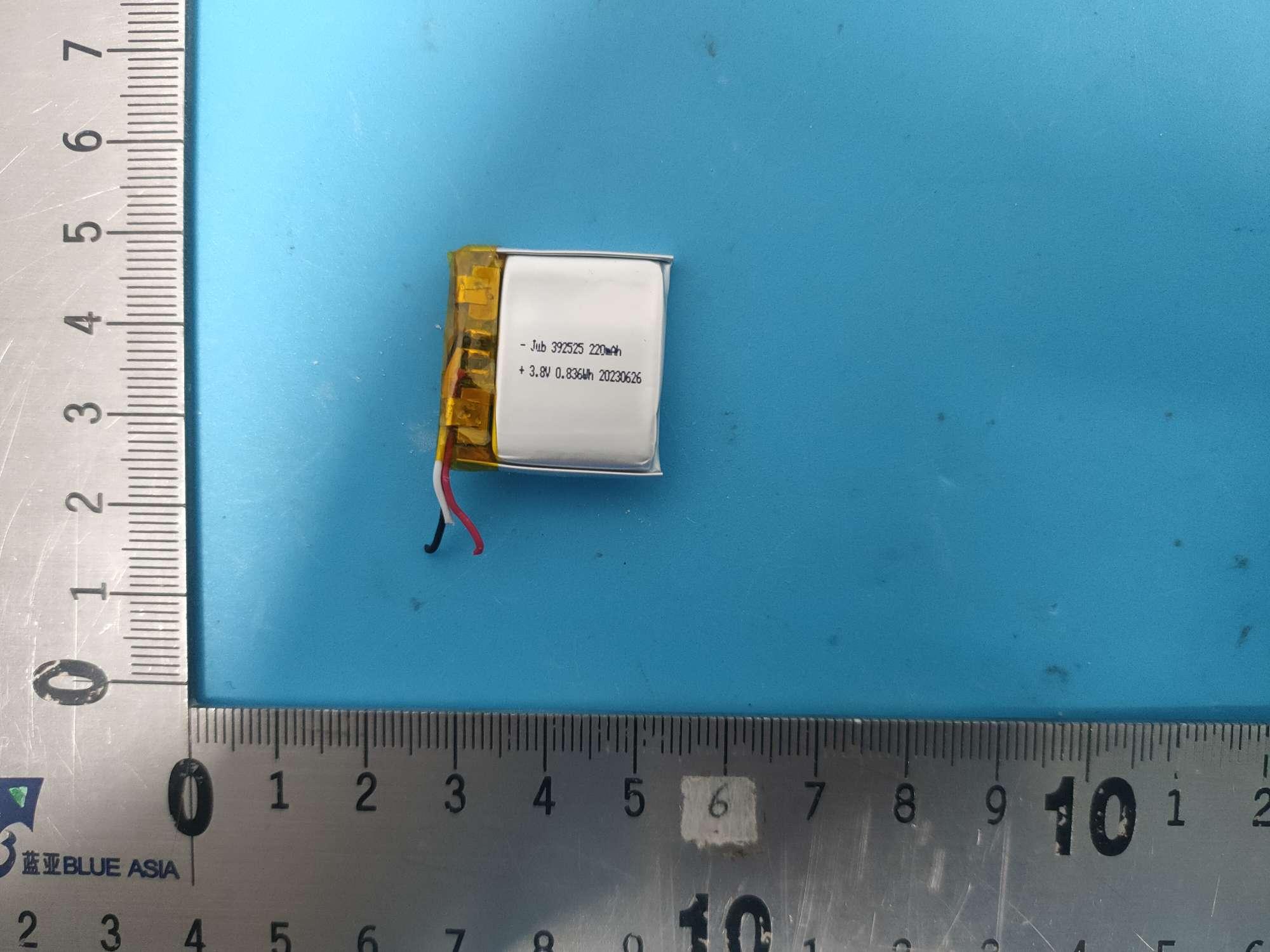

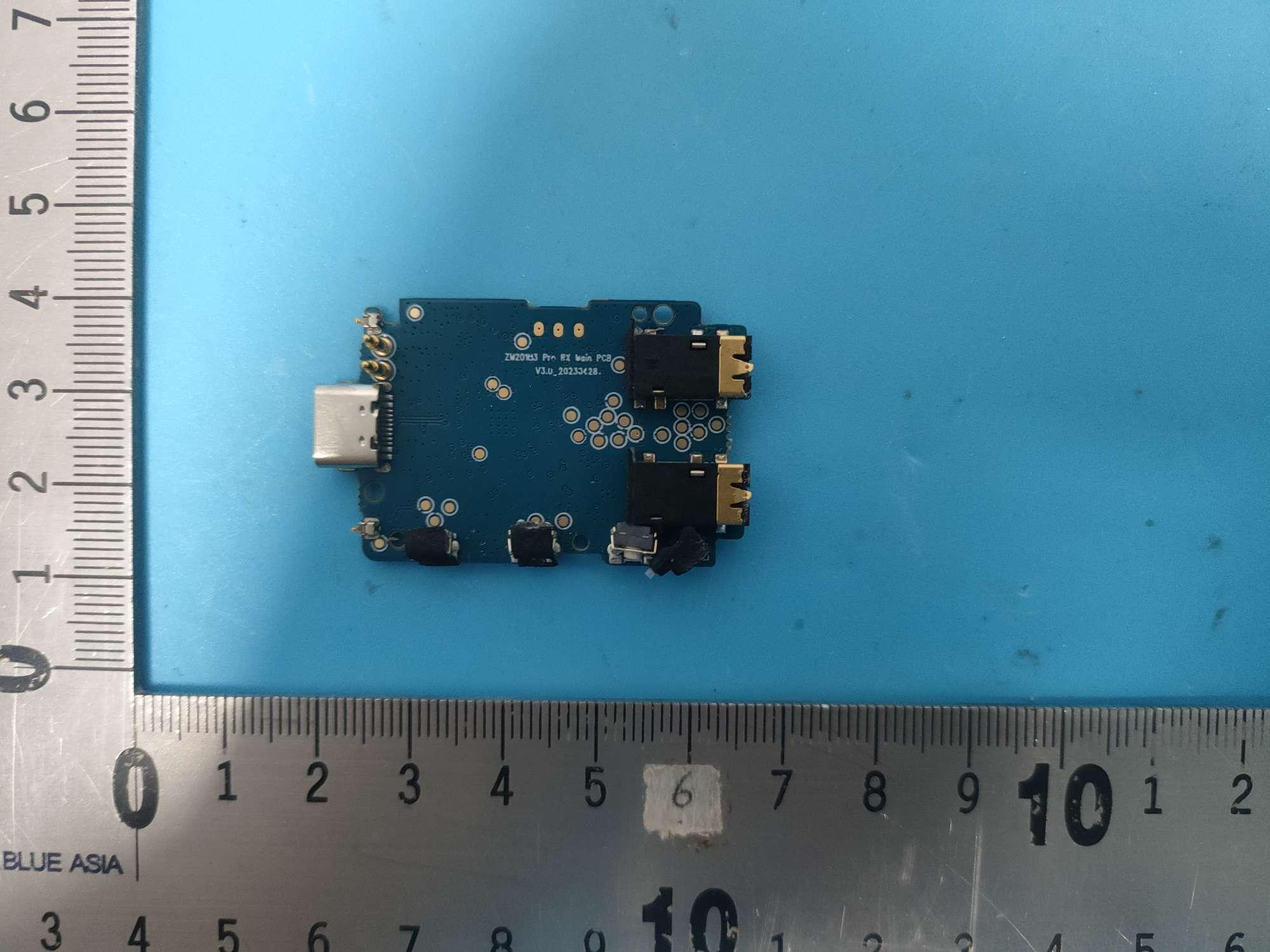

2BAHR-AWM20RXWireless Microphone

包装图纸 TITLE(名称) AWM20D_中性多语言说明书_V0 REV.(版本)： DESCRIPTION(描述)：DATE(日期)： 2023/07/26 SHEET(页数)： 1 OF 1 MATERIAL NO(物料编码) Z.BT.XXXXXXX SCALE: 比例： 1：1 UNITS: MM 单位：毫米 宁波蛙声科技有限公司 MODEL: 产品型号： COLOR: 颜色： 黑色 DRAW: 制图： 曾茵秀 姓名 姓名 CHKD: 审核： APPD: 审批： PMS 0000 PMS 0000 PMS 0000 PMS 0000 V0 打样文件 AWM20D 技术要求： 料号：Z.BT.XXXXXXX 文件名：AWM20D_中性多语言说明书_V0 尺寸：70*100mm 材质：120g铜版纸，单色印刷，骑马订 特别说明： NINGBO AUDITORYWORKS CO., LTD. EN EN03 0203040506 091007081112111314 1718151619202122 25262324 33343132 2728 2930 ENENCN DEDEDECNCNJPJPJP FRITITFRFRITESES KRRUKRES PT KR PT RURUPT CN06 DE09 JP12 FR15 IT18 ES21 KR24 RU27 PT30 CONTENTS USER MANUAL Version: V1 x 1x 1 x 1 x 1 x 1 x 1x 2 ④ ⑩ ⑤ ⑥ ⑨⑧ TX: Transmitter RX:Receiver ⑦ ⑨ ② ① ① ④ ⑤ ⑥ ⑧ ⑨ ⑦ ⑧ ③ ② ③ ① Status indicator light ② Built-in microphone ③ 3.5mm external microphone interface ④ TX charging indicator light ⑤ Power/noise reduction button ⑥ Mute/pairing button ⑦ Type-C charging interface ⑧ Charging contact ⑨ Back clip ① LCD display screen ② 3.5mm connection for phone and camera ③ 3.5mm headphone monitoring interface ④ RX charging indicator light ⑤ Power button ⑥ Volume + button ⑦ Volume - button ⑧ Type C charging interface/OTG interface ⑨ Charging contact ⑩ Back clip Used for charging TX, RX 3.5mm TRS to 3.5mm TRRS cable 2-in-1 Type-C Charging cable ① ① ② ③ ④ ②③④ 2.4GHz adaptive frequency hopping Pickup pattern Wireless transmission Omnidirectional Microphone frequency response20Hz-20KHz Maximum input sound pressure level 15H 87dBInput dynamic range 16bitsBit width 48KHzSampling rate 200m in unobstructed straight line, 50m in reverse directionTransmission distance Product Specifications TX: 7 hours, RX: 6 hoursBattery life Charging timeTX: 1.5 hours, RX: 1.5 hours Battery voltage and capacityTX: 3.7V 140mAh, RX: 3.8V 220mAh Dimensions TX: 52.5*25*10 mm (with back clip 16) RX: 48.5*34*12 mm (with back clip 18) Used for connecting RX to devices with Type C interface such as phones, tablets, and laptops Used for connecting RX's 3.5mm audio output interface to devices with a 3.5mm interface such as phones, tablets, and laptops Note: The working frequency band and wireless transmission power of the device may vary according to different countries and regions. Type C to Type C cable Used for connecting RX's 3.5mm audio output interface to digital cameras 3.5mm TRS to 3.5mm TRS cable TX: Transmetteur RX: Récepteur ② ① ④ ⑤ ⑥ ⑧ ⑨ ⑦ ⑧ ③ ① Indicateur d'état ② Microphone intégré ③ Connecteur de microphone externe 3.5 mm ④ Témoin de charge TX ⑤ Bouton d'alimentation/réduction du bruit ⑥ Bouton de sourdine/appariement ⑦ Port de charge de type C ⑧ Contact de charge ⑨ Clip magnétique ① Écran LCD ② Connexion 3,5 mm pour téléphone et appareil photo ③ Interface de surveillance du casque 3,5 mm ④ Témoin de charge RX ⑤ Bouton d'alimentation ⑥ Bouton de volume + ⑦ Bouton de volume - ⑧ Interface de charge Type C/OTG ⑨ Contact de charge ⑩ Clip magnétique Utilisé pour charger le TX, le RX Câble 3,5 mm TRS vers 3,5 mm TRRS Câble de charge double tête Type C ① ① ② ③ ④ ②③④ Saut de fréquence adaptatif 2,4 GHz Mode de capture Transmission sans fil Omnidirectionnel Réponse en fréquence du microphone 20 Hz-20 kHz Niveau de pression acoustique d'entrée maximal 15H 87dBPlage dynamique d'entrée 16bitsProfondeur de bits 48 kHzTaux d'échantillonnage 200 m en ligne droite sans obstacle, 50 m en sens inverseDistance de transmission Spécifications du produit TX : 7 heures, RX : 6 heuresAutonomie de la batterie Temps de charge TX : 1,5 heures, RX : 1,5 heures Tension et capacité de la batterie TX : 3,7V 140mAh, RX : 3,8V 220mAh Dimensions TX : 52,5*25*10 mm (avec pince arrière 16) RX : 48,5*34*12 mm (avec pince arrière 18) Utilisé pour connecter le RX à des appareils avec une interface Type C tels que des téléphones, des tablettes et des ordinateurs portables Utilisé pour connecter l'interface de sortie audio 3,5 mm du RX à des appareils avec une interface 3,5 mm tels que des téléphones, des tablettes et des ordinateurs portables Remarque : La bande de fréquence de fonctionnement et la puissance d'émission sans fil de l'appareil peuvent varier en fonction des pays et des régions. Câble Type C vers Type C Utilisé pour connecter l'interface de sortie audio 3,5 mm du RX à des appareils photo numériques Câble 3,5 mm TRS vers 3,5 mm TRS ④ ⑩ ⑤ ⑥ ⑨⑧ TX: Sender RX: Empfänger ⑦ ⑨ ② ① ① ④ ⑤ ⑥ ⑧ ⑨ ⑦ ⑧ ③ ② ③ ① Statusanzeige ② Eingebautes Mikrofon ③ 3,5 mm externer Mikrofonanschluss ④ TX-Ladeanzeige ⑤ Ein-/Aus-Taste/Rauschunterdrück ungstaste ⑥ Taste zur Stummschaltung/ Koppelung ⑦ Typ-C Ladeanschluss ⑧ Ladekontakt ⑨ Rückenclip ① LCD-Display ② 3,5 mm Anschluss für Mobiltelefon und Kamera ③ 3,5 mm Kopfhörerüberwachungsanschluss ④ RX-Ladeanzeige ⑤ Ein-/Aus-Taste ⑥ Lautstärke + Taste ⑦ Lautstärke - Taste ⑧Typ-C Ladeanschluss/OTG-Anschluss ⑨ Ladekontakt ⑩ Rückenclip 2,4 GHz adaptive Frequenzhopping Aufnahmemuster Kabellose Übertragung omnidirektional Mikrofon-Frequenzgang20 Hz-20 kHz Maximaler Eingangs-Schalldruckpegel 15H 87dBEingangs-Dynamikbereich 16 BitBit-Tiefe 48 kHzAbtastrate 200 m im barrierefreien Raum, 50 m in umgekehrter RichtungÜbertragungsentfernung Produktspezifikationen TX:7 Stunden, RX: 6 StundenBatterielaufzeit LadezeitTX: 1,5 Stunden, RX: 1,5 Stunden Batteriespannung und -kapazitätTX: 3,7V 140mAh，RX: 3,8V 220mAh Abmessungen TX: 52,5*25*10 mm (mit Rückenclip 16) RX: 48,5*34*12 mm (mit Rückenclip 18) Hinweis: Die Arbeitsfrequenzbandbreite und die drahtlose Übertragungsleistung des Geräts können je nach Land und Region variieren. ④ ⑩ ⑤ ⑥ ⑨⑧ TX: Trasmettitore RX: Ricevitore ⑦ ⑨ ② ① ① ④ ⑤ ⑥ ⑧ ⑨ ⑦ ⑧ ③ ② ③ ① Indicatore di stato ② Microfono incorporato ③ Interfaccia microfono esterno 3,5 mm ④ Indicatore di ricarica TX ⑤ Pulsante di accensione/riduzione del rumore ⑥ Pulsante di silenziamento/ accoppiamento ⑦ Interfaccia di ricarica Type-C ⑧ Contatto di ricarica ⑨ Clip posteriore ① Schermo LCD ② Connessione 3,5 mm per telefono e fotocamera ③ Interfaccia di monitoraggio cuffie 3,5 mm ④ Indicatore di ricarica RX ⑤ Pul…

Text truncated - open the document above for the full version.

NINGBO AUDITORYWORKS CO.,LTD. (date)2023/8/15 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID:2BAHR-AWM20RX) [NINGBO AUDITORYWORKS CO.,LTD.](“the applicant”) certifies that the equip ment for n which authorization is sought is not “covered” equipment prohibited from receiving a equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name):Winnie Chen NINGBO AUDITORYWORKS CO.,LTD. (date)2023/8/15 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:2BAHR-AWM20RX) [NINGBO AUDITORYWORKS CO.,LTD.]as of the date of the yfiling of the application, the applicant is not identified on the Covered List as an entit producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name): Winnie Chen

FRN0033495169

FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland2104 DATE:2023/8/15 6 AuthoritytoActasAgent Onourbehalf,IappointBlueAsiaofTechnicalServices(Shenzhen)Co.,LtdAnd BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict,Shenzhen, GuangdongProvince,China(NameofAgentcompanynameandaddress)toactasour agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on ourbehalf, I acknowledge that all responsibility for complying with the terms and conditionsfor certification, still resides withNINGBO AUDITORYWORKS CO., LTD.And F3-314LingqiaoRoad229, HaishuDistrict,NingboCity,ZhejiangProvince,China (Applicant Name and address) <Signature> NameWinnie Chen TitleCertification Engineer CompanyNINGBO AUDITORYWORKS CO., LTD.

DATE2023/8/15 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: _2BAHR-AWM20RX__ Product Name:Wireless Microphone Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The pu BLA-EMC-202307A98 blic disclosure of this inf ormation might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name：Winnie Chen Title ： Certification Engineer Company：NINGBO AUDITORYWORKS CO., LTD.

Product Name : Wireless Microphone Model No. : AW-AWM20T, AW-AWM20D, AW-AWM21T, AW-AWM22T, AW-AWM23T, AW-AWM24T, AW-AWM25T, AW-AWM26T, AW-AWM27T, AW-AWM28T, AW-AWM29T, AW-AWM21D, AW-AWM22D, AW-AWM23D, AW-AWM24D, AW-AWM25D, AW-AWM26D, AW-AWM27D, AW-AWM28D, AW-AWM29D FCC ID : 2BAHR-AWM20RX All above models are identical in the same PCB layout, interior structure and electrical circuits. The differences are model name for commercial purpose. <Signature> Name：Winnie Chen Title：Certification Engineer Company： NINGBO AUDITORYWORKS CO., LTD.

ProductName: WirelessMicrophone

RFExposureevaluation ProductName: WirelessMicrophone FCCID: 2BAHR-AWM20RX TestStandard: KDB447498D04GeneralRFExposureGuidance v01 Accordingto447498D04InterimGeneralRFExposureGuidancev01 Ant gain = -2.42 dBi MAX output power ：-1.05dBm@2402MHz ERP=-1.05-2.42-2.15=-5.62dBm WORSE CASE: 10^-0.105=0.7852mW < 2.715 mW Then SAR evaluation is not required

安特微智能通讯（深圳）有限公司 本规格书属于安特微智能通讯（深圳）有限公司与相关客户机密存档，请妥善保管，未经我司与相关客户许可，任何人不得对外泄漏。 第 1 页 共 10 页 安特微智能通讯（深圳）有限公司 Ante intelligent Communications(shenzhen)CO.,Ltd 编号：ATW-GC-003 A/0 天线承认书ANT APPROVAL 客户名称Customer：臻柏声学 客户料号Customer P/N：G06120000003 物料编码Material Code：ATWE-01-0436-010 产品名称Product Name：ZM201-Pro-RX-2.4G 天 线 天线签发日期Issued Date：2023-04-27 厂商承认栏Supplier confirm: 拟制 Prepared by 审核 Reviewed by 批准 Approved by 客户承认栏Custo mer co nfirm： 确认 Checked by 审核 Reviewed by 批准 Approved by 安特微智能通讯（深圳）有限公司 本规格书属于安特微智能通讯（深圳）有限公司与相关客户机密存档，请妥善保管，未经我司与相关客户许可，任何人不得对外泄漏。 第 2 页 共 10 页 目录Index 承认书封面Cover ............................................................................................1 目录清单Index.... ......................................................... ......................................2 变更记录Change history........... .......................................................................3 一、承认书目的Purpose.................... .............. .............. .....................................4 二、产品材料Product material.. ........................... .........................................4 三、天线测试数据ANT Test data.... .............. .............. ................................5-7 四、可靠性测试报告Reliability testing report......... .............. ..................8 五、结构图纸 Construction drawing............ .............. ...................................9 六、包装方式 Pakage Method............... .............. .............. ...............................10 安特微智能通讯（深圳）有限公司 本规格书属于安特微智能通讯（深圳）有限公司与相关客户机密存档，请妥善保管，未经我司与相关客户许可，任何人不得对外泄漏。 第 3 页 共 10 页 制/修订变更履历表Change history 版本 Version 日期 Date 变更描述 Description 备注 Remark V0 2023-04-27 初版 安特微智能通讯（深圳）有限公司 本规格书属于安特微智能通讯（深圳）有限公司与相关客户机密存档，请妥善保管，未经我司与相关客户许可，任何人不得对外泄漏。 第 4 页 共 10 页 一、目的Purpose： 1. 通过本承认书对产品特性和检验标准的描述，与客户之间能够更好地进行沟通，达成一致的意见， 避免因未充分沟通引起的产品质量纠纷。Through the description of product characteristics and inspection standards in this recognition letter, we can better communicate with customers, reach a consensus, and avoid product quality disputes caused by insufficient communication. 2. 本司产品需要在贵司外协工厂使用时，请将本承认书内容联络贵司外协。 When our products need to be used in your outsourcing factory, please contact your outsourcing company for the content of this acknowledgment. 3. 使用环境的注意事项Precautions for Operating Environment： FPC 天线是按照一般使用环境设计的（0～25 摄氏度，温度 30%～70%常压） 。在以下场合长时间使 用时会降低产品的质量，使用时请注意： The FPC antenna is designed according to the general usage environment (0-25 degrees Celsius, temperature 30-70% atmospheric pressure). Prolonged use in the following situations can reduce the quality of the product. Please note when using: 3.1. 还原性气体（C12，H2S，NH3 等）Reducing gases (C12, H2S, NH3, etc.)。 3.2. 挥发性/易烯性气体环境Volatile/flammable gas environment。 3.3. 直接接触水或湿度较大结露的场所Places in direct contact with water or with high humidity and condensation。 3.4. 油脂、药液、有机溶液的场所Places for fats, medicinal liquids, and organic solutions。 3.5. 震动的场所Place of vibration。 3.6. 阳光直射的场所Places with direct sunlight。 4、保管与使用Storage and Use 为防止产品变色，可焊性下降，以及在装配时发生发泡异常，需遵守以下保管条件。 To prevent product discoloration, decreased solderability, and abnormal foaming during assembly, the following storage conditions must be observed. 4.1. 高温高湿环境会导致产品变色，建议在恒温、恒湿的环境中管理保管。High temperature and humidity environments can cause product discoloration. It is recommended to manage and store in a constant temperature and humidity environment。 4.2. FPC 的 PI 薄膜非常容易吸湿，在吸湿状态如果温度急剧变化会产生发泡现象， 建议在装配（SMT等）之前按照条件进行预备烘烤。烘烤后的产品请尽量在2HR内使用。The PI film of FPC is very hygroscopic, and if the temperature changes sharply in the hygroscopic state, foaming phenomenon will occur.It is recommended to prepare and bake according to the conditions before assembly (SMT, etc.). Please try to use the baked product within 2HR as much as possible 二、产品材料Product material： FPC 基材FPC Material 电解铜,一对一材质.单面板Electrolytic copper, one-on-one material, single panel 3M 胶纸3M tape 3M9471 表面处理Surface Treatment 丝印哑光黑油/哑白字符Silk screen matte black oil/matte white characters 安特微智能通讯（深圳）有限公司 本规格书属于安特微智能通讯（深圳）有限公司与相关客户机密存档，请妥善保管，未经我司与相关客户许可，任何人不得对外泄漏。 第 5 页 共 10 页 三、天线测试数据ANT Test Data 4.1 天线匹配电路Antenna matching circuit 4.2 无源数据（回波损耗）Passive Data (Return Loss) 安特微智能通讯（深圳）有限公司 本规格书属于安特微智能通讯（深圳）有限公司与相关客户机密存档，请妥善保管，未经我司与相关客户许可，任何人不得对外泄漏。 第 6 页 共 10 页 4.4 天线效率Antenna efficiency 4.5 2D 方向图 2D directional map 安特微智能通讯（深圳）有限公司 本规格书属于安特微智能通讯（深圳）有限公司与相关客户机密存档，请妥善保管，未经我司与相关客户许可，任何人不得对外泄漏。 第 7 页 共 10 页 4.6 3D 方向图 3D directional map 4.7 实物图 Physical image 安特微智能通讯（深圳）有限公司 本规格书属于安特微智能通讯（深圳）有限公司与相关客户机密存档，请妥善保管，未经我司与相关客户许可，任何人不得对外泄漏。 第 8 页 共 10 页 四、可靠性测试报告 Reliability Test Report 检测项目 Test Item ZM201-Pro-RX-2.4G ZM201-Pro-RX-2.4G 天线 ANT 试验方法Test Method 判定标准Judgment criteria 判定 镀层附着力测 试 3M600 胶带测试镀层 无脱落 OK，否则 NG OK 热应力测试 预烘 120°C升温至 280°C,取出烘干 分层、气泡 NG OK 40X 体视镜观察 通孔铜层断裂、分层 NG OK 可焊性测试 将产品放入阻焊剂预浸, 在放入 235°C±5°C锡炉浸锡 10 秒 导线变色、分层、气泡 NG OK 40X 体视镜观察 上锡达焊盘 95%以上 OK，否则 NG OK 耐焊性测试 将产品放入阻焊剂预浸, 在放入 235°C±5°C锡炉浸锡 10 秒 焊盘上锡 OK，否则 NG OK 用 3M 胶带测 试 用 3M 胶带测试 用 3M 胶带测试，热固胶（补强板） 无脱落、分层。 OK 用 3M 胶带测试，压敏胶（补强板） 无脱落、分层。 OK 用 3M 胶带测试，基材无脱落、分层。 OK 用 3M 胶带测试，保护膜无脱落、分 层。 OK 弯折性试验 从产品中取 5PCS, 拿住试样的一 端，使它围绕 1mm 的针规,以试样 弯折区部位为轴心，往一个方向弯 折 180 度 15 次 表面出现严重皱折,电器性能无影 响 OK OK 40X 体视镜观察 铜面无断裂 OK OK 测试：杨美珍 审核：邓平 结果判定： 合格 安特微智能通讯（深圳）有限公司 本规格书属于安特微智能通讯（深圳）有限公司与相关客户机密存档，请妥善保管，未经我司与相关客户许可，任何人不得对外泄漏。 第 10 页 共 10 页 五、结构尺寸图纸 Construction drawing 安特微智能通讯（深圳）有限公司 本规格书属于安特微智能通讯（深圳）有限公司与相关客户机密存档，请妥善保管，未经我司与相关客户许可，任何人不得对外泄漏。 第 10 页 共 10 页 六、包装方式Pakage method ATWE产品包装规范 Product Packaging Specification 产品名称：ZM201-Pro-RX-2.4G天线 Product Name: ZM201-Pro-RX-2.4G ANT 版本：V0 一、半切模整版排废出货--实际排版数量以量产正式开模为准。 （排版参考示意图） 二、整版套入PE 封口袋封装---数量以实际订单为准。 三、装大箱。（数量以实际订单与包装数量为准） 四、封箱，外箱贴我司生产标签和ROHS标签 注：由于该项目未进行试产及正式量产，以上包装方式仅供参考，具体包装以试产订单或正式量产为准！

Page 1 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Add:BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict,Shenzhen,GuangdongProvince,China Tel:+86-755-23059481Email:[email protected] TESTREPORT ProductName: WirelessMicrophone BrandMark: N/A ModelNo.: AW-AWM20T Extensionmodel: AW-AWM20D,AW-AWM21T,AW-AWM22T, AW-AWM23T,AW-AWM24T,AW-AWM25T, AW-AWM26T,AW-AWM27T,AW-AWM28T, AW-AWM29T,AW-AWM21D,AW-AWM22D, AW-AWM23D,AW-AWM24D,AW-AWM25D, AW-AWM26D,AW-AWM27D,AW-AWM28D, AW-AWM29D ReportNumber: BLA-EMC-202307-A9801 FCCID: 2BAHR-AWM20RX DateofSampleReceipt: 2023/7/24 DateofTest: 2023/7/26to2023/8/23 DateofIssue: 2023/8/23 TestStandard: 47CFRPart15,SubpartC15.247 TestResult:Pass Preparedfor: NINGBOAUDITORYWORKSCO.,LTD. 3-314LingqiaoRoad229,HaishuDistrict,NingboCity,ZhejiangProvince, China Preparedby: BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict, Shenzhen,GuangdongProvince,China TEL:+86-755-23059481 Compiledby:Reviewby: Approvedby:Date:2023/8/23 ReportNo.:BLA-EMC-202307-A9801 Page 2 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] REPORTREVISERECORD VersionNo.DateDescription 002023/8/23Original ReportNo.:BLA-EMC-202307-A9801 Page 3 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] TABLEOFCONTENTS 1TESTSUMMARY........................................................................................................................................5 2GENERALINFORMATION.........................................................................................................................6 3GENERALDESCRIPTIONOFE.U.T..........................................................................................................6 4TESTENVIRONMENT................................................................................................................................8 5TESTMODE................................................................................................................................................8 6MEASUREMENTUNCERTAINTY..............................................................................................................8 7DESCRIPTIONOFSUPPORTUNIT..........................................................................................................9 8LABORATORYLOCATION.........................................................................................................................9 9TESTINSTRUMENTSLIST......................................................................................................................10 10CONDUCTEDEMISSIONSATACPOWERLINE(150KHZ-30MHZ).....................................................12 10.1LIMITS................................................................................................................................................................12 10.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................12 10.3PROCEDURE.......................................................................................................................................................12 10.4TESTDATA...........................................................................................................................................................14 11CONDUCTEDBANDEDGESMEASUREMENT.....................................................................................17 11.1LIMITS................................................................................................................................................................17 11.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................17 11.3TESTDATA...........................................................................................................................................................18 12RADIATEDSPURIOUSEMISSIONS........................................................................................................19 12.1LIMITS................................................................................................................................................................19 12.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................20 12.3PROCEDURE.......................................................................................................................................................20 12.4TESTDATA...........................................................................................................................................................22 13RADIATEDEMISSIONSWHICHFALLINTHERESTRICTEDBANDS.................................................31 13.1LIMITS................................................................................................................................................................31 13.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................32 13.3PROCEDURE.......................................................................................................................................................32 13.4TESTDATA...........................................................................................................................................................34 14CONDUCTEDSPURIOUSEMISSIONS...................................................................................................39 14.1LIMITS................................................................................................................................................................39 ReportNo.:BLA-EMC-202307-A9801 Page 4 of 86 BlueAsiaofTe…

Text truncated - open the document above for the full version.

ReportNo.:BLA-EMC-202307-A9801 Page 61 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] ReportNo.:BLA-EMC-202307-A9801 Page 62 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdge ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant1-52.31-30Pass NVNTBLE1M2480Ant1-52.34-30Pass NVNTBLE2M2402Ant1-52.35-30Pass NVNTBLE2M2480Ant1-50.71-30Pass BandEdgeNVNTBLE1M2402MHzAnt1Ref BandEdgeNVNTBLE1M2402MHzAnt1Emission ReportNo.:BLA-EMC-202307-A9801 Page 63 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdgeNVNTBLE1M2480MHzAnt1Ref BandEdgeNVNTBLE1M2480MHzAnt1Emission ReportNo.:BLA-EMC-202307-A9801 Page 64 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdgeNVNTBLE2M2402MHzAnt1Ref BandEdgeNVNTBLE2M2402MHzAnt1Emission ReportNo.:BLA-EMC-202307-A9801 Page 65 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdgeNVNTBLE2M2480MHzAnt1Ref BandEdgeNVNTBLE2M2480MHzAnt1Emission ReportNo.:BLA-EMC-202307-A9801 Page 66 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] ReportNo.:BLA-EMC-202307-A9801 Page 67 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] ConductedRFSpuriousEmission ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant1-38.86-30Pass NVNTBLE1M2442Ant1-41.48-30Pass NVNTBLE1M2480Ant1-41.65-30Pass NVNTBLE2M2402Ant1-42.05-30Pass NVNTBLE2M2442Ant1-40.28-30Pass NVNTBLE2M2480Ant1-40.68-30Pass Tx.SpuriousNVNTBLE1M2402MHzAnt1Ref Tx.SpuriousNVNTBLE1M2402MHzAnt1Emission ReportNo.:BLA-EMC-202307-A9801 Page 68 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Tx.SpuriousNVNTBLE1M2442MHzAnt1Ref Tx.SpuriousNVNTBLE1M2442MHzAnt1Emission ReportNo.:BLA-EMC-202307-A9801 Page 69 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Tx.SpuriousNVNTBLE1M2480MHzAnt1Ref Tx.SpuriousNVNTBLE1M2480MHzAnt1Emission ReportNo.:BLA-EMC-202307-A9801 Page 70 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Tx.SpuriousNVNTBLE2M2402MHzAnt1Ref Tx.SpuriousNVNTBLE2M2402MHzAnt1Emission ReportNo.:BLA-EMC-202307-A9801 Page 71 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Tx.SpuriousNVNTBLE2M2442MHzAnt1Ref Tx.SpuriousNVNTBLE2M2442MHzAnt1Emission ReportNo.:BLA-EMC-202307-A9801 Page 72 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Tx.SpuriousNVNTBLE2M2480MHzAnt1Ref Tx.SpuriousNVNTBLE2M2480MHzAnt1Emission ReportNo.:BLA-EMC-202307-A9801 Page 73 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] ReportNo.:BLA-EMC-202307-A9801 Page 74 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] APPENDIXA:PHOTOGRAPHSOFTESTSETUP RadiatedSpuriousEmissions ReportNo.:BLA-EMC-202307-A9801 Page 75 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] ConductedEmissionsatACPowerLine(150kHz-30MHz) ReportNo.:BLA-EMC-202307-A9801 Page 76 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] APPENDIXB:PHOTOGRAPHSOFEUT ReportNo.:BLA-EMC-202307-A9801 Page 77 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] ReportNo.:BLA-EMC-202307-A9801 Page 78 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] ReportNo.:BLA-EMC-202307-A9801 Page 79 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] ReportNo.:BLA-EMC-202307-A9801 Page 80 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] RXmodel:

ReportNo.:BLA-EMC-202307-A9801 Page 31 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 13RADIATEDEMISSIONSWHICHFALLINTHERESTRICTEDBANDS TestStandard47CFRPart15,SubpartC15.247 TestMethodANSIC63.10(2013)Section6.10.5 TestMode(Pre-Scan)TX TestMode(FinalTest)TX TesterJozu Temperature25°C Humidity60% 13.1LIMITS Frequency(MHz) Field strength(microvolts/meter) Measurement distance(meters) 0.009-0.4902400/F(kHz)300 0.490-1.70524000/F(kHz)30 1.705-30.03030 30-881003 88-2161503 216-9602003 Above9605003 Remark:Theemissionlimitsshownintheabovetablearebasedonmeasurementsemployinga CISPRquasi-peakdetectorexceptforthefrequencybands9-90kHz,110-490kHzandabove1000 MHz.Radiatedemissionlimitsinthesethreebandsarebasedonmeasurementsemployingan averagedetector,thepeakfieldstrengthofanyemissionshallnotexceedthemaximumpermitted averagelimitsspecifiedabovebymorethan20dBunderanyconditionofmodulation. ReportNo.:BLA-EMC-202307-A9801 Page 32 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 13.2BLOCKDIAGRAMOFTESTSETUP 13.3PROCEDURE a.Forbelow1GHz,theEUTwasplacedonthetopofarotatingtable0.8metersabovethegroundata3 or10metersemi-anechoicchamber.Thetablewasrotated360degreestodeterminethepositionofthe highestradiation. b.Forabove1GHz,theEUTwasplacedonthetopofarotatingtable1.5metersabovethegroundata3 meterfully-anechoicchamber.Thetablewasrotated360degreestodeterminethepositionofthehighest radiation. c.TheEUTwasset3or10metersawayfromtheinterference-receivingantenna,whichwasmountedon thetopofavariable-heightantennatower. d.Theantennaheightisvariedfromonemetertofourmetersabovethegroundtodeterminethe maximumvalueofthefieldstrength.Bothhorizontalandverticalpolarizationsoftheantennaaresetto makethemeasurement. e.Foreachsuspectedemission,theEUTwasarrangedtoitsworstcaseandthentheantennawastuned toheightsfrom1meterto4meters(forthetestfrequencyofbelow30MHz,theantennawastunedto heights1meter)andtherotatabletablewasturnedfrom0degreesto360degreestofindthemaximum reading. f.Thetest-receiversystemwassettoPeakDetectFunctionandSpecifiedBandwidthwithMaximumHold Mode. g.IftheemissionleveloftheEUTinpeakmodewas10dBlowerthanthelimitspecified,thentesting couldbestoppedandthepeakvaluesoftheEUTwouldbereported.Otherwisetheemissionsthatdidnot have10dBmarginwouldbere-testedonebyoneusingpeak,quasi-peakoraveragemethodasspecified andthenreportedinadatasheet. ReportNo.:BLA-EMC-202307-A9801 Page 33 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] h.TesttheEUTinthelowestchannel,themiddlechannel,theHighestchannel. i.TheradiationmeasurementsareperformedinX,Y,ZaxispositioningforTransmittingmode,andfound theXaxispositioningwhichitistheworstcase. j.Repeataboveproceduresuntilallfrequenciesmeasuredwascomplete. Remark1:Level=ReadLevel+CableLoss+AntennaFactor-PreampFactor Remark2:Forfrequenciesabove1GHz,thefieldstrengthlimitsarebasedonaveragelimits.However, thepeakfieldstrengthofanyemissionshallnotexceedthemaximumpermittedaveragelimitsspecified abovebymorethan20dBunderanyconditionofmodulation.Fortheemissionswhosepeaklevelis lowerthantheaveragelimit,onlythepeakmeasurementisshowninthereport. ReportNo.:BLA-EMC-202307-A9801 Page 34 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 13.4TESTDATA [TestMode:TXlowchannel];[Polarity:Horizontal] TestResult:Pass ReportNo.:BLA-EMC-202307-A9801 Page 35 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXlowchannel];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202307-A9801 Page 36 of 86 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-2305…

Text truncated - open the document above for the full version.
