2BAI2-BC062bedwetting alarm

wireless wet urine alarm BC062 electric quantity mode key Urine moisture sensing transmitter Power indicator light Ring mode Vibration mode Child lockSound+ Vibration Time display indicator light power switch Timing button Introduction to products： 210*90mm 折后：70*90mm 1:Power supply: Long press for 2 seconds to switch the machine on and off. 2:Mode selection: Long press the mode button for 2 seconds, the mode icon on the screen flickers and jumps, press it once to switch mode selection, adjust to the required mode, and then stop blinking for 2 seconds to automatically determine the current mode. 3Timing setting: Hold down the button for 2 seconds to start the timing, and the time icon on the screen flashes and pulsates. Press the button once to switch between different times. When the time is adjusted to the required time, it will blink for 2 seconds and stop blinking to automatically determine the selected time. After timing is enabled, long press for 2 seconds to turn off the timing function. 4Electric power and charging: when the electric power is low, the electric power icon flashes red light, indicating the need for charging. When connected to the charger, the red light breathing indicates charging, and when fully charged, the green light is steady on. In normal use, the green light is steady on when the battery is full. 5Mode: Vibration, Sound, Sound + Vibration: When the mode is set to this mode, the icon will be always on, and the corresponding light on the screen will automatically turn off after 1 minute of standby. Press any key to wake up. 6Warning light: when wet urine is triggered, the red light blinks, the beep and vibration are selected according to the mode, and the blue light blinks when the alarm is triggered regularly. There are two kinds of sounds (the sound and vibration are selected according to the mode). 7Wet the sender induction, when clip induction into the water, across the conduction short-circuit, send alarm signal to the host, the host sends an alarm, the host can be any cancel tips, cancel within 1 minute after prompt clip does not open the host alarm prompt again trigger alarm, clip opens, need alarm manual press any key to clear the alarm transmitter power lights: When the power level is low, the light flickers, the red light is displayed when charging, and the green light is steady on when fully charged. When the power level is sufficient, the light is off. (energy saving) Product Specifications parts list classificationParameterNote The rated voltage Charging voltage Rated current (DC) Rated power (DC) Electrical parameters Battery parameters Product parameters Specificationquantity 1 1 1 1 white 60CM FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Shenzhen XinLianFeng Technology CO.,LTD 2023.03.13 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BAI2-BC062 Shenzhen XinLianFeng Technology CO.,LTD certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Applicant signature: Applicant printed name: Chai Kam Shenzhen XinLianFeng Technology CO.,LTD 2023.03.13 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BAI2-BC062 Shenzhen XinLianFeng Technology CO.,LTD certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Applicant signature: Applicant printed name: Chai Kam

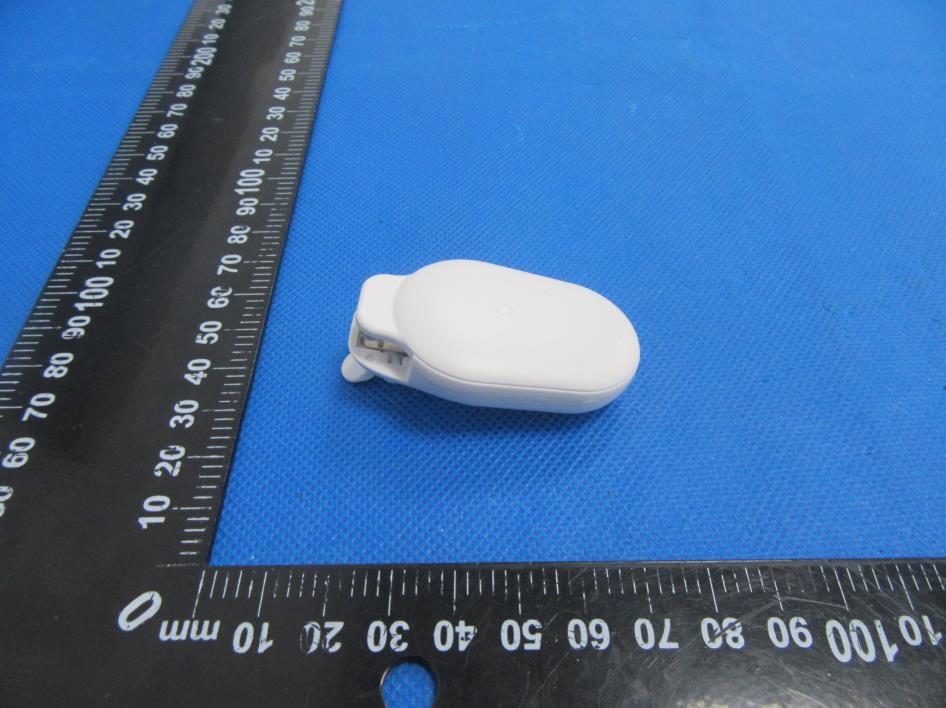

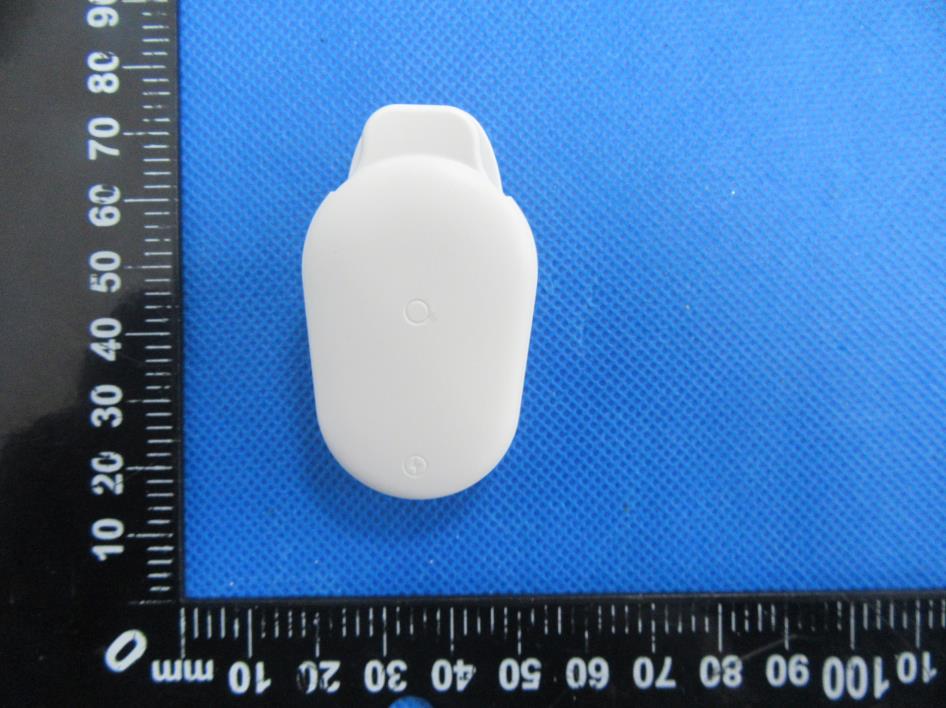

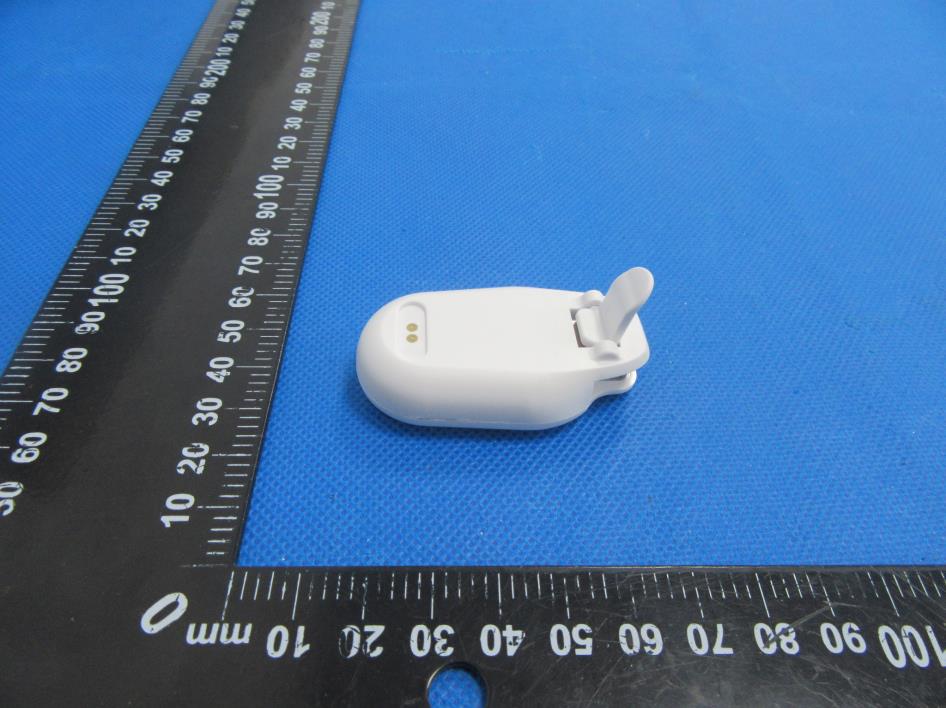

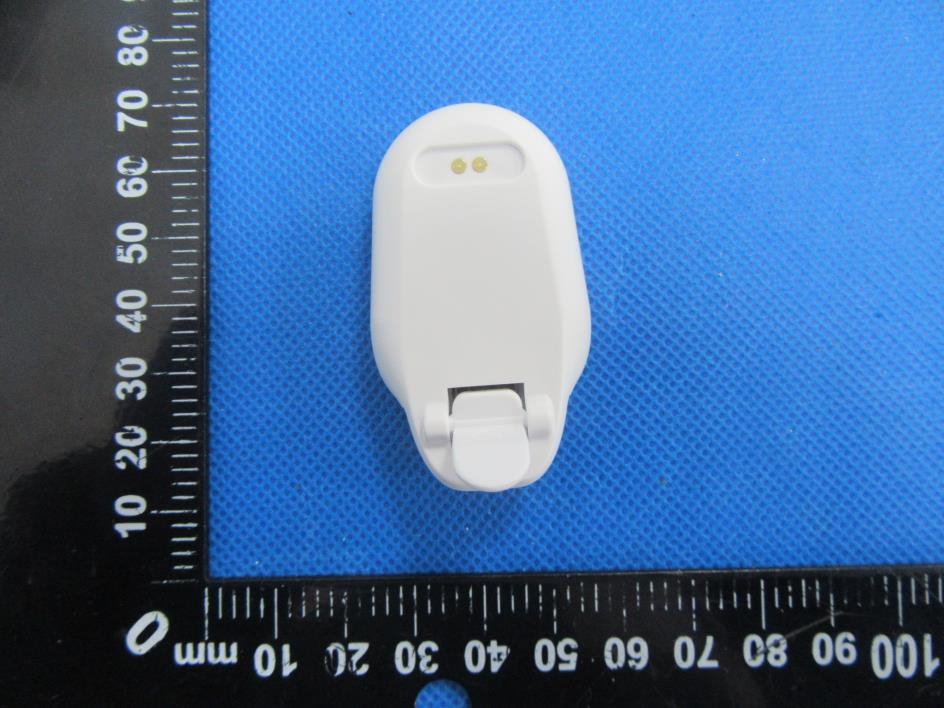

External Photos

10*5mm Label Location FCC ID: 2BAI2-BC062

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID: 2BAI2-BC062 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Test Channel Output Power (dBuV/m) Output Power (dBm) ASK Low 84.27 -15.63 Below 1GHz: dBm=dBuV/m-95.2-4.7 max possible output power (PK,ERP)：-15±1dBm 0dBi logarithmic terms convert to numeric result is nearly 1 -14dBm=0.03981mW 433.92MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=0.03981/5*√0.43392=0.00524≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

Report No.: BL-SZ22C0201-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 13 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Shenzhen Zhongxin Applied Electronic Technology Co., Ltd Address: No. 268, Floor 2, Building A9, Xinghuaxiong Science Park, Baihua Community, Guangming Street, Guangming District, Shenzhen Equipment Type: BC062-TX Model Name: BC062-TX Brand Name: N/A Test Standard: ANSI/IEEE Std 149-1979 Sample Arrival Date: Dec. 05, 2022 Test Date Dec. 05, 2022 Date of Issue: Dec. 09, 2022 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Mai Jintian Checked by: Zou Liu Approved by: Wei Yanquan (Chief Engineer) _______________ _______________ _______________ Report No.: BL-SZ22C0201-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 13 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Rev. 01 Dec. 09, 2022 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................... 3 1.1 Test Laboratory ..................................................................................................................... 3 1.2 Test Location ......................................................................................................................... 3 2 PRODUCT INFORMATION ......................................................................................................... 4 2.1 Applicant Information ............................................................................................................ 4 2.2 Manufacturer Information ...................................................................................................... 4 2.3 Factory Information ............................................................................................................... 4 2.4 General Description for Equipment under Test (EUT) .......................................................... 4 2.5 Ancillary Equipment .............................................................................................................. 4 2.6 Technical Information ............................................................................................................ 4 3 SUMMARY OF TEST RESULTS ................................................................................................. 5 3.1 Test Standards ...................................................................................................................... 5 3.2 Test Verdict ........................................................................................................................... 5 3.3 Test Uncertainty .................................................................................................................... 5 4 GENERAL TEST CONFIGURATIONS ........................................................................................ 6 4.1 Test Condition ....................................................................................................................... 6 4.2 Test Equipment List .............................................................................................................. 6 4.3 Test Setup ............................................................................................................................. 7 ANNEX A TEST RESULTS ............................................................................................................. 8 A.1 Gain and Efficiency ............................................................................................................... 8 ANNEX B RADIATION PATTERN .................................................................................................. 9 ANNEX C TEST SETUP PHOTO ................................................................................................. 11 ANNEX D EUT PHOTO ................................................................................................................ 12 Report No.: BL-SZ22C0201-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 13 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1 GENERAL INFORMATION 1.1 Test Laboratory Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Test Location Name Shenzhen BALUN Technology Co., Ltd. Location Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1/F, Building B, Ganghongji High-tech Intelligent Industrial Park, No. 1008, Songbai Road, Yangguang Community, Xili Sub-district, Nanshan District, Shenzhen, Guangdong Province, P. R. China Report No.: BL-SZ22C0201-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 13 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant Shenzhen Zhongxin Applied Electronic Technology Co., Ltd Address No. 268, Floor 2, Building A9, Xinghuaxiong Science Park, Baihua Community, Guangming Street, Guangming District, Shenzhen Contact Person denny Telephone Number 15302685236 E-mail Address [email protected] 2.2 Manufacturer Information Manufacturer N/A Address N/A 2.3 Factory Information Factory N/A Address N/A 2.4 General Descripti…

Text truncated - open the document above for the full version.

No.：BCTC/RF-EMC-005 Page: 1 of 36 Edition：A.5 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2211179731E Applicant: Shenzhen XinLianFeng Technology CO.,LTD Product Name: bedwetting alarm Model/Type Ref.: BC062 Tested Date: 2022-12-12 to 2022-12-21 Issued Date: 2022-12.22 Report No.: BCTC2211179731E No.：BCTC/RF-EMC-005 Page: 2 of 36 Edition：A.5 FCC ID: 2BAI2-BC062 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: bedwetting alarm Trademark: N/A Model/Type Ref.: BC062 Prepared For: Shenzhen XinLianFeng Technology CO.,LTD Address: No.5, Tongxi Road, Pingdong Community, Pingdi Street, Longgang District, Shenzhen, China Manufacturer: Shenzhen XinLianFeng Technology CO.,LTD Address: No.5, Tongxi Road, Pingdong Community, Pingdi Street, Longgang District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2022-12-09 Sample tested Date: 2022-12-12 to 2022-12-21 Issue Date: 2022-12-22 Report No.: BCTC2211179731E Test Standards: FCC Part15.231e ANSI C63.10-2013 Test Results: PASS Tested by: Approved by: Eric Yang/Project Handler Zero Zhou/Reviewer Report No.: BCTC2211179731E No.：BCTC/RF-EMC-005 Page: 3 of 36 Edition：A.5 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................ 5 2. TEST SUMMARY ..................................................... 6 3. MEASUREMENT UNCERTAINTY ....................................... 7 4. PRODUCT INFORMATION AND TEST SETUP............................ 8 4.1 Product Information ..................................................... 8 4.2 Test Setup Configuration ................................................ 8 4.3 Support Equipment ..................................................... 9 4.4 Channel List ........................................................... 9 4.5 Test Mode ............................................................. 9 5. TEST FACILITY AND TEST INSTRUMENT USED ........................ 10 5.1 Test Facility ........................................................... 10 5.2 Test Instrument Used .................................................. 10 6. CONDUCTED EMISSIONS ............................................ 12 6.1 Block Diagram Of Test Setup ............................................ 12 6.2 Limit ................................................................. 12 6.3 Test procedure ........................................................ 12 6.4 EUT operating Conditions ............................................... 12 6.5 Test Result ........................................................... 13 7. RADIATED EMISSIONS .............................................. 15 7.1 Block Diagram Of Test Setup ............................................ 15 7.2 Limit ................................................................. 16 7.3 Test procedure ........................................................ 18 7.4 EUT operating Conditions ............................................... 19 7.5 Test Result ........................................................... 20 8. BANDWIDTH TEST .................................................. 24 8.1 Block Diagram Of Test Setup ............................................ 24 8.2 Limit ................................................................. 24 8.3 Test procedure ........................................................ 24 8.4 EUT operating Conditions ............................................... 24 8.5 Test Result ........................................................... 25 9. CALCULATION OF AVERAGE FACTOR ................................ 26 10. TRANSMISSION TIME ................................................ 29 10.1 Block Diagram Of Test Setup .......................................... 29 10.2 Limit ................................................................ 29 10.3 Test procedure ....................................................... 29 10.4 Test Result .......................................................... 30 11. ANTENNA REQUIREMENT ........................................... 31 Report No.: BCTC2211179731E No.：BCTC/RF-EMC-005 Page: 4 of 36 Edition：A.5 11.1 STANDARD REQUIREMENT .......................................... 31 11.2 EUT ANTENNA ...................................................... 31 12. EUT PHOTOGRAPHS ................................................ 32 13. EUT TEST SETUP PHOTOGRAPHS .................................... 34 (Note: N/A means not applicable) Report No.: BCTC2211179731E No.：BCTC/RF-EMC-005 Page: 5 of 36 Edition：A.5 1. VERSION Report No. Issue Date Description Approved BCTC2211179731E 2022-12-22 Original Valid Report No.: BCTC2211179731E No.：BCTC/RF-EMC-005 Page: 6 of 36 Edition：A.5 2. TEST SUMMARY The Product has been tested according to the following specifications: No. Test Parameter Clause No Results 1 Conducted Emission 15.207 PASS 2 Fundamental &Radiated Spurious Emission Measurement 15.209,15.231b PASS 3 Occupy Bandwidth 15.231c PASS 4 Dwell time 15.231e PASS 5 Antenna Requirement 15.203 PASS Report No.: BCTC2211179731E No.：BCTC/RF-EMC-005 Page: 7 of 36 Edition：A.5 3. MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the Product as specified in CISPR 16-4-2. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. No. Item Uncertainty 1 3m chamber Radiated spurious emission(9kHz-30MHz) U=3.7dB 2 3m chamber Radiated spurious emission(30MHz-1GHz) U=4.3d…

Text truncated - open the document above for the full version.

Conducted emissions Radiated Measurement Photos
