1. Overview Thank you for choosing smart home terminal products, this manual is intended to guide you to understand the functions and characteristics of the router and complete the basic operation; Enjoy your high-speed and convenient Internet access. The pictures on the instruction manual are for illustrative purposes only. The company reserves the right to improve the products described in this manual, and the specifications are subject to change without notice, and the actual product shall prevail. 2. Package contains: Item name quantity Router host 1 Power adapter 1 Cable 1 Product Manual 1 3. Indicator light description Solid green light: Normal function, Internet access Solid red light: Primary route: Started, no external network 1. Please make sure that the broadband network port or modem is not damaged and reconnect to the external network 2. Please make sure that the Internet settings are correct 3. Contact the operator to confirm whether there is a fault in the network Subroute: After the startup is complete, the networking is pending or the networking fails Solid blue: The router system is booting Flashing red light: Factory reset (do not power off) BLUE FLASHING: MESH NETWORKING OR WPS CONNECTION 4. Interface/button description interface illustrate MESH/WPS button Press 1-3s to start MESH networking After turning off the MESH function, press briefly for 1-3 seconds to start WPS RESET button Press and hold the device RESET for more than 5s WAN port Used to connect to the Internet LAN1~3 ports Used to connect wired devices 5. Go online with a home gateway *Before setting up, make sure that your home broadband device is successfully connected to the Internet. The router's default wireless network information can be viewed on its bottom shell sticker. Step 1: Connect the power adapter in the box to the router's power LED indicator blue light is solid. Step 2: Connect the external network port of the router to the LAN port of the home gateway with a network cable. Step 3: Connect wireless devices such as mobile phones to the wireless network of the router, or connect the computer to any network port of the router with a network cable. 6. Mesh networking 6.1 Determine the master node: the default of the router is Agent in the factory state, first of all, we must determine the router that we can now access the Internet as the Controller router, , the steps of 7.1 to complete the quick setting, The router will be configured as a controller, or you can enter login WEB — > Mesh — > Role Choices — > Controller/Agent/b32>Make modifications. 6.2. Wired networking: The new secondary router is powered on in the factory state by default, and after the LED indicator is turned on after startup, it is always red and on, and then the wired network cable is used to connect to the LAN port of the main node determined by 6.1 and the LAN port of the new secondary router respectively, and waitThe primary and secondary routers can complete the networking configuration synchronization in about 15s, at which time the SSID and Wi-Fi passwords of the two routers become consistent, and wireless clients can enjoy a seamless roaming experience between the two routers. 6.3 Wireless networking: The new secondary router is powered on in the factory state by default, and after the LED indicator is turned on to solid red, it is placed within 3 meters near the main node determined by 6.1, and then press the MESH/WPS buttons of it and the main route respectivelys-3s to the LED indicator blue flashing, then release the MESH/WPS key to start the pairing networking, when the new sub-routing LED indicator green light is always on, it means that the networking is successful; At this time, the main route in the original networking immediately stops flashing with the LED indicator and returns to the original solid color, which becomes solid to indicate successful networking; At this time, the SSID and Wi-Fi passwords of the two routers become the same, and wireless clients can enjoy a seamless roaming experience between the two routers. 6.4 The child node is disconnected from the network: you need to press the child node RESET button for 5~8s and release it to perform factory reset operation; *When the new route is not successfully networked for more than 2 minutes, the LED indicator will no longer flash and return to the original solid color, and you need to press the 1-~3s ad hoc network button again to enter the MESH networking state 7. Manage the router 7.1. Managing Pages for the First Time Step 1: Connect the computer to any network port of the router, the router will automatically detect the access mode of the superior, such as detection errors can be manually modified. Step 2: Open a browser on the computer, access the management address of the router, the default is 192.168.2.1 or http://ywtwifi.com, you can enter the management page, the first time you enter will jump to the quick settings page (not the first time to open will jump to the following login page). Step 3: If you need to enter the login username and password, the default login information can be viewed on the router bottom shell sticker. Step 4: Start the quick setting, start to configure the WAN port access mode, please configure it in the way provided by your ISP (misconfiguration will not be able to go online), and click the "Next" button to configure wirelessly after the configuration is completed Step 5: Start to configure wireless information and login password, configure wireless SSID, password, login password according to your preferences, if you forget the login password, you can only restore it through factory operation. Step 6: Complete network access and wireless information configuration, click the "Setting done, Setup complete" button to complete all configurations, wait for all configurations to take effect in about 30s, and start enjoying the network. 7.2 Set up the router After successfully logging in to the router management page, …
Text truncated - open the document above for the full version.
Reference No.: WTX23X11233816W001/002/003 Page 1 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2BAII-AX3000 Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

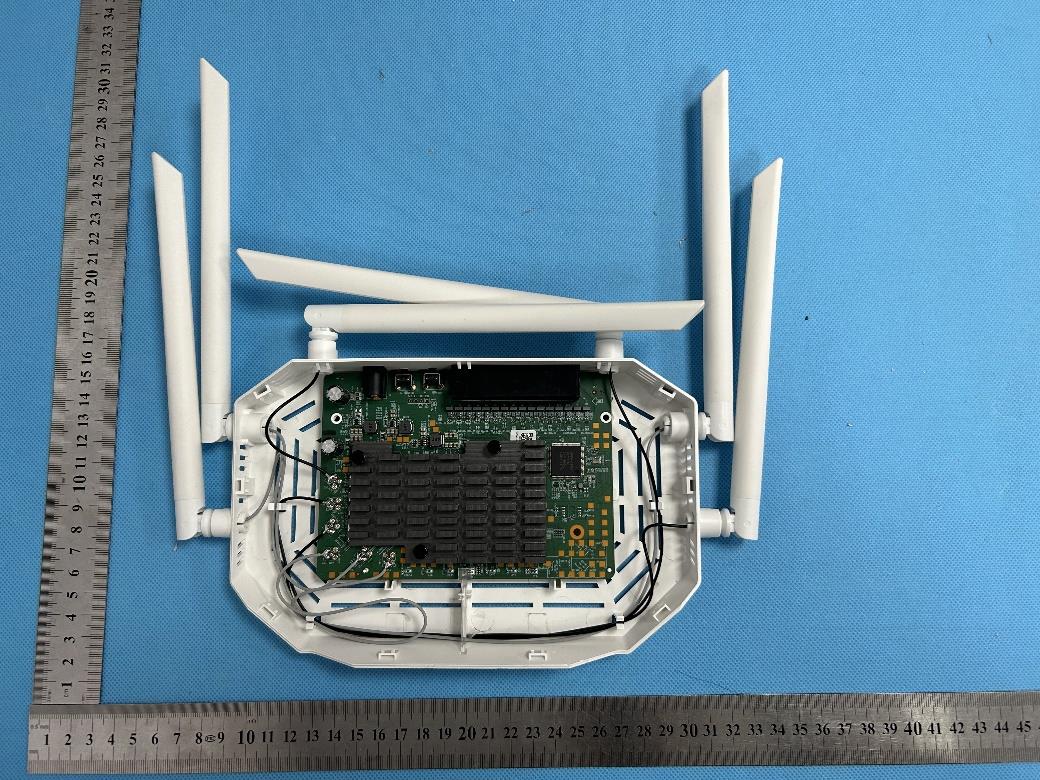

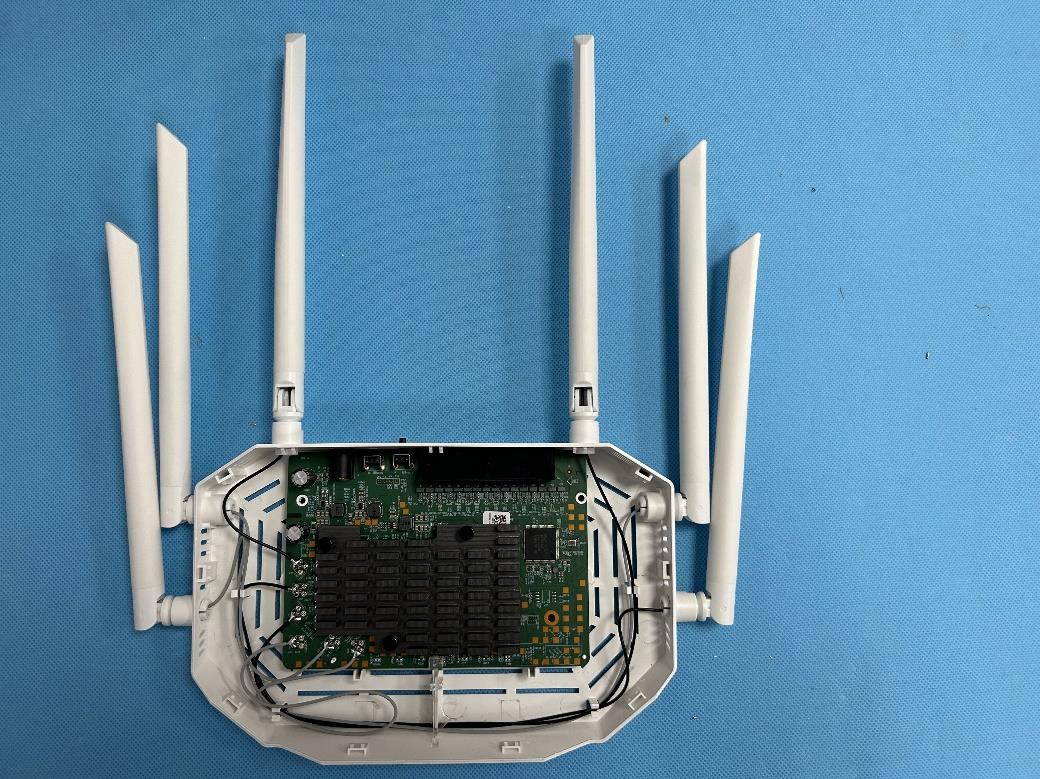

Reference No.: WTX23X11233816W001/002/003 Page 6 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Reference No.: WTX23X11233816W001/002/003 Page 7 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 2 Solder Board-Component View 3 Reference No.: WTX23X11233816W001/002/003 Page 8 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 4 Solder Board-Component View 5 Reference No.: WTX23X11233816W001/002/003 Page 9 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 6 Solder Board-Component View 7 Reference No.: WTX23X11233816W001/002/003 Page 10 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Antenna View 5GWIFI 3 Antenna 5GWIFI 1 Antenna 2.4GWIFI 1 Antenna 2.4GWIFI 0 Antenna 5GWIFI 2 Antenna
1. RF Exposure Requirements 1.1 General Information Client Information Applicant: Shenzhen Waterworld Information Co., Ltd. Address of applicant: 1F, Building3, Dexinchang Wisdom Park, No.23 Heping Road, Longhua district, Shen Zhen city, China Manufacturer: Shenzhen WaterWorld Information Co.,Ltd. Address of manufacturer: Floor 1, Building 3, Dexinchang WitPark, No:23 Heping Road, Qinghua Community, Longhua Street, Longhua District, Shenzhen General Description of EUT: Product Name: Wireless Dual Band Gigabit Router Trade Name: / Model No.: AX3000 Adding Model(s): / Rated Voltage: DC12V Battery Capacity: / Power Adapter: MODEL: GQ12-120100-CU INPUT:AC100-240V~50/60Hz 0.4A OUTPUT:DC12V,1A FCC ID: 2BAII-AX3000 Equipment Type: Portable device Technical Characteristics of EUT: Wi-Fi(2.4GHz) Support Standards: 802.11b, 802.11g, 802.11n Frequency Range: 2412-2462MHz for 802.11b/g/n/ax(HT/HE20) 2422-2452MHz for 802.11n/ax(HT/HE40) RF Output Power: Antenna 0: 18.30dBm (Conducted) Antenna 1: 19.27dBm (Conducted) Type of Modulation: CCK, OFDM, QPSK, BPSK, 16QAM, 64QAM, 256QAM, 1024QAM Quantity of Channels: 11 for 802.11b/g/n/ax(HT/HE20); 7 for 802.11n/ax(HT/HE40) Channel Separation: 5MHz Type of Antenna: External Antenna Antenna Gain: Antenna 0: 4.78dBi Antenna 1: 4.78dBi Wi-Fi(5GHz) Support Standards: 802.11a, 802.11n(HT20) , 802.11n-HT40, 802.11ac-VHT20/40/80/160, 802.11ax-HE20/40/80/160 Frequency Range: 5180-5240MHz, 5260-5320MHz, 5745-5825MHz Max. RF Output Power: Antenna 1: 18.68dBm (Conducted) Antenna 2: 18.86dBm (Conducted) Antenna 3: 18.71dBm (Conducted) Type of Modulation: QPSK, 16QAM, 64QAM, 256QAM, 1024QAM Type of Antenna: External Antenna Antenna Gain: Antenna 1:4.42dBi Antenna 2:4.42dBi Antenna 3:4.42dBi 1.2 RF Exposure Exemption According to §1.1307(b)(3) and KDB 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. Option A: FCC Rule Part 1.1307 (b)(3)(i)(A):The available maximum time-averaged power is no more than 1mW, regardless of separation distance. Option B: FCC Rule Part 1.1307 (b)(3)(i)(B): The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. P th is given by: Option C: FCC Rule Part 1.1307 (b)(3)(i)(C): The minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. R must be at least λ/2π, where λ is the free-space operating wavelength in meters. Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 1.34-30 3,450 R 2 /f 2 30-300 3.83 R 2 300-1,500 0.0128 R 2 f 1,500-100,000 19.2R 2 For Multiple RF sources: FCC Rule Part 1.1307(b)(3)(ii): (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). (B) In the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. 1.3 Calculated Result Radio Access Technology Prediction Frequency Output Power Antenna Gain Duty Cycle Tune-Up Time-Averaged Power ERP (MHz) (dBm) (dBi) (%) (dBm) (dBm) Wi-Fi(2.4GHz) Antenna 0 2412 18.30 4.78 100 19.00 21.63 Wi-Fi(2.4GHz) Antenna 1 2412 19.27 4.78 100 20.00 22.63 Wi-Fi(5GHz) Antenna 0 5180 18.68 4.42 100 19.00 21.27 Wi-Fi(5GHz) Antenna 1 5180 18.86 4.42 100 19.00 21.27 Wi-Fi(5GHz) Antenna 2 5180 18.71 4.42 100 19.00 21.27 Radio Access Technology Frequency (MHz) Option Min. Distance Max. Power Exposure Limit Ratio Result (cm) (dBm) (mW) (mW) Pass/Fail Wi-Fi(2.4GHz) Antenna 0 2412 C 20.00 21.63 145.55 768.00 0.19 Pass Wi-Fi(2.4GHz) Antenna 1 2412 C 20.00 22.63 183.23 768.00 0.24 Pass Wi-Fi(5GHz) Antenna 0 5180 C 20.00 21.27 133.97 768.00 0.17 Pass Wi-Fi(5GHz) Antenna 1 5180 C 20.00 21.27 133.97 768.00 0.17 Pass Wi-Fi(5GHz) Antenna 2 5180 C 20.00 21.27 133.97 768.00 0.17 Pass Note: 1. Time-Averaged Power=Output Power * Duty Cycle; ERP= Time-Averaged Power+ Antenna gain-2.15dB 2. Option A, B and C refers as clause 1.2. 3. For option B, Max (time-averaged power, effective radiated power (ERP)) converts to Max. Power. For option C, ERP converts to Max. Power; 4. For option B, P th (mW) converts to Exposure Limit (mW); For option C, ERP (W) converts to Exposure Limit (mW). 5. Ratio= Tune-Up ERP (mW)/ Exposure Limit (mW) Mode for Simultaneous Multi-band Transmission: Radio Access Technology Ratio 1 Ratio 2 Ratio 3 Ratio 4 Ratio 5 Simultaneous Ratio Limit Result Pass/Fail Wi-Fi(2.4GHz)Antenna 0 + Antenna 1 + Wi-Fi(5GHz)Antenna 0 + Antenna 1 + Antenna 2 0.19 0.24 0.17 0.17 0.17 0.94 1 Pass Result: Pass
DongguanHongxinPlasticproductsCo.,LTD SPECIFICATIONFORAPPROVAL Customername : Customerprojectname: Customerpartnumber: Customername:WIFI5.8GWhitebladeintegratedantennaL=320mm Tianqinmaterialnumber:T028-0211005-A DATE :2023-11-06 Edition : X1 MANUFACTURE SIGNATURE CUSTOMER SIGNATURE CHECKEDBAY: Zhangqing AUDITORBAY: APPROVEDBAY zhouwenbing DATE: 2023-11-06 - Companyaddress:DongguanCityDalangTownschoolchairWaiEastRoadNo.94 telephoneNo.: 0769-29566190PhoneNo. : 18027655106 Email:[email protected] 1 ProductNumber:DF5DBI82564/5-40 ProductName:Antenna Index: 1.RevisionHistory/Page2 2.Specification/Page3 3.CharacteristicsandReliabilityTest/Page4~5 4.Antenna-SParameterTestData/Page6~7 5.MechanicalandPackingDrawing/Page8 2 ProductNumber:DF5DBI82564/5-40 ProductName:Antenna 1.RevisionHistory RevisionDate ChangeNotificationDescription 1.0 2023-11-06 V1.0 3 ProductNumber:DF5DBI82564/5-30 ProductName:Antenna 2.Specification Maintechnicalspecifications FrequencyRange (MHZ) 5150~5850 Impedance(Ω) 50 PeakGain(dBi) 5dBi VSWR ≦2 AdmittedPower 10W Polarization verticalpolarization Radiation Omni-directional ConnectorType Strip PhysicalProperties Antennacable 1.37mmCable OperatingTemp -40°C~+60°C ProductNumber:DF5DBI82564/5-30 ProductName:Antenna 3.CharacteristicsandReliabilityTest TestItems TestConditionandProcedure Requirements Result C1V.S.W.R. SetDUTonNetworkAnalyzer;make individualcalibrationtotest DirectiveDUTspecification PASS C2InsertionLoss SetDUTonNetworkAnalyzer;make individualcalibrationtotest DirectiveDUTspecification N/A C3 AntennaGain SetDUTonAntennaChamber;make individualcalibrationtotest DirectiveDUTspecification PASS C4 VoltageBreakdown Testvoltageshouldbeappliedbetween insulatedportions,orbetweengroundas specified. MaxVoltage>500Vor directivematerial specification N/A C5 Insulation Resistance SetVoltage:500±50V;betweenthe insulated portions,orbetweengroundasspecified. Resistance>500Mohm ordirectivematerial specification N/A C6ContactResistance AirTemp:26°C;measuredwithtest equipment Directivematerial specification N/A M1 Vibration GB/T2423.48-2008 Amplitude:0.03inch(1.5mm);Freq:20to 80to20Hz 3directions;2hoursforeachdirection 1.NoVisualDamage 2.FrequencyTol.5% PASS M2 RandomDrop GB/T2423.8-1995 Single:Height:1.0Meter;3directions;1 timeforeachdirection 1.Nopartsseparated 、 fracture 2.FrequencyTol.5% PASS Packing:Height:0.76Meter;1corner,3 edges,6surface PASS Antenna+Machine:Height:0.76Meter;1 corner,3edges,6surface. N/A M3SolderabilityGB/T2423.28-2005Tinevenlyonfull N/A 5 ProductNumber:DF5DBI82564/5-30 ProductName:Antenna Temp:260±5°C;Duration:5seconds M4 PullTest Holdingwithindividualspecification;forceapplied toaxisofterminal. DirectiveDUT specificationFrequency Tol.≤5% PASS M5 TorqueTest Holdingwithindividualspecification;applied clockwiseandcounterclockwisetotheaxisof terminal DirectiveDUT specificationFrequency Tol.≤5% N/A M6 Dimension Inspectionofdimension,color,material,package, surfaceprocess DirectiveDUTspecification PASS E1 Waterproof WithReferencetoIEC60529//IPCodeDefinition DirectiveDUTspecification N/A E2 SaltSpray GB/T2423.17-2008 Temp:35°C;RH:≥95%;NaClsolution:≥ 5%;Time:24H NoVisualDamage FrequencyTol.≤5% PASS E3 Temperature andHumidity Chamber GB/T2423.3-2006 Temp:80°C/12H;-40°C/12HRH:≥90%;Time: 24H After2HoursRecovery NoVisualDamage FrequencyTol.≤5% PASS E4 TermalShock GB/T2423.22-2008 40°C(30minutes)to+80°C(30minutes)Cycles: 24h After2HoursRecovery NoVisualDamage FrequencyTol.≤5% PASS E5 Agingtest GB/T2423.2-2008 Temp:80°C;Time:24hours After2HoursRecovery NoVisualDamage FrequencyTol.≤5% PASS E6 HighTemp. Temp.270±10°CTimes120seconds NoVisualDamage N/A R1 RoHS WithReferencetoIEC62321:2008withflowchart DirectiveRoHS2011/65/EU RoHS2011/65/EU PASS R2 PFOS WithReferencetoUSAEPA3550C:1996byLC/MS DirectiveRoHS2006/122/EC RoHS2011/65/EU PASS 6 ProductNumber:DF5DBI82564/5-30 ProductName:Antenna 4.Antenna-SParameterTestData 7 ProductNumber:DF5DBI82564/5-30 ProductName:Antenna 5.Antenna-RadiationPatternTestData frequency(MH z) gain(dBi) efficiency(dBi) 51504.2777.75 52504.3876.34 53504.4274.97 54504.978.96 55504.3274.81 56504.6773.23 57504.3674.52 58504.2476.29 8 5.MechanicalandPackingDrawing
Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 406 TEST REPORT Reference No. .................... : WTX23X11233816W001 FCC ID ................................ : 2BAII-AX3000 Applicant ........................... : Shenzhen Waterworld Information Co., Ltd. Address ............................. : 1F, Building3, Dexinchang Wisdom Park, No.23 Heping Road, Longhua district, Shen Zhen city, China Manufacturer ..................... : The same as Applicant Address ............................. : The same as Applicant Product Name ................... : Wireless Dual Band Gigabit Router Model No. ........................... : AX3000 Standards .......................... : FCC Part 15.407 Date of Receipt sample .... : 2023-11-01 Date of Test........................ : 2023-11-01 to 2023-12-21 Date of Issue ..................... : 2023-12-21 Test Report Form No. ....... : WTX_Part 15_407W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Dashan Chen Silin Chen Reference No.: WTX23X11233816W001 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 406 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 5 1.2 TEST STANDARDS ................................................................................................................................................... 6 1.3 TEST METHODOLOGY ............................................................................................................................................. 6 1.4 TABLE FOR PARAMETERS OF TEST SOFTWARE SETTING ......................................................................................... 6 1.5 EUT OPERATING DURING TEST .............................................................................................................................. 8 1.6 TEST FACILITY ....................................................................................................................................................... 8 1.7 EUT SETUP AND TEST MODE ................................................................................................................................. 9 1.8 MEASUREMENT UNCERTAINTY ............................................................................................................................ 11 1.9 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 12 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 15 3. ANTENNA REQUIREMENT ................................................................................................................................ 16 3.1 STANDARD APPLICABLE ....................................................................................................................................... 16 3.2 EVALUATION INFORMATION ................................................................................................................................ 16 4. AUTOMATICALLY DISCONTINUE TRANSMISSION .................................................................................. 17 4.1 STANDARD APPLICABLE ....................................................................................................................................... 17 4.2 SUMMARY OF TEST RESULTS ............................................................................................................................... 17 5. POWER SPECTRAL DENSITY ........................................................................................................................... 18 5.1 STANDARD APPLICABLE ....................................................................................................................................... 18 5.2 TEST PROCEDURE ................................................................................................................................................. 18 5.3 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 19 6. EMISSION BANDWIDTH AND OCCUPIED BANDWIDTH ........................................................................... 20 6.1 STANDARD APPLICABLE ....................................................................................................................................... 20 6.2 TEST PROCEDURE ................................................................................................................................................. 20 6.3 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 22 7. MAXIMUM CONDUCTED OUTPUT POWER .................................................................................................. 23 7.1 STANDARD APPLICABLE ....................................................................................................................................... 23 7.2 TEST PROCEDURE ..............................................................................................…
