2BAJFSN-NB10Smart Node Control

SN-NB10 and LEOTEK light control system function description 1. Function overview 1.1. Login to the lighting control system SN-NB10 is powered on to establish a connection with the background and login, and the records the login status and latitude and longitude coordinates. 1.2. NODE data report SN-NB10 regularly reports information such as dimming value (percentage), network signal strength (RSSI), voltage value (V), power value (W), version number and working time (seconds) to the background. The reporting interval can be set remotely through the background webpage, in minutes. 1.3. Instant rewards Through the background webpage, you can request specific SN-NB10 or group reports in real time. 1.4. Power failure report The SN-NB10 has a backup power supply, which can report the last status information when the lamp power is turned off. You can see a list of power outage reports on the background web page. 1.5. Instant dimming You can request specific SN-NB10 or group dimming in real time through the background webpage. 1.6. Scheduling dimming The dimming schedule for a specific SN-NB10 or group can be set in real time through the background web page. Currently, two dimming times are provided. When the set time point is reached every day, the brightness will be adjusted according to the set dimming value. 1.7. Group Settings You can add or delete a group for a specific SN-NB10 or group through the background page. Currently, one SN-NB10 can only join up to 3 groups. 1.8. Remote firmware update Through the background web page, you can request the remote update firmware for a specific SN-NB10. 1.9. Remote restart Through the backend web page, you can request specific SN-NB10 or group to restart in real time. 2. LEOTEK lighting control system 2.1. LEOTEK lighting control system 2.2.1. LAMP Overview 2.2.2. LAMP List 2.2.3. Region setting 2.2.4 Group setting 2.2.5 Schedule setting 2.2.5 Dimming setting 2.2.5 Event List Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the in terference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

X

X x

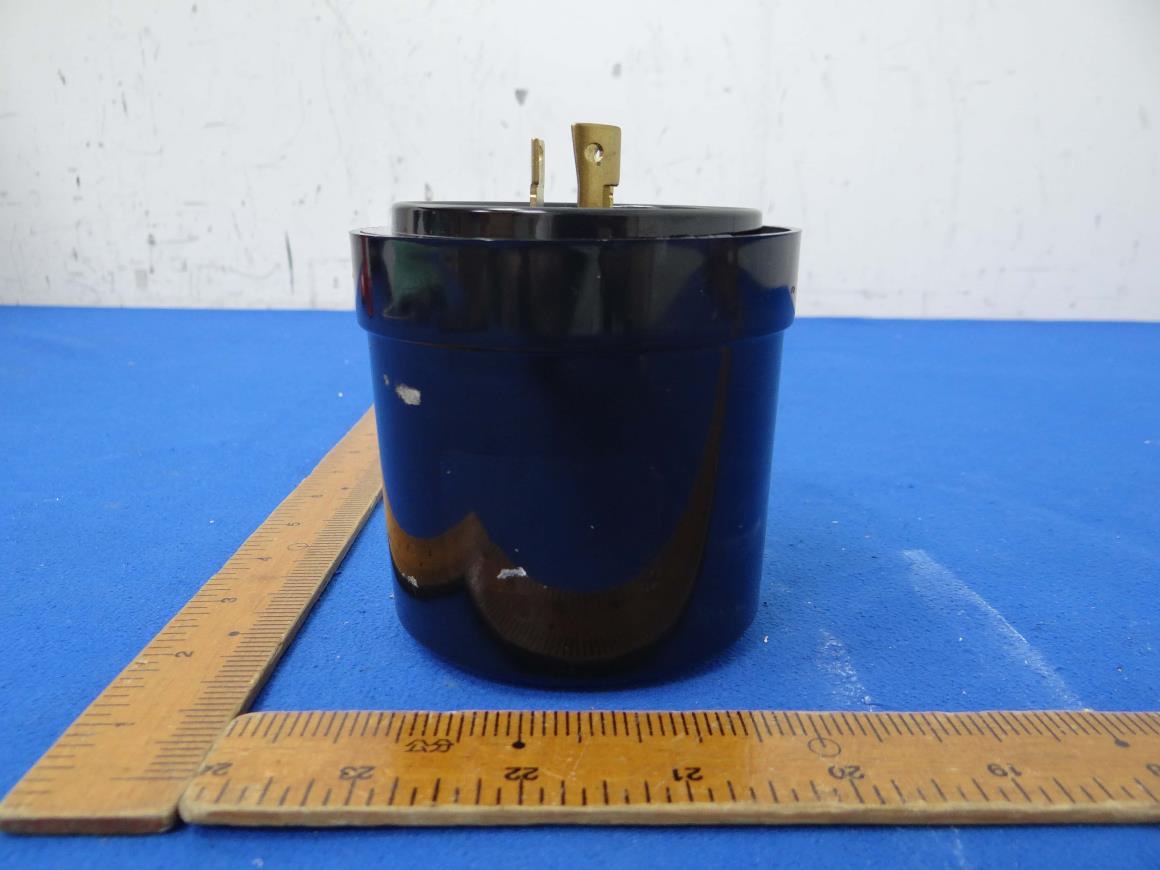

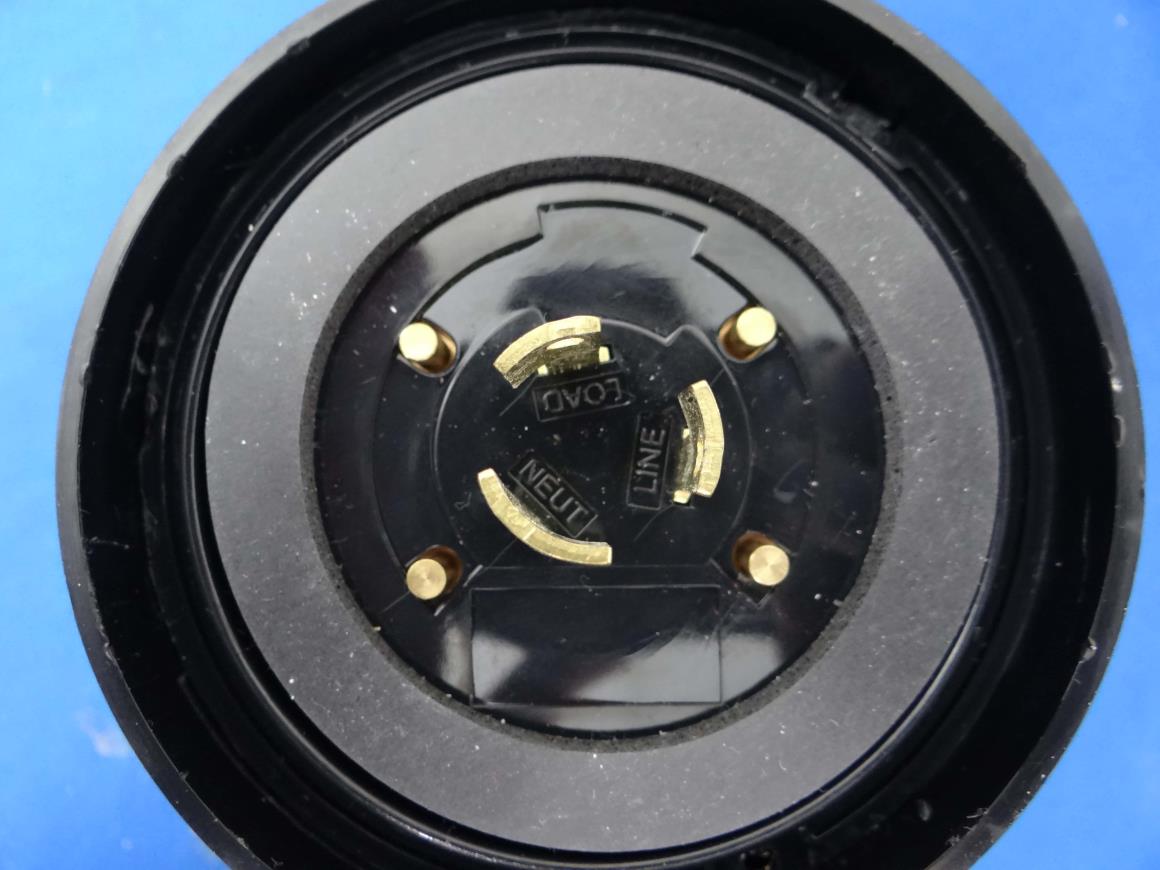

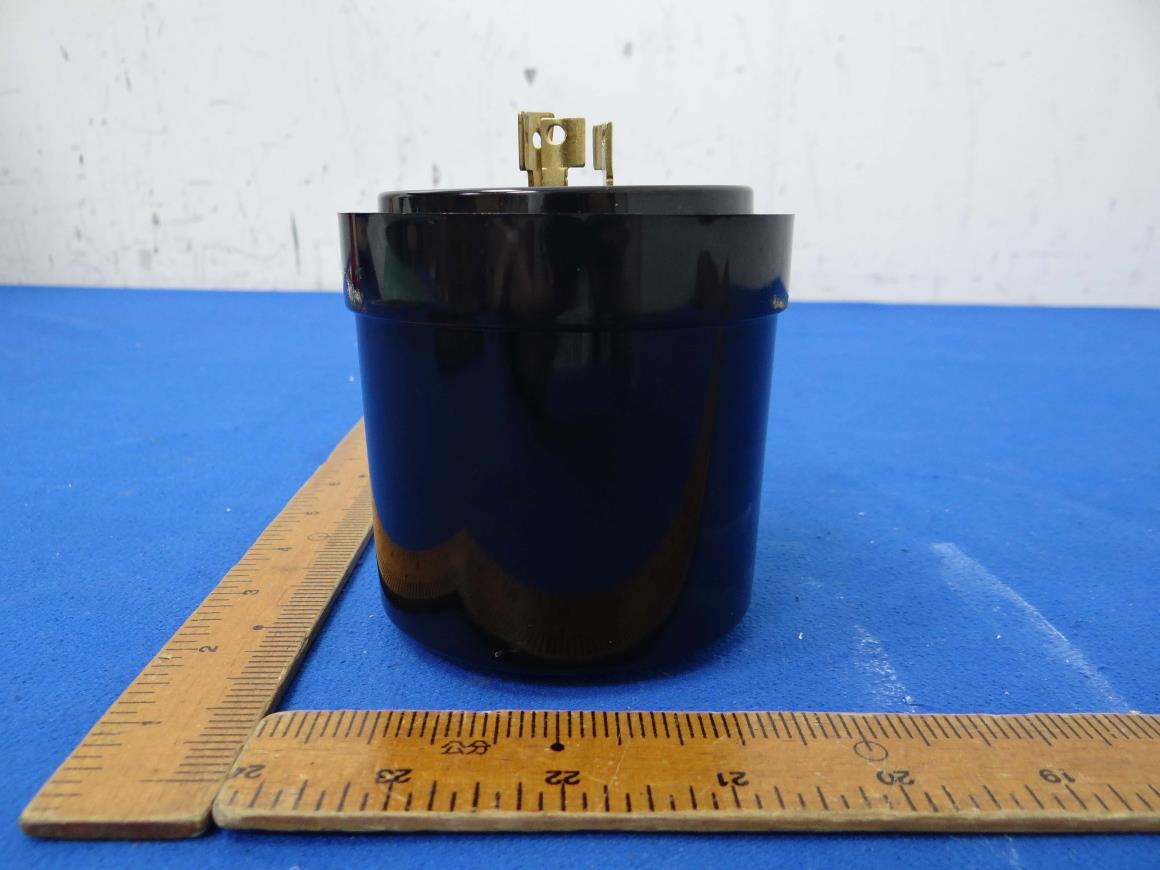

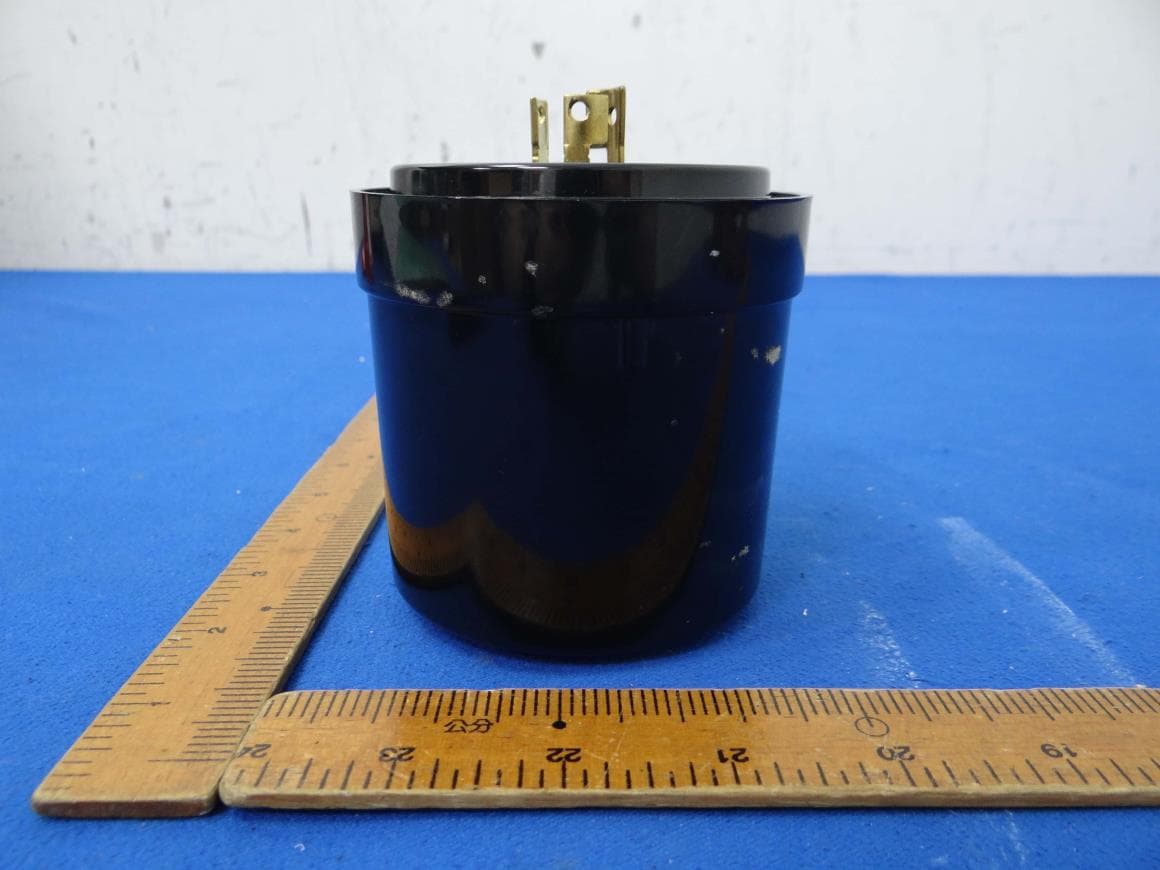

CERPASS TECHNOLOGY CORP. Report No.: 22030345 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 Page No. : 1 of 17 Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: 22030345 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 Page No. : 2 of 17 CERPASS TECHNOLOGY CORP. Report No.: 22030345 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 Page No. : 3 of 17 CERPASS TECHNOLOGY CORP. Report No.: 22030345 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 Page No. : 4 of 17

Label & location Label Here

CERPASS TECHNOLOGY CORP. Report No.: 22030345 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 Page No. : 4 of 17 CERPASS TECHNOLOGY CORP. Report No.: 22030345 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 Page No. : 5 of 17 CERPASS TECHNOLOGY CORP. Report No.: 22030345 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 Page No. : 6 of 17 CERPASS TECHNOLOGY CORP. Report No.: 22030345 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 Page No. : 7 of 17 CERPASS TECHNOLOGY CORP. Report No.: 22030345 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 Page No. : 8 of 17 CERPASS TECHNOLOGY CORP. Report No.: 22030345 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 Page No. : 9 of 17 CERPASS TECHNOLOGY CORP. Report No.: 22030345 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 Page No. : 10 of 17 CERPASS TECHNOLOGY CORP. Report No.: 22030345 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 Page No. : 11 of 17 Antenna Position CERPASS TECHNOLOGY CORP. Report No.: 22030345 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 Page No. : 12 of 17 RF Chip CERPASS TECHNOLOGY CORP. Report No.: 22030345 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 Page No. : 13 of 17 CERPASS TECHNOLOGY CORP. Report No.: 22030345 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 Page No. : 14 of 17 CERPASS TECHNOLOGY CORP. Report No.: 22030345 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 Page No. : 15 of 17 CERPASS TECHNOLOGY CORP. Report No.: 22030345 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 Page No. : 16 of 17 Antenna CERPASS TECHNOLOGY CORP. Report No.: 22030345 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 Page No. : 17 of 17

CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 94 of 95 FCC ID. : 2BAJFSN-NB10 12. Radio Frequency Exposure 12.1. Applicable Standards §1.1307(b)(3)(i)(A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. §1.1307(b)(3)(i)(c) ERP is below a threshold calculated based on the distance, R between the person and the antenna / radiating structure, where R > λ / 2 π. § 1.1307(b)(3)(i)(B). Device operates between 300 MHz and 6 GHz and the maximum time-averaged power or effective radiated power (ERP), whichever is greater, <= Pth CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 95 of 95 FCC ID. : 2BAJFSN-NB10 12.2. EUT Specification Frequency band (Operating) Cat M1: 824.7 ~ 848.3MHz NB-IoT: 824.2 ~ 848.8MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied Blanket 1 mW Blanket Exemption MPE-based Exemption SAR-based Exemption Remark: The maximum conducted output power is 21.11dBm at 836.5MHz (with -1.15dBi antenna gain.) 12.3. Results Cat M1 Channel Frequency (MHz) Max. Conducted output power(dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Max.Tune up e.r.p. Power (dBm) Max. Tune up e.r.p power (mW) Limit (mW) 825.5 19.82 20.32 -1.15 17.02 50.35 3060 836.5 19.92 20.42 -1.15 17.12 51.52 3060 NB-IoT Channel Frequency (MHz) Max. Conducted output power(dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Max.Tune up e.r.p. Power (dBm) Max. Tune up e.r.p power (mW) Limit (mW) 836.5 21.06 21.56 -1.15 18.26 66.99 3060 836.5 21.11 21.61 -1.15 18.31 67.76 3060 No non-compliance noted. ----------THE END OF REPORT----------

CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC02 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 69 of 70 FCC ID. : 2BAJFSN-NB10 12. Radio Frequency Exposure 12.1. Applicable Standards §1.1307(b)(3)(i)(A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. §1.1307(b)(3)(i)(c) ERP is below a threshold calculated based on the distance, R between the person and the antenna / radiating structure, where R > λ / 2 π. § 1.1307(b)(3)(i)(B). Device operates between 300 MHz and 6 GHz and the maximum time-averaged power or effective radiated power (ERP), whichever is greater, <= Pth CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC02 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 70 of 70 FCC ID. : 2BAJFSN-NB10 12.2. EUT Specification Frequency band (Operating) Cat M1: 1850.7 ~ 1909.3MHz NB-IoT: 1850.2 ~ 1909.8MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied Blanket 1 mW Blanket Exemption MPE-based Exemption SAR-based Exemption Remark: The maximum conducted output power is 21.34dBm at 1880MHz (with 2.29dBi antenna gain.) 12.3. Results Cat M1 Channel Frequency (MHz) Max. Conducted output power(dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Max.Tune up e.r.p. Power (dBm) Max. Tune up e.r.p power (mW) Limit (mW) 1850.7 20.04 20.54 2.29 20.68 116.95 3060 NB-IoT Channel Frequency (MHz) Max. Conducted output power(dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Max.Tune up e.r.p. Power (dBm) Max. Tune up e.r.p power (mW) Limit (mW) 1880 21.34 21.84 2.29 21.98 157.76 3060 No non-compliance noted. ----------THE END OF REPORT----------

CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC03 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 115 of 116 FCC ID. : 2BAJFSN-NB10 12. Radio Frequency Exposure 12.1. Applicable Standards §1.1307(b)(3)(i)(A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. §1.1307(b)(3)(i)(c) ERP is below a threshold calculated based on the distance, R between the person and the antenna / radiating structure, where R > λ / 2 π. § 1.1307(b)(3)(i)(B). Device operates between 300 MHz and 6 GHz and the maximum time-averaged power or effective radiated power (ERP), whichever is greater, <= Pth CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC03 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 116 of 116 FCC ID. : 2BAJFSN-NB10 12.2. EUT Specification Frequency band (Operating) Cat M1: LTE Band 4: 1710.7 ~ 1754.3MHz LTE Band 12: 699.7 ~ 715.3MHz LTE Band 13: 779.5 ~ 784.5MHz NB-IoT: LTE Band 4: 1710.2 ~ 1754.8MHz LTE Band 12: 699.2 ~ 715.8MHz LTE Band 13: 777.2 ~ 786.8MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied Blanket 1 mW Blanket Exemption MPE-based Exemption SAR-based Exemption Remark: The maximum conducted output power is 20.51dBm at 1732.5MHz (with 2.31dBi antenna gain.) 12.3. Results Cat M1 Channel Frequency (MHz) Max. Conducted output power(dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Max.Tune up e.r.p. Power (dBm) Max. Tune up e.r.p power (mW) Limit (mW) 1753.5 19.30 19.80 2.31 19.96 99.08 3060 707.5 19.25 19.75 -0.62 16.98 49.89 3060 782 19.37 19.87 -1.4 16.32 42.85 3060 NB-IoT Channel Frequency (MHz) Max. Conducted output power(dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Max.Tune up e.r.p. Power (dBm) Max. Tune up e.r.p power (mW) Limit (mW) 1732.5 20.51 21.01 2.31 21.17 130.92 3060 707.5 18.84 19.34 -0.62 16.57 45.39 3060 782 18.93 19.43 -1.4 15.88 38.73 3060 No non-compliance noted. ----------THE END OF REPORT----------

CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC04 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-515-0 Ver 1.5 Page No. : 66 of 67 FCC ID. : 2BAJFSN-NB10 12. Radio Frequency Exposure 12.1. Applicable Standards §1.1307(b)(3)(i)(A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. §1.1307(b)(3)(i)(c) ERP is below a threshold calculated based on the distance, R between the person and the antenna / radiating structure, where R > λ / 2 π. § 1.1307(b)(3)(i)(B). Device operates between 300 MHz and 6 GHz and the maximum time-averaged power or effective radiated power (ERP), whichever is greater, <= Pth CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC04 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-515-0 Ver 1.5 Page No. : 67 of 67 FCC ID. : 2BAJFSN-NB10 12.2. EUT Specification Frequency band (Operating) Cat M1: 814.7~823.3MHz NB-IoT: 814.2~823.8MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied Blanket 1 mW Blanket Exemption MPE-based Exemption SAR-based Exemption Remark: The maximum conducted output power is 21.13dBm at 819MHz (with -1.51dBi antenna gain.) 12.3. Results Cat M1 Channel Frequency (MHz) Max. Conducted output power(dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Max.Tune up e.r.p. Power (dBm) Max. Tune up e.r.p power (mW) Limit (mW) 819 19.85 20.35 -1.51 16.69 46.67 3060 NB-IoT Channel Frequency (MHz) Max. Conducted output power(dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Max.Tune up e.r.p. Power (dBm) Max. Tune up e.r.p power (mW) Limit (mW) 819 21.13 21.63 -1.51 17.97 62.66 3060 No non-compliance noted. ----------THE END OF REPORT----------

CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 1 of 95 FCC ID. : 2BAJFSN-NB10 FCC TEST REPORT Applicant : LEOTEK Electronics Corp. Address : 1955 Lundy Ave, San Jose, CA 95131 San Jose, California, United States Equipment : Smart Node Control Model No. : SN-NB10 Trade Name : Leotek FCC ID. : 2BAJFSN-NB10 I HEREBY CERTIFY THAT: The sample was received on Mar. 06, 2023 and the testing was completed on Aug. 14, 2023 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 2 of 95 FCC ID. : 2BAJFSN-NB10 CONTENTS 1. Summary of Test Procedure and Test Results .................................................................................. 5 2. Test Configuration of Equipment under Test ..................................................................................... 7 2.1. Feature of Equipment under Test ........................................................................................................ 7 2.2. Carrier Frequency of Channels ........................................................................................................... 7 2.3. Test Mode and Test Software .............................................................................................................. 7 2.4. General Information of Test ................................................................................................................. 8 2.5. Measurement Uncertainty ................................................................................................................... 9 3. Test Equipment and Ancillaries Used for Tests ............................................................................... 10 4. RF Output Power Test ........................................................................................................................ 13 4.1 Test Limit ........................................................................................................................................... 13 4.2 Test Procedures ................................................................................................................................ 13 4.3 Test Setup ......................................................................................................................................... 13 4.4 Test Result and Data ......................................................................................................................... 14 5. Effective Radiated Power / Equivalent Isotropic Radiated Power Test ......................................... 20 5.1. Test Limit ........................................................................................................................................... 20 5.2. Test Procedures ................................................................................................................................ 20 5.3. Test Setup ......................................................................................................................................... 20 5.4. Test Result and Data ......................................................................................................................... 21 6. Emission Bandwidth & Occupied Bandwidth Test .......................................................................... 29 6.1. Test Limit ........................................................................................................................................... 29 6.2. Test Procedures ................................................................................................................................ 29 6.3. Test Setup ......................................................................................................................................... 29 6.4. Test Result and Data ......................................................................................................................... 30 7. Peak to Average Ratio Test ................................................................................................................ 43 7.1. Test Limit ........................................................................................................................................... 43 7.2. Test Procedures ................................................................................................................................ 43 7.3. Test Setup ......................................................................................................................................... 43 7.4. Test Result and Data ......................................................................................................................... 44 8. Band Edge ........................................................................................................................................... 53 8.1. Test Limit ........................................................................................................................................... 53 8.2. Test Procedures ................................................................................................................................ 53 8.3. Test Setup ......................................................................................................................................... 54 8.4. Test Result and Data ......................................................................................................................... 55 9. Conducted Spurious Emission Test .......................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 53 of 95 FCC ID. : 2BAJFSN-NB10 8. Band Edge 8.1. Test Limit §22.917(a) The power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10log(P) dB. 8.2. Test Procedures a. The EUT was set up for the maximum peak power with WWAN link data modulation. The power was measured with Spectrum Analyzer. b. The band edge measurement used the power splitter via EUT RF power connector between simulation base station and spectrum analyzer. This splitter loss and cable loss are the worst loss in the transmitted path track. c. The center frequency of spectrum is the band edge frequency. RB of the resolution bandwidth of at least one percent of the emission bandwidth. d. Record the max trace plot into the test report. CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 54 of 95 FCC ID. : 2BAJFSN-NB10 8.3. Test Setup CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 55 of 95 FCC ID. : 2BAJFSN-NB10 8.4. Test Result and Data Cat M1 LTE Band 5 QPSK 1.4MHz, CH 20407 LTE Band 5 QPSK 10MHz, CH 20450 LTE Band 5 QPSK 1.4MHz, CH 20463 LTE Band 5 QPSK 10MHz, CH 20600 CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 56 of 95 FCC ID. : 2BAJFSN-NB10 Cat M1 LTE Band 26 QPSK 1.4MHz, CH 26797 LTE Band 26 QPSK 15MHz, CH 26865 LTE Band 26 QPSK 1.4MHz, CH 27033 LTE Band 26 QPSK 15MHz, CH 26965 CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 57 of 95 FCC ID. : 2BAJFSN-NB10 NB-IoT LTE Band 5 QPSK 3.75KHz 1@0 CH 20402 LTE Band 5 BPSK 3.75KHz 1@0 CH 20402 LTE Band 5 QPSK 15KHz 1@0 CH 20402 LTE Band 5 BPSK 15KHz 1@0 CH 20402 LTE Band 5 QPSK 15KHz 12@0 CH 20402 CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 58 of 95 FCC ID. : 2BAJFSN-NB10 NB-IoT LTE Band 5 QPSK 3.75KHz 1@47 CH 20648 LTE Band 5 BPSK 3.75KHz 1@47 CH 20648 LTE Band 5 QPSK 15KHz 1@11 CH 20648 LTE Band 5 BPSK 15KHz 1@11 CH 20648 LTE Band 5 QPSK 15KHz 12@0 CH 20648 CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 59 of 95 FCC ID. : 2BAJFSN-NB10 NB-IoT LTE Band 26 QPSK 3.75KHz 1@0 CH 26792 LTE Band 26 BPSK 3.75KHz 1@0 CH 26792 LTE Band 26 QPSK 15KHz 1@0 CH 26792 LTE Band 26 BPSK 15KHz 1@0 CH 26792 LTE Band 26 QPSK 15KHz 12@0 CH 26792 CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 60 of 95 FCC ID. : 2BAJFSN-NB10 NB-IoT LTE Band 26 QPSK 3.75KHz 1@47 CH 27038 LTE Band 26 BPSK 3.75KHz 1@47 CH 27038 LTE Band 26 QPSK 15KHz 1@11 CH 27038 LTE Band 26 BPSK 15KHz 1@11 CH 27038 LTE Band 26 QPSK 15KHz 12@0 CH 27038 CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 61 of 95 FCC ID. : 2BAJFSN-NB10 9. Conducted Spurious Emission Test 9.1. Test Limit The power of any emission outside a licensee's frequency block shall be attenuated below the transmitter power (P) by at least 43 +10 log10(P) dB. The limit of emission equal to -13dBm 9.2. Test Procedures a. The EUT was set up for the maximum peak power with WWAN link data modulation. The power was measured with Spectrum Analyzer. b. The conducted spurious emission used the power splitter via EUT RF power connector between simulation base station and spectrum analyzer. c. When the spectrum scanned from 30MHz to 1GHz. The spectrum set RBW=100KHz, VBW=300KHz. d. When the spectrum scanned from Above 1GHz. The spectrum set RBW=1MHz, VBW=3MHz. 9.3. Test Setup CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 62 of 95 FCC ID. : 2BAJFSN-NB10 9.4. Test Result and Data Cat M1 LTE Band 5 QPSK 1.4MHz, CH 20525 LTE Band 26 QPSK 1.4MHz, CH 26915 LTE Band 5 QPSK 1.4MHz, CH 20525 LTE Band 26 QPSK 1.4MHz, CH 26915 CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 63 of 95 FCC ID. : 2BAJFSN-NB10 NB-IoT LTE Band 5 QPSK, CH 20402 LTE Band 5 QPSK, CH 20525 LTE Band 5 QPSK, CH 20402 LTE Band 5 QPSK, CH 20525 CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 64 of 95 FCC ID. : 2BAJFSN-NB10 NB-IoT LTE Band 5 QPSK, CH 20648 LTE Band 5 QPSK, CH 20648 CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 65 of 95 FCC ID. : 2BAJFSN-NB10 NB-IoT LTE Band 26 QPSK, CH 26792 LTE Band 26 QPSK, CH 26915 LTE Band 26 QPSK, CH 26792 LTE Band 26 QPSK, CH 26915 CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 66 of 95 FCC ID. : 2BAJFSN-NB10 NB-IoT LTE Band 26 QPSK, CH 27038 LTE Band 26 QPSK, CH 27038 CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 67 of 95 FCC ID. : 2BAJFSN-NB10 10. Radiation Emission Test 10.1. Test Limit The power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10log(P) dB. 10.2. Test Procedure a. The EUT was set up for the maximum power with wwan link data modulation. The power was measured with Spectrum Analyzer. All measur…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC02 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 1 of 70 FCC ID. : 2BAJFSN-NB10 FCC TEST REPORT Applicant : LEOTEK Electronics Corp. Address : 1955 Lundy Ave, San Jose, CA 95131 San Jose, California, United States Equipment : Smart Node Control Model No. : SN-NB10 Trade Name : Leotek FCC ID. : 2BAJFSN-NB10 I HEREBY CERTIFY THAT: The sample was received on Mar. 06, 2023 and the testing was completed on Aug. 09, 2023 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: 22030345-TRFCC02 Cerpass Technology Corp. Issued Date : Aug. 18, 2023 T-FD-512-0 Ver 1.5 Page No. : 2 of 70 FCC ID. : 2BAJFSN-NB10 CONTENTS 1. Summary of Test Procedure and Test Results .................................................................................. 5 2. Test Configuration of Equipment under Test ..................................................................................... 6 2.1. Feature of Equipment under Test ........................................................................................................ 6 2.2. Carrier Frequency of Channels ........................................................................................................... 6 2.3. Test Mode and Test Software .............................................................................................................. 6 2.4. General Information of Test ................................................................................................................. 7 2.5. Measurement Uncertainty ................................................................................................................... 8 3. Test Equipment and Ancillaries Used for Tests ................................................................................. 9 4. RF Output Power Test ........................................................................................................................ 12 4.1 Test Limit ........................................................................................................................................... 12 4.2 Test Procedures ................................................................................................................................ 12 4.3 Test Setup ......................................................................................................................................... 12 4.4 Test Result and Data ......................................................................................................................... 13 5. Effective Radiated Power / Equivalent Isotropic Radiated Power Test ......................................... 16 5.1. Test Limit ........................................................................................................................................... 16 5.2. Test Procedures ................................................................................................................................ 16 5.3. Test Setup ......................................................................................................................................... 16 5.4. Test Result and Data ......................................................................................................................... 17 6. Emission Bandwidth & Occupied Bandwidth Test .......................................................................... 22 6.1. Test Limit ........................................................................................................................................... 22 6.2. Test Procedures ................................................................................................................................ 22 6.3. Test Setup ......................................................................................................................................... 22 6.4. Test Result and Data ......................................................................................................................... 23 7. Peak to Average Ratio Test .......................................................…
