2BAJO-QOOBEIIMini PC

User Manual QOOBE II Made in China FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Ervice Assurance Thank you for purchasing this product. You can enjoy one-year free space parts and manual service assurance provided by our company. Service support Email:[email protected] The following conditions lead to the need for our company to provide services, and the maintenance fees will be charged as appropriate: .Failure to perform proper operations according to the user manual or instructions. .Man-made damage, computer viruses, dampness, improper software installation or self-disassembly, etc. .Fire, flood, wind, earthquake and other irresistible forces. .Abrasive wear caused by accessories, consumables and natural use. .If we need to re-install software or adjust computer setting on our behalf, we will charge fees as appropriate. .Our company provides warranty for the damaged or dirty logo which may result in un-recognizability. Please backup your personal data before sending the product to repair. Product Interface Description 1, HD Port 2,USB3.0 3,LAN 4, Power Input 5, Type-C (DP/DATA) 6,Fan outlet 7,Earphone 8,Power Button 9，USB2.0 Instructions 1. Connect the device with the display device (such as TV, screen, projector, etc.) via HD line, and select the “video input source” of the display device to the connected HD input channel. 2. DC power supply: Connect the DC interface of the power cord of the accessories to the device and insert the other end directly into the socket. 3. Use the device by connecting it with a wired or wireless keyboard and mouse via USB port. 4. Press the power button to start the system. Packing List: 1. Computer Box *1 2. User Manual *1 3. Power Adapter *1 4. HDMI Wire * 1 5. Rack Accessories *1 Note 1. This Low-power RF motor is a certified and qualified product. Companies, businesses or individuals may not change the frequency, enhance the power or change the characteristics and functions of the original design without permission. 2. Low-frequency RF motors should not affect flight safety and interface with legitimate communication when they are used. When interference is found, they should be stopped using immediately and be improved to no interference before they can continue to be used. Legitimate communication refers to wireless communication in the work prescribed by law. Low-frequency RF motor must be able to tolerate the interference of legitimate communication or electromagnetic radiation motor equipment for industrial, scientific and medical purposes. 3. This product contains miniature batteries for mainboard CMOS, which can’t be replaced by consumers themselves. It may be dangerous if consumer replace incorrect types of batteries by themselves. Please properly handle the battery replacement. Attention 1. This product is suitable for places below 3000 meters above sea level, this product is only suitable for non-tropical areas. 2. After abnormal withdrawal or accidental power failure of the mini pc system, the hard disk scanning should be carried out as soon as possible to repair the errors in time. 3. If you do not use the device for a long time, Please unplug the power adapter. 4. The ideal working temperature of the device is 10-35 degrees, and the relative humidity is 30-80%. 5. The device should not be turn on or off frequently. 6. Don’t get water, food and other fluids onto the device, and don’t pull the data and power lines with force. 7. Avoid direct exposure of strong light to the device, and do not put it near the strong magnetic field QOOBE II MINIPC ▼ English

Metaverpivot Co.,Ltd 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Metaverpivot Co.,Ltd Address: 202, Building 11, Mabian Industrial Zone, District 72, Xingdong Community, Xinan street, Baoan district, Shenzhen, China Product Name: Mini PC FCC ID: 2BAJO-QOOBEII Model(s): QOOBE II 2.911(d)(5)(i) Equipment Type We, [Metaverpivot Co.,Ltd] certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Heng Hu Date:2023.03.23 Title and Company name: Mini PC / Metaverpivot Co.,Ltd NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Metaverpivot Co.,Ltd 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Metaverpivot Co.,Ltd Address: 202, Building 11, Mabian Industrial Zone, District 72, Xingdong Community, Xinan street, Baoan district, Shenzhen, China Product Name: Mini PC FCC ID: 2BAJO-QOOBEII Model(s): QOOBE II 2.911(d)(5)(ii) Applicant filing We, [Metaverpivot Co.,Ltd] certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Heng Hu Date: 2023.03.23 Title and Company name: Mini PC / Metaverpivot Co.,Ltd NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

FCC Software Configuration Control Declaration Rev1.1 Metaverpivot Co.,Ltd FCC Software Configuration Control Declaration Date: March 23, 2023 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: Mini PC / QOOBE II Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Heng Hu Date: 2023/03/23 Title: Manager Signature of applicant

Metaverpivot Co.,Ltd Agent Authorization Company: Metaverpivot Co.,Ltd Address: 202, Building 11, Mabian Industrial Zone, District 72, Xingdong Community, Xinan street, Baoan district, Shenzhen, China Product Name: Mini PC Trade Mark: QOOBE Model Number(s): QOOBE II FCC ID: 2BAJO-QOOBEII We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023-03-23 Name: Heng Hu Title: Manager Company: Metaverpivot Co.,Ltd

Metaverpivot Co.,Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023-03-23 Subject; Request for Confidentiality FCC ID: 2BAJO-QOOBEII To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Software Security Requirements Tune up In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name / Title: Heng Hu / Manager Company: Metaverpivot Co.,Ltd Address: 202, Building 11, Mabian Industrial Zone, District 72, Xingdong Community, Xinan street, Baoan district, Shenzhen, China Phone: +8618064067426 Fax: / E-Mail: [email protected]

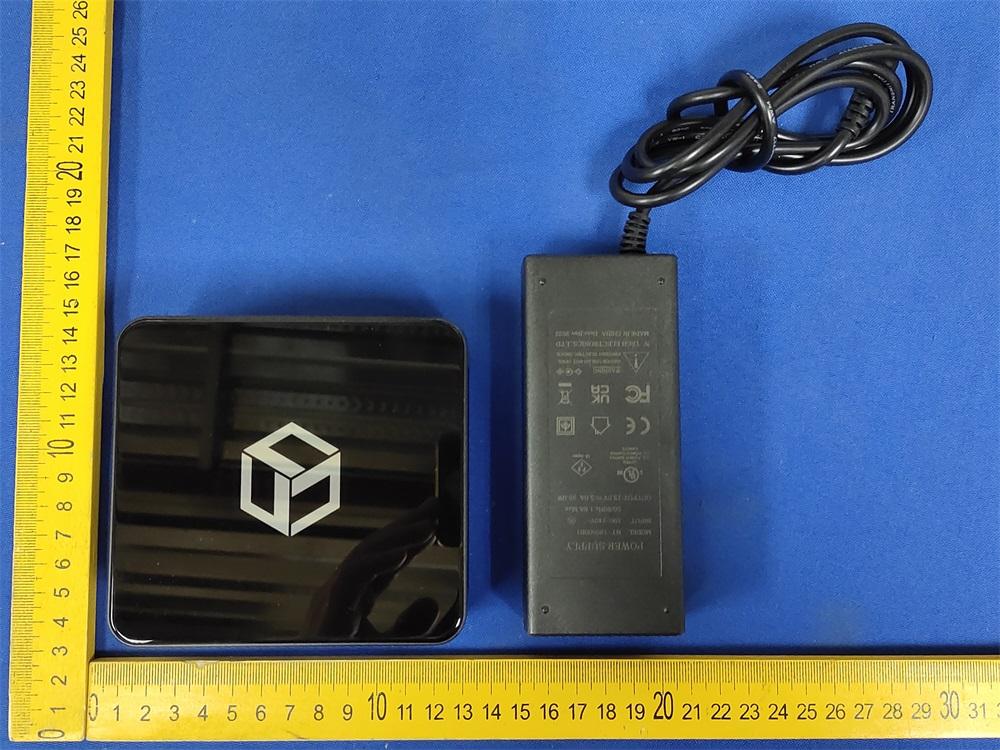

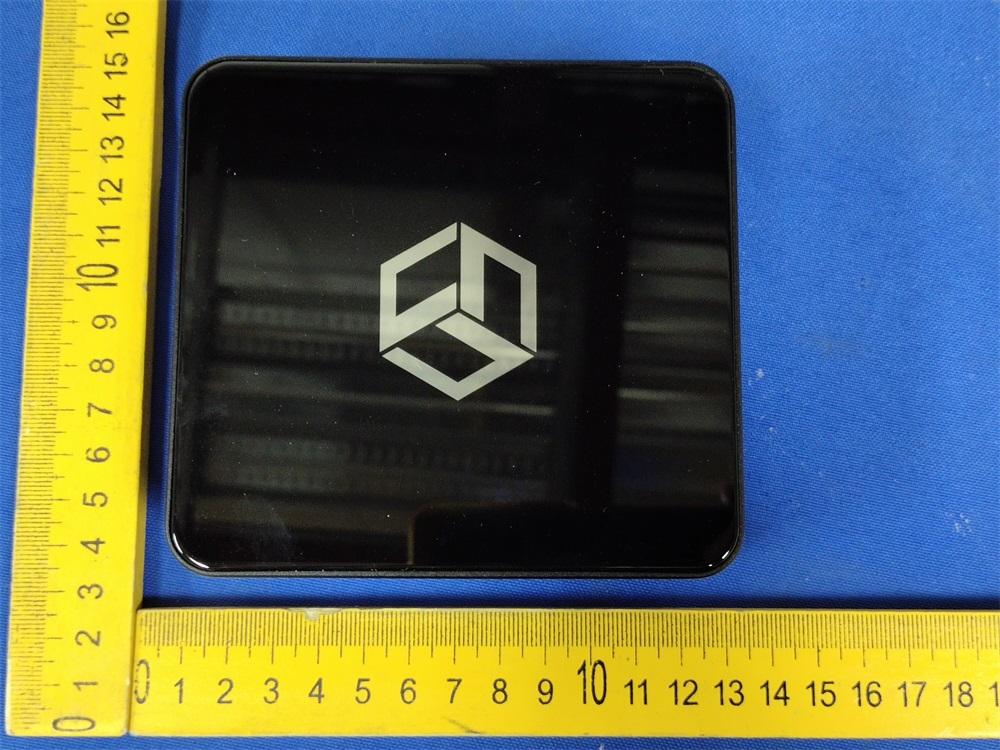

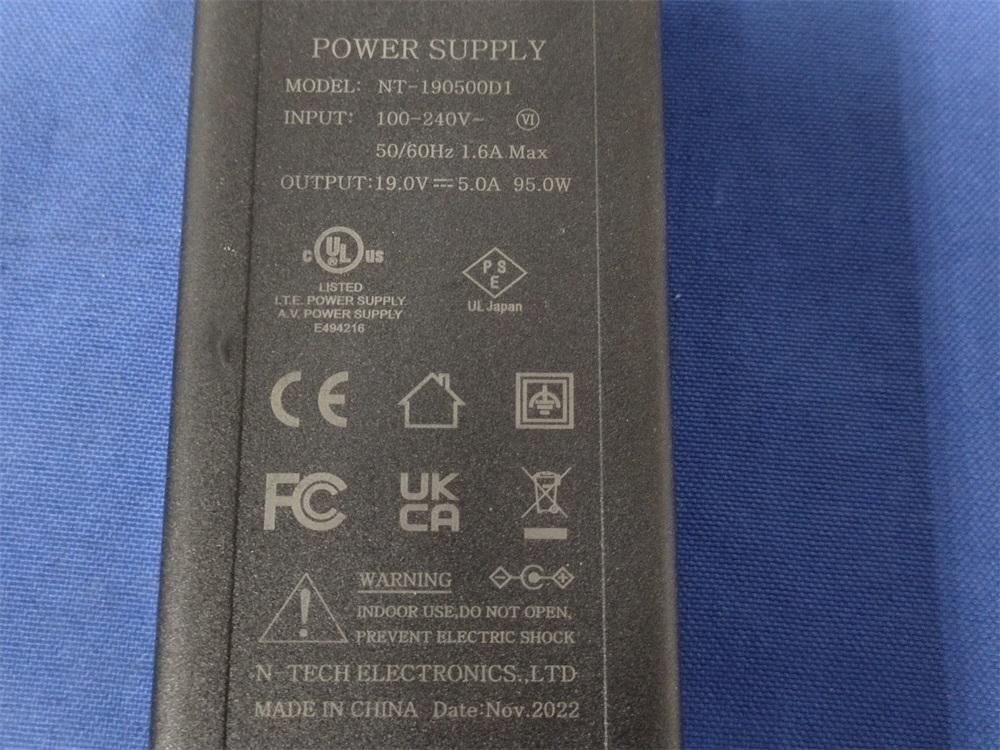

FCC ID: 2BAJO-QOOBEII Fig. 1 Fig. 2 FCC ID: 2BAJO-QOOBEII Fig. 3 Fig. 4 FCC ID: 2BAJO-QOOBEII Fig. 5 Fig. 6 FCC ID: 2BAJO-QOOBEII Fig. 7 Fig. 8

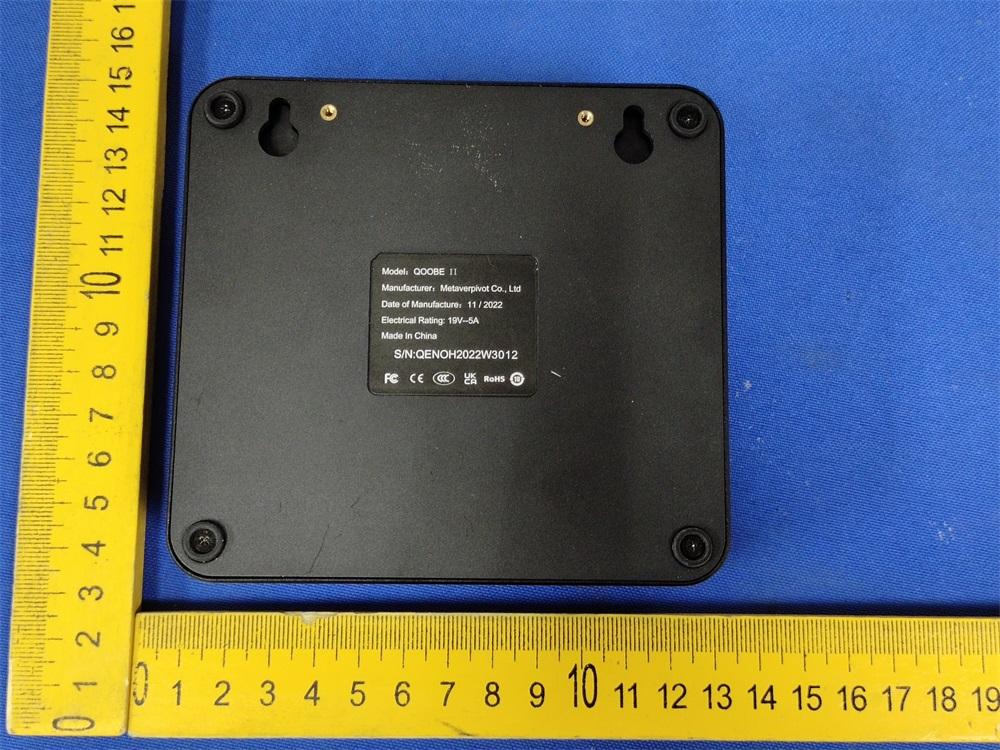

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L3.5cm x 2.9cm) Label Location

FCC ID: 2BAJO-QOOBEII Fig. 1 Fig. 2 FCC ID: 2BAJO-QOOBEII Fig. 3 Fig. 4 BT&WLAN Antenna WLAN Antenna FCC ID: 2BAJO-QOOBEII Fig. 5 Fig. 6 FCC ID: 2BAJO-QOOBEII Fig. 7 Fig. 8 FCC ID: 2BAJO-QOOBEII Fig. 9 Fig. 10 FCC ID: 2BAJO-QOOBEII Fig. 11 Fig. 12 FCC ID: 2BAJO-QOOBEII Fig. 13 Fig. 14 FCC ID: 2BAJO-QOOBEII Fig. 15 Fig. 16 FCC ID: 2BAJO-QOOBEII Fig. 17

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20230105011-1-48 2BAJO-QOOBEII Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Jenny Zeng Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Mar. 24, 2023 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Metaverpivot Co.,Ltd Address ............................................ : 202, Building 11, Mabian Industrial Zone, District 72, Xingdong Community, Xinan street, Baoan district, Shenzhen, China Test specification ........................... : Standard ........................................... : 47CFR §1.1310 Basis and purpose 47CFR §2.1091 Radiofrequency radiation exposure evaluation: mobile devices KDB447498 D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Mini PC Trade Mark ....................................... : QOOBE Manufacturer .................................... : Metaverpivot Co.,Ltd Model/Type reference ...................... : QOOBE II Listed Models .................................. : N/A Modulation Type ............................... : IEEE 802.11a /802.11b/802.11g/802.11n/802.11ac GFSK, π/4-DQPSK, 8-DPSK Operation Frequency........................ : From 2412MHz to 2462MHz, 5180MHz to 5240MHz, 5745MHz to 5825MHz, 2402MHz to 2480MHz Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : DC 19.0V/5.0A by Adapter Result ............................................... : PASS Report No.: GTS20230105011-1-48 Page 2 of 25 T E S T R E P O R T Test Report No. : GTS20230105011-1-48 Mar. 24, 2023 ______________________________________________________________________________________________ Date of issue Equipment under Test : Mini PC Model /Type : QOOBE II Listed model : N/A Applicant : Metaverpivot Co.,Ltd Address : 202, Building 11, Mabian Industrial Zone, District 72, Xingdong Community, Xinan street, Baoan district, Shenzhen, China Manufacturer : Metaverpivot Co.,Ltd Address : 202, Building 11, Mabian Industrial Zone, District 72, Xingdong Community, Xinan street, Baoan district, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20230105011-1-48 Page 3 of 25 Contents 1. SUMMARY .................................................................................................................................................... 4 1.1 EUT CONFIGURATION .................................................................................................................................... 4 1.2 PRODUCT DESCRIPTION ................................................................................................................................ 4 2. TEST ENVIRONMENT .................................................................................................................................. 4 2.1 ADDRESS OF THE TEST LABORATORY .............................................................................................................. 5 2.2 TEST FACILITY ............................................................................................................................................... 5 2.3 ENVIRONMENTAL CONDITIONS ........................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 5 3. METHOD OF MEASUREMENT ................................................................................................................... 6 3.1 APPLICABLE STANDARD ................................................................................................................................. 6 3.2 REQUIREMENT .............................................................................................................................................. 6 3.3 LIMIT ............................................................................................................................................................. 6 3.4 MPE CALCULATION METHOD ......................................................................................................................... 7 3.5 ANTENNA INFORMATION ................................................................................................................................. 7 4. CONDUCTED POWER RESULTS ............................................…

Text truncated - open the document above for the full version.

Case No. : GTS20230105011-1-47 Ambient Condition: 23 °C, 50 %RH, Atmos100.1Kpa, Test Date: 2023.3.1 Test Engineer: Jenny zeng Appendix D.1: Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 22.800 5168.680 5191.480 --- --- 5200 22.920 5188.640 5211.560 --- --- 5240 23.040 5228.120 5251.160 --- --- 11N20SISO Ant1 5180 22.600 5168.600 5191.200 --- --- 5200 23.440 5188.040 5211.480 --- --- 5240 23.080 5228.080 5251.160 --- --- 11N40SISO Ant1 5190 43.280 5168.240 5211.520 --- --- 5230 43.280 5208.160 5251.440 --- --- 11AC20SISO Ant1 5180 22.560 5168.880 5191.440 --- --- 5200 23.080 5188.480 5211.560 --- --- 5240 22.600 5228.720 5251.320 --- --- 11AC40SISO Ant1 5190 42.560 5168.400 5210.960 --- --- 5230 43.280 5208.400 5251.680 --- --- 11AC80SISO Ant1 5210 83.200 5168.240 5251.440 --- --- 11AX20SISO Ant1 5180 23.440 5168.280 5191.720 --- --- 5200 22.120 5189.080 5211.200 --- --- 5240 22.480 5228.560 5251.040 --- --- 11AX40SISO Ant1 5190 41.360 5169.200 5210.560 --- --- 5230 43.120 5208.800 5251.920 --- --- 11AX80SISO Ant1 5210 82.080 5168.880 5250.960 --- --- Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 11AX20SISO_Ant1_5180 11AX20SISO_Ant1_5200 11AX20SISO_Ant1_5240 11AX40SISO_Ant1_5190 11AX40SISO_Ant1_5230 11AX80SISO_Ant1_5210 Appendix D.2: Occupied channel bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 17.072 5171.441 5188.513 --- --- 5200 16.993 5191.544 5208.537 --- --- 5240 17.031 5231.453 5248.484 --- --- 11N20SISO Ant1 5180 18.077 5170.955 5189.032 --- --- 5200 18.040 5190.977 5209.017 --- --- 5240 18.103 5230.921 5249.024 --- --- 11N40SISO Ant1 5190 36.186 5171.934 5208.120 --- --- 5230 36.215 5211.875 5248.090 --- --- 11AC20SISO Ant1 5180 18.044 5170.979 5189.023 --- --- 5200 18.024 5190.995 5209.019 --- --- 5240 18.005 5230.968 5248.973 --- --- 11AC40SISO Ant1 5190 36.137 5171.960 5208.097 --- --- 5230 36.251 5211.865 5248.116 --- --- 11AC80SISO Ant1 5210 75.099 5172.460 5247.559 --- --- 11AX20SISO Ant1 5180 18.972 5170.526 5189.498 --- --- 5200 18.985 5190.514 5209.499 --- --- 5240 19.026 5230.452 5249.478 --- --- 11AX40SISO Ant1 5190 37.651 5171.215 5208.866 --- --- 5230 37.730 5211.133 5248.863 --- --- 11AX80SISO Ant1 5210 76.592 5171.666 5248.258 --- --- Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 11AX20SISO_Ant1_5180 11AX20SISO_Ant1_5200 11AX20SISO_Ant1_5240 11AX40SISO_Ant1_5190 11AX40SISO_Ant1_5230 11AX80SISO_Ant1_5210 Appendix D.3: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11A Ant1 5180 0.14 0.19 73.68 5200 0.15 0.19 78.95 5240 0.15 0.19 78.95 11N20SISO Ant1 5180 0.17 0.22 77.27 5200 0.18 0.22 81.82 5240 0.17 0.22 77.27 11N40SISO Ant1 5190 0.18 0.23 78.26 5230 0.18 0.22 81.82 11AC20SISO Ant1 5180 0.16 0.21 76.19 5200 0.16 0.21 76.19 5240 0.17 0.22 77.27 11AC40SISO Ant1 5190 0.16 0.21 76.19 5230 0.16 0.20 80.00 11AC80SISO Ant1 5210 0.16 0.21 76.19 11AX20SISO Ant1 5180 0.25 0.30 83.33 5200 0.26 0.31 83.87 5240 0.26 0.31 83.87 11AX40SISO Ant1 5190 0.18 0.22 81.82 5230 0.17 0.22 77.27 11AX80SISO Ant1 5210 0.16 0.21 76.19 Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 11AX20SISO_Ant1_5180 11AX20SISO_Ant1_5200 11AX20SISO_Ant1_5240 11AX40SISO_Ant1_5190 11AX40SISO_Ant1_5230 11AX80SISO_Ant1_5210

Appendix D.4: Maximum conducted output power Test Result Channel Power Test Mode Antenna Frequency[ MHz] Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5180 13.23 73.68 1.33 14.56 ≤23.98 PASS 5200 13.64 78.95 1.03 14.67 ≤23.98 PASS 5240 13.48 78.95 1.03 14.51 ≤23.98 PASS 11N20SISO Ant1 5180 13.26 77.27 1.12 14.38 ≤23.98 PASS 5200 13.51 81.82 0.87 14.38 ≤23.98 PASS 5240 13.44 77.27 1.12 14.56 ≤23.98 PASS 11N40SISO Ant1 5190 12.79 78.26 1.06 13.85 ≤23.98 PASS 5230 12.19 81.82 0.87 13.06 ≤23.98 PASS 11AC20SIS O Ant1 5180 10.50 76.19 1.18 11.68 ≤23.98 PASS 5200 10.70 76.19 1.18 11.88 ≤23.98 PASS 5240 10.30 77.27 1.12 11.42 ≤23.98 PASS 11AC40SIS O Ant1 5190 11.01 76.19 1.18 12.19 ≤23.98 PASS 5230 11.94 80.00 0.97 12.91 ≤23.98 PASS 11AC80SIS O Ant1 5210 10.75 76.19 1.18 11.93 ≤23.98 PASS 11AX20SIS O Ant1 5180 10.56 83.33 0.79 11.35 ≤23.98 PASS 5200 10.83 83.87 0.76 11.59 ≤23.98 PASS 5240 10.45 83.87 0.76 11.21 ≤23.98 PASS 11AX40SIS O Ant1 5190 10.72 81.82 0.87 11.59 ≤23.98 PASS 5230 11.69 77.27 1.12 12.81 ≤23.98 PASS 11AX80SIS O Ant1 5210 10.39 76.19 1.18 11.57 ≤23.98 PASS Note：The Duty Cycle Factor is compensated in the graph. Appendix D.5: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result [dBm/MHz] Limit[dBm/MHz] Verdict 11A Ant1 5180 3.64 ≤11.00 PASS 5200 3.67 ≤11.00 PASS 5240 3.62 ≤11.00 PASS 11N20SISO Ant1 5180 3.34 ≤11.00 PASS 5200 3.38 ≤11.00 PASS 5240 3.7 ≤11.00 PASS 11N40SISO Ant1 5190 -0.35 ≤11.00 PASS 5230 -1.01 ≤11.00 PASS 11AC20SISO Ant1 5180 0.69 ≤11.00 PASS 5200 0.94 ≤11.00 PASS 5240 0.61 ≤11.00 PASS 11AC40SISO Ant1 5190 -2.03 ≤11.00 PASS 5230 -1.11 ≤11.00 PASS 11AC80SISO Ant1 5210 -4.82 ≤11.00 PASS 11AX20SISO Ant1 5180 0.07 ≤11.00 PASS 5200 0.45 ≤11.00 PASS 5240 0.03 ≤11.00 PASS 11AX40SISO Ant1 5190 -2.74 ≤11.00 PASS 5230 -1.41 ≤11.00 PASS 11AX80SISO Ant1 5210 -5.39 ≤11.00 PASS Note：1.The Result and Limit Unit is dBm/500 kHz in the band 5.7255.85 GHz. 2.The Duty Cycle Factor and RBW Factor is compensated in the graph. Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 11AX20SISO_Ant1_5180 11AX20SISO_Ant1_5200 11AX20SISO_Ant1_5240 11AX40SISO_Ant1_5190 11AX40SISO_Ant1_5230 11AX80SISO_Ant1_5210 Appendix D.6: Band edge measurements Test Result B1 TestMode Antenna ChName Frequency[MHz] Result[dBm] Limit[dBm] Verdict 11A Ant1 Low 5180 -35.34 ≤-27 PASS High 5240 -38.07 ≤-27 PASS 11N20SISO Ant1 Low 5180 -35.5 ≤-27 PASS High 5240 -37.51 ≤-27 PASS 11N40SISO Ant1 Low 5190 -31.78 ≤-27 PASS High 5230 -37.63 ≤-27 PASS 11AC20SISO Ant1 Low 5180 -37.7 ≤-27 PASS High 5240 -38.46 ≤-27 PASS 11AC40SISO Ant1 Low 5190 -37.82 ≤-27 PASS High 5230 -37.55 ≤-27 PASS 11AC80SISO Ant1 Low 5210 -34.81 ≤-27 PASS High 5210 -38.3 ≤-27 PASS 11AX20SISO Ant1 Low 5180 -37.61 ≤-27 PASS High 5240 -38.52 ≤-27 PASS 11AX40SISO Ant1 Low 5190 -37.66 ≤-27 PASS High 5230 -38 ≤-27 PASS 11AX80SISO Ant1 Low 5210 -35.36 ≤-27 PASS High 5210 -37.74 ≤-27 PASS Test Graphs B1 11A_Ant1_Low_5180 11A_Ant1_High_5240 11N20SISO_Ant1_Low_5180 11N20SISO_Ant1_High_5240 11N40SISO_Ant1_Low_5190 11N40SISO_Ant1_High_5230 11AC20SISO_Ant1_Low_5180 11AC20SISO_Ant1_High_5240 11AC40SISO_Ant1_Low_5190 11AC40SISO_Ant1_High_5230 11AC80SISO_Ant1_Low_5210 11AC80SISO_Ant1_High_5210 11AX20SISO_Ant1_Low_5180 11AX20SISO_Ant1_High_5240 11AX40SISO_Ant1_Low_5190 11AX40SISO_Ant1_High_5230 11AX80SISO_Ant1_Low_5210 11AX80SISO_Ant1_High_5210 Appendix D.7: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant1 5180 30~5140 5139.15 -44.18 ≤-27 PASS 5360~40000 24873.51 -37.74 ≤-27 PASS 5200 30~5140 5138.98 -46.4 ≤-27 PASS 5360~40000 26970.43 -37.5 ≤-27 PASS 5240 30~5140 904.66 -45.24 ≤-27 PASS 5360~40000 26820.39 -37.66 ≤-27 PASS 11N20SISO Ant1 5180 30~5140 5131.99 -45.04 ≤-27 PASS 5360~40000 24291.39 -38.08 ≤-27 PASS 5200 30~5140 5118.03 -46.01 ≤-27 PASS 5360~40000 26937.97 -38.09 ≤-27 PASS 5240 30~5140 1754.11 -42.57 ≤-27 PASS 5360~40000 26081.02 -37.86 ≤-27 PASS 11N40SISO Ant1 5190 30~5140 5134.55 -35.23 ≤-27 PASS 5360~40000 24247.39 -37.39 ≤-27 PASS 5230 30~5140 5138.13 -43.76 ≤-27 PASS 5360~40000 24147.85 -38.05 ≤-27 PASS 11AC20SISO Ant1 5180 30~5140 4946.84 -47.1 ≤-27 PASS 5360~40000 24880 -38.2 ≤-27 PASS 5200 30~5140 3203.99 -47.27 ≤-27 PASS 5360~40000 26476.31 -38.21 ≤-27 PASS 5240 30~5140 4939.52 -46.97 ≤-27 PASS 5360~40000 26076.69 -38.08 ≤-27 PASS 11AC40SISO Ant1 5190 30~5140 5137.79 -43.02 ≤-27 PASS 5360~40000 26629.96 -37.8 ≤-27 PASS 5230 30~5140 1744.23 -45.56 ≤-27 PASS 5360~40000 25125.25 -37.4 ≤-27 PASS 11AC80SISO Ant1 5210 30~5140 5135.06 -40.26 ≤-27 PASS 5360~40000 26495.07 -38.15 ≤-27 PASS 11AX20SISO Ant1 5180 30~5140 1747.64 -45.7 ≤-27 PASS 5360~40000 24757.37 -38.04 ≤-27 PASS 5200 30~5140 3004.02 -46.89 ≤-27 PASS 5360~40000 26549.17 -37.88 ≤-27 PASS 5240 30~5140 3446.72 -46.44 ≤-27 PASS 5360~40000 24375.79 -38.02 ≤-27 PASS 11AX40SISO Ant1 5190 30~5140 5134.21 -43.2 ≤-27 PASS 5360~40000 23513.8 -38.35 ≤-27 PASS 5230 30~5140 5138.81 -45.87 ≤-27 PASS 5360~40000 26948.06 -38.17 ≤-27 PASS 11AX80SISO Ant1 5210 30~5140 5127.91 -40.79 ≤-27 PASS 5360~40000 26161.09 -38.04 ≤-27 PASS Test Graphs 11A_Ant1_5180_30~5140 11A_Ant1_5180_5360~40000 11A_Ant1_5200_30~5140 11A_Ant1_5200_5360~40000 11A_Ant1_5240_30~5140 11A_Ant1_5240_5360~40000 11N20SISO_Ant1_5180_30~5140 11N20SISO_Ant1_5180_5360~40000 11N20SISO_Ant1_5200_30~5140 11N20SISO_Ant1_5200_5360~40000 11N20SISO_Ant1_5240_30~5140 11N20SISO_Ant1_5240_5360~40000 11N40SISO_Ant1_5190_30~5140 11N40SISO_Ant1_5190_5360~40000 11N40SISO_Ant1_5230_30~5140 11N40SISO_Ant1_5230_5360~40000 11AC20SISO_Ant1_5180_30~5140 11AC20SISO_Ant1_5180_5360~40000 11AC20SISO_Ant1_5200_30~5140 11AC20SISO_Ant1_5200_5360~40000 11AC20SISO_Ant1_5240_3…

Text truncated - open the document above for the full version.

Case No. : GTS20230105011-1-47 Ambient Condition: 25 °C, 45 %RH, Atmos100.1Kpa, Test Date: 2023.3.3 Test Engineer: Jenny zeng Appendix D.1: Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant2 5180 22.120 5169.040 5191.160 --- --- 5200 22.280 5189.040 5211.320 --- --- 5240 22.960 5228.880 5251.840 --- --- 11N20SISO Ant2 5180 22.760 5168.760 5191.520 --- --- 5200 23.240 5188.680 5211.920 --- --- 5240 22.880 5228.480 5251.360 --- --- 11N40SISO Ant2 5190 42.240 5169.120 5211.360 --- --- 5230 43.760 5208.400 5252.160 --- --- 11AC20SISO Ant2 5180 22.320 5168.920 5191.240 --- --- 5200 22.480 5188.920 5211.400 --- --- 5240 22.520 5228.880 5251.400 --- --- 11AC40SISO Ant2 5190 42.800 5169.040 5211.840 --- --- 5230 42.880 5208.480 5251.360 --- --- 11AC80SISO Ant2 5210 83.040 5169.360 5252.400 --- --- 11AX20SISO Ant2 5180 22.440 5169.080 5191.520 --- --- 5200 22.560 5188.960 5211.520 --- --- 5240 23.000 5228.680 5251.680 --- --- 11AX40SISO Ant2 5190 41.360 5169.520 5210.880 --- --- 5230 42.560 5208.960 5251.520 --- --- 11AX80SISO Ant2 5210 81.760 5169.360 5251.120 --- --- Test Graphs 11A_Ant2_5180 11A_Ant2_5200 11A_Ant2_5240 11N20SISO_Ant2_5180 11N20SISO_Ant2_5200 11N20SISO_Ant2_5240 11N40SISO_Ant2_5190 11N40SISO_Ant2_5230 11AC20SISO_Ant2_5180 11AC20SISO_Ant2_5200 11AC20SISO_Ant2_5240 11AC40SISO_Ant2_5190 11AC40SISO_Ant2_5230 11AC80SISO_Ant2_5210 11AX20SISO_Ant2_5180 11AX20SISO_Ant2_5200 11AX20SISO_Ant2_5240 11AX40SISO_Ant2_5190 11AX40SISO_Ant2_5230 11AX80SISO_Ant2_5210 Appendix D.2: Occupied channel bandwidth Test Result TestM…
