LinkTag20 Manual Revision History Date Version Description Nov 14, 2025 V 1.0 Initial version Nov 30, 2025 V 1.1 Updated with FW 1.0.3 specifications and hardware photos Feb 3, 2026 V 1.2 Updated with FW 1.0.5 specifications Mar 5, 2026 V 1.3 Updated with technical specifications and regulatory information for Mexico IFT certification compliance. Mar 6, 2026 V 1.4 Added FCC compliance and RF exposure statement (Section 8). Contents 1. Product Introduction ............................................................................................................. 4 1.1 Overview .................................................................................................................. 4 1.2 Features ................................................................................................................... 4 1.3 Regulatory and Safety Information ........................................................................ 5 2. Hardware Introduction .......................................................................................................... 6 2.1 Development Specifications ................................................................................... 6 2.2 BLOCK DIAGRAM .................................................................................................... 7 2.3 Hardware Components ........................................................................................... 7 3. Device Installation ................................................................................................................. 8 3.1 Power Activation and Network Preparation ........................................................... 8 3.2 Physical Mounting and Orientation ........................................................................ 8 3.3 Firmware Management ............................................................................................ 8 4. Operation and Working Principle ......................................................................................... 9 4.1 Summary of Operating Modes ................................................................................ 9 4.2 Automatic Operation Flow ...................................................................................... 9 4.2.1 Install Mode (Installation and Field Verification) .......................................... 9 4.2.2 Standing State (Stationary State - General Mode) ...................................... 10 4.2.3 Moving State (In-Motion State - General Mode) .......................................... 10 4.2.4 Model-Specific Behavior .............................................................................. 11 5. Device Specifications ......................................................................................................... 12 5.1 Configuration ......................................................................................................... 12 5.2 LoRaWAN Configuration ....................................................................................... 12 5.3 LED Behavior ......................................................................................................... 13 5.4 Button Behavior ..................................................................................................... 14 6. Communication Overview .................................................................................................. 15 6.1 STM UART Communication .................................................................................. 15 6.2 LoRaWAN Communication ................................................................................... 15 6.3 Notice ..................................................................................................................... 16 7. Warranty Information .......................................................................................................... 17 7.1 Warranty Period ..................................................................................................... 17 7.2 Coverage ................................................................................................................ 17 7.3 Warranty Exclusions ............................................................................................. 17 7.4 Claim Procedure .................................................................................................... 17 8. Regulatory Information ....................................................................................................... 18 1. Product Introduction 1.1 Overview The LinkTag20 is a fully autonomous GPS tracking device operating in the LoRaWAN US915 band. It is designed for the long-range wireless transmission of location and device status data with minimal user interaction. The device periodically acquires GNSS coordinates, evaluates movement using an integrated IMU, and transmits the location, battery status, and operational metrics to the LoRaWAN network via unconfirmed uplink messages. It automatically determines its operational state (Standing or Moving) and adjusts its reporting interval accordingly to maximize power efficiency. Once deployed, the device operates independently in outdoor environments without requiring additional configuration or control by the user. This makes the LinkTag20 suitable for asset tracking, equipment monitoring, infrastructure management, and other field applications. The LinkTag20 is a high-performance, solar-assisted wireless tracking device designed for long- range asset monitoring and data logging. The product is intended to be used by end-users without requiring disassembly, modification, or access to the internal firmware interface. 1.2 Features ● LoRaWAN US915 Compliance: Supports LoRaWAN 1.0.3 in the US915 frequency band using the Quectel KG200Z module. All application data is transmitted via unconfirmed uplink messages. ● High-Precision GNSS: The integrated Quectel LC76G GNSS receiver provides …

Text truncated - open the document above for the full version.

Rev 11/20/07 Federal Communications Commission Authorization and Evaluation Division Date: 03-06-2026 Confidentiality Request regarding application for certification of FCC ID : 2BAK4LINKTAG20 Subject: FCC Part 15.247 Declaration of Compliance for Frequency Hopping System FCC To Whom It May Concern: We, [MIRATEK INCORPORATION], hereby declare that the equipment bearing the FCC ID specified above is a Frequency Hopping Spread Spectrum system and complies with the requirements of FCC Part 15.247(a)(1), (g), and (h). 1. EUT Pseudo-Random Frequency Hopping Sequence According to FCC Part 15.247(a)(1), the system shall hop to channel frequencies that are selected at the system hopping rate from a pseudo-randomly ordered list of hopping frequencies. 2. Equal Hopping Frequency Use We declare that each frequency in the hopping sequence is used equally on average by the transmitter. 3. System Receiver Input Bandwidth and Synchronization We declare that the system receivers have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters. Furthermore, the receivers shift frequencies in synchronization with the transmitted signals. 4. Compliance with FCC Part 15.247 (g) and (h) • Compliance with 15.247(g): The system, consisting of both the transmitter and the receiver, is designed to comply with all of the regulations in this section should the transmitter be presented with a continuous data (or information) stream. The system also complies with the definition of a frequency hopping system and distributes its transmissions over the minimum number of hopping channels specified when employing short transmission bursts. • Compliance with 15.247(h): The incorporation of intelligence within this system that permits it to recognize other users within the spectrum band so that it individually and independently chooses and adapts its hopsets to avoid hopping on occupied channels is permitted. However, we declare that this system does not coordinate with other frequency hopping systems in any other manner for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Rev 11/20/07 If you have any questions regarding this declaration, please do not hesitate to contact us. Sincerely, Won In Baek / R&D Manager MIRATEK INCORPORATION

Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 03-06-2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BAK4LINKTAG20 MIRATEK INCORPORATION (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. MIRATEK INCORPORATION (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, Won In Baek MIRATEK INCORPORATION Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 03-06-2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BAK4LINKTAG20 MIRATEK INCORPORATION (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Won In Baek MIRATEK INCORPORATION

Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 03-06-2026 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2BAK4LINKTAG20 Applicant FRN: 0033542226 MIRATEK INCORPORATION certifies that, as of the date of the filing of the application, Miratek Mobility Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. MIRATEK INCORPORATION accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Miratek Mobility Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company name: Miratek Mobility Inc. Address: 4221 Wilshire Blvd STE 440 Los Angeles, CALIFORNIA, CA 90010-3504, United States FRN: 0037458791 Contact name: Younghoon Cho E-mail: [email protected] Sincerely, MIRATEK INCORPORATION Miratek Mobility Inc. Won In Baek Younghoon Cho

Rev 11/20/07 Federal Communications Commission Authorization and Evaluation Division Date: 03-06-2026 Confidentiality Request regarding application for certification of FCC ID : 2BAK4LINKTAG20 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Schematics_PCB Layout Parts List Operational Description Block Diagram.pdf Schematics.pdf Schematics_PCB Layout.pdf Part list.pdf Operational Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Won In Baek / R&D Manager MIRATEK INCORPORATION

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date : 03-06-2026 SUBJECT: FCC Application for (2BAK4LINKTAG20) To Whom It May Concern: We, the undersigned, hereby authorize Seong Uk Park at CTK on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by CTK on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Won In Baek / R&D Manager MIRATEK INCORPORATION

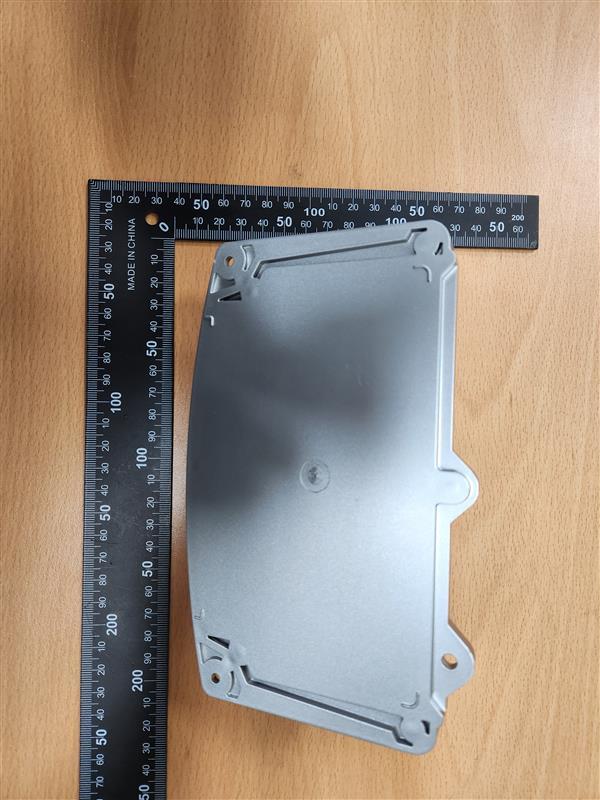

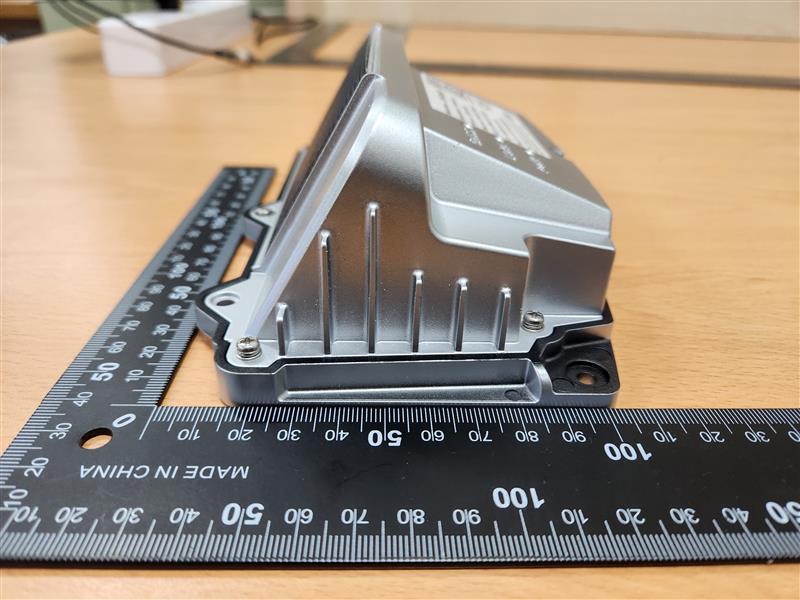

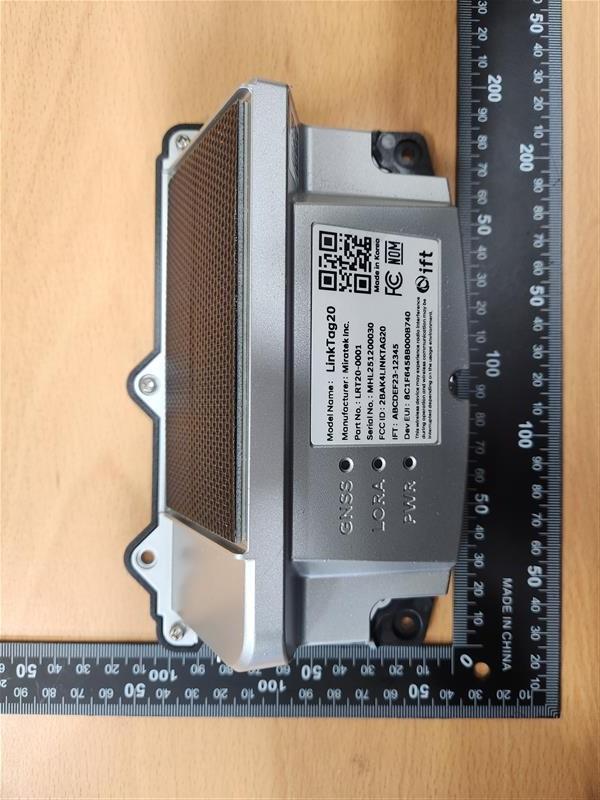

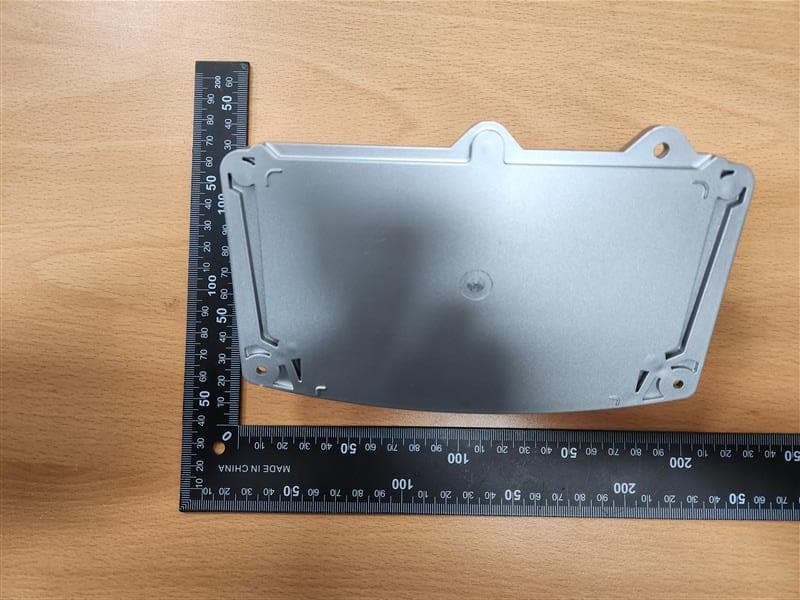

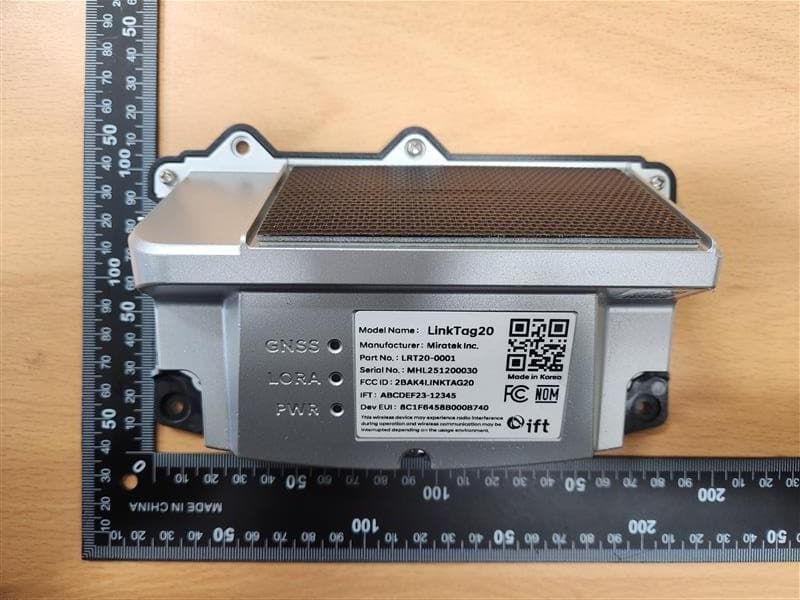

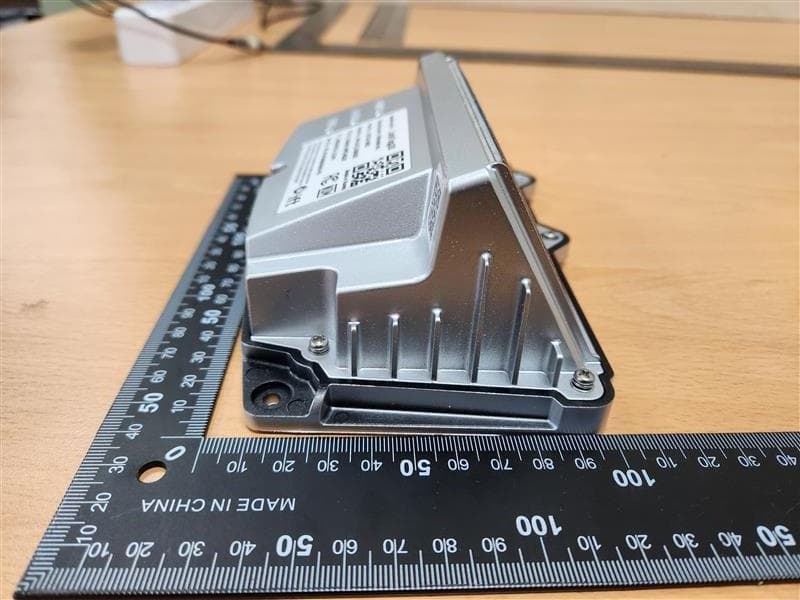

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.elementkorea.kr EUT External Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.elementkorea.kr CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.elementkorea.kr

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.elementkorea.kr Label Photographs and Location

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.elementkorea.kr EUT Internal Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.elementkorea.kr CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.elementkorea.kr CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.elementkorea.kr [GPS Antenna 1] [GPS Antenna 1_without Shield Can] CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.elementkorea.kr [LoRa Antenna] CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.elementkorea.kr CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.elementkorea.kr

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Page 1 of 4 RF EXPOSURE EVALUATION Applicant : MIRATEK INCORPORATION Applicant Address : 135, Bokjeong-ro, Sujeong-gu, Seongnam-si, Gyeonggi-do, Republic of Korea Kind of Product : LinkTag20 Equipment Model Name : LinkTag FCC ID : 2BAK4LINKTAG20 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Page 2 of 4 Standard Requirement The following RF exposure procedures are applicable : - FCC Rules Part 1.1310 Radiofrequency radiation exposure limits Table 1 below sets forth limits for Maximum Permissible Exposure (MPE) to radiofrequency electromagnetic fields. Table 1—Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 ≤6 3.0-30 1 842/f 4.89/f *900/f 2 <6 30-300 61.4 0.163 1.0 <6 300-1,500 f/300 <6 1,500-100,000 5 <6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 <30 1.34-30 824/f 2.19/f *180/f 2 <30 30-300 27.5 0.073 0.2 <30 300-1,500 f/1 500 <30 1,500-100,000 1.0 <30 f = frequency in MHz * = Plane-wave equivalent power density CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Page 3 of 4 MPE Calculations The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) Power density at the specific separation: S = PG/(4R 2 π) Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) Estimated safe separation: R = √(PG / 4π) Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Page 4 of 4 RF Exposure Results Frequency [MHz] Measured Max Output Power [dBm] Peak Gain [dBi] Power Tolerance [dB] EIRP [dBm] EIRP [mW] Power Density [mW/cm 2 ] Limit [mW/cm 2 ] R [cm] 902.3 20.478 4.296 ± 0.5 25.274 336.822 0.067 0.602 20 914.9 20.431 25.227 333.196 0.066 0.610 927.5 20.336 25.132 325.987 0.065 0.618 *Minimum Safety distance (R) : ≥ 20 cm -END-

TEST REPORT CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 REPORT No.: CTK-2026-00614 Page (1) / (31) pages [QF-QP15-07] Ver.04 Project Number: CTK-R-2026-00490 1. Applicant ◦ Name : MIRATEK INCORPORATION ◦ Address : 135, Bokjeong-ro, Sujeong-gu, Seongnam-si, Gyeonggi-do, Republic of Korea ◦ Date of Receipt : 2026-01-27 2. Manufacturer ◦ Name : MIRATEK INCORPORATION 3. Use of Report : For FCC Certification 4. Test sample / Model : LinkTag20 / LinkTag 5. Date(s) of test : 2026-02-26 to 2026-03-05 6. Test Standard (Method) used : FCC 47 CFR part 15 subpart C 15.247, ANSI C63.10-2020 7. Testing Environment : refer to 6 page 8. Test Results : Compliance 9. Location of Test : Permanent Testing Lab On Site Testing (Address : 5, Dongbu-ro 221beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, 17141 Korea) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This report cannot be reproduced or copied without the written consent of CTK. Approval Tested by: Seong-uk Park (Signature) Technical Manager: Bong-seok Kim (Signature) 2026-03-06 CTK Co., Ltd. CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 REPORT No.: CTK-2026-00614 Page (2) / (31) pages [QF-QP15-07] Ver.04 Project Number: CTK-R-2026-00490 REPORT REVISION HISTORY Date Revision Page No 2026-03-06 Issued (CTK-2026-00614) all This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 REPORT No.: CTK-2026-00614 Page (3) / (31) pages [QF-QP15-07] Ver.04 Project Number: CTK-R-2026-00490 CONTENTS 1. General Product Description ............................................................................................. 4 1.1 Applicant Information ............................................................................................... 4 1.2 Manufacturer Information .......................................................................................... 4 1.3 Product Information ................................................................................................ 4 1.4 Peripheral Devices ................................................................................................. 4 2. Accreditations .............................................................................................................. 5 2.1 Laboratory Accreditations and Listings .......................................................................... 5 2.2 Calibration Details of Equipment used for Measurement .................................................... 5 3. Test Specifications ......................................................................................................... 6 3.1 Standards ............................................................................................................ 6 3.2 Testing Environment ............................................................................................... 6 3.3 Mode of Operation during the Test ............................................................................... 7 3.4 Device Modifications ............................................................................................... 7 3.5 Measurement Uncertainty ......................................................................................... 8 3.6 Test Software ........................................................................................................ 8 4. Technical Characteristic Test ............................................................................................. 9 4.1 Carrier Frequency Separation .................................................................................... 9 4.2 Number of Hopping Frequencies .............................................................................. 11 4.3 20 dB Bandwidth & 99% Bandwidth ........................................................................... 13 4.4 Time of Occupancy ............................................................................................... 15 4.5 Maximum Peak Conducted Output Power ................................................................... 17 4.6 Unwanted Emissions (Conducted) ............................................................................. 19 4.7 Radiated Emission ............................................................................................... 23 APPENDIX A – Test Equipment Used For Tests ....................................................................... 31 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 REPORT No.: CTK-2026-00614 Page (4) / (31) pages [QF-QP15-07] Ver.04 Project Number: CTK-R-2026-00490 1. General Product Description 1.1 Applicant Information Company MIRATEK INCORPORATION Contact Point 135, Bokjeong-ro, Sujeong-gu, Seongnam-si, Gyeonggi-do, Republic of Korea Contact Person Name : AHN, CHIHWAN E-mail : [email protected] Tel : +82-10-8373-4131 1.2 Manufacturer Information Manufacturer MIRATEK INCORPORATION Address 135, Bokjeong-ro, Sujeong-gu, Seongnam-si, Gyeonggi-do, Republic of Korea 1.3 Product Information FCC ID 2BAK4LINKTAG20 Product Description LinkTag20 Basic Model (HVIN) LinkTag Variant Model Name - Operating Frequency 902.3 MHz - 927.5 MHz RF Output Power 20.478 dBm (0.112 W) Antenna Specification Antenna type : PCB Antenna Peak gain : 4.296 dBi Number of channels 127 Channel Spacing 200 kHz Type of modulation FSK Power Source …

Text truncated - open the document above for the full version.

Product Specification PCB CABLE Antenna TF –LTAI-464 Head Office R&D Center : 1010-ho Shinil IT UTO 13 LS-ro , Gunpo-si, Gyeonggi-do, 435-831, Korea Description LORA ANT Product Specification Specification No. TF –LTAI-464 Customer. Miratek Rev. 1.0 Date DEC.22 . 2025 Antenna Approval sheet PCB CABLE Antenna Product Name LORA Part No. TF –LTAI-464 Customer code Customer Miratek Provider TELLESTAR Classification DIRECTOR EXAMINATION APPROVAL RF APPROVAL MECHANICAL Classification DIRECTOR EXAMINATION APPROVAL RF APPROVAL MECHANICAL Description LORA ANT Product Specification Specification No. TF –LTAI-464 Customer. Miratek Rev. 1.0 Date DEC.22 . 2025 Table of Contents 1 .Approval Sheet Check List ................................................................................. 4 2.Revision List ........................................................................................................ 5 3.Specification – Set Test ....................................................................................... 6 3-1 General Standard ........................................................................................... 6 3-2 Electrical Standard ...................................................................................... 6 3-3 Mechanical Standard ..................................................................................... 6 4 Test Procedure & Measurement .......................................................................... 7 4-1 External Test .................................................................................................. 8 4-2Electrical Feature Inspection .......................................................................... 8 4-2-1 Materials ................................................................................................. 8 Inspection ......................................................................................................... 8 4-3 .Radiation Pattern ........................................................................................ 10 4-3-1 Chamber Materials (KTM Korea) ........................................................ 10 4-3-2 Inspection .............................................................................................. 10 5 .Packing, Shipping, Handling ............................................................................ 12 5-1.Exterior Option ............................................................................................ 12 5-2 .Packing ..................................................................................................... 12 Warranty : 1:1 exchange if defective6.Antenna drawing ..................................... 12 7. QUALITY STANDARD AND TEST METHOND ........................................ 14 8 Electrical data : .................................................................................................. 15 8-1 Radiation Pattern 3D Data ..................................................................... 17 Description LORA ANT Product Specification Specification No. TF –LTAI-464 Customer. Miratek Rev. 1.0 Date DEC.22 . 2025 1 .Approval Sheet Check List Change of Record Date Item/Contents Foundation Approval Issue Product Issue 1.0 25.12.22 Approval Description LORA ANT Product Specification Specification No. TF –LTAI-464 Customer. Miratek Rev. 1.0 Date DEC.22 . 2025 2.Revision List No Date Before change After change Reason Rev 1 2025.12.22 DATA 1.0 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Description LORA ANT Product Specification Specification No. TF –LTAI-464 Customer. Miratek Rev. 1.0 Date DEC.22 . 2025 3.Specification – Set Test 3-1 General Standard General Specification Model name TF –LTAI-464 Antenna type PCB CABLE Antenna 3-2 Electrical Standard Electrical Specification Frequency range 902~928MHz V.S.W.R 5.0:1 Gain(dBi) MAX 4.29dBi Radiation pattern Omni-Directional Polarization Vertical Max Power(W) 2W Max. Impedance 50ohms 3-3 Mechanical Standard Mechanical Specification Connector type IPEX MHF1 Material CU –FR-4 Color RF CABLE BALCK 1.13mm GRAY 41mm Temperature range -30°C ~ 85°C Weight 1.66 ± 0.1g 3-4 Operating Conditions Specification Operating Environment Temperature : -30~85°C Humidity : ~85% RH Storage Environment Temperature : -20~60°C Humidity : ~65% RH Description LORA ANT Product Specification Specification No. TF –LTAI-464 Customer. Miratek Rev. 1.0 Date DEC.22 . 2025 PHOTO Description LORA ANT Product Specification Specification No. TF –LTAI-464 Customer. Miratek Rev. 1.0 Date DEC.22 . 2025 4 Test Procedure & Measurement 4-1 External Test To check the unity Antenna’s exterior, size, connector and etc. with the exterior indicated 4-2Electrical Feature Inspection 4-2-1 Materials Equipment Model Quantity Standard Network Analyzer E5071C equipment with the equivalent 1EA ∙Freq. Range : 9KHz ~ 8.5GHz ∙ Accuracy : <5ppm ∙Dynamic Range : 105dB ∙ Trace at ±200dB ∙ Resolution : 1Hz ∙ Impedance : 50 Adaptor 1EA ∙ N(F)-SMA(M) Calibration Kit HP85033D 1Set ∙ DC ~ 8.5GHz (SMA-Type) Inspection Figure 1. (Network Analyzer) Electrical Characteristic Measurement Description LORA ANT Product Specification Specification No. TF –LTAI-464 Customer. Miratek Rev. 1.0 Date DEC.22 . 2025 4-2-2 Inspection 가. Equipment Setting and Calibration ㉠Equipment Setting ⓐBandwidth: 902~928MHz ⓑ Source Power: 0dBm, ㉡ Calibration Using N-Type CalKit Applying O.S.L. Method, Calibrate Port number 1. ⓐ S 11 Calibration: Open Port #1, Calibrate after connecting the Load short. ㉢ Calibration Check ⓐConnect Load to Port #1 to check S 11’s V.S.W.R is less than 1.02:1 ⓑConnect Load to Port #1 to check S 21 is less than -80.0dB. If not Satisfied with the Result, Repeat Procedure ㉡ Calibration. 나. Inspection Method and Contents Item Inspection Method Standard V.S.W.R Connect ANT to the Positioner and Measure the S 11 within Operating Band, as Shown above on Figure 1. 2.0:1 Max. Impedance Connect ANT to the Positioner and Meas…

Text truncated - open the document above for the full version.

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Test Setup Photos and Configuration Radiated Electric Field Emissions [9 kH…

Text truncated - open the document above for the full version.
