2BAKAM2MEIOT1801IoT Sensor

IoT Sensor Instruction Manual Room #206, (Asia ICT Tower), 4th Jagok-ro 7Gil Gangnam-gu, Seoul, 06372, Republic of Korea [email protected] http://mtome.co.kr MtoMe co., ltd. Key Features (IoT Sensor) -Attachable Linear and Rotational Motion Counting IoT Sensor. -Enable smartphone to be used with ordinary fitness equipment with VRFit service for 360 virtual exercise experiences. -Support indoor bike, rowing machine, elliptical, boxing. Notes -Do not disassemble the sensor. -Be careful not to get water inside. -Do not attach the sensor to a location where direct force is applied. -IoT sensor may not operate normally near devices that emit electromagnetic waves (e.g. wireless APs, Bluetooth devices, or microwave ovens). Items are included -MtoMe IoT Sensor -Manual -Velcro tape -O-Ring MtoMe IoT Sensor Power switch : User can turn the power ON/OFF. (Use the ON/OFF switch when you need to reset the device, Keep it in the ON state normally. If a smartphone is not connected, Sleep mode is activated, and the battery is barely consumed.) Charging port : It can be charged using a USB C port.. LED function -LED1(green) : lights up when the battery is sufficient. -LED2(reg) : lights up when the battery is low. Button function -Button 1 or 2 is pressed : Button 1 or 2 is pressed : Check whether the device is turned on by LED. -Button 1 is pressed for 3 seconds : Bluetooth connection is disconnected. -Button 1 and button 2 are pressed simultaneously for 6 seconds : Initialize the device to the factory state. Getting started with VRFit 1. Attach the loT sensor to fitness equipment. Install it on moving part (e.g. pedal for a bike) with velcro tape. 2. Use your smartphone to search for VRFit in the Play Store and download it. Application List (Android) -360VRFit Cycle1 : Exercise while watching 360 VR video. (The faster movement in the real world, the faster you go in 360 VR.) -360VRFit Cycle2 : Users can compete with an avatar, which is based on the real record of other people. -360VRFit Rowing : Turns the rowing machine into a 360 VR device. Record competition on the lake. -360VRFit Boxing : With 2 IoT sensors, you can exercise boxing while listening to various music.(iOS & Android) -VRFit Cycle Pop : Exercise while watching video lectures on YouTube. Provides graphs like RPM and Watt. -VRFit Rowing Pop : Exercise while watching lake video on YouTube. Provides graphs like stroke and SPM. 3. Run an app and connect the sensor. 4. Start an exercise by pressing the "Exercise start" button. Supported software -Applications supporting FTMS cycle protocol : Zwift, Bkool fitness, Fulgaz - (iOS & Android) / Kinomap - (iOS) -Using VRFit Z Assistant (Android) app You can change the watt output level. Specification MTOME IoT Sensor -Model : M2MEIOT1801 -Size : 46(W) X 38(L) X 12(H) (mm) -Measurable count rate : 30~180 times per minute -Type of measurement : Rotation & Linear movement -Bluetooth version : BLE 4.2 -Battery capacity : 388mAh -Use time : 70 hours (Waiting time: 3 months) -Charging method : USB C port -Recommended smartphone : Android 7.0 or higher(Built in Gyro sensor). Some apps support iOS. -BLE Communication distance : ~7M Problem-solving -If the message “Unregistered IoT Sensor” appears. It is a device that has not been registered at the factory. Please contact us by email at ‘[email protected]’ -If the sensor is not detected in an app. Press the button on the device and check whether the LED is turned on (whether the device is powered on), whether it is being used by another smartphone, or check the battery level of the device. -When the measurement is not working properly. 1. Make sure the device is properly attached to the correct position. 2. Turn the device power off and on. 3. Press the button to check if the device is turned on 4. Proceed with device calibration. 5. Enter the application setting menu, change the measurement type, and find and select the appropriate measurement type. # 1~2 errors may occur at the start and end of the exercise. FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 5 mm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or tran…

Text truncated - open the document above for the full version.

MtoME Co., Ltd. Room 206, ASIA ICT 4th,Jagok-ro 7gil, Gangnamgu Seoul, South Korea Tel: +82-10-2063-3833 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: July, 10, 2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BAKAM2MEIOT1801 Sejin Park of MtoME Co., Ltd. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, signature CEO / Mr Sejin Park MtoME Co., Ltd. MtoME Co., Ltd. Room 206, ASIA ICT 4th,Jagok-ro 7gil, Gangnamgu Seoul, South Korea Tel: +82-10-2063-3833 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: July, 10, 2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BAKAM2MEIOT1801 Sejin Park of MtoME Co., Ltd. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, signature CEO / Mr Sejin Park MtoME Co., Ltd.

Certification designating a U.S. Agent for service of process: As required by section 2.911(d)(7), the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. In either scenario, the designation of the U.S. agent for service of process should be provided as an attachment to the equipment authorization application. The applicant must provide a written certification, which must: i. Be signed by both the applicant and designated agent for service of process, if the agent is different from the applicant. ii. Acknowledge the applicant’s consent and the designated agent’s obligation to accept service of process. iii. Provide a physical U.S. address and email for the designated agent. iv. Acknowledge the applicant’s acceptance to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Unofficial information provided by FCC personnel on February 14, 2023, via the monthly call with the TCB Council: The Agent for Process of Service: • cannot be a TCB or affiliated with a TCB (e.g. could not be a person who works for a TCB or a company that owns or is owned by the TCB) • cannot be a [FCC recognised] Lab or affiliated with a test lab (e.g. could not be a person who works for a Lab or a company that owns or is owned by the Lab) • Agent can be Individual Entity or a Company Entity • Agent Entity must be located in US, US address/phone • Entity acting as Agent must have FRN (best practice, put FRN on Agent Letter) • Agent letter does not have to be FCC ID specific, can be general Agent for Grantee For devices being marketed or for which marketing has ceased for less than 1 year, if the Agent for Process of Service changes, then for every TC Number the TCB must request the FCC to put application into Audit Mode and Agent Letter needs to be updated (superseded). NOTE: The U.S. Agent for Service of Process should not be confused with the authorized agent used for signing the 731 form, other cover letters within the application, and/or the agent who may interface with the TCB. MtoME Co., Ltd. Room 206, ASIA ICT 4th,Jagok-ro 7gil, Gangnamgu Seoul, South Korea Tel: +82-10-2063-3833 U.S. Agent Designation for Service of Process ATTENTION: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA REGARDING: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Nam e: Approve-IT, Inc. Contact Name: Nathan Grinager Street Address: 8011 3 4 th Ave South, Suite 342 City/Province/Zip: Bloomington, MN 55425 Telephone No: 651-247-1678 Email: [email protected] FRN #: 0027533835 This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: July 14, 2023 Signed by (Printed Name/Title): Nathan Grinager / Co-President *This le tter is valid indefinitely fo r all applications submitted within the period of 07/11/2023 – 07/11/2024. The Applicant confirms its explicit consent and acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: MtoME Co., Ltd. FCC ID: 2BAKAM2MEIOT1801 Contact Name: Mr Sejin Park Street Address: Room 206, ASIA ICT 4th,Jagok-ro 7gil, Gangnamgu City/Province/Zip: Seoul, South Korea Telephone No: +82-10-2063-3833 Email: [email protected] MtoME Co., Ltd. Room 206, ASIA ICT 4th,Jagok-ro 7gil, Gangnamgu Seoul, South Korea Tel: +82-10-2063-3833 Applicant Signature: Date: 2023.07.10 Signed by (Printed Name/Ti tle): CEO / Mr Sejin Park

MtoME Co., Ltd. Room 206, ASIA ICT 4th,Jagok-ro 7gil, Gangnamgu Seoul, South Korea Tel: +82-10-2063-3833 Date: July 10, 2023 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID : 2BAKAM2MEIOT1801 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT Exhibit Type File Name Part List Part List.pdf Schematics Diagram(s) Schematic.pdf Operation description Operation description.pdf Block diagram Block diagram.pdf And the above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, signature CEO / Mr Sejin Park MtoME Co., Ltd.

MtoME Co., Ltd. Room 206, ASIA ICT 4th,Jagok-ro 7gil, Gangnamgu Seoul, South Korea Tel: +82-10-2063-3833 Date: July 10, 2023 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 FCC ID : 2BAKAM2MEIOT1801 To whom it may concern: I, the undersigned, hereby authorize Young-Jin, Lee of KES Co., Ltd. and hereafter referred to as KES Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Young-Jin, Lee of KES Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KES Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; MtoME Co., Ltd. Room 206, ASIA ICT 4th,Jagok-ro 7gil, Gangnamgu Seoul, South Korea Tel: +82-10-2063-3833 h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, signature CEO / Mr Sejin Park MtoME Co., Ltd. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

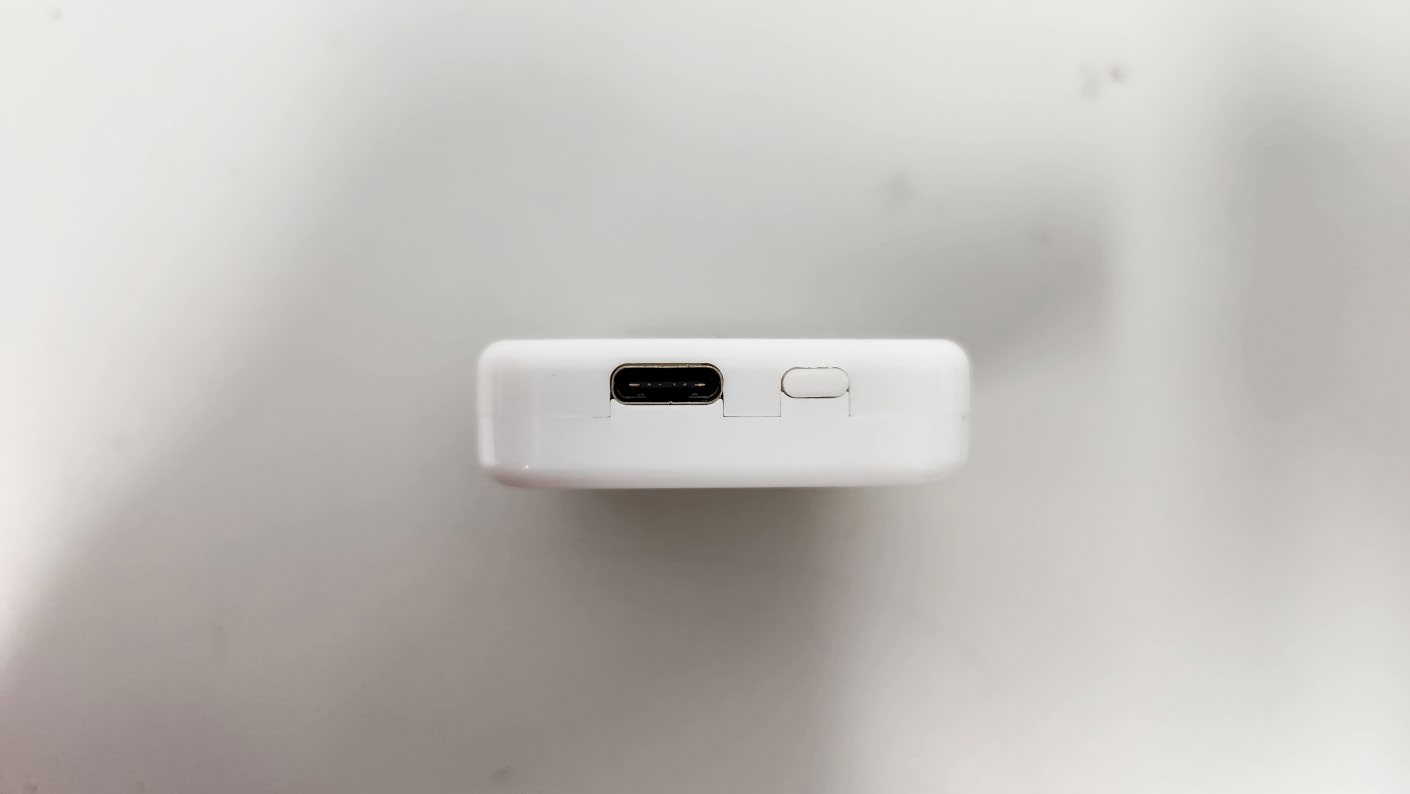

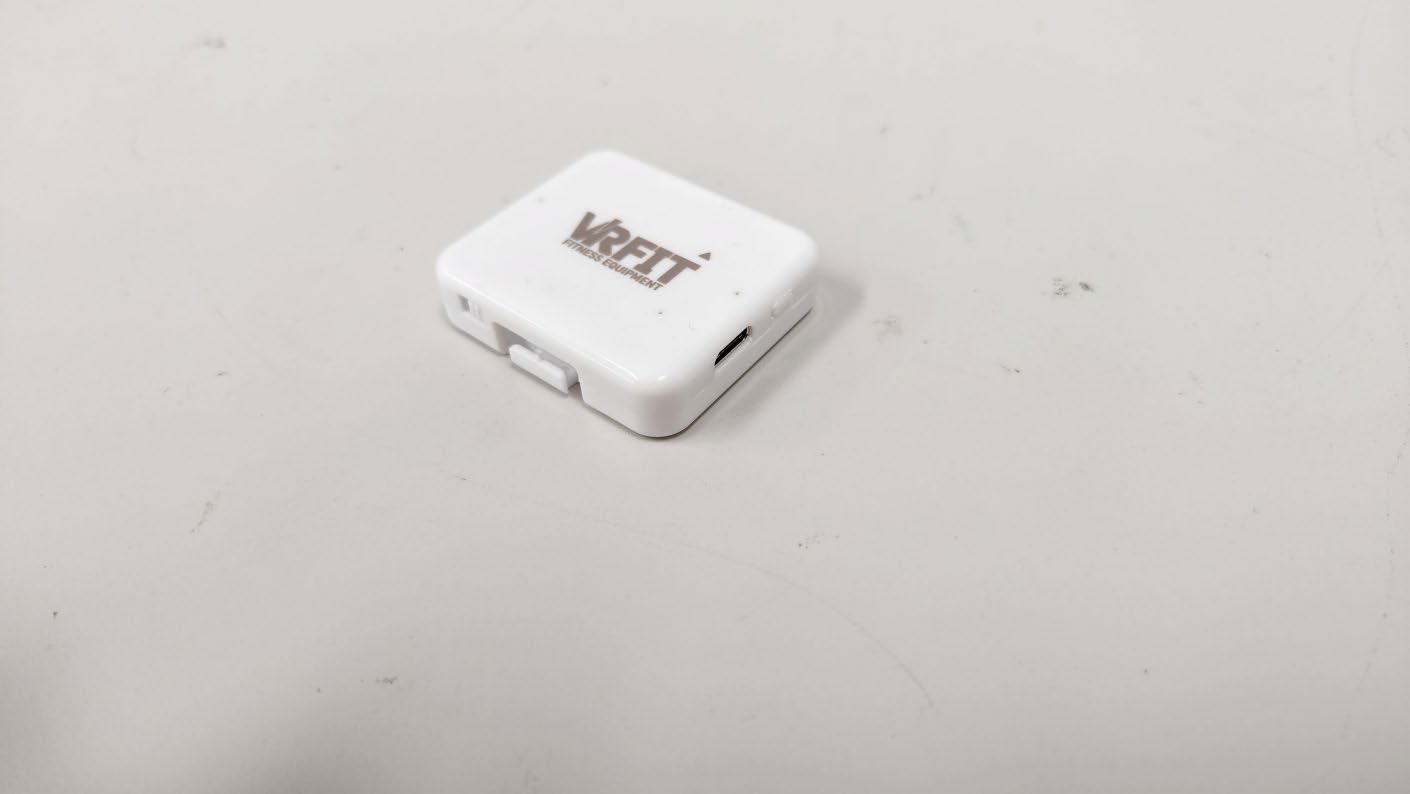

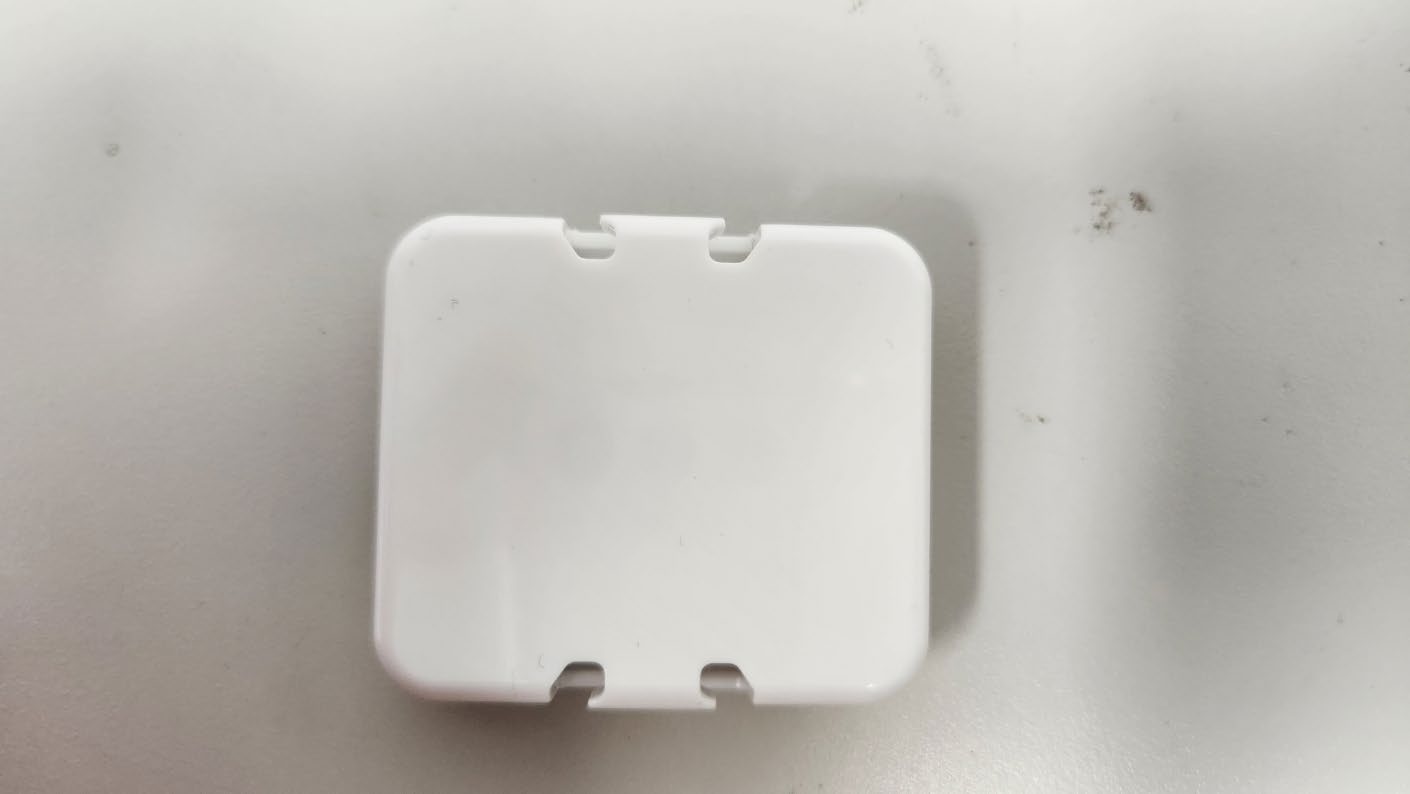

Model No.: M2MEIOT1801 Page 1 of 2 External photos Model No.: M2MEIOT1801 Page 2 of 2 Blank

Model No.: M2MEIOT1801 Page 1 of 1 Label Location The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the User’s Manual. IoT Sensor Model : M2MEIOT1801 FCC ID : 2BAKAM2MEIOT1801 Manufacturer : MtoME Co., Ltd. Power : DC 3.7 V (Battery)

Model No.: M2MEIOT1801 Page 1 of 1 Internal photos PCB Antenna

Model No.: M2MEIOT1801 Page 1 of 1 RF exposure FCC ID : 2BAKAM2MEIOT1801 According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 ㎒ to 6 ㎓ at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(㎓)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, Where; f(㎓) is the RF channel transmit frequency in ㎓ Power and distance are rounded to the nearest ㎽ and mm before calculation The result is rounded to one decimal place for comparison Results Mode Frequency (㎓) Distance (mm) Max tune-up power (㏈m) Calculation value Exclusion Threshold (㏈m) (㎽) LE 1 Mbps 2.402 ~ 2.480 5 -13.0 0.050 0.016 ≤3.0

KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-2 3T0097 Page (22) of (33) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) Mode: LE 1 Mbps Distance of measurement: 3 meter Channel: 20 - Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1 053.09 46.89 Peak V -8.47 - 38.42 74.00 35.58 1 239.08 47.22 Peak H -7.59 - 39.63 74.00 34.37 1 333.07 56.78 Peak H -7.14 - 49.64 74.00 24.36 1 333.27 47.28 Peak V -7.14 - 40.14 74.00 33.86 Horizontal // Peak for 1 ㎓ to 3 ㎓ Vertical // Peak for 1 ㎓ to 3 ㎓ Horizontal // Peak for 3 ㎓ to 18 ㎓ Vertical // Peak for 3 ㎓ to 18 ㎓ Note. 1. No spurious emission were detected above 3 ㎓. 2. Average test would be performed if the peak result were greater than the average limit. KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-2 3T0097 Page (23) of (33) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) Mode: LE 1 Mbps Distance of measurement: 3 meter Channel: 39 - Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1 000.50 47.69 Peak V -8.72 - 38.97 74.00 35.03 1 165.68 48.09 Peak V -7.94 - 40.15 74.00 33.85 1 332.07 55.75 Peak H -7.15 - 48.60 74.00 25.40 1 717.63 53.12 Peak H -5.45 - 47.67 74.00 26.33 - Band edge Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 2 483.71 49.98 Peak H -3.38 - 46.60 74.00 27.40 2 483.74 48.45 Peak V -3.38 - 45.74 74.00 28.26 2 484.78 51.09 Peak H -3.38 - 47.71 74.00 26.29 2 488.47 48.83 Peak V -3.38 - 45.45 74.00 28.55 Restricted band // Horizontal // Peak Restricted band // Vertical // Peak KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-2 3T0097 Page (24) of (33) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) Horizontal // Peak for 1 ㎓ to 3 ㎓ Vertical // Peak for 1 ㎓ to 3 ㎓ Horizontal // Peak for 3 ㎓ to 18 ㎓ Vertical // Peak for 3 ㎓ to 18 ㎓ Note. 1. No spurious emission were detected above 3 ㎓. 2. Average test would be performed if the peak result were greater than the average limit. KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-2 3T0097 Page (25) of (33) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) Test results (18 ㎓ to 30 ㎓) – Worst case Mode: LE 1 Mbps Distance of measurement: 3 meter Channel: 39 (Worst case) Horizontal Peak Vertical Peak Note. 1. No spurious emission were detected above 18 ㎓. KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-2 3T0097 Page (26) of (33) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) 3.5. Conducted spurious emissions & band edge Test setup EUT Attenuator Spectrum analyzer Test procedure Band edge ANSI C63.10-2013 - Section 11.11 1. Start and stop frequency were set such that the band edge would be placed in the center of the plot 2. Span was set large enough so as to capture all out of band emissions near the band edge 3. Set the RBW = 100 ㎑ 4. Set the VBW = [3 × RBW]. 5. Detector = Peak 6. Sweep time = auto 7. Trace mode = max hold 8. Allow trace to fully stabilize. Out of band emissions ANSI C63.10-2013 - Section 11.11 1. Start frequency was set to 30 ㎒ and stop frequency was set to 25 ㎓ for 2.4 ㎓ frequencies and 40 ㎓ for 5 ㎓ frequencies 2. Set the RBW = 100 ㎑ 3. Set the VBW = [3 × RBW]. 4. Detector = Peak 5. Sweep time = auto 6. Trace mode = max hold 7. Allow trace to fully stabilize. Limit According to 15.247(d), in any 100 ㎑ bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 ㏈ below that in the 100 ㎑ bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval , as permitted under paragraph(b)(3) of this section , the attenuation required under this paragraph shall be 30 ㏈ instead of 20 ㏈. Attenuation below the general limits specified in section 15.209(a) is not required. In addition, radia…

Text truncated - open the document above for the full version.

KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-2 3T0097 Page (1) of (33) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) TEST REPORT Part 15 Subpart C 15.247 Equipment under test IoT Sensor Model name M2MEIOT1801 FCC ID 2BAKAM2MEIOT1801 Applicant MtoME Co., Ltd. Manufacturer MtoME Co., Ltd. Date of test(s) 2023.01.30 ~ 2023.02.06 Date of issue 2023.07.10 Issued to MtoME Co., Ltd. Room 206, ASIA ICT 4th,Jagok-ro 7gil, Gangnamgu Seoul, South Korea Tel: +82-10-2063-3833 Issued by KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea 473-21, Gayeo-ro, Yeoju-si, Gyeonggi-do, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 Test and report completed by : Report approval by : Gu-Bong, Kang Test engineer Ye o n g-Jun Cho Technical manager This test report is not related to KS Q ISO/IEC 17025 and KOLAS KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-2 3T0097 Page (2) of (33) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) Revision history Revision Date of issue Test report No. Description - 2023.07.10 KES-RF-23T0097 Initial KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-2 3T0097 Page (3) of (33) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) TABLE OF CONTENTS 1. General information ................................................................................................................................................... 4 1.1. EUT description ........................................................................................................................................ 4 1.2. Test configuration ...................................................................................................................................... 4 1.3. Information about derivative model .......................................................................................................... 4 1.4. Accessory information............................................................................................................................... 4 1.5. Sample calculation .................................................................................................................................... 5 1.6. Measurement Uncertainty ......................................................................................................................... 5 1.7. Frequency/channel operations ................................................................................................................... 5 2. Summary of tests ........................................................................................................................................................ 6 3. Test results .................................................................................................................................................................. 7 3.1. 6 ㏈ bandwidth ........................................................................................................................................ 7 3.2. Output power ............................................................................................................................................. 9 3.3. Power spectral density ............................................................................................................................. 11 3.4. Radiated restricted band and emissions ................................................................................................... 13 3.5. Conducted spurious emissions & band edge ........................................................................................... 26 3.6. AC conducted emissions ......................................................................................................................... 29 3.7. Antenna Requirement .............................................................................................................................. 31 Appendix A. Measurement equipment ......................................................................................................................... 32 Appendix B. Test setup photos ..................................................................................................................................... 33 KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-2 3T0097 Page (4) of (33) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) 1. General information Applicant: MtoME Co., Ltd. Applicant address: Room 206, ASIA ICT 4th,Jagok-ro 7gil, Gangnamgu, Seoul, South Korea Test site: KES Co., Ltd. Test site address: 3701, 40, Simin-daero 365be…

Text truncated - open the document above for the full version.

KES Co., Ltd. 3701, 40, Simin-daero 365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Report No.: KES-RF-2 3T0097 Page (33) of (33) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. The authenticity of the test report, contact [email protected] KES-QP16-F01(00-23-01-01) Appendix B. Test setup photos Radiated test Conducted test Blank The end of test report.
