2BAKB-BOXYSet top box

物料刀模名称 公司名称 深圳市视壮科技有限公司：VS-CHE220212ST订单号： 物料名称 说明书 STR 折后尺寸：100x100mm 兰正孟 ± 1mm 128g铜版纸 折叠方式：风琴折后对折 蓝色虚线为无需印刷 STR.BOXC01.01 / Ver 1.0 / 4色印刷 / / / ：版本号： 物料料号： 图号： 对应机型：特殊工艺：需求材质： 印刷工艺过膜类型：印刷色需求： 成品尺寸：尺寸公差： 审核：设计人员：设计日期： ： 备注： 专色色号： ： FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. Agent for Service of Process LETTER OF ATTESTATTION U.S. agent changes, the grantee is obligated to notify the FCC. 3/23/2023 [TheSTREAMER Inc. Ltd.] acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: [2BAKB-BOXY] Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S. Agent for Service of Process Designation ): By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). U.S. Agent for Service of Process : Company U.S. agent: FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] Phone of U.S. agent: 708-571-3148 [FCC US Agent, LLC] acknowledges their obligation to accept service of process on behalf of [TheSTREAMER Inc. Ltd.]. [TheSTREAMER Inc. Ltd.] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Sincerely, Signature [Alexey Chichenev] [Director] [TheSTREAMER Inc. Ltd.] Signature [Tim Payne] [Manager] [FCC US Agent, LLC] 48_[model] US_Agent_2.911(d)(7)-U, V03 This U.S. agent letter will serve FCC ID: 2BAKB-BOXY for life.

C5266091_X24_Ed.1 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: TheSTREAMER Inc. Ltd. Grantee code: 2BAKB FCC ID: 2BAKB-BOXY Contact Name: Alexey Chichenev Address: Office 704, 7/Floor, 135 Bonham Strand Trade Center,135 Bonham Strand, Sheung Wan, Hong Kong Telephone No: 85228513009 Fax No: / Email: [email protected] i. [TheSTREAMER Inc. Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [TheSTREAMER Inc. Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. Date: 2023/03/20 Applicant’s Name: Alexey Chichenev Title: Director Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

C5266091_X8_Ed.1 1/1 Letter of Authorization TheSTREAMER Inc. Ltd. Company: TheSTREAMER Inc. Ltd. Address: Office 704, 7/Floor, 135 Bonham Strand Trade Center,135 Bonham Strand, Sheung Wan, Hong Kong Product Name: Set top box Model Number: BOXY FCC Identifier: 2BAKB-BOXY We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Alexey Chichenev Date: 2023.03.20 Title: Director Signature of applicant:

C5266091_X10_Ed.2 1/1 TheSTREAMER Inc. Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023-03.20 Subject: Request for Confidentiality FCC ID: 2BAKB-BOXY To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☒ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, C5266091_X10_Ed.2 1/1 Signature: Name: Alexey Chichenev Title: Director 2023.03.20

C5266091_X13_Ed.1 TheSTREAMER Inc. Ltd. FCC Software Configuration Control Declaration Date: 2023.03.20 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product/ Model Number: Set top box/BOXY Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Signature of applicant: Name: Alexey Chichenev Title: Director 1/1

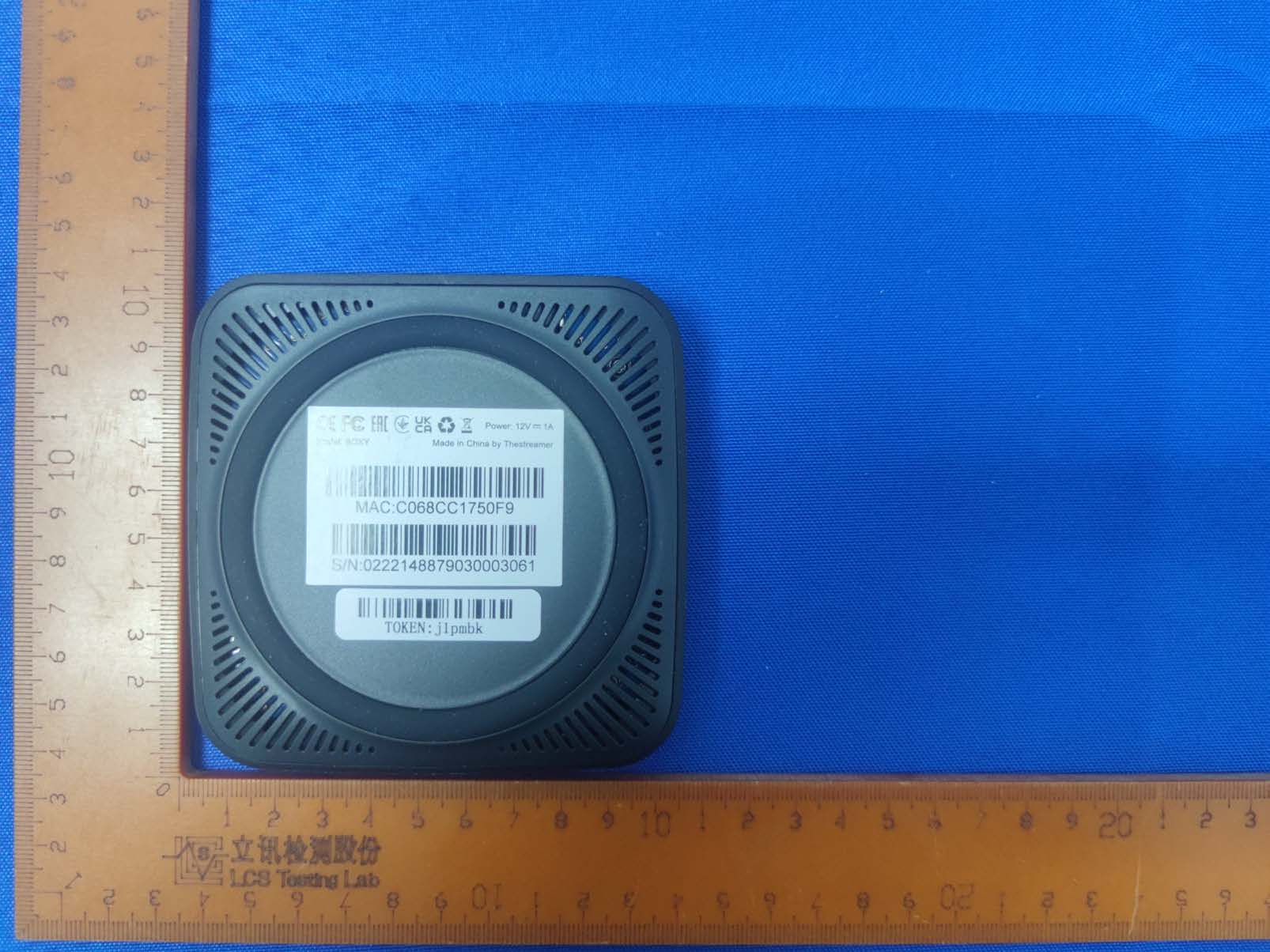

Page1 of 6FCCID:2BAKB-BOXY ShenzhenLCSComplianceTestingLaboratoryLtd. Add: 101,201BldgA & 301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity ExternalPhotosof theEUT Fig. 1 Fig. 2 Page2 of 6FCCID:2BAKB-BOXY ShenzhenLCSComplianceTestingLaboratoryLtd. Add: 101,201BldgA & 301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity Fig. 3 Fig. 4 Page3 of 6FCCID:2BAKB-BOXY ShenzhenLCSComplianceTestingLaboratoryLtd. Add: 101,201BldgA & 301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity Fig. 5 Fig. 6 Page4 of 6FCCID:2BAKB-BOXY ShenzhenLCSComplianceTestingLaboratoryLtd. Add: 101,201BldgA & 301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity Fig. 7 Fig. 8 Page5 of 6FCCID:2BAKB-BOXY ShenzhenLCSComplianceTestingLaboratoryLtd. Add: 101,201BldgA & 301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity Fig. 9 Fig. 10 Page6 of 6FCCID:2BAKB-BOXY ShenzhenLCSComplianceTestingLaboratoryLtd. Add: 101,201BldgA & 301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity Fig. 11

Page1of1FCCID:2BAKB-BOXY ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L4.0cmxW3.0cm) LabelLocation Settopbox Model:BOXY FCCID:2BAKB-BOXY

Page1 of 6FCCID:2BAKB-BOXY ShenzhenLCSComplianceTestingLaboratoryLtd. Add: 101,201BldgA & 301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity InternalPhotosof theEUT Fig. 1 Fig. 2 Page2 of 6FCCID:2BAKB-BOXY ShenzhenLCSComplianceTestingLaboratoryLtd. Add: 101,201BldgA & 301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity Fig. 3 Fig. 4 Antenna0 Antenna1 Page3 of 6FCCID:2BAKB-BOXY ShenzhenLCSComplianceTestingLaboratoryLtd. Add: 101,201BldgA & 301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity Fig. 5 Fig. 6 Page4 of 6FCCID:2BAKB-BOXY ShenzhenLCSComplianceTestingLaboratoryLtd. Add: 101,201BldgA & 301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity Fig. 7 Fig. 8 Page5 of 6FCCID:2BAKB-BOXY ShenzhenLCSComplianceTestingLaboratoryLtd. Add: 101,201BldgA & 301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity Fig. 9 Fig. 10 Page6 of 6FCCID:2BAKB-BOXY ShenzhenLCSComplianceTestingLaboratoryLtd. Add: 101,201BldgA & 301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity Fig. 11 Fig. 12

Page 1 of 14 FCC ID: 2BAKB-BOXY Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Maximum Permissible Exposure Report 1. Product Information EUT : Set top box Test Model : BOXY Power Supply : Input: 12V1A For AC Adapter Input: 100-240V~, 50/60Hz, 0.35A MAX Adapter Output: 12.0V1.0A Hardware Version : / Software Version : / Bluetooth Frequency Range : 2402MHz~2480MHz Channel Number : 79 channels for Bluetooth V5.0 (DSS) 40 channels for Bluetooth V5.0 (DTS) Channel Spacing : 1MHz for Bluetooth V5.0 (DSS) 2MHz for Bluetooth V5.0 (DTS) Modulation Type : GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V5.0 (DSS) GFSK for Bluetooth V5.0 (DTS) Bluetooth Version : V5.0 Antenna Description : PIFA Antenna, 2.0dBi(Max.) WIFI(2.4G Band) Frequency Range : 2412MHz~2462MHz Channel Number : 11 Channels for 20MHz bandwidth(2412~2462MHz) 7 Channels for 40MHz bandwidth(2422~2452MHz) Channel Spacing : 5MHz Modulation Type : IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) Antenna Description : Antenna0: PIFA Antenna, 2.0dBi(Max.) Antenna1: PIFA Antenna, 2.0dBi(Max.) WIFI(5.2G Band) Frequency Range : 5180MHz~5240MHz Channel Number : 4 channels for 20MHz bandwidth(5180MHz-5240MHz) 2 channels for 40MHz bandwidth(5190MHz~5230MHz) 1 channels for 80MHz bandwidth(5210MHz) Modulation Type : IEEE 802.11a: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11ac: OFDM (256QAM, 64QAM, 16QAM, QPSK, BPSK) Antenna Description : Antenna0: PIFA Antenna, 2.0dBi(Max.) Antenna1: PIFA Antenna, 2.0dBi(Max.) WIFI(5.8G Band) Frequency Range : 5745MHz~5825MHz Page 2 of 14 FCC ID: 2BAKB-BOXY Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Channel Number : 5 channels for 20MHz bandwidth(5745MHz~5825MHz) 2 channels for 40MHz bandwidth(5755MHz~5795MHz) 1 channels for 80MHz bandwidth(5775MHz) Modulation Type : IEEE 802.11a: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11ac: OFDM (256QAM, 64QAM, 16QAM, QPSK, BPSK) Antenna Description : Antenna0: PIFA Antenna, 2.0dBi(Max.) Antenna1: PIFA Antenna, 2.0dBi(Max.) Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Mobile Device 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices. Page 3 of 14 FCC ID: 2BAKB-BOXY Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Uncontrolled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a …

Text truncated - open the document above for the full version.

1. Specification TengxiangTechnology.Inc Sample Photo A. Electrical Characteristics S.W.R 2400~2500 MHz,Frequency 5150-5850MHz .<=2.0 AntennaGain Polarizatio 2400~2500 MHz(2.0dBi Max), 5150-5850MHz(2.0dBi Max) nLinear Impedance50Ohm B.Material&MechanicalCharacteristics MaterialofRadiatorCS MaterialofPlasticBody1:TPE Body2:ABS Body3:PC+PBT CableTypeOD1.13mm,Gray C.Environmental OperationTemperature-25 ̊C~+65 ̊C StorageTemperature-25 ̊C~+65 ̊C Manufacturer: Tengxiang Technology.Inc ModelAT-1 TengxiangTechnology.Inc TestItem 2. Characteristics and Reliability Test sTestConditionandProcedureRequirements C1S.W.R.SetDUTonNetworkAnalyzer;makeindividual calibrationtotest DirectiveDUTspecification C2Antenna Gain SetDUTonAntennaChamber;makeindividual calibrationtotest DirectiveDUTspecification M1VibrationMIL-STD-202G,201A Amplitude:0.03inch(0.76mm);Freq:10to55Hz 3directions;2hoursforeachdirection 1.NoVisualDamage 2.FrequencyTol.<=5% M2Random Drop Height:1.5Meter; 3directions;1timeforeachdirection 1.Nopartsseparated 2.FrequencyTol.<=5% M3SolderabilityMIL-STD-202G,210F,cond.A Solderiron:350±10°C;Duration:5seconds 1.MountedonPCB 2.NoVisualDamage M4Terminal- PullTest MIL-STD-202G,211A,cond.A Holdingwithindividualspecification;forceapplied toaxisofterminal 1.DirectiveDUTspecification 2.FrequencyTol.<=5% M5Terminal- TorqueTest MIL-STD-202G,211A,cond.E Holdingwithindividualspecification;applied clockwiseandcounterclockwisetotheaxisof terminal 1.DirectiveDUTspecification 2.FrequencyTol.<=5% M6DimensionInspectionofdimension,color,material,package, surfaceprocess DirectiveDUTspecification E1SaltSprayMIL-STD-202G,101E,cond.B Temp:35°C;RH:>=95%;NaClsolution:>=5%; Time:24hours After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.<=5% E2HumidityMIL-STD-202G,103B,cond.B Temp:40°C;RH:>=95%;Time:24hours After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.<=5% E3Thermal Shock 1Cycle:-25°C(30minutes)to+65°C(30minutes) Cycles:24 After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.<=5% E4Life(High Temp.) MIL-STD-202G,108A,cond.A Temp:85°C;Time:24hours After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.<=5% R1RoHSWithReferencetoIEC62321:2008withflowchartDirectiveRoHS2015/95/EC TengxiangTechnology.Inc 3. 2.4G Antenna - S Parameter Test Data 4. 2.4G Antenna - Radiation Pattern Test Data Frequency (MHz)2400.02450.02500.0 Efficiency (%)63.6068.0064.80 Gain (dBi) 1.52.01.6 TengxiangTechnology.Inc 6. 5G Antenna - Radiation Pattern Test Data Frequency (MHz)515055005850 Efficiency (%)57.166.861.1 Gain (dBi) 1.72.01.5 5.5G Antenna - S Parameter Test Data 2400MH 2.4GHz Antenna z2450MHz2500MHz 5150MHz5500MHz5850MHz 5GHz Antenna 2450MHz 2450MHz H 2450MHz E12450MHz E2 5500MHz 5500MHz H 5500MHz E15500MHz E2 Note: Only the worst-case frequency data graphs are displayed

Page1of42FCCID:2BAKB-BOXYReportNo.:LCSA022423008ED ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT For TheSTREAMERInc.Ltd. Settopbox TestModel:BOXY Preparedfor:TheSTREAMERInc.Ltd. Address: Office704,7/Floor,135BonhamStrandTradeCenter,135Bonham Strand,SheungWan,HongKong Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address: 101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:February27,2023 Numberoftestedsamples:2 SampleNo.:A022423008-1,A022423008-2 Serialnumber:Prototype DateofTest:February27,2023~March23,2023 DateofReport:March24,2023 Page2of42FCCID:2BAKB-BOXYReportNo.:LCSA022423008ED ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT FCCCFR47PART15E(15.407) ReportReferenceNo......................:LCSA022423008ED DateofIssue.......................................:March24,2023 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................: 101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China TestingLocation/Procedure............ : FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:TheSTREAMERInc.Ltd. Address................................................: Office704,7/Floor,135BonhamStrandTradeCenter,135Bonham Strand,SheungWan,HongKong TestSpecification Standard..............................................: FCCCFR47PART15E(15.407) TestReportFormNo......................:LCSEMC-1.0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoitsplacement andcontext. EUTDescription...............................:Settopbox TradeMark..........................................:BOXY TestModel...........................................:BOXY Ratings.................................................: Input:12V1A ForACAdapterInput:100-240V~,50/60Hz,0.35AMAX AdapterOutput:12.0V1.0A Result...................................................:Positive Compiledby:Supervisedby:Approvedby: KevinHuang/AdministratorCaryLuo/TechniqueprincipalGavinLiang/Manager Page3of42FCCID:2BAKB-BOXYReportNo.:LCSA022423008ED ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCC--TESTREPORT TestResult:Positive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCSA022423008ED March24,2023 Dateofissue EUT.........................................:Settopbox TestModel...............................:BOXY Applicant...............................:TheSTREAMERInc.Ltd. Address..................................: Office704,7/Floor,135BonhamStrandTradeCenter,135Bonham Strand,SheungWan,HongKong Telephone...............................:/ Fax..........................................:/ Manufacturer........................:TheSTREAMERInc.Ltd. Address...................................: Office704,7/Floor,135BonhamStrandTradeCenter,135Bonham Strand,SheungWan,HongKong Telephone...............................: / Fax..........................................: / Factory...................................: / Address...................................: / Telephone...............................:/ Fax..........................................:/ Page4of42FCCID:2BAKB-BOXYReportNo.:LCSA022423008ED ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity RevisionHistory ReportVersionIssueDateRevisionContentRevisedBy 000March24,2023InitialIssue--- Page5of42FCCID:2BAKB-BOXYReportNo.:LCSA022423008ED ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TABLEOFCONTENTS 1.GENERALINFORMATION.....................................................................................................................................6 1.1.DESCRIPTIONOFDEVICE(EUT)........................................................................................................................6 1.2.HOSTSYSTEMCONFIGURATIONLISTANDDETAILS..........................................................................................8 1.3.EXTERNALI/OPORT...........................................................................................................................................8 1.4.DESCRIPTIONOFTESTFACILITY..........................................................…

Text truncated - open the document above for the full version.

Page1of41FCCID:2BAKB-BOXYReportNo.:LCSA022423008EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT For TheSTREAMERInc.Ltd. Settopbox TestModel:BOXY Preparedfor:TheSTREAMERInc.Ltd. Address: Office704,7/Floor,135BonhamStrandTradeCenter,135Bonham Strand,SheungWan,HongKong Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address: 101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:February27,2023 Numberoftestedsamples:2 SampleNo.:A022423008-1,A022423008-2 Serialnumber:Prototype DateofTest:February27,2023~March23,2023 DateofReport:March24,2023 Page2of41FCCID:2BAKB-BOXYReportNo.:LCSA022423008EE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT FCCCFR47PART15E(15.407) ReportReferenceNo......................:LCSA022423008EE DateofIssue.......................................:March24,2023 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................…

Text truncated - open the document above for the full version.
