2BAM6-WL8012TADVERTISING PLAYER

SIZE:130x185MM 材质：80G书写纸黑白印刷， 正反面印刷 折页 Consult the dealer or an experienced radio/TV technician for help. RF exposure warning: This equipment complies with radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with Minimum distance 20cm between the radiator and your body. L’environnement du millipascal incontrô lés, leurs conditions normales d’utilisation de maintenir, aumoins 20cm avec les utilisateurs. 255.15mm 11.53mm 114.03mm 21.05mm 75° 135.40mm 160.20mm 216.40mm255.50mm 211.80mm 11.45mm 104.03mm 20.05mm 75° 107.65mm 172.30mm 211,80mm 132mm 5V TX RX GND 5V TX RX GND

(Minor DeclinerLLC) (2023‐04‐03) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BAM6‐WL8012T) [Minor DeclinerLLC ] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Mr Ronald Tobb (Minor DeclinerLLC) (2023‐04‐03) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BAM6‐WL8012T) [Minor DeclinerLLC ] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Mr Ronald Tobb

Attestation Statements (2023‐04‐03) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: 2BAM6‐WL8012T) (Minor DeclinerLLC) , the undersigned, hereby authorize (Minor DeclinerLLC) to act as our designated U.S. agent for service of process, (Minor DeclinerLLC) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission‐related proceeding involving the equipment. (Minor DeclinerLLC) accepts the responsibility to act as designated U.S. agent for service of process, provides an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission‐related proceeding involving the equipment. Applicant Information： Company name: Minor DeclinerLLC Contact Name: Mr Ronald Tobb Address: 761 Moorings Circle,Stevensville, MD 21666,United States Telephone No: (443) 681‐0228 Email: [email protected] U.S. Agent Information: Company Name: Minor DeclinerLLC Address: 761 Moorings Circle,Stevensville, MD 21666,United States FRN: 0033567942 Contact Name: Mr Ronald Tobb Telephone No: (443) 681‐0228 Email: [email protected] Applicant Signature: Agent Signature: (if the agent is different from the applicant) Applicant printed name: Mr Ronald Tobb Agent printed name:

Minor DeclinerLLC Long Term Confidentiality Request Letter 2023-04-03 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR (FCC ID: 2BAM6-WL8012T) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - e.g. Block diagram - e.g. SCH - e.g. Operational Description required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, Name: Mr Ronald Tobb Position: CEO Company Name: Minor DeclinerLLC Address: 761 Moorings Circle,Stevensville, MD 21666,United States Tel / Fax (443) 681-0228/N/A E-Mail: [email protected]

Model difference letter 2023.04.03 Dear MET Reviewer, This is a new Application from Minor DeclinerLLC Model No.: WL8022T,WL1012T,WF1022T,WF8382T,WA1032T,WA1042T,WL1032T,WF1 412T,WF1566T,WF1522T,WF2152T,WF2402T,WF2702T,WF3202T,WF4302T, WF5502T,WH1332T,WH1012T,WA1562T, WL8012T Use WL8012T for all tests. Only the model name is different and the size is different, everything else is the same. Thank you for your cooperation! Yours sincerely, Signatory: Name: Mr Ronald Tobb Position: CEO Company Name: Minor DeclinerLLC Address: 761 Moorings Circle,Stevensville, MD 21666,United States Tel / Fax (443) 681-0228/N/A E-Mail: [email protected]

Minor DeclinerLLC Agent Authorization Letter 2023-04-03 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen Most Technology Service Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Mr Ronald Tobb Position: CEO Company Name: Minor DeclinerLLC Address: 761 Moorings Circle,Stevensville, MD 21666,United States Tel / Fax (443) 681-0228/N/A E-Mail: [email protected]

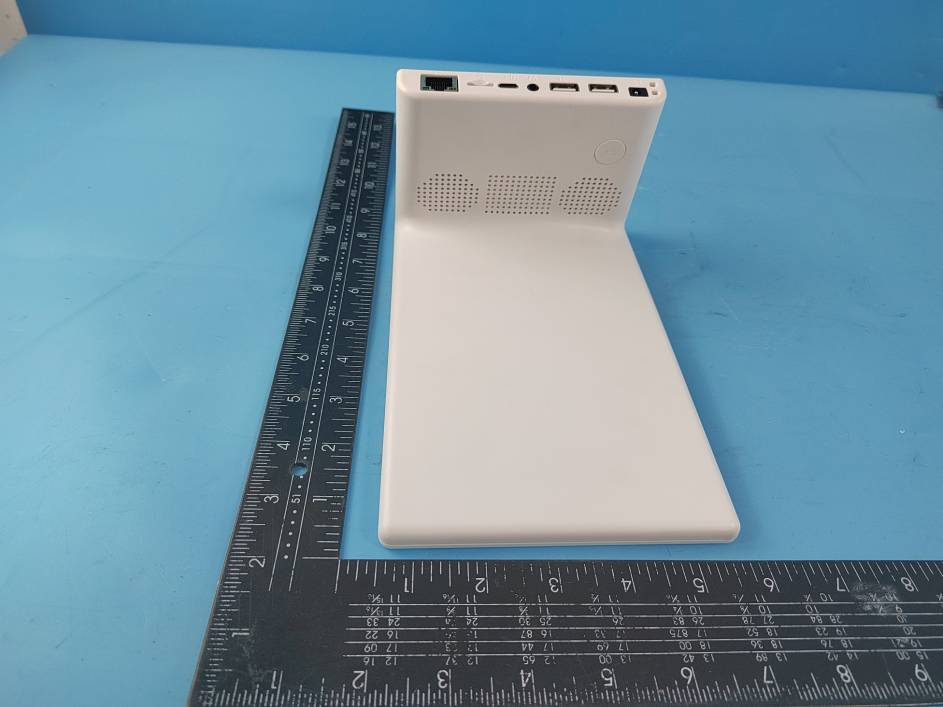

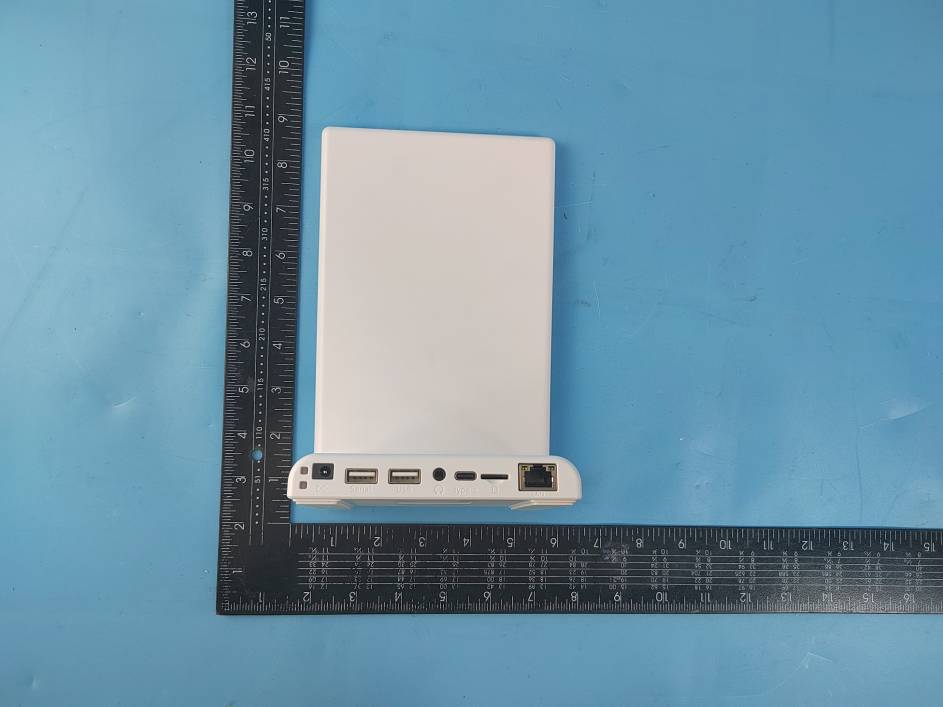

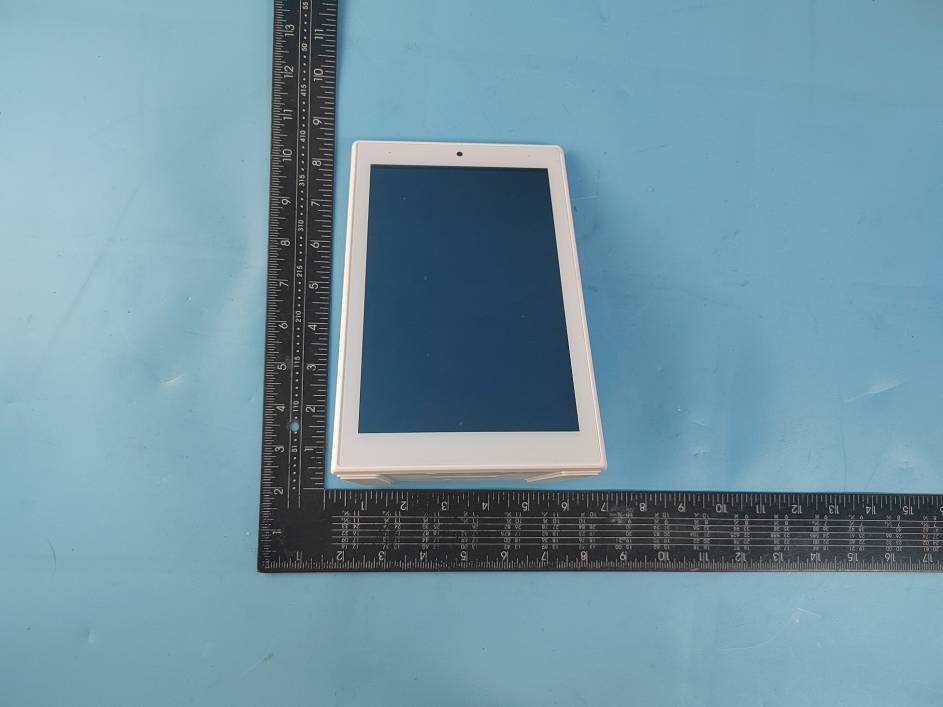

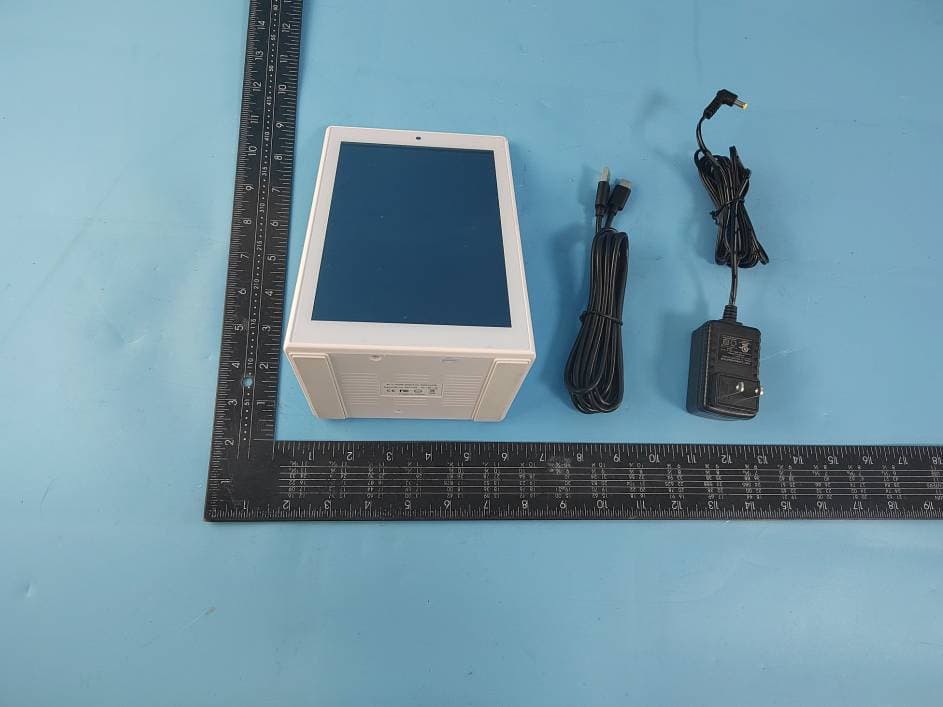

Model No.: WL8012T FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE Model No.: WL8012T LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Model No.: WL8012T TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE Model No.: WL8012T Overall photo Adapter

Label location

Model No.: WL8012T Page 1 of 3 INTERNAL PHOTO OF SAMPLE INTERNAL PHOTO OF SAMPLE PCB Model No.: WL8012T Page 2 of 3 INTERNAL PHOTO OF SAMPLE PCB INTERNAL PHOTO OF SAMPLE PCB ANT Location Model No.: WL8012T Page 3 of 3 INTERNAL PHOTO OF SAMPLE PCB

Shenzhen Most Technology Service Co., Ltd. No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. RF Exposure Evaluation Report Report Reference No. ..................... : FCC ID.. .......................................... : MTEB23030161-H 2BAM6-WL8012T Compiled by ( position+printed name+signature) .. : File administrators Alisa Luo Supervised by ( position+printed name+signature) .. : Test Engineer Sunny Deng Approved by ( position+printed name+signature) .. : Manager Yvette Zhou Date of issue ..................................... : March 20,2023 Representative Laboratory Name .: Shenzhen Most Technology Service Co., Ltd. Address ............................................ : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. Applicant’s name ............................ : Minor Decliner LLC Address ............................................ : 761 Moorings Circle , Stevensville MD 21666 Test specification/ Standard ..........: 47 CFR Part 1.1307;47 CFR Part 1.1310 KDB447498D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Most Technology Service Co., Ltd. Shenzhen Most Technology Service Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Most Technology Service Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Most Technology Service Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : ADVERTISING PLAYER Trade Mark ....................................... : MinorDecliner Manufacturer .................................... : SHENZHEN HOPESTAR SCI-TECH CO., LIMITED Model/Type reference....................... : WL8012T Listed Models .................................. : WL8022T,WL1012T,WF1022T,WF8382T,WA1032T,WA1042T,WL 1032T,WF1412T,WF1566T,WF1522T,WF2152T,WF2402T,WF270 2T,WF3202T,WF4302T,WF5502T,WH1332T,WH1012T,WA1562T Modulation Type ............................... : GFSK/CCK/DSSS/ OFDM Operation Frequency ........................ : GFSK: From 2402 - 2480MHz CCK/DSSS/ OFDM :From 2412 - 2462MHz Rating ............................................... : Input：100-240V~50/60Hz 0.6A Max Output：12V⎓0.6A Max Hardware version ............................. : R79-V3.1 Software version .............................. : ZX-WL8012T-R79V3.1-8-SQ-GG-D1.1-20221229 Result................................................ : PASS Report No.: MTEB23030016-H Page 2 of 7 T E S T R E P O R T Equipment under Test : ADVERTISING PLAYER Model /Type : WL8012T Listed Models : WL8022T,WL1012T,WF1022T,WF8382T,WA1032T,WA1042T,W L1032T,WF1412T,WF1566T,WF1522T,WF2152T,WF2402T,WF2 702T,WF3202T,WF4302T,WF5502T,WH1332T,WH1012T,WA156 2T Remark Only the model name is different and the size is different, everything else is the same. Applicant : Minor Decliner LLC Address : 761 Moorings Circle , Stevensville MD 21666 Manufacturer : SHENZHEN HOPESTAR SCI-TECH CO., LIMITED Address : Room 602, 6th floor, E building of Yuanfen Industrial Park, Dalang Street, Longhua Area, Shenzhen Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: MTEB23030016-H Page 3 of 7 1. Revision History Revision Issue Date Revisions Revised By 00 2023.03.20 Initial Issue Alisa Luo Report No.: MTEB23030016-H Page 4 of 7 2. SAR Evaluation 2.1 RF Exposure Compliance Requirement 2.1.1 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 4.3.1. Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 2.1.2 Limits According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: MTEB23030016-H Page 5 of 7 2.1.3 EUT RF Exposure Antenna Gain: 3.99dBi Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.4 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: WIFI 2.4G 802.11b Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) Lowest(2412 MHz) 13.33 13.33±1 14.33 Middle(2437MHz) 14.25 14.25±1 14.25 Highest(2462MHz) 13.37 13.37±1 14.37 802.11g Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) Lowest(2412 MHz) 12.89 12.89±1 13.89 Middle(2437MHz) 13.54 13.54±1 14.54 Highest(2462MHz) 14.11 14.11±1 15.11 802.11n(HT20) Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) Lowest(2412 MHz) 14.13 14.13±1 15.13 Middle(2437MHz) 13.39 13.39±1 14.39 Highest(2462MHz) 13.52 13.52±1 14.52 WIFI Worst case: 802.11n(HT20) Channel Maximum Peak Conducted Output Power (dBm) Maximum Peak Conducted Output Power (MW) Antenna Gain (dBi) Power Density at R = 20 cm (mW/cm2) Limit Result Highest(2412 MHz) 15.13 3…

Text truncated - open the document above for the full version.

ShenzhenLejin radio frequency technology Co., LTD Lejin radio frequency Proprietary & Confidential © 2017 Lejin radio frequency Corporation. All rights reserved. 地址:深圳市宝安区福永镇重庆路176号骏丰中城智造创新园A4栋3F-B Tel:0755-27780515 Email:[email protected] SPECIFICATIONS FOR APPROVAL Customer Name: 深圳市科技有限公司 Product Name: 2.4/5GHz WIFI天线 Product Model: WL8012T/WL8017T Part Number: LJF02-20091503-R0A Write By : 胡雪文 Issued Date: 2020-09-25 CUSTOMER ENGINEER R&D DEPT BUSSINESS DEPT APPROVAL LEJIN R&D DEPT ENGINEER DEPT APPROVAL REV MODIFIED DESCRIPTION DATE REMARK V1.0 Initial Draft Release 2020/9/25 Shenzhen Lejin radio frequency technology Co., LTD Lejin radio frequency Proprietary & Confidential © 2017 Lejin radio frequency Corporation. All rights reserved. 地址:深圳市宝安区福永镇重庆路176号骏丰中城智造创新园A4栋3F-B Tel:0755-27780515 Email:[email protected] 目 录/Index 一、 封面（Cover）·····························1 二、 目录 （Index）······························2 三、 规格（Product Specification）·······················3 四、 测试设备（Test Equipment & Conditions）················3 五、 性能测试报告（Test Report）·······················4 六、 可靠性测试（Reliability Test）······················5 七、 包装（Package）·····························6 八、 工程图纸（Product Drawing）······················6 Shenzhen Lejin radio frequency technology Co., LTD Lejin radio frequency Proprietary & Confidential © 2017 Lejin radio frequency Corporation. All rights reserved. 地址:深圳市宝安区福永镇重庆路176号骏丰中城智造创新园A4栋3F-B Tel:0755-27780515 Email:[email protected] 三、规格（Product Specification） A. Electrical Characteristics Frequency 2400-2500MHz 5250-5850MHz VSWR <2.0 Efficiency >30% Impedance 50 Ohm Polarization Linear Gain >=1.5dB B. Material & Mechanical Characteristics Material of Radiator FPC Cable Type Φ 1.13mm，150mm Connector Type IPX1 Dimension C. Environmental Operation Temperature - 30 ̊C ~ + 80 ̊C Storage Temperature - 30 ̊C ~ + 85 ̊C Humidity 40%~95% 四、测试设备（Test Equipment & Conditions） 1.Network Analyzers Agilent 8753D/5071C 2.HSPA+和LTE协议测试仪 R&S CMW500 -PT 3.Communications Test Set Agilent 8960 4.3D Chamber Test System 图 1 Test topology Shenzhen Lejin radio frequency technology Co., LTD Lejin radio frequency Proprietary & Confidential © 2017 Lejin radio frequency Corporation. All rights reserved. 地址:深圳市宝安区福永镇重庆路176号骏丰中城智造创新园A4栋3F-B Tel:0755-27780515 Email:[email protected] 五、性能测试报告（Test Report） 5.1 天线驻波图 图 2 天线驻波图 5.2 Antenna Efficient &Gain(天线效率&增益) Passive Test For 2.4G Passive Test For 5G Freq(MHz) Effi(%) Gain(dBi) Freq(MHz) Effi(%) Gain(dBi) 2400 54.21 3.52 5150 44.83 2.66 2410 53.94 3.79 5200 46.18 2.13 2420 53.94 3.90 5250 46.12 2.41 2430 52.07 3.90 5300 46.21 2.39 2440 53.58 3.97 5350 46.36 2.62 2450 53.68 3.12 5400 44.38 2.27 2460 53.45 3.08 5450 44.11 2.55 2470 53.01 3.12 5500 44.91 2.09 2480 53.39 3.28 5550 45.67 2.00 2490 54.88 3.62 5600 45.82 2.72 2500 56.81 3.99 5650 45.99 2.08 Shenzhen Lejin radio frequency technology Co., LTD Lejin radio frequency Proprietary & Confidential © 2017 Lejin radio frequency Corporation. All rights reserved. 地址:深圳市宝安区福永镇重庆路176号骏丰中城智造创新园A4栋3F-B Tel:0755-27780515 Email:[email protected] 5700 46.75 2.62 5750 46.90 2.21 5800 43.18 2.07 5850 45.54 2.81 六、可靠性测试（Reliability Test） Test Item Test condition Equipment Specification Result 1 Low Temp. Storage Test Temperature: -30°C， Time:48hrs Test condition: Placing antenna in a Low/High Temperature Chamber, keep the temp is 25°C and humidity is 65% for one hour, then step-down the temp. to -30°C in one hour, store antenna for 44 hours; step-up temp to 25°C,test antenna after 2 hours. Temp.&Humi. Tester No material deformation is allowed. Electronic Performance is ok . PASS 2 High Temp./High Humid Storage Test Temperature: 85°C Humidity: 85% RH Time:48hrs Test condition: Placing antenna in a Low/High Temperature Chamber, keep the temp is 25 and humidity is 65% for one hour, then step-up the temp. to 80°C and the humidity up to 85% in one hour, store antenna for 44 hours; step-down temp to 25°C,test antenna after 2 hours. Temp.&Humi. Tester No material deformation is allowed. Electronic Performance is ok . PASS 3 Salt-Spray 6 pray Test Placing antenna in the Salt-Spray Tester ,set the test condition,Temp: 35±2°C Humidity: 85%. NaCl salt spray :5±1 %.PH value :6.5~7.2 Test time:24hours Salt-Spray Tester No color change No appear rusting PASS 七、包装(Package) （1） 天线实物图 图 4 天线装配图（WL8012T/WL8017T） Shenzhen Lejin radio frequency technology Co., LTD Lejin radio frequency Proprietary & Confidential © 2017 Lejin radio frequency Corporation. All rights reserved. 地址:深圳市宝安区福永镇重庆路176号骏丰中城智造创新园A4栋3F-B Tel:0755-27780515 Email:[email protected] （2） 产品包装(略） 八、工程图纸(Product Drawing) 145.0±2.0mm

Shenzhen Most Technology Service Co., Ltd. No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. TEST REPORT FCC Rules Part 15.247 Report Reference No. ..................... : FCC ID.. .......................................... : MTEB23030161-R1 2BAM6-WL8012T Compiled by ( position+printed name+signature) .. : File administrators Alisa Luo Supervised by ( position+printed name+signature) .. : Test Engineer Sunny Deng Approved by ( position+printed name+signature) .. : Manager Yvette Zhou Date of issue ..................................... : March 20,2023 Representative Laboratory Name .: Shenzhen Most Technology Service Co., Ltd. Address ............................................ : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. Applicant’s name ............................ : Minor Decliner LLC Address ............................................ : 761 Moorings Circle , Stevensville MD 21666 Test specification/ Standard ..........: FCC Rules Part 15.247 TRF Originator .................................. : Shenzhen Most Technology Service Co., Ltd. Shenzhen Most Technology Service Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Most Technology Service Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Most Technology Service Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : ADVERTISING PLAYER Trade Mark ....................................... : MinorDecliner Manufacturer .................................... : SHENZHEN HOPESTAR SCI-TECH CO., LIMITED Model/Type reference....................... : WL8012T Listed Models .................................. : WL8022T,WL1012T,WF1022T,WF8382T,WA1032T,WA1042T,WL 1032T,WF1412T,WF1566T,WF1522T,WF2152T,WF2402T,WF270 2T,WF3202T,WF4302T,WF5502T,WH1332T,WH1012T,WA1562T Modulation Type ............................... : GFSK Operation Frequency ........................ : From 2402MHz to 2480MHz Hardware Version .............................. R79-V3.1 Software Version ............................... ZX-WL8012T-R79V3.1-8-SQ-GG-D1.1-20221229 Rating ............................................... : Input：100-240V~50/60Hz 0.6A Max Output：12V ⎓0.6A Max Result................................................ : PASS Report No.: MTEB23030161-R1 Page 2 of 34 T E S T R E P O R T Equipment under Test : ADVERTISING PLAYER Model /Type : WL8012T Listed Models : WL8022T,WL1012T,WF1022T,WF8382T,WA1032T,WA1042T,W L1032T,WF1412T,WF1566T,WF1522T,WF2152T,WF2402T,WF2 702T,WF3202T,WF4302T,WF5502T,WH1332T,WH1012T,WA156 2T Remark Only the model name is different and the size is different, everything else is the same. Applicant : Minor Decliner LLC Address : 761 Moorings Circle , Stevensville MD 21666 Manufacturer : SHENZHEN HOPESTAR SCI-TECH CO., LIMITED Address : Room 602, 6th floor, E building of Yuanfen Industrial Park, Dalang Street, Longhua Area, Shenzhen Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: MTEB23030161-R1 Page 3 of 34 Contents 1.REVISION HISTORY ................................................................ 4 2.TEST STANDARDS .................................................................. 5 3.SUMMARY ............................................................................. 6 3.1.General Remarks 6 3.2.Product Description 6 3.3.Equipment Under Test 6 3.4.Short description of the Equipment under Test (EUT) 6 3.5.EUT operation mode 7 3.6.Block Diagram of Test Setup 7 3.7.Test Item (Equipment Under Test) Description* 7 3.8.Auxiliary Equipment (AE) Description 7 3.9 Antenna Information* 8 3.10.EUT configuration 8 3.11.Modifications 8 4.TEST ENVIRONMENT ............................................................... 9 4.1.Address of the test laboratory 9 4.2.Environmental conditions 9 4.3.Test Description 10 4.4.Statement of the measurement uncertainty 10 4.5.Equipments Used during the Test 11 5.TEST CONDITIONS AND RESULTS ............................................ 12 5.1.AC Power Conducted Emission ................................................................................... 12 5.2.Radiated Emission ........................................................................................................ 15 5.3.Maximum Peak Output Power ...................................................................................... 22 5.4.Power Spectral Density ................................................................................................ 23 5.5.6dB Bandwidth ............................................................................................................. 25 5.6.Band Edge Compliance of RF Emission ...................................................................... 27 5.7.Spurious RF Conducted Emission ............................................................................... 29 5.8.Antenna Requirement ................................................................................................... 32 6.TEST SETUP PHOTOS OF THE EUT .......................................... 33 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 34 Report No.: MTEB23030161-R1 Page 4 of 34 1. Revision History Revision Issue Date Revisions Revised By 00 2023.03.20 Initial Issue Alisa Luo Report No.: MTEB23030161-R1 Page 5 of 34 2. TEST STANDARDS The tests were performed according to following standards: The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and…

Text truncated - open the document above for the full version.

Shenzhen Most Technology Service Co., Ltd. No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : MTEB23030161-R2 2BAM6-WL8012T Compiled by ( position+printed name+signature) . : File administrators Alisa Luo Supervised by ( position+printed name+signature) . : Test Engineer Sunny Deng Approved by ( position+printed name+signature) . : Manager Yvette Zhou Date of issue .................................... : March 20,2023 Representative Laboratory Name . : Shenzhen Most Technology Service Co., Ltd. Address ............................................ : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. Applicant’s name ............................ : Minor Decliner LLC Address ............................................ : 761 Moorings Circle , Stevensville MD 21666 Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen Most Technology Service Co., Ltd. Shenzhen Most Technology Service Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Most Technology Service Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Most Technology Service Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : ADVERTISING PLAYER Trade Mark ....................................... : MinorDecliner Manufacturer .................................... : SHENZHEN HOPESTAR SCI-TECH CO., LIMITED Model/Type reference ...................... : WL8012T Listed Models .................................. : WL8022T,WL1012T,WF1022T,WF8382T,WA1032T,WA1042T,WL103 2T,WF1412T,WF1566T,WF1522T,WF2152T,WF2402T,WF2702T,WF 3202T,WF4302T,WF5502T,WH1332T,WH1012T,WA1562T Modulation Type ............................... : CCK/DSSS/ OFDM Operation Frequency ........................ : From 2412 - 2462MHz Hardware version ............................. : R79-V3.1 Software version .............................. : ZX-WL8012T-R79V3.1-8-SQ-GG-D1.1-20221229 Rating ............................................... : Input：100-240V~50/60Hz 0.6A Max Output：12V⎓0.6A Max Result ............................................... : PASS Report No.: MTEB23030161-R2 Page 2 of 36 T E S T R E P O R T Equipment under Test : ADVERTISING PLAYER Model /Type : WL8012T Listed Models : WL8022T,WL1012T,WF1022T,WF8382T,WA1032T,WA1042T,WL1 032T,WF1412T,WF1566T,WF1522T,WF2152T,WF2402T,WF2702 T,WF3202T,WF4302T,WF5502T,WH1332T,WH1012T,WA1562T Remark Only the model name is different and the size is different, everything else is the same. Applicant : Minor Decliner LLC Address : 761 Moorings Circle , Stevensville MD 21666 Manufacturer : SHENZHEN HOPESTAR SCI-TECH CO., LIMITED Address : Room 602, 6th floor, E building of Yuanfen Industrial Park, Dalang Street, Longhua Area, Shenzhen Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: MTEB23030161-R2 Page 3 of 36 Contents 1 REVISION HISTORY ................................................................ 4 2 TEST STANDARDS .................................................................. 5 3 SUMMARY ............................................................................. 6 3.1 General Remarks 6 3.2 Product Description 6 3.3 Equipment Under Test 6 3.4 Short description of the Equipment under Test (EUT) 6 3.5 EUT operation mode 6 3.6 Block Diagram of Test Setup 7 3.7 Test Item (Equipment Under Test) Description* 7 3.8 Auxiliary Equipment (AE) Description 7 3.9 Antenna Information* 7 3.10 Related Submittal(s) / Grant (s) 7 3.11 Modifications 7 4 TEST ENVIRONMENT ............................................................... 8 4.1 Address of the test laboratory 8 4.2 Test Facility 8 4.3 Environmental conditions 8 4.4 Test Description 9 4.5 Statement of the measurement uncertainty 9 4.6 Equipments Used during the Test 10 5 TEST CONDITIONS AND RESULTS ............................................ 11 5.1 AC Power Conducted Emission 11 5.2 Radiated Emission 14 5.3 Maximum Conducted Output Power 21 5.4 Power Spectral Density 22 5.5 6dB Bandwidth 25 5.6 Out-of-band Emissions 28 5.7 Duty Cycle Information 33 5.8 Antenna Requirement 34 6 TEST SETUP PHOTOS OF THE EUT .......................................... 35 7 PHOTOS OF THE EUT ............................................................. 36 Report No.: MTEB23030161-R2 Page 4 of 36 1 Revision History Revision Issue Date Revisions Revised By 00 2023.03.20 Initial Issue Alisa Luo Report No.: MTEB23030161-R2 Page 5 of 36 2 TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.247 : Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013 : American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 v05r02: Guidance for Compliance Measurements on Digital Transmission Systems (DTS) ,Frequency Hopping Spread Spectrum System(HFSS), and Hybrid System Devices Operating Under §15.247 of The FCC rules. Report No.: MTEB23030161-R2 Page 6 of 36 3 SUMMARY 3.1 General Remarks Date of receipt of test sample : 2023.03.10 Testing commenced on : 2023.03.10 Testing concluded on : 2023.03.20 3.2 Product Description Product Name: ADVERTISING PLAYER Model/Type reference: WL8012T Power Supply： Input：100-240V~50/60Hz 0.6A Max Output：12V⎓0.6A Max Test…

Text truncated - open the document above for the full version.

Model No.: WL8012T CE TEST SETUP RE TEST SETUP Model No.: WL8012T
