RF Exposure evaluation FCC ID: 2BAM9-SABBATJETPODS According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2441MHz,（-2.38+1）dBm (0.728mW) output power] (0.728/5) ·[√2.441(GHz)]= 0.227<3.0 for 1-g SAR Then SAR evaluation is not required

地址：深圳市宝安区西乡街道鹤洲恒丰工业城B25栋2楼 TEL : 0755-82790675 FAX： 0755-82809726 BT Antenna Test Report CustomerSabbat ProjectM100 Antenna RevisionA0 Prepared by Checked by Date:2023.3.20 1 1.Product Overview & Dimension 4 v 盤邦尔 Purpose This report is to measure the performance of BT antenna for .The antenna operating frequency at 2.4-2.5GHz, All test data are showed as below. Content 1. Product Overview & Dimension 2. Test system 3. Antenna Matching Network 4. Test Result 2 2.Test System Sequence NumberTest Itemequipment S parameterVSWRAgilent 5071C & Agilent 5062A OTA TestTRP&TIS Agilent 8960 E5515C& Agilent 4438C&CMW500 &CMW270 ETS&SATIMO Gain & EfficiencyGain & Efficiency ETS&SATIMO Agilent 5071C 3 3. TestResult 4.1S11 Parameter 6 3. TestResult 天线匹配 6 ElementValue E13.3PF E2 0Ω E3N/A Gain & Efficiency——ANT 7 TestResult Frequency (MHz)Efficiency (%)Peak GAIN (dBi) 240026.54% 1.17 2410 29.93% 1.36 242034.26% 1.78 243037.10% 1.97 2440 37.89% 1.88 245041.12% 2.06 2460 44.66% 2.87 247042.56% 2.34 248038.17%1.56 2490 35.02%1.12 250032.50%0.82 TestResult 8 2D Pattern TestResult 9 2D Pattern TestResult 1 0 2D Pattern 19

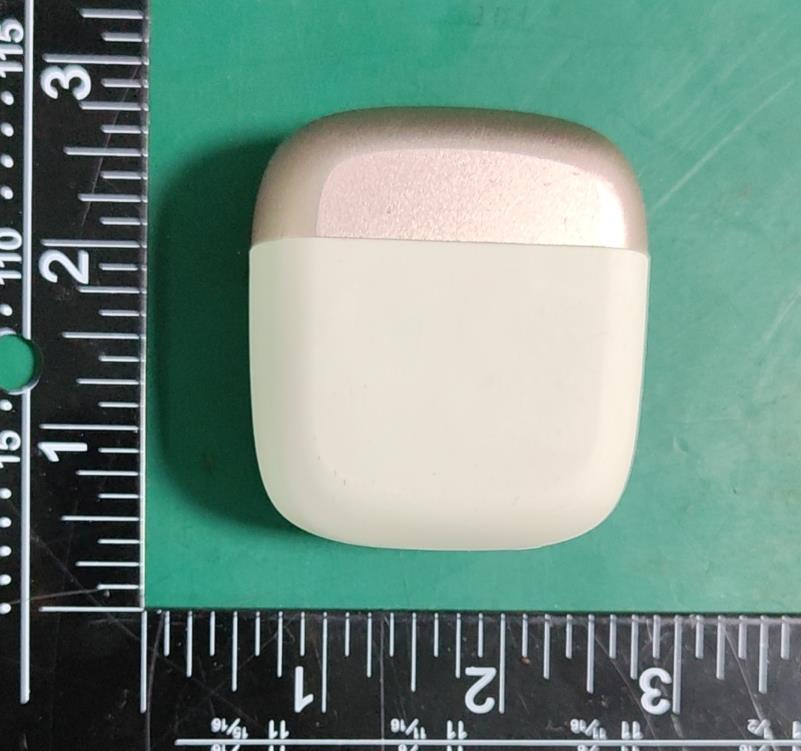

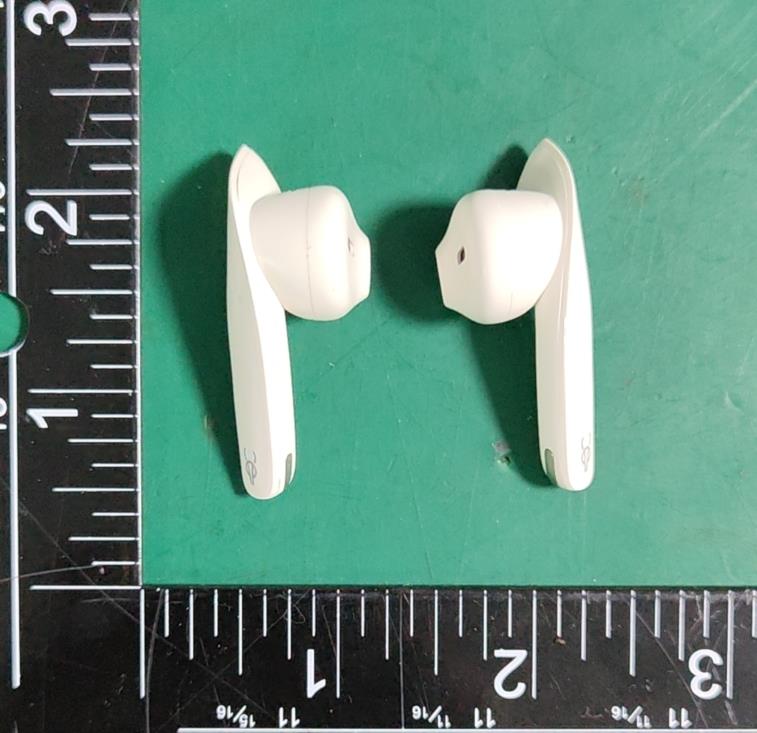

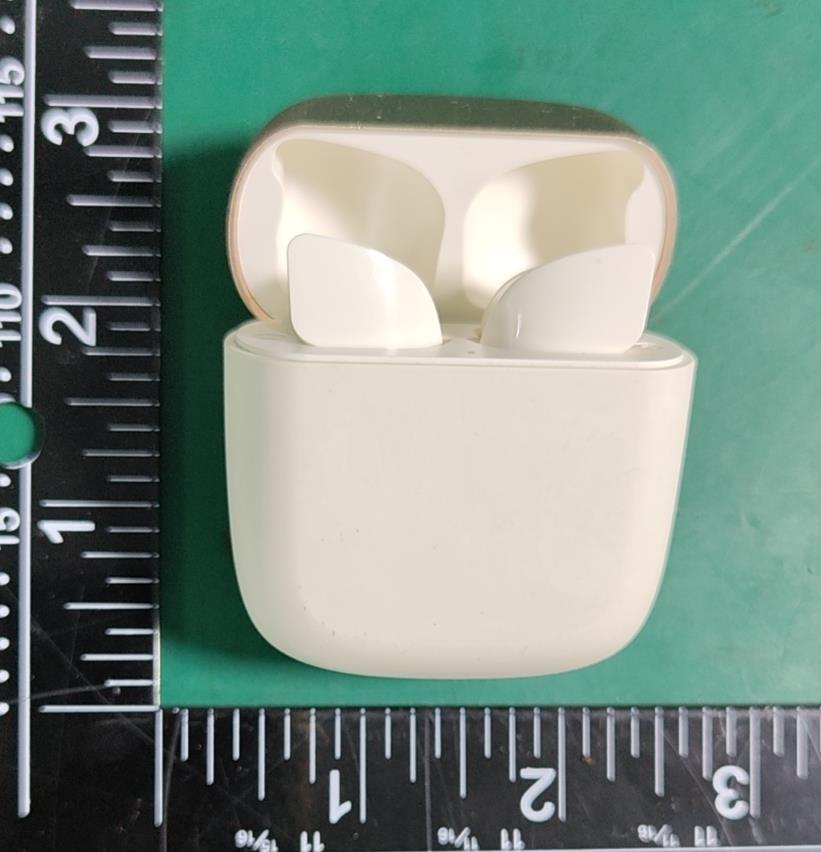

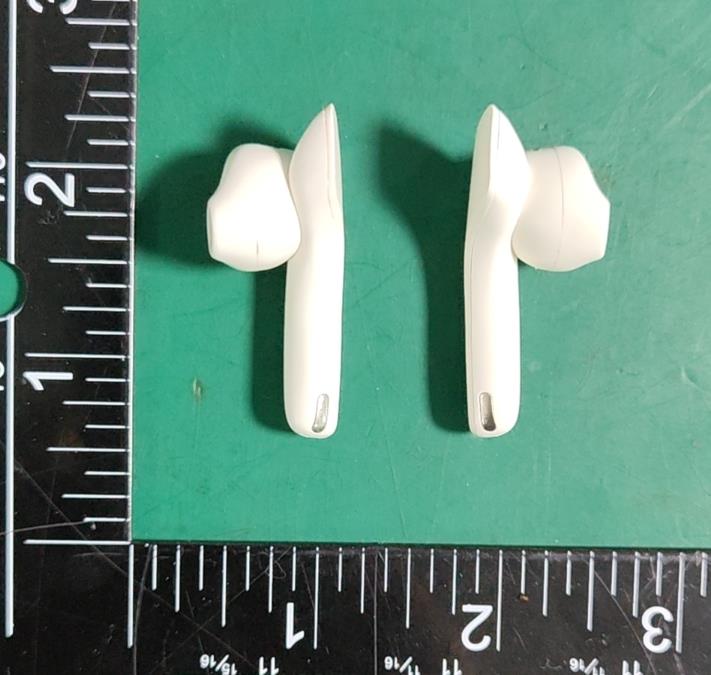

Page 1 of 77 FCC TEST REPORT FCC ID: 2BAM9-SABBATJETPODS Product Name : Bluetooth earphone Model Name : Sabbat Jetpods Brand Name : Sabbat Report No. : PTC23021001602E-FC01 Sample Id : PTC23021001602E-01# Prepared for Shenzhen Sabbat Technology Development Co.,Ltd. 3RD Floor, Building B, Nankeng 1ST Industrial park, Bantian, Longgang District, Shenzhen, China Prepared by Precise Testing & Certification Co., Ltd. Building 1, No.6 Tongxin Road, Dongcheng Street, Dongguan,China Report No.: PTC23021001602E-FC01 Page 2 of 77 1TEST RESULT CERTIFICATION Applicant’s name : Shenzhen Sabbat Technology Development Co.,Ltd. Address : 3RD Floor, Building B, Nankeng 1ST Industrial park, Bantian, Longgang District, Shenzhen, China Manufacture's name : Shenzhen Sabbat Technology Development Co.,Ltd. Address : 3RD Floor, Building B, Nankeng 1ST Industrial park, Bantian, Longgang District, Shenzhen, China Product name : Bluetooth earphone Model name : Sabbat Jetpods Standards : FCC CFR47 Part 15 Section 15.247 Test procedure : ANSI C63.10:2013 Test Date : Feb.22, 2023 to Feb. 26, 2023 Date of Issue : Feb. 28, 2023 Test Result : Pass This device described above has been tested by PTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of PTC, this document may be altered or revised by PTC, personal only, and shall be noted in the revision of the document. Test Engineer: Simon Pu / Engineer Technical Manager: Ronnie Liu / Manager Report No.: PTC23021001602E-FC01 Page 3 of 77 Contents Page 1TEST RESULT CERTIFICATION ............................................................................................................................... 2 2 TEST SUMMARY ......................................................................................................................................................... 5 3 TEST FACILITY ............................................................................................................................................................ 6 4 GENERAL INFORMATION ........................................................................................................................................ 7 4.1 GENERAL DESCRIPTION OF E.U.T. .................................................................................................................... 7 4.2 TEST MODE ........................................................................................................................................................ 8 5 EQUIPMENT DURING TEST ................................................................................................................................... 13 5.1 EQUIPMENTS LIST............................................................................................................................................. 13 5.2 MEASUREMENT UNCERTAINTY ......................................................................................................................... 15 5.3 DESCRIPTION OF SUPPORT UNITS ................................................................................................................... 16 6 CONDUCTED EMISSION ......................................................................................................................................... 17 6.1 E.U.T. OPERATION ........................................................................................................................................... 17 6.2 EUT SETUP ...................................................................................................................................................... 17 6.3 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................................. 18 6.4 MEASUREMENT PROCEDURE: .......................................................................................................................... 18 6.5 CONDUCTED EMISSION LIMIT ........................................................................................................................... 18 6.6 MEASUREMENT DESCRIPTION .......................................................................................................................... 18 6.7 CONDUCTED EMISSION TEST RESULT ............................................................................................................. 18 7 RADIATED SPURIOUS EMISSIONS ..................................................................................................................... 21 7.1 EUT OPERATION .............................................................................................................................................. 21 7.2 TEST SETUP ..................................................................................................................................................... 22 7.3 SPECTRUM ANALYZER SETUP .......................................................................................................................... 23 7.4 TEST PROCEDURE ............................................................................................................................................ 24 7.5 SUMMARY OF TEST RESULTS .......................................................................................................................... 25 8 CONDUCTED BAND EDGE EMISSION ................................................................................................................ 29 8.1 REQUIREMENT ............................................................................................................................................. 29 8.2 TEST PROCEDURE ...................................................................................................................................... 29 8.3 TEST RESULTS .......…

Text truncated - open the document above for the full version.

Report No.: PTC23021001602E-FC01 Page 49 of 77 3DH5-Ant1-High-2480-Peak-2483.500 3DH5-Ant1-High-2480-AV-2483.500 DH5-Ant1-Low-Hop_2402-Peak-2390.000 Report No.: PTC23021001602E-FC01 Page 50 of 77 DH5-Ant1-High-Hop_2480-Peak-2483.500 2DH5-Ant1-Low-Hop_2402-Peak-2390.000 2DH5-Ant1-High-Hop_2480-Peak-2483.500 Report No.: PTC23021001602E-FC01 Page 51 of 77 3DH5-Ant1-Low-Hop_2402-Peak-2390.000 3DH5-Ant1-High-Hop_2480-Peak-2483.500 Report No.: PTC23021001602E-FC01 Page 52 of 77 9 20 dB Bandwidth Measurement Test Requirement : FCC CFR47 Part 15 Section 15.247 Test Method : ANSI C63.10:2013 9.1 Test Procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum; 2. Set the spectrum analyzer: RBW =30kHz, VBW = 100kHz 3.Set up: 9.2 Test Result TestMode Antenna Frequency[MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.993 2401.487 2402.480 --- --- DH5 Ant1 2441 1.017 2440.484 2441.501 --- --- DH5 Ant1 2480 0.987 2479.481 2480.468 --- --- 2DH5 Ant1 2402 1.284 2401.373 2402.657 --- --- 2DH5 Ant1 2441 1.293 2440.352 2441.645 --- --- 2DH5 Ant1 2480 1.296 2479.343 2480.639 --- --- 3DH5 Ant1 2402 1.272 2401.358 2402.630 --- --- 3DH5 Ant1 2441 1.308 2440.325 2441.633 --- --- 3DH5 Ant1 2480 1.284 2479.343 2480.627 --- --- DH5-Ant1-2402 EUT Spectrum Analyzer Report No.: PTC23021001602E-FC01 Page 53 of 77 DH5-Ant1-2441 DH5-Ant1-2480 Report No.: PTC23021001602E-FC01 Page 54 of 77 2DH5-Ant1-2402 2DH5-Ant1-2441 Report No.: PTC23021001602E-FC01 Page 55 of 77 2DH5-Ant1-2480 3DH5-Ant1-2402 Report No.: PTC23021001602E-FC01 Page 56 of 77 3DH5-Ant1-2441 3DH5-Ant1-2480 Report No.: PTC23021001602E-FC01 Page 57 of 77 TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.91532 2401.5320 2402.4474 --- --- DH5 Ant1 2441 0.93898 2440.5085 2441.4475 --- --- DH5 Ant1 2480 0.92661 2479.5176 2480.4443 --- --- 2DH5 Ant1 2402 1.2172 2401.3926 2402.6098 --- --- 2DH5 Ant1 2441 1.2008 2440.3954 2441.5962 --- --- 2DH5 Ant1 2480 1.2203 2479.3812 2480.6015 --- --- 3DH5 Ant1 2402 1.2107 2401.3893 2402.6000 --- --- 3DH5 Ant1 2441 1.2200 2440.3834 2441.6034 --- --- 3DH5 Ant1 2480 1.2221 2479.3711 2480.5932 --- --- DH5-Ant1-2402 DH5-Ant1-2441 Report No.: PTC23021001602E-FC01 Page 58 of 77 DH5-Ant1-2480 2DH5-Ant1-2402 2DH5-Ant1-2441 Report No.: PTC23021001602E-FC01 Page 59 of 77 2DH5-Ant1-2480 3DH5-Ant1-2402 3DH5-Ant1-2441 Report No.: PTC23021001602E-FC01 Page 60 of 77 3DH5-Ant1-2480 Report No.: PTC23021001602E-FC01 Page 61 of 77 10 Maximum Peak Output Power Test Requirement : FCC CFR47 Part 15 Section 15.247 Test Method : ANSI C63.10:2013 Test Limit : Regulation 15.247 (b)(1), For frequency hopping systems operating in the 2400-2483.5 MHz band eploying at least 75 non-overlapping hopping channels, and all frequency hopping systems in the 5725-5850 MHz band: 1 watt (30dBm). For all other frequency hopping systems in the 2400-2483.5 MHz band: 0.125 watts. Refer to the result “Number of Hopping Frequency” of this document. The 0.125watts (20.97 dBm) limit applies. 10.1 Test Procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyser: RBW = 3MHz. VBW =8MHz. Sweep = auto; Detector Function = Peak. 3. Keep the EUT in transmitting at lowest, medium and highest channel individually. Record the max value. 4. Set up: 10.2 Test Result Test Mode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -2.55 ≤20.97 PASS DH5 Ant1 2441 -2.38 ≤20.97 PASS DH5 Ant1 2480 -6.51 ≤20.97 PASS 2DH5 Ant1 2402 -2.86 ≤20.97 PASS 2DH5 Ant1 2441 -2.85 ≤20.97 PASS 2DH5 Ant1 2480 -6.82 ≤20.97 PASS 3DH5 Ant1 2402 -2.89 ≤20.97 PASS 3DH5 Ant1 2441 -2.8 ≤20.97 PASS 3DH5 Ant1 2480 -6.56 ≤20.97 PASS DH5-Ant1-2402 EUT Spectrum Analyzer Report No.: PTC23021001602E-FC01 Page 62 of 77 DH5-Ant1-2441 DH5-Ant1-2480 2DH5-Ant1-2402 Report No.: PTC23021001602E-FC01 Page 63 of 77 2DH5-Ant1-2441 2DH5-Ant1-2480 3DH5-Ant1-2402 Report No.: PTC23021001602E-FC01 Page 64 of 77 3DH5-Ant1-2441 3DH5-Ant1-2480 Report No.: PTC23021001602E-FC01 Page 65 of 77 11 Hopping Channel Separation Test Requirement : FCC CFR47 Part 15 Section 15.247 Test Method : ANSI C63.10:2013 Test Limit : Regulation 15.247(a)(1) Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 1W. Test Mode : Hopping 11.1 Test Procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30KHz. VBW =100KHz, Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. 4. Set up: EUT Spectrum Analyzer Report No.: PTC23021001602E-FC01 Page 66 of 77 11.2 Test Result TestMode Antenna Frequency[MHz] Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1 ≥0.678 PASS 2DH5 Ant1 Hop 0.964 ≥0.864 PASS 3DH5 Ant1 Hop 1.012 ≥0.872 PASS DH5-Ant1-Hop 2DH5-Ant1-Hop 3DH5-Ant1-Hop Report No.: PTC23021001602E-FC01 Page 67 of 77 Report No.: PTC23021001602E-FC01 Page 68 of 77 12 Number of Hopping Frequency Test Requirement : FCC CFR47 Part 15 Section 15.247 Test Method : ANSI C63.10:2013 Test Limit : Regulation 15.247 (a)(1)(iii) Frequency hopping systems in the 2400- 2483.5 MHz band shall use at least 15 channels. Test Mode : Hopping(GFSK) 12.1 Test Procedure 1. Remove the antenna from the EUT and then co…

Text truncated - open the document above for the full version.

FCC ID: 2BAM9-SABBATJETPODS Conducted Emissions Radiated Emissions From 30M-1GHz Above 1G
