2BAMO-RG109MAXToy aircraft

Operating instructions Brushless EPS four-axis aerial photography UAV AGE:14+ in order to ensure the electromagnetic environment requirements of aviation radio station (station), it is prohibited to use various model remote controllers in the area with the center point of airport runway as the center point and the radius of 5000M. During the period when the relevant departments of the state issue radio control orders and regional areas, the use of model remote controllers shall be stopped as required. Please fly in warm, clear, windless weather. Do not fly in severe weather conditions such as overheating, overheating, strong wind, rainstorm, etc. Please choose indoor or outdoor open area, and keep a safe distance from people, pets, empty overhead wires and other obstacles. Make sure that no other uses the same frequency. Do not let the aircraft out of sight. after the aircraft is started, please do not contact the high-speed rotating part of the aircraft and keep a distance from the high-speed rotating propeller to avoid the risk of strangulation. (Including gears, rotors, etc.) During and after the use of the aircraft, the battery and motor will generate high temperature. Please do not touch it to avoid the risk of scalding. do not look directly at the light beam of the LED to avoid affecting the eyes. Safety precautions: 1 2 4. 4 Warm Tip: lt is suggested that beginners practice flying at low altitude in an open and unmanned place for about 3 days, and then fly to high altitude after being familiar with flying -1- Product Name:Toy aircraft RG109MAX �� �� Pre-flight preparation flight environment indoor: Spacious space away from obstacles, crowds or pets are preferred. Please keep the UAV in line of sight and away from obstacles, high-voltage cables, trees and personnel during the flight. Do not fly in extreme environments, such as heat, cold, strong wind or heavy rain. Outdoor: Sunny, windy and sunny weather are preferred. Fan blade B Fan blade A Subject Power switch Wifi camera Boom Electric machine Blade replacement: When flying, the fan blade A rotates clockwise,and the fan blade B rotates counterclockwise. 1. 2. 1. lmportant note This product is not a toy, wrong use will cause damage. Please follow the instructions before using this product. Do not disassemble the product yourself. Otherwise, the man facturer is not responsible for any damage. Warning: lt is necessary to fly in a safe area or away from others, and do not control the aircraft above a dense crowd. Due to the pilot’s operation error or wireless interference in the operation process, accidents and failures are easy to cccur, and damage or injury to the crowd is easy to occur. Prohibition: Especially for indoor and outdoor fight, please keep away from obstacles This product is suitable for both indoor and outdoor flight (wind strength not more than 4). Please choose a place that is free from obstacles, crowds and pets, passers-by, such as, heating scurce, heat source, electric wires or electronic power source will not collide with the drone ,landing, entanglement, or cause fire, electrocution and damage to life and property. Warning: As this product is mainly suitable for people over 14 years old, it may be difficult to learn at first, we recommend you to ask an experienced pilot for guidance. 2. Safety instructions The fan blade to be replaced must be replaced corresponding to the relative position on the machine. Fan blade A needs to be installed at position A, and fan blade B needs to be installed at position B. lf fan blade is replaced incorrectly. it can not be controlled. -2- -3- Remote control function key and name Description: Instructions for remote control handle/mobile phone rack: Remote control optional: With LCD, Without LCD Note: Note: Please follow the geomagnetic calibration steps for geomagnetic calibration and gyroscope calibration steps in outdoor operation before taking off. Otherwise, it will cause the missing flight. (It is GPS mode after power on by default. We do not need to press GPS button. The flight back light is constant ON without any flicker after searching 12 GPS signals and correct calibration. It can de-block and take off.) The remote controller displays that GPS ON is startup status while GPS OFF is shutdown status. (Note: It has return mode when default mode 1 is GPS mode. Mode 2 is optical flow mode with no low voltage return, one key return and a series of GPS function. Please pay attention to the flight distance and height when using it.) Note: For mobile phone control, please refer to the supplied camera manual mobile phone rack FIG. 1FIG. 2FIG. 3 Lift the mobile phone rack in the middle of the remote controller upward (FIG.1), and stretch upward to place the mobile phone (FIG. 2). Remote control handle: Pull the bottom handle of the remote control down from the middle position and rotate it into place(FIG. 3). Geomagnetic indicator AerialMobile phone rack Power switch Right control lever One key return Power indicator GPS indicator Charging indicator Liquid crystal display Left joystick Geomagnetic calibration GPS switch Number of satellites Velocity conversion Remote control Electric quantity Gimbal Camera adjustment Drone Electric quantity Flying distance Gyroscope calibration reset GPS switch Flying height -4- Instructions for charging controller: Instructions for charging drone lithium battery: Pre-flight environmental requirements: Charging socket Insert the charging plug of the charging wire into the charging socket of the remote controller, and then connect the USB charger plug to the computer or mobile phone charger for charging. When charging, the charging indicator lights up, and the indicator lights out after full charging. (Charging time is about 60 minutes) Take out the UAV battery:Press on as shown in Figure 1,pull back and remove the battery upward. Battery charging steps: Note: If the charge indicator does not change during charging, this indicates that the batter…

Text truncated - open the document above for the full version.

62_[model] CoveredEqu_2.911(d)(5)(i) and (ii)-U, V02 One of th District, S The informa Federal Authoriz Equipm 7435 O a Columb To whom We, Sh a sought equipm e We also List (htt p By signi listed u n Sincerel y Signatur Zhaoyua Manage Shantou he eighth flo Shantou City ation provided in Communic zation and E ent Authori akland Mills bia, MD2104 m it may conc antou Cheng (FCC ID: 2 ent authoriza certify that, ps://www.fcc. ng this form nder § 2.911( y, re an Wu r Chenghai J Shant or, No. 43, N y, China n this letter is base cations Com Evaluation D zation Bran s Road 46 cern: ghai Jiajun T 2BAMO-RG1 tion pursua n as of the da .gov/supplyc m, we confirm (b) and (d)(5) iajun ToysFi tou Chen No. 4District, ed on the referenc mmission Division nch ToysFirm, he 09MAX)is n nt to § 2.903 ate of the filin chain/covered m the above ) and (6). rm nghai Jia , Xiajiao Hua ced rule parts of T reby certify not “covered of the FCC r ng of the app dlist) as an e e and that w ajun Toy aihan Road E Title 47 of the CF that the equ d” equipmen rules. plication, we entity produci we are aware ysFirm East, Chengh FR as well as KD uipment for w nt prohibited are not iden ing “covered e of the app hua Street, C DB 986446 D01. 04. which author d from rece ntified on the ” equipment plication requ Chenghai 04.2023 rization is eiving an Covered . uirements

Shantou Chenghai Jiajun ToysFirm The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 4/4/2023 U.S. Agent Designation Shantou Chenghai Jiajun ToysFirm acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BAMO-RG109MAX): Name and company of U.S. agent: Tim Payne, FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of Shantou Chenghai Jiajun ToysFirm. Shantou Chenghai Jiajun ToysFirm accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). Sincerely, Signature Zhaoyuan Wu Manager Shantou Chenghai Jiajun ToysFirm Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7)-U, V03

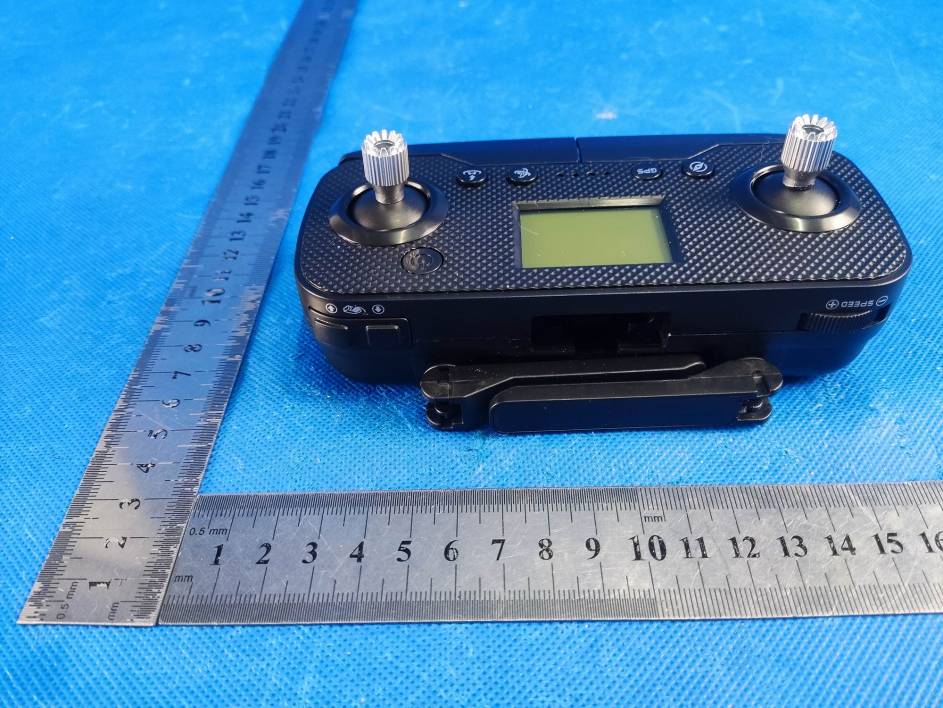

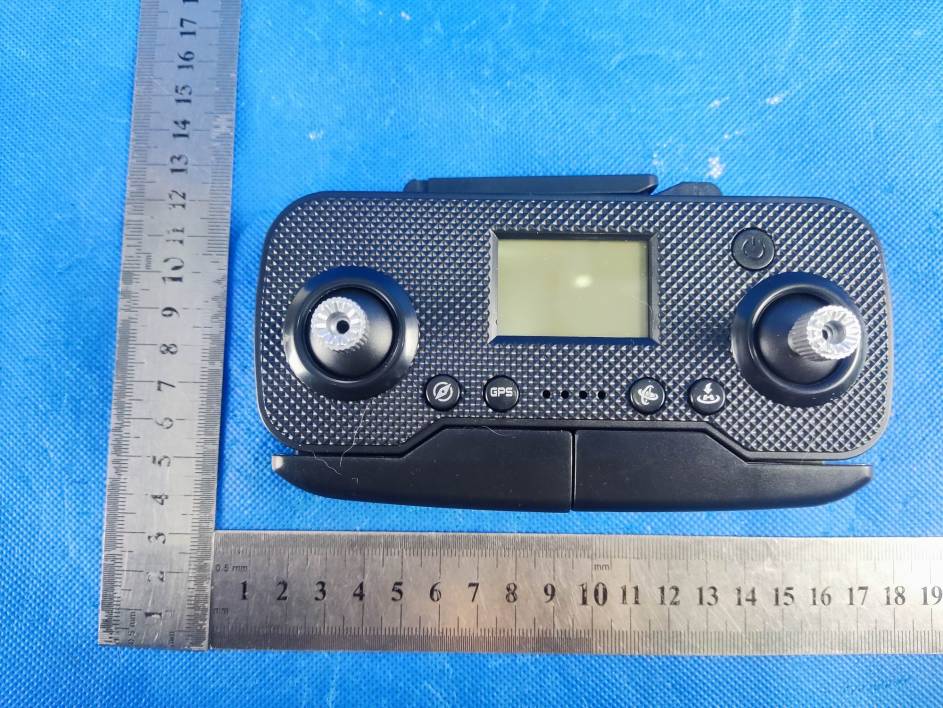

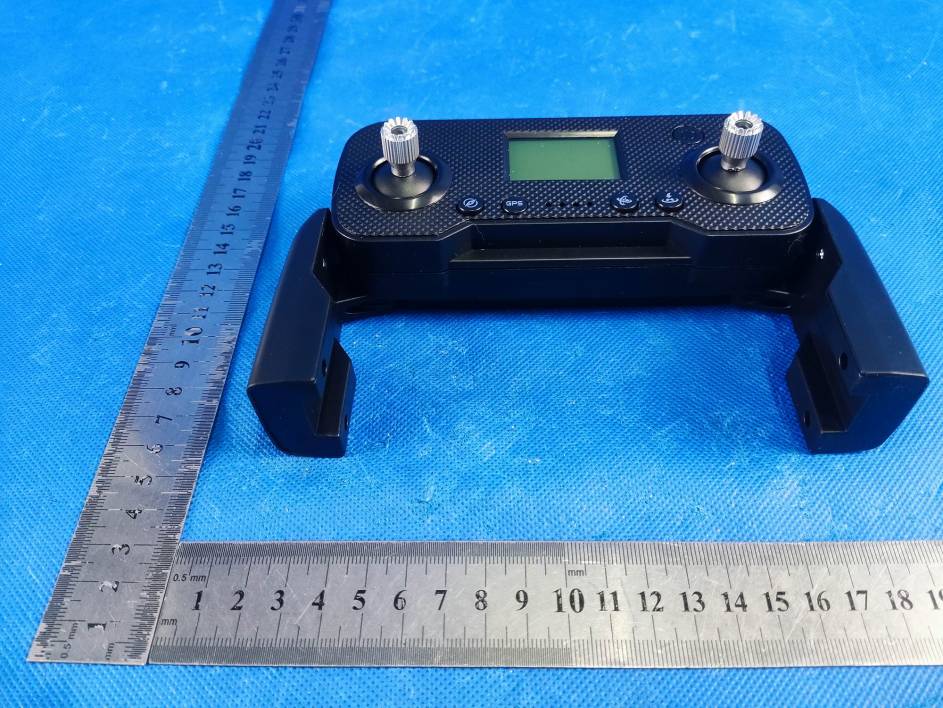

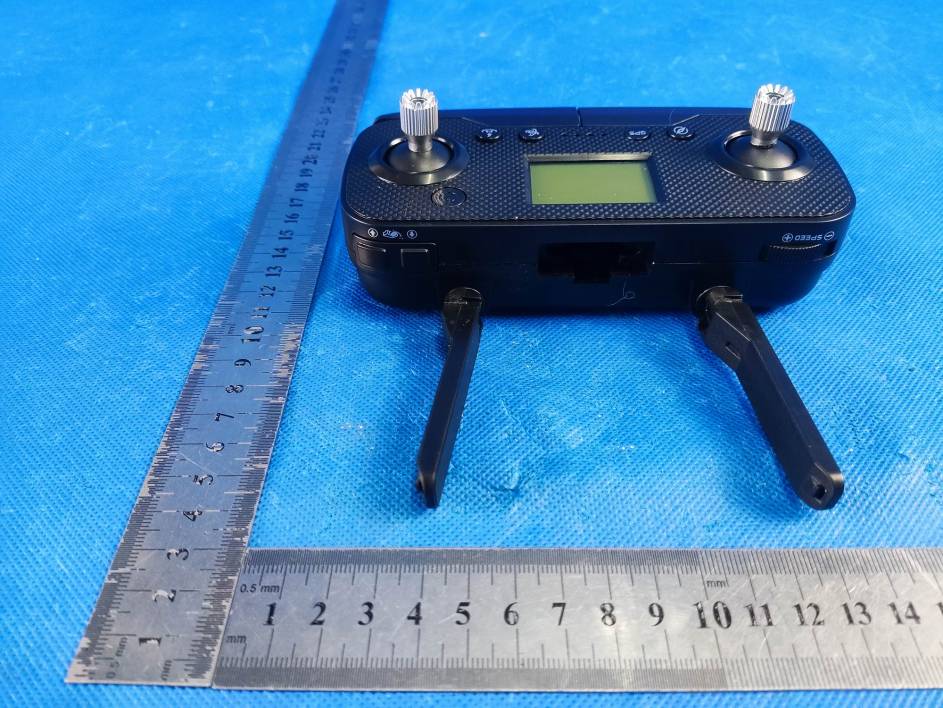

Page 1 of 6 FCC ID: 2BAMO-RG109MAX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 6 FCC ID: 2BAMO-RG109MAX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 6 FCC ID: 2BAMO-RG109MAX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Page 4 of 6 FCC ID: 2BAMO-RG109MAX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 Page 5 of 6 FCC ID: 2BAMO-RG109MAX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 Photo 10 Page 6 of 6 FCC ID: 2BAMO-RG109MAX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 11 Photo 12 ------End------

FCC ID Label FCC ID: 2BAMO-RG109MAX

Page 1 of 8 FCC ID: 2BAMO-RG109MAX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Page 2 of 8 FCC ID: 2BAMO-RG109MAX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 8 FCC ID: 2BAMO-RG109MAX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Page 4 of 8 FCC ID: 2BAMO-RG109MAX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 Antenna Page 5 of 8 FCC ID: 2BAMO-RG109MAX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 Photo 10 Page 6 of 8 FCC ID: 2BAMO-RG109MAX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 11 Photo 12 Page 7 of 8 FCC ID: 2BAMO-RG109MAX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 13 Photo 14 Page 8 of 8 FCC ID: 2BAMO-RG109MAX Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 15 Photo 16 ------End------

Page1of33ReportNo.:AIT23031709W1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. TESTREPORT ClientInformation: Applicant:ShantouChenghaiJiajunToysFirm Applicantadd.: Oneoftheeighthfloor,No.43,No.4District,XiajiaoHuaihanRoadEast, ChenghuaStreet,ChenghaiDistrict,ShantouCity. Manufacturer:ShantouChenghaiJiajunToysFirm Manufactureradd.: Oneoftheeighthfloor,No.43,No.4District,XiajiaoHuaihanRoadEast, ChenghuaStreet,ChenghaiDistrict,ShantouCity. ProductInformation: ProductName: Toyaircraft ModelNo.: Pleaserefertopage6fordetail. BrandName: N/A FCCID: 2BAMO-RG109MAX Applicablestandards: FCCCFRTitle47Part15SubpartCSection15.249 PreparedBy: DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang,Huangjiang,Dongguan, Guangdong,China Tel.:+86-769-82020499Fax.:+86-769-82020495 DateofReceipt:Mar.17,2023DateofTest:Mar.17~Mar.19,2023 DateofIssue:Mar.20,2023TestResult:Pass ThisdevicedescribedabovehasbeentestedbyDongguanYaxu(AiT)TechnologyLimitedandthe testresultsshowthattheequipmentundertest(EUT)isincompliancewiththeFCCrequirements. Anditisapplicableonlytothetestedsampleidentifiedinthereport. Note:Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofDongguan Yaxu(AiT)TechnologyLimited,thisdocumentmaybealteredorrevisedbyDongguanYaxu(AiT) TechnologyLimited,personalonly,andshallbenotedintherevisionofthedocument.Thistest reportmustnotbeusedbytheclienttoclaimproductendorsement. Reviewedby:Approvedby: SimbaHuangSeal.chen Page2of33ReportNo.:AIT23031709W1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. 1Contents Page COVERPAGE 1CONTENTS...........................................................................................................................................................................2 2TESTSUMMARY.................................................................................................................................................................4 2.1StatementoftheMeasurementUncertainty........................................................................................4 2.2MeasurementUncertainty....................................................................................................................4 3TESTFACILITY....................................................................................................................................................................5 3.1Deviationfromstandard.......................................................................................................................5 3.2Abnormalitiesfromstandardconditions...............................................................................................5 3.3TestLocation.........................................................................................................................................5 4GENERALINFORMATION................................................................................................................................................6 4.1Testfrequencies...................................................................................................................................7 4.2EUTPeripheralList..............................................................................................................................8 4.3TestPeripheralList...............................................................................................................................8 4.4TESTMETHODOLOGY.......................................................................................................................9 4.5DescriptionofTestModes..................................................................................................................10 5EQUIPMENTUSEDDURINGTEST...............................................................................................................................11 6TESTRESULTSANDMEASUREMENTDATA..........................................................................................................12 6.1Antennarequirement..........................................................................................................................12 6.220dBSpectrumBandwidthMeasurement........................................................................................13 6.3RadiatedEmissionsMeasurement....................................................................................................16 6.4ConductedEmissions.........................................................................................................................29 7TESTSETUPPHOTO.......................................................................................................................................................33 8EUTCONSTRUCTIONALDETAILS..............................................................................................................................33 Page3of33ReportNo.:AIT23031709W1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. RevisionHistory RevisionIssueDateRevisionsRevisedBy 000 Mar.20,2023 InitialIssueSealChen Page4of33ReportNo.:AIT23031709W1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. 2TestSummary TestItemSectioninCFR47Result Antennarequirement§15.203Pass ACPowerLineConductedEmission§15.207Pass Fundamental&RadiatedSpurious EmissionMeasurement §15.249(a)/§15.209Pass 20dBChannelBandwidth15.215(c)Pass BandEdge§15.249(d)/§15.205Pass Note 1.TestaccordingtoANSIC63.10:2013. 2.Themeasurementuncertaintyisnotincludedinthetestresult. 2.1StatementoftheMeasurementUncertainty Thedataandresultsreferencedinthisdocumentaretrueandaccurate.Thereaderiscautionedthat theremaybeerrorswithinthecalibrationlimitsoftheequipmentandfacilities.Themeasurement uncertaintywascalculatedforallmeasurementslistedinthistestreportacc.ToCISPR16–4 “Specif…

Text truncated - open the document above for the full version.

承认书 SPECIFICATIONFORAPPROVAL 客户名称 CUSTOMERNAME: 产品名称 PRODUCTNAME:2.4GBuilt-incoppertubeblack 1..135mm 客户料号 CUSTOMERP/N: 电子料号 P/N:11000177REV:A MANUFACTURER SIGNATURE CUSTOMER SIGNATURE CHECKEDBY:LinZhouQianhuang APPROVEDBY:HangguoFuxiu DATE: 2020-4-1 1. Specification : Productmaintechnicalparameters 主要技术指标 Maintechnicalspecifications 频率范围 （MHZ） 2400~2500 FrequencyRange (MHZ) 2400~2500 特性阻抗(Ω) 50Impedance(Ω)50 增益(dBi) 2 .31 Gain(dBi)2 .31 输出电压 驻波比 ≤1.92 VSWR ≤1.92 最大功率 10WAdmittedPower10W 极化方式 垂直极化 PolarizationLinear,Vertical 连接方式 同轴线 ConnectorTypeRFCable 物理性能 PhysicalProperties 天线本体材料 黄铜 AntennaBase 黄铜 工作温度 -20°C~+65°C OperatingTemp -20°C~+65°C 保存温度 -30°C~+75°C StorageTemp -30°C~+75°C 2.Specification： 3.Testreport 3.1 ： Networkanalyzertestreport 3.2：2D、3DRaditationPattern 2.4GHzGain:2.12dBiEfficiency:53.12% 2.45GHzGain:2.31dBiEfficiency:55.47% 2.5GHzGain:2.25dBiEfficiency:54.15%
