2BAOL-S0100ASales Data Controller (SDC)

SDC 风琴折 128铜版纸双面单色印刷 Sales Data Controller（SDC） Introduction Production Spec Physical parameters Dimensions 133mm*68mm*26mm Weight 91.2g Opreating Temp. -10°C ~ 50°C Storage Temp. -20°C ~ 60°C Relative Humidity 10%--90%(no condensation) System Parameters CPU Quad-core Cortex-A7 up to 1.2GHz RAM DDR3，1GB Memory 16GB 4G GM520 WIFI RTL8189 LAN RTL8201 External Interface USB Interface Micro USB2.0 Charge Jack DC JACK/USB Power Supply Jack Output:DC5V--1A ， Input voltage:AC230V Frequency:50-60hz Development Environment System Environment Android7.1 SDC Communication connection: There are three communication methods: Product warranty card Dear customer, thank you very much for purchasing our products. In order to better serve for you After purchasing the product, please read, fill in and keep the warranty card properly. Matters need attention Thank you sincerely for choosing this product! For better use of your equipment, we recommend that you read the instructions carefully to better familiarize yourself with and use the device. 1. This equipment can only use the standard power adapter and power cord approved by the Company. 2. The Company shall not be liable for any consequences caused by the use of the accessories of third parties. 3. Never disassemble the equipment without authorization. 4. Never contact the equipment with corrosive chemicals. Such as cleaning agents, alcohol, etc. 5. This equipment is not waterproof, please keep it dry and clean. 6. Do not pull the power cord when pulling out the power supply. 7. Please use it in a well-ventilated and good-signal environment. If the equipment is not used, please cut off to avoid affecting the performance of the equipment for a long time. Customer name Customer address contact number product model equipment number Store address Store telephone invoice number date of purchase maintenance record contacts Handling situation of fault causes FCC Compliance Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Operation Manual Thank you for purchasing the portable SDC. This manual describes the use of the product. For information on parameters, please see the product specification table 1.LAN Port communication By scanning the QR code, logging in the IP address setting interface, setting the IP address, inserting into the LAN port of the device with the network cable, and connecting to the router of the same group of the PC segment to realize the communication with the PC. Connection instance:： Description: The product is powered through the DC port. Example 1: Power supply by the power adapter Example 2: Power supply is transferred from USB to DC power cable 2.3G / 4G communication Using 3G / 4G requires prematurely inserting the sim card into the sim card slot. Method: Remove the extraction shell and insert the sim card into the sim card slot in the specified direction. 3.wifi communication With the lan port setting method, by scanning the QR code, mobile phone login password setting interface, wifi password input. After the input is completed, the automatic connection of wifi and data communication can be realized. Warning: This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 c m from all persons and must not be co- located or operating in conjunction with any other antenna or tran smitter. End- users and installers must be provide with antenna installation instr uctions and transmitter operating conditions for satisfying RF exp osure

Aisino Corporation Zhuozhou Branch East of Jingshi Freeway,South of Fanyang Road, Zhuozhou City, China The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 04/24/2023 U.S. Agent Designation Aisino Corporation Zhuozhou Branch acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BAOL-S0100A): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs Co 80918 USA FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Aisino Corporation Zhuozhou Branch Aisino Corporation Zhuozhou Branch with the FRN 0033584327 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). Sincerely, Signature Signature [Name]: Baohua Li [Name of U.S. agent]：Michoux Logan [Title]: Manager [Title of U.S. agent]：PM [Company]: Aisino Corporation Zhuozhou Branch [Company of U.S. agent]: GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V04

Sincerely, Name/Title： Baohua Li /Product Development Director Company: Aisino Corporation Zhuozhou Branch Address: East of Jingshi Freeway,South of Fanyang Road, Zhuozhou City China Phone: 15230476034 Fax: N/A E-Mail: [email protected]

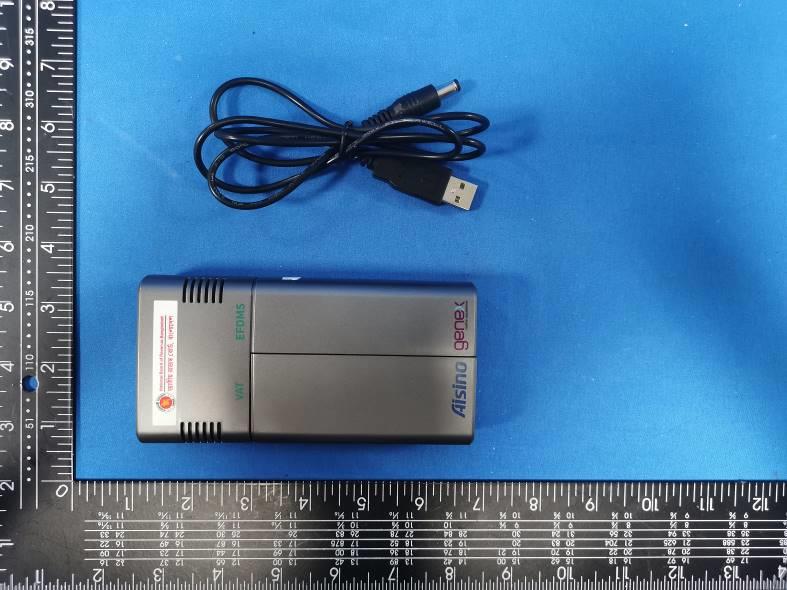

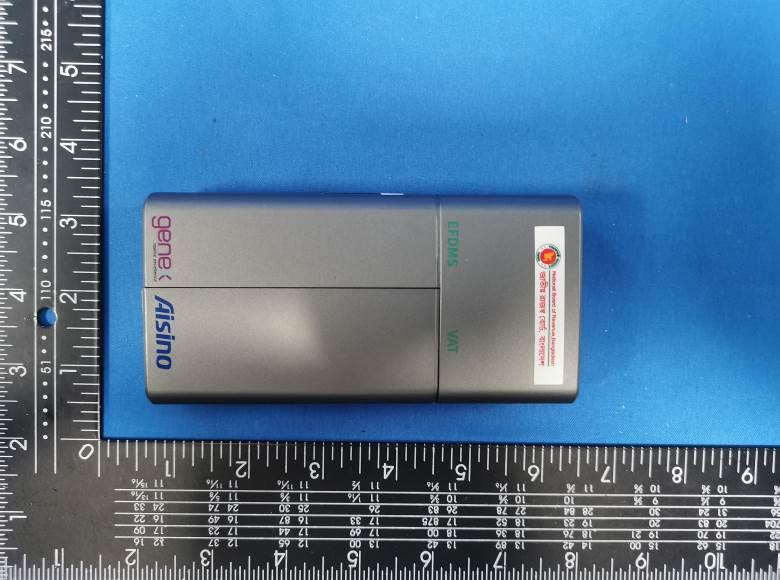

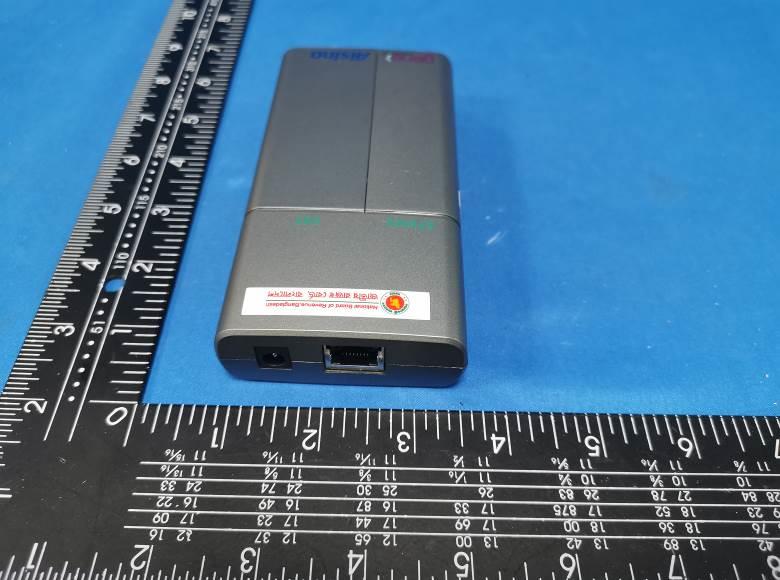

FCC ID: 2BAOL-S0100A External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BAOL-S0100A Photo 4 Photo 5 Photo 6 FCC ID: 2BAOL-S0100A Photo 7

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location Model No.: S0100A FCC ID : 2BAOL-S0100A

FCC ID: 2BAOL-S0100A Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BAOL-S0100A Photo 4 Photo 5 Photo 6 WCDMA-LTE PCB Antenna 2.4G WIFI PIFA Antenna FCC ID: 2BAOL-S0100A Photo 7 Photo 8 Photo 9

RF Exposure evaluation FCC ID: 2BAOL-S0100A Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information S0100A can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: 2.4GWIFI / PIFA Antenna 1.26dBi for 2400-2500MHz; WCDMA/LTE / PIFA Antenna FDD Band II: 1dBi FDD Band V: 1dBi E-UTRA Band 2, 4, 5:1dBi 5. Manufacturing Tolerance WIFI(Peak) Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 14.0 13.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 14.0 13.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 14.0 13.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 WCMDA Modulation Target (dBm) Tolerance ±(dB) Band 2 QPSK 23.0 1.0 Band 5 QPSK 23.0 1.0 LTE Target (dBm) Tolerance ±(dB) Band2 23.5 1.0 Band4 23.0 1.0 Band5 23.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is refer to section 4, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW 2.4GWIFI 15.0 31.6228 1.26 1.3366 0.0084 1.00 WCDMA 2 24.0 251.1886 1.000 1.2589 0.0629 1.00 WCDMA 5 24.0 251.1886 1.000 1.2589 0.0629 0.55 LTE Band 2 24.5 281.8383 1.000 1.2589 0.0706 1.00 LTE Band 4 24.0 251.1886 1.000 1.2589 0.0629 1.00 LTE Band 5 24.0 251.1886 1.000 1.2589 0.0629 0.55 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. simultaneous MPE Result 2.4GWIFI MPE (Ratio) LTE Band 2 MPE (Ratio) simultaneous MPE (Ratio) MPE Limits (Ratio) 0.0084 0.0706 0.079 1.0000 8. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type PIFA antenna Model S0100A Frequency range 2400-2500MHz Manufacturer Aisino Corporation Zhuozhou Branch ANT Peak Gain 1.26 dBi 2. Antenna Photo: Length :43.94mm Width:3.86mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA23032200901 2BAOL-S0100A Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Mar. 30, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Aisino Corporation Zhuozhou Branch Address ............................................ : East of Jingshi Freeway,South of Fanyang Road, Zhuozhou City, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Sales Data Controller (SDC) Trade Mark ....................................... : Aisino Manufacturer .................................... : Aisino Corporation Zhuozhou Branch Model/Type reference ...................... : S0100A Listed Models .................................. : S01 Modulation Type ............................... : CCK/DSSS/ OFDM Operation Frequency ........................ : From 2412 - 2462MHz Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA23032200901 Page 2 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Sales Data Controller (SDC) Model /Type : S0100A Series Model No. S01 Applicant : Aisino Corporation Zhuozhou Branch Address : East of Jingshi Freeway,South of Fanyang Road, Zhuozhou City, China Manufacturer : Aisino Corporation Zhuozhou Branch Address : East of Jingshi Freeway,South of Fanyang Road, Zhuozhou City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23032200901 Page 3 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A ND R ES U L T S ............................................ 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 13 4.3 Maximum Peak Conducted Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 27 4.7 Antenna Requirement 34 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 35 6 P H O T O S O F T H E E U T ............................................................. 36 Report No.: CTA23032200901 Page 4 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 v05r02: Guidance for Compliance Measurements on Digital Transmission Systems (DTS) ,Frequency Hopping Spread Spectrum System(HFSS), and Hybrid System Devices Operating Under §15.247 of The FCC rules. Report No.: CTA23032200901 Page 5 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-…

Text truncated - open the document above for the full version.

Report No.: CTA23032200901 Page 31 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference Reference CH01 CH06 30MHz-3GHz 30MHz-3GHz 3GHz -25GHz 3GHz -25GHz Report No.: CTA23032200901 Page 32 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference CH11 30MHz-3GHz 3GHz -25GHz Report No.: CTA23032200901 Page 33 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: 802.11b Left bandedge Right bandedge 802.11g Left bandedge Right bandedge 802.11n(HT20) Left bandedge Right bandedge Report No.: CTA23032200901 Page 34 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.7 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator, the manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited FCC CFR Title 47 Part 15 Subpart C Section 15.247(c) (1) (I): (i) Systems operating in the 2400-2483.5 MHz band that is used exclusively for fixed. Point-to-point operations may employ transmitting antennas with directional gain greater than 6dBi provided the maximum conducted output power of the intentional radiator is reduced by 1 dB for every 3 dB that the directional gain of the antenna exceeds 6dBi. Test Result: The maximum gain of antenna was 1.26 dBi. Remark:The antenna gain is provided by the customer , if the data provided by the customer is not accurate, Shenzhen CTA Testing Technology Co., Ltd. does not assume any responsibility. Report No.: CTA23032200901 Page 35 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 5 T e s t S e t u p P h o t o s o f t h e E U T Report No.: CTA23032200901 Page 36 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 6 P h o t o s o f t h e E U T Report No.: CTA23032200901 Page 37 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23032200901 Page 38 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23032200901 Page 39 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23032200901 Page 40 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23032200901 Page 41 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ********************** End of Report **********************

FCC ID: 2BAOL-S0100A Test Setup Photos of the EUT
