2BAOX-SMGP208Power Bank

Power Bank USER MANUAL Specification Package Contents Power Bank x1 Charging Cable x1User Manual x1 10000mAh 5V 2.5A（Max） 5V 2.1A(Max) 5V 2.1A(Max) 5W 150x71x17.3 mm Battery Capacity Type C Input USB Output 1 USB Output 2 Wireless output Dimension 1.Connect the Type C connector of a USB cable into the related input port, and connect the USB connector to a power supply with USB output (not included). It is recommeded to use USB power supply with current 1-2A. Product Introduction Thank you for purchasing this protable power bank,Before using the power bank, Please read the manual carefully and follow the instructions to operate properly. flashing, battery is running out soon, please recharge. 2.This power bank can automatically identify equipment that need to charge, If there is no equipment on it, the power bank will be turned off after 30 seconds，Normal version of power bank is off after 3S. 3.For wireless charging, your mobile device must be equipped with a Qi wireless receiver. The device can automatically identify a Qi-compatible device placed on it.If the center point of the receiving terminal is deflected over 10mm from the center point of transmitting terminal, the power bank will be turned off automatically. 4.If wired charging is not working properly, please try a different charging cable, since the connector may become loose due to wearing. 5.During charging, the device may become warm due to high currents and resistance, especially during wireless charging. To reduce temperature, avoid running intensive applications or using GPS on your mobile device when charging. Cautions: Read all the instructions and warnings carefully prior to using this product. The power bank will generate heat when charging. Always charge in a well-ventilated and open-air area. Do not charge under pillows, blankets, clothing or on flammable surfaces. Keep the power bank away from heat sources, direct sunlight, combustible gas, humidity, water or other liquids. Do not disassemble, open, microwave, incinerate, paint or insert foreign objects into the power bank. Do not subject the power bank to mechanical shock such as crushing, bending, puncturing or shredding. Avoid dropping or placing heavy objects on the power bank. Do not short-circuit the power bank or store it in a receptacle where it may be short-circuited by other metallic or conductive objects. Do not operate the power bank if it has been wet or otherwise damaged, to prevent against electric shock, explosion and/or injury. Contact the dealer or authorized agent. Normal version: 2.When charging, the Indicator lights will flash. Each light indicates about 25% of the capacity. When fully charged, all Indicator lights will light up. 1.Press the power button, If LED2 indicator light is Troubleshooting LED1 light is always on, which means wireless charging is in progress. Note: Make sure your smartphone is fit for Qi standard receiving equipment. 2. Charging device 3.Note: Fully charge the power bank before using the power bank for the first time. Recharge the power bank once every three months when not in use or seldom used. A.Wired charging Press the power button, indicator lights are on. One end of charging cable should be inserted in the USB or type c port,and the other end should be inserted in the charging port of your device which needs to be charged. When charging device, The indicator lights are on. B.Wireless charging Press the power button, LED1 light flashes and then goes out. Put your smartphone on top of the power bank, exactly in the center of the wireless charging area. Product Features Operating Instruction 1 Power button 2 Type-C Input 3 USB 1 output 4 USB 2 output 5 Wireless Charger 6 LED indicators: 1. Charging Power Bank ① ② ③ ⑥ ④ ⑤ LED1: Wireless charging indicator LED2-5: Battery power indicators LED1 LED2 LED3 LED4 LED5 This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or r elocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to whic h the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. the transmitter may not be colocated with any other transmitter or antenna. Warning:

SABRINA MANUFACTURING GROUP IRELAND LIMITED 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: SABRINA MANUFACTURING GROUP IRELAND LIMITED Address: LITTLETON FACTORY, KILLEENS BALLYNONTY THURLES CO. TIPPERARY, E41R960, Ireland Product Name: Power Bank FCCID: 2BAOX-SMGP208 Model(s): SMGP208 2.911(d)(5)(i) EquipmentType We, [SABRINA MANUFACTURING GROUP IRELAND LIMITED] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: SOPHIA LIU Date: Mar. 28, 2023 Title: SALES Company name: SABRINA MANUFACTURING GROUP IRELAND LIMITED Signature: NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

SABRINA MANUFACTURING GROUP IRELAND LIMITED 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: SABRINA MANUFACTURING GROUP IRELAND LIMITED Address: LITTLETON FACTORY, KILLEENS BALLYNONTY THURLES CO. TIPPERARY, E41R960, Ireland Product Name: Power Bank FCCID: 2BAOX-SMGP208 Model(s): SMGP208 2.911(d)(5)(ii) Applicant filing We, [SABRINA MANUFACTURING GROUP IRELAND LIMITED] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to §1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: SOPHIA LIU Date: Mar. 28, 2023 Title: SALES Company name: SABRINA MANUFACTURING GROUP IRELAND LIMITED Signature: NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

SABRINA MANUFACTURING GROUP IRELAND LIMITED 2.911 (d)(7)USA Agentv1.3 Section 2.911(d)(7) USA Agent for Service of Process Company name: SABRINA MANUFACTURING GROUP IRELAND LIMITED Address: LITTLETON FACTORY, KILLEENS BALLYNONTY THURLES CO. TIPPERARY, E41R960, Ireland Product Name: Power Bank FCCID: 2BAOX-SMGP208 Model(s): SMGP208 2.911(d)(7) USA Designated Agent for Service of Process We, [SABRINA MANUFACTURING GROUP IRELAND LIMITED] (“the applicant”) designate [MMAS LLC] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We Acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We Acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email addressfor no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: MMAS LLC Address: 7232 STARCROSS CT, CARY, NC 27519-9303 FCC Registration Number (FRN): 0033588492 Contact Name: KAREN WU Telephone No: 919-454-5001 Email: [email protected] Applicant Company name: SABRINA MANUFACTURING GROUP IRELAND LIMITED Address: LITTLETON FACTORY, KILLEENS BALLYNONTY THURLES CO. TIPPERARY, E41R960, Ireland FCC Grantee Code: 2BAOX Contact Name: SOPHIA LIU Telephone No: 0086 7552225 9565 Email: [email protected] SABRINA MANUFACTURING GROUP IRELAND LIMITED 2.911 (d)(7)USA Agentv1.3 Signature: Title: MANAGER Signature: Title: SALES Date: Mar. 28, 2023 Date: Mar. 28, 2023 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference;Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

SABRINA MANUFACTURING GROUP IRELAND LIMITED Agent Authorization Company: SABRINA MANUFACTURING GROUP IRELAND LIMITED Address: LITTLETON FACTORY, KILLEENS BALLYNONTY THURLES CO. TIPPERARY, E41R960, Ireland Product Name: Power Bank Model Number(s): SMGP208 Product Description: Power Bank We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Mar. 28, 2023 Name: SOPHIA LIU Title: SALES Company: SABRINA MANUFACTURING GROUP IRELAND LIMITED

SABRINA MANUFACTURING GROUP IRELAND LIMITED Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Mar. 28, 2023 Subject; Request for Confidentiality FCC ID: 2BAOX-SMGP208 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: SOPHIA LIU Title: SALES

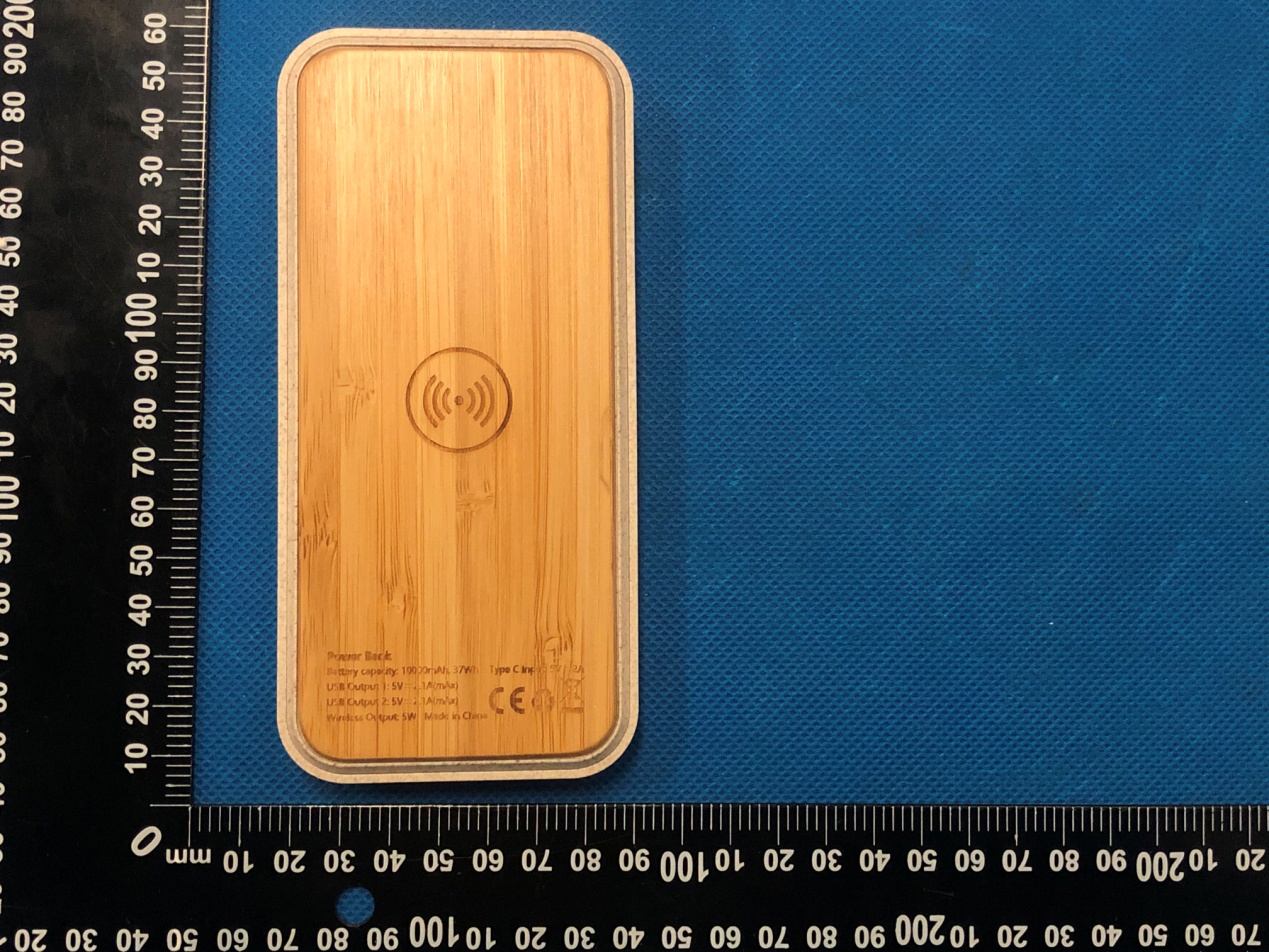

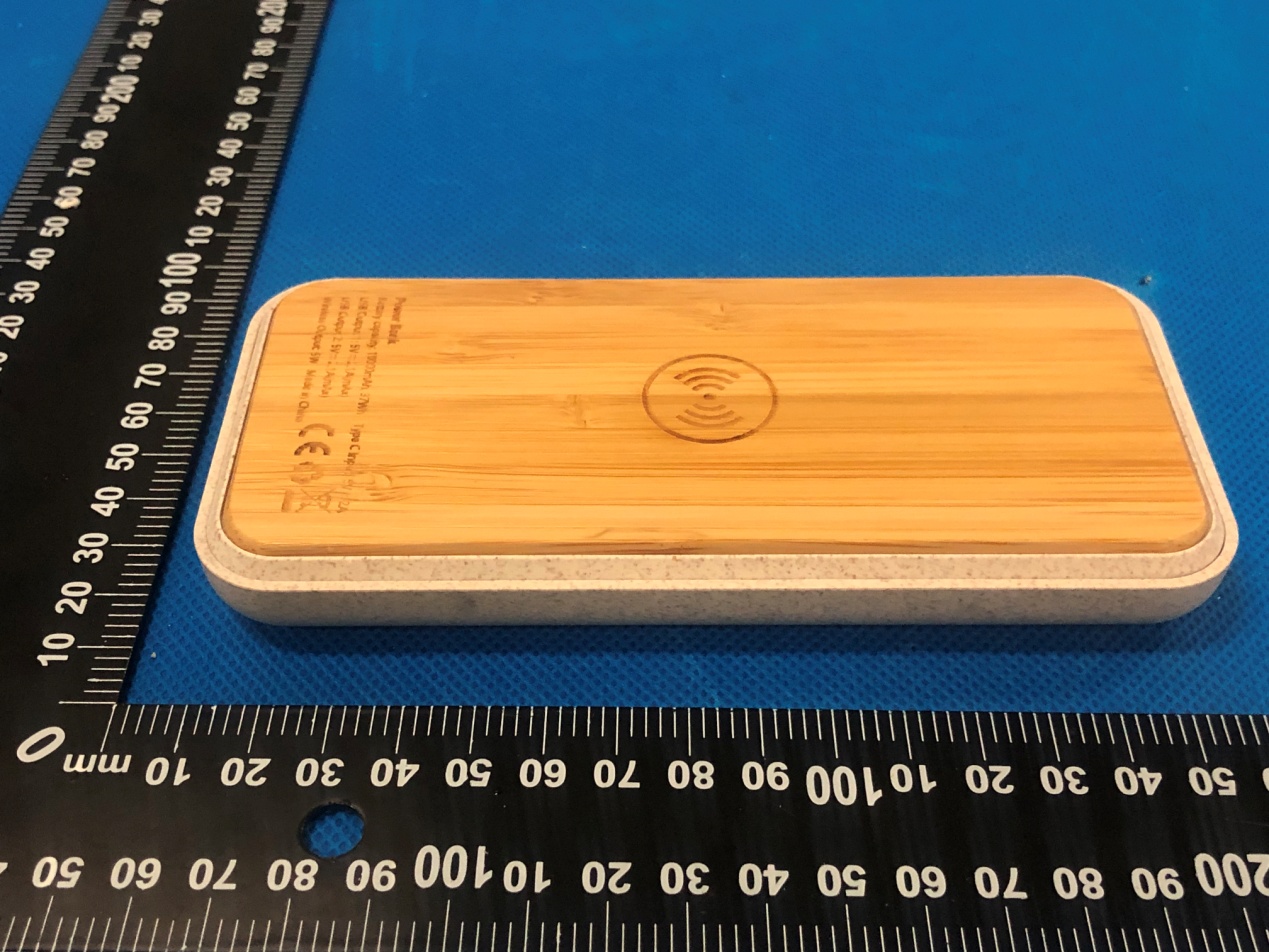

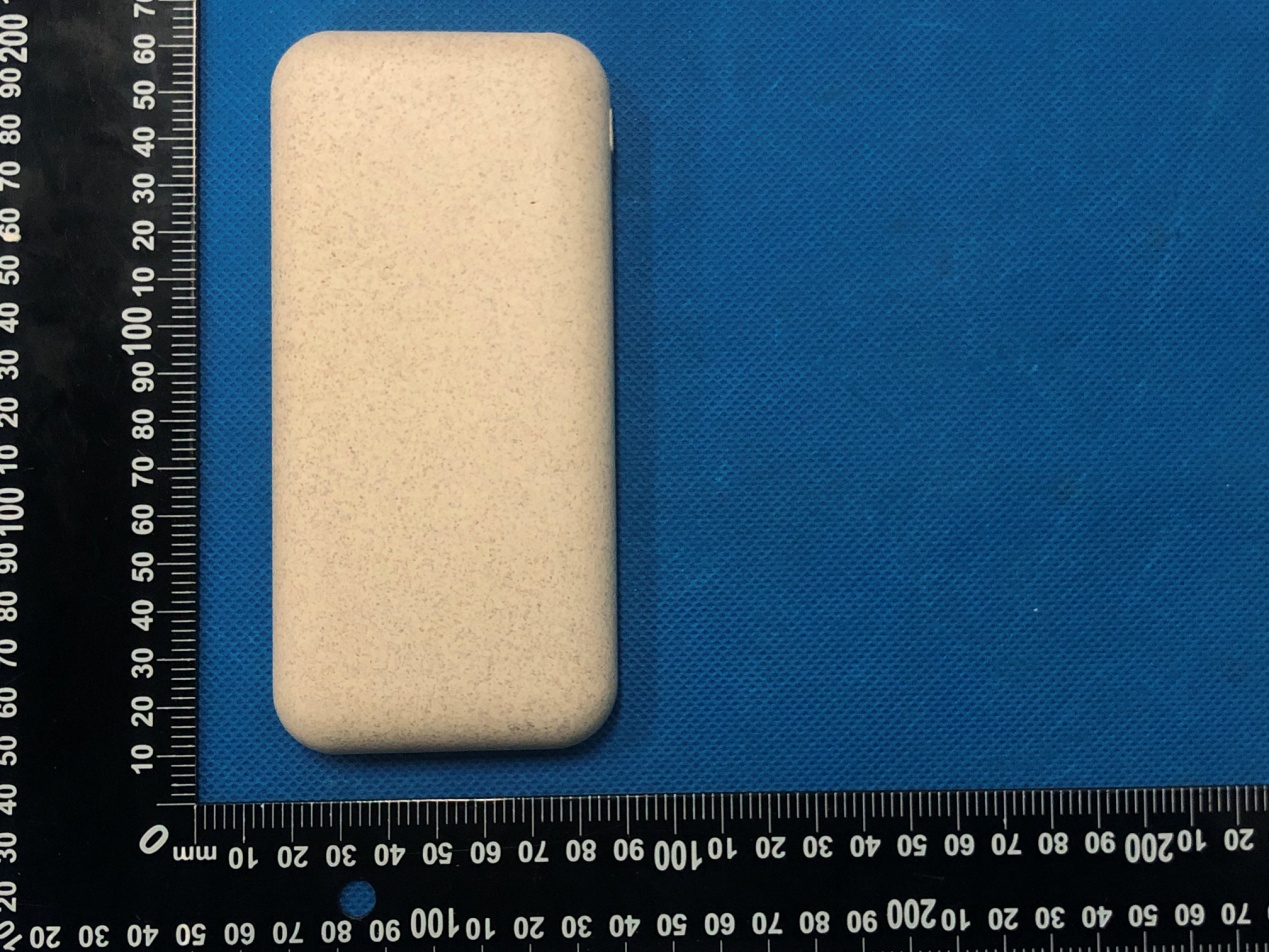

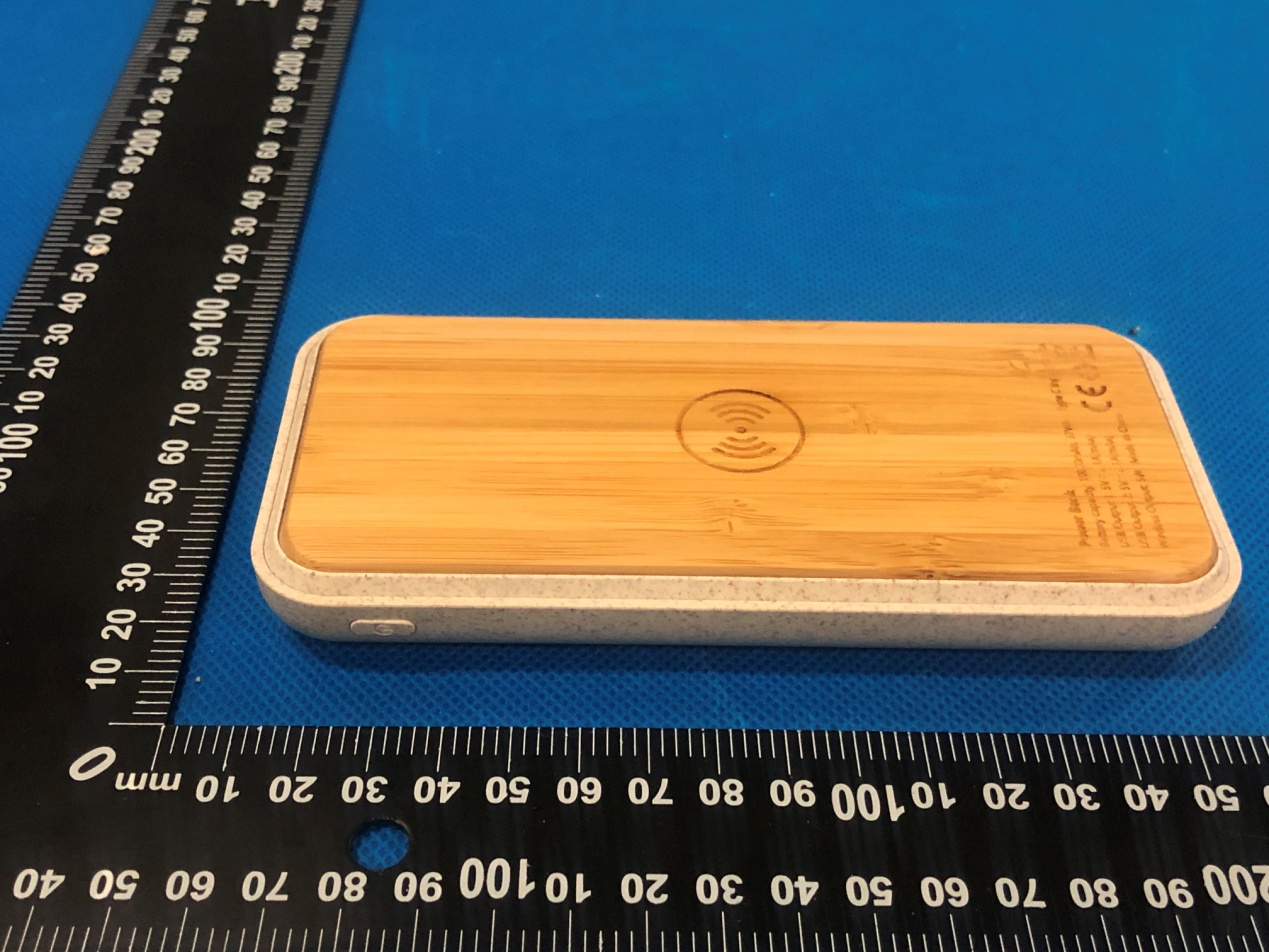

Annex A External Photos Report No.:HK2303070685-1E/2E Page 1 of 4 Report No.:HK2303070685-1E/2E Page 2 of 4 Report No.:HK2303070685-1E/2E Page 3 of 4 Report No.:HK2303070685-1E/2E Page 4 of 4
