2BAPO-RFSUPERPACKRF SuperPack

FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. IC IC warning: This device contains licence-exempt transmitter(s)/receiver(s)/ that comply with Innovation Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device. Radiation Exposure: This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment; To maintain compliance with IC's RF Exposure guidelines, This equipment should be. installed and operated with minimum distance of 5mm the radiator your body. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Déclaration de l'ISED Canada : Cet appareil contient des tasmittre (s) / récepteur (s) sans licence / conformes à l'innovationRSS exemptes de licence de Sciences et Développement économique Canada. L'opération est sous réserve des deux conditions suivantes : 1) cet appareil ne peut pas causer d'interférences et 2) cet dispositif doit accepter toute interférence, y compris peut provoquer le fonctionnement indésirable de l'appareil. Exposition aux rayonnements : Cet équipement est conforme aux radiations du Canada limites d'exposition pour un environnement incontrôlé noncé d'exposition RF Pour maintenir le respect des guides d'exposition RF d'IC, cquipment doit être.installé et actionné avec une distance minimale de 5mm le radiateur de votre corps. Cet appareil et ses antennes ne doivent pas être co-localisé ou en opération en conjonction avec toute autre antenne ou émetteur.

Retroflag Tech Ltd. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Retroflag Tech Ltd. Address: 804, Bulding 2, SEG Science Park, Huaqiang Road, Futian District, Shenzhen, China Product Name: RF SuperPack FCCID: 2BAPO-RFSUPERPACK Model(s): RF SuperPack 2.911(d)(5)(i) Equipment Type We, [Retroflag Tech Ltd.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Claire Zhang Date: Jun. 28, 2023 Signature: Title and Company name: Manager/ Retroflag Tech Ltd. NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Retroflag Tech Ltd. 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Retroflag Tech Ltd. Address: 804, Bulding 2, SEG Science Park, Huaqiang Road, Futian District, Shenzhen, China Product Name: RF SuperPack FCCID: 2BAPO-RFSUPERPACK Model(s): RF SuperPack 2.911(d)(5)(ii) Applicant filing We, [Retroflag Tech Ltd.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to §1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Claire Zhang Date: Jun. 28, 2023 Signature: Title and Company name: Manager/ Retroflag Tech Ltd. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Retroflag Tech Ltd. Agent Authorization Company: Retroflag Tech Ltd. Address: 804, Bulding 2, SEG Science Park, Huaqiang Road, Futian District, Shenzhen, China Product Name: RF SuperPack Model Number(s): RF SuperPack Product Description: RF SuperPack We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jun. 28, 2023 Name: Claire Zhang Title: Manager Company: Retroflag Tech Ltd.

Retroflag Tech Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jun. 28, 2023 Subject; Request for Confidentiality FCC ID: 2BAPO-RFSUPERPACK To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Claire Zhang Title: Manager

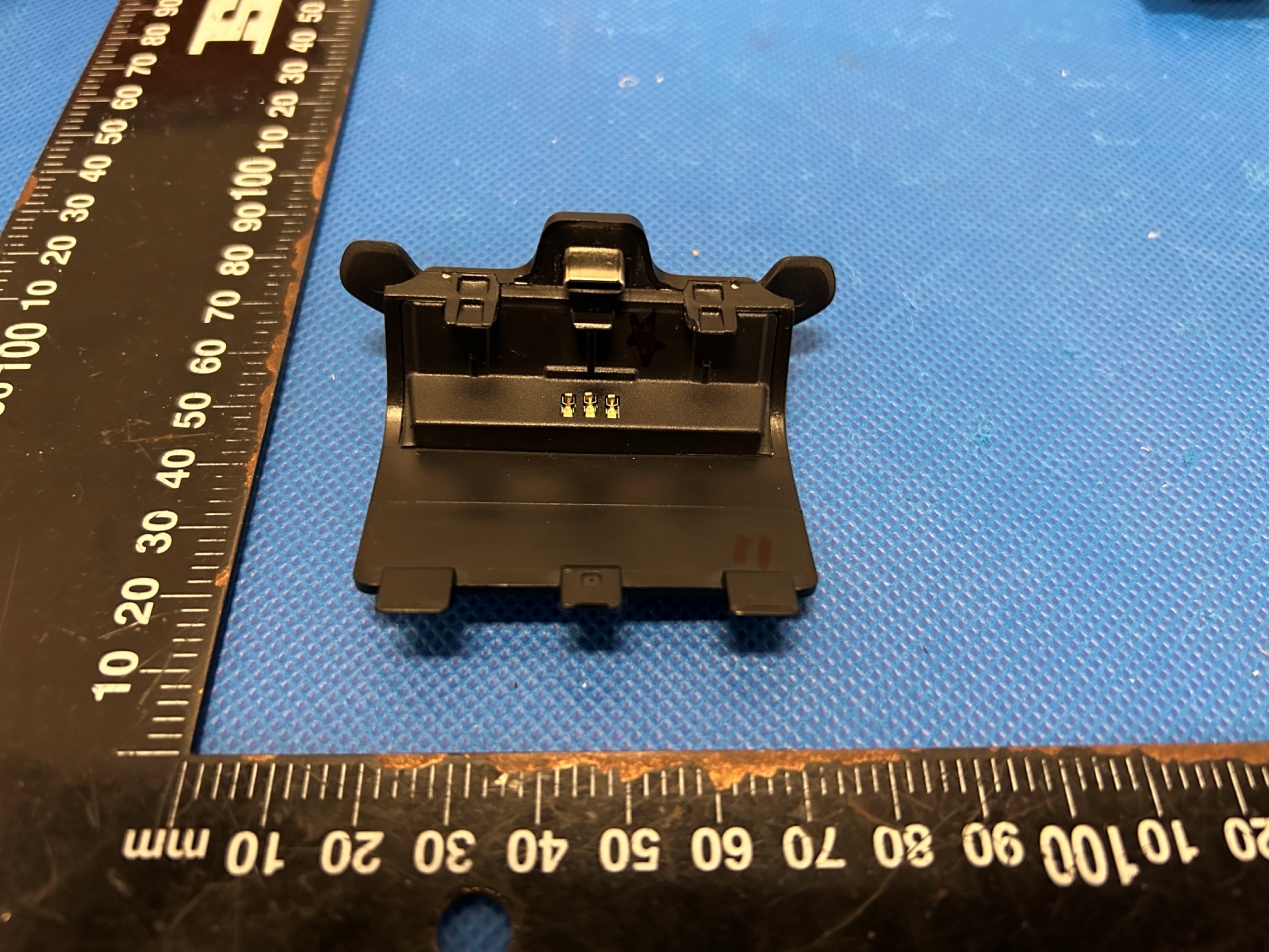

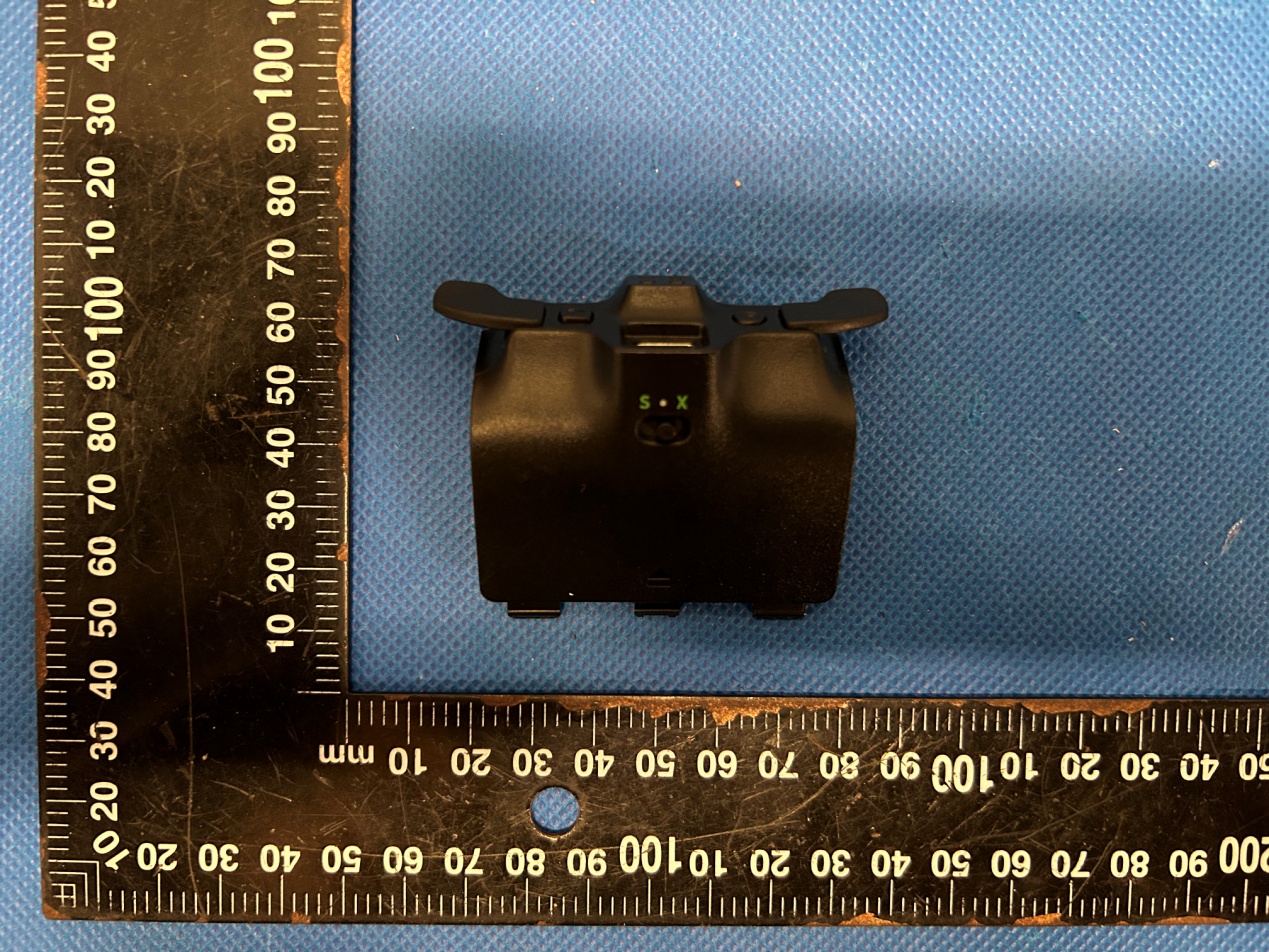

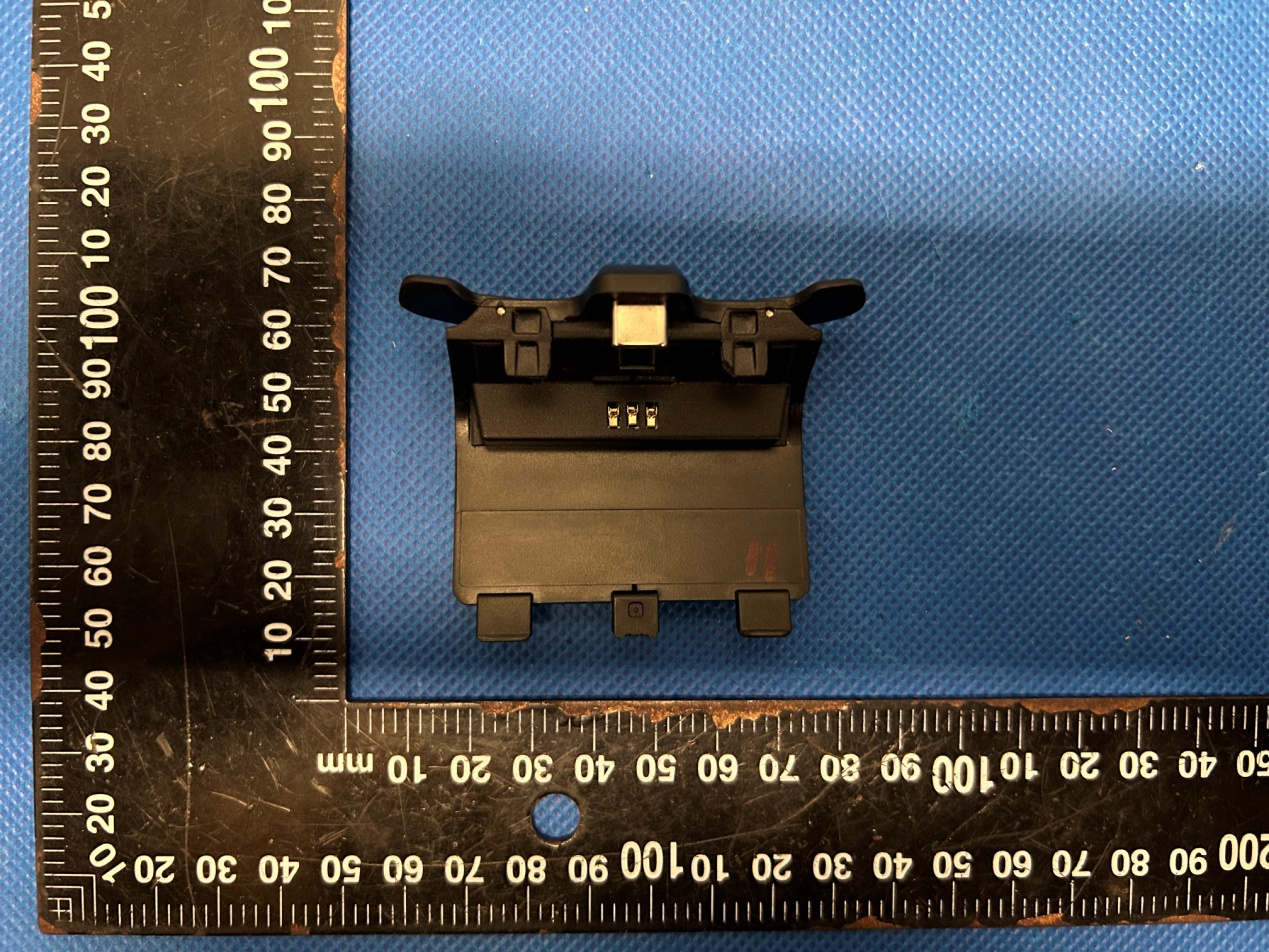

Annex A External Photos Report No.: HK2305091809-E Page 1 of 4 Report No.: HK2305091809-E Page 2 of 4 Report No.: HK2305091809-E Page 3 of 4 Report No.: HK2305091809-E Page 4 of 4

FCC ID LABEL: Ca: 3mm x 23mm Label Location FCC ID: 2BAPO-RFSUPERPACK

Annex B Internal Photo Report No.: HK2305091809-E Page 1 of 4 Report No.: HK2305091809-E Page 2 of 4 Report No.: HK2305091809-E Page 3 of 4 Antenna Report No.: HK2305091809-E Page 4 of 4

FCC RF Exposure Product Name: RF SuperPack FCCID: 2BAPO‐RFSUPERPACK Model(s): RF SuperPack 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√ f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation Frequency (MHz) Output power （dBm） Tune Up Power （dBm） Max Tune Up power dBm/mW Min test separati on distance mm Result Limit (mW/cm 2 ) SAR Test Exclusion 2402 1.67 1±1 2/1.58 5 0.49 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2305091809‐E, antenna gain=4.75dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.49 which is<= 3, RF Exposure testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

深圳市金航标电子有限公司 http://www.BDS666.com - 1 - 产 品 技 术 规 格 书 SPECIFICATION 深圳市龙华区民治大道1079号展滔科技大厦C座C809室 TEL：0755-83040901 FAX：0755-83040901 拟制Prepared by： 审核Checked by ： 批准Approved by： 送样日期Formed On 产品版本Document Version ( V1.0 ) 产品型号 PART NO： KH3216-A55 客户料号CUSTOMER PART NO： 客户确认CUSTOMER APPROVED BY： 确认日期APPROVED DATE： 深圳市金航标电子有限公司 深圳市金航标电子有限公司 http://www.BDS666.com - 2 - 目 录 Table of contents 规格书版本更改记录 Version rejigger track record ..............................3 1. 概述 Introduction..................................................................4 2. 外型尺寸及测试板焊盘尺寸 D i m e n s i o n s.....................4～5 3. 测试电路和匹配电路 Evaluation Board and Matching Circuits............5 4. 电气性能 Electrical Characteristics..........................................6 5. 特性曲线 Characteristic curve...................................................6 6. 方向图 Radiation Pattern...................................................7～8 7. 可靠性试验后允许误差 Post Dependability Tolerance ...............9 8. 可靠性试验 Dependability Test..........................................9～10 9. 回流焊温度 Reflow Soldering Standard Condition.....................10 10.包装尺寸 Packaging and Dimensions ....................................11 深圳市金航标电子有限公司 http://www.BDS666.com - 3 - 产品规格书版本更改记录 Version rejigger track record 版本号 Version 更改记录 Rejigger 拟制 Prepared 批准 Approve 日期 Date V1.0 首次发行 姚富鑫 贺俊驹 2018.12.07 备注： 1、更改产品电性能指标时，版本号需更换（V1.0换为V2.0、V3.0......）； 2、更改产品测试方法（包括可靠性测试条件），或更改使用条件时，当前版本号加系列（V1.0 换为V1.1、V1.2......）。 深圳市金航标电子有限公司 http://www.BDS666.com - 4 - 1. 概述 INTRODUCTION 金航标微波多层陶瓷天线LA系列产品设计用于WLAN、WiFi、蓝牙、PHS，手机 多频天线, FM等小体积SMD片式设计。 kinghelm Microwave Multi-Layer Ceramic Antenna LA series are designed to be used in WLAN、WiFi、Bluetooth、PHS、 Multiple-band Mobile phone antenna, FM, etc and compact size SMD chip design. 2. 外型尺寸 Dimensions（Unit：mm） Number Terminal Name ① INPUT ② NC Symbols L W T A Dimensions 3.2+/-0.2 1.6+/-0.2 0.6+/-0.1 0.4+/-0.1 ( Top View ) L w ① ② ( Bottom View ) A ( Side View ) T 深圳市金航标电子有限公司 http://www.BDS666.com - 5 - 3. 测试电路和匹配电路 Evaluation Board and Matching Circuits 5.1nH 1.5pF 深圳市金航标电子有限公司 http://www.BDS666.com - 6 - 4.电气性能 Electrical Characteristics 5. 特性曲线 Characteristic curve No. Item （项目） Specifications （特性） 4.1 (带匹配电路测试)After Matching 2450 MHz 4.2 Band Width 通带宽度 100MHz typ. 4.3 Peak Gain 峰值增益 4.75 dBi 4.4 V.S.W.R 驻波比 ≤2.0 4.5 Polarization 极化方式 Linear 线性 4.6 Azimuth Beam width 方位角 Omni-directional 全向 4.7 Impedance 阻抗 50 Ω 深圳市金航标电子有限公司 http://www.BDS666.com - 7 - 6. 方向图 Radiation Pattern coordinates： X-Z Plane Y-Z Plane 深圳市金航标电子有限公司 http://www.BDS666.com - 8 - X-Y Plane 3D Radiation Pattern Frequency (MHz) 2400 2450 2500 Avg. Gain (dBi) -2.25 -2.23 -2.25 Peck Gain (dBi) 3.68 4.75 3.72 Efficiency (%) 68 71 69 深圳市金航标电子有限公司 http://www.BDS666.com - 9 - 7.可靠性试验后允许误差 Post Dependability Tolerance 经可靠性试验后允许比起始读数偏差见下表 Post Dependability Tolerance ( Refer to the table ) 8. 可靠性试验 Dependability Test 基准条件：温度范围 Temperature range 25±5°C 相对湿度范围 Relative Humidity range 55~75%RH 工作温度 Operating Temperature range -40°C~+85°C 8.1 耐振动 Vibration Resist 在振动频率为10~55Hz振幅为1.5mm 沿X.Y.Z方向各振动2小时后测试符合表8.1~8.4规定。 The device should satisfy the electrical characteristics specified in paragraph 8.1~8.4 after applied to the vibration of 10 to 55Hz with amplitude of 1.5mm for 2 hours each in X , Y and Z directions. 8.2 耐跌落冲击 Drop Shock 在100cm高度处按X，Y，Z三个面分别自由跌落在木制地板上共3次后测试符合表8.1~8.4规 定。 The device should satisfy the electrical characteristics specified in paragraph 8.1~8.4 after dropping onto the hard wooden board from the height of 100cm for 3 times each facet of the 3 dimensions of the device. 8.3 耐焊接热 Solder Heat Proof 能承受经120~150°C的温度预热120秒后，在255°C+10°C的焊锡浸5±0.5秒，或300°C-10°C的 电烙铁焊接3±0.5秒，焊接面无损伤。 The device should be satisfied after preheating at 120°C~150°C for 120 seconds and dipping in soldering Sn at 255°C+10°C for 5±0.5 seconds，or electric iron 300°C-10°C for 3±0.5 seconds， without damnify. 8.4 推力试验 Adhesive Strength of Termination 在产品电极端子上或表面上可承受5N(≦0603)；10N(>0603)水平推力10±1秒而无明显外观损坏 与电极移位。 The device have no remarkable damage or removal of the termination after horizontal force of 5N(≦0603)；10N(>0603)with 10±1 seconds. No. Item （项目） Post Dependability Tolerance (可靠性试验后允许附加误差) 7.1 Central Frequency 中心频率 ±3 MHz 7.2 Band Width 通带宽度 ±3 MHz 7.3 Gain 增益 ±0.1 dBi 7.4 V.S.W.R (in BW) 驻波比 ±0.1 深圳市金航标电子有限公司 http://www.BDS666.com - 10 - 8.5 耐弯曲试验 Bending Resist Test 将产品按图焊在1.6±0.2mm的 PCB 板中间，由箭头方向施 力：1mm/S，弯曲距离：1.5mm，保持5±1S，产品金属层无脱落。 Weld the product to the center part of the PCB with the thickness 1.6±0.2mm as the illustration shows, and keep exerting force arrow-ward on it at speed of :1mm/S , and hold for 5±1S at the position of 1.5mm bending distance , so far , any peeling off of the product metal coating should not be detected . 8.6 耐湿热特性 Moisture Proof 在温度为60±2°C，相对湿度90~95%的恒温湿箱中放置96小时，在常温中恢复1~2小时后测 试，符合表8.1~8.4规定。 The device should satisfy the electrical characteristics specified in paragraph 8.1~8.4 after exposed to the temperature 60±2°Cand the relative humidity 90~95% RH for 96 hours and 1~2 hours recovery time under normal condition. 8.7 高温特性 High Temperature Endurance 在温度为85±5°C的恒温箱中放置96±2小时，在常温中恢复1~2小时后测试。符合表8.1~8.4 规定。 The device should satisfy the electrical characteristics specified in paragraph 8.1~8.4 after exposed to temperature 85±5°Cfor 96±2 hours and 1~2 hours recovery time under normal temperature. 8.8 低温特性 Low Temperature Endurance 在温度为-40°C±5°C低温箱中放置96±2小时后恢复1~2小时测试符合表8.1~8.4规定。 The device should also satisfy the electrical characteristics specified in paragraph 8.1~8.4 after exposed to the temperature -40°C±5°C for 96±2 hours and to 2 hours recovery time under normal temperature. 8.9 温度循环 Temperature Cycle Test 在-40°C温度中保持30分钟，再在+85°C温度中保持30分钟，共循环5次后在常温中恢复1~2 小时后测试符合表8.1~8.4规定。 The device should also satisfy the electrical characteristics specified in paragraph 8.1~8.4 after exposed to the low temperature -40°C and high temperature +85°C for 30±2 min each by 5 cycles and 1 to 2 hours recovery time under normal temperature. 9. 回流焊温度 Reflow Solde…

Text truncated - open the document above for the full version.

Page 1 of 43 Report No.: HK2305091809-E FCC Test Report FCC PART 15 SUBPART C 15.247 Test report On Behalf of Retroflag Tech Ltd. For RF SuperPack Model No.: RF SuperPack FCC ID: 2BAPO-RFSUPERPACK Prepared For: Retroflag Tech Ltd. 804, Bulding 2, SEG Science Park, Huaqiang Road, Futian District, Shenzhen, China Prepared By: Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: May. 09, 2023 ~ May. 17, 2023 Date of Report: May. 17, 2023 Report Number: HK2305091809-E Page 2 of 43 Report No.: HK2305091809-E Test Result Certification Applicant’s Name ................... : Retroflag Tech Ltd. Address .................................... : 804, Bulding 2, SEG Science Park, Huaqiang Road, Futian District, Shenzhen, China Manufacture's Name .............. : Retroflag Tech Ltd. Address .................................... : 804, Bulding 2, SEG Science Park, Huaqiang Road, Futian District, Shenzhen, China Product Description Trade Mark: RETROFLAG Product Name ............................ : RF SuperPack Model and/or type reference .. : RF SuperPack Standards ................................ : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .............................................. : Date (s) of Performance of Tests ............... : May. 09, 2023 ~ May. 17, 2023 Date of Issue ............................................. : May. 17, 2023 Test Result ................................................. : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 43 Report No.: HK2305091809-E Contents Page 1 Test Summary ................................................................................................................................................ 6 1.1 Test Description ......................................................................................................................................... 6 1.2 Measurement Uncertainty ......................................................................................................................... 7 1.3 Information of the Test Laboratory ............................................................................................................ 7 2 General Information ....................................................................................................................................... 8 2.1 General Description of EUT ...................................................................................................................... 8 2.2 Description of Test Conditions ................................................................................................................ 10 2.3 Description of Support Units .................................................................................................................... 10 2.4 Description of Test Setup ........................................................................................................................ 11 3 Equipments List for All Test Items ............................................................................................................. 12 4 Test Result .................................................................................................................................................... 14 4.1 Antenna Requirement.............................................................................................................................. 14 4.1.1 Standard Requirement ..................................................................................................................... 14 4.1.2 EUT Antenna ................................................................................................................................... 14 4.2 Conduction Emissions Measurement ...................................................................................................... 15 4.2.1 Applied Procedures / Limit ............................................................................................................... 15 4.2.2 Test Procedure ................................................................................................................................ 15 4.2.3 Test Setup ........................................................................................................................................ 16 4.2.4 Test Results ..................................................................................................................................... 17 4.3 Radiated Emissions Measurement .......................................................................................................... 19 4.3.1 Applied Procedures / Limit ............................................................................................................... 19 4.3.2 Test Setup ........................................................................................................................................ 19 4.3.3 Test Result ....................................................................................................................................... 21 4.4 Maximum Output Power Measurement ................................................................................................... 28 4.4.1 Limit ................................................................................................................................................. 28 4.4.2 Test Procedure ........................…

Text truncated - open the document above for the full version.

RF SuperPack Radiated Emission Conducted Emission
