2BAQ8RX-2201Wireless charging

80*112mm 铜版纸单折 User Manual Wireless charging For iPhone/Apple Watch/AirPods/other Devices Thank you for purchasing this product. Please read this manual carefully before use to get the correct usage and storage method. Hope you have a pleasant shopping experience. 1. Fast wireless charging, AirPods charging stand, and Apple Watch charging stand are multifunctional in one, which can realize wireless phone fast at the same time, and charge AirPods and Apple Watch at the same time. The mobile phone model can be intelligently identified, and the wireless charging 2. Separately configure 20W&above adapter to supply power for the entire charging base, working at full power without pressure. 3. Adopting a retractable structure, the charging cables of AirPods and Apple Watch are hidden in the casing, the whole product is more concise, and the desktop will not be messy. 4. The mobile phone wireless charging coil is far away from the heat source to better improve the charging efficiency. It can be charged upright or down, which is convenient and fast. 5. Designed a charging location for AirPods and Apple Watch. The base is compatible with new and old AirPods and does not block the screen of the Apple Watch. 6. Built-in magnetic isolation sheet for wireless charging, increase the magnetic flux of the coil, The built-in circuit is equipped with multiple protections, over-voltage protection, input over-current protection, output over-current protection, anti-ripple, short circuit protection, anti-electromagnetic protection, and anti-static protection, charging is safer. Features iPhone 14 iPhone 14 Plus iPhone 14 Pro iPhone 14 Pro Max AirPods Pro 2nd Specifications Product Name: Wireless charging Model:RX-2201 Material: Natural Bamboo Input: 9V/2.22A,12V/1.67A&above (QC3.0/PD) Output: iPhone(15W Max) + AirPods(5W Max) + Apple Watch (2W Max) Size: L155*W100*H140 mm MagSafe Compatibility: iPhone 13 mini iPhone 13 iPhone 13 Pro iPhone 13 Pro Max iPhone 12 mini iPhone 12 iPhone 12 Pro iPhone 12 Pro Max 1. Please check whether the charged device is compatible with the product voltage first. 2. Before using the wireless charger, please check whether there is a metal object on the back of the phone. When there is a metal piece or other metal material on the back of the charged phone, the wireless charger will start up the FOD foreign object detection function and the phone will not be charged normally 3. To ensure safety and efficiency, it is strongly recommended to use the original charging cable or a third-party certified charging cable to power the device. 4. Only use for indoor and dry environments, avoid using in high temperatures, humidity, and oily environment. It is forbidden to use after seeping liquid or throwing it into a fire. Pay attention to moisture and waterproofing. 5. It is strictly forbidden to place the product in a strong magnetic field environment. 6. Avoid placing it where infants and young children get it. 7. Non-professionals are not allowed to disassemble and repair without authorization. Notes 1. Connect the power supply, and the red light is always on 2. After entering the charging state, the white light is always on 3. When metal foreign objects are placed in the wireless charging sensing area or other errors occur the red light flashes Charge Method Apple Watch Charging Stand iPhone MagSafe Charging Stand AirPods Charging Stand Indicator This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum 20cm distance between the radiator and your body: Use only the supplied antenna. FCC WARNING

Shenzhen Ksentry Electronics (Rexiao Technology) Co., Ltd. Model Difference Data：2023.04.03 Product description: Wireless charging Model name: RX-2201, RX-2202, RX-2203, RX-2204, RX-2205, XP-WLS15 Trade Name: N/A FCC ID: 2BAQ8RX-2201 All the model are the same circuit and RF module, except model names . Regards Sincerely Client’s signature : Client’s name / title : Wenhao Jiang（Manager） Contact information / address：No.11C201, The Fourth Industrial Zone, Heshuikou Community, Ma Tian Street, Guangming District, Shenzhen

Shenzhen Ksentry Electronics (Rexiao Technology) Co., Ltd. (2023.04.03) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Wireless charging / RX-2201, RX-2202, RX-2203, RX-2204, RX-2205, XP-WLS15/ FCC ID: 2BAQ8RX-2201) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☒ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☒ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Wenhao Jiang Title: Manager

Shenzhen Ksentry Electronics (Rexiao Technology) Co., Ltd. (2023.04.03) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Wenhao Jiang Title: Manager

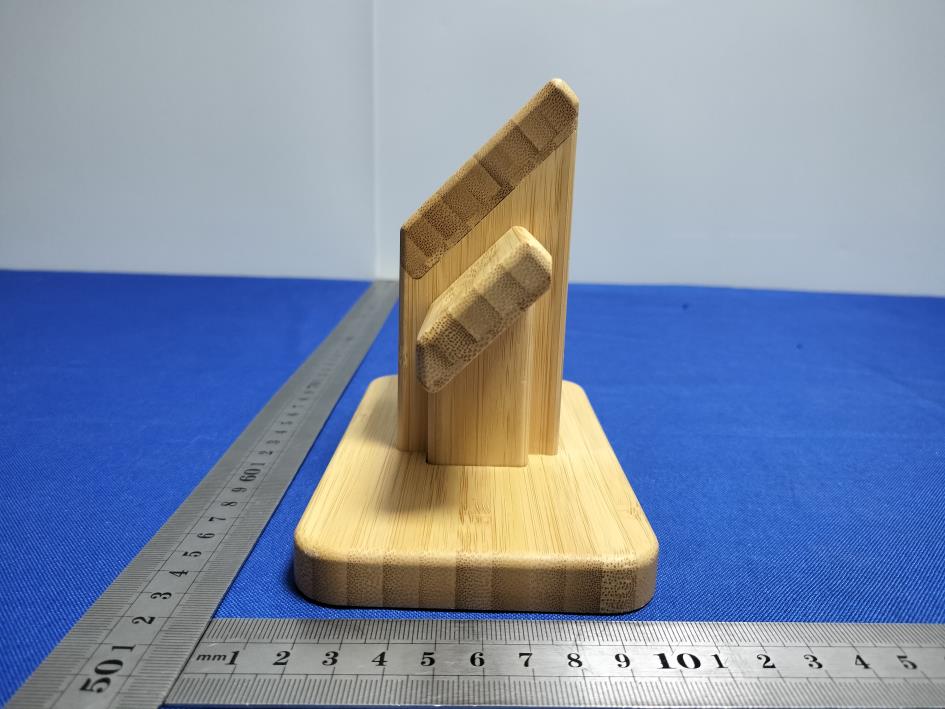

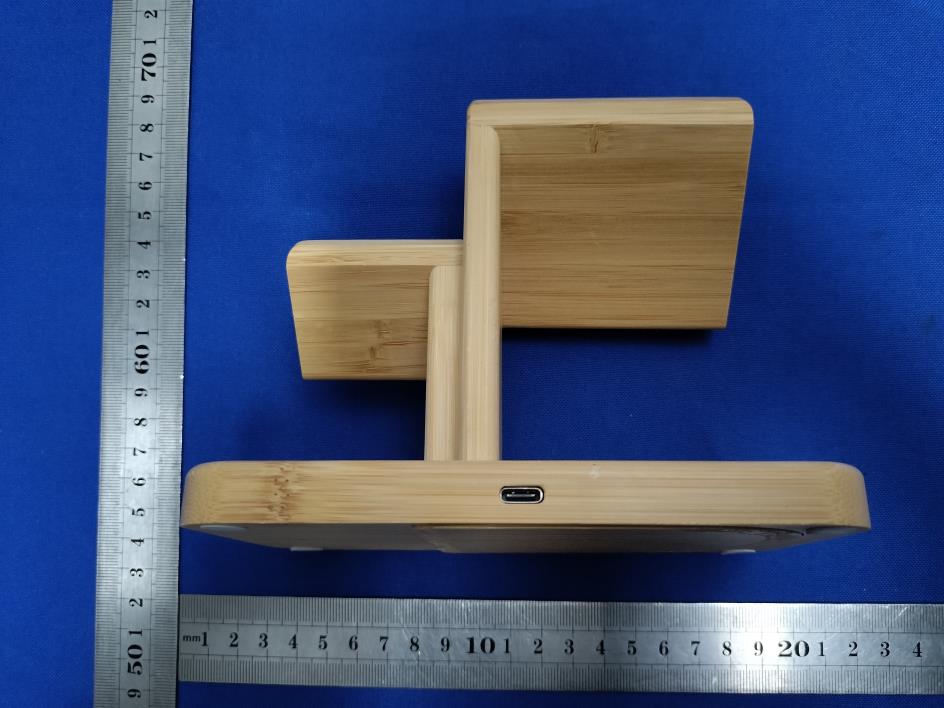

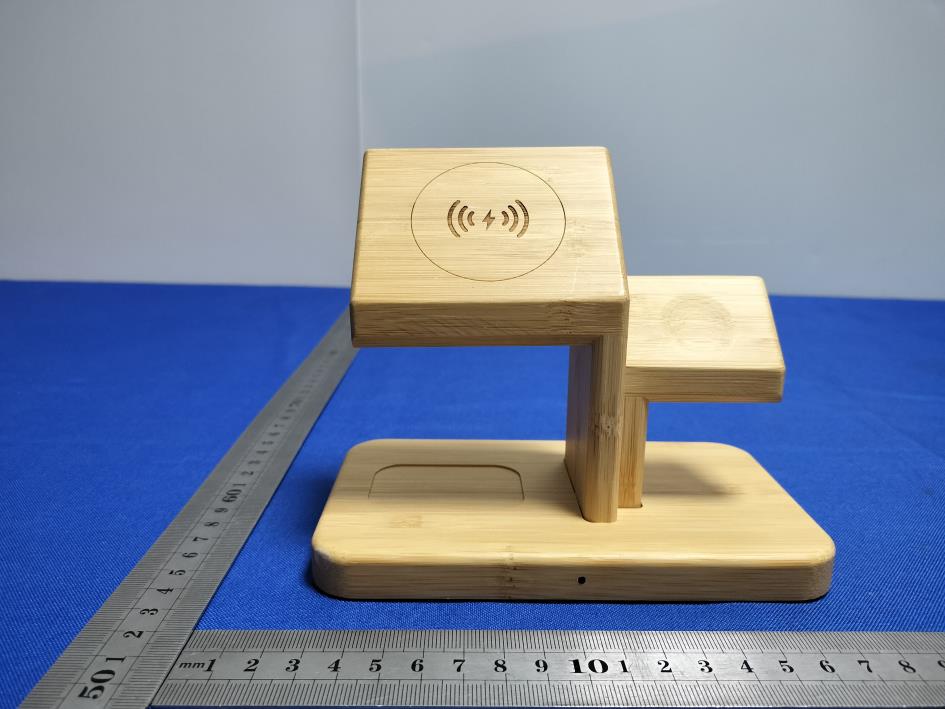

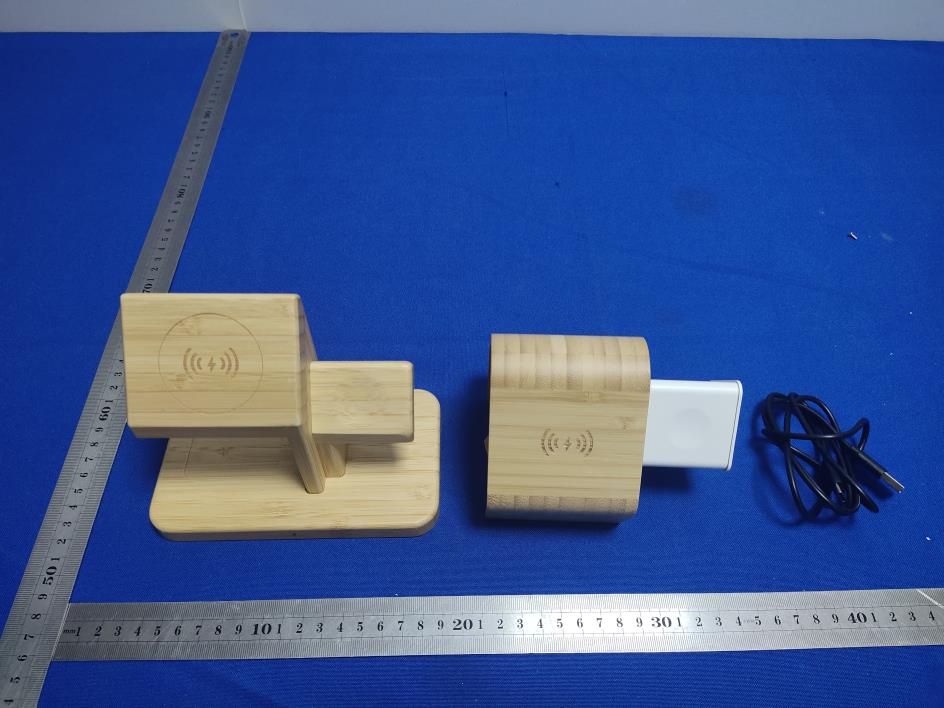

External Photos

FCC ID LABEL: Label Location: FCC ID: 2BAQ8RX-2201 Model No.: RX-2201

Internal Photos iPhone ANT AirPods ANT Apple Watch ANT

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230331022RFX EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page1 of 10 RF EXPOSURE REPORT Compiled by: Reviewed by: Approved by: Arron Liu Bin Mei Rita Xiao / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Wireless charging FCC ID: 2BAQ8RX-2201 Trademark: N/A Model Number: RX-2201, RX-2202, RX-2203, RX-2204, RX-2205, XP-WLS15 Prepared For: Shenzhen Ksentry Electronics ( Rexiao Technology) Co., Ltd. Address: No.11C201, The Fourth Industrial Zone, Heshuikou Community, Ma Tian Street, Guangming District, Shenzhen Manufacturer: Shenzhen Ksentry Electronics ( Rexiao Technology) Co., Ltd. Address: No.11C201, The Fourth Industrial Zone, Heshuikou Community, Ma Tian Street, Guangming District, Shenzhen Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Mar. 20, 2023 Sample tested Date: Mar. 20, 2023 to Mar. 24, 2023 Issue Date: Mar. 24, 2023 Report No.: CTB230331022RFX Test Standards FCC CFR 47 part1, 1.1307(b), 1.1310, 47 CFR§2.1091; KDB 680106 D01 RF Exposure Wireless Charging App v03r01 Test Results PASS Remark: This is wireless charger EMF report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230331022RFX EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page2 of 10 Table of Contents Page 1 . GENERAL INFORMATION 3 1.1 . Independent Operation Mode 3 1.2 . Test Supporting System 3 2 .LIST OF T EST AND M EASUREMENT I NSTRUMENTS 4 2.1 . For conducted emission at the mains terminals test 4 3. METHOD OF MEASUREMENT 5 3. 1.Applicable Standard 5 4. TEST RESULT 5 4.1. Conducted Emission at the Mains Terminals Test 5 4.2. Equipment Approval Considerations: 6 4.3. E and H field Strength 6 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230331022RFX EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page3 of 10 1. GENERAL INFORMATION 1.1. Independent Operation Mode The basic operation mode is: 1.1.1. wireless charger power: 15W 1.2. Test Supporting System Adapter Description : Adapter Model No. : HP18A-0902000-AU Power Input : AC100-240V~ 1.0A 50/60Hz Output: 9V 2 .0A DC Line : Unshielded, Detachable 1.2m Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230331022RFX EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page4 of 10 2.LIST OF T EST AND MEASUREMENT I NSTRUMENTS 2.1. For conducted emission at the mains terminals test Item Equipment Brand Model No. Serial No. Last calibration Calibrated until 1 EMF TESTER Wavecontrol SMP160 19SN0989 2022.08. 20 2023.08.29 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230331022RFX EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page5 of 10 3. METHOD OF MEASUREMENT 3. 1.Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. According KDB680106 D01: RF Exposure Wireless Charging Apps v 03r01. 4. TEST RESULT 4.1. Conducted Emission at the Mains Terminals Test Note: Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device Test Procedure: a) The RF exposure test was performed on 360 degree turn table in anechoic chamber. b) The measurement probe was placed at test distance (15cm) which is between the edge of the charger and the geometric centre of probe. c) The turn table was rotated 360d degree to search of highest strength. d) The highest emission level was recorded and compared with limit as soon as measurement of each points were completed. e) The EUT were measured according to the dictates of KDB 680106v03r01. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230331022RFX EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page6 of 10 4.2. Equipment Approval Considerations: The EUT does comply with item 5(b) of KDB 680106 V03R01 1) Power transfer frequency is less than 1MHz Ye s , the device operate in the frequency range from 110KHz to 205KHz 2) Output power from each primary coil is less than or equal to 15 watts. Ye s , the maximum output power of the primary coil is 15000mW. 3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that able to detect and allow coupling onlybetween individual pair of coils. Ye s , the transfer system includes only single primary and one coils. 4) Client device is inserted in or placed directly in contact with the transmitter. Yes, client device is placed directly in contact with the transmitter. 5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Ye s , the EUT is a Mobile Wireless Charger 6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Ye s , the EUT field strength levels are less 50% x MPE limit. 4.3. E and H field Strength Shenzhen CTB Testing Technology Co., Ltd. Report N…

Text truncated - open the document above for the full version.

Shenzhen CTB Testing Technology Co., Ltd. Report No.:CTB230331021RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 21 TEST REPORT Compiled by: Reviewed by: Approved by: Arron Liu Bin Mei Rita Xiao / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Wireless charging FCC ID: 2BAQ8RX-2201 Trademark: N/A Model Number: RX-2201, RX-2202, RX-2203, RX-2204, RX-2205, XP-WLS15 Prepared For: Shenzhen Ksentry Electronics (Rexiao Technology) Co., Ltd. Address: No.11C201, The Fourth Industrial Zone, Heshuikou Community, Ma Tian Street, Guangming District, Shenzhen Manufacturer: Shenzhen Ksentry Electronics (Rexiao Technology) Co., Ltd. Address: No.11C201, The Fourth Industrial Zone, Heshuikou Community, Ma Tian Street, Guangming District, Shenzhen Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Mar. 20, 2023 Sample tested Date: Mar. 20, 2023 to Mar. 24, 2023 Issue Date: Mar. 24, 2023 Report No.: CTB230331021RFX Test Standards FCC Part 15 C Test Results PASS Remark: This is wireless charger radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.:CTB230331021RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 21 TABLE OF CONTENTS 1. GENERAL INFORMATION ........................................................................................................................ 3 1.1. Report information ................................................................................................................................. 3 1.2. Measurement Uncertainty ..................................................................................................................... 3 1.3. Test Facility ........................................................................................................................................... 3 1.4. Test Uncertainty .................................................................................................................................... 4 2. PRODUCT DESCRIPTION ......................................................................................................................... 5 2.1. EUT Description .................................................................................................................................... 5 2.2. Block Diagram of EUT Configuration ..................................................................................................... 5 2.3. Test Conditions ..................................................................................................................................... 5 2.4. DescriptionOfSupport Units (Conducted Mode) .................................................................................... 6 3. TEST RESULTS SUMMARY ...................................................................................................................... 6 4. TEST EQUIPMENT USED .......................................................................................................................... 7 4.1. MEASUREMENT INSTRUMENTS LIST ............................................................................................... 7 5. CONDUCTED EMISSION TEST ................................................................................................................. 9 5.1. Block Diagram of Test Setup ................................................................................................................. 9 5.2. Test Standard ........................................................................................................................................ 9 5.3. Conducted Emission Limit ..................................................................................................................... 9 5.4. EUT Configuration on Test .................................................................................................................... 9 5.5. Operating Condition of EUT ................................................................................................................ 10 5.6. Test Procedure .................................................................................................................................... 10 5.7. Test Result .......................................................................................................................................... 10 6. RADIATED EMISSION MEASUREMENT ................................................................................................ 13 6.1. Block Diagram of Test Setup ............................................................................................................... 13 6.2. Test Standard ...................................................................................................................................... 14 6.3. EMI Test Receiver Setup..................................................................................................................... 14 6.4. Test Procedure .................................................................................................................................... 14 6.5. Test Result .......................................................................................................................................... 14 7. O…

Text truncated - open the document above for the full version.

ANT PHTOT L W H 37mm±0.2 37mm±0.2 0.1mm±0.1 L W H 19mm±0.2 19mm±0.2 0.1mm±0.1 All measurements were performed radiated and therefore additional antenna gain documentation is not required.

Radiated Emission 9KHz-30MHz 30MHz-1GHz Conducted emissions
