2BARD-GPLINK2022A i car Box

SHENZHEN YIZHI RUILIAN TECHNOLOGY CO.,LTD Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023-6-19 FCC ID: 2BARD-GPLINK2022 Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing SHENZHEN YIZHI RUILIAN TECHNOLOGY CO.,LTD certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing SHENZHEN YIZHI RUILIAN TECHNOLOGY CO.,LTD certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Applicant: SHENZHEN YIZHI RUILIAN TECHNOLOGY CO.,LTD Address: 215, 2nd Floor, Liangji Building, Donghuan 1st Road, Longhua Stree, Longhua District, Shenzhen Contact Person: Zhangxiang Hu Tel.: +86 18802686596 Email: [email protected] Sincerely, Signature:

SHENZHEN YIZHI RUILIAN TECHNOLOGY CO.,LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: June 14, 2023 Subject; Request for Confidentiality FCC ID: 2BARD-GPLINK2022 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Zhangxiang Hu Title: Manager

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 SHENZHEN YIZHI RUILIAN TECHNOLOGY CO.,LTD Date：June 13, 2023 Product Model Number: A i car FCC ID：2BARD-GPLINK2022 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that ORGANIZATION. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by ORGANIZATION. on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: 18802686596 On behalf of: SHENZHEN YIZHI RUILIAN TECHNOLOGY CO., LTD

www.feasycom.com Bluetooth antenna of PCB on-board specification 1，Index Item Content Page Remark 1 Index 1 2 Spec Drawing 2 3 Specification 2 4 Antenna On Test Board 3 5 Return Loss 3 6 Radiation Pattern 3 Document Type: 2.4GHZ PCB antenna Document Version: V1.0 Release Date: Aug. 23，2017 Shenzhen Feasycom Co., LTD Telephone: 86-755-27924639 www.feasycom.com Shenzhen Feiyitong Technology Co., Ltd Shenzhen Feiyitong Technology Co., Ltd www.feasycom.com 2，Spec Drawing 3，Specification Product Number: 2.4GHZ PCB antenna Sample Photo: A. Electrical Characteristics Frequency 2400 ~ 2500 MHz S.W.R. <=2.0 Gain 2dBi Efficiency ~ 50% Polarization Linear Impedance 50 Ohm B. Material & Mechanical Characteristics Material of Radiator Gold-plated copper C. Environmental Operation Temperature -40°C ~ + 85°C Storage Temperature -40°C ~ + 105°C Shenzhen Feiyitong Technology Co., Ltd www.feasycom.com 4，Antenna On Test Board 5, Return Loss 6，Radiation Pattern Radiation Pattern and Gain were dependent on measurement board design. The specification of PCB antenna was measur ed based on the PCB size and installation position as shown in the below figure Test Board. FR4 Thickness 0.8mm 16mm 6.1mm 1.4mm Empty Area 16 x 7.5mm Z X Y Shenzhen Feiyitong Technology Co., Ltd www.feasycom.com Vertical Horizontal Y - Z Plane Average Gain=1.19 dBi Peak Gain = 2.00 dBi Average Gain = 0.75 dBi Peak Gain= -1.33 dBi Average Gain=-8.7 dBi X - Z Plane Average Gain=-2.91d Bi Peak Gain= -3.71 dBi Average Gain= -8.76dBi Peak Gain= -0.29 dBi Average Gain= -4.19dBi X - Y Plane Average Gain=-0.95 dBi Peak Gain= 0.77 dBi Average Gain= -5.86dBi Peak Gain= 1.35 dBi Average Gain= -2.62 dBi Shenzhen Feiyitong Technology Co., Ltd www.feasycom.com Test Result: Frequency VNA E Total. dB(dB) Efficiency 2400MHz 0.693991 41.07% 2410MHz 1.14338 47.24% 2420MHz 0.223052 40.48% 2430MHz -0.1365933.93% 2440MHz 0.35326 37.82% 2450MHz 1.039894 42.77% 2460MHz 2.00801 50.67% 2470MHz 0.649809 41.93% 2480MHz -0.21593336.66% 2490MHz -0.47663934.62% 2500MHz 0.710741 40.22%

custom：： Product Name： Item number： Customer part number： Hengxin Technology Inc. HX-P 2.4GInternal Antenna 312 Sample delivery date： Quality Assurance Procurement Department approval Samplesender address：No. 75 Yanghe Road, Yanggongzhou, Shatian Town, Dongguan City TEL ：0769-81663533 FAX：0769-89361945 E-mail:[email protected] Http://www.nogps.cn http://hxnogps.1688.com Supplier 赵 守 刚 Dongguan Hengyang Electronic Technology Co., Ltd Sample Acknowledgment Letter engineering department Customer confirmation 1.cover---------------------------------------------------------------- 1 2.directory----------------------------------------------------------------- 2 3.Finished product drawing----------------------------------------------------------- 3 4.Finished product drawing -----------------------------------------------------------4 5.Cable Specification-----------------------------------------------7 Directory 37.0 9.0 9 0 ± 5 Rear 3M Double-sided tape 原因 序号 日期 确认人 D C B 2020.09.17 赵 守 刚 DC 6 E 4 5 3 2 1 CDE 7 8 B B A 8 6 7 5 4 A 1 2 3 PART NAME: X.XX X.X X° ±3° ±0.50 ±0.15 PART NO.: HX-P312-BX90B .W012.4G/WiFi FPC Internal Antenna 1 1 1 . 5 Index: 1. Reliability Testing 2. S pecification 3. S Parameter Test Data 4. Antenna Radiation Pattern ================================================== 1. Reliability T esting Test Item Procedure Requirement 1. Visual inspection and Dimension Check Applicable methods using x5 magnification follow specification 2. Rapid Changing of Temperature -40 ̊C (30minutes) to 80 ̊C (30minutes); 24 cycles After 2 hours recovery: 1. no visible damage 2. bandwidth tolerance < ±5% 3. Damp Heat 24 hours at 60 ̊C; 90 ~ 95% RH After 2 hours recovery: 1. no visible damage 2. bandwidth tolerance < ±5% 4. Endurance 24 hours at 80 ̊C After 2 hours recovery: 1. no visible damage 2. bandwidth tolerance < ±5% 5. Connector Pull Strength Test >= 1.0 Kg Hold 2~3S: 1. no visible damage 2. bandwidth tolerance < ±5% 2. Specification A. Electrical Characteristics S.W.R.( Tested in PC ) <= 2.0 @ 2400~2500 MHz Typical Antenna Gain 2dBi Impedance 50 Ohm B. Material Material of Radiator FPCB Cable Length 50mm Connector Type C. Environmental Operation Temperature - 40 ̊C ~ + 85 ̊C Storage Temperature - 40 ̊C ~ + 85 ̊C 3. S.W.R. Testing Result 4. Antenna Radiation Pattern Testing Equipment Specification: Antenna Anechoic Chamber Dimension: 8 x 4 x 4 m Quite Zone: 600mm @1 GHz Isolation: >100dB @ 1 MHz ~ 10 GHz Testing Equipment: Agilent 5071B Received Antenna: 0.7 ~ 6.0 GHz for Gain Calibration Double Ridged Horn Antenna

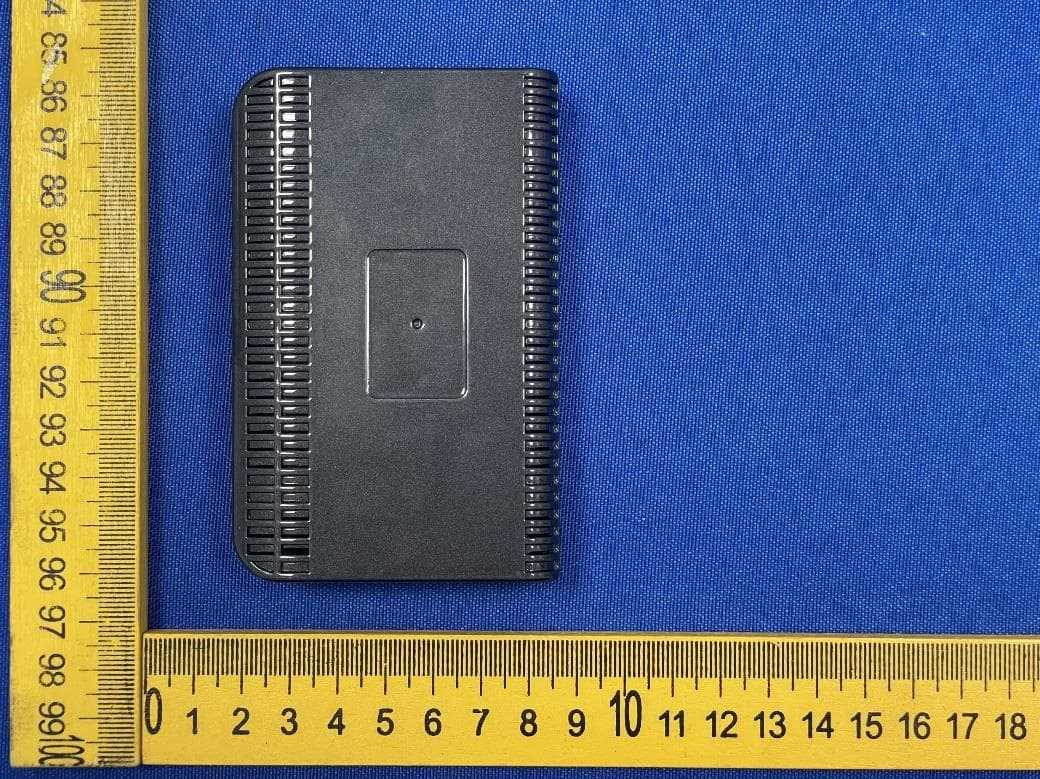

Ext Photos Photo 1（For model A i car） Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

Label&Label Location

Int Photos Photo 1（For model A i car） Photo 2 Photo 3 Photo 4 BT ANT 1 WIFI ANT 1 WIFI ANT 2 BT ANT 2 Photo 5 Photo 6

FCC ID: 2BARD-GPLINK2022 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm2, Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Measurement Result BT: Operation Frequency: 2402-2480MHz Power density limited: 1mW/ cm 2 BT Antenna 1 Type: FPCB Antenna; BT Antenna 2 Type: PCB Antenna; BT Antenna 1 gain: 2dBi BT Antenna 2 gain: 2dBi 2.4GWiFi: Operation Frequency: 2412MHz~2462MHz for 802.11b/g/n20 2422MHz~2452MHz for 802.11n40 Power density limited: 1mW/ cm 2 2.4G WiFi Antenna 1 Type: PCB Antenna; 2.4G WiFi Antenna 2 Type: PCB Antenna; 2.4G WiFi Antenna 1 gain: 3dBi 2.4G WiFi Antenna 2 gain: 3dBi 5GWiFi: Operation Frequency: 5150 MHz to 5250 MHz for 802.11a/n/ac 5745 MHz to 5825 MHz far 802.11a/n/ac 5G WiFi Antenna 1 Type: PCB Antenna; 5G WiFi Antenna 2 Type: PCB Antenna; 5G WiFi Antenna 1 gain: 3dBi 5G WiFi Antenna 2 gain: 3dBi R=20cm mW=10^(dBm/10) antenna gain Numeric=10^(dBi/10)= 10^(3/10)=2 BT：ANT 1 Chann el Freq. (MHz) modulation conducted power Tune- up power (dBm) Max Antenna Evaluation result Power density Limits (dBm) tune-up power Gain (mW/cm 2 ) (mW/c m 2 ) (dBm) (mW) (dBi) Numeric 2402 GFSK -2.15 (-2)±1 -1 0.794 2 1.58 0.0003 1 2441 -0.34 0±1 1 1.259 2 1.58 0.0004 1 2480 0.22 0±1 1 1.259 2 1.58 0.0004 1 2402 π/4-DQPSK -2.47 (-2)±1 -1 0.794 2 1.58 0.0003 1 2441 -0.43 0±1 1 1.259 2 1.58 0.0004 1 2480 0.15 0±1 1 1.259 2 1.58 0.0004 1 2402 8DPSK -2.48 (-2)±1 -1 0.794 2 1.58 0.0003 1 2441 -0.41 0±1 1 1.259 2 1.58 0.0004 1 2480 0.18 0±1 1 1.259 2 1.58 0.0004 1 BT：ANT 2 Chann el Freq. (MHz) modulation conducted power Tune- up power (dBm) Max Antenna Evaluation result Power density Limits (dBm) tune-up power Gain (mW/cm 2 ) (mW/c m 2 ) (dBm) (mW) (dBi) Numeric 2402 GFSK -2.78 (-2)±1 -1 0.794 2 1.58 0.0003 1 2441 -2.05 (-2)±1 -1 0.794 2 1.58 0.0003 1 2480 -2.11 (-2)±1 -1 0.794 2 1.58 0.0003 1 2402 π/4-DQPSK -2.78 (-2)±1 -1 0.794 2 1.58 0.0003 1 2441 -2.07 (-2)±1 -1 0.794 2 1.58 0.0003 1 2480 -2.13 (-2)±1 -1 0.794 2 1.58 0.0003 1 2402 8DPSK -2.75 (-2)±1 -1 0.794 2 1.58 0.0003 1 2441 -2.05 (-2)±1 -1 0.794 2 1.58 0.0003 1 2480 -2.08 (-2)±1 -1 0.794 2 1.58 0.0003 1 2.4G WiFi: ANT 1 Channel Freq. (MHz) modulation conducted power Tune-up power Max Antenna Evaluation result at 20cm Power density Limits (dBm) (dBm) tune-up power Gain Power density(mW/cm2 ) (mW/cm2) (dBm) (mW) (dBi) Numeric Ant 1 Ant 1 Ant 1 Ant 1 Ant 1 Ant 1 Ant 1 2412 802.11b 18.3 18±1 19 79.433 3 2 0.03153 1 2437 17.35 18±1 19 79.433 3 2 0.03153 1 2462 19.86 19±1 20 100.000 3 2 0.03969 1 2412 802.11g 15.54 15±1 16 39.811 3 2 0.01580 1 2437 17.63 17±1 18 63.096 3 2 0.02505 1 2462 17.83 17±1 18 63.096 3 2 0.02505 1 2412 802.11n H20 18.21 18±1 19 79.433 3 2 0.03153 1 2437 17.73 17±1 18 63.096 3 2 0.02505 1 2462 19.32 19±1 20 100.000 3 2 0.03969 1 2422 802.11n H40 17.9 17±1 18 63.096 3 2 0.02505 1 2437 18.06 18±1 19 79.433 3 2 0.03153 1 2452 17.83 17±1 18 63.096 3 2 0.02505 1 2.4G WiFi: ANT 2 Channel Freq. (MHz) modulation conducted power Tune-up power Max Antenna Evaluation result at 20cm Power density Limits (dBm) (dBm) tune-up power Gain Power density(mW/cm2 ) (mW/cm2) (dBm) (mW) (dBi) Numeric Ant 2 Ant 2 Ant 2 Ant 2 Ant 2 Ant 2 Ant 2 2412 802.11b 18.74 18±1 19 79.433 3 2.00 0.03153 1 2437 17.38 17±1 18 63.096 3 2.00 0.02505 1 2462 20.19 20±1 21 125.893 3 2.00 0.04997 1 2412 802.11g 15.27 15±1 16 39.811 3 2.00 0.01580 1 2437 17.8 17±1 18 63.096 3 2.00 0.02505 1 2462 17.81 17±1 18 63.096 3 2.00 0.02505 1 2412 802.11n H20 17.89 17±1 18 63.096 3 2.00 0.02505 1 2437 17.81 17±1 18 63.096 3 2.00 0.02505 1 2462 19.28 19±1 20 100.000 3 2.00 0.03969 1 2422 802.11n H40 18.43 18±1 19 79.433 3 2.00 0.03153 1 2437 17.93 17±1 18 63.096 3 2.00 0.02505 1 2452 18.04 18±1 19 79.433 3 2.00 0.03153 1 5.2G WiFi: ANT 1 Channel Freq. (MHz) modulation conducted power Tune-up power Max Antenna Evaluation result at 20cm Power density Limits (dBm) (dBm) tune-up power Gain Power density(mW/cm2 ) (mW/cm2) (dBm) (mW) (dBi) Numeric Ant 1 Ant 1 Ant 1 Ant 1 Ant 1 Ant 1 Ant 1 5180 802.11a 12.76 12±1 13 19.953 3 2.00 0.00792 1 5200 13.21 13±1 14 25.119 3 2.00 0.00997 1 5240 14.83 14±1 15 31.623 3 2.00 0.01255 1 5180 802.11n (HT20) 11.87 11±1 12 15.849 3 2.00 0.00629 1 5200 12.92 12±1 13 19.953 3 2.00 0.00792 1 5240 14.42 14±1 15 31.623 3 2.00 0.01255 1 5190 802.11n (HT40) 11.84 12±1 13 19.953 3 2.00 0.00792 1 5230 12.09 12±1 13 19.953 3 2.00 0.00792 1 5180 802.11ac (VHT20) 13.19 13±1 14 25.119 3 2.00 0.00997 1 5200 13.27 13±1 14 25.119 3 2.00 0.00997 1 5240 14.8 14±1 15 31.623 3 2.00 0.01255 1 5190 802.11ac (VHT40) 10.96 10±1 11 12.589 3 2.00 0.00500 1 5230 11.5 11±1 12 15.849 3 2.00 0.00629 1 5210 802.11ac (VHT80) 11.96 11±1 12 15.849 3 2.00 0.00629 1 5.2G WiFi: ANT 2 Channel Freq. (MHz) modulation conducted power Tune-up power Max Antenna Eva…

Text truncated - open the document above for the full version.

Project No.: ZKT-230426L3046E-1 Page 1 of 102 FCC TEST REPORT FCC ID: 2BARD-GPLINK2022 Report Number. .............................. : ZKT-230426L3046E-1 Date of Test ..................................................: Feb. 27, 2023 to Apr. 24, 2023 Date of issue ..................................... : Apr. 24, 2023 Total number of pages ....................... 102 Test Result ...................................... : PASS Testing Laboratory......................... : Shenzhen ZKT Technology Co., Ltd. Address ........................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ......................... : SHENZHEN YIZHI RUILIAN TECHNOLOGY CO.,LTD Address ........................................... : 215, 2nd Floor, Liangji Building, Donghuan 1st Road, Longhua Stree, Longhua District, Shenzhen Manufacturer's name ................... : SHENZHEN YIZHI RUILIAN TECHNOLOGY CO.,LTD Address ........................................... : 215, 2nd Floor, Liangji Building, Donghuan 1st Road, Longhua Stree, Longhua District, Shenzhen Test specification: Standard ........................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 Test procedure ................................. : / Non-standard test method .............. : N/A Test Report Form No. .................... : TRF-EL-112_V0 Test Report Form(s) Originator .... : ZKT Testing Master TRF ................................... : Dated: 2023-04-24 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................. : A i car Box Trademark ....................................... : N/A Model/Type reference ....................... : A i car Ratings.............................................. : Input: DC 5V/2A Output: 5W Project No.: ZKT-230426L3046E-1 Page 2 of 102 Testing procedure and testing location: Testing Laboratory ..................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Jim Liu Tested by (name + signature) .................... : Jackson Fang Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-230426L3046E-1 Page 3 of 102 Table of Contents Page 1. VERSION .............................................................................................................. 6 2. TEST SUMMARY .................................................................................................. 6 2.1 TEST FACILITY ...................................................................................................... 6 2.2 MEASUREMENT UNCERTAINTY .......................................................................... 7 3. GENERAL INFORMATION ................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ........................................................................ 8 3.2 Test Setup Configuration ......................................................................................... 9 3.3 Support Equipment .................................................................................................. 9 3.4 Test Mode ............................................................................................................. 10 3.5 EQUIPMENTS LIST FOR ALL TEST ITEMS ........................................................ 11 4. EMC EMISSION TEST .........................................................................................12 4.1 Conducted emissions ............................................................................................ 12 4.1.1 POWER LINE CONDUCTED EMISSION Limits ................................................ 12 4.1.2 TEST PROCEDURE .......................................................................................... 12 4.1.3 DEVIATION FROM TEST STANDARD .............................................................. 12 4.1.4 TEST SETUP ..................................................................................................... 12 4.1.5 EUT OPERATING CONDITIONS ....................................................................... 13 4.1.6 Test Result ......................................................................................................... 14 4.2 Radiated emissions ............................................................................................... 16 4.2.1 Radiated Emission Limits ................................................................................... 16 4.2.2 TEST PROCEDURE .......................................................................................... 16 4.2.3 DEVIATION FROM TEST STANDARD .............................................................. 17 4.2.4 TEST SETUP ..................................................................................................... 17 4.2.5 EUT OPERATING CONDITIONS ....................................................................... 18 4.2.6 TEST RESULTS ................................................................................................. 19 5. RADIATED BAND EMISSION MEASUREMENT ..................................................24 5.1 Test Requirement: ................................................................................................. 24 5.2 TEST PROCEDURE ...........................................…
