PLEASE READ THROUGH THIS INSTRUCTION MANUAL COMPLETELY BEFORE USE. AND KEEP IT WELL FOR FUTURE ASSISTANCE WHENEVER REQUIRED. PACKAGE CONTENT 1 X MINI HDMI CONSOLE 2 X WIRELESS CONTROLLERS MICRO-SD CARD （According to your choice） 1 X USB CABLE 1 X MANUAL NAME AND FUNCTIONS OF EACH PART AND INSTALLATION ① HDMI PLUG Insert to HDMI INPUT of TV set directly. ② DC-IN (Micro-USB) \Best to use 5V 1A input power Connect to power supply ③ MicroSD SLOT To insert a MicroSD memory card with games. ④ DIRECTIONAL JOYSTICK Move to steer 8 directions as follows: ←、↖、↑、↗、→、↘、↓、↙ ⑤ SELECT(ADD COINS) Press to select playing mode or to add coins under arcade games. ⑥ START Press to start game play. NOTE: Press “SELECT + START” buttons on the controller simultaneously to call out a pop-up menu asking for options such as “SAVE,SETTINGS,EXIT or CONTINUE”. ⑦ Y BUTTON: function may vary under different game. ⑧ X BUTTON: function may vary under different game. ⑨ B BUTTON: function may vary under different game. ⑩ A BUTTON: function may vary under different game. ⑪ L BUTTON: function may vary under different game. ⑫ R BUTTON: function may vary under different game. ⑬ P1 / P2 SWITCH: Toggle to define the controller as P1 or as P2 (NOTE: it’s NOT a ON/OFF power switch,In the game menu of the main interface, only P1 can operate it. After entering the game and selecting a two-player game, P2 can operate it, but P2 cannot operate the main menu.) BATTERY INSTALLATION  Use a screwdriver to open the battery covers of two wireless controllers.  Insert AAA batteries for each controller correctly by following the polarity indicated inside the battery compartment.  Close and screw up the battery cover firmly. WARNINGS! Please remove the AAA batteries out of the controller if they will not be used for a long period and store them in a cool dry place. START TO USE Please follow below steps to start game play. 1) Insert the mini HDMI console directly to HDMI input of TV set. Or connect it to TV via a HDMI extension cable. 2) Connect one end(Micro-USB plug) of USB cable to the mini HDMI console and the other end of USB cable to any 5V electric power source such as USB port on TV set, mobile phone charger, power bank or electrical outlet with USB......etc. 3) Turn on TV set and switch the TV source to be HDMI input. (If the TV has more than one HDMI input,please remember to switch the source corresponding to the HDMI input with mini console connected.) 4) Install batteries of each controller following the BATTERY INSTALLATION guide above. 5) Press any key on the controller to activate as it has auto power sleep function. 6) Scroll the directional joystick on controller P1 to select the desired game and press “START” or “A” sometimes to enter the game and enjoy your playing. 7) Press “SELECT + START” buttons on the controller simultaneously to call out a pop-up menu asking for options such as “SAVE,SETTINGS,EXIT or CONTINUE”. WARNINGS & PRECAUTIONS 1. Please do NOT disassemble or try to fix the product and its related parts & components at your own discretion. 2. Avoid liquid splash over the product and its related parts & components. 3. Avoid hitting roughly or dropping the product and its accessories. 4. Please do NOT store the product in an area of wetness,dust and dirt. 5. Please remove the AAA batteries out of the controller if they will not be used for a long period and store them in a cool dry place. 6. Always use the product in a well-ventilated and well-lit area ONLY. 7. Use the product in a less signal interference area as the product adopts 2.4G wireless technology and the best distance is below 5 meters recommended. 8. Make sure that the controllers have enough battery capacity. Insufficient energy could lead to mal-function or poor connection. 9. Please do NOT use the product for a long period continuously. It’s recommended to take a 10-15-minute rest every hour of playing. 10. Please keep an appropriate distance from the TV while playing games. 11. When feeling drowsy,weak,weary or tired,please IMMEDIATELY stop using the product and take a rest. Or please consult the doctor when your eyes are uncomfortable. 12. Keep the product and all other accessories out of reach of children under 6 years to avoid any accident. 13. It’s recommended to use the product under supervision or watch of adults. 14. Recommended age of use: 6 years up. Frequently Asked Questions and Answers  If the gamepad control is abnormal, such as clicking a button, it will keep moving. This is mainly because the signal is unstable. 1. It may be that the voltage or power of the gamepad is insufficient, causing the signal to be unstable and the buttons to be inflexible. It can be solved by replacing it with a new battery of 1.5V or more. 2. It may also be that the input voltage of the game console is plugged into the TV, and the output voltage of some TVs is insufficient, resulting in unstable wireless reception signals. Replace it with a 5V1A mobile phone charger to charge the game stick. 3. The distance between the handle and the game console is too far, such as more than 3 meters. Or there is an obstacle between the handle and the game console. If the signal is affected, find a way to reduce the impact of obstacles.  If you find that the handle does not work at all 1. Check the bottom of the handle to see if it has slipped to P2. P2 is the secondary handle. If it is slid to P2, the menu and main interface cannot be operated. It must be P1 to operate the main interface. P2 needs to enter the game, and select in the game Only a two-player game can work. 2. Check if the battery is inserted backwards  Can all the games or downloaded games in the game console be played normally? Due to the development of the simulator for SFC at several generations, many different versions of games appear on the Internet. Due to the existing technology, it is still not possible to make one simulator adapt to all games. We currently have 95% game compatibility of our g…

Text truncated - open the document above for the full version.

Shenzhen Jiajue Technology Co.,Ltd 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Shenzhen Jiajue Technology Co.,Ltd Address: B1105,No.16,Central Road,Xinqiao Sub-districtOffice,Bao'an District,Shenzhen Product Name: Video game FCC ID: 2BART-SN Model(s): SN-MINI,SN-PLUS,SN-PRO,NS-MINI,NS-PLUS,MD-MINI,MD-PLUS, NSG11, SN 2.911(d)(5)(i) Equipment Type We, [Shenzhen Jiajue Technology Co.,Ltd ] certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Dong Liang Date: Apr.14,2023 Title and Company name: Manager / Shenzhen Jiajue Technology Co.,Ltd NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Jiajue Technology Co.,Ltd 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Jiajue Technology Co.,Ltd Address: B1105,No.16,Central Road,Xinqiao Sub-districtOffice,Bao'an District,Shenzhen Product Name: Video game FCC ID: 2BART-SN Model(s): SN-MINI,SN-PLUS,SN-PRO,NS-MINI,NS-PLUS,MD-MINI,MD-PLUS, NSG11, SN 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Jiajue Technology Co.,Ltd] certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Dong Liang Date: Apr.14,2023 Title and Company name: Manager / Shenzhen Jiajue Technology Co.,Ltd NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Jiajue Technology Co.,Ltd 2.911 (d)(7)USA Agent v1.3 Section 2.911(d)(7) USA Agent for Service of Process Company name: Shenzhen Jiajue Technology Co.,Ltd Address: B1105,No.16,Central Road,Xinqiao Sub-districtOffice,Bao'an District, Shenzhen Product Name: Video game FCC ID: 2BART-SN Model(s): SN-MINI,SN-PLUS,SN-PRO,NS-MINI,NS-PLUS,MD-MINI, MD-PLUS, NSG11, SN 2.911(d)(7) USA Designated Agent for Service of Process We, [Shenzhen Jiajue Technology Co.,Ltd] (“the applicant”) designate [Electronic Mac, Inc. ] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We Acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We Acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: Electronic Mac, Inc. Address: 6525 Crown Blvd, # 20805, San Jose, CA 95120 FRN: 0033414541 Contact Name: Ray Sia Telephone No: 408-332-2399 Email: [email protected] Applicant Company name: Shenzhen Jiajue Technology Co.,Ltd Address: B1105,No.16,Central Road,Xinqiao Sub-districtOffice,Bao'an District,Shenzhen FCC Grantee Code: 2BART Contact Name: Dong Liang Telephone No: 18718054858 Email: [email protected] Signature: Title: Manager Signature: Title: Manager Date: 2023-04-14 Date: 2023-04-14 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Shenzhen Jiajue Technology Co.,Ltd 2.911 (d)(7)USA Agent v1.3 Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

Shenzhen Jiajue Technology Co.,Ltd Agent Authorization Company: Shenzhen Jiajue Technology Co.,Ltd Address: B1105,No.16,Central Road,Xinqiao Sub-districtOffice,Bao'an District, Shenzhen Product Name: Video game Model Number(s): SN-MINI,SN-PLUS,SN-PRO,NS-MINI,NS-PLUS,MD-MINI, MD-PLUS, NSG11, SN Product Description: Video game We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Apr.14,2023 Name: Dong Liang Title: Manager Company: Shenzhen Jiajue Technology Co.,Ltd

Shenzhen Jiajue Technology Co.,Ltd Family models declaration letter. Date: April 14, 2023 We Shenzhen Jiajue Technology Co.,Ltd Of Product: Video game Model Name: SN-MINI Serial Model: SN-PLUS,SN-PRO,NS-MINI,NS-PLUS,MD-MINI, MD-PLUS, NSG11, SN Difference description of series models: All the model are the same circuit and RF module, except the model names and Appearance color. Thanks Sincerely Signature Name: Dong Liang Date: Apr.14,2023 Title: Manager

Shenzhen Jiajue Technology Co.,Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: April 14, 2023 Subject; Request for Confidentiality FCC ID: 2BART-SN To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Dong Liang Title: Manager

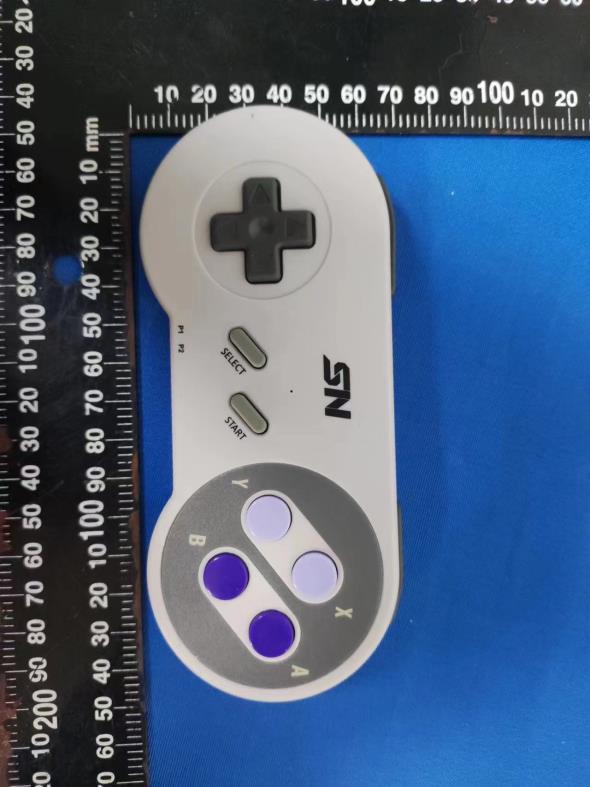

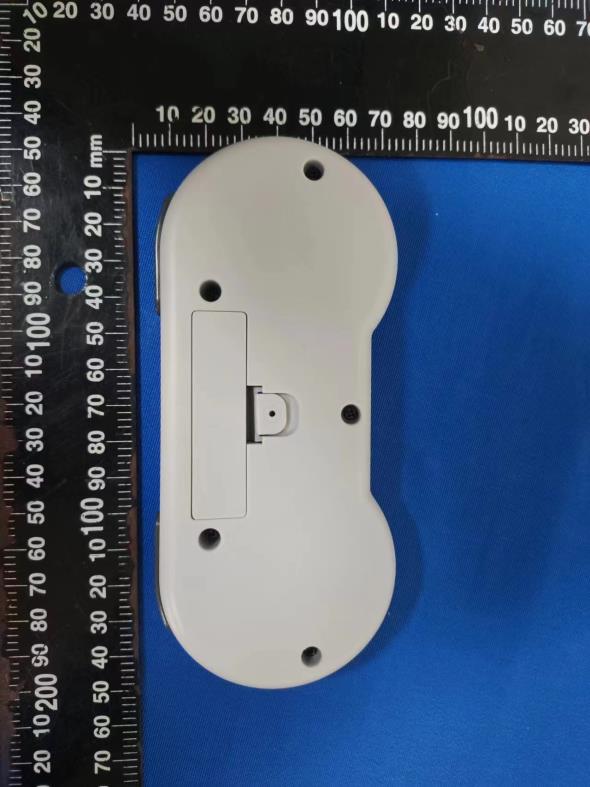

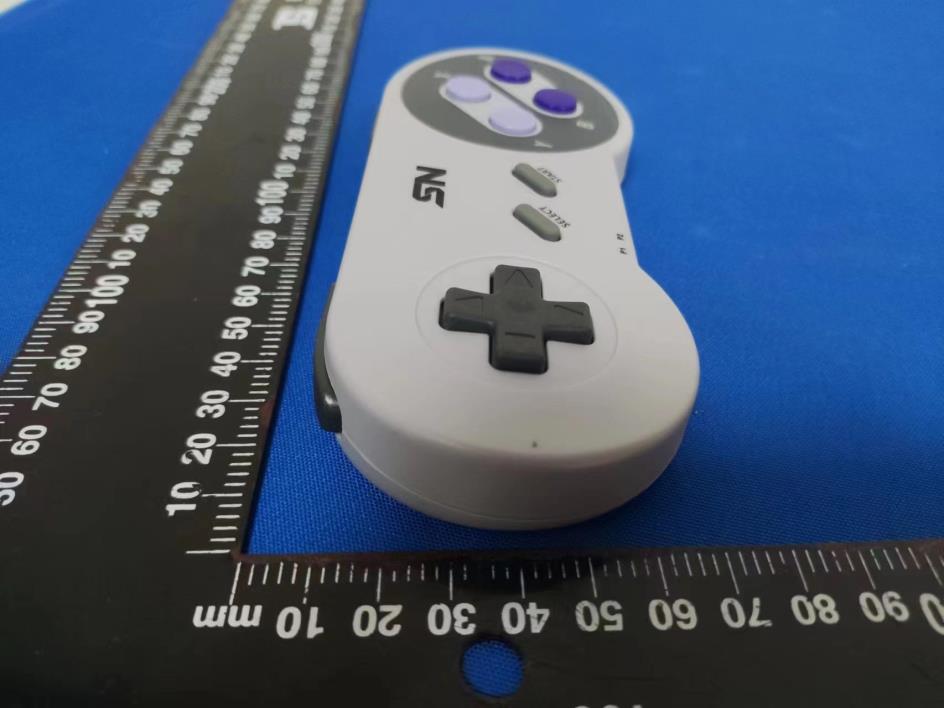

- Page 1 of 3 - ET-23030254 Product Name: Video game Model No.: SN-MINI Ext Photos - Page 2 of 3 - ET-23030254 - Page 3 of 3 - ET-23030254 -----END-----
