2BAS2-E27Smart Watch

HOTOEM Information Technology Company Limited U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions FRN: 0033401605 Contact Name: Kenneth Young Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 Telephone No: 313-395-3113 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: Sept. 27, 2024 Signed by (Printed Name/Title): Kenneth Young/Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: HOTOEM Information Technology Company Limited Grantee Code: 2BAS2 FCC ID: 2BAS2-E27 FRN: 0033640244 Contact Name: Jerry Zhang Street Address: Flat 1908, 19/F, Harbour Center, 25 Harbour Road, Wan Chai, Hong Kong Telephone No: +86-13316208407 Email: [email protected] Applicant Signature: Date: 2024.09.27 Signed by (Printed Name/Title): Jerry Zhang / Manager

HOTOEM Information Technology Company Limited Address: Flat 1908, 19/F, Harbour Center, 25 Harbour Road, Wan Chai, Hong Kong Date: 2024-09-27 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing SUBJECT: FCC Application for FCC ID: 2BAS2-E27 To Whom It May Concern: HOTOEM Information Technology Company Limited certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: Date: 2024-09-27

HOTOEM Information Technology Company Limited Address: Flat 1908, 19/F, Harbour Center, 25 Harbour Road, Wan Chai, Hong Kong Date: 2024-09-27 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing SUBJECT: FCC Application for FCC ID: 2BAS2-E27 To Whom It May Concern: HOTOEM Information Technology Company Limited certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Date: 2024-09-27

天线增益报告 AntennaGainReport 客户名称：深圳市魔样科技有限公司 CustomerName ：ShenzhenMoyangTechnologyCo.,Ltd 产品名称： 2.4G 天线全长 25mm 红色 ProductName：2.4GAntenna，25mminlength,Red 客户型号： 03.A.11.00007 ProductName:03.A.11.00007 产品料号：C10-35-2.5 PartNO.:C10-35-2.5 制表： WriteBy：庄杰彬 日期： 2021-10-08 IssuedDate:2021-10-08 研发R&DDept 工程EngineerDept 审核Approval 庄彩虹庄杰彬庄杰彬 制造商：深圳市一线通线缆有限公司 Manufacturer：ShenzhenYixiantongCableCo.,Ltd 地址：深圳市宝安区沙井街道万丰98工业城21栋 Building21,Wanfeng98IndustrialCity,ShajingStreet, Bao'anDistrict,Shenzhen 尺寸/size： ProductSpecification A. ElectricalCharacteristics Frequency2400MHz ~2500MHzVSWR<3.0 Efficiency>30% Impedance50 OhmPolarization LineGain 0DBi B.Material&MechanicalCharacteristics MaterialofRadiatorCu CableType1.019P红 ConnectorType:NO Dimension C. Environmental OperationTemperature-30°C~+80 °CStorageTemperature-30°C~+ 85°C T est E q u i p m e n t & C o n d i t i o n s 1.N et w o rkAn a l y z e r s : A g i le n t8 7 53 D 50 71 C 2. C o mm u ni cat i o n s T estSet : A g i le n t E 55 2 5 C 3 . 3 D C h a m be rT estS y ste m Effi e n c y & Ga in 2400 MHz - 1 . 26174 - 0 . 765802 2 500MHz 0 . 000000 2450 MHz Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 0.0000000 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -4.2537 -22.1424 -12.4294 2450 -1.4652 -24.5837 -10.4702 -0.86120 -29.5214 -9.20432 2500

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 HOTOEM Information Technology Company Limited Flat 1908, 19/F, Harbour Center, 25 Harbour Road, Wan Chai, Hong Kong Date：2024/09/27 Product Model Number: E27 FCC ID：2BAS2-E27 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that HOTOEM Information Technology Company Limited is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by HOTOEM Information Technology Company Limited on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: +86-13316208407 On behalf of: HOTOEM Information Technology Company Limited

HOTOEM Information Technology Company Limited Flat 1908,19/F, Harbour Center, 25 Harbour Road, Wan Chai, Hong Kong Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: September 27, 2024 Subject; Request for Confidentiality FCC ID: 2BAS2-E27 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jerry Zhang Title: Manager

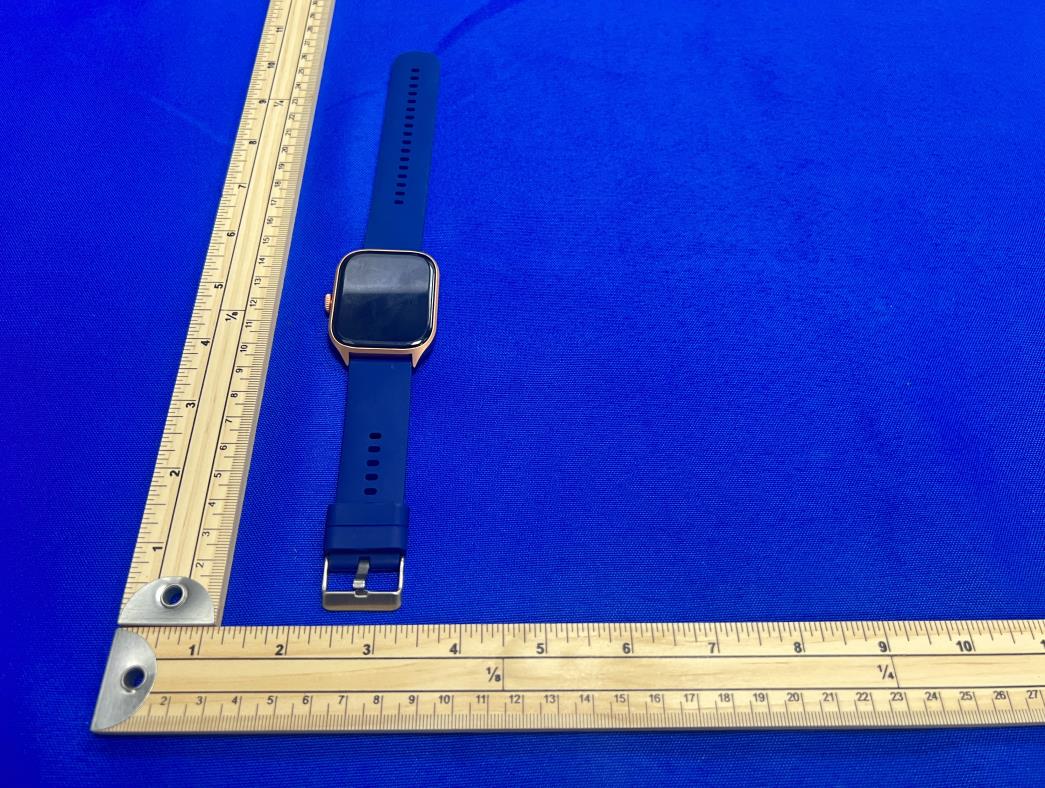

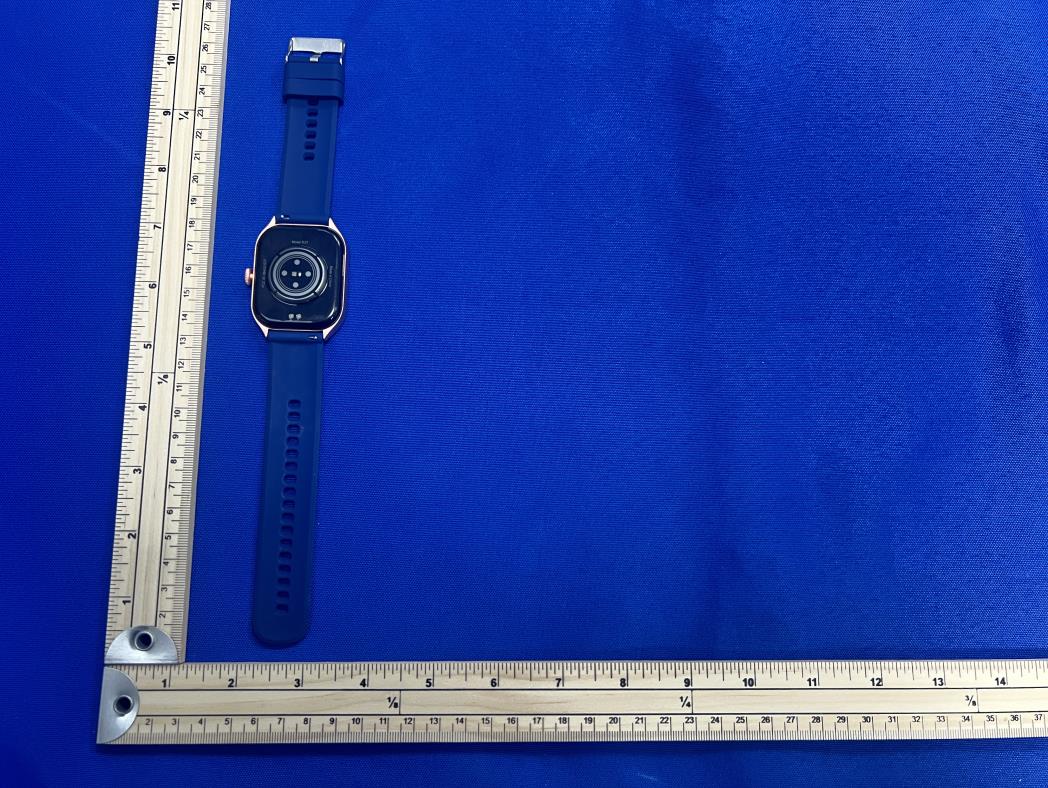

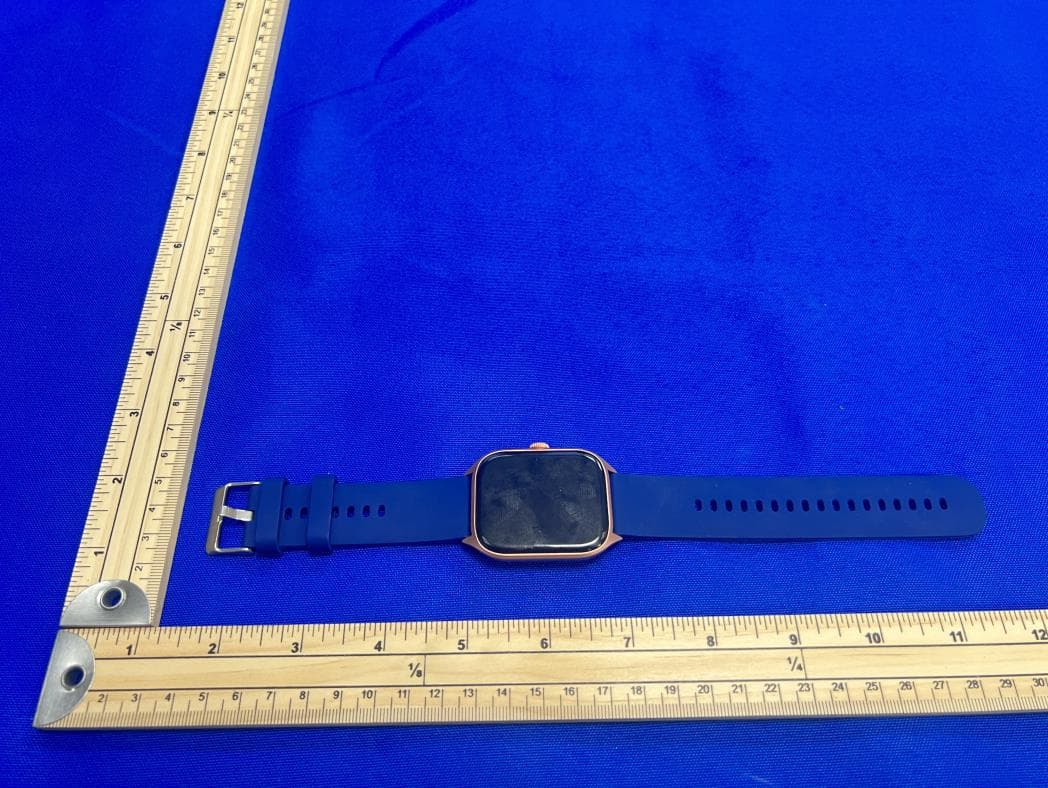

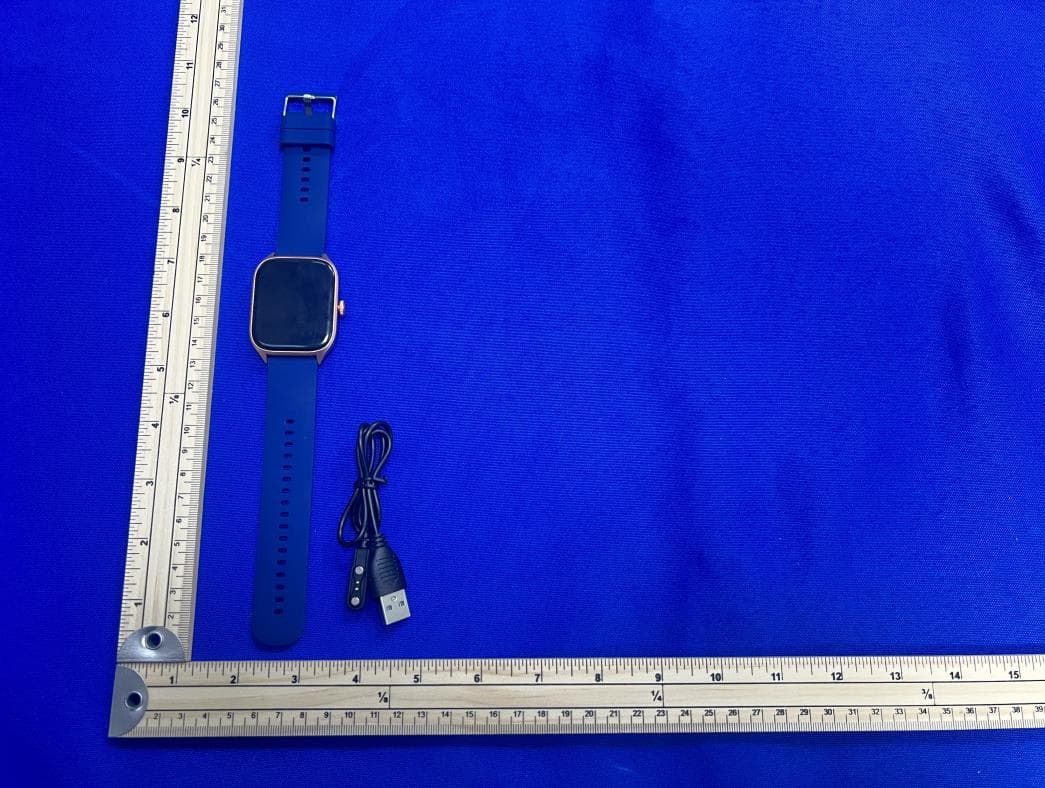

FCC ID: 2BAS2-E27 Page 1 of 4 Report No.: CTL2408301031-WF External Photos of EUT FCC ID: 2BAS2-E27 Page 2 of 4 Report No.: CTL2408301031-WF FCC ID: 2BAS2-E27 Page 3 of 4 Report No.: CTL2408301031-WF FCC ID: 2BAS2-E27 Page 4 of 4 Report No.: CTL2408301031-WF

FCC ID: 2BAS2-E27 Page 1 of 1 Report No.: CTL2408301031-WF FCC ID Label Information Label location: Size: L0.5cm*W0.5cm Smart Watch Model: E27 FCC ID: 2BAS2-E27

FCC ID: 2BAS2-E27 Page 1 of 3 Report No.: CTL2408301031-WF Internal Photos of EUT FCC ID: 2BAS2-E27 Page 2 of 3 Report No.: CTL2408301031-WF Bluetooth Antenna FCC ID: 2BAS2-E27 Page 3 of 3 Report No.: CTL2408301031-WF

FCC ID: 2BAS2-E27 Page 1 of 1 Report No.: CTL2408301031-WF RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison For Bluetooth pt=7.51dBm=5.6364mW at 2441MHz So (5.6364mW/5mm)x √2.441GHz = 1.7612<3 Then SAR evaluation is not required. For BLE pt=6.84dBm=4.8306mW at 2440MHz So (4.8306mW/5mm)x √2.440GHz = 1.5091<3 Then SAR evaluation is not required.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No.: CTL2408301031-WF01 Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Wuqiang Wu (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : Smart Watch Model/Type reference ................ : E27 List Model(s) ............................... : N/A Trade Mark .................................. : Letsfit FCC ID ......................................... : 2BAS2-E27 Applicant’s name ....................... : HOTOEM Information Technology Company Limited Address of applicant ................. : Flat 1908,19/F, Harbour Center, 25 Harbour Road, Wan Chai, Hong Kong Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011 Shahexi Road, Nanshan District, Shenzhen, China Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Sept. 10, 2024 Date of Test Date ........................ : Sept. 10, 2024-Sept. 23, 2024 Date of Issue .............................. : Sept. 24, 2024 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 37 Report No.: CTL2408301031-WF01 TEST REPORT Test Report No. : CTL2408301031-WF01 Sept. 24, 2024 Date of issue Equipment under Test : Smart Watch Sample No : CTL2408301031 Model /Type : E27 Listed Models : N/A Applicant : HOTOEM Information Technology Company Limited Address : Flat 1908,19/F, Harbour Center, 25 Harbour Road, Wan Chai, Hong Kong Manufacturer : Shenzhen Indell Industrial Co.,Ltd Address : Floor 101 and 1-5, Building C, Xiawei Garden, Gushu Community, Xixiang Street, Baoan District, Shenzhen, China Test result Pass * *In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 37 Report No.: CTL2408301031-WF01 ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2024-09-24 CTL2408301031-WF01 Tracy Qi V1.0 Page 4 of 37 Report No.: CTL2408301031-WF01 Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 1.5. AUXILIARY TEST EQUIPMENT INFORMATION ....................................................................................................................... 7 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 9 2.4. EQUIPMENTS USED DURING THE TEST ............................................................................................................................ 10 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 14 3.3. MAXIMUM PEAK OUTPUT POWER ......................................…

Text truncated - open the document above for the full version.

FCC ID: 2BAS2-E27 Page 1 of 50 Report No.: CTL2408301031-WF01 Page 1 / 50 1. Bandwidth 1.1 Test Result 1.1.1 OBW Mode TX Type Frequency (MHz) Packet Type ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.856 / Pass 2441 DH5 1 0.858 / Pass 2480 DH5 1 0.859 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.176 / Pass 2441 2DH5 1 1.176 / Pass 2480 2DH5 1 1.175 / Pass 8DPSK SISO 2402 3DH5 1 1.186 / Pass 2441 3DH5 1 1.191 / Pass 2480 3DH5 1 1.191 / Pass 1.1.2 20dB BW Mode TX Type Frequency (MHz) Packet Type ANT 20dB Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.952 / Pass 2441 DH5 1 0.953 / Pass 2480 DH5 1 0.954 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.289 / Pass 2441 2DH5 1 1.312 / Pass 2480 2DH5 1 1.314 / Pass 8DPSK SISO 2402 3DH5 1 1.302 / Pass 2441 3DH5 1 1.303 / Pass 2480 3DH5 1 1.302 / Pass FCC ID: 2BAS2-E27 Page 2 of 50 Report No.: CTL2408301031-WF01 Page 2 / 50 1.2 Test Graph 1.2.1 OBW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV FCC ID: 2BAS2-E27 Page 3 of 50 Report No.: CTL2408301031-WF01 Page 3 / 50 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV FCC ID: 2BAS2-E27 Page 4 of 50 Report No.: CTL2408301031-WF01 Page 4 / 50 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV FCC ID: 2BAS2-E27 Page 5 of 50 Report No.: CTL2408301031-WF01 Page 5 / 50 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV FCC ID: 2BAS2-E27 Page 6 of 50 Report No.: CTL2408301031-WF01 Page 6 / 50 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV FCC ID: 2BAS2-E27 Page 7 of 50 Report No.: CTL2408301031-WF01 Page 7 / 50 1.2.2 20dB BW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV FCC ID: 2BAS2-E27 Page 8 of 50 Report No.: CTL2408301031-WF01 Page 8 / 50 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV FCC ID: 2BAS2-E27 Page 9 of 50 Report No.: CTL2408301031-WF01 Page 9 / 50 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV FCC ID: 2BAS2-E27 Page 10 of 50 Report No.: CTL2408301031-WF01 Page 10 / 50 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV FCC ID: 2BAS2-E27 Page 11 of 50 Report No.: CTL2408301031-WF01 Page 11 / 50 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV FCC ID: 2BAS2-E27 Page 12 of 50 Report No.: CTL2408301031-WF01 Page 12 / 50 2. Maximum Conducted Output Power 2.1 Test Result 2.1.1 Power Mode TX Type Frequency (MHz) Packet Type Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit GFSK SISO 2402 DH5 6.17 <=30 Pass 2441 DH5 6.48 <=30 Pass 2480 DH5 6.06 <=30 Pass Pi/4DQPSK SISO 2402 2DH5 6.83 <=20.97 Pass 2441 2DH5 7.23 <=20.97 Pass 2480 2DH5 6.80 <=20.97 Pass 8DPSK SISO 2402 3DH5 7.11 <=20.97 Pass 2441 3DH5 7.51 <=20.97 Pass 2480 3DH5 7.07 <=20.97 Pass Note1: Antenna Gain: Ant1: 0.00dBi; FCC ID: 2BAS2-E27 Page 13 of 50 Report No.: CTL2408301031-WF01 Page 13 / 50 2.2 Test Graph 2.2.1 Power GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV FCC ID: 2BAS2-E27 Page 14 of 50 Report No.: CTL2408301031-WF01 Page 14 / 50 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV FCC ID: 2BAS2-E27 Page 15 of 50 Report No.: CTL2408301031-WF01 Page 15 / 50 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV FCC ID: 2BAS2-E27 Page 16 of 50 Report No.: CTL2408301031-WF01 Page 16 / 50 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV FCC ID: 2BAS2-E27 Page 17 of 50 Report No.: CTL2408301031-WF01 Page 17 / 50 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV FCC ID: 2BAS2-E27 Page 18 of 50 Report No.: CTL2408301031-WF01 Page 18 / 50 3. Carrier Frequency Separation 3.1 Test Result 3.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Channel Separation (MHz) 20dB Bandwidth (MHz) Limit (MHz) Verdict GFSK SISO HOPP DH5 0.986 0.954 >=0.954 Pass Pi/4DQPSK SISO HOPP 2DH5 1.003 1.314 >=0.876 Pass 8DPSK SISO HOPP 3DH5 0.991 1.303 >=0.869 Pass FCC ID: 2BAS2-E27 Page 19 of 50 Report No.: CTL2408301031-WF01 Page 19 / 50 3.2 Test Graph 3.2.1 Ant1 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV FCC ID: 2BAS2-E27 Page 20 of 50 Report No.: CTL2408301031-WF01 Page 20 / 50 8DPSK_3DH5_HOPP_Ant1_NTNV FCC ID: 2BAS2-E27 Page 21 of 50 Report No.: CTL2408301031-WF01 Page 21 / 50 4. Number of Hopping Frequencies 4.1 Test Result 4.1.1 HoppNum Mode TX Type Frequency (MHz) Packet Type Num of Hopping Frequencies Verdict ANT1 Limit GFSK SISO HOPP DH5 79 >=15 Pass Pi/4DQPSK SISO HOPP 2DH5 79 >=15 Pass 8DPSK SISO HOPP 3DH5 79 >=15 Pass FCC ID: 2BAS2-E27 Page 22 of 50 Report No.: CTL2408301031-WF01 Page 22 / 50 4.2 Test Graph 4.2.1 HoppNum GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV FCC ID: 2BAS2-E27 Page 23 of 50 Report No.: CTL2408301031-WF01 Page 23 / 50 8DPSK_3DH5_HOPP_Ant1_NTNV FCC ID: 2BAS2-E27 Page 24 of 50 Report No.: CTL2408301031-WF01 Page 24 / 50 5. Time of Occupancy (Dwell Time) 5.1 Test Result 5.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Duration of Single Pulse (ms) Observation Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limit (ms) Verdict GFSK SISO HOPP DH1 0.386 31.600 318 122.748 <=400 Pass DH3 1.642 31.600 169 277.498 <=400 Pass DH5 2.890 31.600 127 367.030 <=400 Pass Pi/4DQPSK SISO HOPP 2DH1 0.396 31.600 320 126.720 <=400 Pass 2DH3 1.648 31.600 160 263.680 <=400 Pass 2DH5 2.894 31.600 104 300.976 <=400 Pass 8DPSK SISO HOPP 3DH1 0.396 31.600 321 127.116 <=400 Pass 3DH3 1.646 31.600 155 255.130 <=400 Pass 3DH5 2.904 31.600 102 296.208 <=400 Pass FCC ID: 2BAS2-E27 Page 25 of 50 Report No.: CTL2408301031-WF01 Page 25 / 50 5.2 Test Graph 5.2.1 Ant1 GFSK_DH1_HOPP_Ant1_NTNV GFSK_DH1_HOPP_Ant1_NTNV FCC ID: 2BAS2-E27 Page 26 of 50 Report No.: CTL2408301031-WF01 Page 26 / 50 GFSK_DH3_HOPP_Ant1_NTNV GFSK_DH3_HOPP_Ant1_NTNV FCC ID: 2BAS2-E27 Page 27 of 50 Report No.: CTL2408301031-WF01 Page 27 / 50 GFSK_DH5_HOPP_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV FCC ID: 2BAS2-E27 Page 28 of 50 Report No.: CTL2408301031-WF01 Page 28 / 50 Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV FCC ID: 2BAS2-E27 Page 29 of 50…

Text truncated - open the document above for the full version.

FCC ID: 2BAS2-E27 Page 1 of 2 Report No.: CTL2408301031-WF Test Setup Photos of the EUT FCC ID: 2BAS2-E27 Page 2 of 2 Report No.: CTL2408301031-WF
