2BASNRC1000MV1000PORTABLE POWER STATION

RC1000 USER MANUAL Thank you for purchasing portable power station. For the best performance and safety purposes, please read this manual carefully before use. Please keep this manual for further reference. CHARGE FIRST! Before using your new portable power station or after storing it for more than 3 months, plug it into a suitable power outlet until it is fully charged. Then you can start your exciting journey with it. Highly recommend to charge when battery indicate less than 20%. RC1000 AC Power ON/OFFAC ON/OFF 12V 10A DC INPUT 12~26V PV INPUT 12~26V Power IN USB-C12V total 10A USB-A ×2USB-A ×3 RC1000 AC Power ON/OFFAC ON/OFF 12V 10A DC INPUT 12~26V PV INPUT 12~26V Power IN USB-C12V total 10A USB-A ×2USB-A ×3 ① LCD Screen Display ② Cigarette Lighter Socket Output ③ DC Output ④ USB-A Output ⑤ USB-A 18W Output ⑥ USB-C Output ⑦ PV Input ⑧ DC Input ⑨ USB Disk Port ⑩ Folding Handle ⑪ Air Intake Vent With Cooling Fan ⑫ AC Output ⑬ AC Input ⑭ Loudspeakers (Blue Tooth) ⑮ SOS Mode & LED Light ⑯ Reading Light (optional accessory)(optional accessory) Product Overview Note: No user-serviceable parts inside. Recommended to fully charge before use. Recommend to use 100W/120W/200W Solar panel (not included). Accessory List ② ① ③ ④ ⑤ ⑥ ⑨ ⑬ ⑩ ⑫ ⑪ ⑮ ⑭ ⑯ ⑧ ⑦ AC Power cord RC1000 AC Power ON/OFFAC ON/OFF 12V 10A DC INPUT 12~26V PV INPUT 12~26V Power IN USB-C12V total 10A USB-A ×2USB-A ×3 Button Feature Ⓐ Power ON/OFF Button Ⓑ AC Output Power ON/OFF Button Ⓒ SOS Mode & LED Light Button Ⓓ Bluetooth Speaker Ⓔ Start/Stop Playing Ⓕ Prev Song Ⓖ Next Song Ⓒ ⒹⒺⒻⒼ Ⓑ Ⓐ ● ● ● ● ● ● ● ● Button Ⓐ: POWER ON/OFF Button Ⓐ is the master switch. Press Button Ⓐ to turn on the power or to shut down the output(s) when not in use. Button Ⓑ: AC OUTPUT POWER ON/OFF Pls. make sure the button “POWER ON/OFF” is activated before pressing Button Ⓑ to turn on. Press Button Ⓑ to shut down the output(s) when not in use. Button Ⓒ: SOS MODE& LED LIGHT Function is available no matter the Button “POWER ON/OFF” is activated or not as the following steps: Firstly, press Button Ⓒ to turn on the LED light into the LED light mode. Secondly, double click it to turn on the SOS mode. Thirdly, press Button Ⓒ back to LED light mode, then press it again, the light will be turn off. How to open the music? (ⒹⒺⒻⒼ) Listen to music on the mobile phone by blue-tooth Firstly, click the “POWER ON/OFF” button to open the unit, then press the “Bluetooth Speaker” button for 3 seconds to open the blue-tooth and the music. Secondly, click the “setting” figure of the mobile phone. Thirdly, click the “blue-tooth” figure you will find the device “Bluetooth” and then make a pair to connect with each other, fourthly, play the media on the mobile phone. LCD Features Ⓗ Battery Level Indicator Ⓘ Input Status Ⓙ DC Outputs Status Ⓚ AC Outputs Status ● ● Note: The LCD Screen will enter Sleep Mode after 20s of inactivity, and will Wake up when inputting a charging cord or when any button is pressed. When the output power of the device is less than 5W, the device will go into hibernation after more than 3 hours, and the input can be "awakened" when the input is charged or any button is pressed. When not in use, press the switch button to turn off the output. Listen to music on the USB disk Please plug in the USB disk with music files to the USB disk port, then press the button Ⓔ to start/stop playing the song and then press the button Ⓕ to listen to the previous song and press the button Ⓖ to listen to the next song. How to close the blue-tooth and the music? Please press the "Bluetooth Speaker" button for 3 seconds to close the blue-tooth and the music. COOLING FAN Utilizes an internal cooling fan to ensure the product is operating within the appropriate temperature range. When it experiences a higher output load, will automatically turn on the fan during discharge or recharging, the fan may operate intermittently to keep internal temperature within operating range. The fan will likely start when the AC circuit is activated to ensure proper operation. ● ● ● ● ● Ⓘ Ⓙ Ⓚ Ⓗ 12-26V 155W Max AC96-130V 50Hz, 500W Max DC12-26V, 155W Max DC12V, 155W Max 110V±10%/60Hz 1000W Pure Sine Wave 1100W±80W 12V ⎓10A 12V ⎓5A 5V ⎓2.1A,10.5W Max 5V⎓3A, 9V⎓2A, 12V⎓1.5A,18W Max 5V/9V/12V/15V/20V ⎓3A, 60W Max Reading Light 6W, SOS/LED Light 2W General Specifications Total 10A 22.2V, 45Ah/999Wh -4 to 113°F (-20 to 45°C) Battery General Specs Input Output 999Wh about 8.8kg about 9.8kg 314 x 235 x 276mm Rated Capacity Net Weight Weight (including accessories) Product Size Recharging Input Voltage Recharging Input Power AC/DC Adapter Solar Charge Input Car Charger AC Output Voltage Rated Output Power Output Waveform Overload Protection Power Cigarette Lighter Socket Output DC Output x 4 LED Lighting USB Output x 3 USB Output x 2 Type-C Output Standard Capacity of Batteries 32 to 104°F (0 to 40°C) Charging Temp 14 to 104°F (-10 to 40°C) Operating Temp Storage Temp From AC Socket Charging about 2.5 hours From Solar Charger 200W about 7-10 hours Depending on solar conditions From Car Charger 12V about 9-11 hours when car Do not connect device via ac output port while charge. recommend to disconnect when fully charged How to Charge AC Adapter Charging Please use the AC power cord that we provided to charge this unit, and it will take about 2.5 hours to fully charge the power station. AC Outlet AC Power cord RC1000 AC Power ON/OFFAC ON/OFF 12V 10A DC INPUT 12~26V PV INPUT 12~26V Power IN USB-C12V total 10A USB-A ×2USB-A ×3 12V Car Charger Charging Cigarette Lighter Plug Car Charger Use the car charge cable we provided to charge this unit. The time to takes 9-11 hours. When the LCD screen shows the battery power to 100%, it indicates that this unit is fully charged. 1. DO NOT charge the unit via solar panel that operate voltage outside of DC12-26V. 2. Place Solar Panels in direct sunlight as much as possible. 3. Support 100W/120W/200W Max Solar Panels (Not included), the charging time is determined by the sola…

Text truncated - open the document above for the full version.

-HuizhouIntelligentEnergyCo.,Ltd.- TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotifytheFCC. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 8/23/23 U.S.AgentDesignation [HuizhouIntelligentEnergyCo.,Ltd.]acknowledgestheirconsentforthefollowingcontactlocated intheUnitedStatestoactastheiragentforserviceofprocessfortheequipmentforwhich authorizationissought(FCCID:2BASNRC1000MV1000): NameandcompanyofU.S.agent:LinkwldLLC PhysicalU.S.addressofagent:1942BroadwaySt.STE314C,Boulder,CO,80302,US FRNofU.S.agent:0033625682 EmailaddressofU.S.agent:[email protected] TelephoneNoofU.S.agent:+1-716-963-4572 LinkwldLLCacknowledgestheirobligationtoacceptserviceofprocessonbehalfof[Huizhou IntelligentEnergyCo.,Ltd.]. [HuizhouIntelligentEnergyCo.,Ltd.]acceptsitsobligationtomaintainanagentforserviceof processintheUnitedStatesfornolessthanoneyearaftereitherthegranteehaspermanently terminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,ortheconclusion ofanyCommission-relatedadministrativeorjudicialproceedinginvolvingtheequipment,whicheveris later. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirements listedunder§2.911(d)(7). Sincerely, Signature [Name]AnnyZhao [Title]projectengineer [Company]HuizhouIntelligentEnergyCo.,Ltd. Signature [NameofU.S.agent]TimothyZhu [TitleofU.S.agent]Manager [CompanyofU.S.agent]LinkwldLLC 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 3

-HuizhouIntelligentEnergyCo.,Ltd.- TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 8/24/23 Towhomitmayconcern: We,[HuizhouIntelligentEnergyCo.,Ltd.],herebycertifythattheequipmentforwhichauthorizationis sought(FCCID:[2BASNRC1000MV1000])isnot“covered”equipmentprohibitedfromreceivingan equipmentauthorizationpursuantto§2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,wearenotidentifiedontheCovered List(https://www.fcc.gov/supplychain/coveredlist)asanentityproducing“covered”equipment. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirements listedunder§2.911(b)and(d)(5)and(6). Sincerely, Signature AnnyZhao projectengineer HuizhouIntelligentEnergyCo.,Ltd. 6 2 _ [ m o d e l ] C o v e r e d E q u _ 2 . 9 1 1 ( d ) ( 5 ) ( i ) a n d ( i i ) - U , V 0 2

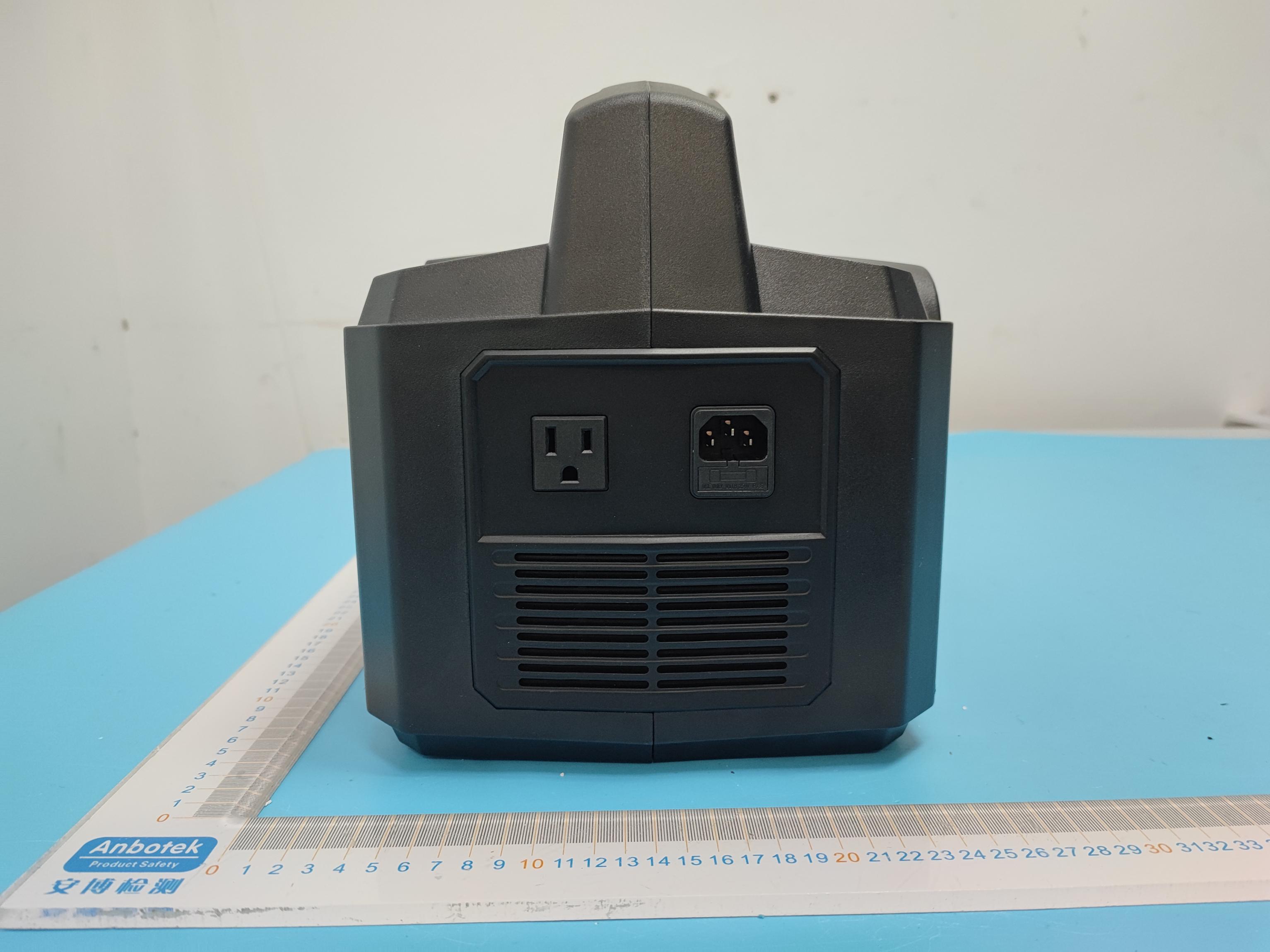

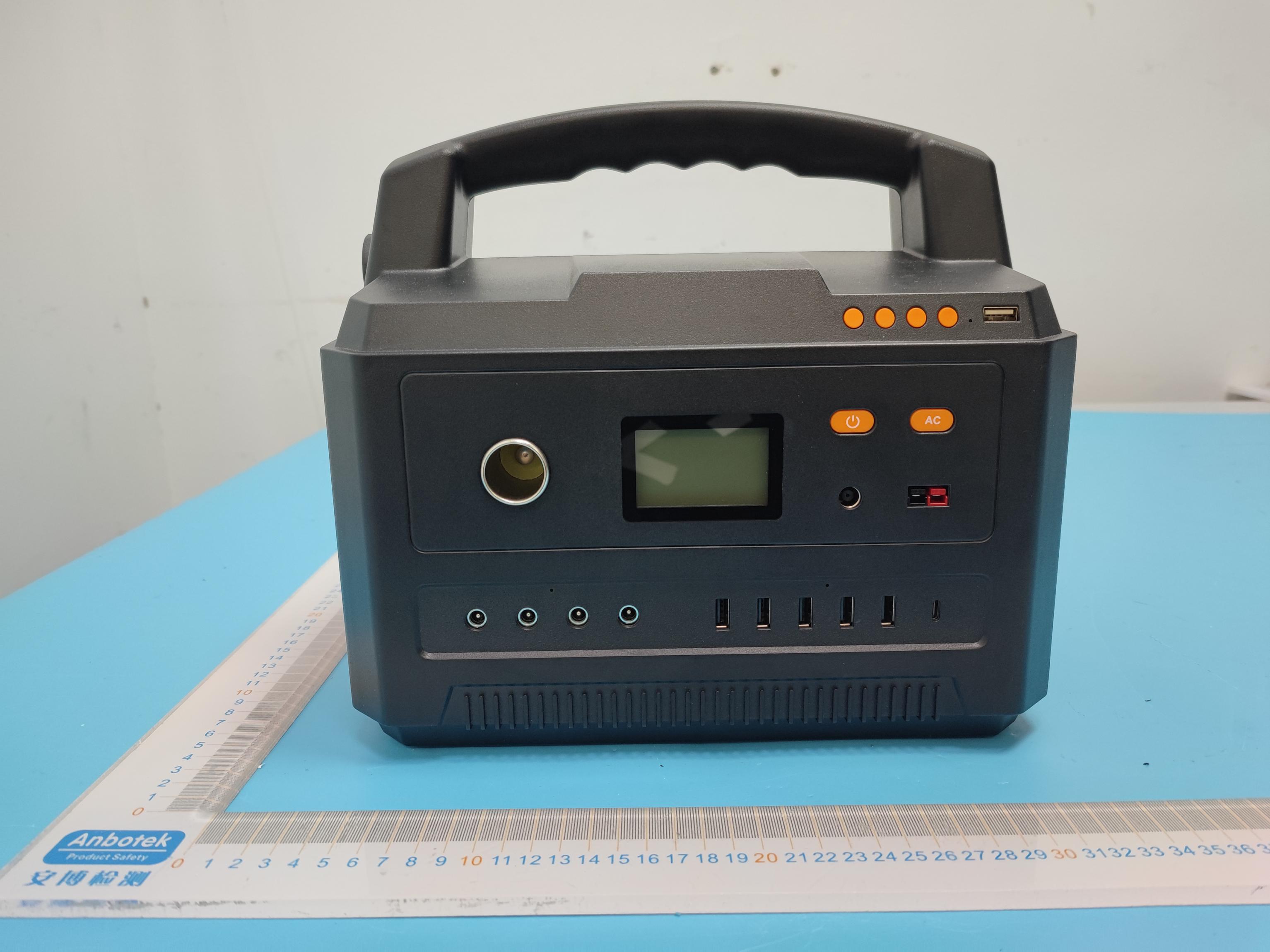

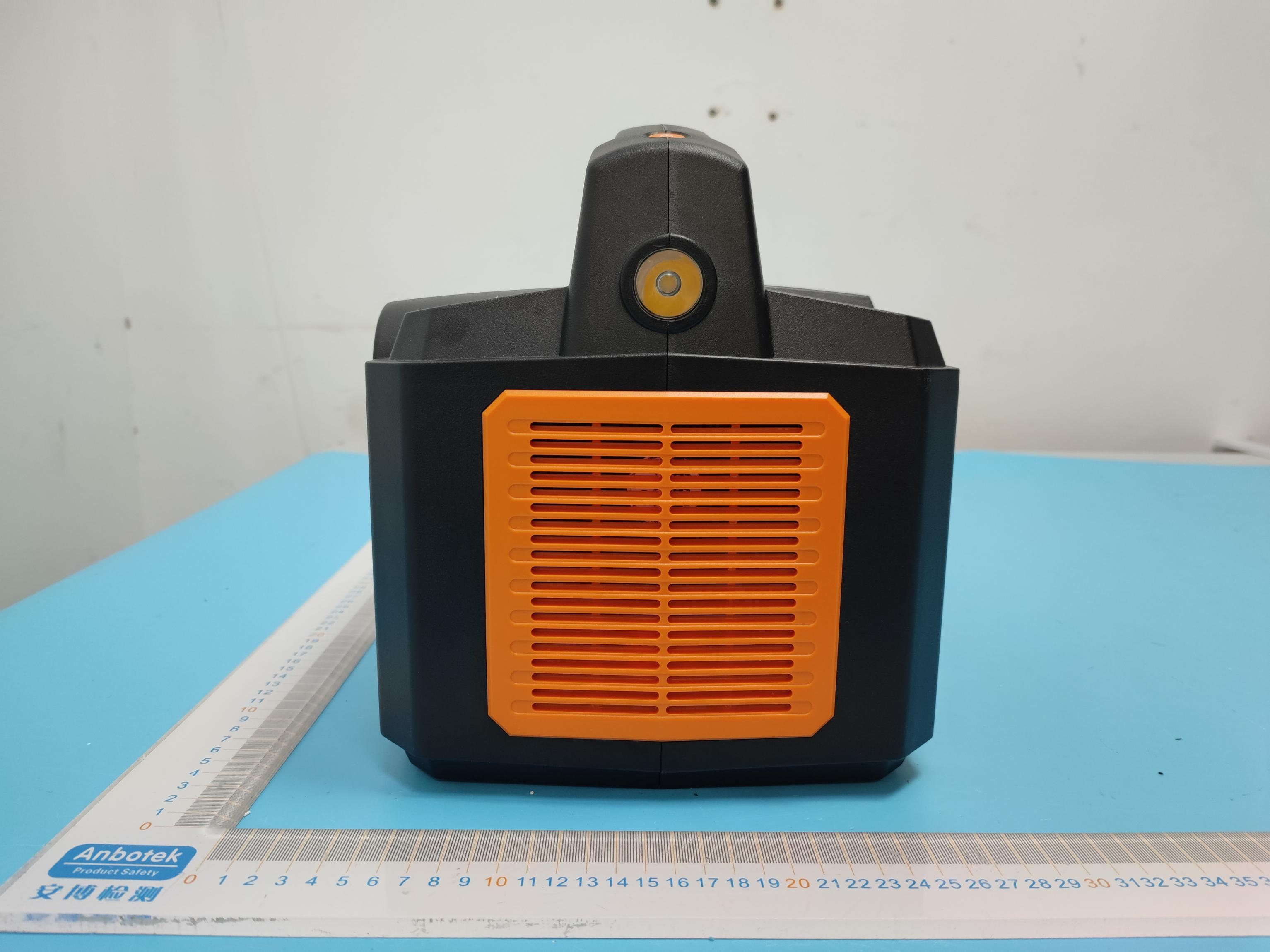

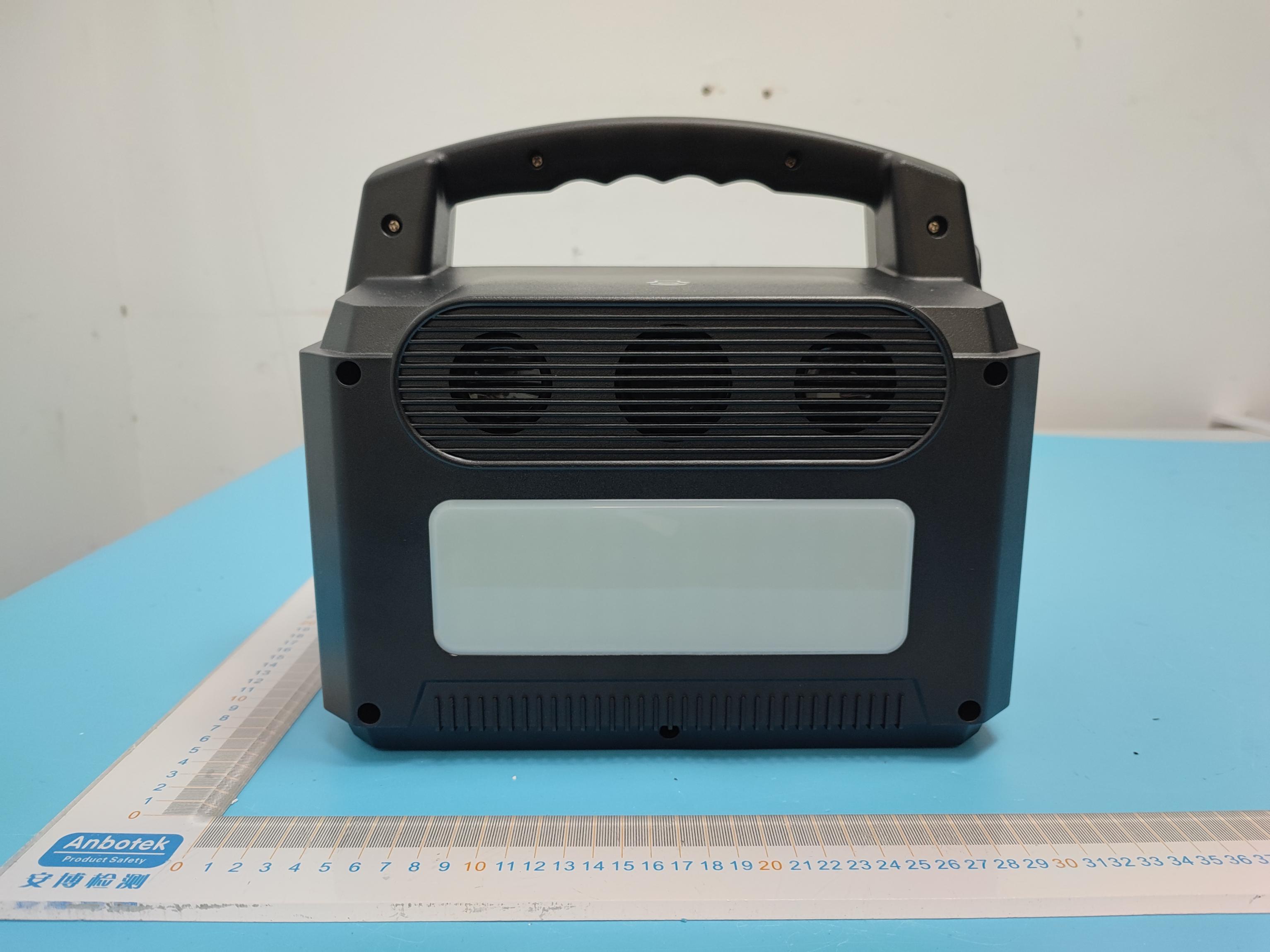

ProjectNo.:18360WC300103Page1of3 Code:AB-RF-05-b AppendixII--ExternalPhotograph ProjectNo.:18360WC300103Page2of3 Code:AB-RF-05-b ProjectNo.:18360WC300103Page3of3 Code:AB-RF-05-b

LabelLocationOnEUT Label

ProjectNo.:18360WC300103Page1of7 Code:AB-RF-05-b AppendixIII--InternalPhotograph ProjectNo.:18360WC300103Page2of7 Code:AB-RF-05-b ProjectNo.:18360WC300103Page3of7 Code:AB-RF-05-b ProjectNo.:18360WC300103Page4of7 Code:AB-RF-05-b ProjectNo.:18360WC300103Page5of7 Code:AB-RF-05-b ProjectNo.:18360WC300103Page6of7 Code:AB-RF-05-b ANT ProjectNo.:18360WC300103Page7of7 Code:AB-RF-05-b

RFEXPOSUREEVALUATION FCCID:2BASNRC1000MV1000 AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeused toevaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b): RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,using measurementsorcomputersimulation.WhenroutineSARevaluationisnot required,portabletransmitterswithoutputpowergreaterthantheapplicable lowthresholdrequireSARevaluationtoqualifyforTCBapproval. Channel (MHz) Maximum output power (dBm) Tuneup tolerance (dBm) MaxTuneUp Power(dBm) Distance (mm) Calculation results Limit Operating Mode 24022.242.24 ±1 3.24050.6543 GFSK24412.272.27±13.27050.663 3 24801.551.55±12.55050.567 3 24021.691.69 ±1 2.69050.5763 π/4-DQPSK 24411.461.46±12.46050.551 3 24800.680.68±11.68050.464 3 24021.841.84 ±1 2.84050.5963 8DPSK24411.531.53±12.53050.560 3 24800.830.83±11.83050.480 3 Result:NoStandaloneSARtestisrequired.

Page1of52 AppendixTestData ReportNo.:18360WC30010301TestSampleNo.:1-2-2 StartTestDate:2023.08.08FinishTestDate:2023.08.10 TestEngineer:Auditor: Temperature:25.5 °C RelativeHumidity:48% Pressure:1012hPa AppendixA:20dBEmissionBandwidth TestResult TestModeAntennaFrequency[MHz]20dbEBW[MHz]FL[MHz]FH[MHz] DH5Ant1 24021.0322401.4722402.504 24411.0352440.4662441.501 24801.0352479.4662480.501 2DH5Ant1 24021.2812401.3612402.642 24411.3202440.3312441.651 24801.3232479.3342480.657 3DH5Ant1 24021.3172401.3402402.657 24411.3142440.3402441.654 24801.2962479.3462480.642 Page2of52 TestGraphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Page3of52 2DH5_Ant1_2402 2DH5_Ant1_2441 Page4of52 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 Page5of52 3DH5_Ant1_2480 Page6of52 AppendixB:OccupiedChannelBandwidth TestResult TestModeAntennaFrequency[MHz]OCB[MHz]FL[MHz]FH[MHz] DH5Ant1 24020.901712401.55132402.4530 24410.903602440.55122441.4548 24800.898022479.54992480.4479 2DH5Ant1 24021.18292401.40562402.5885 24411.20072440.39762441.5983 24801.19132479.40162480.5929 3DH5Ant1 24021.21242401.38742402.5998 24411.18572440.41112441.5968 24801.21452479.38542480.5999 Page7of52 TestGraphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Page8of52 2DH5_Ant1_2402 2DH5_Ant1_2441 Page9of52 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 Page10of52 3DH5_Ant1_2480 Page11of52 AppendixC:Maximumconductedoutputpower TestResultPeak TestModeAntennaFrequency[MHz] ConductedPeak Power[dBm] Conducted Limit[dBm] Verdict DH5Ant1 24022.24≤20.97PASS 24412.27≤20.97PASS 24801.55≤20.97PASS 2DH5Ant1 24021.69≤20.97PASS 24411.46≤20.97PASS 24800.68≤20.97PASS 3DH5Ant1 24021.84≤20.97PASS 24411.53≤20.97PASS 24800.83≤20.97PASS Page12of52 TestGraphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Page13of52 2DH5_Ant1_2402 2DH5_Ant1_2441 Page14of52 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 Page15of52 3DH5_Ant1_2480 Page16of52 AppendixD:Carrierfrequencyseparation TestResult TestModeAntennaFrequency[MHz]Result[MHz]Limit[MHz]Verdict DH5Ant1Hop0.960≥0.690PASS 2DH5Ant1Hop0.998≥0.882PASS 3DH5Ant1Hop0.984≥0.878PASS Page17of52 TestGraphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Page18of52 Page19of52 AppendixE:Timeofoccupancy TestResult TestModeAntennaFrequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s]Limit[s]Verdict DH1Ant1Hop0.3723120.116≤0.4PASS DH3Ant1Hop1.6291580.257≤0.4PASS DH5Ant1Hop2.8771080.311≤0.4PASS 2DH1Ant1Hop0.3803150.120≤0.4PASS 2DH3Ant1Hop1.6311590.259≤0.4PASS 2DH5Ant1Hop2.8801120.323≤0.4PASS 3DH1Ant1Hop0.3813140.120≤0.4PASS 3DH3Ant1Hop1.6311580.258≤0.4PASS 3DH5Ant1Hop2.8821000.288≤0.4PASS Page20of52 TestGraphs DH1_Ant1_Hop DH3_Ant1_Hop Page21of52 DH5_Ant1_Hop Page22of52 2DH1_Ant1_Hop 2DH3_Ant1_Hop Page23of52 2DH5_Ant1_Hop Page24of52 3DH1_Ant1_Hop 3DH3_Ant1_Hop Page25of52 3DH5_Ant1_Hop Page26of52 Page27of52 AppendixF:Numberofhoppingchannels TestResult TestModeAntennaFrequency[MHz]Result[Num]Limit[Num]Verdict DH5Ant1Hop79≥15PASS 2DH5Ant1Hop79≥15PASS 3DH5Ant1Hop79≥15PASS Page28of52 TestGraphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Page29of52 Page30of52 AppendixG:Bandedgemeasurements TestResult TestModeAntennaChNameFrequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 Low24021.99-57.35≤-18.01PASS High24801.12-57.30≤-18.88PASS LowHop_24021.85-56.94≤-18.15PASS HighHop_24801.29-56.33≤-18.71PASS 2DH5Ant1 Low2402-1.26-55.51≤-21.26PASS High24800.01-57.13≤-20PASS LowHop_2402-0.19-51.94≤-20.19PASS HighHop_2480-0.87-56.27≤-20.87PASS 3DH5Ant1 Low24020.72-55.95≤-19.28PASS High2480-0.78-57.45≤-20.78PASS LowHop_2402-1.64-55.96≤-21.64PASS HighHop_2480-2.06-56.08≤-22.06PASS Page31of52 TestGraphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 Page32of52 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 Page33of52 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 Page34of52 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 Page35of52 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 Page36of52 AppendixH:ConductedSpuriousEmission TestResult TestModeAntennaFrequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 2402 Reference1.651.65---PASS 30~10001.65-69.09≤-18.35PASS 1000~265001.65-53.45≤-18.35PASS 2441 Reference1.421.42---PASS 30~10001.42-68.71≤-18.58PASS 1000~265001.42-53.78≤-18.58PASS 2480 Reference0.600.60---PASS 30~10000.60-68.13≤-19.4PASS 1000~265000.60-53.42≤-19.4PASS 2DH5Ant1 2402 Reference-2.30-2.30---PASS 30~1000-2.30-68.86≤-22.3PASS 1000~26500-2.30-53.53≤-22.3PASS 2441 Reference-0.16-0.16---PASS 30~1000-0.16-69.02≤-20.16PASS 1000~26500-0.16-53.52≤-20.16PASS 2480 Reference-1.56-1.56---PASS 30~1000-1.56-69.56≤-21.56PASS 1000~26500-1.56-53.19≤-21.56PASS 3DH5Ant1 2402 Reference0.600.60---PASS 30~10000.60-69.13≤-19.4PASS 1000~265000.60-53.36≤-19.4PASS 2441 Reference-0.56-0.56---PASS 30~1000-0.56-69.57≤-20.56PASS 1000~26500-0.56-53.51≤-20.56PASS 2480 Reference-2.73-2.73---PASS 30~1000-2.73-69.36≤-22.73PASS 1000~26500-2.73-53.38≤-22.73PASS Page37of52 TestGraphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 Page38of52 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 Page39of52 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 Page40of52 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference Page41of52 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference Page42of52 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 Page43of52 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 Page44of52 3DH5_Ant1_2402_0~Reference 3DH5_Ant1_2402_30~1000 Page45of52 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_0~Reference 3DH5_Ant1_2441_30~1000 Page46of52 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_0~Reference Page47of52 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 Page48of52 AppendixI:DutyCycle TestResult TestModeAntennaFrequency[MHz] ONTime [ms] Period [ms] DutyCycle [%] DutyCycle Factor[dB] DH5Ant1 24022.883.7576.801.15 24412.883.7576.801.15 24802.893.7577.071.13 2DH5Ant1 24022.883.7576.801.15 24412.883.7576.801.15 24802.893.7676.861.14 3DH5Ant1 24022.893.…

Text truncated - open the document above for the full version.

ReportNo.:18360WC30010301FCCID:2BASNRC1000MV1000Page1of33 Code:AB-RF-05-b FCCTestReport Applicant:HuizhouIntelligentEnergyCo.,Ltd. Address: 8-9/F,Bldg.E2,QunyiIndustrialPark,Sanhe Avenue,TonghuTown,ZhongkaiHigh-tech Zone,HuiZhou,516039,China ProductName:PORTABLEPOWERSTATION ReportDate:Aug.24,2023 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18360WC30010301FCCID:2BASNRC1000MV1000Page2of33 Code:AB-RF-05-b Contents 1.GeneralInformation ............................................................................................................................................6 1.1.ClientInformation ....................................................................................................................................6 1.2.DescriptionofDevice(EUT) ..................................................................................................................6 1.3.AuxiliaryEquipmentUsedDuringTest .................................................................................................8 1.4.DescriptionofTestConfiguration ..........................................................................................................8 1.5.DescriptionOfTestSetup ......................................................................................................................9 1.6.TestEquipmentList ...............................................................................................................................10 1.7.MeasurementUncertainty ....................................................................................................................11 1.8.DescriptionofTestFacility ...................................................................................................................11 2.SummaryofTestResults .................................................................................................................................12 3.ConductedEmissionTest ................................................................................................................................13 3.1.TestStandardandLimit ........................................................................................................................13 3.2.TestSetup ...............................................................................................................................................13 3.3.TestProcedure .......................................................................................................................................13 3.4.TestData .................................................................................................................................................13 4.RadiationSpuriousEmissionandBandEdge .............................................................................................16 4.1.TestStandardandLimit ........................................................................................................................16 4.2.TestSetup ...............................................................................................................................................16 4.3.TestProcedure .......................................................................................................................................17 4.4.TestData .................................................................................................................................................18 5.MaximumPeakOutputPowerTest ...............................................................................................................26 5.1.TestStandardandLimit ........................................................................................................................26 5.2.TestSetup ...............................................................................................................................................26 5.3.TestProcedure .......................................................................................................................................26 5.4.TestData .................................................................................................................................................26 6.20dBOccupyBandwidthTest .........................................................................................................................27 6.1.TestStandard .........................................................................................................................................27 6.2.TestSetup ...............................................................................................................................................27 6.3.TestProcedure .......................................................................................................................................27 6.4.TestData .................................................................................................................................................27 7.CarrierFrequencySeparationTest ................................................................................................................28 7.1.TestStandardandLimit ........................................................................................................................28 7.2.TestSetup ...............................................................................................................................................28 7.3.TestProcedure .......................................................................................................................................28 7.4.TestData .................................................................................................................................................28 8.NumberofHoppingChannelTest ..................................................................................................................29 8.1.TestStandardandLimit .................................................…

Text truncated - open the document above for the full version.

version01 HuizhouIntelligentEnergyCo.,Ltd. DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:RC1000 FCCID:2BASNRC1000MV1000 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsforinternalantennatype(s) describedbelow: ModelNo.ofantenna:2.4GANT Typeofantenna:PCBAntenna Gainoftheantenna:-0.58dBi Frequencyrange:2400~2500MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:HuizhouIntelligentEnergyCo.,Ltd. Address:8-9/F,Bldg.E2,QunyiIndustrialPark,SanheAvenue,TonghuTown, ZhongkaiHigh-techZone,HuiZhou,China City:HuiZhou ZIP/Postalcode:/ Country:China Place:HuiZhouDate:8/24/2023 Signature:

Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Horizontal Vertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dB Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

ProjectNo.:18360WC300103Page1of2 Code:AB-RF-05-b AppendixI--TestSetupPhotograph PhotoofConductedEmissionMeasurement PhotoofRadiationEmissionTest ProjectNo.:18360WC300103Page2of2 Code:AB-RF-05-b
