Quick Start Guide Hub D50 1 Hub D50 1 Product Introduction Hub D50 1 Parental control The Xunison Hub D50 is a powerful Mesh Wi-Fi system that uses Wi-Fi 6 technology to provide high-speed internet up to 5400 Mbps. It supports numerous devices and maintains high data rates and signal quality even with multiple devices connected, providing a stable and uninterrupted internet connection. Wi-Fi 6 This device supports Wi-Fi 6 and is compatible with various Wi-Fi standards, including older ones, for reliable connections with a range of devices. Mesh Mesh technology boosts Wi-Fi coverage, eliminates dead zones, and ensures reliable connection. It also offers easy setup with rapid one-button pairing. This feature helps parents monitor and control their child's internet activity. It includes web content filtering, time limits, and social supervision, promoting online safety and responsible habits. 2 Product Installation Hub D50 2 2.1 Ensure the cables are connected. 1. Connect the power cable (labeled “1”) to the device. 2. Press the power button (labeled “2”) to turn on the device. 2 1 Hub D50 3 Step 1: Connect your mobile device to the Xunison Hub D50 net- Step 2:To install the Xunison app, you can either scan the QR code OR Step 2: Alternatively, you can also download the Xunison app from After installing the app, log in with your registered account to access the features of the Xunison Hub D50. 3 Product Configuration work by entering the Wi-Fi details printed on the device sticker. on the welcome card. Google Play store or App store. 4 LED Indicators Hub D50 4 System fully loaded No internet connection Internet connected Wi-Fi ON Wi-Fi OFF Solid Green OFF OFF Solid Green Power Power System OFF OFF Solid Green Solid Green Internet Internet Wi-Fi Wi-Fi Powered ON Powered OFF System is loading SYS LEDs StatusColorSymbol Hub D50 5 Mesh Gateway Satellite Solid Green Blinking Green Quick Blinking Orange Solid Green Blinking Red Mesh Mesh Mesh Network Connected/Regular Gateway Pairing LED Satellite Pairing Successfully paired Mesh Failed ModeColor Symbol Status 5 Ports and Interfaces Hub D50 6 Ports Description 3GE x LAN To connect PCs, Laptops, etc. via Ethernet cables. USB 2.0 1GE x WAN DC jack To charge devices such as smart phone, power bank etc. Connect Ethernet cable from Xunison Hub D50 router to ISP source. For power supply( 12V 2A ). POWER Turn the device On/Off PAIR RESET Long press the PAIR button for 5-10 seconds to setup the Mesh mode. Press the “RESET” button for 10 seconds to factory reset the device to default settings. Button Description Button Description 6 Safety Guidelines Hub D50 7 General tips: Use only original and certified cables. Avoid exposing the device to water during storage, transportation, and operation. Keep the device away from heat sources and ensure adequate ventilation. Do not use any corrosive cleaner/oil to clean the device. Keep the device out of reach of children. Installation tips: Check the cable connections after installing the device. Place the Xunison Hub D50 in an appropriate location for seamless internet connectivity. Restart the device in case of any internet connectivity problems. Change your Wi-Fi passwords regularly. Caution: Do not disassemble the device in case of malfunction or damage. Instead, change the connections and contact technical support for assistance. 7 RF Parameters Hub D50 8 (EIRP) 2.4 GHz Wi-Fi 5 GHz Wi-Fi 5150 ~ 5850 MHz Support Function Frequency Range Transmit Power For answers to your support questions and to access the latest downloads and product services, please visit xunison.com/support. If you experience any issues with our product features or function- ality, you can also submit a ticket for assistance. 2412-2462MHz 22.76dBm 25.47dBm Hub D50 9 Disposal Note It is important to properly dispose of electronic waste to prevent harm to the environment and human health. This product should be taken to a designated collection point for recycling of waste electrical and elec- tronic equipment. You can contact your household waste disposal service or the seller of the product for more information on where to drop off your waste equipment for recycling. This means that the device is only permitted to operate on Wireless Access Systems, such as radio local area networks, within the frequency band of 5150-5350 MHz for indoor use only, and only within the coun- tries of the European Union listed: BE/BG/CZ/DK/DE/EE/IE/EL/ES/FR/ The device is not permitted to operate outdoors within this frequency band or in other countries outside of the EU without the appropriate reg- ulatory approvals. HR/IT/CY/LV/LT/LU/HU/MT/NL/AT/PL/PT/RO/SI/SK/FI/SE/TR/ NO/CH/IS/LI/UK(NI). Hub D50 10 Declaration of Conformity Hereby, Xunison Ltd. declares that the radio equipment type D50 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: xuni- son.com/support Compliance Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful inter- ference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with …

Text truncated - open the document above for the full version.

Xunison Inc Address: 11720 Amber Park Dr. Suite 160 Atlanta, GA 30009 United States Tel: (470) 406-9510 Email: [email protected] QA-FR-169-B Date: 2023-06-02 Declaration Letter FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Xunison Inc, hereby declare that we have a product named as Xunison Hub, Model: D50, FCC ID: 2BAT3D50 was changed based on the certified device, model: D50 Home (FCC ID: 2BAT3D50H), which granted on06/01/2023. The changes as below: 1. a ZigBee module was removed. Based on the above differences, it will affect the test data for the AC Line Conducted Emissions, Spurious Emissions, Maximum Conducted Output Power for 2.4G Wi-Fi and Conducted Emissions, Undesirable Emission& Restricted Bands, Conducted Transmitter Output Power for 5G Wi-Fi, the related items were performed. The other test data please refer to the report: RA221215-61881E-RF-00B/-00C/-00D. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely Yours, Signature Mr Eoin Cruise VP Sales

Xunison Inc Address: 11720 Amber Park Dr. Suite 160 Atlanta, GA 30009 United States Tel: (470) 406-9510 Email: [email protected] Date: 2023-03-15 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attestation letter Dear Sir or Madam, Our product Xunison Hub, model: D50, FCC ID: 2BAT3D50, for marketing purpose, this product only supports 2.4G Wi-Fi(2412-2462MHz, 802.11b/g/n20/n40/ax20/ax40 modes), 5G Wi-Fi(5150-5250MHz; 5250-5350MHz; 5470-5725MHz; 5725-5850 MHz, 802.11a/n20/n40/ac20/ac40/ac80/ac160/ax20/ ax40/ax80/ax160 modes). For 802.11AX mode, the device not support "Channel Puncturing" function. The other functions, bands and modes was disabled to use by manufacture in the software, the end user has no capability to activate it. Sincerely, Signature Mr Eoin Cruise VP Sales

Xunison Inc Address: 11720 Amber Park Dr. Suite 160 Atlanta, GA 30009 United States Tel: (470) 406-9510 Email: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 03/15/2023 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2BAT3D50 Xunison Inc certifies that the equipment for which authorization is sought, is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Mr Eoin Cruise VP Sales

Xunison Inc Address: 11720 Amber Park Dr. Suite 160 Atlanta, GA 30009 United States Tel: (470) 406-9510 Email: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter Attestation Letter Date: 03/15/2023 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2BAT3D50 Xunison Inc certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Mr Eoin Cruise VP Sales

U.S. AGENT LETTER OF ATTESTATION Date: 2023-03-15 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2BAT3D50 Xunison Inc certifies that, as of the date of the filing of the application, Xunison Inc is our designated U.S. agent for service of process for the above referenced FCC ID. Xunison Inc accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Xunison Inc accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent and Applicant Information: Name: Xunison Inc Address: 11720 Amber Park Dr. Suite 160 Atlanta, GA 30009 United States Tel: (470) 406-9510 FRN: 0033510983 Email: [email protected] Signed by (printed name): Mr Eoin Cruise Signature:

Xunison Inc Address: 11720 Amber Park Dr. Suite 160 Atlanta, GA 30009 United States Tel: (470) 406-9510 Email: [email protected] FCC Confidential Authorization Date: 2023-3-15 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2BAT3D50 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Xunison Inc hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • Software Security Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours Signature: Mr Eoin Cruise VP Sales

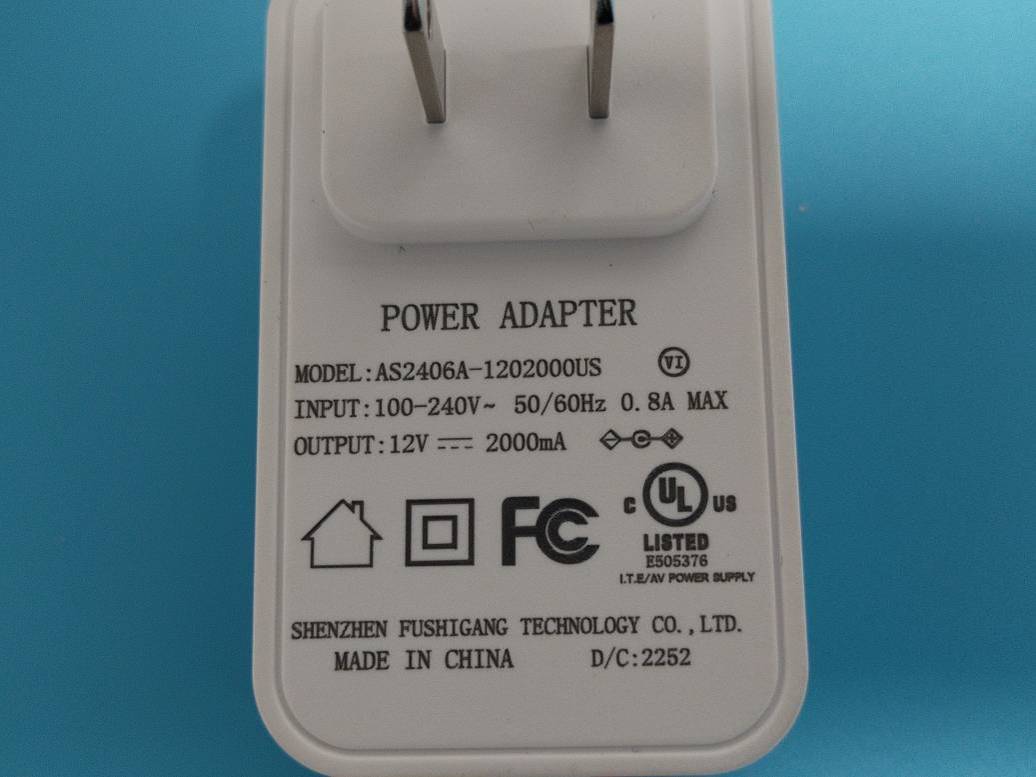

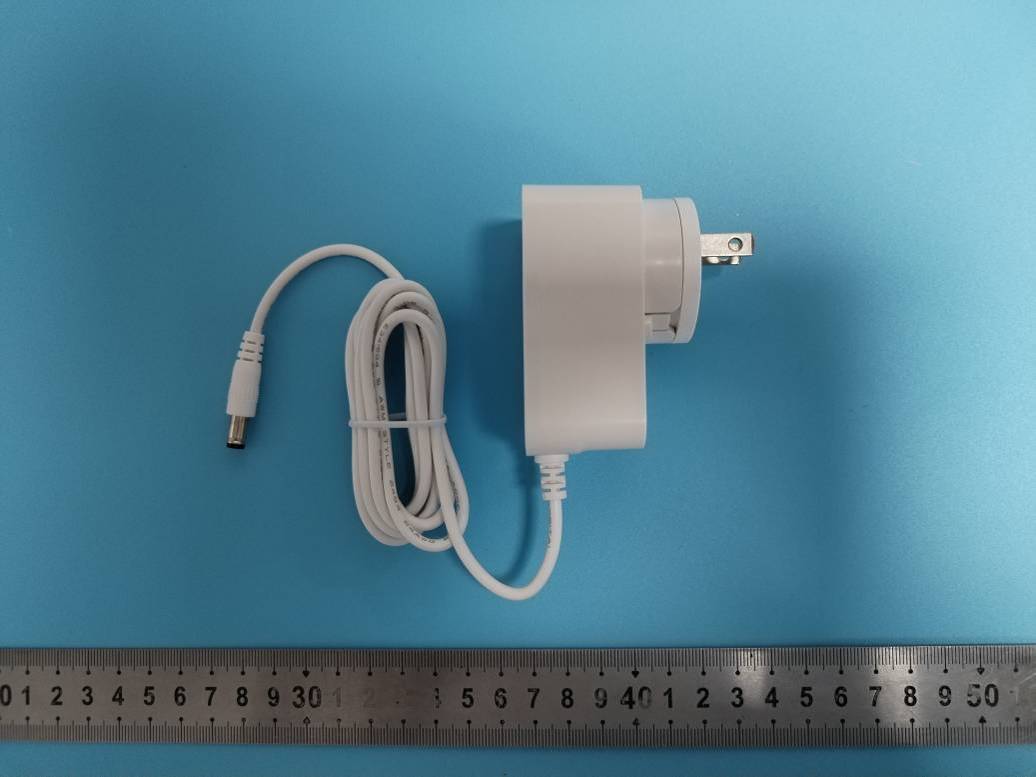

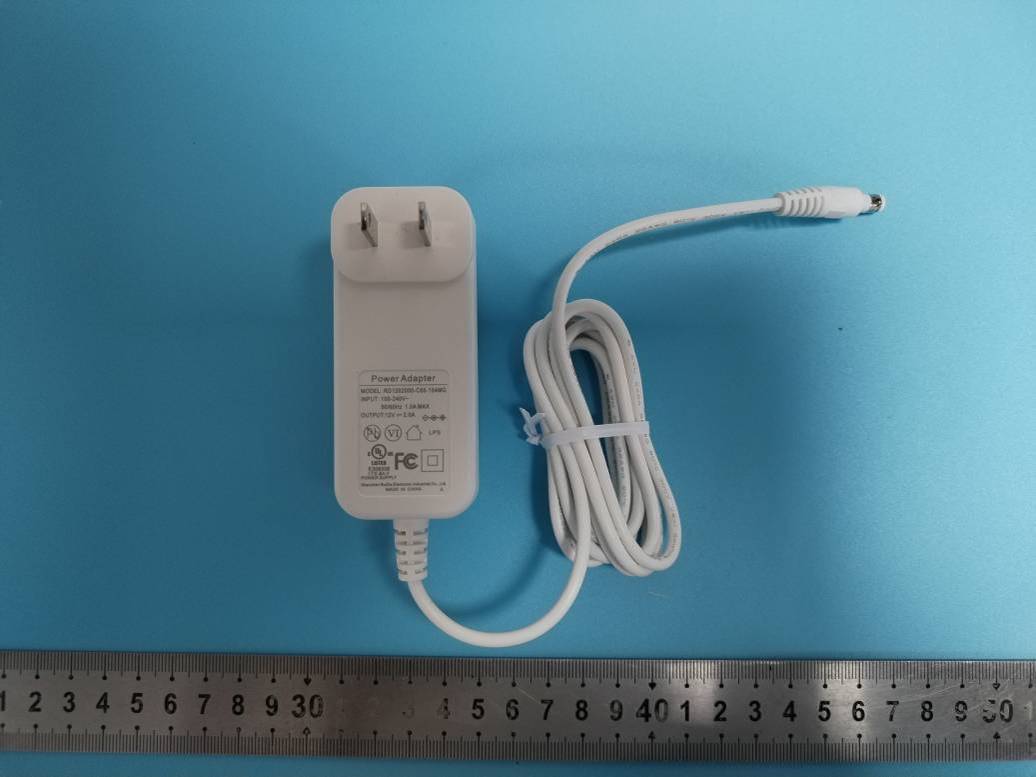

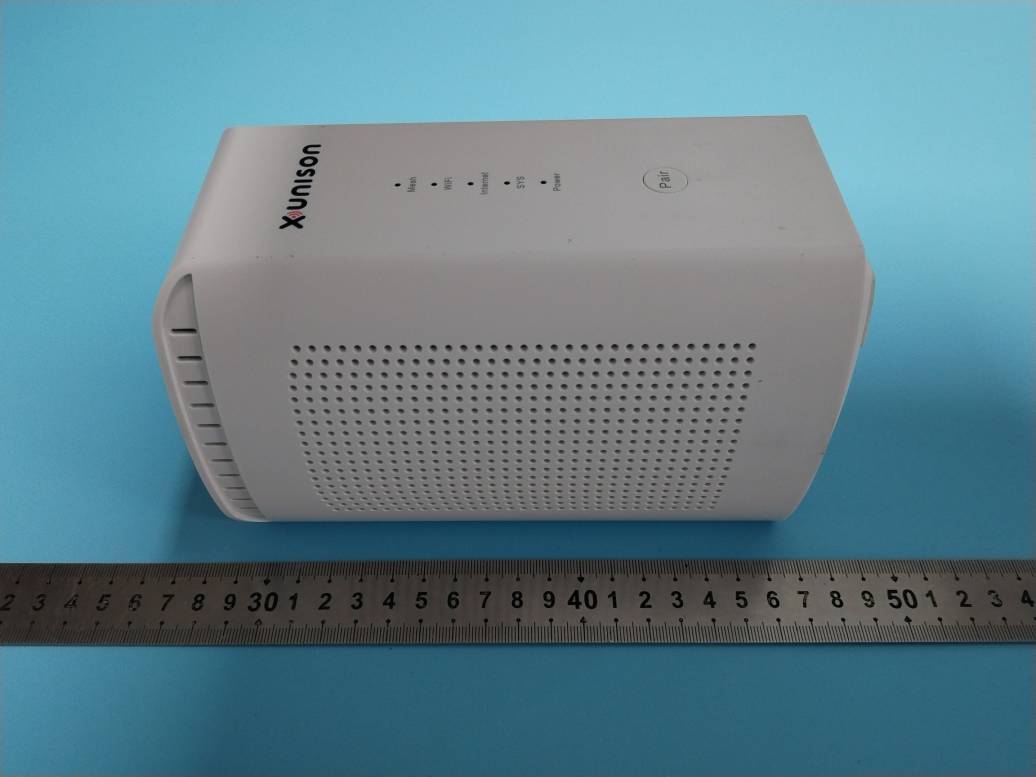

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221215-61882E-RF External Photos Page 1 of 6 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA221215-61882E-RF External Photos Page 2 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221215-61882E-RF External Photos Page 3 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221215-61882E-RF External Photos Page 4 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221215-61882E-RF External Photos Page 5 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221215-61882E-RF External Photos Page 6 of 6

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221215-61882E-RF LABEL AND LOCATION Page 1 of 1 FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221215-61882E-RF Internal Photos Page 1 of 11 Internal photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA221215-61882E-RF Internal Photos Page 2 of 11 2.4G&5G ANT 0 2.4G&5G ANT 1 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221215-61882E-RF Internal Photos Page 3 of 11 5G ANT 2 5G ANT 3 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221215-61882E-RF Internal Photos Page 4 of 11 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221215-61882E-RF Internal Photos Page 5 of 11 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221215-61882E-RF Internal Photos Page 6 of 11 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221215-61882E-RF Internal Photos Page 7 of 11 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221215-61882E-RF Internal Photos Page 8 of 11 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221215-61882E-RF Internal Photos Page 9 of 11 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221215-61882E-RF Internal Photos Page 10 of 11 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221215-61882E-RF Internal Photos Page 11 of 11

Shenzhen Accurate Technology Co., Ltd. Report No.: RA221215-61882E-RF-00B Version 10: 2021-11-09 Page 15 of 93 FCC-5G Wi-Fi FCC §1.1307 (B) (3) & §2.1091- MPE-BASED EXEMPTION Applicable Standard According to subpart 1.1307 (b) (3) and subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. According to KDB 447498 D04 Interim General RF Exposure Guidance MPE-Based Exemption: General frequency and separation-distance dependent MPE-based effective radiated power(ERP) thresholds are in Table B.1 [Table 1 of § 1.1307(b)(1)(i)(C)] to support an exemptionfrom further evaluation from 300 kHz through 100 GHz. Ris the minimum separation distance in meters f = frequency in MHz For multiple RF sources: Multiple RF sources are exempt if: in the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation: Shenzhen Accurate Technology Co., Ltd. Report No.: RA221215-61882E-RF-00B Version 10: 2021-11-09 Page 16 of 93 FCC-5G Wi-Fi Result Mode Frequency (MHz) Tune up conducted power Antenna Gain ERP Evaluation Distance (m) ERP Limit (W) (dBm) (dBi)(dBd)(dBm)(W) 2.4G Wi-Fi 2412-2462 18.0 5 2.85 20.85 0.122 0.2 0.768 5G Wi-Fi 5150-5250 19.0 5 2.85 21.85 0.153 0.2 0.768 5250-5350 21.0 5 2.85 23.85 0.243 0.2 0.768 5470-5725 21.0 5 2.85 23.85 0.243 0.2 0.768 5725-5850 20.0 5 2.85 22.85 0.193 0.2 0.768 Note: 1. The tune up conducted power and antenna gain was declared by the applicant. 2. The 2.4G Wi-Fi and 5G Wi-Fi can Simultaneous transmitting 3. 0dBd=2.15dBi Simultaneous transmitting consideration (worst case): The ratio=ERP 2.4G Wi-Fi /limit+ERP 5G Wi-Fi /limit =0.122 /0.768+0.243/0.768=0.475＜1.0, so simultaneous exposure is compliant. To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliant.

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk ★ “”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be Ave.ailable only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 10: 2021-11-09 Page 1 of 93 FCC-5G Wi-Fi TEST REPORT Applicant Name : Xunison Inc Address : 11720 Amber Park Dr.Suite 160 Atlanta, GA 30009 United States Report Number : RA221215-61882E-RF-00B FCC ID: 2BAT3D50 Test Standard (s) FCC PART 15.407 Sample Description Product Type: Xunison Hub Model No.: D50 Multiple Model(s) No.: N/A Trade Mark: XUNISON Date Received: 2022/12/15 Report Date: 2023/06/13 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Nick Fang Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: RA221215-61882E-RF-00B Version 10: 2021-11-09 Page 2 of 93 FCC-5G Wi-Fi TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 3 GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 EQUIPMENT MODIFICATIONS ..................................................................................................................................... 10 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................. 10 EXTERNAL I/O CABLE ................................................................................................................................................ 11 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 11 SUMMARY OF TEST RESULTS ............................................................................................................................. 13 TEST EQUIPMENT LIST ......................................................................................................................................... 14 FCC §1.1307 (B) (3) & §2.1091- MPE-BASED EXEMPTION ................................................................................ 15 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 17 APPLICABLE STANDARD ............................................................................................................................................ 17 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 17 FCC §15.407 (B) (6) §15.207 (A) – CONDUCTED EMISSIONS ............................................................................ 18 APPLICABLE STANDARD ............................................................................................................................................ 18 EUT SETUP ................................................................................................................................................................ 18 EMI TEST RECEIVER SETUP ....................................................................................................................................... 18 TEST PROCEDURE ...................................................................................................................................................... 18 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 19 TEST DATA ................................................................................................................................................................ 19 §15.205 & §15.209 & §15.407…

Text truncated - open the document above for the full version.

深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. ADD: 深圳市宝安西乡鹤洲西区工业园2栋3楼 3rd Floor, Building 2, Industrial Park, Hezhou West District, Bao'an West Township, Shenzhen Email: [email protected] TEL: 86-0755-29955983 FAX: 86-0755-29955983 产品（Product）: 5G antenna(L=210mm) 型号（Model）: D50 home 料号（Part Number）: Z02-10361-R01 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. The basic parameters A. Electrical Characteristics Frequency 5150 MHz ~5850MHz VSWR ≤2 Efficiency >60% Impedance 50 Ohm Polarization Linear Gain 5.36dBi B. Material & Mechanical Characteristics Material of Radiator Cable Type 5G Φ1.13mm Red Connector Type IPEX Dimension C. Environmental Operation Temperature - 20 ̊C ~ + 60 ̊C Storage Temperature - 40 ̊C ~ + 80 ̊C 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. Product Drawing: 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. Test Equipment & Conditions 1． Network Analyzers : Agilent 8753D 5071C 2． Communications Test Set: Agilent 8960 CMW500 3． 3D Chamber Test System 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. (5G) SWR Smith 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. 效率&增益: Efficency&Gain Freq(MHz) Effi(%) Gain(dBi) 5150 63.71 4.31 5200 64.02 4.24 5250 68.79 3.94 5300 65.47 3.84 5350 67.60 5.00 5400 72.90 4.84 5450 72.70 5.00 5500 66.47 4.81 5550 73.72 4.81 5600 71.20 5.00 5650 71.70 5.00 5700 69.14 5.00 5750 66.85 3.87 5800 72.30 4.09 5850 69.33 4.28 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. 方向图 Patten 3D 5150MHz 5550MHz 5850MHz

深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. ADD: 深圳市宝安西乡鹤洲西区工业园2栋3楼 3rd Floor, Building 2, Industrial Park, Hezhou West District, Bao'an West Township, Shenzhen Email: [email protected] TEL: 86-0755-29955983 FAX: 86-0755-29955983 产品（Product）: 5G antenna(L=90mm) 型号（Model）: D50 home 料号（Part Number）: Z02-10362-R01 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. The basic parameters A. Electrical Characteristics Frequency 5150 MHz ~5850MHz VSWR ≤2 Efficiency >60% Impedance 50 Ohm Polarization Linear Gain 4.98dBi B. Material & Mechanical Characteristics Material of Radiator Cable Type 5G Φ1.13mm White Connector Type IPEX Dimension C. Environmental Operation Temperature - 20 ̊C ~ + 60 ̊C Storage Temperature - 40 ̊C ~ + 80 ̊C 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. Product Drawing: 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. Test Equipment & Conditions 1． Network Analyzers : Agilent 8753D 5071C 2． Communications Test Set: Agilent 8960 CMW500 3． 3D Chamber Test System 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. (5G) SWR Smith 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. 效率&增益: Efficency&Gain Freq(MHz) Effi(%) Gain(dBi) 5150 63.07 3.07 5200 67.47 3.49 5250 68.29 3.18 5300 70.62 3.06 5350 71.14 4.38 5400 72.90 4.15 5450 73.90 4.04 5500 69.04 3.85 5550 71.33 4.29 5600 73.50 4.23 5650 69.99 4.77 5700 63.56 4.40 5750 61.64 4.29 5800 69.22 5.00 5850 64.80 4.77 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. 方向图 Patten 3D 5150MHz 5550MHz 5850MHz

深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. ADD: 深圳市宝安西乡鹤洲西区工业园2栋3楼 3rd Floor, Building 2, Industrial Park, Hezhou West District, Bao'an West Township, Shenzhen Email: [email protected] TEL: 86-0755-29955983 FAX: 86-0755-29955983 产品（Product）: 5G antenna(L=145mm) 型号（Model）: D50 home 料号（Part Number）: Z02-10363-R01 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. The basic parameters A. Electrical Characteristics Frequency 5150 MHz ~5850MHz VSWR ≤2 Efficiency >60% Impedance 50 Ohm Polarization Linear Gain 4.51dBi B. Material & Mechanical Characteristics Material of Radiator Cable Type 5G Φ1.13mm White Connector Type IPEX Dimension C. Environmental Operation Temperature - 20 ̊C ~ + 60 ̊C Storage Temperature - 40 ̊C ~ + 80 ̊C 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. Product Drawing: 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. Test Equipment & Conditions 1． Network Analyzers : Agilent 8753D 5071C 2． Communications Test Set: Agilent 8960 CMW500 3． 3D Chamber Test System 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. (5G) SWR Smith 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. 效率&增益: Efficency&Gain Freq(MHz) Effi(%) Gain(dBi) 5150 62.12 4.34 5200 64.08 4.29 5250 64.58 4.32 5300 61.52 4.43 5350 68.75 4.38 5400 68.95 4.40 5450 68.95 4.30 5500 65.46 4.43 5550 64.45 4.46 5600 63.87 4.34 5650 63.08 4.43 5700 62.32 4.35 5750 60.71 5.00 5800 64.09 4.49 5850 66.52 4.31 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. 方向图 Patten 3D 5150MHz 5550MHz 5850MHz 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. 2D XOY ZOX ZOY

深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. ADD: 深圳市宝安西乡鹤洲西区工业园2栋3楼 3rd Floor, Building 2, Industrial Park, Hezhou West District, Bao'an West Township, Shenzhen Email: [email protected] TEL: 86-0755-29955983 FAX: 86-0755-29955983 产品（Product）: 5G antenna(L=230mm) 型号（Model）: D50 home 料号（Part Number）: Z02-10364-R01 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. The basic parameters A. Electrical Characteristics Frequency 5150 MHz ~5850MHz VSWR ≤2 Efficiency >60% Impedance 50 Ohm Polarization Linear Gain 3.92dBi B. Material & Mechanical Characteristics Material of Radiator Cable Type 5G Φ1.13mm Black Connector Type IPEX Dimension C. Environmental Operation Temperature - 20 ̊C ~ + 60 ̊C Storage Temperature - 40 ̊C ~ + 80 ̊C 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. Product Drawing: 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. Test Equipment & Conditions 1． Network Analyzers : Agilent 8753D 5071C 2． Communications Test Set: Agilent 8960 CMW500 3． 3D Chamber Test System 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Confidential © 2023 Free Walk Corporation. All rights reserved. (5G) SWR Smith 深圳自由行通信技术有限公司 Shenzhen Free Walk Communication Technology Co. LTD Free Walk Proprietary & Con…
