2BAV5-LP5LaserPecker LP5

LaserPecker LP5 使用說明書使用说明书 取扱説明書사용자매뉴얼 User Manual 2024.05v1.0 简体中文 日本語 English 한국인 繁體中文 01 17 21 31 41 · · · · · · · · · · · 1 General Safety Information Only use this machine in accordance with these instructions and all applicable local and national laws and regulations. Read and get familiar with all safety precautions and procedures before using the machine. Strictly follow all safety precautions. Ensure that the machine is properly assembled and is working properly. DO NOT allow use by minors, by untrained personnel, or by any personnel su­ering from any physical or mental limitation that might a­ect their ability to use the machine safely and properly. Ensure that the workspace is clean and flat. Keep the area around the machine dry, well ventilated, and environmentally controlled to 50–95°F (10–35°C) and 10–95% humidity. DO NOT leave the machine unaŒended during operation. In the event of the following situations, please stop using the machine and cut o­ the power immediately: A burning smell is detected coming from the machine. Open flames or sparks are observed being generated from the engraving material. Any components of the machine appear to be damaged or malfunctioning. Unexpected cessation of machine operation for no clear reason. Abnormal sounds, smoke, or unusual lighting are emiŒed from the machine. Safety Information Software Download Package List Quick Assembly Meet the LP5 Before using the prodcut Connecting Software Using the product Maintenance Technical Specifications Statements 01 03 04 05 08 09 10 12 14 15 16 Contents 01 Safety Information The LP5 Basic is a Class 4 laser system. When assembled and locked with a safety enclosure, the laser system is Class 1. The active laser and its reflections can rapidly cause fires, burns, and permanent vision damage. Under normal circumstances, the laser is blocked by the protective cover or safety enclosure during operation. Before using the machine, ensure that the protective cover or safety enclosure is installed properly. If it cannot fully cover the object, you need to wear safety goggles that can shield your eyes from the laser beams. During operation, the materials being engraved or cut may release toxic and harmful gases or fumes. Depending on the type and composition of the engraving/cuŒing materials, these emissions can pose health and environmental risks. To ensure safe use, it is recommended to use this machine with an air purifier to e­ectively absorb and filter any toxic or harmful gases and fumes generated. DO NOT use this laser in dewy, dusty, or high-EMI conditions where the active laser might easily be deflected or reflected. 2 Laser Safety 3 Emergency Measures Only use the machine with stable and compatible power sources. This machine requires a 24V/7.5A power adapter. Failure to use the compatible power adapter can result in machine malfunction. Do not allow any electronic component to become wet and always fully disconnect the machine from power before undertaking cleaning, adjustment, maintenance, or repair. · · Safety Information 02 Warning and instruction labels are put on places that may pose a risk before or during operation. If the label is broken or lost, you can use the following templates to print and apply the label you need to instruct others' operations. AVOID EYE OR SKIN EXPOSURE TO DIRECT OR SCATTERED RADIATION Warning Labels · · · · Software Download Ge­ing Help Scan the QR code below to download and install the LaserPecker Design Space App. If you encounter any issues, please do not hesitate to reach out to our customer support team at [email protected] YouTube: @LaserPecker Download App Download PC Software Scan the QR code below to learn how to use the machine. Contact Us Video Tutorials Facebook Group: @LP5 O­icial Group LaserPecker Design Space https://software.laserpecker.net/ Please visit hŒps://www.laserpecker.net/pages/software to download the PC software. 03 Please follow the operation guide and read the warnings and precautions in the App carefully. Cable 1.5m x 1 & 1.0m x 1 USB Flash Drive x 1 Power Cable x 1 /Power Adapter x 1 L-shaped Positioner x 2 Pipe x 1 Conical Protective Cover x 1 Cable Organizer x 1 Laser Unit x 1 Hex Key H1.5 x 1 H2 x 1 H2.5 x 1 M2.5 Screws x 4 Electric Stand x 1Base Plate x 1 Safety Goggles x 1 Security Key x 2 Material Pack x 1 Package List Listed below are free gifts. Items are subject to change without notice. 04 Tighten the knob Electric Stand Assembly Use the Hex key H2.5 to install the 4 M2.5 screws at the boŒom of the Base plate to secure the Electric stand. 1 2. AŒach the Laser unit to the Electric stand by turning the knob counter-clockwise. 2 Quick Assembly 05 Conical Protective Cover Installation Place the Conical protective cover below the Laser unit. Secure the cover to the Laser unit by tightening the 2 screws on top of the cover. 1 AŒach the Front light filter. 2 Quick Assembly 06 07 Quick Assembly Cable Connection Connect the power cable and power adpater to a power supply. Connect one end of the �.�m cable to the power port on the Electric stand. Connect the Conical protective cover to the port. the other end to the power output on the Laser Unit. 4567 213 4 5 6 7 DC power port Security key USB-C port for computer connection Power output for electric stand Accesory port Conical protective cover port USB port for flash drive 1 2 3 Preview button Emergency stop button Laser unit indicator Field lens Down button Up button Electric stand indicator Pause/Resume button Dual red spots for focusing Field lens cover Electric stand power port Component Introduction Laser Unit Indicator Solid yellow: Powering on Blinking blue: Connected to network Solid blue: Connected to Software Blinking white: Not connected to network Solid white: Connecting to network Blinking green: File in transit Solid green: Engraving in progress Solid red: Emergency stopped and disconnected Blinking red, blue: Firmware updating 08 Install the Pipe The Protective …

Text truncated - open the document above for the full version.

ShenzhenHinginTechnologyCo.Ltd 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname:ShenzhenHinginTechnologyCo.Ltd Address:Room4001,WestTowerofGalaxyTwinTowers,No.8YaxingRoad,LonggangDistrict, Shenzhen,GuangdongChina518000 ProductName:LaserPeckerLP5 FCCID:2BAV5-LP5 Model(s):LP5 2.911(d)(5)(i)EquipmentType We,[ShenzhenHinginTechnologyCo.Ltd](“theapplicant”)certifythattheequipmentforwhich authorizationissoughtthroughcertificationisnot:  Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules.  Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Name:ChangjianZhaoDate:2024.8.12 TitleandCompanyname:Manager/ShenzhenHinginTechnologyCo.Ltd NOTE1 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

ShenzhenHinginTechnologyCo.Ltd 2.911(d)(5)(ii)ApplicantAttestationv1.3 Section2.911(d)(5)(ii)Certification–Applicant(CoveredList) Companyname:ShenzhenHinginTechnologyCo.Ltd Address:Room4001,WestTowerofGalaxyTwinTowers,No.8YaxingRoad,LonggangDistrict, Shenzhen,GuangdongChina518000 ProductName:LaserPeckerLP5 FCCID:2BAV5-LP5 Model(s):LP5 2.911(d)(5)(ii)Applicantfiling We,[ShenzhenHinginTechnologyCo.Ltd](“theapplicant”)certifythat,asofthedateofthefilingof theapplication,theapplicantisnotidentified NOTE1 onthe“CoveredList” NOTE2 ,established pursuantto§1.50002ofthischapter,asanentityproducingcoveredcommunicationsequipment. Yourssincerely, Name:ChangjianZhaoDate:2024.8.12 TitleandCompanyname:Manager/ShenzhenHinginTechnologyCo.Ltd NOTE1 Deleteoptionnotapplicabletothisapplication. NOTE2 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Hingin Technology Co.Ltd 2.911 (d)(7)USA Agent v1.5 Section 2.911(d)(7) USA Agent for Service of Process Company name:Shenzhen Hingin Technology Co.Ltd Address:Room 4001, West Tower of Galaxy Twin Towers, No. 8 Yaxing Road, Longgang District, Shenzhen, Guangdong China 518000 Product Name:LaserPecker LP5 FCC ID: 2BAV5-LP5 Model(s):LP5 2.911(d)(7) USA Designated Agent for Service of Process We, [Shenzhen Hingin Technology Co.Ltd] (“the applicant”) designate [Stone Trading Limited] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: Stone Trading Limited USA Address: 6547 N Academy Blvd #2266, Colorado Springs, CO 80918, United States FRN Number: 0033401936 Contact Name: Dongmei Fang Telephone No: +12134573118 Email: [email protected] Applicant Company name:Shenzhen Hingin Technology Co.Ltd Address:Room 4001, West Tower of Galaxy Twin Towers, No. 8 Yaxing Road, Longgang District, Shenzhen, Guangdong China 518000 Grantee FRN Number:0033668633 FCC Grantee Code:2BAV5 Contact Name:ChangjianZhao Telephone No:15622878781 Email:[email protected] Signature: Shenzhen Hingin Technology Co.Ltd 2.911 (d)(7)USA Agent v1.5 Title: Manager Signature: Title:Manager Date: 2024.8.12 Date:2024.8.12 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

ShenzhenHinginTechnologyCo.Ltd AgentAuthorization Company:ShenzhenHinginTechnologyCo.Ltd Address:Room4001,WestTowerofGalaxyTwinTowers,No.8YaxingRoad, LonggangDistrict,Shenzhen,GuangdongChina518000 ProductName:LaserPeckerLP5 ModelNumber(s):LP5 ProductDescription:LaserPeckerLP5 WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2024.8.12 Name:ChangjianZhao Title:Manager Company:ShenzhenHinginTechnologyCo.Ltd

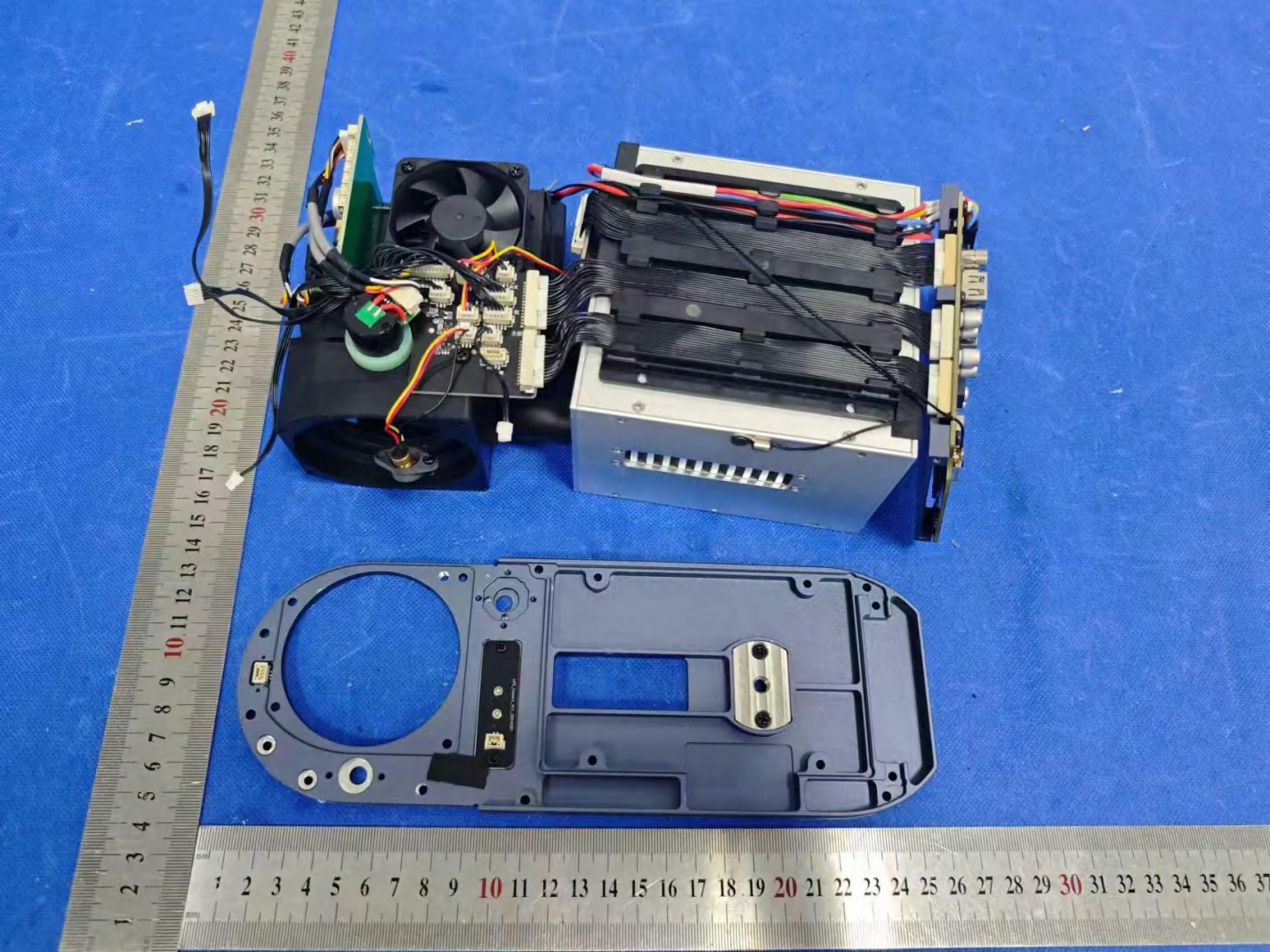

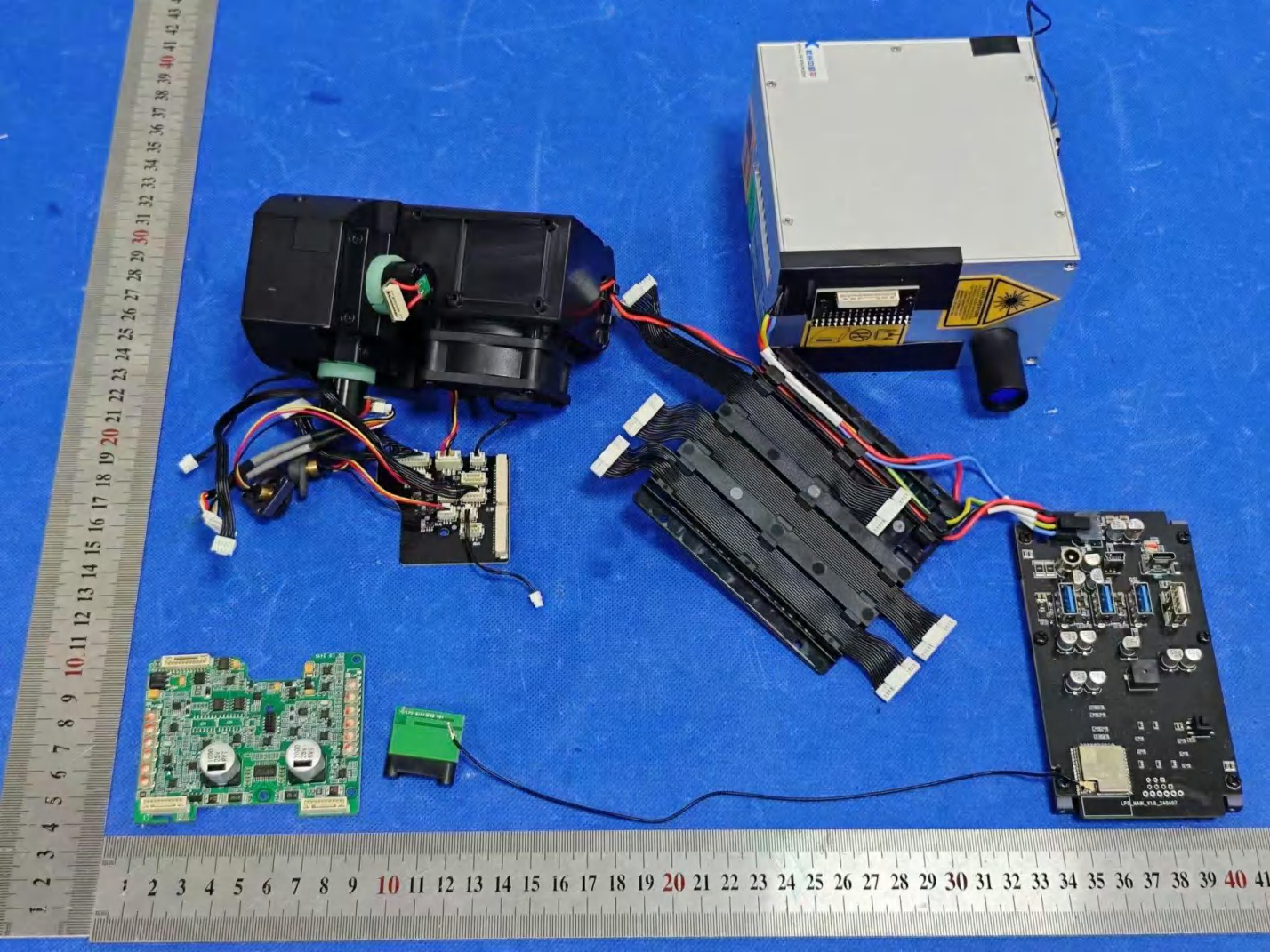

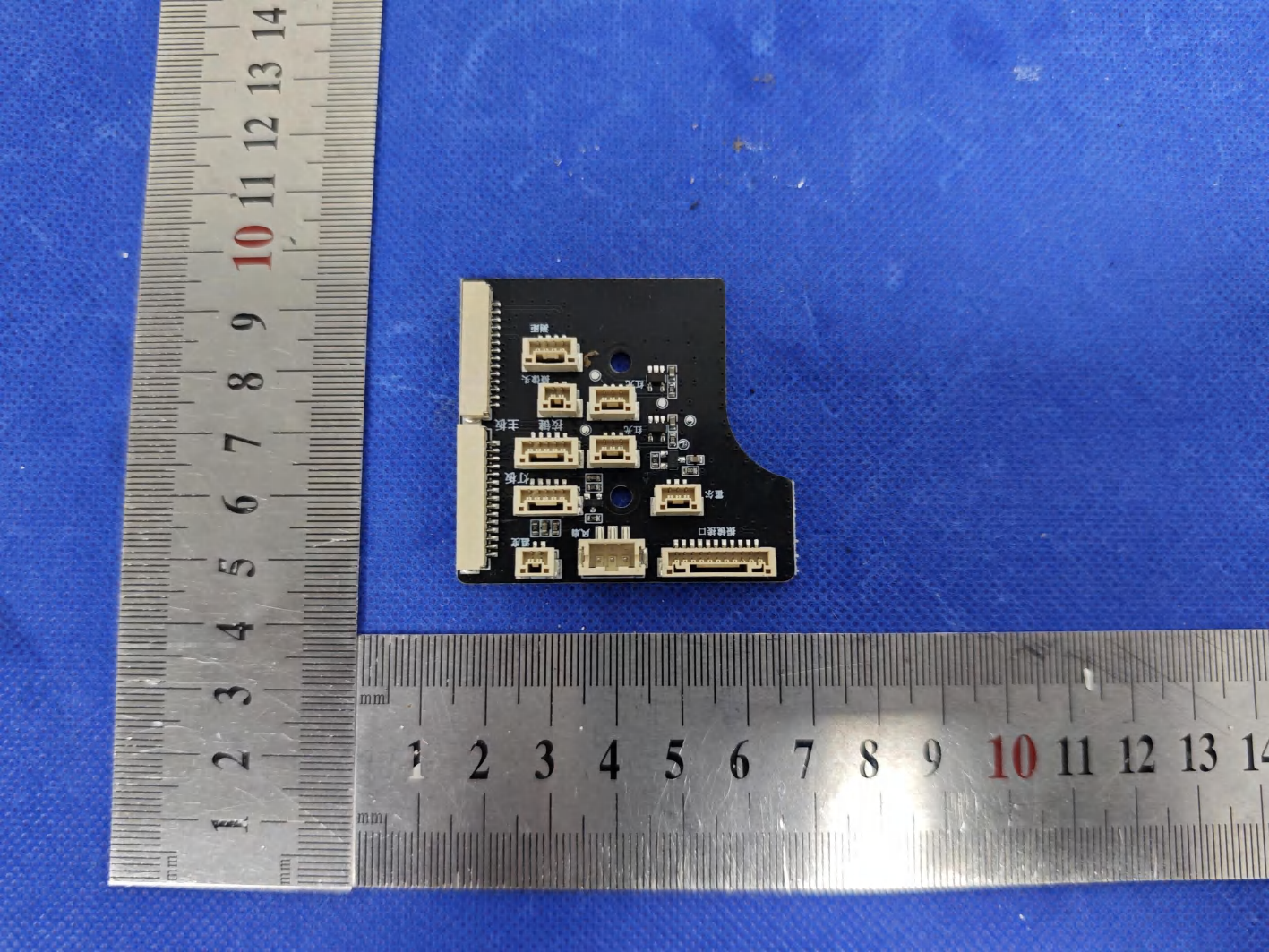

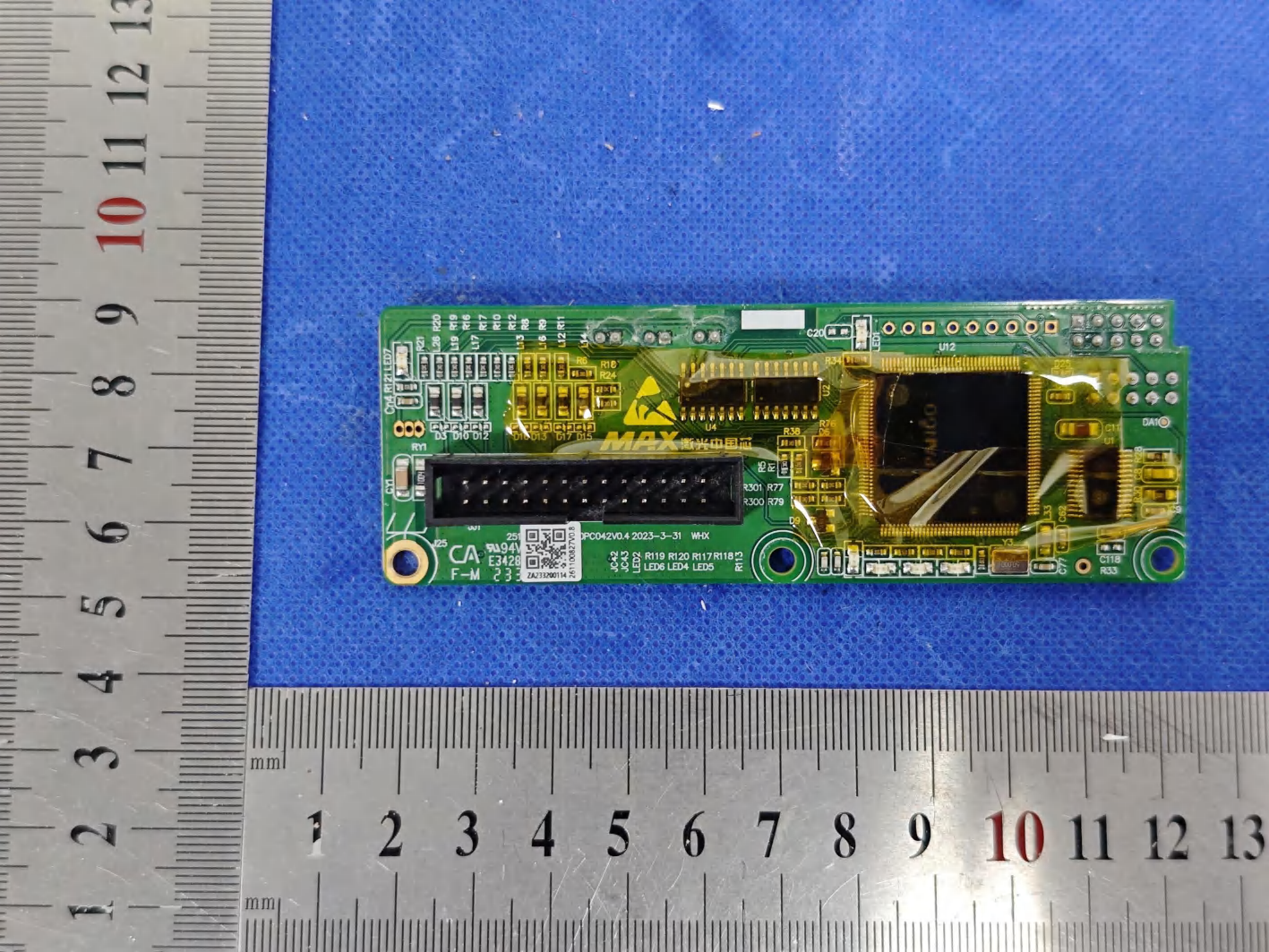

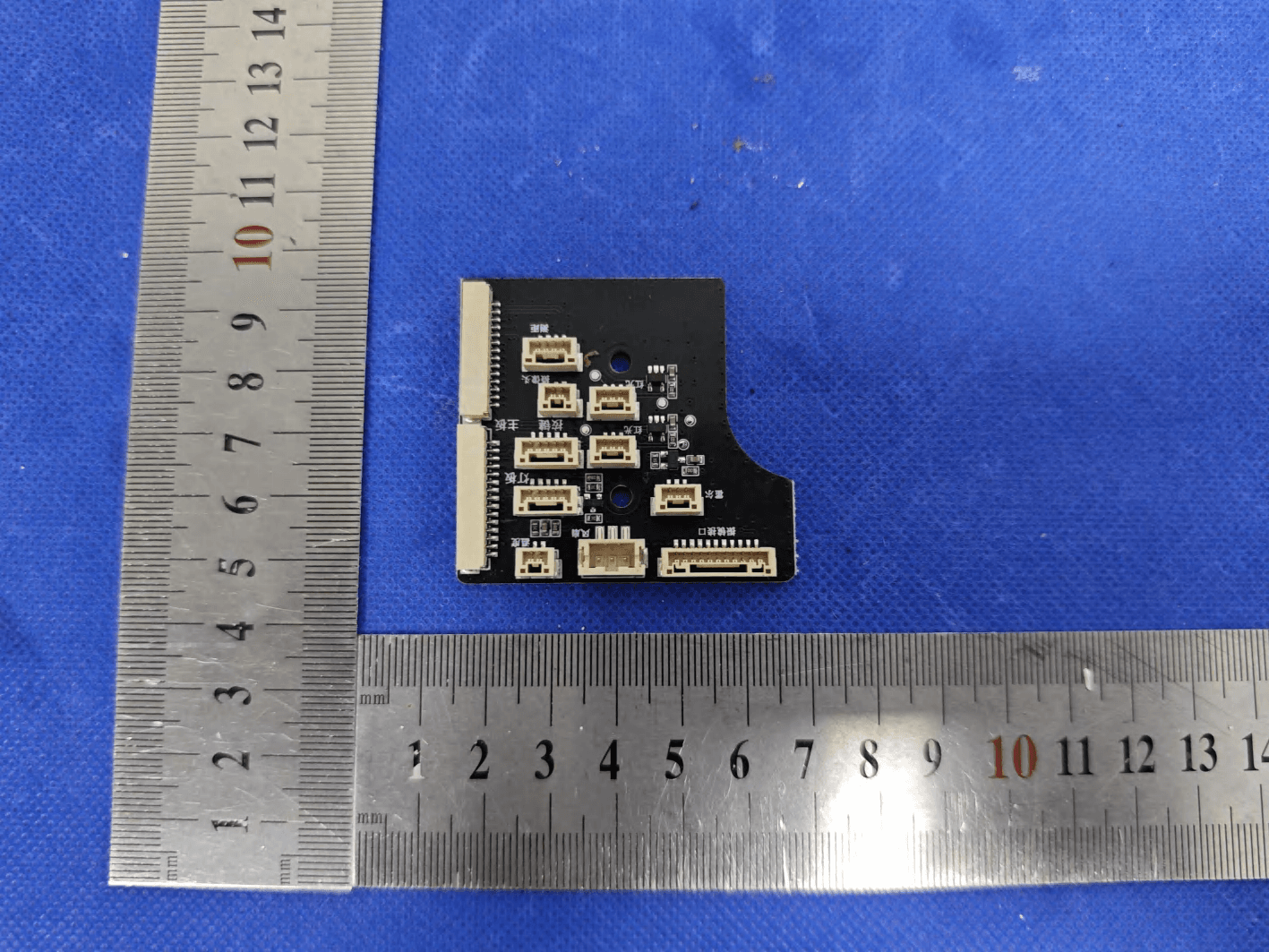

EUTPHOTO(InternalPhotos) Productname:LaserPeckerLP5 Model:LP5 EUTPhoto1 EUTPhoto2 EUTPhoto3 EUTPhoto4 EUTPhoto5 EUTPhoto6 EUTPhoto7 EUTPhoto8 ANT EUTPhoto9 EUTPhoto10 EUTPhoto11 EUTPhoto12 EUTPhoto13 EUTPhoto14 EUTPhoto15 EUTPhoto16 EUTPhoto17 EUTPhoto18 EUTPhoto19 EUTPhoto20 EUTPhoto21

FCCID:2BAV5-LP5 RFExposureEvaluation Limits Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactofhumanexposure toradiofrequency(RF)radiationasspecifiedin1.1307(b) LimitsforMaximumPermissibleExposure(MPE) Frequencyrange (MHz) Electricfield strength (V/m) Magneticfieldstrength (A/m) Powerdensity (mW/cm 2 ) Averagingtime (minutes) (A)LimitsforOccupational/ControlledExposures 0.3–3.06141.63*(100)6 3.0–301842/f4.89/f*(900/f 2 )6 30–30061.40.1631.06 300–1500f/3006 1500–100,00056 (B)LimitsforGeneralPopulation/UncontrolledExposure 0.3–1.346141.63*(100)30 1.34–30824/f2.19/f*(180/f 2 )30 30–30027.50.0730.230 300–1500f/150030 1500–100,0001.030 f=frequencyinMHz Friistransmissionformula:Pd=(Pout*G)/(4*pi*r 2 ) Where Pd=powerdensityinmW/cm 2 ,Pout=outputpowertoantennainmW; G=gainofantennainlinearscale,Pi=3.1416; R=distancebetweenobservationpointandcenteroftheradiatorincm PdidthelimitofMPE,1mW/cm 2 .Ifweknowthemaximumgainoftheantennaandthetotalpowerinputto theantenna,throughthecalculation,wewillknowthedistancerwheretheMPElimitisreached. TestProcedure SoftwareprovidedbyclientenabledtheEUTtotransmitandreceivedataatlowest,middleandhighest channelindividually. TestResultofRFExposureEvaluation BLEMode Mode Outputpowerto antenna(dBm) Outputpowerto antenna(mW) Antenna Gain(dBi) PowerDensityat R=20cm(mW/cm 2 ) Limit (mW/cm 2 ) Result GFSK1.8591.534.60.0008801.0PASS 2.4GWiFiMode Mode Outputpowerto antenna(dBm) Outputpowerto antenna(mW) Antenna Gain(dBi) PowerDensityat R=20cm(mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11b6.0123.994.60.0022901.0PASS 802.11g9.5909.104.60.0052211.0PASS 802.11n209.1678.254.60.0047361.0PASS 802.11n409.7169.374.60.0053741.0PASS

图纸版本号（无图纸时无需填写）： V01 嗨兴科技样品承认书 供应商名称：东莞市一佳电子通讯科技有限公司 产品名称: WIFI Antenna L=245mm MHF 物料料号：YJL01.207.001.301A 物料描述：WiFi天线，1代IPEX，O.D.1.13线材，材质PCB 承认书版次：A0版 研发/工程品质批准研发部产品 郑浩楠杨智陈国强 供应商承认栏 （此处需盖章，每份承认书需盖骑缝章） 深圳市嗨兴科技 承认栏 品质 供应商地址：东莞市长安镇沙头社区木鱼路59号元富工业区 电话：0769-82586086 传真：0769-82586086 承认书项目表 NO . 内容 （Contents） 页数 （Number of Page） 页码 （Page Code） 1 承认书封面 11 承认书封面 2 承认书项目表 12 3 工程成品图 13 4 包装图 14 5 产品规格书 95 ~ 13 6 工艺流程图 914 ~ 22 7 可靠性测试报告 223 ~ 24 8 样品检测报告 125 9 全尺寸测量报告 1269 全尺寸测量报告 126 10 环保申明 127 11 RoHS报告 13728 ~ 164 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 12N/AN/AN/A 13--- 天线规格 Antenna Specification Electrical Properties Frequency 2.4-2.5GHz qy Impedance50 Ohm Nominal V.S.W.R2.0 Max Gain 46dBi Gain 4.6 dBi RadiationOmni-directional PolarizationLinear Physical Properties Connector 1代IPEX Cable TypeO.D.1.13mm Cable Length245mm Cable ColorBlack add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Operating Temp.-40 ~ +85 ̊C Storage Temp / Humidity 25±5 ̊C / <70% Antenna Performance TestAntenna Performance Te s t Agilent g E5071C S ParameterParameter Test // 2.4G Antenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Antenna Passive TestAntenna Passive Te s t Z Y X X Z Y add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Passive Test For 2.4G Antenna FreqEffiEffiGain (MHz)(%)(dB)(dBi) 240053.2 -2.7 4.3 241053.1 -2.8 4.5 242051.1 -2.9 4.3 243050.0 -3.0 4.5 244049.1 -3.1 4.3 245050.0 -3.0 4.5 246047.2 -3.3 4.2 247047.0 -3.3 4.6 248043.6 -3.6 4.1 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 249043.6 -3.6 4.2 250040.4 -3.9 3.4 Radiation Pattern For 2.4G Antenna (2450MHz) add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Radiation Pattern For 2.4G Antenna Phi 0° Phi 90° Theta 90° add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 eta 90 Active Test For WIFI Antenna BandChannel Data Rate TRPData Rate TIS WIFI 2.4G 802.11b 1 11Mbps 16.0 11Mbps -83.5 7 16.0 -83.0 13 15.8 -84.0 1 16.8 -70.2 WIFI 2.4G 802.11g 54Mbps54Mbps 7 16.6 -70.5 13 16.3 -71.0 WIFI 2.4G 802.11n 1 65Mbps 13.5 65Mbps -67.6 7 13 5-67 1 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 802.11n7 13.5 67.1 13 13.5 -66.5 Device 2.4G Antenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 2.4G Antenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086

ProjectNo.:ZKT-2407097903E Page 1 of 39 FCCTESTREPORT FCCID:2BAV5-LP5 ReportNumber. .................................. :ZKT-2407097903E DateofTest ....................................................... : Jun.24,2024toAug.02,2024 Dateofissue ......................................... : Aug.02,2024 Totalnumberofpages..........................39 TestResult .......................................... : PASS TestingLaboratory............................: ShenzhenZKTTechnologyCo.,Ltd. Address...............................................: 1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrial Avenue,FuhaiStreet,Bao'anDistrict,Shenzhen,China Applicant'sname.............................: ShenzhenHinginTechnologyCo.Ltd Address ............................................... : Room4001,WestTowerofGalaxyTwinTowers,No.8YaxingRoad, LonggangDistrict,Shenzhen,Guangdong,China,518000 Manufacturer'sname......................: ShenzhenHinginTechnologyCo.Ltd Address...............................................: Room4001,WestTowerofGalaxyTwinTowers,No.8YaxingRoad, LonggangDistrict,Shenzhen,Guangdong,China,518000 Testspecification: Standard................................................: FCCCFRTitle47Part15SubpartCSection15.247 ANSIC63.10:2013 Testprocedure.....................................: / Non-standardtestmethod................:N/A TestReportFormNo. ....................... : / TestReportForm(s)Originator.....: ZKTTesting MasterTRF........................................: Dated:2020-01-06 ThisdevicedescribedabovehasbeentestedbyZKT,andthetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofZKT,thisdocumentmay bealteredorrevisedbyZKT,personalonly,andshallbenotedintherevisionofthedocument. Productname.....................................:LaserPeckerLP5 Trademark...........................................:LaserPecker Model/Typereference......................: LP5 Ratings .................................................. :Input:24V7.5A,180W ProjectNo.:ZKT-2407097903E Page 2 of 39 Testingprocedureandtestinglocation: TestingLaboratory.......................................: ShenzhenZKTTechnologyCo.,Ltd. Address............................................................:1/F,No.101,BuildingB,No.6,TangweiCommunity IndustrialAvenue,FuhaiStreet,Bao'anDistrict, Shenzhen,China JimLiu Testedby(name+signature).......................: JacksonFang Reviewer(name+signature) ....................... : LakeXie Approved(name+signature).......................: ProjectNo.:ZKT-2407097903E Page 3 of 39 TableofContents Page 1.VERSION....................................................................................................................5 2.SUMMARYOFTESTRESULTS...............................................................................6 2.1TESTFACILITY.................................................................................................................7 2.2MEASUREMENTUNCERTAINTY....................................................................................7 3.GENERALINFORMATION........................................................................................8 3.1GENERALDESCRIPTIONOFEUT.................................................................................8 3.2DESCRIPTIONOFTESTMODES....................................................................................9 3.3BLOCKDIGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED..............9 3.4DESCRIPTIONOFSUPPORTUNITS(CONDUCTEDMODE)........................................9 3.5EQUIPMENTSLISTFORALLTESTITEMS.................................................................10 4.EMCEMISSIONTEST.............................................................................................12 4.1CONDUCTEDEMISSIONMEASUREMENT..................................................................12 4.1.1POWERLINECONDUCTEDEMISSIONLimits...................................................12 4.1.2TESTPROCEDURE...............................................................................................12 4.1.3DEVIATIONFROMTESTSTANDARD..................................................................12 4.1.4TESTSETUP...........................................................................................................13 4.1.5EUTOPERATINGCONDITIONS...........................................................................13 4.2.1RADIATEDEMISSIONLIMITS...............................................................................16 4.2.2TESTPROCEDURE...............................................................................................17 4.2.3DEVIATIONFROMTESTSTANDARD..................................................................17 4.2.4TESTSETUP...........................................................................................................17 4.2.5EUTOPERATINGCONDITIONS...........................................................................18 5.RADIATEDBANDEMISSIONMEASUREMENT.....................................................23 5.1TESTREQUIREMENT:..............................................................................................23 5.2TESTPROCEDURE..................................................................................................23 5.3DEVIATIONFROMTESTSTANDARD.....................................................................23 5.4TESTSETUP..............................................................................................................24 5.5EUTOPERATINGCONDITIONS..............................................................................24 5.6TESTRESULT...........................................................................................................25 6.POWERSPECTRALDENSITYTEST......................................................................26 6.1APPLIEDPROCEDURES/LIMIT.......................................................…

Text truncated - open the document above for the full version.

ProjectNo.:ZKT-2407097903E-1 Page 1 of 61 FCCTESTREPORT FCCID:2BAV5-LP5 ReportNumber...................................: ZKT-2407097903E-1 DateofTest.......................................................: May19,2024toAug.02,2024 Dateofissue.........................................: Aug.02,2024 Totalnumberofpages .......................... 61 TestResult ............................................ : PASS TestingLaboratory............................: ShenzhenZKTTechnologyCo.,Ltd. Address...............................................: 1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrial Avenue,FuhaiStreet,Bao'anDistrict,Shenzhen,China Applicant'sname.............................: ShenzhenHinginTechnologyCo.Ltd Address...............................................: Room4001,WestTowerofGalaxyTwinTowers,No.8YaxingRoad, LonggangDistrict,Shenzhen,Guangdong,China,518000 Manufacturer'sname ...................... : ShenzhenHinginTechnologyCo.Ltd Address...............................................: Room4001,WestTowerofGalaxyTwinTowers,No.8YaxingRoad, LonggangDistrict,Shenzhen,Guangdong,China,518000 Testspecification: Standard................................................: FCCCFRTitle47Part15SubpartCSection15.247 ANSIC63.10:2013 Testprocedure ..................................... : / Non-standardtestmethod ................ :N/A TestReportFormNo........................: TRF-EL-110_V0 TestReportForm(s)Originator.....: ZKTTesting MasterTRF........................................: Dated:2020-01-06 ThisdevicedescribedabovehasbeentestedbyZKT,andthetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofZKT,thisdocumentmay bealteredorrevisedbyZKT,personalonly,andshallbenotedintherevisionofthedocument. Productname.....................................:LaserPeckerLP5 Trademark...........................................:LaserPecker Model/Typereference ......................... : LP5 Ratings .................................................. :Input:24V7.5A,180W ProjectNo.:ZKT-2407097903E-1 Page 2 of 61 Testingprocedureandtestinglocation: TestingLaboratory.......................................:ShenzhenZKTTechnologyCo.,Ltd. Address............................................................:1/F,No.101,BuildingB,No.6,TangweiCommunity IndustrialAvenue,FuhaiStreet,Bao'anDistrict, Shenzhen,China Jim.Liu Testedby(name+signature).......................: Jackson.Fang Reviewer(name+signature).......................: LakeXie Approved(name+signature) ....................... : ProjectNo.:ZKT-2407097903E-1 Page 3 of 61 TableofContents Page 1.VERSION.....................................................................................................................5 2.SUMMARYOFTESTRESULTS..................................................................................6 2.1TESTFACILITY....................................................................................................................7 2.2MEASUREMENTUNCERTAINTY.......................................................................................7 3.GENERALINFORMATION..........................................................................................8 3.1GENERALDESCRIPTIONOFEUT....................................................................................8 3.2DESCRIPTIONOFTESTMODES......................................................................................9 3.3BLOCKDIGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED.................9 3.4DESCRIPTIONOFSUPPORTUNITS(CONDUCTEDMODE)........................................10 3.5EQUIPMENTSLISTFORALLTESTITEMS.....................................................................11 4.EMCEMISSIONTEST...............................................................................................13 4.1CONDUCTEDEMISSIONMEASUREMENT....................................................................13 4.1.1POWERLINECONDUCTEDEMISSIONLimits.....................................................13 4.1.2TESTPROCEDURE..................................................................................................13 4.1.3DEVIATIONFROMTESTSTANDARD.....................................................................13 4.1.4TESTSETUP.............................................................................................................14 4.1.5EUTOPERATINGCONDITIONS..............................................................................14 4.2.1RADIATEDEMISSIONLIMITS.................................................................................17 4.2.2TESTPROCEDURE..................................................................................................18 4.2.3DEVIATIONFROMTESTSTANDARD.....................................................................18 4.2.4TESTSETUP.............................................................................................................18 4.2.5EUTOPERATINGCONDITIONS..............................................................................19 4.2.6TESTRESULTS.........................................................................................................19 5.RADIATEDBANDEMISSIONMEASUREMENT........................................................30 5.1TESTREQUIREMENT:......................................................................................................30 5.2TESTPROCEDURE..........................................................................................................30 5.3DEVIATIONFROMTESTSTANDARD.............................................................................30 5.4TESTSETUP......................................................................................................................31 5.5EUTOPERATINGCONDITIONS......................................................................................31 5.6TESTRESULT..........................................…

Text truncated - open the document above for the full version.

EUTTESTPHOTO ※※※※※ENDOFREPORT※※※※※
