2BAV8-PN2500Power Usage Monitor

User Manual Model No: PN2500 Thank you for purchasing the Poniie Wi-Fi Wireless Power Usage Monitor. Please read this manual carefully before using this product. The new designed device is able to measure Watts (active power)/VA (apparent power), kWh (Energy usage with hold over circuit memory), Cumulative Working Time & Elapsed Time (with hold over circuit memory), Current (true RMS), Voltage (true RMS), Power Factor (as Watts/Vrms*Arms), Frequency (Hz) and Cost (Forecast in Hour, Day, Month or Year). This Plug Monitor is also designed with Wi-Fi wireless connectivity capabilities. Now you can add PN2500 to the Smart Life app to check all the parameters that mentioned above and set certain necessary parameters. Warning To avoid electric shock or personal injury, read the “Safety Information” carefully before using the Monitor. 1. Be sure to read, understand and follow all the instructions in this manual. 2. Before using this product, check to see if there are any cracks or missing plastic parts on the casing, and be aware of the insulation around connectors. Before using this product, check to see if there is any crack or short of plastic parts on the shell, pay attention to the insulation around the connectors. Do not use the product if it is damaged. 3. DO NOT use the equipment in wet environments, keep your hands dry. 4. DO NOT operate the monitor around explosive gas, vapor or dust. 5. DO NOT open the case of the meter or alter the internal circuit of the meter. 6. DO NOT allow children to operate this device, keep children stay away from the monitor. 7. DO NOT use or store the device in an environment of high temperature, humidity, explosive or inflammable field. The performance of the meter may deteriorate after dampened. 8. NOTE: The monitor works with all standard power supply, an inferior quality power source (with too much harmonic distortion) such as unqualified inverter may cause damage or shorten device’s lifespan. 1 Download Smart Life App Please scan the QR code or download Smart Life on App store. 2 Registration or Log in your account Enter the Register/Login interface, tap “Register” to create an account or choose “Log in” if you already have a Smart Life account. 3 Configure the Monitor to the App Preparation: Plug the monitor into powered outlets to power on the device automatically; ensure your phone has been connected to the same Wi-Fi (Internet connection required) and put your phone as close as possible to the PN2500 Monitor. Note: The App requires Bluetooth for the initial connection or new connections. Note: The Monitor only supports 2.4G network. Make sure you have a 2.4G compatible network. Then open Smart Life App and Click “add device” or “+” to add PN2500. Note: the prompt page will automatically show the device on the top screen. If no searching device found, please try to reset or re-pair Wi-Fi. How to reset/re-pair Wi-Fi Press and hold the “WiFi” key on PN2500 for 5 seconds to disconnect or repair with the phone app. Wi-Fi indicator on the screen will flash for pair connection. Remove device in the app will totally reset the WiFi code. 1. Backlight setting function Press “Wi-Fi” key to turn on/off backlight. You can also turn on or turn off the backlight through App settings. 2. Button instruction ○ 1 Rate The rate is based on billed kWh. Press “Rate” key to show the billed kWhs (Default is $ 0.125/kWh). Press and hold “Rate” key to enter setting mode. Press “▼” or “▲” to adjust value and press “↔” key to shift the setting numbers. After all adjustment done, please press and hold “OK” key to save and exit setting. You can also set the Rate through App-Settings. ○ 2 Cost Costs are forecasted in hour, day, week, month, and year. The longer the appliance monitored by PN2500, the better accuracy you get. You can press “Cost” key to check in month, week, day, year and hour or check it through App-Settings. ○ 3 kWh/T Short press this key to check through Energy usage-C.E.C, cumulative working time-C.T and elapsed time-E.T. C.T means the cumulative time when there is a load working. E.T means elapsed time after the monitor powered up. Press and hold this key to reset Energy, C.T and E.T to 0. You can also reset them through App-Settings. ○ 4 W/VA/OK Short press this key to check through Watts, Max Watts and VA. Watts mean real-time active power of appliance. Max Watts mean the maximum power since the monitor was powered up. VA means the real-time apparent power. Overload alarm setting: Press and hold ”W/VA/OK” key to enter overload limit setting (Default value is 2500W ). Press “▼” or “▲” to adjust value and press “ ↔” key to shift the setting numbers. After all adjustments are done, press and hold “OK” key to save and exit setting. You can also set the overload alarm through App-Settings. ○ 5 PF/Hz/↔ Press this key to check between Power Factor (PF) and AC Frequency (Hz). ○ 6 V/▲- A/▼ Press “V/▲” key to check between power voltage and maximum voltage value since the monitor was powered up. Press “A/▼” key to check between power current and maximum current value since the monitor was powered up. Applicable power supplyAC 60-240V 60/50Hz Maximum rated current 25A Maximum power 3000W(@120V) / 5500W(@220V) Measurable range 0.20W＞ Maximum electricity consumption(CEC)99,999 kWh Maximum time(CT/ET) 0:00~999:59(Hour : Minute) Power factor 0.000-1.000 Backlight function ON/OFF can be set Accuracy standard Class 1.0 Active energy constant 6400imp/kWh Resolution 0.01W, 0.001A, 0.01V Power dissipation <1.00W Storage temperature -20~60°C Inner & outer Material Heat resistance-fireproofing ABS IMPORTANT: 1) Please do not overload (3000W at 120V) the device at any time. Failure to comply with the instructions given in this manual and/or using the device in ways other than the ones mentioned in this manual may result in serious injury and/or damage to the product. 2) The inner and outer device material is made of high heat resistance ABS fireproofing material. If the load pow…

Text truncated - open the document above for the full version.

Chong Qing Yi Xiao Ma E-commerce Co., Ltd Room 7-1, Building 7, Xuefu Avenue No. 51, Nanan District, Chongqing, China The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023-5-4 To whom it may concern: We, Chong Qing Yi Xiao Ma E-commerce Co., Ltd , hereby certify that the equipment for which authorization is sought (FCC ID: 2BAV8 -PN2500) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). Sincerely, Signature Zhongnan Chen Manager Chong Qing Yi Xiao Ma E-commerce Co., Ltd 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V02

Chong Qing Yi Xiao Ma E-commerce Co., Ltd Room 7-1, Building 7, Xuefu Avenue No. 51, Nanan District, Chongqing, China The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 05/4/2023 U.S. Agent Designation Chong Qing Yi Xiao Ma E-commerce Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BAV8-PN2500): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #226 Colorado Springs Co 80918 USA FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Chong Qing Yi Xiao Ma E-commerce Co., Ltd Chong Qing Yi Xiao Ma E-commerce Co., Ltd with the FRN 0033668674 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). Sincerely, Signature Signature [Name]: Zhongnan Chen [Name of U.S. agent]：Michoux Logan [Title]: Manager [Title of U.S. agent]：PM [Company]: Chong Qing Yi Xiao Ma E-commerce Co., Ltd [Company of U.S. agent]: GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V04

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2023-5-4> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BAV8 -PN2500 PN2500 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Zhongnan Chen /Manager Company: Chong Qing Yi Xiao Ma E-commerce Co., Ltd Address: Room 7-1, Building 7, Xuefu Avenue No. 51, Nanan District, Chongqing, China Phone: 18523102382 Fax: N/A E-Mail: [email protected]

Chong Qing Yi Xiao Ma E-commerce Co., Ltd Room 7-1, Building 7, Xuefu Avenue No. 51, Nanan District, Chongqing, China Date: 2023-5-4 FCC ID: 2BAV8 -PN2500 Model Number: PN2500 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Chong Qing Yi Xiao Ma E-commerce Co., Ltd , declare that this EUT (FCC ID: 2BAV8 -PN2500) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： Zhongnan Chen /Manager Company: Chong Qing Yi Xiao Ma E-commerce Co., Ltd Address: Room 7-1, Building 7, Xuefu Avenue No. 51, Nanan District, Chongqing, China Phone: 18523102382 Fax: N/A E-Mail: [email protected]

Chong Qing Yi Xiao Ma E-commerce Co., Ltd Room 7-1, Building 7, Xuefu Avenue No. 51, Nanan District, Chongqing, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023-5-4 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BAV8 -PN2500 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Zhongnan Chen /Manager Company: Chong Qing Yi Xiao Ma E-commerce Co., Ltd Address: Room 7-1, Building 7, Xuefu Avenue No. 51, Nanan District, Chongqing, China Phone: 18523102382 Fax: N/A E-Mail: [email protected]

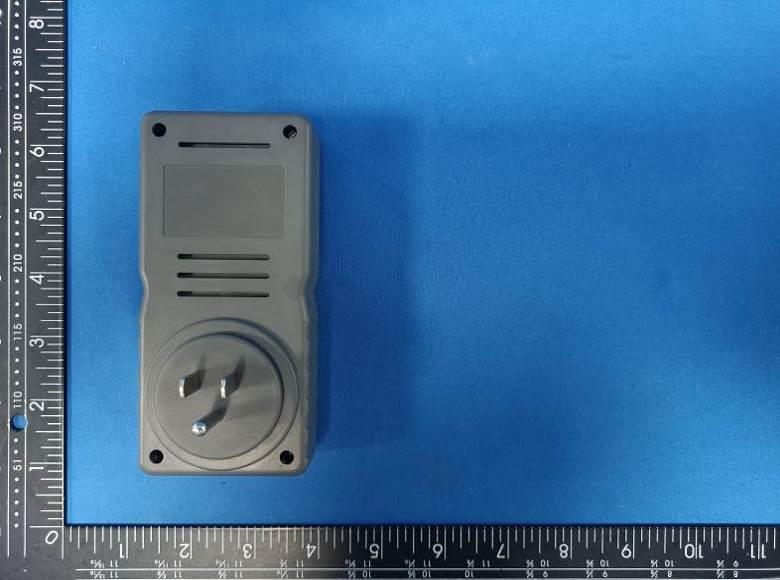

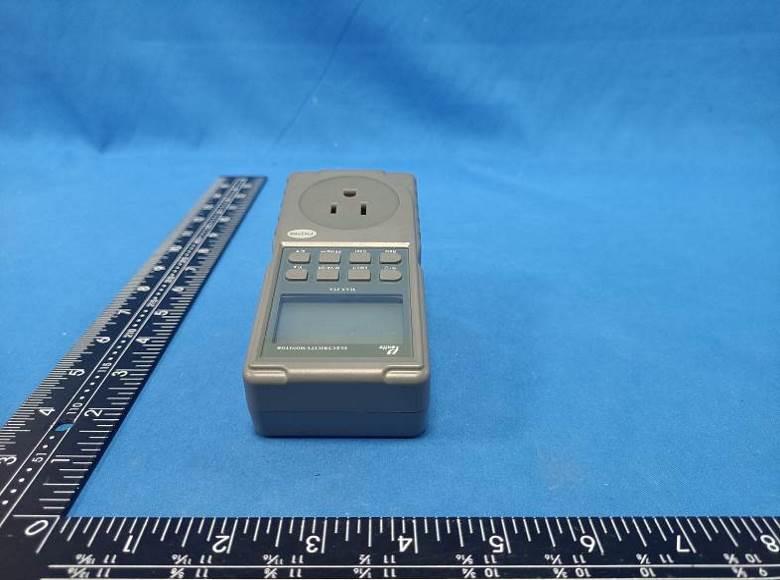

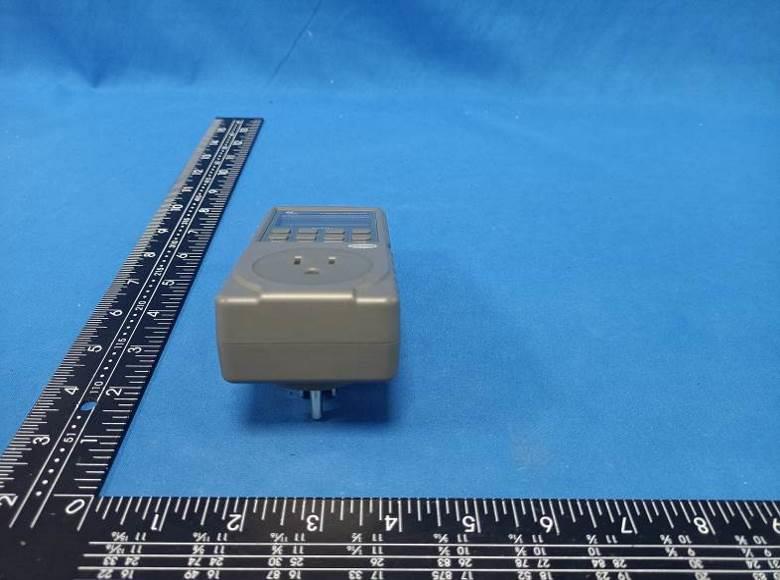

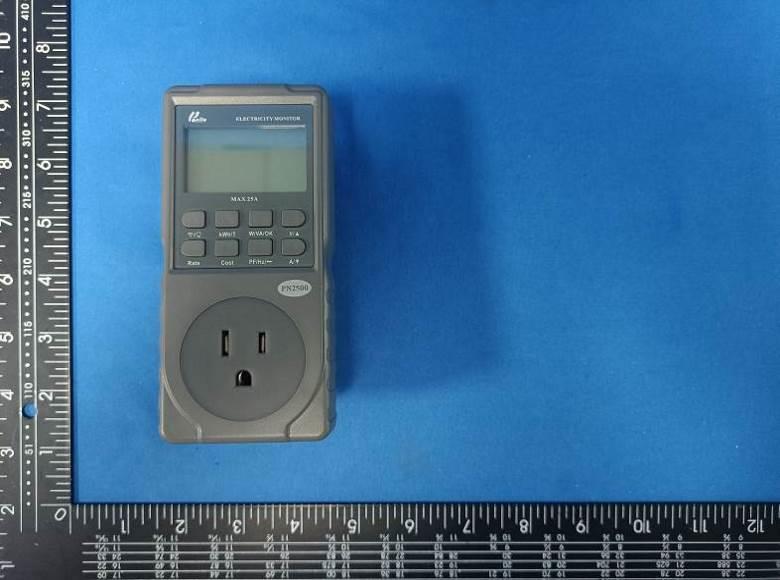

FCC ID: 2BAV8-PN2500 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BAV8-PN2500 Photo 4 Photo 5 Photo 6

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location Model No.: PN2500 FCC ID : 2BAV8-PN2500

FCC ID: 2BAV8-PN2500 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BAV8-PN2500 Photo 4 Photo 5 Photo 6 FCC ID: 2BAV8-PN2500 Photo 7 Photo 8 Photo 9 FCC ID: 2BAV8-PN2500 Photo 10 Photo 11 Photo 12 2.4G WIFI PCB Antenna FCC ID: 2BAV8-PN2500 Photo 13 Photo 14 Photo 15 FCC ID: 2BAV8-PN2500 Photo 16

RF Exposure evaluation FCC ID: 2BAV8-PN2500 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information PN2500 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: 2.4GWIFI / PCB antenna 1.28dBi for 2400-2500MHz 5. Manufacturing Tolerance WIFI(Peak) Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 1.28dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW 2.4GWIFI 13.0 19.9526 1.28 1.3428 0.0053 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type PCB antenna Model PN2500 Frequency range 2400-2500MHz Manufacturer Chong Qing Yi Xiao Ma E-commerce Co., Ltd ANT Peak Gain 1.28 dBi 2. Antenna Photo: Length :14.19mm Width:3.90mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA23041100201 2BAV8-PN2500 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Apr. 14, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Chong Qing Yi Xiao Ma E-commerce Co., Ltd Address ............................................ : Room 7-1, Building 7, Xuefu Avenue No. 51, Nanan District, Chongqing, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Power Usage Monitor Trade Mark ....................................... : N/A Manufacturer .................................... : Chong Qing Yi Xiao Ma E-commerce Co., Ltd Model/Type reference ...................... : PN2500 Listed Models .................................. : N/A Modulation Type ............................... : CCK/DSSS/OFDM Operation Frequency ........................ : From 2412 - 2462MHz Rating ............................................... : AC 100-240V 50/60Hz Result ............................................... : PASS Report No.: CTA23041100201 Page 2 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Power Usage Monitor Model /Type : PN2500 Series Model No. N/A Applicant : Chong Qing Yi Xiao Ma E-commerce Co., Ltd Address : Room 7-1, Building 7, Xuefu Avenue No. 51, Nanan District, Chongqing, China Manufacturer : Chong Qing Yi Xiao Ma E-commerce Co., Ltd Address : Room 7-1, Building 7, Xuefu Avenue No. 51, Nanan District, Chongqing, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23041100201 Page 3 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 5 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 13 4.3 Maximum Peak Conducted Output Power 19 4.4 Power Spectral Density 20 4.5 6dB Bandwidth 23 4.6 Out-of-band Emissions 26 4.7 Antenna Requirement 33 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 34 6 P H O T O S O F T H E E U T ........................................................... 35 Report No.: CTA23041100201 Page 4 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 TE S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 v05r02: Guidance for Compliance Measurements on Digital Transmission Systems (DTS) ,Frequency Hopping Spread Spectrum System(HFSS), and Hybrid System Devices Operating Under §15.247 of The FCC rules. Report No.: CTA23041100201 Page 5 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-…

Text truncated - open the document above for the full version.

Report No.: CTA23041100201 Page 29 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11g Reference Reference CH06 CH11 30MHz-3GHz 30MHz-3GHz 3GHz -25GHz 3GHz -25GHz Report No.: CTA23041100201 Page 30 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference Reference CH01 CH06 30MHz-3GHz 30MHz-3GHz 3GHz -25GHz 3GHz -25GHz Report No.: CTA23041100201 Page 31 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference CH11 30MHz-3GHz 3GHz -25GHz Report No.: CTA23041100201 Page 32 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: 802.11b Left bandedge Right bandedge 802.11g Left bandedge Right bandedge 802.11n(HT20) Left bandedge Right bandedge Report No.: CTA23041100201 Page 33 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.7 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator, the manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited FCC CFR Title 47 Part 15 Subpart C Section 15.247(c) (1) (I): (i) Systems operating in the 2400-2483.5 MHz band that is used exclusively for fixed. Point-to-point operations may employ transmitting antennas with directional gain greater than 6dBi provided the maximum conducted output power of the intentional radiator is reduced by 1 dB for every 3 dB that the directional gain of the antenna exceeds 6dBi. Test Result: The maximum gain of antenna was 1.28 dBi. Remark:The antenna gain is provided by the customer , if the data provided by the customer is not accurate, Shenzhen CTA Testing Technology Co., Ltd. does not assume any responsibility. Report No.: CTA23041100201 Page 34 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 5 T e s t S e t u p P h o t o s o f t he E U T Report No.: CTA23041100201 Page 35 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 6 P h o t o s o f t h e E U T Report No.: CTA23041100201 Page 36 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23041100201 Page 37 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23041100201 Page 38 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23041100201 Page 39 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23041100201 Page 40 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23041100201 Page 41 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23041100201 Page 42 of 42 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ********************** End of Report **********************

FCC ID: 2BAV8-PN2500 Test Setup Photos of the EUT
