尺寸规范 尺寸:110*110mm 倒角:5mm 修改记录 Automatic 2-in-1 Pet Feeder & Water Dispenser M ❶ User Instructions Please read this manual carefully and keep it safe before using the product. Warning: Please use the product indoors and do NOT use it in places where it is exposed to direct sunlight, such as balconcy. Do NOT put any items other than pet dry food and freeze-dried food in the grains barrel, as this may cause equipment malfunctions or pose a risk of pets eating them by mistake. Please cover or store the power cord properly to prevent pets from biting the wire and causing dangerous situations such as electric shock. Do NOT clean the main body of the device directly with water to prevent damage to the internal electronic components. Do NOT place the device near a heat source or exposed flames, or other places that may produce high temperatures. If the battery is replaced improperly, there is a risk of explosion. Do NOT attempt to replace the internal rechargeable lithium-ion battery. Please contact us for help. If the product experiences serious swelling, please do NOT continue to use it. Do NOT squeeze the product or place it in a place where it is easy to fall. Do NOT attempt to dismantle or modify the optional base-style battery, otherwise the battery may explode or the liquid inside the battery may leak. Non-designated batteries by Pet Marvel Limited, or batteries that have been disassembled and modified, are NOT covered by the warranty. Note: To prevent pets from knocking over the device, it is recommended to place the device in a corner or against a wall. Do NOT disassemble, modify, or repair the equipment by yourself, otherwise, you will be deemed to have waived all warranty and after-sales service rights. This device is compatible with dry pet food with a diameter of less than 16mm. Do NOT put in wet pet food to avoid blockage of the food outlet, damage to electronic components due to moisture, and other situations. The shape and density of the pet food particles will affect the actual capacity of the grains barrel; there may be differences in the amount of food dispensed per portion due to different food densities. ❷ Product Introduction This section provides an introduction to the basic functional modules of the product and an overview of the information displayed on the main screen. Wi-Fi Solid: The device is connected to Wi-Fi network Wi-Fi Blinking: The device is in the process of network configuration Wi-Fi Error: The device failed to connect to the Wi-Fi network Blue Solid: The device is working normally Red Solid: The device has a malfunction Yellow Solid: Shortage of food/water Insufficient Water Insufficient Food Powered by Adapter Powered by Batteries Low Battery On/Off Power Interface M Water Dispensing Port Water Bowl Screen M Button Food Dispensing Port Food Bowl Bottom Back Please read this manual carefully and keep it safe before using the product. Warning: Please use the product indoors and do NOT use it in places where it is exposed to direct sunlight, such as balconcy. Do NOT put any items other than pet dry food and freeze-dried food in the grains barrel, as this may cause equipment malfunctions or pose a risk of pets eating them by mistake. Please cover or store the power cord properly to prevent pets from biting the wire and causing dangerous situations such as electric shock. Do NOT clean the main body of the device directly with water to prevent damage to the internal electronic components. Do NOT place the device near a heat source or exposed flames, or other places that may produce high temperatures. If the battery is replaced improperly, there is a risk of explosion. Do NOT attempt to replace the internal rechargeable lithium-ion battery. Please contact us for help. If the product experiences serious swelling, please do NOT continue to use it. Do NOT squeeze the product or place it in a place where it is easy to fall. Do NOT attempt to dismantle or modify the optional base-style battery, otherwise the battery may explode or the liquid inside the battery may leak. Non-designated batteries by Pet Marvel Limited, or batteries that have been disassembled and modified, are NOT covered by the warranty. Note: To prevent pets from knocking over the device, it is recommended to place the device in a corner or against a wall. Do NOT disassemble, modify, or repair the equipment by yourself, otherwise, you will be deemed to have waived all warranty and after-sales service rights. This device is compatible with dry pet food with a diameter of less than 16mm. Do NOT put in wet pet food to avoid blockage of the food outlet, damage to electronic components due to moisture, and other situations. The shape and density of the pet food particles will affect the actual capacity of the grains barrel; there may be differences in the amount of food dispensed per portion due to different food densities. ❸ Packing list Please check whether the product is intact as follow. In addition, as the product is updated iteratively, some accessories may be adjusted, so please refer to the actual product. M Water Bowl*1Filter Element*1Food Tray*1 Sewage Tank*1 Grains Barrel*1Water Tank*1Main Body*1 Power Adapter*1Food Bowl*1 ❹ Usage Connecting the Power Adapter Connect the power adapter to the power interface at the bottom of the device, and then plug it into the socket. Water Bowl Installation After cleaning the water bowl, align the protruding part at the bottom of the water bowl and install it, ensuring that it is tightly attached to the bottom to avoid water leakage. Filter Installation 1. Open the filter package and take out the filter; 2. Take out the clean water tank and place the filter in the circular opening at the bottom as shown in the figure. Power ON/OFF Turn the switch key on the back of the device to "ON" to start the device. Turn the switch key in the opposite direction to "OFF" to turn off the device. M M ON OFF APP Download Scan the QR code, search for "Dipet Life" on App Store…

Text truncated - open the document above for the full version.

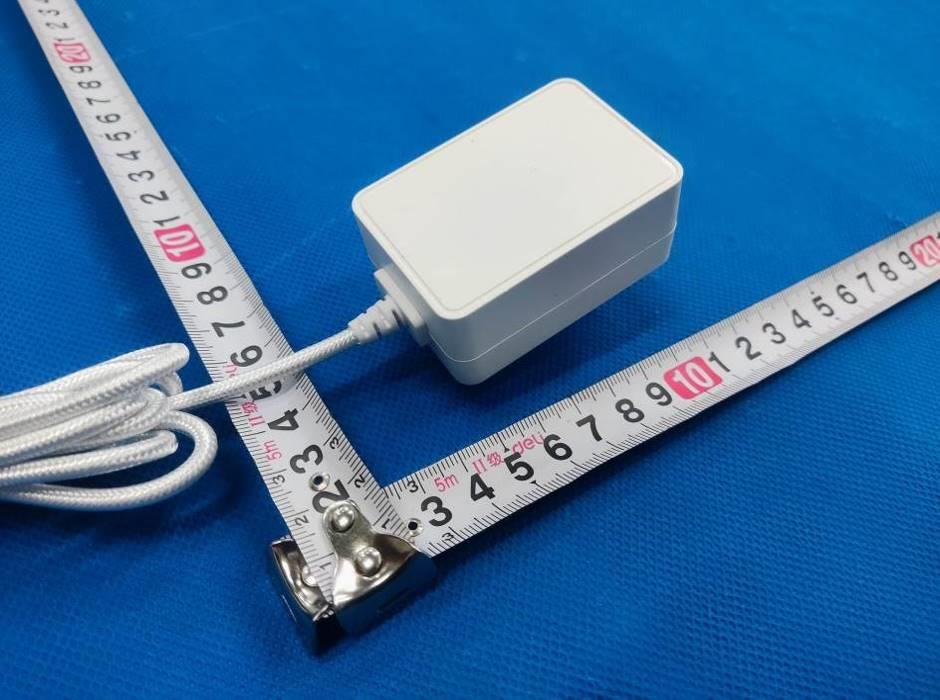

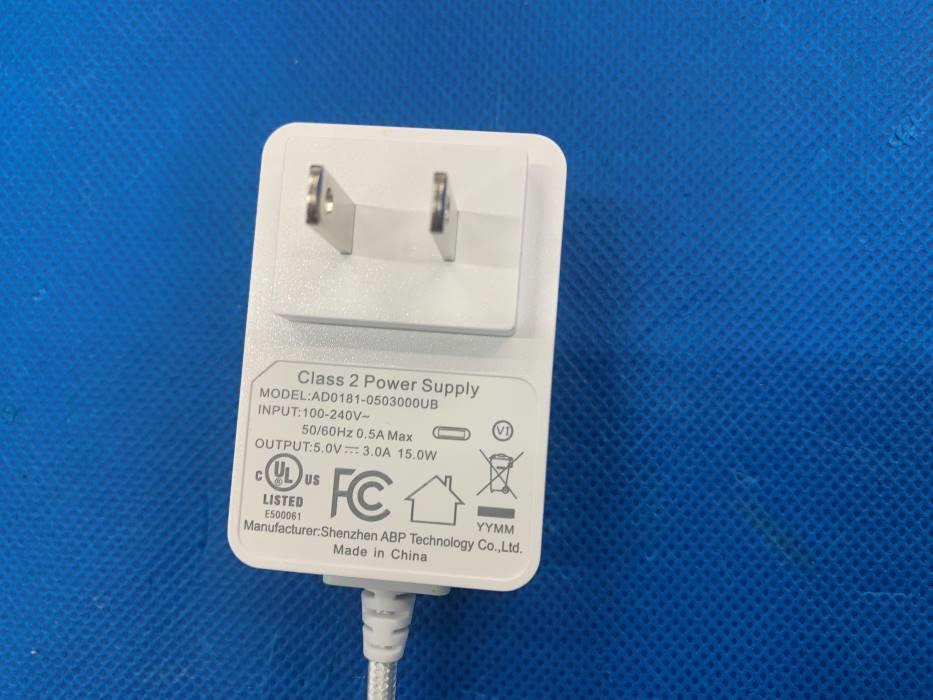

FCC ID: 2BAW2-A7 Page 1 of 8 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. External Photos Photo 1 Photo 2 FCC ID: 2BAW2-A7 Page 2 of 8 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 FCC ID: 2BAW2-A7 Page 3 of 8 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 FCC ID: 2BAW2-A7 Page 4 of 8 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 FCC ID: 2BAW2-A7 Page 5 of 8 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 Photo 10 FCC ID: 2BAW2-A7 Page 6 of 8 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 11 Photo 12 FCC ID: 2BAW2-A7 Page 7 of 8 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 13 Photo 14 FCC ID: 2BAW2-A7 Page 8 of 8 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 15 Photo 16 ------End------

Label FCC ID:2BAW2-A7 Model No.:A7

FCC ID: 2BAW2-A7 Page 1 of 15 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Internal Photos Photo 1 Photo 2 FCC ID: 2BAW2-A7 Page 2 of 15 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 FCC ID: 2BAW2-A7 Page 3 of 15 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 FCC ID: 2BAW2-A7 Page 4 of 15 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 FCC ID: 2BAW2-A7 Page 5 of 15 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 Photo 10 FCC ID: 2BAW2-A7 Page 6 of 15 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 11 Photo 12 FCC ID: 2BAW2-A7 Page 7 of 15 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 13 Photo 14 FCC ID: 2BAW2-A7 Page 8 of 15 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 15 Photo 16 FCC ID: 2BAW2-A7 Page 9 of 15 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 17 Photo 18 FCC ID: 2BAW2-A7 Page 10 of 15 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 19 Photo 20 FCC ID: 2BAW2-A7 Page 11 of 15 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 21 Photo 22 FCC ID: 2BAW2-A7 Page 12 of 15 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 23 Photo 24 FCC ID: 2BAW2-A7 Page 13 of 15 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 25 Photo 26 FCC ID: 2BAW2-A7 Page 14 of 15 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 27 Photo 28 FCC ID: 2BAW2-A7 Page 15 of 15 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 29 Photo 30 ------End------ Antenna

RF Exposure evaluation FCC ID: 2BAW2-A7 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information EUT can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: WIFI / PCB ANT 2.0dBi for 2400-2500MHz 5. Manufacturing Tolerance WIFI (Conducted) Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is refer to section 4, the RF power density can be obtained. Modulation Type Target Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW WIFI 13.0 19.95 2.0 1.58 0.006291 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

Page 1 of 40 Report No.: AIT23041004FW1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. TEST REPORT Client Information: Applicant: Pet Marvel Limited Applicant add.: 350 Northern Blvd Ste 324-1331 Albany, NY 12204 Manufacturer: Shanghai Niaoyu Huaxiang Pet Co., Ltd. Manufacturer add.: Room 901, Block H, Xuhui Vanke Center, Xuhui District, Shanghai, China Product Information: Product Name: Automatic 2-in-1 Pet Feeder & Water Dispenser Model No.: A7 Brand Name: N/A FCC ID: 2BAW2-A7 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Prepared By: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang,Dongguan, Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Date of Receipt: Apr. 10, 2023 Date of Test: Apr. 10, 2023~ June 12, 2023 Date of Issue: June 13, 2023 Test Result: Pass This device described above has been tested by Dongguan Yaxu (AiT) Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC/ISED requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited, this document may be altered or revised by Dongguan Yaxu (AiT) Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Simba Huang Seal.chen Page 2 of 40 Report No.: AIT23041004FW1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS .................................................................................................................................................................... 2 2 TEST SUMMARY .......................................................................................................................................................... 5 2.1 Statement of the Measurement Uncertainty ............................................................................... 5 2.2 Measurement Uncertainty ........................................................................................................... 5 3 TEST FACILITY ............................................................................................................................................................. 6 3.1 Deviation from standard .............................................................................................................. 6 3.2 Abnormalities from standard conditions ...................................................................................... 6 3.3 Test Location ............................................................................................................................... 6 4 GENERAL INFORMATION ......................................................................................................................................... 7 4.1 Test frequencies .......................................................................................................................... 8 4.2 EUT Peripheral List ..................................................................................................................... 8 4.3 Test Peripheral List ...................................................................................................................... 8 4.4 TEST METHODOLOGY .............................................................................................................. 9 4.5 Description of Test Modes ......................................................................................................... 10 5 EQUIPMENT USED DURING TEST ........................................................................................................................ 11 6 TEST RESULTS AND MEASUREMENT DATA .................................................................................................... 12 6.1 Antenna requirement ................................................................................................................. 12 6.1.1 Standard requirement: ...................................................................................................... 12 6.1.2 EUT Antenna: .................................................................................................................... 12 6.2 On Time and Duty Cycle ........................................................................................................... 13 6.2.1 Standard requirement: ...................................................................................................... 13 6.2.2 Measuring Instruments and Setting: ................................................................................. 13 6.2.3 Test Procedures ................................................................................................................ 13 6.2.4 Test Setup Layout ............................................................................................................. 13 6.2.5 EUT Operation during Test ................................................................................................ 13 6.2.6 Test result .......................................................................................................................... 13 6.3 Maximum Conducted Output Peak Power Measurement ......................................................... 14 6.3.1 Standard requirement: ...................................................................................................... 14 6.3.2 Measuring Instruments: ..................................................................................................... 14 6.3.3 Test Procedures: .................................................................…

Text truncated - open the document above for the full version.

1.Antenna 2.VSWR FreqEffiEffiGainGainMaxMinAttenutAttenut (MHz)(%%)(dB)(dBi)(dBd)(dB)(dB)HorVer 240076.49-1.161.82-0.331.82-19.1553.2852.56 241077.46-1.111.99-0.161.99-20.0653.3452.58 242077.07-1.131.88-0.271.88-21.1153.4552.63 243077.26-1.122-0.152-21.5353.3352.73 244075.32-1.231.8-0.351.8-21.7553.3752.78 245076.88-1.141.86-0.291.86-21.9153.4653.02 246075.21-1.241.73-0.421.73-21.3753.4752.9 247075.71-1.211.72-0.431.72-21.1753.5452.93 248075.99-1.191.67-0.481.67-20.5353.5452.79 249074.83-1.261.62-0.531.62-20.2853.5452.88 250073.74-1.321.47-0.681.47-19.9953.5252.85 Passive Test For WIFI EMC3080-P Antenna test Report

Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23041004W1 FCC ID: 2BAW2-A7 Page 1 of 46 Appendix C RF Test Data for 2.4GWIFI (Conducted Measurement) Product Name: Automatic 2-in-1 Pet Feeder & Water Dispenser Trade Mark: N/A Test Model: A7 Environmental Conditions Temperature: 25.5 C Relative Humidity: 52.4% ATM Pressure: 100.0 kPa Test Engineer: Simba Huang Supervised by: Seal Chen Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23041004W1 FCC ID: 2BAW2-A7 Page 2 of 46 Contents Page COVER PAGE 1 Duty Cycle....................................................................................................................................................................................... 3 1.1 Test Result .......................................................................................................................................................................... 3 1.2 Test Graphs ......................................................................................................................................................................... 4 2 Maximum Conducted Output Power ................................................................................................................................................ 9 2.1 Test Result .......................................................................................................................................................................... 9 3 -6dB Bandwidth ............................................................................................................................................................................. 10 3.1 Test Result ........................................................................................................................................................................ 10 3.2 Test Graphs ....................................................................................................................................................................... 11 4 Maximum Power Spectral Density Level ....................................................................................................................................... 16 4.1 Test Result ........................................................................................................................................................................ 16 4.2 Test Graphs ....................................................................................................................................................................... 17 5 Band Edge .................................................................................................................................................................................... 22 5.1 Test Result ........................................................................................................................................................................ 22 5.2 Test Graphs ....................................................................................................................................................................... 23 6 Conducted RF Spurious Emission ................................................................................................................................................. 29 6.1 Test Result ........................................................................................................................................................................ 29 6.2 Test Graphs ....................................................................................................................................................................... 30 7 Restrict Band ................................................................................................................................................................................ 39 7.1 Test Result ........................................................................................................................................................................ 39 7.2 Test Graphs ....................................................................................................................................................................... 41 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23041004W1 FCC ID: 2BAW2-A7 Page 3 of 46 1 Duty Cycle 1.1 Test Result Mode Frequency (MHz) Antenna Duty Cycle (%) 1/T (kHz) b 2412 Ant1 100 0 b 2437 Ant1 100 0 b 2462 Ant1 100 0 g 2412 Ant1 100 0 g 2437 Ant1 100 0 g 2462 Ant1 100 0 n20 2412 Ant1 100 0 n20 2437 Ant1 100 0 n20 2462 Ant1 100 0 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23041004W1 FCC ID: 2BAW2-A7 Page 4 of 46 1.2 Test Graphs Test Graphs b 2412MHz Ant1 b 2437MHz Ant1 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23041004W1 FCC ID: 2BAW2-A7 Page 5 of 46 Test Graphs b 2462MHz Ant1 g 2412MHz Ant1 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23041004W1 FCC ID: 2BAW2-A7 Page 6 of 46 Test Graphs g 2437MHz Ant1 g 2462MHz Ant1 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23041004W1 FCC ID: 2BAW2-A7 Page 7 of 46 Test Graphs n20 2412MHz Ant1 n20 2437MHz Ant1 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23041004W1 FCC ID: 2BAW2-A7 Page 8 of 46 Test Graphs n20 2462MHz Ant1 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23041004W1 FCC ID: 2BAW2-A7 Page 9 of 46 2 Maximum Conducted Output Power 2.1 Test Result Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict b 2412 Ant1 12.41 30 Pass b 2437 Ant1 12.78 30 Pass b 2462 Ant1 12.74 30 Pass g 2412 Ant1 12.11 30 Pass g 2437 Ant1 12.55 30 Pass g 2462 Ant1 12.58 30 Pass n20 2412 Ant1 11.88 30 Pass n20 2437 Ant1 12.45 30 Pass n20 2462 Ant1 12.51 30 Pass Dongguan Yaxu(AiT) Technology Limited Report No.: AIT23041004W1 FCC ID: 2BAW2-A7 Page 10 of 46 3 -6dB Bandwidth 3.1 Test Result Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict b 2412 Ant1 9.558 0.5 …
