2BAYW-XPAW019Mibro Watch Lite3 Pro

EN Packing list: Mibro Watch Lite3 Pro (including Leather strap) X 1, User manual X 1, Magnetic charger X 1,Silicone strap X 1. Product description Please read this manual carefully before using the product and keep it properly. . Connect the watch ①Please scan the QR code to download the “Mibro Fit”App. ②Please use "Mibro Fit" to scan the QR code for pairing. Untie a watch ① Android system: select "Delete current device" in the App to unbind the device. ②iOS system: select "Delete current device" in the App, and jump to the Bluetooth interface of mobile phone system according to the prompt,Select Ignore Current Device to unbind the device. User Manual ① ② ③ ④ ⑤ ⑥ ⑦ ⑨ ⑧ ⑩ Shortcut Button Home button Full touch display Turning On: Long press the button for 3 seconds until the screen lights up Turning Off: Long press the button for 2 seconds until the screen turns off Return: Click Rotating: menu scrolling operations Charging port (Positive) Charging port(Negative) Heart rate sensor Speaker Barometer bore Microphone Balance holes ④ ⑤ ⑥ ⑦ ⑨ ① ② ③ ⑧ ⑩ After connecting it to the mobile phone, you can synchronize the weather. Weather Features 1. Do not charge in a humid environment; 2. Make sure that the metal contact on the watch body and magnetic charger are not dirty or corroded; 3. Please clean the metal contact on the back of the watch and the magnetic charger with a clean flannel regularly. Make sure that the contacts of the watch and the magnetic charger are in full contact to ensure normal charging; 4. This product is not equipped with a power adapter. In order to ensure the safety of your family and property, you can use a computer USB port or choose a power adapter with an output not exceeding 5V 1A when charging. Please purchase power adapters through formal channels, and never use low-quality and fake power adapters to avoid bursting or fire. EN Charging instructions Watch alarm clock setting function. Alarm Record the daily exercise data, including steps, distance, calories, activity duration,activity times. Monitor the change of your stress value in a day and form an analysis icon.Pressure Data Intelligently monitor heart rate.Heart rate Intelligently monitor blood oxygen.Blood oxygen Different frequency and time can be set for respiratory adjustment training.Breath training Intelligently monitor your sleep quality.Sleep SportsSupport 150 sports modes. Daily activitiesDaily activity record, only record the data of the day, and the data will be clear at 00: 00 every day. Women's health Record women's physiological period conditions and give early warning. Training status World Clock You can control music playing on mobile phone after connecting the watch to the mobile phone. Music You can answer and make calls on the watch after connecting the phone to the watch. Phone There are times in 5 countries at the same time, showing the difference between the current time and the time in other countries. Record the training status of the last 7 days and grasp the recovery time. Start the stopwatch function. Stopwatch Watch quick timer. Timer EN Altitude pressure Measure altitude pressure and altitude. Search your phone After connecting the phone, you can find the phone through the watch. Calculator Watch mini calculator. 1. Wear and dirt caused by users' use, such as scratches and color changes; As well as damage caused by contact with chemicalreagents, sharp objects, falling, extrusion and deformation. 2. Unauthorized maintenance, collision, misuse, negligence, abuse, water ingress, accidents, and failures caused by the use ofnon-standard accessories of the product. 3. Tearing, altering labels, forging anti-counterfeiting marks, etc. 4. Damage caused by force majeure. 5. Non compliance with performance faults listed in the performancefault table. Trouble shooting and after sales regulations Non warranty regulations Name Bluetooth watch Compass Watch compass function. Mibro Watch Lite 3 Pro 1. The watch cannot be powered on. 2. The watch calls are silent during use. 3. During the call, the other party cannot hear the sound. 4. The display does not light up or the touch screen cannot be operated. 5. Unable to charge. Calendar Watch Gregorian calendar function. Voice assistant Wake up your phone's voice assistant function. Example: Wake up the iOS system from your watch The Siri function of the phone. Key card Only the watch with NFC writing function is supported, and a maximum of 3 access cards can be enabled for a watch. Setting Display & Brightness, Vibration Mode, Message Notifications, Password Settings, Preferences, Workout Settings, System, Shutdown and Restart, Language Settings, Connect a New Phone, Factory Reset, DND Mode, Phone Connect Portable, Personal Data, Notifications, Energy Saving Mode, Data Recovery, Time and Other Settings. EN Attention instructions 1. The measurement results of this product are for reference only, not for any medical purpose or basis. Please follow the doctor'sinstructions and never make self-diagnosis and treatment based on the measurement results. 2. The waterproof grade of this product is 5ATM, but it is not against sea water,deep diving and long time soaking in water. At the same time, it doesn't prevent hot water, because steam will affect the watch. 3. The company reserves the right to modify the contents of this manual with out any notice. Some functions are different in the corresponding software version, which is normal. Disposal of electrical and electronic equipment The symbol of the crossed-out wheeled garbage can Symbol on your product. The symbol of the crossed-out wheeled garbage can on your product, battery, or packaging is a reminder that all electronic products and batteries must be disposed of separately at the end of their life and should not be disposed of with other household waste. It is the user's responsibility to dispose of the device at an official collection point or service for the separate recycling of electrical and elect…

Text truncated - open the document above for the full version.

ZhenShi Information Technology (Shenzhen) Co.,Ltd Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 6/19/2024 U.S. Agent Designation Z henShi Information Technology (Shenzhen) Co.,Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BAYW-XPAW019): Name and company of U.S. agent: FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of ZhenShi Information Technology (Shenzhen) Co.,Ltd. ZhenShi Information Technology (Shenzhen) Co.,Ltd with the FRN 0033697095 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Since rely, Signature Wei Liu Senior Engineer of Supplier Quality Control ZhenShi Information Technology (Shenzhen) Co.,Ltd Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7)-U, V05

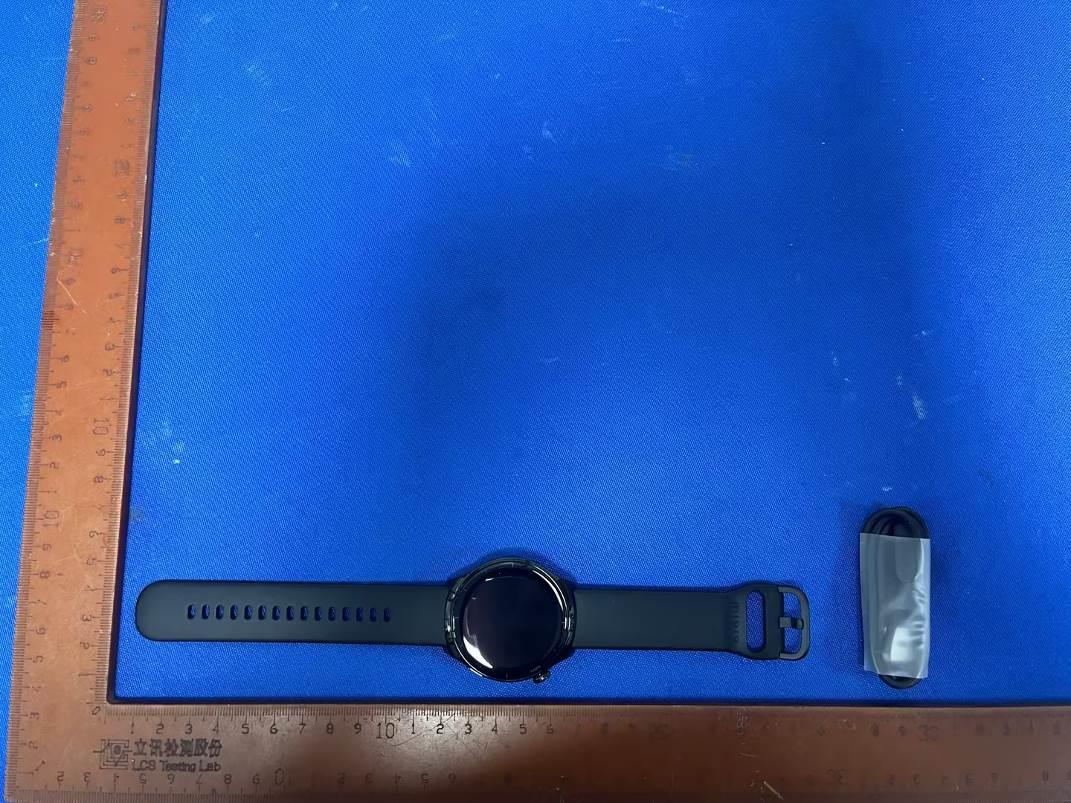

Page 1 of 4 FCC ID: 2BAYW-XPAW019 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity External Photos of the EUT Fig. 1 Fig. 2 Page 2 of 4 FCC ID: 2BAYW-XPAW019 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 4 FCC ID: 2BAYW-XPAW019 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 4 FCC ID: 2BAYW-XPAW019 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7 Fig. 8

Page 1 of 1 FCC ID: 2BAYW-XPAW019 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity LABEL AND LOCATION (Size: L 3.5cm x W 3.5cm) Label Location Mibro Watch Lite3 Pro Model: XPAW019 FCC ID: 2BAYW-XPAW019

Page 1 of 5 FCC ID: 2BAYW-XPAW019 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Internal Photos of the EUT Fig. 1 Fig. 2 Antenna Page 2 of 5 FCC ID: 2BAYW-XPAW019 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 5 FCC ID: 2BAYW-XPAW019 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 5 FCC ID: 2BAYW-XPAW019 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7 Fig. 8 Page 5 of 5 FCC ID: 2BAYW-XPAW019 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 9 Fig. 10

Page 1 of 4 FCC ID: 2BAYW-XPAW019 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC RF Exposure Evaluation 1. Product Information FCC ID : 2BAYW-XPAW019 Product name : Mibro Watch Lite3 Pro Test Model : XPAW019 Power Supply : Input: DC 5V, 1A Max. DC 3.8V By Li-ion Battery(350mAh) Hardware Version : AW1018_MB_P0.4 Software Version AW1018 Bluetooth : Frequency Range : 2402MHz~2480MHz Channel Number : 79 channels for Bluetooth V5.3 (DSS) 40 channels for Bluetooth V5.3 (DTS) Channel Spacing : 1MHz for Bluetooth V5.3 (DSS) 2MHz for Bluetooth V5.3 (DTS) Modulation Type : GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V5.3 (DSS) GFSK for Bluetooth V5.3 (DTS) Bluetooth Version : V5.3 Antenna Type : FPC Antenna Antenna Gain : -7.1dBi Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ Page 2 of 4 FCC ID: 2BAYW-XPAW019 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices Page 3 of 4 FCC ID: 2BAYW-XPAW019 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 4. Conducted Power Results < BT > Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -0.88 39 2441 -0.35 78 2480 -0.01 π/4-DQPSK 0 2402 0.3 39 2441 -0.51 78 2480 -0.24 8-DPSK 0 2402 0.41 39 2441 -0.44 78 2480 -0.16 < BT LE > …

Text truncated - open the document above for the full version.

ANT Communication Technology（Shenzhen） Co., LTD. Antenna Datasheet Customer name ：Xiao Xun Project name ：AW1018 Datasheet version ：RA Material specifications ： Antenna Photo & Length (mm) ANT Communication Technology（Shenzhen） Co., LTD. Datasheet 第2页- 一、BT/GPS ANT 1、Gian & Efficiency & Directional diagram（Wear arms） GPS BT Freq/ MHz Effi /db Freq/% Gain/dBi Freq/ MHz Effi /db Freq/% Gain/dBi 1500 -11.75 6.68 -7.4 2400 -14.29 3.72 -7.91 1510 -11.65 6.84 -6.98 2410 -13.89 4.08 -7.98 1520 -11.51 7.06 -6.76 2420 -13.73 4.24 -7.94 1530 -11.31 7.4 -6.78 2430 -13.31 4.67 -8.12 1540 -11.11 7.74 -6.22 2440 -13.22 4.76 -7.53 1550 -10.92 8.09 -6.73 2450 -13.19 4.8 -7.95 1560 -10.57 8.77 -6.37 2460 -13.45 4.52 -7.48 1570 -10.54 8.83 -7.03 2470 -13.28 4.7 -7.82 1580 -10.35 9.23 -6.83 2480 -13.42 4.55 -7.1 1590 -10.51 8.89 -6.93 2490 -13.38 4.59 -7.41 1600 -10.68 8.55 -6.82 2500 -13.39 4.58 -7.98 ANT Communication Technology（Shenzhen） Co., LTD. Datasheet 第3页- 2、2D/3D Directional diagram 3、Antenna S11 ANT Communication Technology（Shenzhen） Co., LTD. Datasheet 第4页- 4、Antenna parameters 二、Test Equipment Technical parameters Frequency range 1500-1600MHZ,2400-2500MHZ Enter The impedance 50Ω VSWR ≤3 Max gain 1500-1600MHZ: -6.22dBi 2400-2500MHZ: -7.1dBi Environment parameters Operating temperature -45°C--+85°C Storage temperature -45°C--+85°C

Page 1 of 61 FCC ID: 2BAYW-XPAW019 Report No.: LCSA06034082EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix A RF Test Data for BT (Conducted Measurement) Product Name: Mibro Watch Lite3 Pro Test Model: XPAW019 Environmental Conditions Temperature: 23.8 C Relative Humidity: 52.1% ATM Pressure: 100.0 kPa Test Engineer: Paddi Chen Supervised by: Nick Peng Page 2 of 61 FCC ID: 2BAYW-XPAW019 Report No.: LCSA06034082EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.1 -20dB Bandwidth Condition Mode Frequency (MHz) Antenna -20 dB Bandwidth (MHz) Limit -20 dB Bandwidth (MHz) Verdict NVNT 1-DH5 2402 Ant1 1.024 N/A Pass NVNT 1-DH5 2441 Ant1 1.022 N/A Pass NVNT 1-DH5 2480 Ant1 1.015 N/A Pass NVNT 2-DH5 2402 Ant1 1.279 N/A Pass NVNT 2-DH5 2441 Ant1 1.29 N/A Pass NVNT 2-DH5 2480 Ant1 1.317 N/A Pass NVNT 3-DH5 2402 Ant1 1.299 N/A Pass NVNT 3-DH5 2441 Ant1 1.288 N/A Pass NVNT 3-DH5 2480 Ant1 1.278 N/A Pass Page 3 of 61 FCC ID: 2BAYW-XPAW019 Report No.: LCSA06034082EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs -20dB Bandwidth NVNT 1-DH5 2402MHz Ant1 -20dB Bandwidth NVNT 1-DH5 2441MHz Ant1 Page 4 of 61 FCC ID: 2BAYW-XPAW019 Report No.: LCSA06034082EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -20dB Bandwidth NVNT 1-DH5 2480MHz Ant1 -20dB Bandwidth NVNT 2-DH5 2402MHz Ant1 Page 5 of 61 FCC ID: 2BAYW-XPAW019 Report No.: LCSA06034082EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -20dB Bandwidth NVNT 2-DH5 2441MHz Ant1 -20dB Bandwidth NVNT 2-DH5 2480MHz Ant1 Page 6 of 61 FCC ID: 2BAYW-XPAW019 Report No.: LCSA06034082EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -20dB Bandwidth NVNT 3-DH5 2402MHz Ant1 -20dB Bandwidth NVNT 3-DH5 2441MHz Ant1 Page 7 of 61 FCC ID: 2BAYW-XPAW019 Report No.: LCSA06034082EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -20dB Bandwidth NVNT 3-DH5 2480MHz Ant1 Page 8 of 61 FCC ID: 2BAYW-XPAW019 Report No.: LCSA06034082EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.2 Maximum Peak Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH5 2402 Ant1 -0.88 21 Pass NVNT 1-DH5 2441 Ant1 -0.35 21 Pass NVNT 1-DH5 2480 Ant1 -0.01 21 Pass NVNT 2-DH5 2402 Ant1 0.3 21 Pass NVNT 2-DH5 2441 Ant1 -0.51 21 Pass NVNT 2-DH5 2480 Ant1 -0.24 21 Pass NVNT 3-DH5 2402 Ant1 0.41 21 Pass NVNT 3-DH5 2441 Ant1 -0.44 21 Pass NVNT 3-DH5 2480 Ant1 -0.16 21 Pass Page 9 of 61 FCC ID: 2BAYW-XPAW019 Report No.: LCSA06034082EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs Power NVNT 1-DH5 2402MHz Ant1 Power NVNT 1-DH5 2441MHz Ant1 Page 10 of 61 FCC ID: 2BAYW-XPAW019 Report No.: LCSA06034082EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Power NVNT 1-DH5 2480MHz Ant1 Power NVNT 2-DH5 2402MHz Ant1 Page 11 of 61 FCC ID: 2BAYW-XPAW019 Report No.: LCSA06034082EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Power NVNT 2-DH5 2441MHz Ant1 Power NVNT 2-DH5 2480MHz Ant1 Page 12 of 61 FCC ID: 2BAYW-XPAW019 Report No.: LCSA06034082EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Power NVNT 3-DH5 2402MHz Ant1 Power NVNT 3-DH5 2441MHz Ant1 Page 13 of 61 FCC…

Text truncated - open the document above for the full version.

Page 1 of 37 FCC ID: 2BAYW-XPAW019 Report No.: LCSA06034082EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT FOR ZhenShi Information Technology (Shenzhen) Co., Ltd Mibro Watch Lite3 Pro Test Model: XPAW019 Prepared for : ZhenShi Information Technology (Shenzhen) Co., Ltd Address : RM1401-1403,1408, Tower E, Galaxy World, Minzhi Street, Longhua District, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 03, 2024 Number of tested samples : 2 Sample No. : A240603136-1, A240603136-2 Serial number : Prototype Date of Test : June 03, 2024 ~ June 13, 2024 Date of Report : June 13, 2024 Page 2 of 37 FCC ID: 2BAYW-XPAW019 Report No.: LCSA06034082EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCSA06034082EA Date of Issue ................................... : June 13, 2024 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : ZhenShi Information Technology (Shenzhen) Co., Ltd Address ........................................... : RM1401-1403,1408, Tower E, Galaxy World, Minzhi Street, Longhua District, Shenzhen, China Test Specification Standard .......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Mibro Watch Lite3 Pro Trade Mark ...................................... : Test Model ...................................... : XPAW019 Ratings ............................................ : Input: DC 5V, 1A Max. DC 3.8V By Li-ion Battery(350mAh) Result ........................................... : Positive Compiled by: Supervised by: Approved by: Nadia Zhou/ Administrator Cary Luo/ Technique principal Gavin Liang/ Manager Page 3 of 37 FCC ID: 2BAYW-XPAW019 Report No.: LCSA06034082EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSA06034082EA June 13, 2024 Date of issue Test Model.............................. : XPAW019 EUT......................................... : Mibro Watch Lite3 Pro Applicant............................... : ZhenShi Information Technology (Shenzhen) Co., Ltd Address................................... : RM1401-1403,1408, Tower E, Galaxy World, Minzhi Street, Longhua District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer......................... : ZhenShi Information Technology (Shanghai) Co., Ltd Address................................... : Room 4015, Building 2, No.588 Zixing Road, Minhang Distric, Shanghai, China Telephone............................... : / Fax.......................................... : / Factory................................... : ZhenShi Information Technology (Shanghai) Co., Ltd Address................................... : Room 4015, Building 2, No.588 Zixing Road, Minhang Distric, Shanghai…

Text truncated - open the document above for the full version.
