2BB2T-FBMINIFSPKWireless Mini Fabric Speaker

Wireless Mini Fabric Speaker User manual WHAT’S INCLUDED --FBMINIFSPK Wireless Speaker --Type-C Charging Cable --User’s Manual with Warranty Information Charging : Insert neend of the included Type-C charging cable (included) into The DC 5V charging port on yours peaker. Insert the other end into the USB port of a computer or suitable USB charging adapter. When in Charging (Indicator is in Red ) When Charging Complete (Indicator is Off) Power On Slide the power switch to the ON position to power ON the speaker. After powering ON, the speaker will automatically going to Bluetooth pairing mode. Slide the power switch to the OFF position to power the speaker OFF. Remark: The speaker will turn off automatically after 10 minutes standby. Bluetooth Pairing : Power on your speaker. The speaker will automatically in bluetooth mode. Then go to the Bluetooth settings menu on your phone. Make sure that Bluetooth is turned on. Connect to the device listed as “mini speaker” TWS Function: If you have two FBMINIFSPK speakers, enjoy high-quality sound By using the TWS pairing function. Power on both speakers, the two speakers will pair with each other automatically , once paired successfully a tone will be heard . You can then go to the Bluetooth settings menu on your phone. Make sure that Bluetooth is turned on. Connect to the device listed as “mini speaker” Specifications Bluetooth Version: V3.0 Bluetooth Range: Up to 33 feet (10 meters) Power Supply: DC 5V,1A (USB) Battery Type: 3.7V 400mah Battery Play Time (Only Music): 2-3hours *Applicable at 50% of maximum volume. Results will be lower when volume is higher. FCC STATEMENT Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with FCC radiation exposure requirement set forth for an uncontrolled environment.

Dongguan Youshifa Electronic Technology Co., Ltd. ADD: 2F #5 Lane 3, No. 2 Industry park, Nance Community, Humen Town, Dongguan, Guangdong, China Tel: +86 13923787506 Email: [email protected] Date: 2024-5-30 To: FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attestation letter Dear Sir or Madam, Our product Wireless Mini Fabric Speaker, model: FBMINIFSPK, FBMINIFSPK- LBLU, FBMINIFSPK-PNK, FBMINIFSPK-GRN, FBMINIFSPK-BLK, FCC ID: 2BB2T-FBMINIFSPK, for marketing purpose, this product only supports BT(GFSK, π/4-DQPSK, 8DPSK).The other functions, bands and modes was disabled to use by manufacturer in the software, the end user has no capability to activate it. Sincerely Yours, Signature: Printed Name: Jason He Title: Sales Manager

CFR 47 §2.911(d)(5)(i) Attestation Letter QA-FR-1006-A RC 02-08-2023 Dongguan Youshifa Electronic Technology Co., Ltd. ADD: 2F #5 Lane 3, No. 2 Industry park, Nance Community, Humen Town, Dongguan, Guangdong, China Tel: +86 13923787506 Email: [email protected] Attestation Letter Date: 05/30/2024 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2BB2T-FBMINIFSPK Dongguan Youshifa Electronic Technology Co., Ltd. certifies that the equipment for which authorization is sought, is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature Printed Name: Jason He Title: Sales Manager

CFR 47 §2.911 (d)(5)(ii) Attestation Letter QA-FR-1007-A RC 02-08-2023 Dongguan Youshifa Electronic Technology Co., Ltd. ADD: 2F #5 Lane 3, No. 2 Industry park, Nance Community, Humen Town, Dongguan, Guangdong, China Tel: +86 13923787506 Email: [email protected] Attestation Letter Date: 05/30/2024 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2BB2T-FBMINIFSPK Dongguan Youshifa Electronic Technology Co., Ltd. certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature Printed Name: Jason He Title: Sales Manager

U.S. AGENT LETTER OF ATTESTATION Date: 2024-05-30 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2BB2T-FBMINIFSPK Dongguan Youshifa Electronic Technology Co., Ltd. certifies that, as of the date of the filing of the application, MCG Innovations Inc is our designated U.S. agent for service of process for the above referenced FCC ID. Dongguan Youshifa Electronic Technology Co., Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. MCG Innovations Inc accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: MCG Innovations Inc Address: 246 Monmouth Rd Oakhurst, NJ, 07755 USA FRN: 0033904574 Tel.: +1 (159) 200-0358 Email: [email protected] Signed by (printed name): Ms Qier Bao Signature: Applicant: Dongguan Youshifa Electronic Technology Co., Ltd. Address: 2F #5 Lane 3, No. 2 Industry park, Nance Community, Humen Town, Dongguan, Guangdong, China FRN: 0033994468 Tel: +86 13923787506 Email: [email protected] Signed by (printed name): Jason He Signature:

APPROVED:ECO NO:LTR A B C D 654321 DATE: DCBA REVISION RECORD SCALE:SHEET: OF DRAWING NO: TITLE: COMPANY: RELEASED:DATED: DATED:QUALITY CONTROL: CHECKED:DATED: DATED:DRAWN: CODE:SIZE:REV: 11 A2 AC6969D AMPER LTK5313 SPEAKER MICUSB 5V IN BATRRY CRYSTAL 24MHZ BT-ANT 2402-2480MHz

Dongguan Youshifa Electronic Technology Co., Ltd. ADD: 2F #5 Lane 3, No. 2 Industry park, Nance Community, Humen Town, Dongguan, Guangdong, China Tel: +86 13923787506 Email: [email protected] FCC Authorization Date: 2024-5-30 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Dongguan Youshifa Electronic Technology Co., Ltd., the undersigned, hereby authorize Bay Area Compliance Laboratories Corp. (Shenzhen) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. (Shenzhen) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Jason He Title: Sales Manager

Dongguan Y oushifa Electronic Technology Co., Ltd. ADD: 2F #5 Lane 3, No. 2 Industry park, Nance Community, Humen Town, Dongguan, Guangdong, China Tel: +86 13923787506 Email: [email protected] Product Similarity Declaration Date: 2024-5-30 To: FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, W e, Dongguan Youshifa Electronic Technology Co., Ltd., hereby declare that we have a product named as Wireless Mini Fabric Speaker (model: FBMINIFSPK, FCC ID: 2BB2T-FBMINIFSPK) was tested by Bay Area Compliance Laboratories Corp. (Shenzhen), Meanwhile, for our marketing purpose, we would like to list a series model (FBMINIFSPK-LBLU, FBMINIFSPK-PNK, FBMINIFSPK-GRN, FBMINIFSPK-BLK) on reports and certificate, all the models are identical in electrically. The difference between FBMINIFSPK-LBLU, FBMINIFSPK-PNK, FBMINIFSPK-GRN, FBMINIFSPK-BLK are the appearance (color). And the FBMINIFSPK is the combination with FBMINIFSPK-LBLU, FBMINIFSPK-PNK, FBMINIFSPK-GRN, FBMINIFSPK-BLK. Please refer to the following table for details: Model No. Color Remark FBMINIFSPK-LBLU L IGHT BLUE/ FBMINIFSPK-PNK P / FBMINIFSPK-GRN G REEN/ FBMINIFSPK-BLK B LACK / FBMINIFSPK 4pcs (FBORNSP K =(Model: FBMINIFSPK-LBLU)+ (Model: FBMINIFSPK-PNK) + (Model: FBMINIFSPK-GRN) + (Model: FBMINIFSPK-BLK), model sold in combination) We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincere ly, Signatur e: Printed Name: Jason He Title: Sales Manager L IGHT BLUE INK P INK GREEN , ,, BLACK

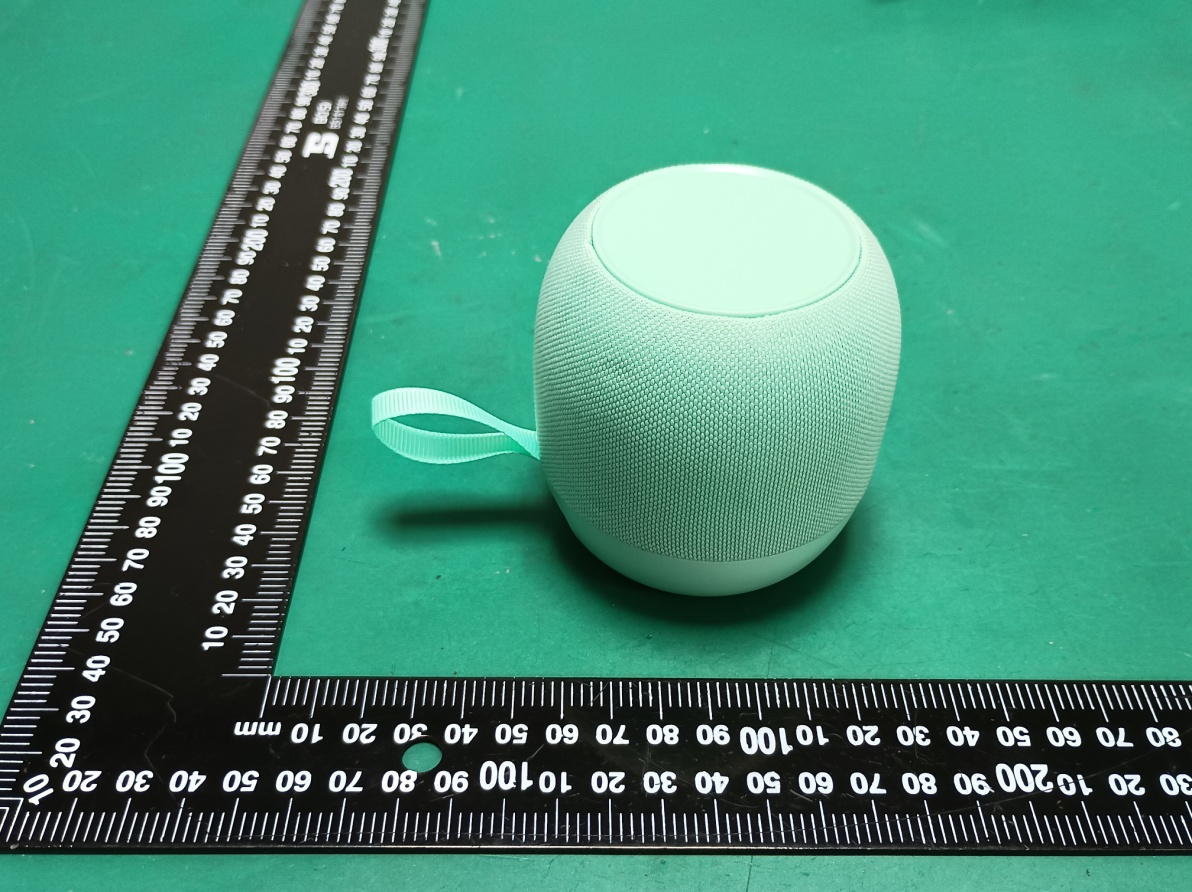

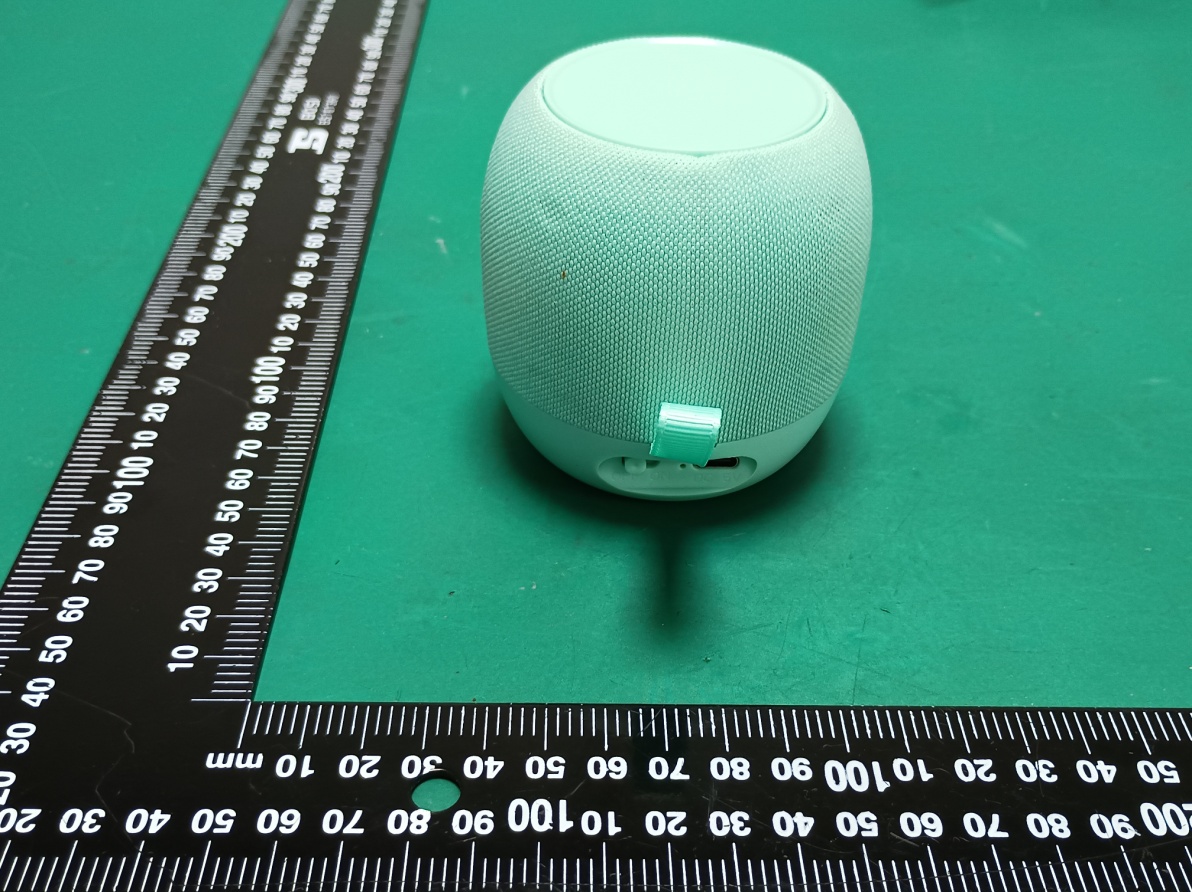

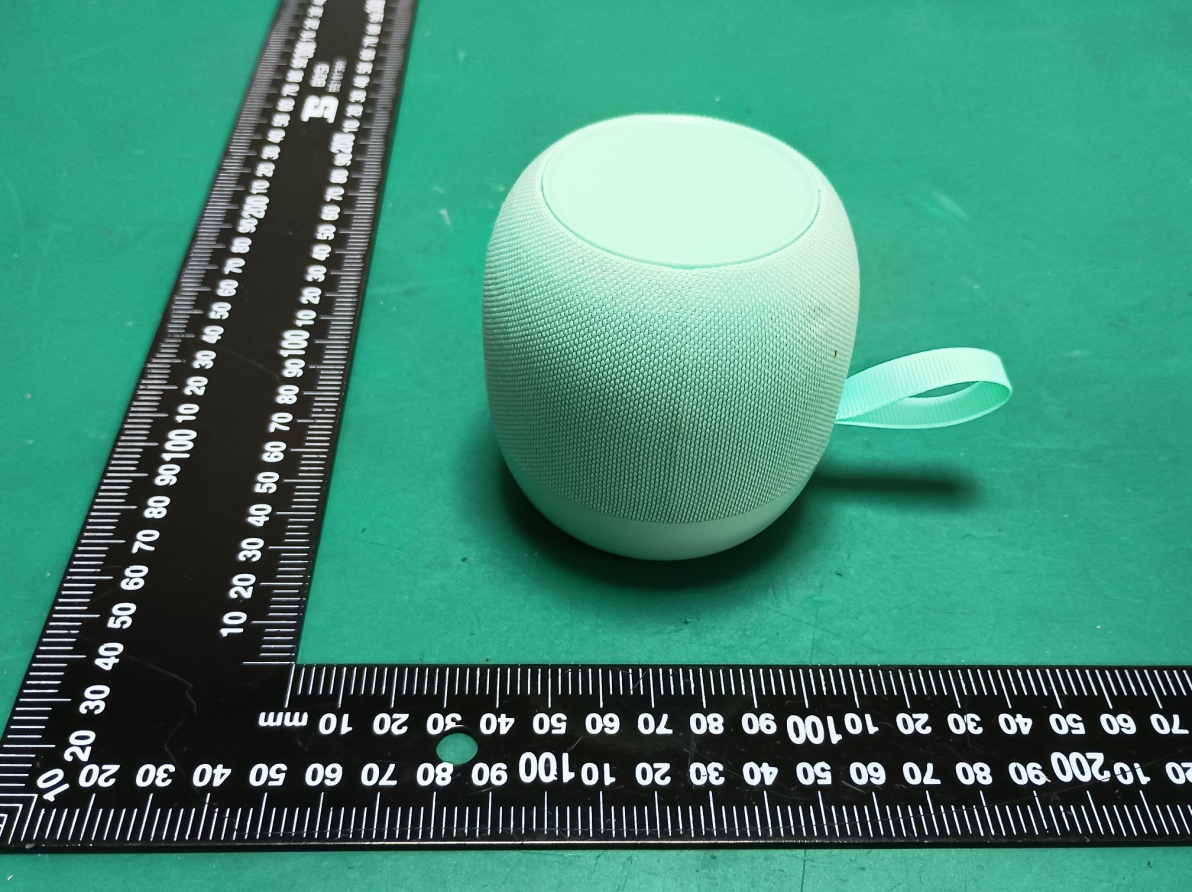

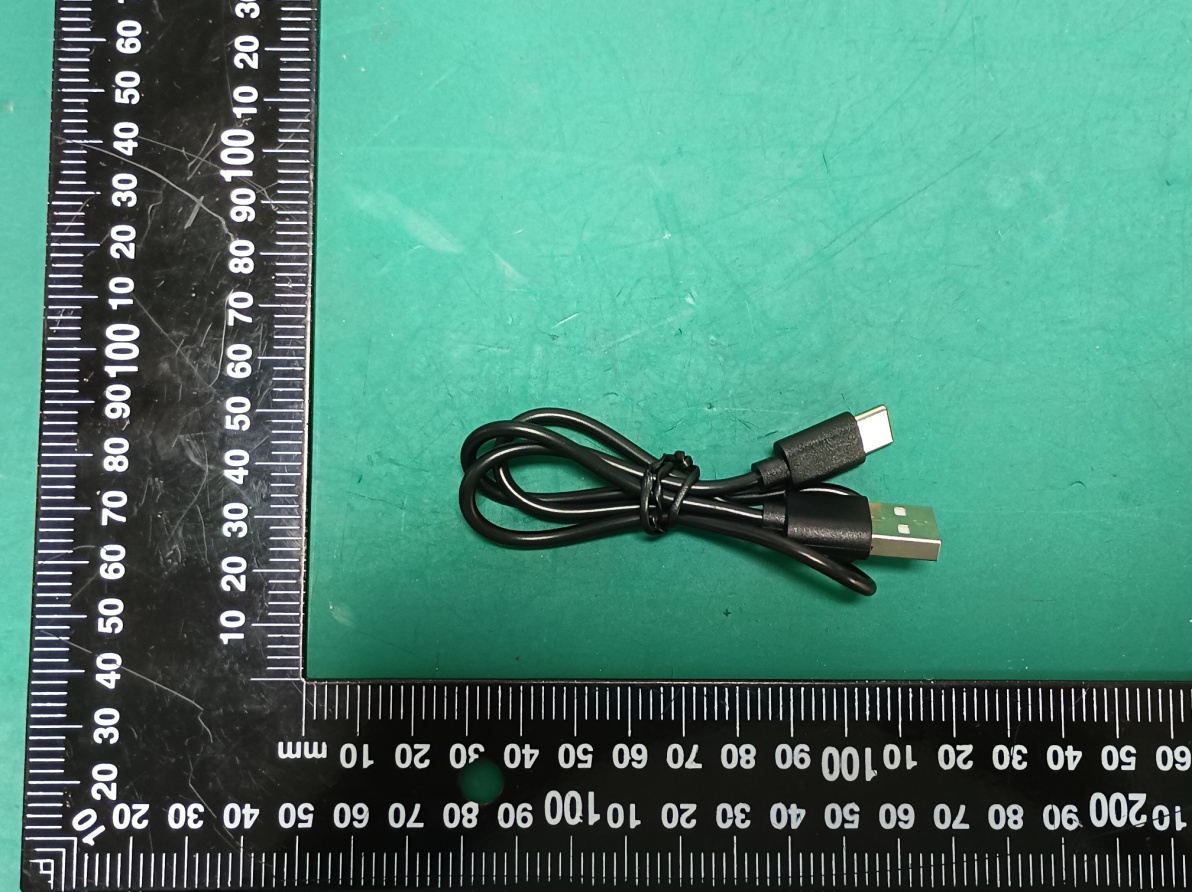

Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401T65510E-RF Page 1 of 6 EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401T65510E-RF Page 2 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401T65510E-RF Page 3 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401T65510E-RF Page 4 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401T65510E-RF Page 5 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401T65510E-RF Page 6 of 6

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401T65510E-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401T65510E-RF Page 1 of 4 EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401T65510E-RF Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401T65510E-RF Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401T65510E-RF Page 4 of 4 ANT

CIRCUIT DESCRIPTION 1. MAIN CHIP AC6969D CPU 32-bit DSP supports hardware Float Point Unit (FPU) Up to 160MHz programmable processor 64 Vectored interrupts 4 Levels interrupt priority DSP Audio Processing SBC, AAC Audio decodes supported for BT audio mSBC voice codecs supported for BT phone Supports MP2, MP3, WMA, APE, FLAC, AAC, MP4, M4A, WAV, AIF, AIFC audio decoding Packet Loss Concealment (PLC) for voice processing Acoustic echo cancellation/suppression (AEC,AES) Single/Dual MIC Environmental Noise Cancellation (ENC) Multi-band DRC limiter 10-band EQ configuration for voice Effects Audio Codec One channels 16-bit DAC, SNR >= 95dB One channels 16-bit ADC , SNR >= 90dB Sampling rates of 8KHz/11.025KHz/16KHz/22.05KHz/24KHz/ 32KHz/44.1KHz/48KHz are supported One analog MIC amplifier, build-in MIC bias generator Supports two PDM digital MIC inputs Two channels Mono analog MUX Supports cap-less, single-ended, and differential mode at the DAC path Supports 16ohm and 32ohm Speaker loading Bluetooth Compliant with Bluetooth (GFSK, π/4-DQPSK, 8DPSK) specification Fast AGC for enhanced dynamic range 2.charge. 5V input to provide 400mA charging current to the lithium battery. There is a charge detection circuit to achieve charging point, indicator light long bright, charge saturation, indicator light off. 3 Crystal The clock of Bluetooth chip, frequency is 24MHz, request error 10ppm 4.power amplifier An audio power amplifier LTK5313, maximum power to 5W. 5 BT ANT Bluetooth PCB board antenna

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401T65510E-RF-00A TR-EM-RF001 Page 58 of 61 Version 1.0 (2023/10/07) RF EXPOSURE EVALUATION Applicable Standard According to FCC §2.1093 and §1.1307(b) (1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 General RF Exposure Guidance The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where 1. f(GHz) is the RF channel transmit frequency in GHz. 2. Power and distance are rounded to the nearest mW and mm before calculation. 3. The result is rounded to one decimal place for comparison. 4. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test Exclusion. Measurement Result For worst case: Mode Frequency (MHz) Max tune-up conducted power # (dBm) Max tune-up conducted power # (mW) Distance (mm) Calculated value Threshold (1-g SAR) SAR Test Exclusion BT 2402-2480 2.5 1.78 5 0.56 3 Yes Note: The tune up conducted power was declared by the applicant. Result: Compliant

A PP R O V E D : E CO NO: L TR ABCD 6 5 4 3 2 1 DATE: DCBA REV I SION RECORD SCALE: S HEET: O F DRA WIN G NO: TITLE:CO MPAN Y: RELEASED: DATED:DATED: Q UALITY CONTROL: CHEC KED: DATED:DATED: DRAWN: CODE: SI ZE: REV: 1 1 A 2 12 D3 BLED 1 LDO _IN /P B 5 2 VBAT 3 VDDIO 4 PB1/ADC5 5 FMIP 6 BT_RF 7 BT_OSCI 8 BT_OSCO 9 PC5 1 0 PC4 11 USBDM 12 USBDP 13 PA0 14 VDDIO 15 VCOM 16 DACL U 2 AC6969D 1 2 S W 1 C2 105 BT_ANT Y1 2 4 M H Z C1 0 105 7 7 6 6 2 2 3 3 1 1 5 5 11 11 10 10 8 8 9 9 4 4 U1 L T K5313 R2 27K R3 27K C7 683 C9 683 C6 475 C8 105 C4 106 C5 106 + C 1 4 7 0 U F 12 J3 SP R1 7.5K C3 105 1 2 D15 R E D 1 VBAT 2 GND 3 NTC J1 BAT-3P C11 106 C12 106 R11 1K R10 5.1K R5 6.2K R4 NC 1 GND1 2 5V 3 C01 4 C02 5 5V 6 GND2 J2 TYPEC -6 R95.1K 4 VCC 8 CE 7 CHRG 6 STDBY 2 PROG 1 TEMP 3 GND 5 BAT U3 CL4056 R61.2K R7 0 .5R R8 100R D MUTE VMCU VBAT VMCU AGND DACRL LED VDDIO MUTE AGND DACRL VMCU LED DAT_DM USBDP VBAT

Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Horizontal Vertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.73 -0.84 -0.68 -6.15 -3.70 -2.32 MAX. Gain -0.68 Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo dBi dBi dBi dBi dBidBi dBi 333 Kexing Road, Xiangzhou District, Zhuhai City, China Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Frequency (MHz) Gain(dBi) Max Min 2400 -1.73 -30.08 2450 -0.84 -38.56 2500 -0.68 -24.03 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div ANT Test Labs：Attestation of Global Compliance Co., Ltd. Frequency (MHz) Gain(dBi) Max Min 2400 -6.15 -24.14 2450 -3.70 -26.58 2500 -2.32 -30.43

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF001 Page 1 of 61 Version 1.0 (2023/10/07) TEST REPORT Applicant Name: Dongguan Youshifa Electronic Technology Co., Ltd. Address: 2F #5 Lane 3, No. 2 Industry park, Nance Community, Humen Town, Dongguan, Guangdong, China Report Number: 2401T65510E-RF-00A FCC ID: 2BB2T-FBMINIFSPK Test Standard (s) FCC PART 15.247 Sample Description Product Type: Wireless Mini Fabric Speaker Model No.: FBMINIFSPK Multiple Model(s) No.: FBMINIFSPK-LBLU; FBMINIFSPK-PNK; FBMINIFSPK-GRN; FBMINIFSPK-BLK Trade Mark: N/A Date Received: 2024-05-17 Issue Date: 2024-06-28 Test Result: Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Jojo Guo Michelle Zeng RF Engineer RF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401T65510E-RF-00A TR-EM-RF001 Page 2 of 61 Version 1.0 (2023/10/07) TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 3 GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 REQUIREMENTS AND TEST PROCEDURES ..................................................................................................... 11 AC LINE CONDUCTED EMISSIONS .............................................................................................................................. 11 RADIATED EMISSIONS ................................................................................................................................................ 13 CHANNEL SEPARATION TEST ..................................................................................................................................... 16 20 DB EMISSION BANDWIDTH .................................................................................................................................... 17 QUANTITY OF HOPPING CHANNEL TEST .................................................................................................................... 19 TIME OF OCCUPANCY (DWELL TIME) ........................................................................................................................ 20 PEAK OUTPUT POWER MEASUREMENT ...................................................................................................................... 22 BAND EDGES .............................................................................................................................................................. 23 TEST DATA AND RESULTS .................................................................................................................................... 24 AC LINE CONDUCTED EMISSIONS .............................................................................................................................. 24 RADIATED EMISSIONS ................................................................................................................................................ 27 20 DB EMISSION BANDWIDTH .................................................................................................................................... 41 CHANNEL SEPARATION .............................................................................................................................................. 44 NUMBER OF HOPPING FREQUENCY ............................................................................................................................ 47 TIME OF OCCUPANCY (DWELL TIME) ...........…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.:2401T65510E-RF-00A Page 1 of 3 TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.:2401T65510E-RF-00A Page 2 of 3 Radiated Emissions View (9 kHz-30 MHz) Radiated Emissions View (30MHz-1000MHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.:2401T65510E-RF-00A Page 3 of 3 Radiated Emissions View (1-18 GHz) Radiated Emissions View (18-25 GHz)
