2BB3B-V40091W2TWS EARBUDS WITH CHARGING BOX

0. Long press for 2 seconds: Long press for 2 seconds: Previous song: Double click on left ear Next track : Double click on the right ear Click : answer/hang up the phone Click : Play Pause Long press for 2 seconds: Voice assistant, short press to exit Long press for 2 seconds: reject incoming call Press and hold for 4 seconds to shut down Press and hold for 2 seconds to turn on the device DC 5V R L DC 5V R L DC 5V V40093W V40093W 95.00 mm 146.00 mm One earbud blue and red light ashes alternately, another ear bud with blue light ash every 5 seconds type-C charging cable TWS EARBUDS WITH CHARGING BOX Model :V40091W FCC ID:2BB3B-V40091W2 4.Label This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 5.User manal FCC warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. FCC ID: 2BB3B- V40091W

SHENZHEN JUNYE ELECTRONICS CO LTD 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: SHENZHEN JUNYE ELECTRONICS CO LTD Address: 2/F, Building 7, HYS industrial Park, Phoenix 4TH Community, Fuyong, Baoan, Shenzhen China Product Name: TWS EARBUDS WITH CHARGING BOX FCCID: 2BB3B-V40091W2 Model(s): V40091W 2.911(d)(5)(i) EquipmentType We, [SHENZHEN JUNYE ELECTRONICS CO LTD] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Yin jun Date: 2023/08/17 Title and Company name: Manager / SHENZHEN JUNYE ELECTRONICS CO LTD NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

SHENZHEN JUNYE ELECTRONICS CO LTD 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: SHENZHEN JUNYE ELECTRONICS CO LTD Address: 2/F, Building 7, HYS industrial Park, Phoenix 4TH Community, Fuyong, Baoan, Shenzhen China Product Name: TWS EARBUDS WITH CHARGING BOX FCCID: 2BB3B-V40091W2 Model(s): V40091W 2.911(d)(5)(ii) Applicant filing We, [SHENZHEN JUNYE ELECTRONICS CO LTD] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: Yin jun Date: 2023/08/17 Title and Company name: Manager / SHENZHEN JUNYE ELECTRONICS CO LTD NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 SHENZHEN JUNYE ELECTRONICS CO LTD 2.911 (d)(5)(ii) Applicant Attestation v1.2 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

SHENZHEN JUNYE ELECTRONICS CO LTD U.S.Agent Designation for Service of Process (Applicant and U.S.Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Sakar International Inc. FRN: 0028102671 Contact Name: Sakar International Inc. Address: 195 Carter Drive • Edison, NJ 08817 Telephone No:8006371090 Email:[email protected] This letter is to confirm that we (“Sakar International Inc.) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date:2023.08.16 Signed by (Printed Name/Title):DAWN LEITAO TheApplicant acknowledges that they must maintain an agent for no less than and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S.Agent information above changes. Applicant Company name: SHENZHEN JUNYE ELECTRONICS CO LTD FCC ID: 2BB3B-V40091W2 Contact Name:Yin jun Address: 2/F, Building 7, HYS industrial Park, Phoenix 4TH Community, Fuyong, Baoan, Shenzhen China Telephone No: +86(0755) 2372 9964 Email: [email protected] Applicant Signature: Date: 2023-08-16 Signed by (Printed Name/Title): Yin jun/ Manager

SHENZHEN JUNYE ELECTRONICS CO LTD 2023.08.17 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: TWS EARBUDS WITH CHARGING BOX MODEL : V40091W FCC ID: 2BB3B-V40091W2 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the -Block Diagram -Schematics -Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Yin jun / Manager Contact information / address: 2/F, Building 7, HYS industrial Park, Phoenix 4TH Community, Fuyong, Baoan Shenzhen China

SHENZHEN JUNYE ELECTRONICS CO LTD 2023.08.17 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION EUT NAME: TWS EARBUDS WITH CHARGING BOX MODEL : V40091W FCC ID: 2BB3B-V40091W2 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Yin jun / Manager Contact information / address: 2/F, Building 7, HYS industrial Park, Phoenix 4TH Community, Fuyong, Baoan Shenzhen China

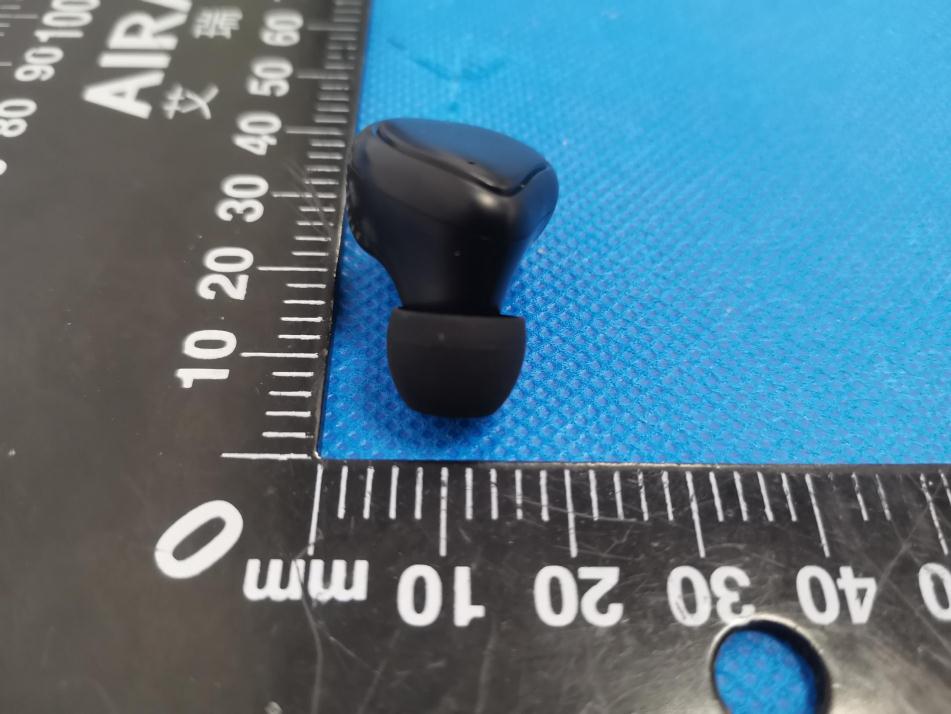

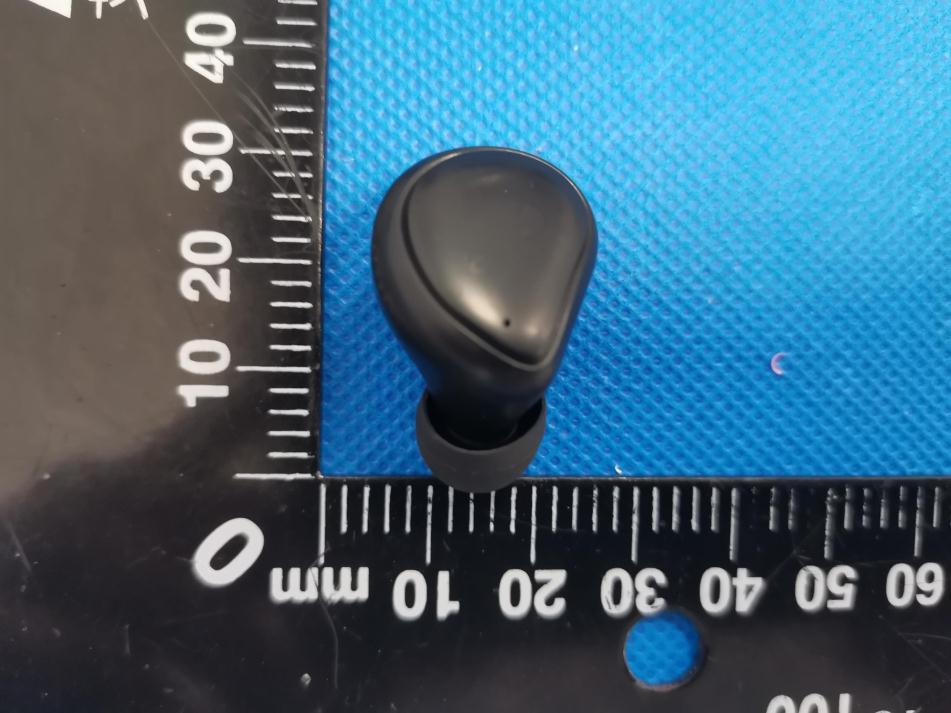

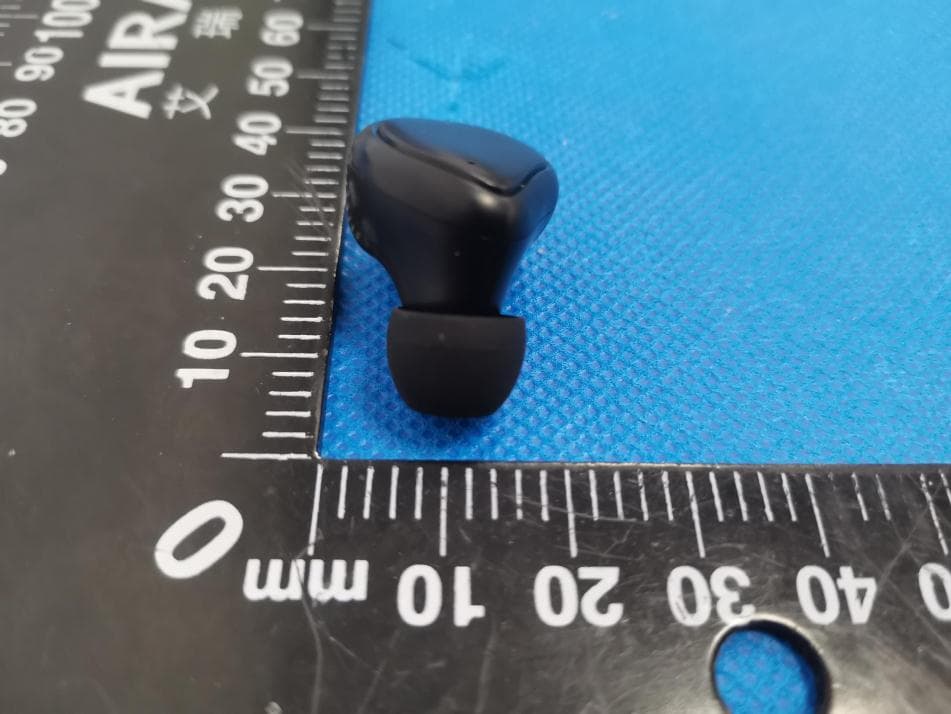

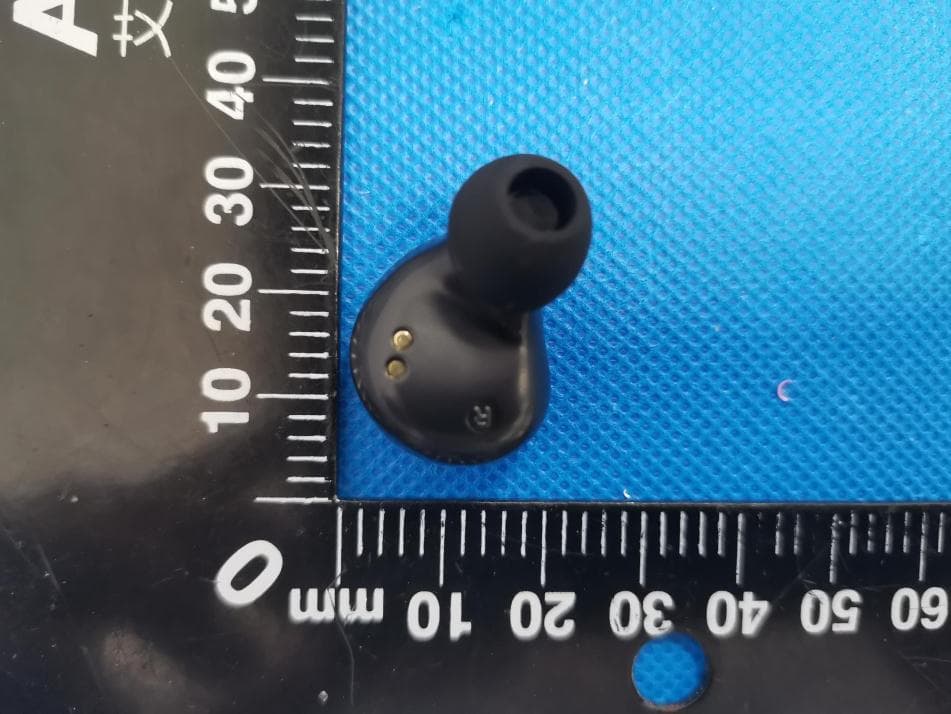

EUT EXTERNAL PHOTOGRAPHS EUT Photo 1 EUT Photo 2 EUT Photo 3 EUT Photo 4 EUT Photo 5 EUT Photo 6 EUT Photo 7 EUT Photo 8 ----------------The end----------------

Label Location Because the device is too small, the ID number cannot be printed on the headset, so it is printed on the manual.

EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 EUT Housing and Board View 3 EUT Housing and Board View 4 EUT Housing and Board View 6 EUT Housing and Board View 6 ----------------The end---------------- Antenna

FCC ID: 2BB3B-V40091W2 RF exposure evaluation According to§15.247(i), §1.1307 (b) and KDB447498, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The SAR-based exemption formula of §1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). F is in GHz, d is the separation distance (cm), and ERP20cm is per Formula (B.1). When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. We use 5mm as separation distance to calculate Antenna gain: 1.96 dBi Conducted Transmit Power Max: = -2.99dBm = 0.5 mW EIRP=-2.99dBm + 1.96 dBi=-1.03dBm ERP= -1.03-2.15dB= -3.18dBm The maximun ERP power specified is -4.82 dBm = 0.48mW The source- based time-averaging conducted output power =0.48 * Duty factor mW (where Duty Factor≤1) = 0.48 mW The SAR Exclusion Threshold Level: 푃 th (mW) = ERP 20cm * (푑/20cm) 푥 (X= ) = 2.72 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing.

Y36-Antenna Specification model number：BZ-08 Antenna typeBipolar Antennas Working Frequency2.4 ~ 2.5GHz Central Frequency2450MHz Gain 1.96 DBi Gain max 1.96 DBi Impedance50Ohm ManufactureHua Zicheng Technology Co., LTD AddressHua Zicheng Technology Co., LTD., 5th Floor, Building B, No.6, Dongcai Industrial Park, Gushu, Shenzhen 2400.000MHz 2400.000MHz E1 6 粤 110 到国 -1 \ ,240 ’5lt� 10 2450.000MHz 1 如气i匀 。 且9 l -0. 1 1.ti ,1 1 .5.1 .1.1 9.1 70 2400.000MHz H 2425.000MHz 2425.000MHz H 何才击 -.J l O _2.0 J 四 s w ' r 荣 、 · r o 工 人 。 - . u: J 午1 总豆豆 记 m $知 ζ 旷 /2 10 ,na•u- �'l 2425.000MHz E1 2425.000MHz E2 呻0 J 田 ？ ;JOO B 尸 m ’而,10 在40 t 部乒乓川 ，。 2450.000MHz H 1�. 1 斗叩二 剑 。 2450.000MHz E2 h立击叫 ， ， 。 ＼ . ,JOO 70 1 'fu.-L 」 ν 剑。

No.：BCTC/RF-EMC-005 Page: 1 of 65 Edition：B.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2308604719E Applicant: SHENZHEN JUNYE ELECTRONICS CO LTD Product Name: TWS EARBUDS WITH CHARGING BOX Model/Type Reference: V40091W Tested Date: 2023-07-12 to 2023-08-04 Issued Date: 2023-08-30 Report No.:BCTC2308604719E No.：BCTC/RF-EMC-005 Page: 2 of 65 Edition：B.0 FCC ID: 2BB3B-V40091W2 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: TWS EARBUDS WITH CHARGING BOX Trademark: N/A Model/Type Reference: Prepared For: Address: Manufacturer: Address: Prepared By: Address: Sample Received Date: Sample Tested Date: Issue Date: Report No.: V40091W SHENZHEN JUNYE ELECTRONICS CO LTD 2/F, Building 7, HYS industrial Park, Phoenix 4TH Community, Fuyong, Baoan, Shenzhen China SHENZHEN JUNYE ELECTRONICS CO LTD 2/F, Building 7, HYS industrial Park, Phoenix 4TH Community, Fuyong, Baoan, Shenzhen China Shenzhen BCTC Testing Co., Ltd . 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China 2023-07-12 2023-07-12 to 2023-08-04 2023-08-30 BCTC2308604719E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.:BCTC2308604719E No.：BCTC/RF-EMC-005 Page: 3 of 65 Edition：B.0 Table of Content Test Report Declaration Page 1.Version .................................................................................................................. 5 2.Test Summary ....................................................................................................... 6 3.Measurement Uncertainty ..................................................................................... 7 4.Product Information and Test Setup ...................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5.Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6.Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7.Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 20 8.Radiated Band Emission Measurement and Restricted Bands of Operation ...... 24 8.1 Block Diagram Of Test Setup .............................................................................. 24 8.2 Limit .................................................................................................................... 24 8.3 Test procedure .................................................................................................... 25 8.4 EUT operating Conditions ................................................................................... 25 8.5 Test Result .......................................................................................................... 26 9.Spurious RF Conducted Emissions ..................................................................... 27 9.1 Block Diagram Of Test Setup .............................................................................. 27 9.2 Limit .................................................................................................................... 27 9.3 Test procedure .................................................................................................... 27 9.4 Test Result ..................................................................................…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1.1. Photos of Conducted Emission Measurement 1.2. Photos of Radiation Emission Measurement Spurious Emission Test Setup (Below 1GHz) Spurious Emission Test Setup (Above 1GHz) ----------------The end----------------
