2BB3B-V80015HPHEADPHONE

5 5 5 Long press to power on/off short press to increase the volume/long press for pre song Short press to decrease the volume/long press for next song Play/Pause short press to answer coming call, press 2 second for reject mode changement TF memory card sockel (less than 32G) indicator light/microphone Audio line socket Playing time about 6 hours about 2 hours Label This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC warning Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

SHENZHEN JUNYE ELECTRONICS CO LTD 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: SHENZHEN JUNYE ELECTRONICS CO LTD Address: 2/F, Building 7, HYS industrial Park, Phoenix 4TH Community, Fuyong, Baoan, Shenzhen China Product Name: HEADPHONE FCCID: 2BB3B-V80015HP Model(s): V80015BT-BLK-HP 2.911(d)(5)(i) EquipmentType We, [SHENZHEN JUNYE ELECTRONICS CO LTD] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Yin jun Date: 2023/09/12 Title and Company name: Manager / SHENZHEN JUNYE ELECTRONICS CO LTD NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

SHENZHEN JUNYE ELECTRONICS CO LTD 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: SHENZHEN JUNYE ELECTRONICS CO LTD Address: 2/F, Building 7, HYS industrial Park, Phoenix 4TH Community, Fuyong, Baoan, Shenzhen China Product Name: HEADPHONE FCCID: 2BB3B-V80015HP Model(s): V80015BT-BLK-HP 2.911(d)(5)(ii) Applicant filing We, [SHENZHEN JUNYE ELECTRONICS CO LTD] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: Yin jun Date: 2023/09/12 Title and Company name: Manager/ SHENZHEN JUNYE ELECTRONICS CO LTD NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

SHENZHEN JUNYE ELECTRONICS CO LTD U.S.Agent Designation for Service of Process (Applicant and U.S.Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland M ills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Sakar International Inc. FRN: 0028102671 Contact Name: Sakar International Inc. Address: 195 Carter Drive • Edison, NJ 08817 Telephone No: 8006371090 Email:[email protected] This letter is to confirm that we (“Sakar International Inc.) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date:2023-09-12 Signed by (Printed Name/Title):DAWN LEITAO The Applicant acknowledges that they must maintain an agent for no less than and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: SHENZHEN JUNYE ELECTRONICS CO LTD FCC ID: 2BB3B-V80015HP Contact Name: Yin jun Address: 2/F, Building 7, HYS industrial Park, Phoenix 4TH Community, Fuyong, Baoan, Shenzhen China Telephone No: +86(0755) 2372 9964 Email: [email protected] Applicant Signature: Date: 2023-09-12 Signed by (Printed Name/Title): Yin jun/ Manager

SHENZHEN JUNYE ELECTRONICS CO LTD 2023.09.12 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: HEADPHONE MODEL : V80015BT-BLK-HP FCC ID: 2BB3B-V80015HP To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Yin jun / Manager Contact information / address: 2/F, Building 7, HYS industrial Park, Phoenix 4TH Community, Fuyong, Baoan Shenzhen China

SHENZHEN JUNYE ELECTRONICS CO LTD 2023.09.12 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION Product Name: HEADPHONE FCCID: 2BB3B-V80015HP Model(s): V80015BT-BLK-HP To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Yin jun / Manager Contact information / address: 2/F, Building 7, HYS industrial Park, Phoenix 4TH Community, Fuyong, Baoan Shenzhen China

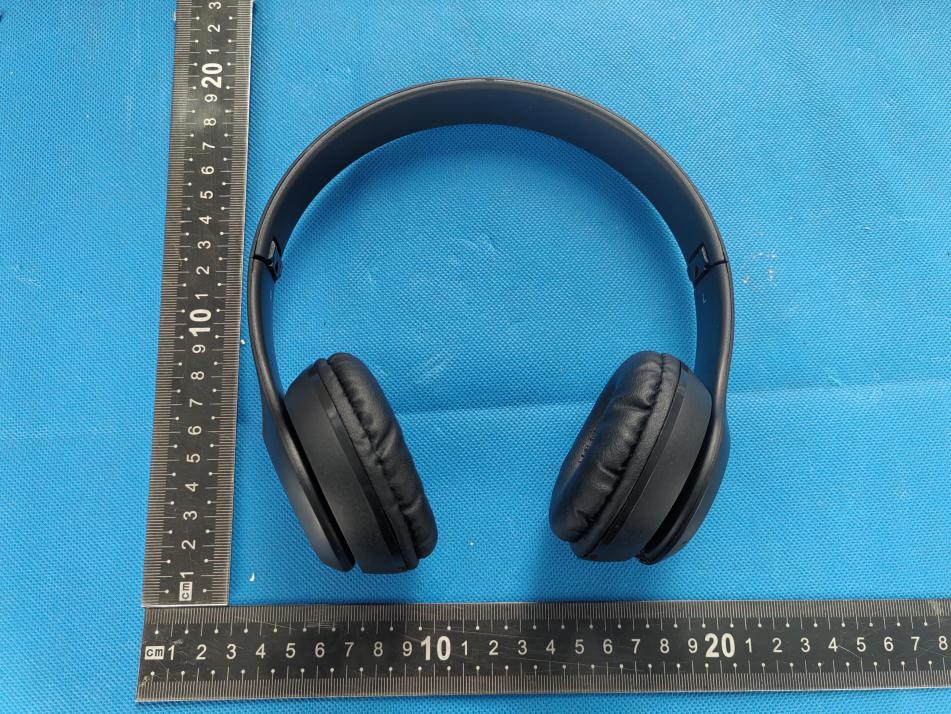

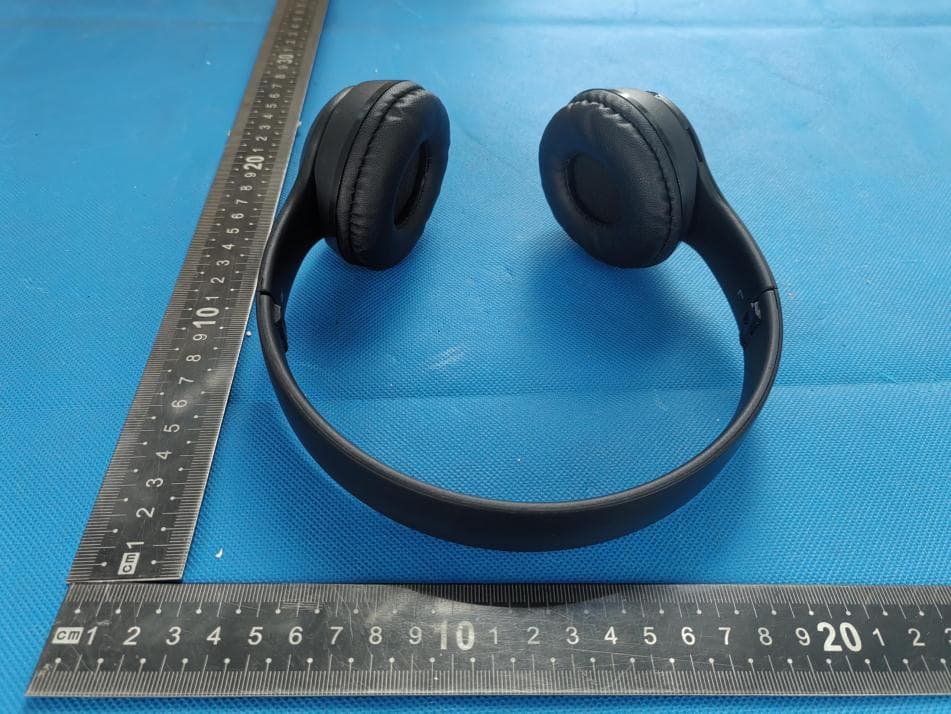

EUT EXTERNAL PHOTOGRAPHS EUT Photo 1 EUT Photo 2 EUT Photo 3 EUT Photo 4 EUT Photo 5 EUT Photo 6 ----------------The end----------------

Label Location label and label location

EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 EUT Housing and Board View 3 EUT Housing and Board View 4 EUT Housing and Board View 5 EUT Housing and Board View 6 EUT Housing and Board View 7 ----------------The end---------------- Antenna

FCC ID: 2BB3B-V80015HP RF exposure evaluation According to§15.247(i), §1.1307 (b) and KDB447498, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The SAR-based exemption formula of §1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). F is in GHz, d is the separation distance (cm), and ERP20cm is per Formula (B.1). When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. We use 5mm as separation distance to calculate Antenna gain: -0.58 dBi Conducted Transmit Power Max: = 2.52dBm = 1.79 mW EIRP=2.52dBm – 0.58 dBi=1.94dBm ERP= 1.94-2.15dB= -0.21dBm The maximun ERP power specified is -0.21 dBm = 0.95mW The source- based time-averaging conducted output power =0.95 * Duty factor mW (where Duty Factor≤1) = 0.95 mW The SAR Exclusion Threshold Level: 푃 th (mW) = ERP 20cm * (푑/20cm) 푥 (X= ) = 2.72 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing.

InvertedFAntennaSpecification Summary ITEMANTSPEC ModelName2.4GANT Center Frequency HorizontalVertical 2400MHz2400MHz2500MHz2400MHz2400MHz2500MHz -1.26-0.76-0.58-5.25-2.46-1.86 MAX.Gain-0.58dB PolarizationHorizontalandVertical AzimuthBeam Pattern Omni-directional Impedance50Ohm AntennaLength38.20mm ManufactureZHUHAIJIELITECHNOLOGYCO.,LTD Address ONEOFBSECTION,3/FOFBUILDINGA,NO.9PINGGONGWEST ROAD,NANPINGTECHNOLOGYINDUSTRIALPARK,ZHUHAI,CHINA AntennaPhoto&Length(mm) Horizontal:2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-40Scale:5/div Frequency (MHz) Gain(dB) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.585582-22.0315-6.59127 Vertical:2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-30Scale:5/div Frequency (MHz) Gain(dB) MaxMinAvg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432 ANTTestLabs：AttestationofGlobalComplianceCo.,Ltd.

No.：BCTC/RF-EMC-007 Page: 1 of 79 Edition：B.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2308760571E Applicant: SHENZHEN JUNYE ELECTRONICS CO LTD Product Name: HEADPHONE Model/Type Reference: V80015BT-BLK-HP Tested Date: 2023-08-21 to 2023-09-15 Issued Date: 2023-09-15 Report No.: BCTC2308760571E No.：BCTC/RF-EMC-007 Page: 2 of 79 Edition：B.0 FCC ID: 2BB3B-V80015HP The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: HEADPHONE Trademark: N/A Model/Type Reference: V80015BT-BLK-HP Prepared For: SHENZHEN JUNYE ELECTRONICS CO LTD Address: 2/F, Building 7, HYS industrial Park, Phoenix 4TH Community, Fuyong, Baoan Shenzhen China Manufacturer: SHENZHEN JUNYE ELECTRONICS CO LTD Address: 2/F, Building 7, HYS industrial Park, Phoenix 4TH Community, Fuyong, Baoan Shenzhen China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-08-21 Sample tested Date: 2023-08-21 to 2023-09-15 Issue Date: 2023-09-15 Report No.: BCTC2308760571E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Brave Zeng / Project Handler Zero Zhou/Reviewer Report No.: BCTC2308760571E No.：BCTC/RF-EMC-007 Page: 3 of 79 Edition：B.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 24 8.1 Block Diagram Of Test Setup .............................................................................. 24 8.2 Limit .................................................................................................................... 24 8.3 Test procedure .................................................................................................... 25 8.4 EUT operating Conditions ................................................................................... 25 8.5 Test Result .......................................................................................................... 26 9. Spurious RF Conducted Emissions ..................................................................... 27 9.1 Block Diagram Of Test Setup .............................................................................. 27 9.2 Limit .................................................................................................................... 27 9.3 Test procedure .................................................................................................... 27 9.4 Test Result ...............................................................................................…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1.1. Photos of Conducted Emission Measurement 1.2. Photos of Radiation Emission Measurement Spurious Emission Test Setup (Below 1GHz) Spurious Emission Test Setup (Above 1GHz) ----------------The end----------------
