M20 Astronaut DODO Smart Bluetooth Speaker We reserve all patents, trademarks, copyrights and other intellectual property rights If the product function parameters are changed without notice, the product is subject to the actual product Product parameters: Product name: Astronaut DODO smart bluetooth speaker Model: M20 Product material: ABS PC silicone Audio output power: 6W (RSM). Frequency response range: 50HZ-20KHZ Bluetooth version: Jie Li 5.1 + EDR FREQUENCY: 2.4-2.48GHZ Receiving distance: 5-15M Charging voltage: DC 5V1A Battery capacity: 1800mAh Color: milk tea white girl pink SPECIFICATIONS: 170*120*100MM Product features: AI voice intercom Bluetooth connection playback Bluetooth hands-free call clock display Alarm setting Night light TF card playback FM radio USB sound card Receiving distance: 5M-15M (barrier-free receiving distance, depending on the environment and equipment, the receiving distance is different.)) (Note: The above configuration data will be continuously improved according to the main control upgrade, and the specific content shall prevail) Packaging accessories Package contains: Astronaut DODO smart bluetooth speaker user manual 1 copy warranty card certificate 1 servings 1 high-speed TYPE-C-USB power cable Chapter 1: Product Function Key Description 1. Function key introduction and operation: M key on/off: Long press the M key to turn on, hear the boot prompt tone after the product boots, and default Bluetooth mode, Bluetooth search within 10 minutes do not pair the phone, Bluetooth will enter the low-power mode, you need to click the ,M key to activate the Bluetooth search status. Press and hold the M key to shut down M key on/off the surrounding light In power-on mode, double-click the M key to turn on/off the surrounding lights Clock setting key Long press the key to enter the clock adjustment, when the screen digital flashes, adjust the clock number by short press + or — keys, and then short press the key to enter the minute setting, short press+ + or — key to adjust the minute number, press and hold the key to confirm the setting. Alarm setting key Long press the key to enter the clock setting interface, and then short press (two buttons) to enter the alarm adjustment mode, the alarm symbol will flash, at this time the left clock number is flashing, by short press + or - keys to adjust the clock number addition and subtraction, and then short press /b16> button to jump to the right to adjust minute number addition and subtraction, long press the alarm button to confirm the setting. Alarm off setting: In the power on state, quickly double-click the alarm button, and the alarm icon disappears, that is, the alarm mode is turned off. (This product sets the alarm clock second wake-up function, when the alarm sounds, if you do not manually turn off the alarm will be 5, Again in minutes) +AND AFTER key Long press + key volume plus, long press - key volume down, short press - key- on the song. Short key + next song, press the + and - keys at the same time+ to switch between Chinese and English speech 2. TF card extended MP3 music playback The first step is to confirm that the memory card is 1-32G (the memory format is preferably FAT32-bit format, built-in is MP3 format songs) will TF The card is inserted into the card slot, and the turn on automatically recognizes and plays the song 3. Wireless Bluetooth playback: After booting, the state of not plugging in the TF card defaults to Bluetooth mode You can also manually switch to Bluetooth mode by pressing the M key shortly Connect: Turn on your phone and turn on the phone Bluetooth search and select the Bluetooth device "Astronaut DODO Smart Bluetooth Speaker." "Pairing, after successful pairing, a connection prompt tone will be emitted, indicating that Bluetooth has been successfully connected and music on the Bluetooth device can be played normally. 4. FM radio settings Short press the M key to switch to the radio mode, and then press (alarm clock key) to enter the FM automatic search station, automatically save the station after the search is completed, press the + key - key to select the radio station (Note: When the station cannot be found, please insert the charging cable, the charging cable is FM radio antenna to use). 5. TWS couplet mode: two boots at the same time, will automatically connect, successful connection will prompt (the box is connected). 6. Charging indicator: when charging, the battery icon is always on, fully charged, and the battery icon is off This product is an AI smart speaker, download Xiaoyun assistant APP, voice wake-up (hello, b20>Xiaoyun) can be intelligent chat and on-demand. Chapter 2: Operating Instructions Pay attention to the official account Please scan the QR code below with your mobile WeChat, follow the official account to view the tutorial and get the download APP address (register the username after downloading and allow all permissions that pop up). Follow the official account to view the tutorial1. Bluetooth connection and download APP Open the phone's Bluetooth, find the device with the name: "Astronaut DODO Smart Bluetooth Speaker" and connect Search for "Xiaoyun Assistant" in the mobile app store or scan the QR code above to follow the WeChat public account to view the tutorial and Get the download address (register the username after downloading and allow all permissions that pop up). 2. After opening the APP, wait for QQ Music authorization to jump (such as downloading QQ Music please download and log in first). 3. After entering the Xiaoyun Assistant APP, wake up "Hello, Xiaoyun," After Xiaoyun replies, you can say the songs and conversations you want to listen to Main Awakening Word Hello Xiaoyun Navigation Navigate to Happy Valley, Zoom In Map, Open Traffic Phone Call Mr. Li "Call 10086 listen to the music I want to listen to Jay Chou's song "Play" (about the promised happiness) Listen to online radio stations I want to listen to Guo Degang's program 'Pause playb…

Text truncated - open the document above for the full version.

Shenzhen Lanlang Innovation Technology Co., LTD (July 12, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Astronaut DODO Smart Bluetooth Speaker / M20/ FCC ID: 2BB3E-M20) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Hai hua wang Title: manager

Shenzhen Lanlang Innovation Technology Co., LTD (July 12, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Hai hua wang Title: manager

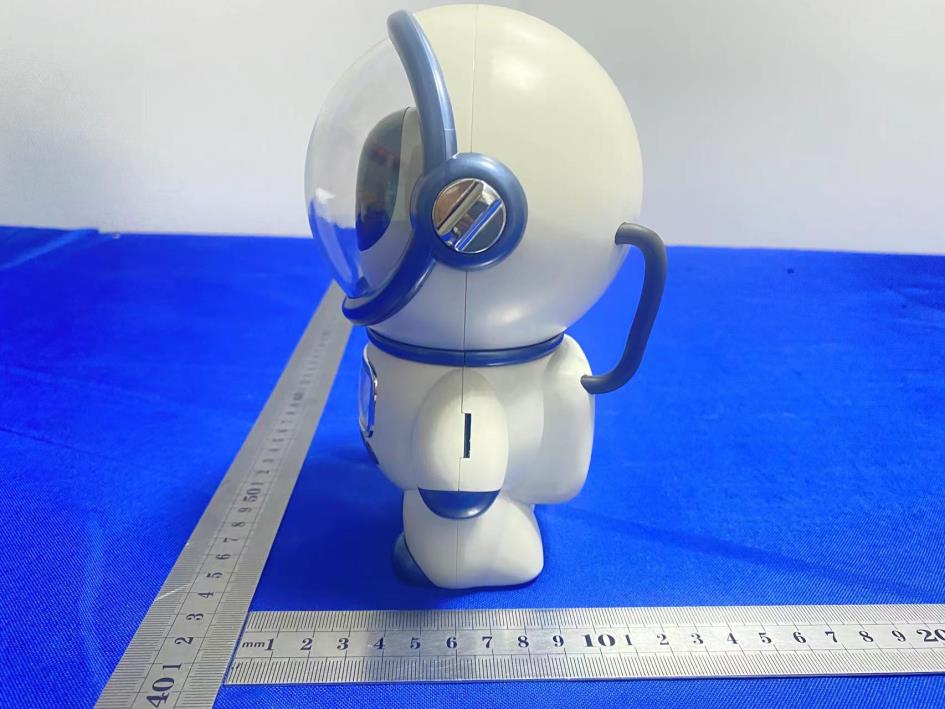

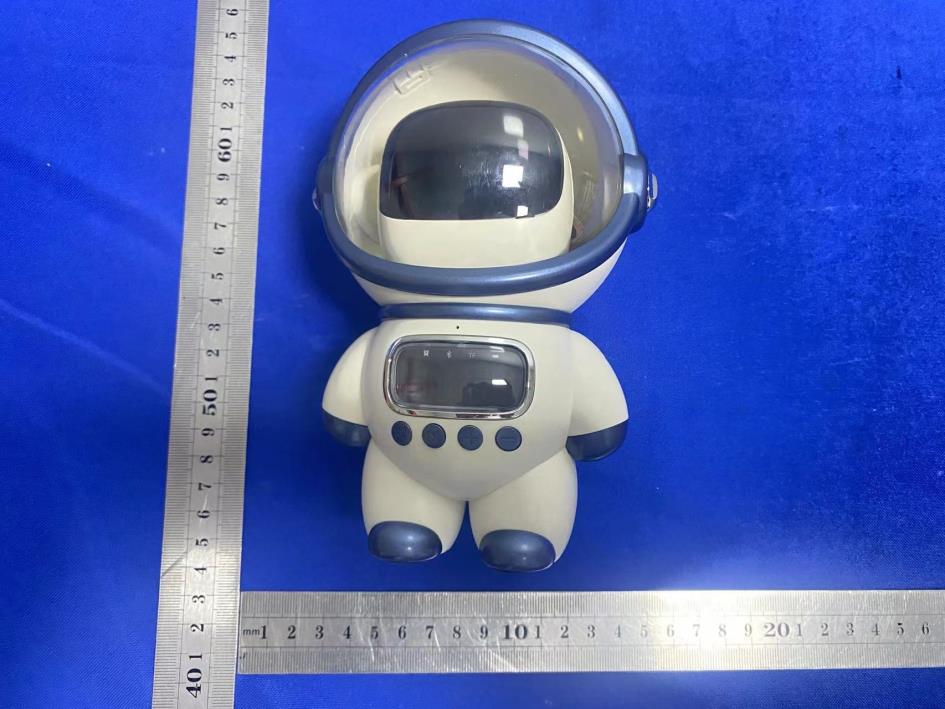

External Photos

FCC ID LABEL: Label Location: FCC ID: 2BB3E-M20 Model No.: M20 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Internal Photos ANT

Shenzhen CTB Testing Co., Ltd. FCC ID: 2BB3E-M20 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. EDR: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 -3.795 0.42 -3±1 -2.00 0.63 <5 0.19558 3.00 YES 2.441 -4.12 0.39 -4±1 -3.00 0.50 <5 0.15661 3.00 YES 2.480 -4.043 0.39 -4±1 -3.00 0.50 <5 0.15785 3.00 YES 2.402 -3.019 0.50 -3±1 -2.00 0.63 <5 0.19558 3.00 YES 2.441 -3.296 0.47 -3±1 -2.00 0.63 <5 0.19716 3.00 YES 2.480 -3.215 0.48 -3±1 -2.00 0.63 <5 0.19873 3.00 YES 2.402 -2.612 0.55 -2±1 -1.00 0.79 <5 0.24622 3.00 YES 2.441 -2.893 0.51 -2±1 -1.00 0.79 <5 0.24821 3.00 YES 2.480 -2.9 0.51 -2±1 -1.00 0.79 <5 0.25018 3.00 YES GFSK π /4DQPSK 8DQPSK Conclusion: For the max result : 0.25018≤ FCC Limit 3.0 for 1g SAR.

1 Bluetooth antenna specification 一、Antenna introduction The Bluetooth module antenna is directly used on the PCB board. 二、 Antenna configuration 2 三、Antenna parameter The Bluetooth antenna operates at 2402-2480 MHZ, and resonates in this band. The following table shows the main parameters of the antenna. PCB ANT Frequency(MHz)2402~ 2480MHz VSWR≤ 1.92 Impedance50 OhmNominal ReturnLoss-10dB Max RadiationOmni-directional Gain(Peak)1.08443dBi PolarizationLinear,Vertical AdmittedPower2W ConnectorTin 3 PKTestDate:June8,2013 Andy Temperature:28°C PASSHumidity:55% 四、Antenna gain detection report SpectrumDetector: Test By: Test Result: Modulation: GFSK FrequencyVNA (MHz) E Total.dB(dB) 2400MHz0.0403503 2410MHz0.0886264 2420MHz0.267381 2430MHz0.193012 2440MHz0.26366 2450MHz0.0723139 2460MHz0.36895 2470MHz0.551525 2480MHz0.640702 2490MHz1.05232 2500MHz1.08443 4 Direction map: PHI 0度 5 PHI90度 6 THETA90度 7 Standing wave ratio chart: Produc tDescription GSO UTECHNOLOGY(SHENZHEN)Co.,LTD. The EUT is a short range, lower power, Splash designed as a Device. It is designed by way of utilizin gth e GFSK ,1/4Π-DQPSKan d8DPS Kmodulationachievesth esyste moperating. Amajortechnicaldescriptionsof EUTi sdescribed asfollowing: A) .OperationFrequency:2402-2480MHz B) . Modulation:GFSK,1/4Π-DQPSK,8DPSK C) . Numberof Channel:79 D) .Channelspace :1MHz E) . RFOutputpower:0.44dbm F) .BI TRat eof Transmission:1Mbps,2Mbps ,3Mbps G). Antenna Type: PCB antenna H). Antenna GAIN:1.08443dBi

Shenzhen CTB Testing Technology Co., Ltd. Report No.:CTB230617019RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 58 TEST REPORT Compiled by: Reviewed by: Approved by: Chen Zheng Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Astronaut DODO Smart Bluetooth Speaker FCC ID: 2BB3E-M20 Trademark: 蓝朗 Model Number: M20 Prepared For: Shenzhen Lanlang Innovation Technology Co., LTD Address: Shenzhen Baoan District Songgang street Hongxing Community Songxin Road No. 35 Rishang factory Workshop No. 301 Manufacturer: Shenzhen Lanlang Innovation Technology Co., LTD Address: Shenzhen Baoan District Songgang street Hongxing Community Songxin Road No. 35 Rishang factory Workshop No. 301 Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Jun. 13, 2023 Sample tested Date: Jun. 13, 2023 to Jun. 17, 2023 Issue Date: Jun. 17, 2023 Report No.: CTB230617019RFX Test Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is Bluetooth radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.:CTB230617019RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 58 TABLE OF CONTENT Test Report Declaration Page 1. VERSION .......................................................................... 4 2. TEST SUMMARY ................................................................... 5 3. MEASUREMENT UNCERTAINTY ..................................................... 6 4. PRODUCT INFORMATION AND TEST SETUP .......................................... 7 4.1 Product Information .................................................................... 7 4.2 Test Setup Configuration ............................................................... 7 4.3 Support Equipment .................................................................... 7 4.4 Channel List .......................................................................... 8 4.5 Test Mode ............................................................................ 8 4.6 Test Environment ...................................................................... 8 5. TEST FACILITY AND TEST INSTRUMENT USED ....................................... 9 5.1 Test Facility ........................................................................... 9 5.2 Test Instrument Used .................................................................. 9 6. AC POWER LINE CONDUCTED EMISSION ............................................ 11 6.1 Block Diagram Of Test Setup .......................................................... 11 6.2 Limit ................................................................................ 11 6.3 Test procedure ....................................................................... 11 6.4 Test Result .......................................................................... 13 7. RADIATED SPURIOUS EMISSION ................................................... 15 7.1 Block Diagram Of Test Setup .......................................................... 15 7.2 Limit ................................................................................ 15 7.3 Test procedure ....................................................................... 16 7.4 Test Result .......................................................................... 17 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS .......................... 26 8.1 Block Diagram Of Test Setup .......................................................... 26 8.2 Limit ................................................................................ 26 8.3 Test procedure ....................................................................... 26 8.4 Test Result .......................................................................... 27 9. COUDUCTED PEAK OUTPUT POWER ............................................... 34 9.1 Block Diagram Of Test Setup .......................................................... 34 9.2 Limit ................................................................................ 34 9.3 Test procedure ....................................................................... 34 9.4 Test Result .......................................................................... 35 10. 20DB OCCUPIED BANDWIDTH...................................................... 39 10.1 Block Diagram Of Test Setup ......................................................... 39 10.2 Limit ............................................................................... 39 10.3 Test procedure ...................................................................... 39 10.4 Test Result ......................................................................... 39 11. CARRIERFREQUENCIES SEPARATION .............................................. 43 11.1 Block Diagram Of Test Setup ......................................................... 43 11.2 Limit ............................................................................... 43 11.3 Test procedure ...................................................................... 43 11.4 Test Result ......................................................................... 43 12. HOPPING CHANNEL NUMBER ...................................................... 47 12.1 Block Diagram Of Test Setup ..…

Text truncated - open the document above for the full version.

Radiated Emission Below 1G Above 1G Conducted emissions
