2BB4OKY-08Ky-08 Magic Crystal Keyboard

105G
     ­    €   ­‚   ƒ    „       ­  ­   … †         ƒ‡ ­   ­ˆˆ  1. 請確保鍵盤已成功連接到設備。 2. 單按背光按鍵 ，即可切換背光亮度。 3. 按背光按鍵 ＋上 或者下 按鍵， 即可切換 7 色背光。 4. 當電池電量低於 20% 時，背光燈會自動關閉。 返回首頁全選貼上上一首下一首音量調小鎖屏 “Bluetooth keyboard” 248.5mm 151*7mm 248.5mm 151*7mm ‰     ­  Š‹Œ Ž†­ ­     ‘Š‹Œ€Ž† €‘ Š‹Œ†Ž†  †  5 使用說明書 透明藍牙鍵盤 內容物 1. 透明鍵盤 * 1 2. 使用說明書 * 1 3. 合格證 * 1 4. Type-C充電線 * 1 鍵盤尺寸圖 操作說明 1. 打開鍵盤右上角開關至 "ON" 狀態，按旁邊的圖形 按鍵進入藍牙配對模式。（藍牙指示燈閃爍） 2. 打開平板設置，打開藍牙並找到 "Bluetooth key- board"，點擊即可連接。如出現隨機配對碼，請在鍵 盤上輸入並確認。 3. 此時鍵盤已成功配對，藍牙指示燈熄滅。 4. 鍵盤在十分鐘內無任何操作便會進入休眠模式，按任 意鍵喚醒。 5. 三個藍牙配對及切換方式如下： 長按 "Fn+1" 3 秒，指示燈閃爍，按照上述連接方式可 連接設備 1； 長按 "Fn+2" 3 秒，指示燈閃爍，按照上述連接方式可 連接設備 2； 長按 "Fn+3" 3 秒，指示燈閃爍，按照上述連接方式可 連接設備 3； 首次使用鍵盤時，請先為鍵盤充 3-4 小時的電以確保鍵 盤有充足的電。 搜尋複製剪下播放 / 暫停靜音音量調大刪除 鍵盤描述 背光說明 備註：只有在背光燈常亮的情況下 ，才能改變亮度與切換顏色。 5. 在開機且未連接任何設備時，鍵盤進入呼吸模 式，七色背光循環顯示。 6. 配對成功後，呼吸模式自動關閉，鍵盤沒有背 光燈。 7. 使用 FN+RGB 鍵可打開或關閉呼吸模式。 8. 使用 RGB 鍵可打開背光燈並切換背光亮度。 9. 使用 RGB 鍵＋上↑(PageUp) 或下↓(Page- Down) 可切換七色背光。 10. 當鍵盤閒置 10 分鐘時，進入休眠模式，此時 背光燈的狀態會被記錄下來。當喚醒鍵盤時，背 光燈會恢復休眠前的狀態。 11. 當鍵盤電池電量過低時，背光燈會自動關閉。 如自動關閉背光燈後，電量恢復後需手動打開背 光燈。 1. 首次使用時，請用配備的充電線為鍵盤充滿電。 ( 指示燈變綠色 ) 2. 當充電時，請檢查充電口是否正常供電。 為了讓您的鍵盤保持良好的外觀和工作狀態，請保持良好 的使用習慣，並注意保護鍵盤。 備註：請不要長時間為鍵盤充電。長時間插電會影響鍵盤電池壽命。 工作電壓 使用時長 待機電流 電池容量 按鍵壽命 連接距離 充電電流 回連時長 配對碼 按鍵數 3.0-4.2ｃV 背光 ≥5hours 不背光 ≥50 hours <1ma ≤10米 ≤250mA 2-3秒 無 78鍵 500mah 三百萬次 睡眠電流 工作電流 低電報警 待機時長 電池壽命 按鍵力度 充電接口 充電時長 喚醒時長 工作溫度 <40UA 背光 ≤85-120mA 不背光 ≤6-10mA 3.0-3.3V 50-70克 type-C 2-3 小時 ≤3秒 -10°C ~ 55°C ≤180天 2年 規格參數 充電說明 清潔與維護 規格參數 1. 此鍵盤較輕薄，請勿在不平整的表面上使用鍵盤，以免 造成鍵盤彎曲。 2. 請勿直接將液體塗抹在鍵盤上，以避免損壞。 鍵盤保養 電池保養 1. 鍵盤的工作溫度為 0°C 到 35°C，請勿將其暴露在陽光 下或放置在熱的車內，以避免電池受損。 2. 您可以隨時為電池充電，但不要長時間保持充電狀態， 以延長電池壽命。 故障排除 1. 為什麼我的智慧型手機/平板電腦無法在無線搜索屏幕中找到 鍵盤？ 請確保您已按下連接按鈕。您應該看到狀態 LED 呈藍色閃爍。 如果 LED 不閃爍，您的設備將找不到它。 2.為什麼我不能輸入西班牙語、日語或其他語言？ 語言輸入設置在您的平板電腦上。我們的鍵盤是標準的美國英 語，您會看到每個按鈕上只印有英文宇母。如果您的設備支持 西班牙語，鍵盤也可以輸入西班牙語，但位置或某些鍵可能不 同。 3.為什麼鍵盤配對後打不出來？ 請檢查您設備上的輸入設置，以確保所有設置都設置為開啟狀 態。如果沒有，請打開它們。 如果您遇到任何問題，請及時與我們聯繫，我們將盡快為您解決！ 5432 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) thi s device may not cause harmful interference, and (2) thi s device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance co ul d void the user's authority to operate the equipment. NOTE: This equipment has bee n tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed t o provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or r elocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be u sed in portable exposure condition without restriction

(Shenzhen Beiyang Technology Co., Ltd.) (July 26, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BB4OKY-08) [Shenzhen Beiyang Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) xiao jian (Shenzhen Beiyang Technology Co., Ltd.) (July 26, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BB4OKY-08) [Shenzhen Beiyang Technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) xiao jian

Shenzhen Beiyang Technology Co., Ltd. Model Difference Data：July 26, 2023 Product description: Ky-08 Magic Crystal Keyboard Model name: Ky-08, Ky-08Pro, Ky-09, Ky-09Pro, Ky-10, Ky-10Pro, Ky-11, Ky- 11Pro, Ky-12, Ky-12Pro Trade Name: N/A FCC ID: 2BB4OKY-08 All the model are the same circuit and RF module, except model names . Regards Sincerely Client’s signature : Client’s name / title : xiao jian（General MANAGER） Contact information / address：Floor 4-01, Weiyulongbuji Factory Building, No. 2016, Xuegang Road, Gangtou Community, Bantian Street, Longgang District, Shenzhen

Shenzhen Beiyang Technology Co., Ltd. (July 26, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Ky-08 Magic Crystal Keyboard / Ky-08, Ky-08Pro, Ky-09, Ky-09Pro, Ky-10, Ky-10Pro, Ky-11, Ky-11Pro, Ky-12, Ky-12Pro / FCC ID: 2BB4OKY-08 ) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: xiao jian Title: General MANAGER

Shenzhen Beiyang Technology Co., Ltd. (July 26, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: xiao jian Title: General MANAGER

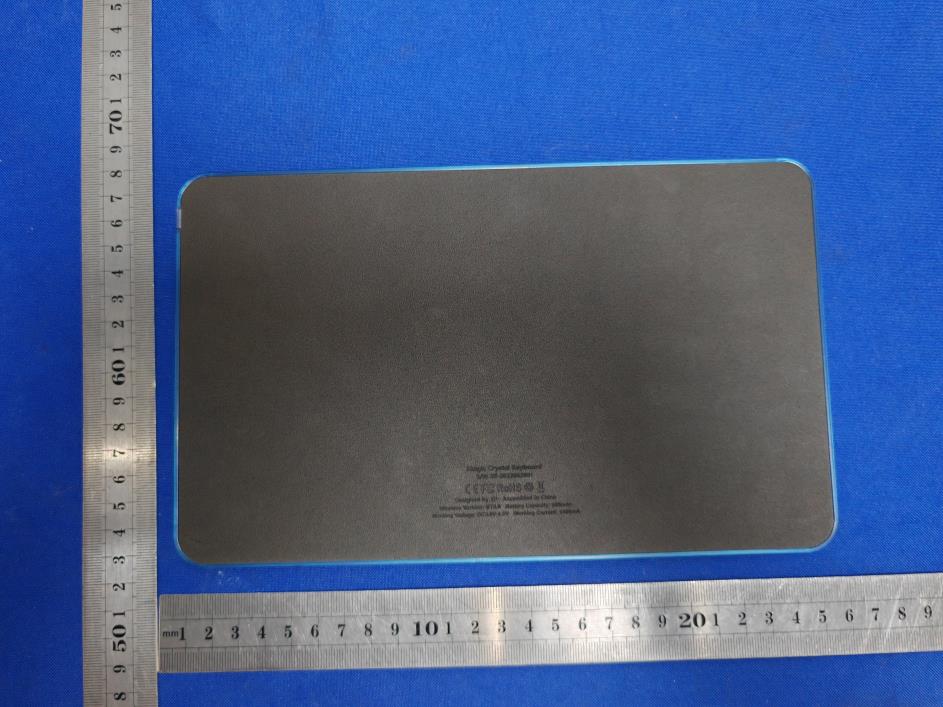

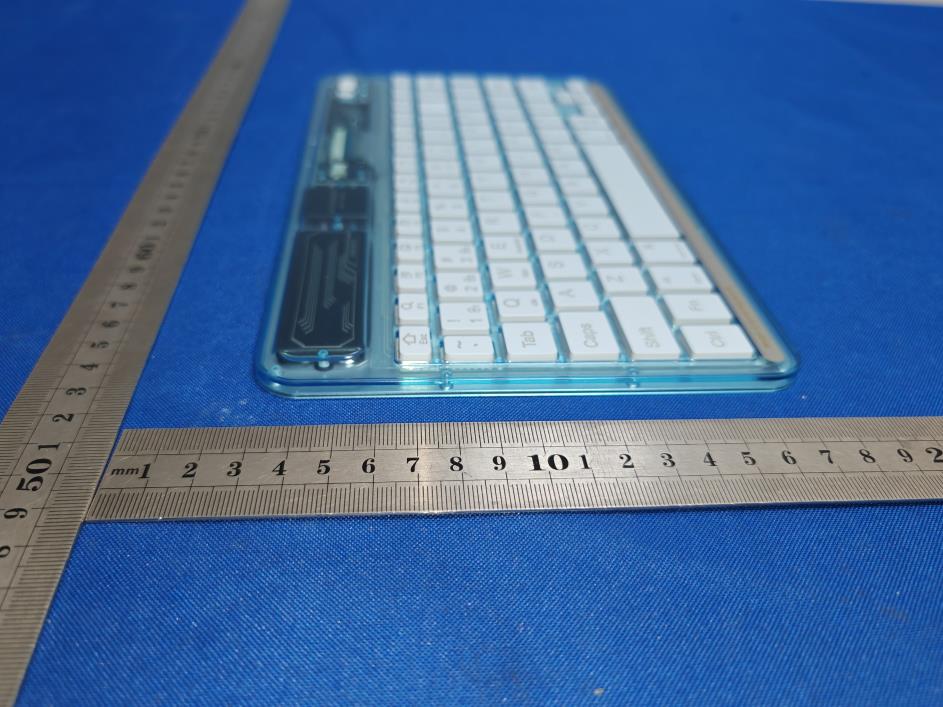

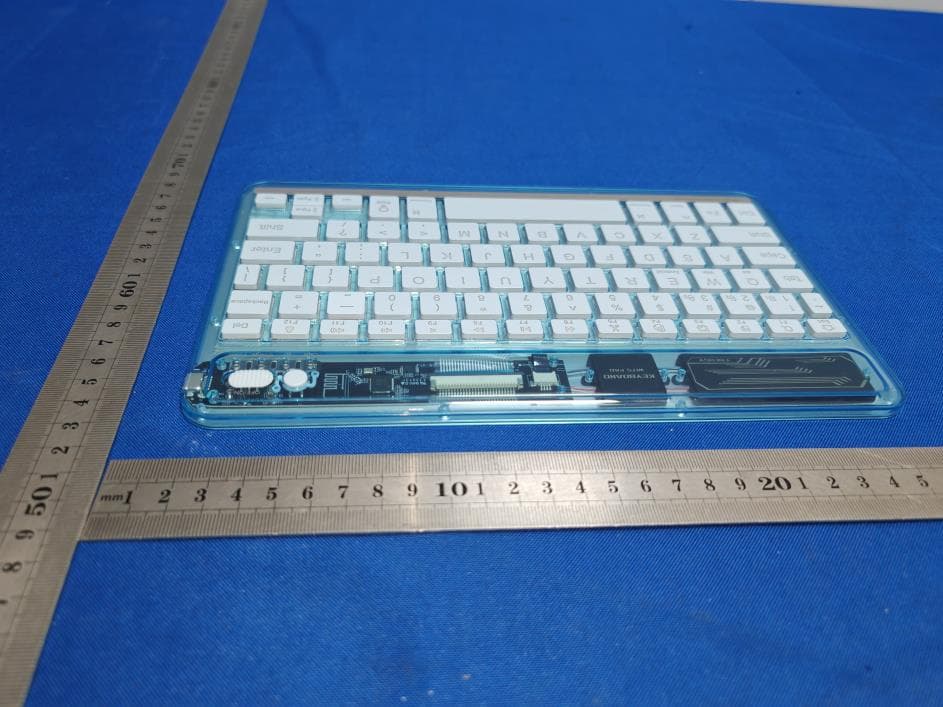

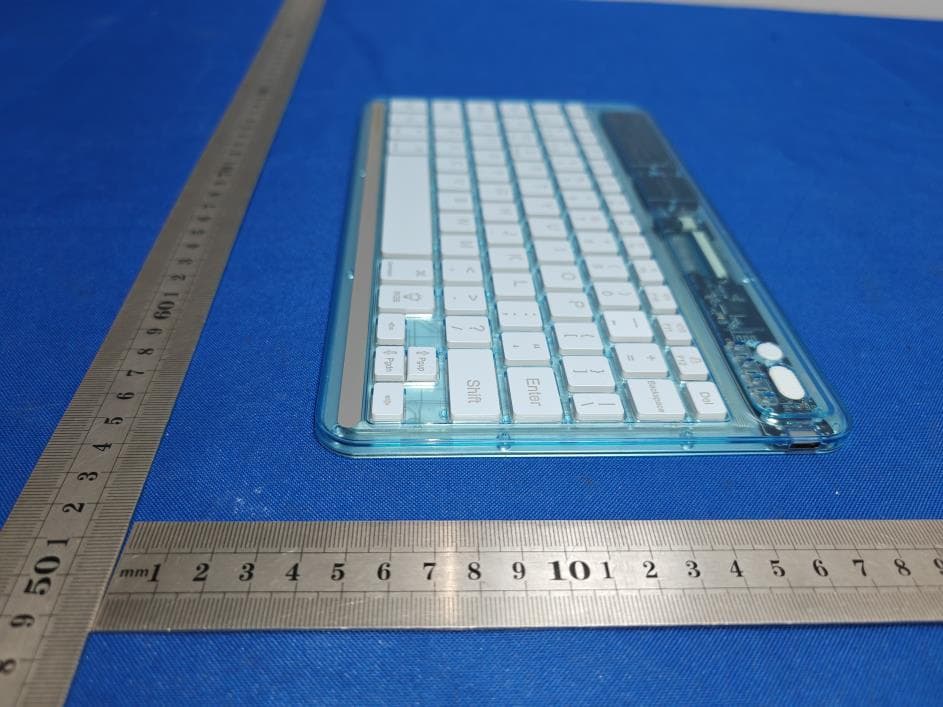

External Photos

FCC ID LABEL: Label Location: FCC ID: 2BB4OKY-08 Model No.: Ky-08 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Internal Photos ANT

Shenzhen CTB Testing Co., Ltd. FCC ID: 2BB4OKY-08 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 -2.632 0.55 -2±1 -1.00 0.79 <5 0.24622 3.00 YES 2.44 -3.024 0.50 -3±1 -2.00 0.63 <5 0.19712 3.00 YES 2.480 -4.166 0.38 -4±1 -3.00 0.50 <5 0.15785 3.00 YES GFSK Conclusion: For the max result : 0.24622≤ FCC Limit 3.0 for 1g SAR.

Summary InvertedFAntennaSpecification ITEMANT SPEC Model Name2.4G ANT Center Frequency HorizontalVertical 2400MHz 2400MHz 2500MHz 2400MHz 2400MHz 2500MHz -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain-0.58dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length38.20mm ManufactureZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) https://editor.foxitsoftware.cn?MD=shanchu Horizontal: 2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-40Scale:5/div Frequency (MHz) Gain(dBi) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.585582-22.0315-6.59127 Vertical: 2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-30Scale:5/div Frequency (MHz) Gain(dBi) MaxMinAvg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432 ANTTestLabs：AttestationofGlobalComplianceCo.,Ltd.

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230725001RFX Report Tel: 4008-707-283Web: http://www.ctb-lab.net Page 1 of 35 TEST REPORT Compiled by: Reviewed by: Approved by: Zhou Kui Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Ky-08 Magic Crystal Keyboard FCC ID: 2BB4OKY-08 Trademark: N/A Model Number: Ky-08, Ky-08Pro, Ky-09, Ky-09Pro, Ky-10, Ky-10Pro, Ky-11, Ky-11Pro, Ky-12, Ky-12Pro Prepared For: Shenzhen Beiyang Technology Co., Ltd. Address: Floor 4-01, Weiyulongbuji Factory Building, No. 2016, Xuegang Road, Gangtou Community, Bantian Street, Longgang District, Shenzhen Manufacturer: Shenzhen Beiyang Technology Co., Ltd. Address: Floor 4-01, Weiyulongbuji Factory Building, No. 2016, Xuegang Road, Gangtou Community, Bantian Street, Longgang District, Shenzhen Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Jul. 10, 2023 Sample tested Date: Jul. 10, 2023 to Jul. 25, 2023 Issue Date: Jul. 25, 2023 Report No.: CTB230725001RFX Test Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is Bluetooth radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230725001RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 35 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ........................................................................................................................................ 3 2. TEST SUMMARY ........................................................................................................................... 4 3. MEASUREMENT UNCERTAINTY ................................................................................................. 5 4. PRODUCT INFORMATION AND TEST SETUP ............................................................................ 6 4.1 Product Information .......................................................................................................................... 6 4.2 Test Setup Configuration .................................................................................................................. 6 4.3 Support Equipment........................................................................................................................... 6 4.4 Channel List ..................................................................................................................................... 7 4.5 Test Mode ........................................................................................................................................ 7 4.6 Test Environment ............................................................................................................................. 7 5. TEST FACILITY AND TEST INSTRUMENT USED ....................................................................... 8 5.1 Test Facility ...................................................................................................................................... 8 5.2 Test Instrument Used ....................................................................................................................... 8 6. AC POWER LINE CONDUCTED EMISSION ................................................................................ 10 6.1 Block Diagram Of Test Setup ......................................................................................................... 10 6.2 Limit ................................................................................................................................................ 10 6.3 Test procedure ............................................................................................................................... 10 6.4 Test Result ..................................................................................................................................... 12 7. RADIATED SPURIOUS EMISSION ............................................................................................. 14 7.1 Block Diagram Of Test Setup ......................................................................................................... 14 7.2 Limit ................................................................................................................................................ 14 7.3 Test procedure ............................................................................................................................... 15 7.4 Test Result ..................................................................................................................................... 16 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS ............................................... 23 8.1 Block Diagram Of Test Setup ......................................................................................................... 23 8.2 Limit ................................................................................................................................................ 23 8.3 Test procedure ............................................................................................................................... 23 8.4 Test Result .................................................................................................…

Text truncated - open the document above for the full version.

Radiated Emission Below 1G Above 1G Conducted emissions
